【Unity UGUI】Unity UGUI源码分析 Mask和RectMask2D分析和性能对比

一.前言

在Unity UGUI的性能优化中经常能看见，使用RectMask2D替换Mask，因为Mask会产生额外的Drwcall，而RectMask2D不会产生额外的Drwcall。但是RectMask2D的性能一定比Mask好吗？

二.Mask源码分析

public class Mask : UIBehaviour, ICanvasRaycastFilter, IMaterialModifier

Mask代码在190行左右。
Mask本身不具有绘制属性不继承Graphic，必须依赖带有Graphic的组件，节点如果没有如Image Text等组件Mask无法添加。
ICanvasRaycastFilter是表明Mask是射线可以投射的目标，ScreenPointToWorldPointInRectangle就是根据摄像机的位置和屏幕位置创建射线，根据RectTransform创建Plane，调用Plane.Raycast检测PM2.5与射线是否相交。

public static bool ScreenPointToWorldPointInRectangle(
      RectTransform rect,
      Vector2 screenPoint,
      Camera cam,
      out Vector3 worldPoint)
    {
      worldPoint = (Vector3) Vector2.zero;
      Ray ray = RectTransformUtility.ScreenPointToRay(cam, screenPoint);
      Plane plane = new Plane(rect.rotation * Vector3.back, rect.position);
      float enter = 0.0f;
      if ((double) Vector3.Dot(Vector3.Normalize(rect.position - ray.origin), plane.normal) != 0.0 && !plane.Raycast(ray, out enter))
        return false;
      worldPoint = ray.GetPoint(enter);
      return true;
    }

IMaterialModifier，得到修改的材质，在Canvas重绘时，如果Material是dirty会调用此方法更新材质，Mask实现的重点在GetModifiedMaterial上

Material GetModifiedMaterial(Material baseMaterial)

MaskEnabled()在获取材质之前确保物体active，有graphic渲染组件
FindRootSortOverrideCanvas找到节点上面最近是overrideSorting覆盖排序的的Canvas

public virtual Material GetModifiedMaterial(Material baseMaterial)
{
    if (!MaskEnabled())//MaskEnabled() { return IsActive() && graphic != null; }
        return baseMaterial;

    var rootSortCanvas = MaskUtilities.FindRootSortOverrideCanvas(transform);
    var stencilDepth = MaskUtilities.GetStencilDepth(transform, rootSortCanvas);
    if (stencilDepth >= 8)
    {
        Debug.LogWarning("Attempting to use a stencil mask with depth > 8", gameObject);
        return baseMaterial;
    }

GetStencilDepth()向上寻找Mask，stencilDepth=父节点上Mask的数量，如果stencilDepth>=8，由于模板测试的值在0-255之间
怎么让层与层之间做的遮罩效果？
对应一般的只有一个Mask的情况
maskMaterial会完全替代模板缓冲区的值，设置为1，根据是否显示遮罩图片决定是否进行颜色写入
unmaskMaterial 在其子节点渲染之后，设置模板值为0

int desiredStencilBit = 1 << stencilDepth;
// if we are at the first level...
// we want to destroy what is there
if (desiredStencilBit == 1)
{
    var maskMaterial = StencilMaterial.Add
    (baseMaterial, 1, StencilOp.Replace, CompareFunction.Always,
    m_ShowMaskGraphic ? ColorWriteMask.All : 0);
    StencilMaterial.Remove(m_MaskMaterial);
    m_MaskMaterial = maskMaterial;

    var unmaskMaterial = StencilMaterial.Add
    (baseMaterial, 1, StencilOp.Zero, CompareFunction.Always, 0);
    StencilMaterial.Remove(m_UnmaskMaterial);
    m_UnmaskMaterial = unmaskMaterial;
    graphic.canvasRenderer.popMaterialCount = 1;
    graphic.canvasRenderer.SetPopMaterial(m_UnmaskMaterial, 0);

    return m_MaskMaterial;
}

被Mask裁剪的图形MaskableGraphic实现了GetModifiedMaterial接口，MaskableGraphic的子类有Image，Text等
MaskUtilities.FindRootSortOverrideCanvas的节点的第一个带有Canvas且overrideSorting为true的父节点
GetModifiedMaterial根据深度创建材质设置模板值，(1 << m_StencilValue) - 1后面解析

public virtual Material GetModifiedMaterial(Material baseMaterial)
{
    var toUse = baseMaterial;
    if (m_ShouldRecalculateStencil)
    {
        if (maskable)
        {
            var rootCanvas = MaskUtilities.FindRootSortOverrideCanvas(transform);
            m_StencilValue = MaskUtilities.GetStencilDepth(transform, rootCanvas);
            //向上寻找Mask组件，返回深度
        }
        else
            m_StencilValue = 0;
        m_ShouldRecalculateStencil = false;
    }
    if (m_StencilValue > 0 && !isMaskingGraphic)
    {
        var maskMat = StencilMaterial.Add(toUse, (1 << m_StencilValue) - 1, StencilOp.Keep, CompareFunction.Equal, ColorWriteMask.All, (1 << m_StencilValue) - 1, 0);
        StencilMaterial.Remove(m_MaskMaterial);
        m_MaskMaterial = maskMat;
        toUse = m_MaskMaterial;
    }
    return toUse;
}

继续分析Mask的GetModifiedMaterial方法
模板测试过程，模板值stencilID与readMask做&运算，结果与缓冲区模板值根据比较规则比较，写入时stencilID与writeMask做&运算后才能进行写入，更新缓冲区模板值
第2层Mask
若stencilDepth为1，desiredStencilBit 为2
desiredStencilBit | (desiredStencilBit - 1)为 2|1=>10|01为3，模板值为3，和readMask desiredStencilBit - 1（1）做与运算结果为1，和之前的第1层Mask写入的1等于，替换，写入时模板值3与writeMask desiredStencilBit | (desiredStencilBit - 1)即3做与运算为3
第3层Mask
desiredStencilBit | (desiredStencilBit - 1)，若stencilDepth为2，desiredStencilBit 为4
desiredStencilBit | (desiredStencilBit - 1)为 4|3=>100|011为7，模板值为7，和readMask desiredStencilBit - 1（3）做与运算结果为3，和之前的第1层Mask写入的 3 相等，替换，写入时模板值7与writeMask desiredStencilBit | (desiredStencilBit - 1)即7做与运算为7
n层Mask
stencilID为2^n-1-1,与readMask后2^n-2-1(与上一层n-1写入的值2^n-2-1一致)，writeMask写入2^n-1-1

int desiredStencilBit = 1 << stencilDepth;
var maskMaterial2 =
StencilMaterial.Add(baseMaterial, desiredStencilBit | (desiredStencilBit - 1), StencilOp.Replace, CompareFunction.Equal, m_ShowMaskGraphic ? ColorWriteMask.All : 0, (readMask)desiredStencilBit - 1, (writeMask)desiredStencilBit | (desiredStencilBit - 1));
StencilMaterial.Remove(m_MaskMaterial);
m_MaskMaterial = maskMaterial2;

graphic.canvasRenderer.hasPopInstruction = true;
var unmaskMaterial2 =
StencilMaterial.Add(baseMaterial, desiredStencilBit - 1, StencilOp.Replace, CompareFunction.Equal,
 0, desiredStencilBit - 1, desiredStencilBit | (desiredStencilBit - 1));
 //mask的第2个材质，恢复之前的模板值
StencilMaterial.Remove(m_UnmaskMaterial);
m_UnmaskMaterial = unmaskMaterial2;
graphic.canvasRenderer.popMaterialCount = 1;
graphic.canvasRenderer.SetPopMaterial(m_UnmaskMaterial, 0);
return m_MaskMaterial;

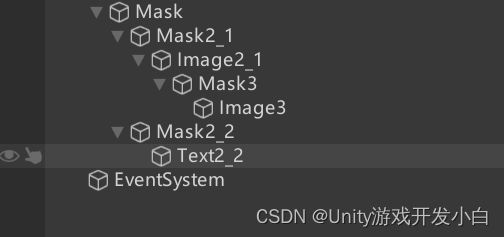

绘制顺序

第1Mask写入值为1，Mask1下的图形被裁剪,stencilID为1
第2层Mask2_1比较值为1，写入值为3，Mask2_1下的图形被裁剪，stencilID为3
第3层Mask3比较值为3，写入值为7，Mask3下的图形被裁剪，stencilID为5
深度迭代完成，向上执行回溯模板值
执行Mask3的第2个材质，写回之前的模板值3
执行Mask2_1的第2个材质，写回之前的模板值1
第2层Mask2_2比较值为1，写入值为3，Mask2下的图形被裁剪，模板值为3
执行Mask2_2的第2个材质，写回之前的模板值1
执行Mask的第2个材质，写回之前的模板值0
这样先执行Mask2_1对应区域模板值为3，Mask2_1下的图片裁剪，模板值回溯为1，
Mask2_2更改对应区域为3，Mask2_2下的图片裁剪
如果不回溯，Mask2_1对应区域模板值为3，接着Mask2_2对应区域模板值为3，那么Mask2_2图片会显示Mask2_1对应的区域

三.RectMask2D源码分析

基本原理
RectMask2D在C#层获取所有父节点的RectMask2D加入List，遍历数组得到canvasRect得到重叠的Rect传递给canvasRenderer.EnableRectClipping(rect),会将rect发生给顶点着色器，在片元着色器对片元根据Rect进行discard

public class RectMask2D : UIBehaviour, IClipper, ICanvasRaycastFilter

核心方法在PerformClipping

public virtual void PerformClipping()
{
    if (ReferenceEquals(Canvas, null))
    {
        return;//如果父节点上没有Canvas不执行
    }
    //TODO See if an IsActive() test would work well here or whether it might cause unexpected side effects (re case 776771)
    // if the parents are changed
    // or something similar we
    // do a recalculate here
    if (m_ShouldRecalculateClipRects)//应该重新收集裁剪矩形
    {
        MaskUtilities.GetRectMasksForClip(this, m_Clippers);//得到该节点的所有ClipRect
        m_ShouldRecalculateClipRects = false;//在有RectMask添加激活移除时会设置为true
    }
    // get the compound rects from
    // the clippers that are valid
    bool validRect = true;
    Rect clipRect = Clipping.FindCullAndClipWorldRect(m_Clippers, out validRect);
    //找到重叠公共的Rect范围，即Rect.Min的最大值，Rect.Max的最小值，组成新的Rect
    // If the mask is in ScreenSpaceOverlay/Camera render mode, its content is only rendered when its rect
    // overlaps that of the root canvas.
    RenderMode renderMode = Canvas.rootCanvas.renderMode;
    bool maskIsCulled =
        (renderMode == RenderMode.ScreenSpaceCamera || renderMode == RenderMode.ScreenSpaceOverlay) &&
        !clipRect.Overlaps(rootCanvasRect, true);//canvas为3d空间的不执行裁剪，且clipRect与该节点Rect重叠
    if (maskIsCulled)
    {
        clipRect = Rect.zero;
        validRect = false;
    }
    if (clipRect != m_LastClipRectCanvasSpace)//clipRect没有改变，不执行
    {
        foreach (IClippable clipTarget in m_ClipTargets)
        {
            clipTarget.SetClipRect(clipRect, validRect);//设置RectMask2D的裁剪范围
        }
        foreach (MaskableGraphic maskableTarget in m_MaskableTargets)
        {
            maskableTarget.SetClipRect(clipRect, validRect);
            //设置maskableTarget的裁剪范围，设置canvasRenderer.EnableRectClipping(clipRect)
            maskableTarget.Cull(clipRect, validRect);
         //public virtual void Cull(Rect clipRect, bool validRect)
         //{
         //   var cull = !validRect || !clipRect.Overlaps(rootCanvasRect, true);
         //每一个maskableTarget的Rect会与clipRect判断是否重叠
         //   UpdateCull(cull);//重绘给maskableTarget
         //  }
        }
    }
    else if (m_ForceClip)//添加删除RectMask2D强制更新
    {
        foreach (IClippable clipTarget in m_ClipTargets)
        {
            clipTarget.SetClipRect(clipRect, validRect);
        }

        foreach (MaskableGraphic maskableTarget in m_MaskableTargets)
        {
            maskableTarget.SetClipRect(clipRect, validRect);

            if (maskableTarget.canvasRenderer.hasMoved)
                maskableTarget.Cull(clipRect, validRect);
        }
    }
    else
    {
        foreach (MaskableGraphic maskableTarget in m_MaskableTargets)
        {
            //Case 1170399 - hasMoved is not a valid check when animating on pivot of the object
            maskableTarget.Cull(clipRect, validRect);
        }
    }
    m_LastClipRectCanvasSpace = clipRect;
    m_ForceClip = false;
}

canvasRenderer.cull物体是否被完全剔除，为true将不会创建UI网格
clipRect.Overlaps(rootCanvasRect, true)，clipRect和UI裁剪对象重叠，cull为false，不执行UpdateCull

public virtual void Cull(Rect clipRect, bool validRect)
{
    var cull = !validRect || !clipRect.Overlaps(rootCanvasRect, true);
    UpdateCull(cull);
}
private void UpdateCull(bool cull)
{
    if (canvasRenderer.cull != cull)
    {
        canvasRenderer.cull = cull;
        UISystemProfilerApi.AddMarker("MaskableGraphic.cullingChanged", this);
        m_OnCullStateChanged.Invoke(cull);
        OnCullingChanged();
    }
}

性能对比

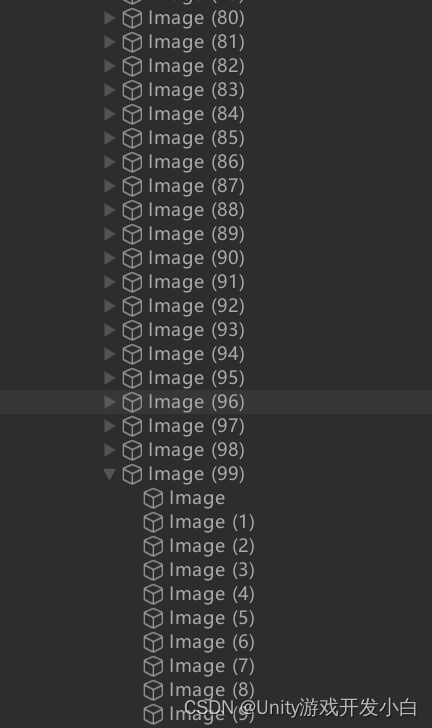

在滚动视图添加10×100=1000个图片

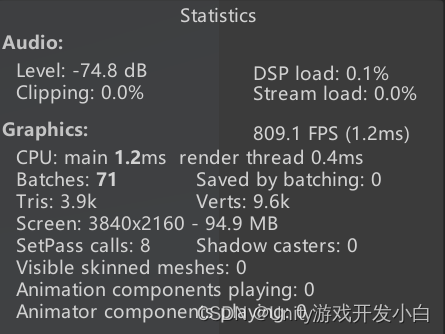

使用Mask的性能为

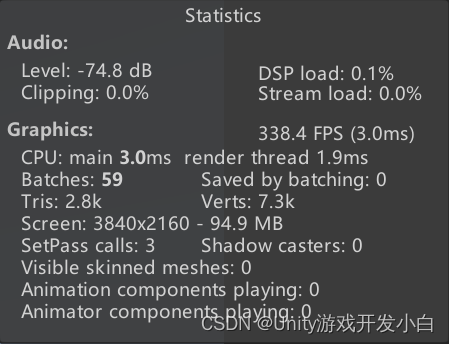

使用RectMask2D的性能为

如果滚动视图有多个渲染对象，推荐使用Mask
如果遮罩下有1-2个对象，可以使用RectMask2D
