在windows下的quartus 18.1 hls+vs2010

在windows下的quartus 18.1 hls+vs2010

1.工具选择

1.quartus 18.1(破解工具以及下载软件见如下链接链接:https://pan.baidu.com/s/1rqrPR2dHl-1W8S36YxjTkw 提取码:askg,亲测可以使用)

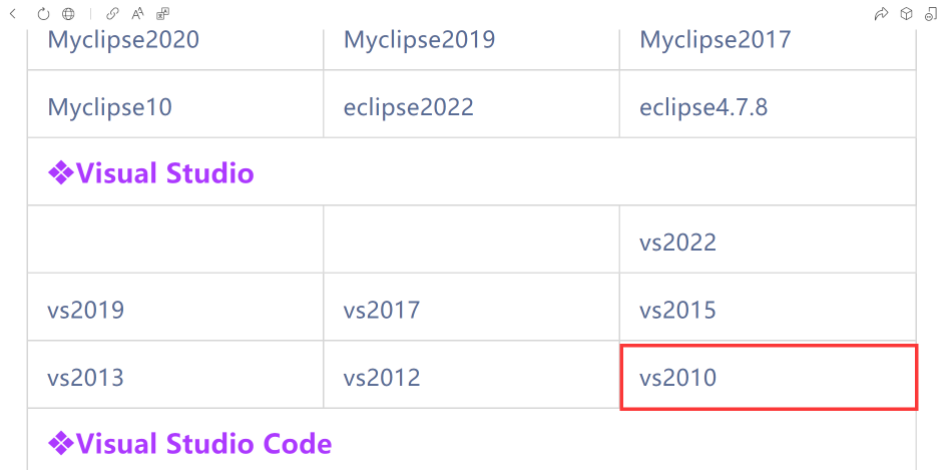

2.vs2010版本,vs2010可在微信公众号软件管家进行下载

在这里插入图片描述

2.环境搭建

2.1初始化

1.打开系统命令管理器cmd,定位到init_hls.bat的路径,并运行

d:
cd D:\intelFPGA\18.1\hls
init_hls.bat

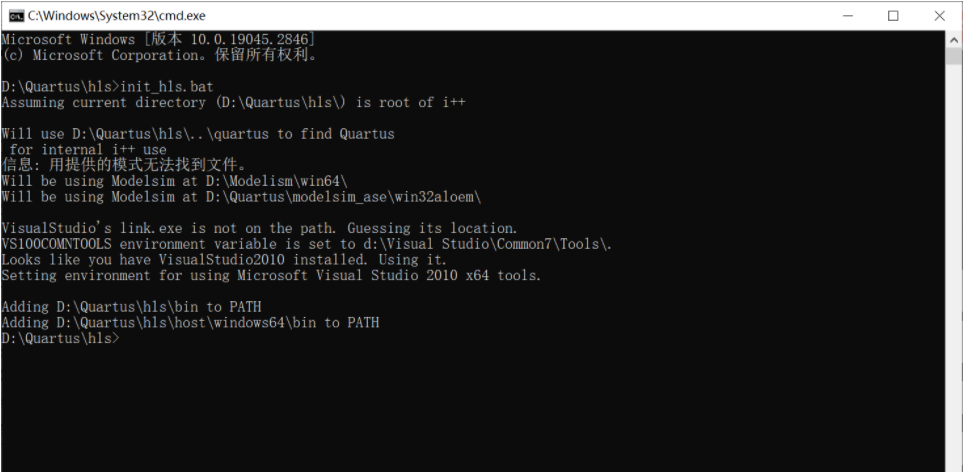

此时会提示vs的路径问题,不用担心,系统会自动添加所需要的路径

在这里插入图片描述

2.2编写测试文件

在桌面新建文件夹prj,创建text.cpp,编写如下乘法器代码:

#include “HLS/hls.h”
#include “stdio.h”

component int mul(int a,int b)
{
    int c =0;
    c = a*b;
    return c;
}
int main()
{
    int a=0,b=0,c=0,i=0;
    for(i=0;i<5;i++)
    {
        a= i+1;
        b= i+2;
        c = mul(a,b);
        printf("%d * %d = %d\n",a,b,c);
    }
    return 0;
}

2.3编辑测试文件

1.切换到刚刚新建的工程目录

c:
cd C:\Users\han\Desktop\prj
i++ -march=x86-64 -o mul.exe test.cpp 用于生成mul.exe文件

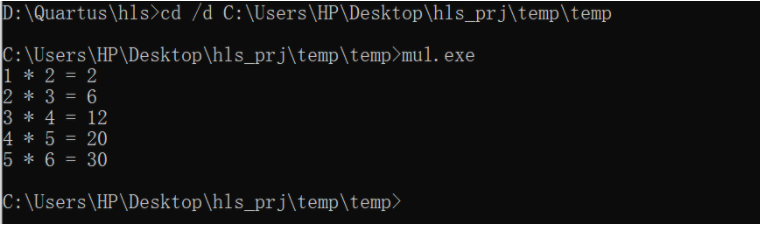

2.运行mul.exe文件

mul.exe

在这里插入图片描述

3.生成镜像文件

i++ -march=CycloneV -o mul test.cpp -ghdl

在这里插入图片描述

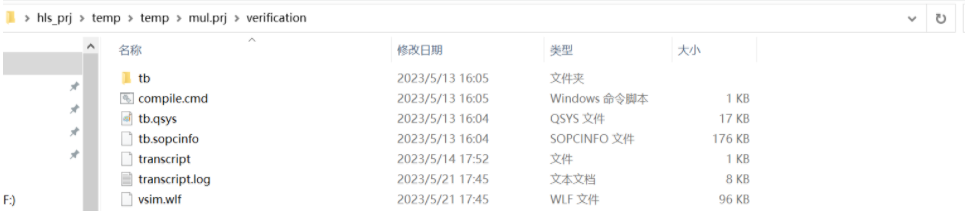

4.继续运行mul.exe文件,产生波形文件vsim.wlf

mul.exe

在这里插入图片描述

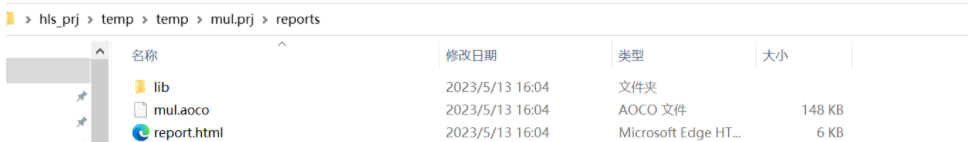

5.查看报告

在这里插入图片描述

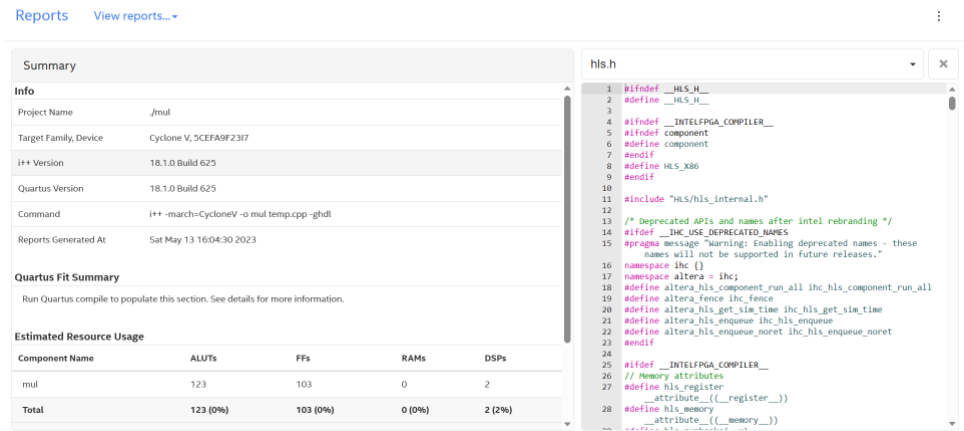

报告内容如下

在这里插入图片描述

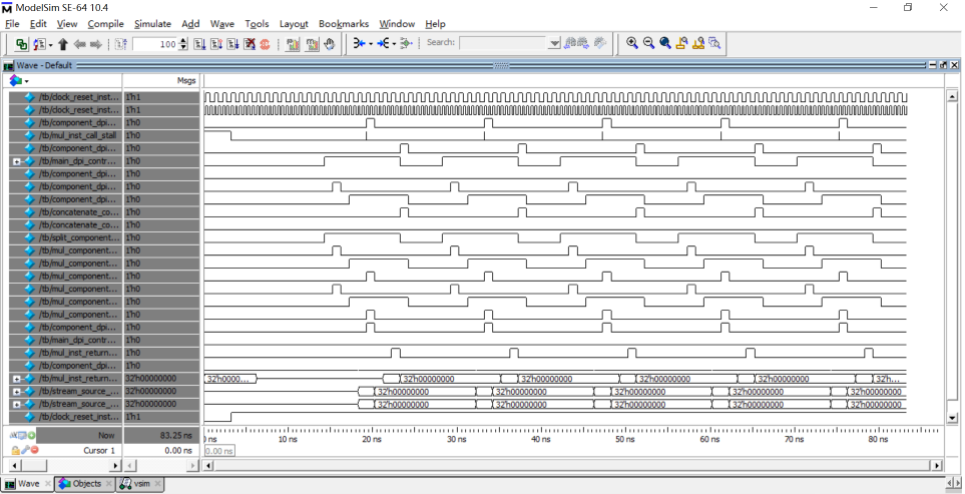

6、查看生成的波形文件

vsim vsim.wlf

在这里插入图片描述

在这里插入图片描述

3.导入自编辑IP核

将生成的 components 文件夹的路径导入到quartus中

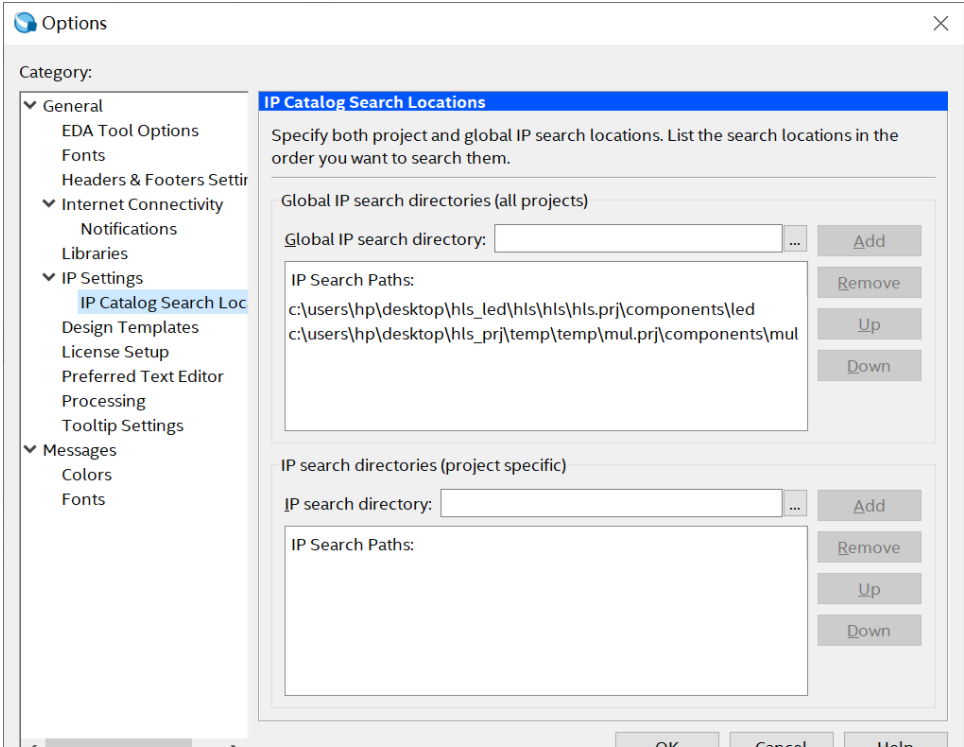

Tools–>Options–>IP Setting–>IP Catalog Search Locations

在这里插入图片描述

4.HLS-IP核的添加

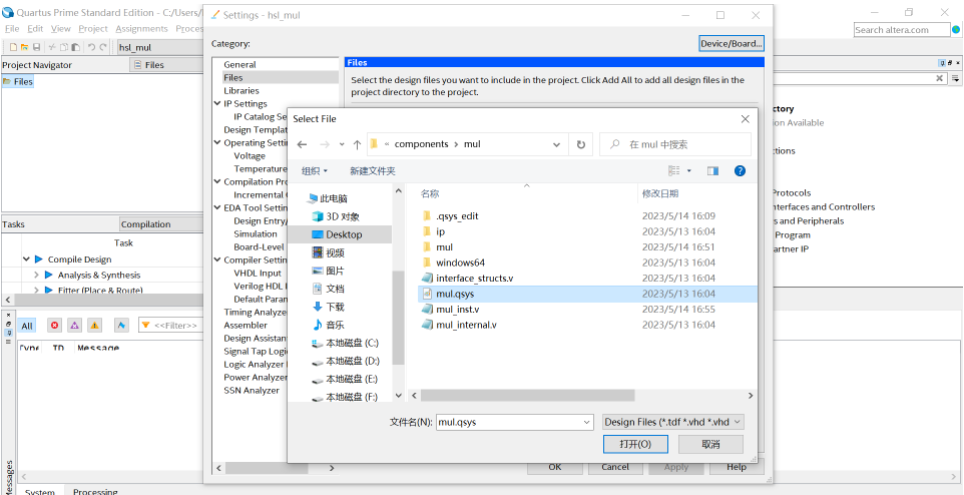

4.1添加生成的qsy文件

在这里插入图片描述

4.2HLS-IP核的添加

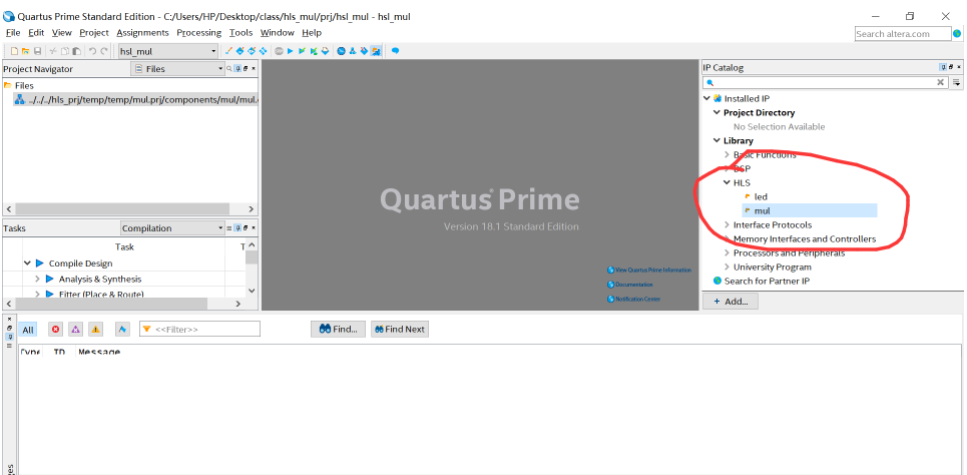

首先,找到已经添加的IP核

在这里插入图片描述

双击mul IP核

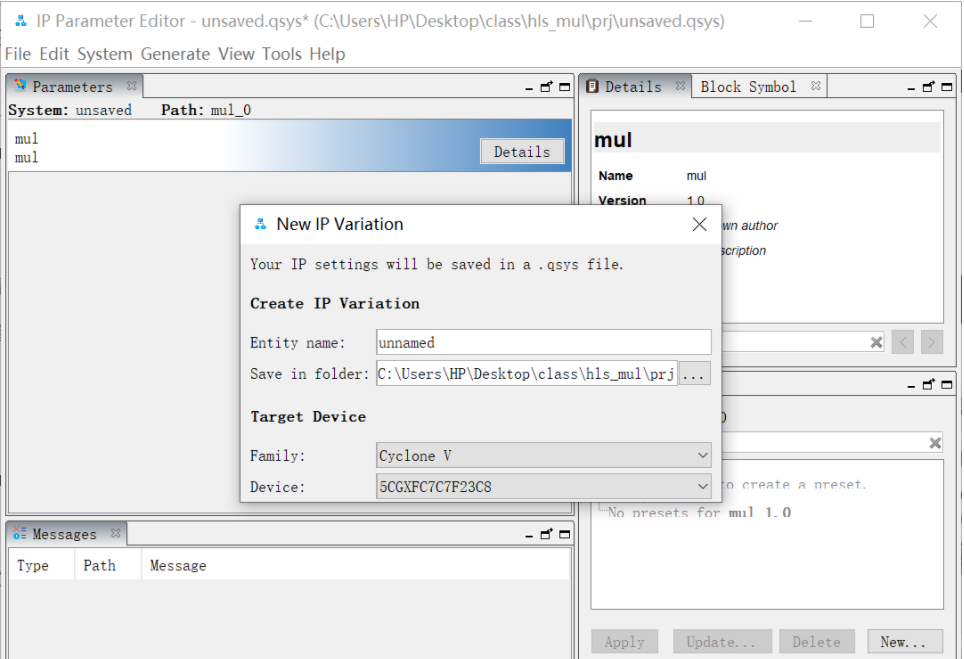

在弹出的框中,点击generate HDL

在这里插入图片描述

在弹出新的对话框,点击generate

在这里插入图片描述

一直点击退出,直到最后一层,点击finish。

5、模块例化

在之前创建的工程中,新建Verilog文件,命名为hls
双击之前打开的qsy文件

在这里插入图片描述

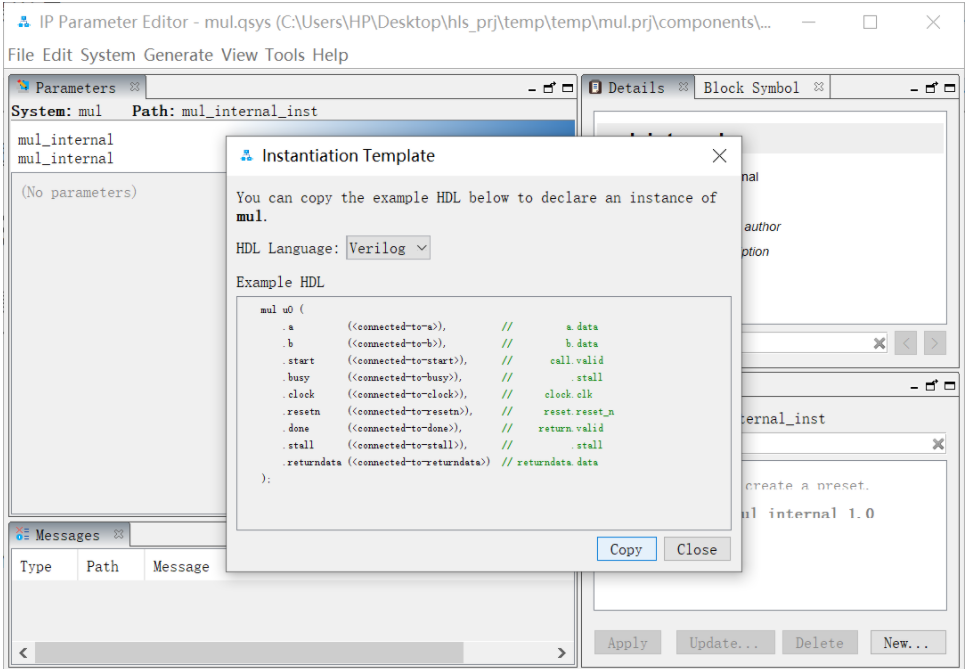

点击generate->Show instantination Template

在这里插入图片描述

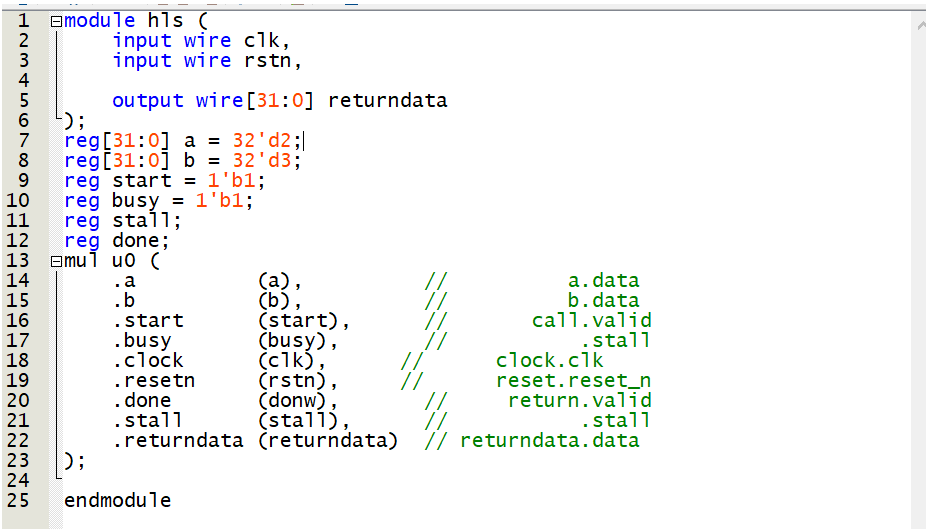

copy其中的内容加入到编写的hls.v文件中,并进行实例化

在这里插入图片描述

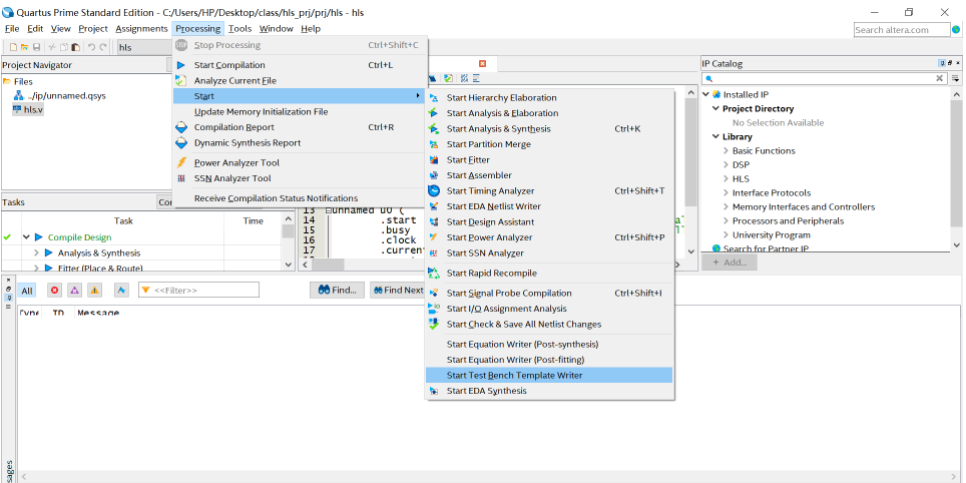

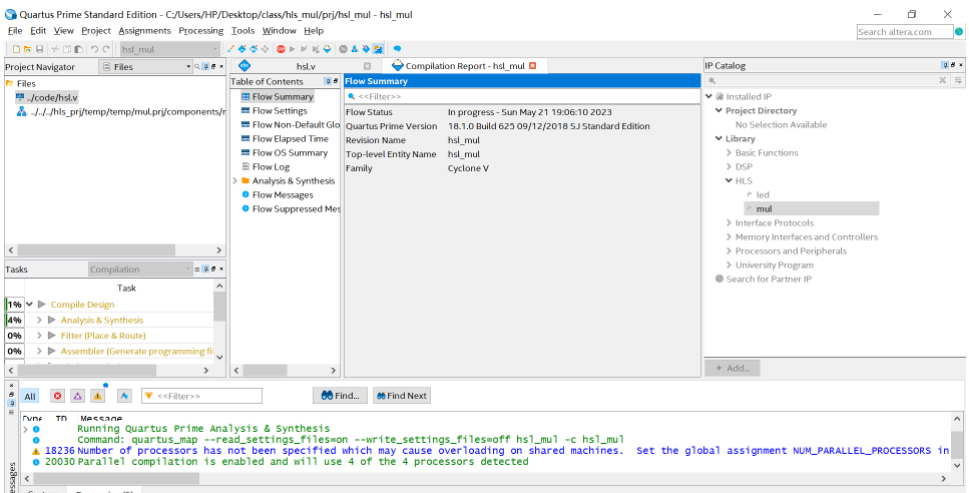

编译测试代码:双击Analysis & Synthesis

在这里插入图片描述

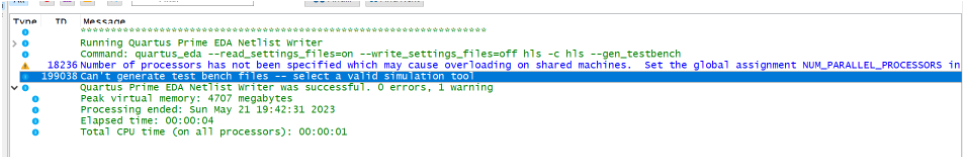

编译成功后,生成测试文件。

在这里插入图片描述

在这里插入图片描述

此时HLS工程创建完毕

5、实验总结

这次作业是hls相关的简单实验,通过这次实验的练习我收获了很多。

6、参考链接

https://blog.youkuaiyun.com/qq_52548731/article/details/130795962
