airsim\kalman无人机轨迹跟踪 学习笔记

API基本操作
文档整理
官网
pygame使用
b站视频

c++实现已放弃，通过python实现

#原参考代码
import setup_path
import airsim
import numpy as np
import os
import tempfile
import pprint
import cv2

# 连接直Airsim仿真器
client = airsim.MultirotorClient()
client.confirmConnection()
client.enableApiControl(True)
client.armDisarm(True)

state = client.getMultirotorState() # 获取无人机数据
imu_data = client.getImuData() # 获取IMU数据
barometer_data = client.getBarometerData() # 获取气压计数据
magnetometer_data = client.getMagnetometerData() # 获取磁力计数据
gps_data = client.getGpsData() # 获取GPS数据

# 起飞
airsim.wait_key('Press any key to takeoff')
client.takeoffAsync().join()
# 移动到某个位置
airsim.wait_key('Press any key to move vehicle to (-10, 10, -10) at 5 m/s')
client.moveToPositionAsync(-15, 70, -20, 5).join()

client.hoverAsync().join() # 悬停

# 采集图像
airsim.wait_key('Press any key to take images')
responses = client.simGetImages([
    airsim.ImageRequest("0", airsim.ImageType.DepthVis),  #depth visualization image
    airsim.ImageRequest("1", airsim.ImageType.DepthPerspective, True), #depth in perspective projection
    airsim.ImageRequest("1", airsim.ImageType.Scene), #scene vision image in png format
    airsim.ImageRequest("1", airsim.ImageType.Scene, False, False)])  #scene vision image in uncompressed RGBA array
print('Retrieved images: %d' % len(responses))

tmp_dir = os.path.join(tempfile.gettempdir(), "airsim_drone")
print ("Saving images to %s" % tmp_dir)
try:
    os.makedirs(tmp_dir)
except OSError:
    if not os.path.isdir(tmp_dir):
        raise

for idx, response in enumerate(responses):

    filename = os.path.join(tmp_dir, str(idx))

    if response.pixels_as_float:
        print("Type %d, size %d" % (response.image_type, len(response.image_data_float)))
        airsim.write_pfm(os.path.normpath(filename + '.pfm'), airsim.get_pfm_array(response))
    elif response.compress: #png format
        print("Type %d, size %d" % (response.image_type, len(response.image_data_uint8)))
        airsim.write_file(os.path.normpath(filename + '.png'), response.image_data_uint8)
    else: #uncompressed array
        print("Type %d, size %d" % (response.image_type, len(response.image_data_uint8)))
        img1d = np.fromstring(response.image_data_uint8, dtype=np.uint8) # get numpy array
        img_rgb = img1d.reshape(response.height, response.width, 3) # reshape array to 4 channel image array H X W X 3
        cv2.imwrite(os.path.normpath(filename + '.png'), img_rgb) # write to png

airsim.wait_key('Press any key to reset to original state')

client.armDisarm(False)
client.reset()
# that's enough fun for now. let's quit cleanly
client.enableApiControl(False)

轨迹预测算法

MPC
EKF

通过键盘控制场景中的无人机并绘制笔记

import sys
import time
import airsim
import pygame
import numpy as np
import asyncio
import csv

# 初始化Pygame
pygame.init()
screen = pygame.display.set_mode((800, 600))
pygame.display.set_caption('keyboard ctrl')
screen.fill((0, 0, 0))

# 连接直Airsim仿真器
#vehicle_name = "Drone"
AirSim_client = airsim.MultirotorClient()
AirSim_client.confirmConnection()
AirSim_client.enableApiControl(True)
AirSim_client.armDisarm(True)
AirSim_client.takeoffAsync().join()

# 基础的控制速度(m/s)
vehicle_velocity = 2.0
# 设置临时加速比例
speedup_ratio = 10.0
# 用来设置临时加速
speedup_flag = False

# 基础的偏航速率
vehicle_yaw_rate = 5.0

# 记录无人机的位置，用于绘制轨迹
trajectory = []
last_position = None

# 创建CSV文件并写入表头
with open('waypoints.csv', mode='w', newline='') as file:
    writer = csv.writer(file)
    writer.writerow(['x', 'y', 'z'])  # 表头

async def draw_trajectory():
    while True:
        if len(trajectory) > 1:
            AirSim_client.simPlotLineStrip(trajectory, color_rgba=[1.0, 0.0, 0.0, 1.0], thickness=10.0, is_persistent=True)
        await asyncio.sleep(1.2)  # 每1.2秒绘制一次


async def main():
    global last_position

    while True:
        yaw_rate = 0.0
        velocity_x = 0.0
        velocity_y = 0.0
        velocity_z = 0.0

        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                sys.exit()

        scan_wrapper = pygame.key.get_pressed()

        # 按下空格键加速10倍
        if scan_wrapper[pygame.K_SPACE]:
            scale_ratio = speedup_ratio
        else:
            scale_ratio = 1.0

        # 根据 'A' 和 'D' 按键来设置偏航速率变量
        if scan_wrapper[pygame.K_a] or scan_wrapper[pygame.K_d]:
            yaw_rate = (scan_wrapper[pygame.K_d] - scan_wrapper[pygame.K_a]) * scale_ratio * vehicle_yaw_rate

        # 根据 'UP' 和 'DOWN' 按键来设置pitch轴速度变量(NED坐标系，x为机头向前)
        if scan_wrapper[pygame.K_UP] or scan_wrapper[pygame.K_DOWN]:
            velocity_x = (scan_wrapper[pygame.K_UP] - scan_wrapper[pygame.K_DOWN]) * scale_ratio * vehicle_velocity

        # 根据 'LEFT' 和 'RIGHT' 按键来设置roll轴速度变量(NED坐标系，y为正右方)
        if scan_wrapper[pygame.K_LEFT] or scan_wrapper[pygame.K_RIGHT]:
            velocity_y = -(scan_wrapper[pygame.K_LEFT] - scan_wrapper[pygame.K_RIGHT]) * scale_ratio * vehicle_velocity

        # 根据 'W' 和 'S' 按键来设置z轴速度变量(NED坐标系，z轴向上为负)
        if scan_wrapper[pygame.K_w] or scan_wrapper[pygame.K_s]:
            velocity_z = -(scan_wrapper[pygame.K_w] - scan_wrapper[pygame.K_s]) * scale_ratio * vehicle_velocity

        # 设置速度控制以及设置偏航控制
        AirSim_client.moveByVelocityBodyFrameAsync(vx=velocity_x, vy=velocity_y, vz=velocity_z, duration=1,
                                                   yaw_mode=airsim.YawMode(True, yaw_or_rate=yaw_rate))#, vehicle_name=vehicle_name)

        # 获取无人机的位置并记录到轨迹中
        position = AirSim_client.getMultirotorState().kinematics_estimated.position
        #position = AirSim_client.getMultirotorState(vehicle_name=vehicle_name).kinematics_estimated.position
        current_position = airsim.Vector3r(position.x_val, position.y_val, position.z_val)

        # 仅在位置发生显著变化时记录点
        if last_position is None or (abs(current_position.x_val - last_position.x_val) > 0.1 or
                                     abs(current_position.y_val - last_position.y_val) > 0.1 or
                                     abs(current_position.z_val - last_position.z_val) > 0.1):
            trajectory.append(current_position)
            last_position = current_position

            # 将航点数据写入CSV文件
            with open('waypoints.csv', mode='a', newline='') as file:
                writer = csv.writer(file)
                writer.writerow([current_position.x_val, current_position.y_val, current_position.z_val])

        if scan_wrapper[pygame.K_ESCAPE]:
            pygame.quit()
            sys.exit()

        await asyncio.sleep(0.4)  # 每次循环等待400毫秒


# 启动异步绘制任务和主任务
loop = asyncio.get_event_loop()
loop.create_task(draw_trajectory())
loop.run_until_complete(main())

将airsim下载的场景（Africa）全屏更改为窗口

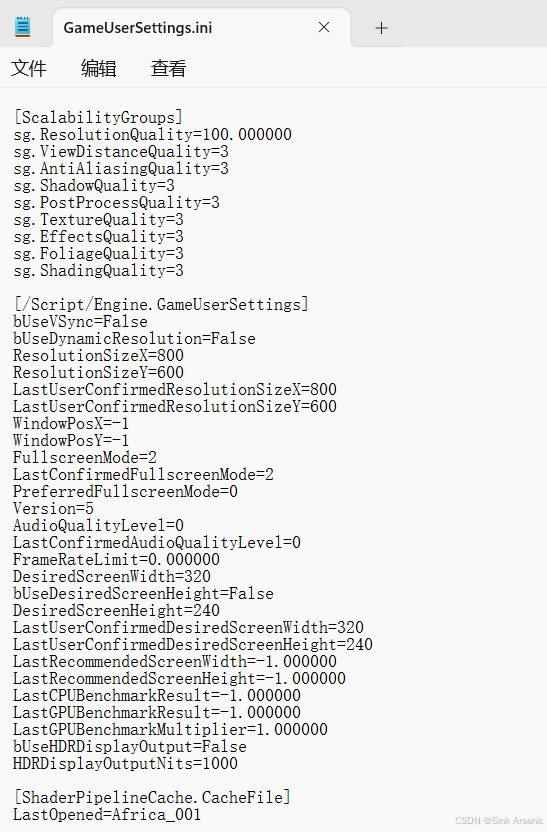

注意窗口化为FullscreenMode=2

git clone 报错fatal: could not create work tree dir ‘xxx’: Permission denied

developer command prompt报错，到相应目录下打开所有用户的所有权限。
