一、前言

工程达到ASPICE 1级以上后可以试着一个工程适配不同项目，此时面对不同项目将输出不同的软件版本，管理好版本输出显得尤为重要！

二、txt文本定义版本号

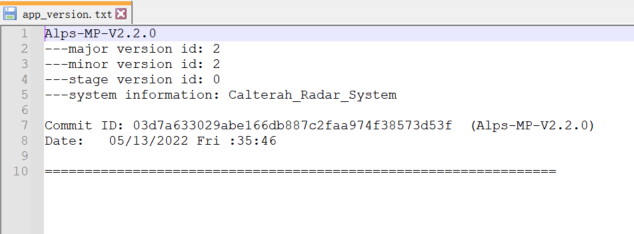

首先在不同的客户文件夹下建立app_version.txt，用于每次代码提交修改版本号

三、mk文件定义版本号

在mk文件中定义版本号，并通过宏定义传到编译参数命令行宏中

#version
APP_VERSION_STR_TMP ?= 2.3.0.0

ifeq ($(APP_VERSION_STR_TMP),)
APP_VERSION_STR_TMP = 1.0.0.0
endif

APP_VERSION_STR = \"$(strip $(APP_VERSION_STR_TMP))\"

COMPILE_OPT += -DAPP_VERSION=$(APP_VERSION_STR)

四、python提取版本号到mk

每次编译将txt中的版本提取到mk文件中：

import os

version_getFile = "app_version.txt"
cusGet_inputFile = "sdk_cr.mk"
version_setFile = "firm.mk"

def main():
    dirct = os.getcwd()
    #1.get custoemr
    if(os.path.exists(cusGet_inputFile)):
        with open(cusGet_inputFile,"r") as sdkCr_f:
            sdkCrCont = sdkCr_f.readlines()
            for str_line in sdkCrCont:
                if "FIRM_CUSTOMER" in str_line:
                    cusN = str_line[str_line.find("=")+1:].rstrip('\n')
                    customerName =  cusN.strip()
                    print('FIRM_CUSTOMER:%s'%customerName)
                    break
    else:
        print('%s not exit!'%cusGet_inputFile)
        return
    #2.get app version
    if customerName == "":
        print('CustomerName Empty Error!')
        return
    app_dir = dirct+"\\firm\\customer\\" + customerName +"\\"+version_getFile
    if(os.path.exists(app_dir)):
        with open(app_dir,"r") as v_f:
            vFile =  v_f.readlines()
            for str_line in vFile:
                if "major" in str_line:
                    v = str_line[str_line.find(":")+1:]
                    v1 = v.strip()
                elif "project" in str_line:
                    v = str_line[str_line.find(":")+1:]
                    v2 = v.strip()
                elif  "firmware" in str_line:
                    v = str_line[str_line.find(":")+1:]
                    v3 = v.strip()
                elif  "algorithm" in str_line:
                    v = str_line[str_line.find(":")+1:]
                    v4 = v.strip()
                    break;
                    #TODO:get commitID
                else:
                    continue;
    else:
        print('%s not exit!'%version_getFile)
        return

    #3.set version
    if v1 == "" or v2=="" or v3=="" or v4=="" :
        print('version number Empty Error!')
        return
    else:
        print("v%s.%s.%s.%s"%(v1,v2,v3,v4))
        firmMk_dir = dirct+"\\firm\\"+version_setFile
        if(os.path.exists(firmMk_dir)):
            datafile =  open(firmMk_dir,"r")
            lines = datafile.readlines()
            lines[1]= "APP_VERSION_STR_TMP ?= "+v1+"."+v2+"."+v3+"."+v4+"\n"
            datafile = open(firmMk_dir, "w")
            datafile.writelines(lines)
            datafile.close()
        else:
            print('%s not exit!'%version_setFile)


if __name__ == "__main__":
    main();

在mk文件中添加运行该python脚本的shell指令

$(shell python make_version.py);

五、代码初始化读取版本号

最后将字符串版本转换为16进制，传给对应的CAN报文，输出到CAN总线

uint8_t char2hex(uint8_t value)
{
	if(value >='0' && value <= '9')
	{
		return (value-'0');
	}
	else if(value >= 'A' && value <= 'F')
	{
		return (value-'A'+10);
	}
	else if(value >= 'a' && value <= 'f')
	{
		return (value-'a'+10);
	}
	else
	{
		return 0xFF;
	}
}
#if 0
/*app: A.B.C.D     boot: A.B.C*/
void fillABVersion(uint8_t* src,uint8_t* dst)
{
    for(int i=0,j=0;i<8;i++)
    {
    	if(src[i] == 0x2E)
    	{
    		continue;
    	}
    	else
    	{
    		dst[j++] = char2hex(src[i]);
    	}
    	if(j==sizeof(dst))
    		break;
    }
}
#else
/*app: AA.BB.CC.DD     boot: AA.BB.CC*/
void fillABVersion(uint8_t* src,uint8_t* dst)
{
	uint8_t highByte=0;
	uint8_t lowByte=0;
	uint8_t isOneWord = 1;
    for(int i=0,j=0;i<16;i++)
    {
    	if(src[i] == 0x2E || src[i] == 0)
    	{
    		dst[j++] = (highByte<<4) + (lowByte&0xF);
    		highByte=0;
    		lowByte=0;
    		isOneWord = 1;
    	}
    	else
    	{
    		if(isOneWord)
    		{
    			lowByte = char2hex(src[i]);
    			isOneWord = 0;
    		}
    		else
    		{
    			highByte = lowByte;
    			lowByte = char2hex(src[i]);
    			isOneWord = 1;
    		}
    	}
    	if(j==sizeof(dst))
    		break;
    }
}
#endif
void getFillCR_0x404Ver(struct bl_radar_can_version_t* dst)
{
    uint8_t appVer[12]={0};
    uint8_t bootVer[8]={0};
    uint8_t av[4]={0};
    uint8_t bv[3]={0};
    MemCpy(appVer, APP_VERSION, sizeof(APP_VERSION));
    nvm_getBootVersion(8, bootVer);
    fillABVersion(appVer,av);
    fillABVersion(bootVer,bv);
    dst->app_major_version = av[0];
    dst->app_minor_version  = av[1];
    dst->app_firmware_fix_version = av[2];
    dst->app_algo_fix_version = av[3];
    dst->boot_major_version = bv[0];
    dst->boot_minor_version = bv[1];
    dst->boot_firmware_fix_version = bv[2];
}
