C语言——移位操作符

【零天赋C语言】——详解操作符 一、算术操作符 除了 % 操作符之外,其他的几个操作符可以作用于整数和浮点数。 对于 / 操作符如果两个操作数都为整数,执行整数除法。而只要有浮点数执行的就是浮点数除法。 % 操作符的两个操作数必须为整数。返回的是整除之后的余数。 二、移位操作符 整数的二进制表示有三种方式: 原码 反码 补码 正数的原码、反码、补码相同; 负数的原码、反码、补码是需要计算的; 一、左移操作符 : << 移位规则:左边抛弃,右边补零 注:n向左移动一位之后,n的值并未发生.. 阅读详情

目录

左移操作符

右移操作符

算术右移

 逻辑右移

总结


内存中存储的是二进制的补码。

所以移位操作符是对二进制补码进行移位。

先以左移操作符为例:<<


左移操作符

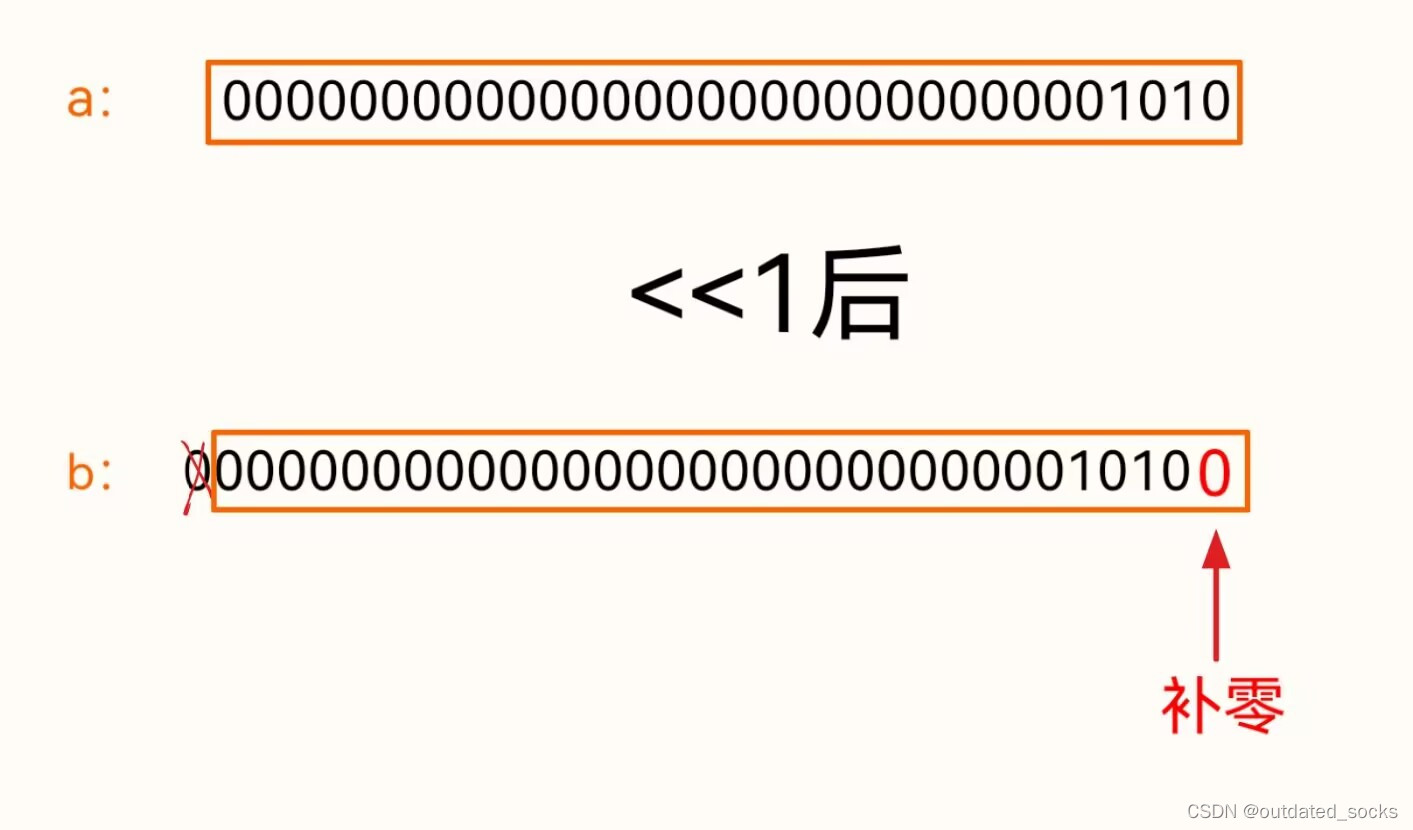

正数的情况:

#include<stdio.h>
int main()
{int a=10;
//00000000000000000000000000001010——补码  //正数原码反码补码相同
int b=a<<1;  //左移1
printf("%d\n",b);
printf("%d\n",a);
return 0;
}

过程:结果:

注意:在此过程中,a并没有变化。

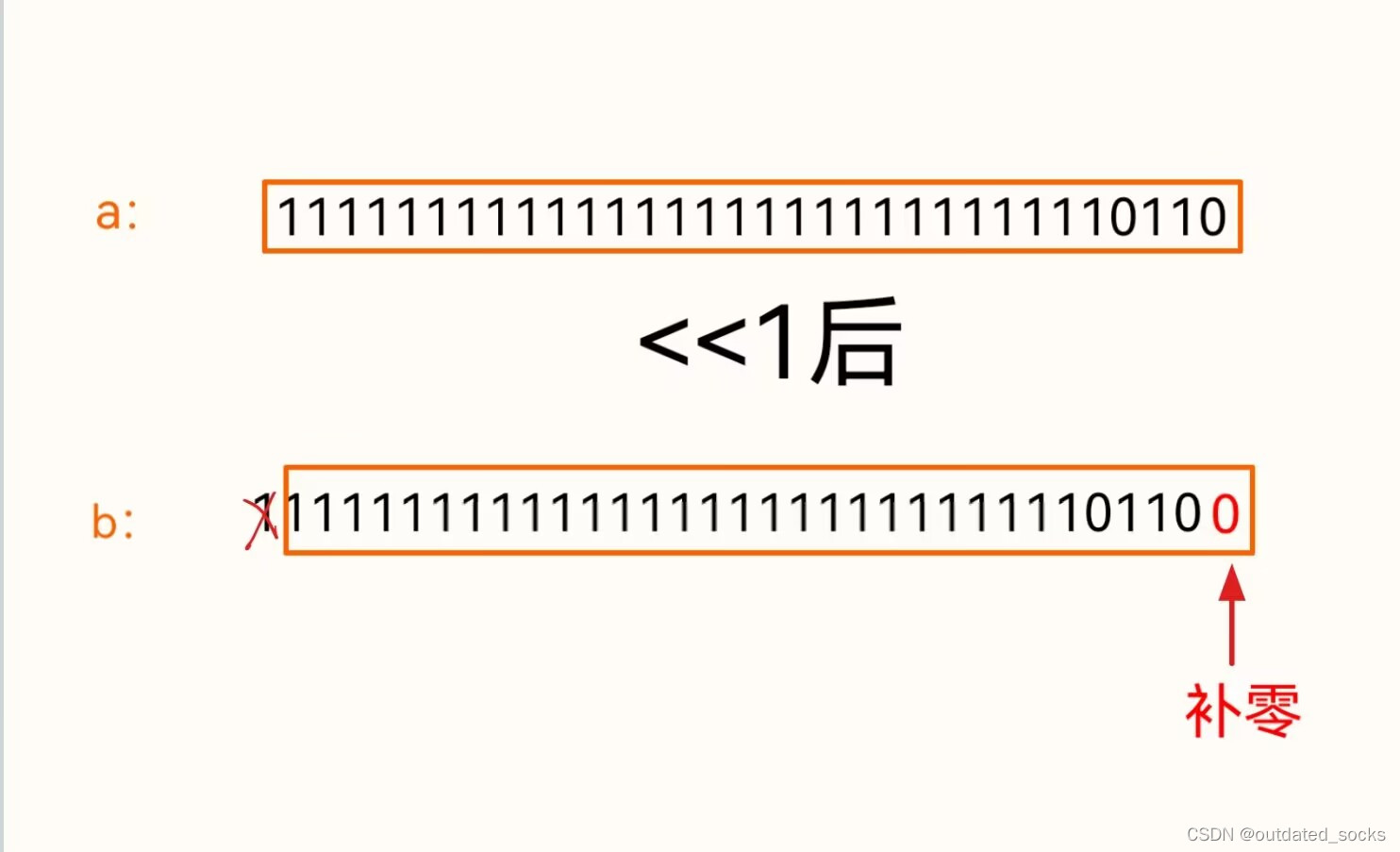

负数的情况:

#include<stdio.h>
int main()
{int a=-10;
//10000000000000000000000000001010——原码
//11111111111111111111111111110101——反码   //取反
//11111111111111111111111111110110——补码   //加一
int b=a<<1;  //左移1
//11111111111111111111111111101100——补码
//11111111111111111111111111101011——反码   //减一
//10000000000000000000000000010100——原码   //取反
printf("%d\n",b);
printf("%d\n",a);
return 0;
}

过程:结果:

 注意:我们打印的是原码。

            a依旧没变。

发现:1.规律是:左边抛弃,右边补零。

           2.左移一位有乘2的效果。


右移操作符

右移操作符分为算术右移和逻辑右移。

这取决于编译器,算术右移比较常见。

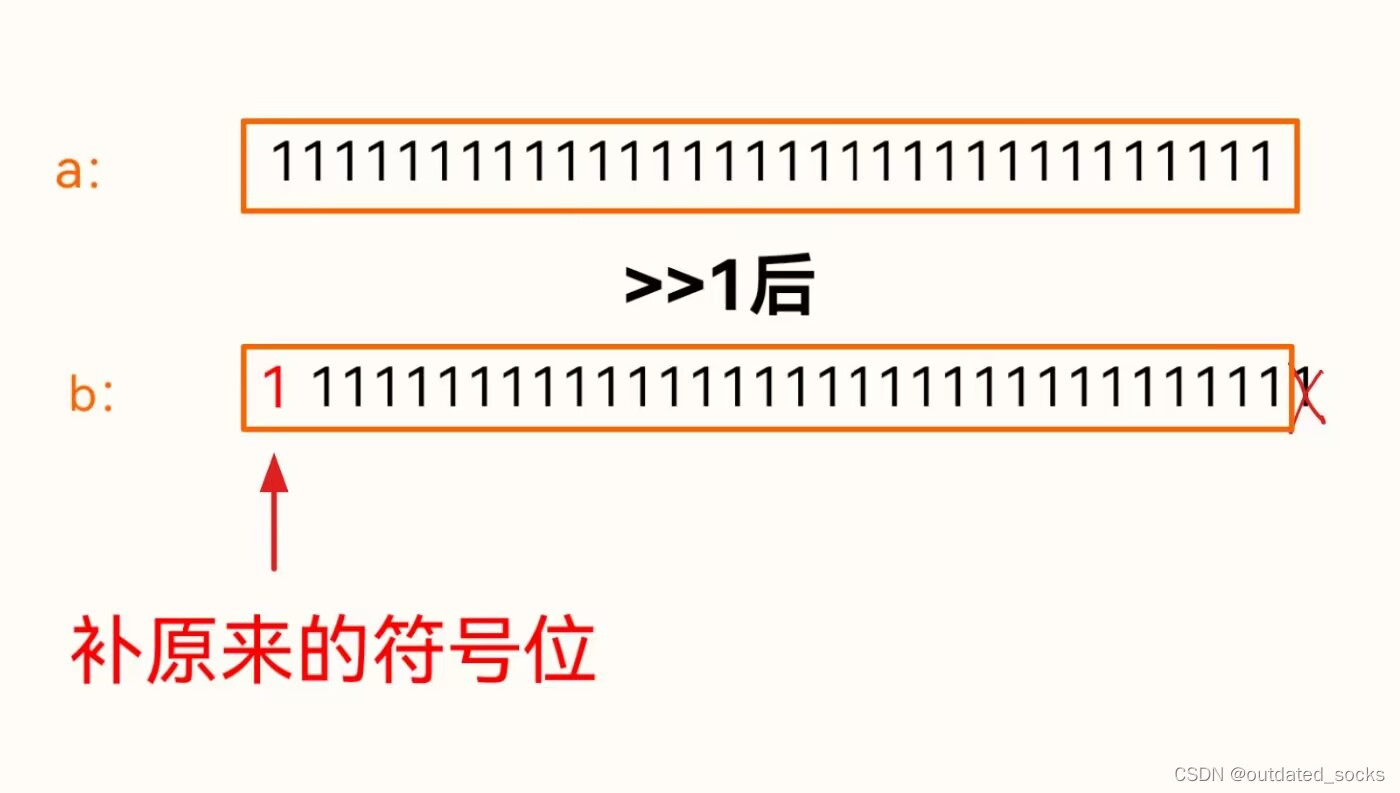

算术右移

#include<stdio.h>
int main()
{
	int a = -1;
	//10000000000000000000000000000001——原码
	//11111111111111111111111111111110——反码
	//11111111111111111111111111111111——补码

    int b = a>>1;
    //11111111111111111111111111111111——补码
    //11111111111111111111111111111110——反码
    //10000000000000000000000000000001——补码

    printf("%d\n", b);
	printf("%d\n", a);
	return 0;
}

 过程:结果:

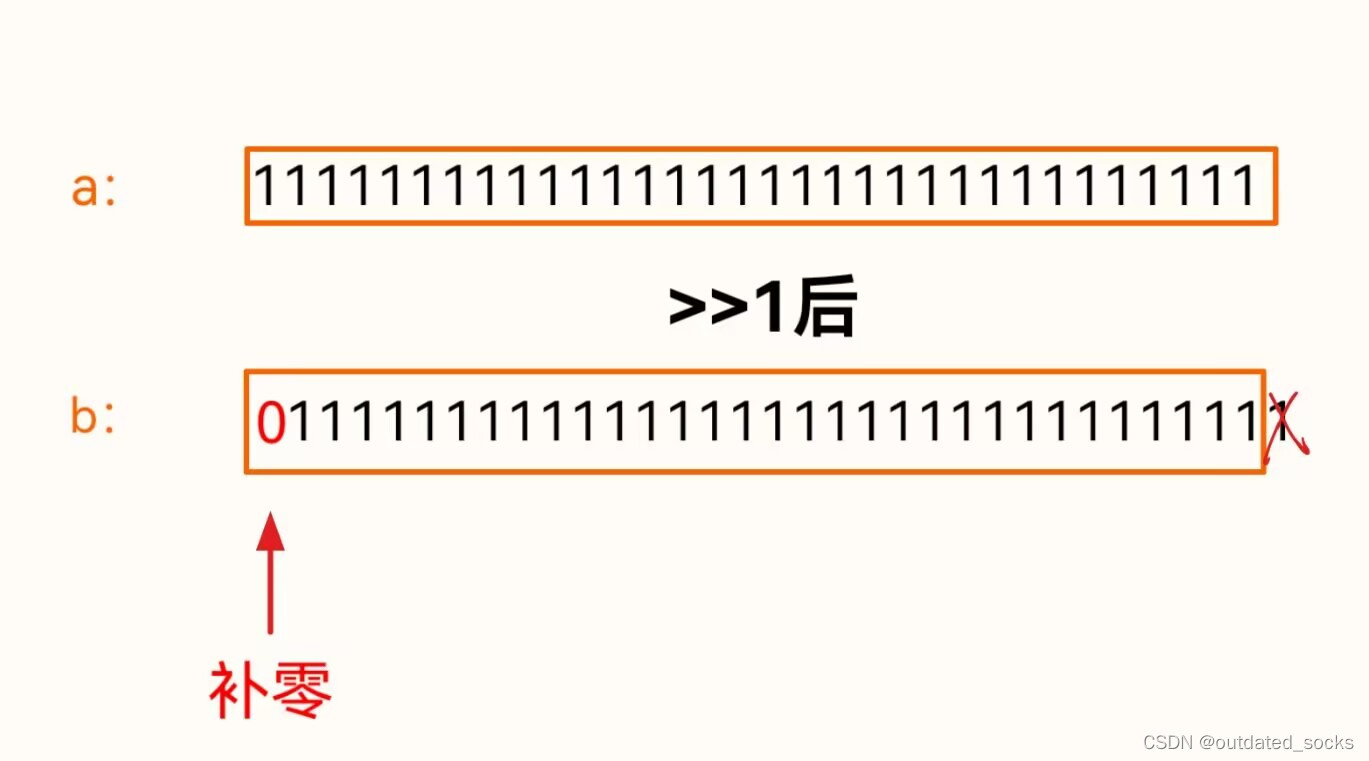

 逻辑右移

#include<stdio.h>
int main()
{
	int a = -1;
	//10000000000000000000000000000001——原码
	//11111111111111111111111111111110——反码
	//11111111111111111111111111111111——补码

    int b = a>>1;
    //01111111111111111111111111111111——补码
    //01111111111111111111111111111110——反码
    //00000000000000000000000000000001——补码

    printf("%d\n", b);
	printf("%d\n", a);
	return 0;
}

过程:

 发现:1.算术右移:右边抛弃,左边补原来的符号位。

            2.逻辑右移:右边抛弃,左边补零。


总结

左移操作符:左边抛弃,右边补零。

算术右移:右边抛弃,左边补原来的符号位。

逻辑右移:右边抛弃,左边补零。

注意:不存在右移/左移负数的情况。
