MatLab在打开mdl文件时，报错【The diagram must contain a powergui block. The block should be named ‘powergui‘ 】



错误类型：

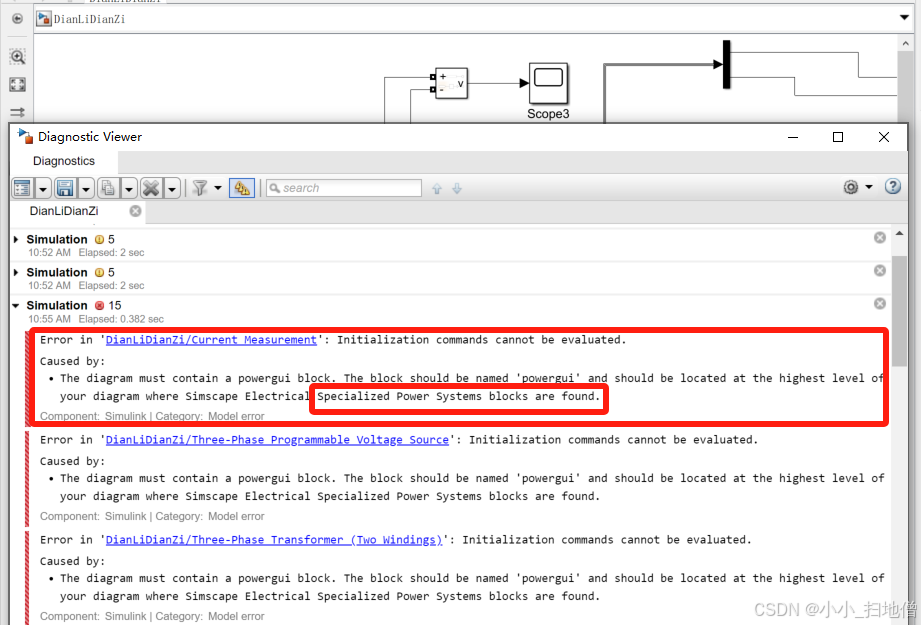

• The diagram must contain a powergui block. The block should be named 'powergui' and should be located at the highest level of your diagram where Simscape Electrical Specialized Power Systems blocks are found.

 解决办法：

缺少powergui模块。添加即可！

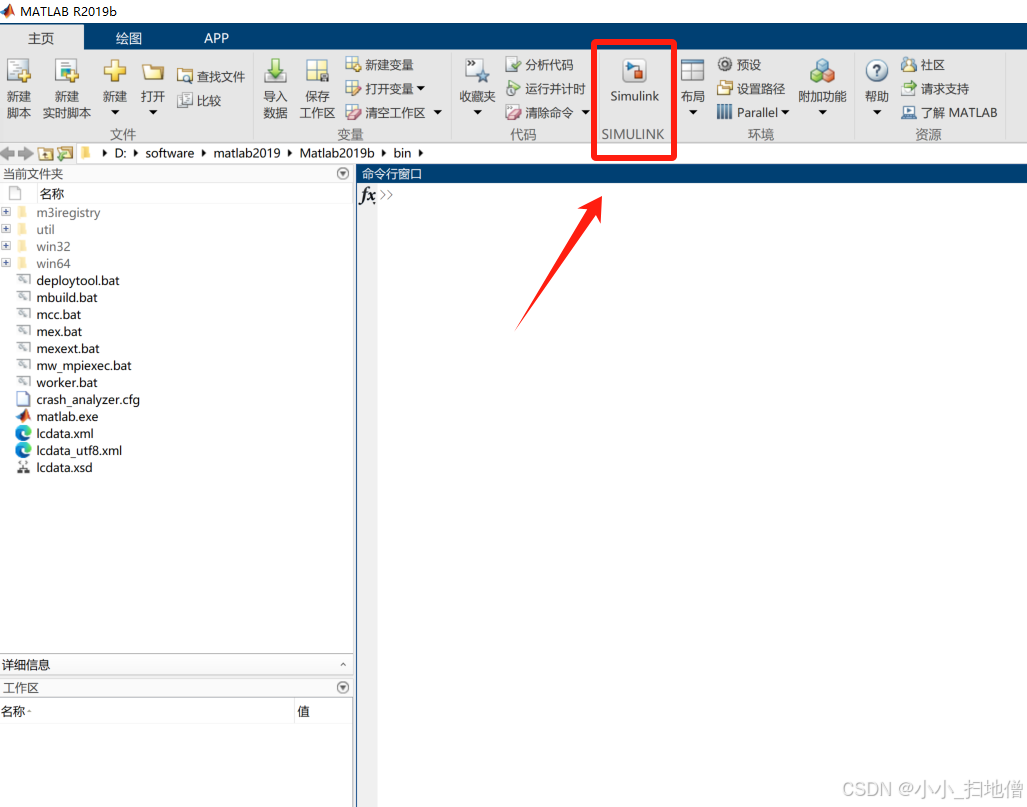

Step1:

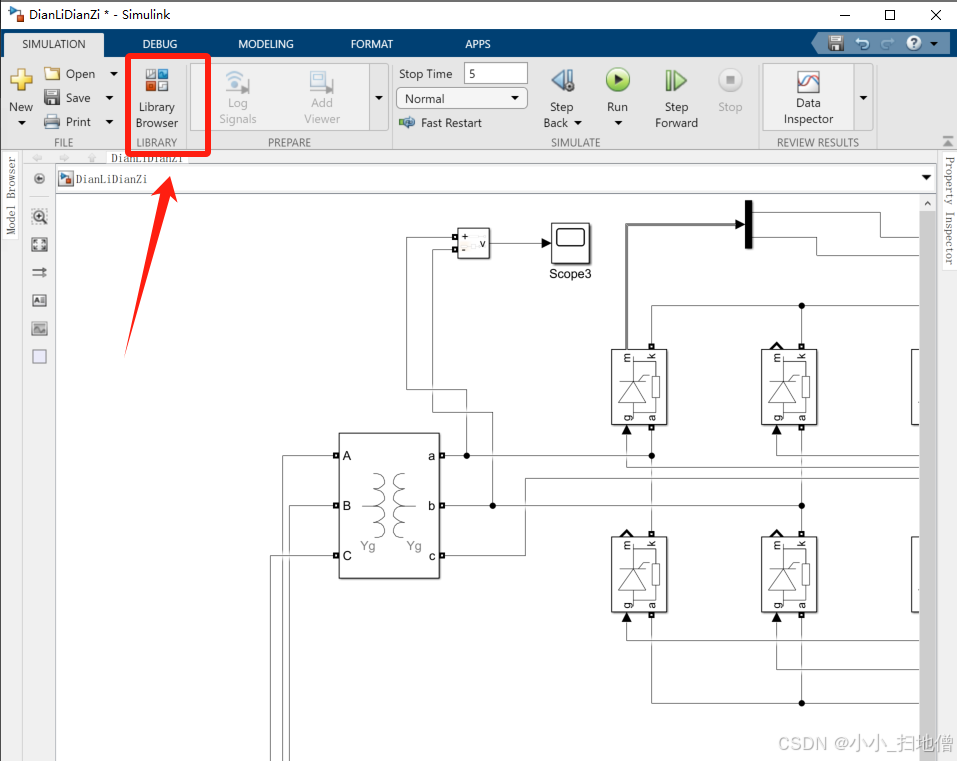

Step2:

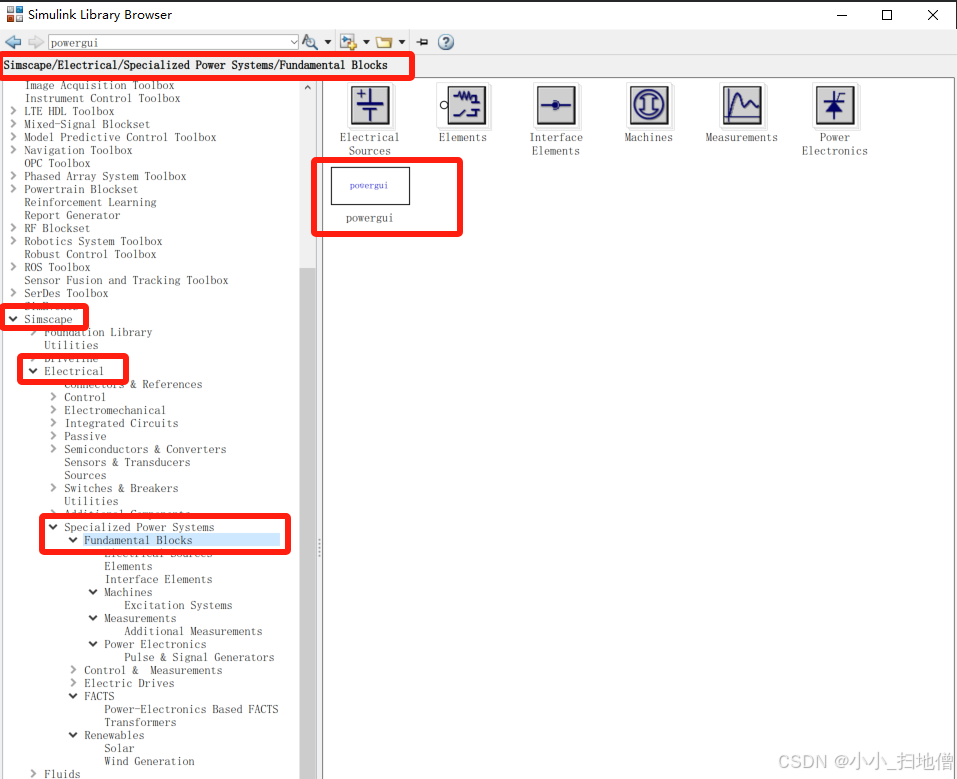

Step3:找到Simscope

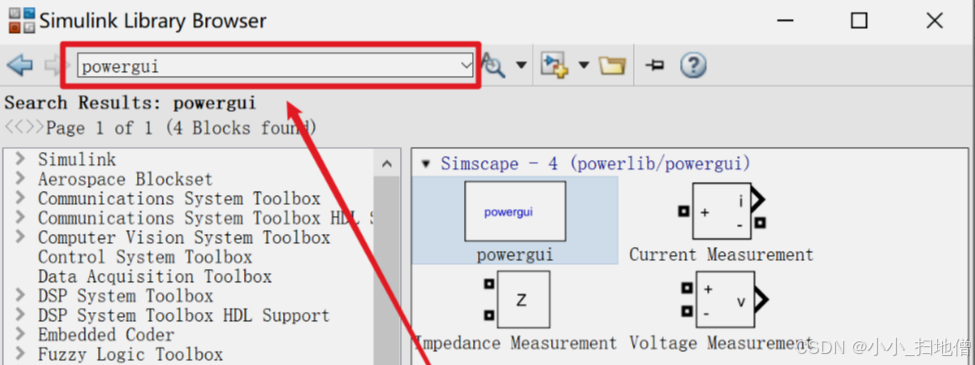

也可以直接搜索powegui

将powergui拖入Simulink

运行成功！
