⛄ 内容介绍

本文主要介绍基于MATLAB GUI的信号分析仪的设计,使用MATLAB图形用户界面中的各种控件来实现对参数的设定并最终显示信号波形曲线图.此分析仪能够输出的曲线图有时域曲线,复域曲线,频域曲线以及时域曲线与频域曲线的对比,使得能够准确的观察时域曲线与频域曲线的同步变化情况.

⛄ 部分代码

function varargout = juli(varargin)

% JULI M-file for juli.fig

% JULI, by itself, creates a new JULI or raises the existing

% singleton*.

% H = JULI returns the handle to a new JULI or the handle to

% the existing singleton*.

% JULI('CALLBACK',hObject,eventData,handles,...) calls the local

% function named CALLBACK in JULI.M with the given input arguments.

% JULI('Property','Value',...) creates a new JULI or raises the

% existing singleton*. Starting from the left, property value pairs are

% applied to the GUI before juli_OpeningFcn gets called. An

% unrecognized property name or invalid value makes property application

% stop. All inputs are passed to juli_OpeningFcn via varargin.

% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one

% instance to run (singleton)".

% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help juli

% Last Modified by GUIDE v2.5 28-May-2008 19:12:14

% Begin initialization code - DO NOT EDIT

gui_Singleton = 1;

gui_State = struct('gui_Name', mfilename, ...

'gui_Singleton', gui_Singleton, ...

'gui_OpeningFcn', @juli_OpeningFcn, ...

'gui_OutputFcn', @juli_OutputFcn, ...

'gui_LayoutFcn', [] , ...

'gui_Callback', []);

if nargin && ischar(varargin{1})

gui_State.gui_Callback = str2func(varargin{1});

end

if nargout

[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});

else

gui_mainfcn(gui_State, varargin{:});

end

% End initialization code - DO NOT EDIT

% --- Executes just before juli is made visible.

function juli_OpeningFcn(hObject, eventdata, handles, varargin)

% This function has no output args, see OutputFcn.

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% varargin command line arguments to juli (see VARARGIN)

% Choose default command line output for juli

handles.output = hObject;

% Update handles structure

guidata(hObject, handles);

% UIWAIT makes juli wait for user response (see UIRESUME)

% uiwait(handles.figure1);

% --- Outputs from this function are returned to the command line.

function varargout = juli_OutputFcn(hObject, eventdata, handles)

% varargout cell array for returning output args (see VARARGOUT);

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure

varargout{1} = handles.output;

% --- Executes on selection change in listbox1.

function listbox1_Callback(hObject, eventdata, handles)

val=get(handles.listbox1 ,'Value');

switch val

case 1

t=-1:0.01:10;

y1=sin(2*pi*t);

axes(handles.axes1);

plot(t,y);

case 2

t=-1:0.01:10;

y1=cos(2*pi*t);

axes(handles.axes1);

plot(t,y);

case 3

t=-1:0.01:10;

y1=square(2*pi*t);

axes(handles.axes1);

plot(t,y);

case 4

t=-1:0.01:10;

axes(handles.axes1);

y1=sawtooth(2*pi*t);

plot(t,y);

case 5

t=-3:0.001:5;

axes(handles.axes1);

y1=tripuls(t,4,0.5);

plot(t,y);

end

% hObject handle to listbox1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hints: contents = get(hObject,'String') returns listbox1 contents as cell array

% contents{get(hObject,'Value')} returns selected item from listbox1

% --- Executes during object creation, after setting all properties.

function listbox1_CreateFcn(hObject, eventdata, handles)

% hObject handle to listbox1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles empty - handles not created until after all CreateFcns called

% Hint: listbox controls usually have a white background on Windows.

% See ISPC and COMPUTER.

if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))

set(hObject,'BackgroundColor','white');

end

% --- Executes on button press in pushbutton1.

function pushbutton1_Callback(hObject, eventdata, handles)

t=-3:0.1:10;

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

axes(handles.axes2);

y=sin(w*t);

plot(t,y);

% hObject handle to pushbutton1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% --- Executes on button press in pushbutton2.

function pushbutton2_Callback(hObject, eventdata, handles)

val=get(handles.popupmenu1 ,'Value');

switch val

case 1

t=0:0.1:10;

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

y=sin(w*t);

y1=sin(2*pi*t);

y2=y.*y1

axes(handles.axes3);

plot(t,y2);

case 2

t=0:0.01:10;

y1=cos(2*pi*t);

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

y=sin(w*t);

y2=y.*y1

axes(handles.axes3);

plot(t,y);

case 3

t=0:0.01:10;

y1=square(2*pi*t);

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

y=sin(w*t);

y2=y.*y1

axes(handles.axes3);

plot(t,y);

case 4

t=0:0.01:10;

y1=sawtooth(2*pi*t);

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

y=sin(w*t);

y2=y.*y1

axes(handles.axes3);

plot(t,y);

case 5

t=-3:0.001:5;

hfstext=findobj('tag','edit1');

h=get(hfstext,'string');

w=str2num(h);

y=sin(w*t);

y1=tripuls(t,4,0.5);

y2=y.*y1

axes(handles.axes3);

plot(t,y);

xlabel('时间(t)');

title('正弦信号');

end

% hObject handle to pushbutton2 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% --- Executes on selection change in popupmenu1.

function popupmenu1_Callback(hObject, eventdata, handles)

val=get(handles.popupmenu1 ,'Value');

switch val

case 1

t=0:0.01:10;

y=sin(2*pi*t);

axes(handles.axes1);

plot(t,y);

xlabel('时间(t)');

title('正弦信号');

case 2

t=0:0.01:10;

y=cos(2*pi*t);

axes(handles.axes1);

plot(t,y);

xlabel('时间(t)');

title('余弦信号');

case 3

t=0:0.01:10;

y=square(2*pi*t);

axes(handles.axes1);

plot(t,y);

xlabel('时间(t)');

title('周期方波信号');

case 4

t=0:0.01:10;

axes(handles.axes1);

y=sawtooth(2*pi*t);

plot(t,y);

xlabel('时间(t)');

title('周期锯齿波信号');

case 5

t=-3:0.001:5;

axes(handles.axes1);

y=tripuls(t,4,0.5);

plot(t,y);

xlabel('时间(t)');

title('三角波信号');

end

% hObject handle to popupmenu1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hints: contents = get(hObject,'String') returns popupmenu1 contents as cell array

% contents{get(hObject,'Value')} returns selected item from popupmenu1

% --- Executes during object creation, after setting all properties.

function popupmenu1_CreateFcn(hObject, eventdata, handles)

% hObject handle to popupmenu1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.

% See ISPC and COMPUTER.

if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))

set(hObject,'BackgroundColor','white');

end

% --- Executes on slider movement.

function slider1_Callback(hObject, eventdata, handles)

fs=get(hObject,'value');

hfstext=findobj('tag','edit1');

set(hfstext,'string',num2str(fs));

% hObject handle to slider1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'Value') returns position of slider

% get(hObject,'Min') and get(hObject,'Max') to determine range of slider

% --- Executes during object creation, after setting all properties.

function slider1_CreateFcn(hObject, eventdata, handles)

% hObject handle to slider1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles empty - handles not created until after all CreateFcns called

% Hint: slider controls usually have a light gray background.

if isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))

set(hObject,'BackgroundColor',[.9 .9 .9]);

end

function edit1_Callback(hObject, eventdata, handles)

fs=get(hObject,'value');

hfs=findobj('tag','slider1');

set(hfs,'string',num2str(fs));

% hObject handle to edit1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text

% str2double(get(hObject,'String')) returns contents of edit1 as a double

% --- Executes during object creation, after setting all properties.

function edit1_CreateFcn(hObject, eventdata, handles)

% hObject handle to edit1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.

% See ISPC and COMPUTER.

if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))

set(hObject,'BackgroundColor','white');

end

% --- Executes on button press in pushbutton3.

function pushbutton3_Callback(hObject, eventdata, handles)

close;

main

% hObject handle to pushbutton3 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% --- Executes on button press in checkbox1.

function checkbox1_Callback(hObject, eventdata, handles)

r=get(hObject,'value');

if r==1

grid on

else

grid off

end

% hObject handle to checkbox1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of checkbox1

% --- Executes on button press in checkbox2.

function checkbox2_Callback(hObject, eventdata, handles)

r=get(hObject,'value');

if r==1

zoom on

else

zoom off

end

% hObject handle to checkbox2 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of checkbox2

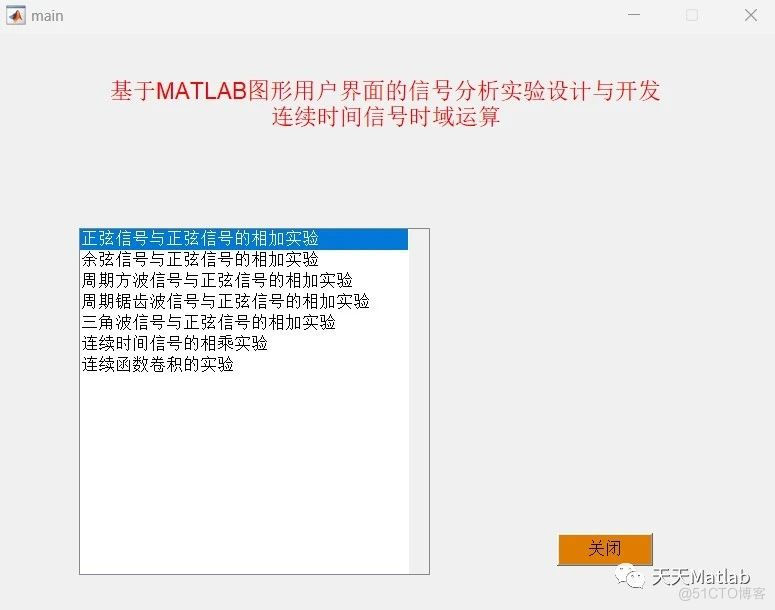

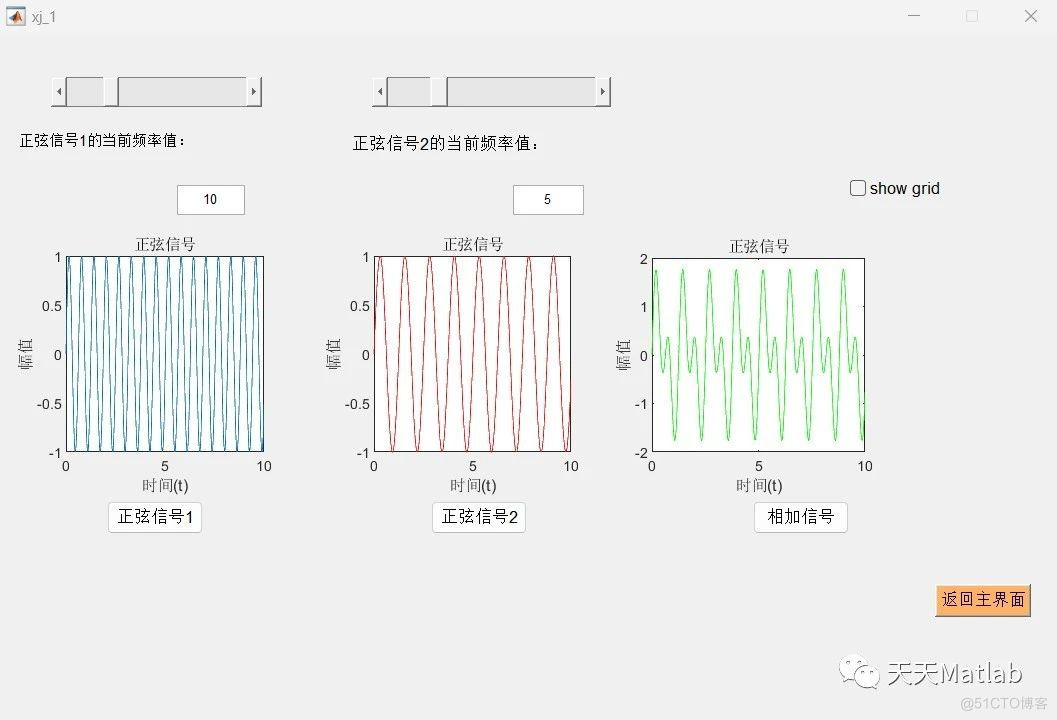

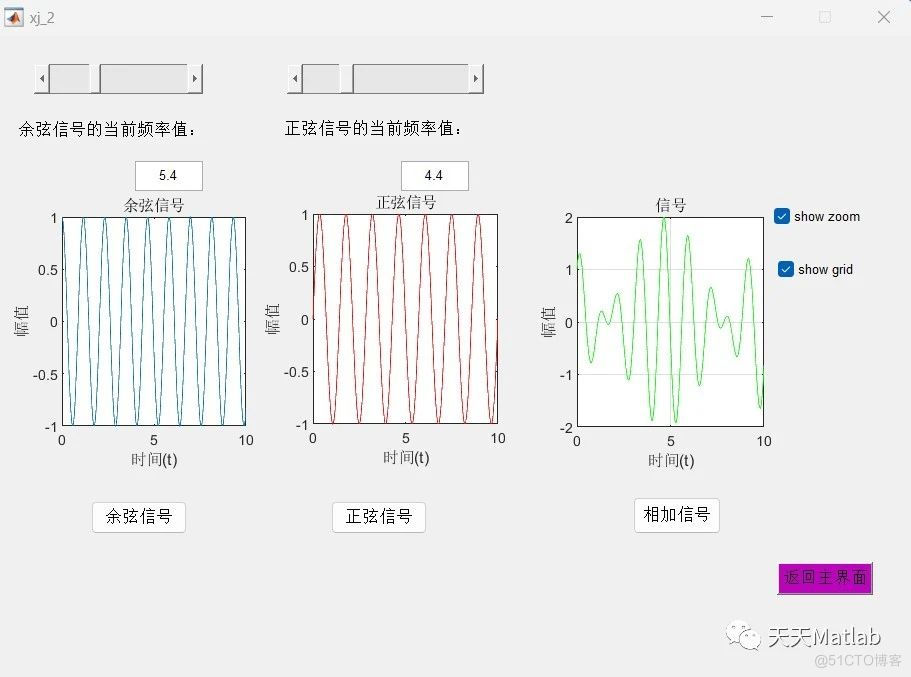

⛄ 运行结果

【信号分析】基于matlab的信号分析附GUI界面_MATLAB

【信号分析】基于matlab的信号分析附GUI界面_时域_02

【信号分析】基于matlab的信号分析附GUI界面_ide_03

⛄ 参考文献
