一、简介
NavMeshAgent components help you to create characters which avoid each other while moving towards their goal. Agents reason about the game world using the NavMesh
and they know how to avoid each other as well as other moving obstacles. Pathfinding and spatial reasoning are handled using the scripting API of the NavMesh Agent.
NavMesh Agent是一个非常好用的角色移动控制组件。它可以通过NavMesh来标记可到达和不可到达的区域。同时它自带寻路和空间推理的脚本,可以控制角色朝着目标移动却不和其他Agent彼此影响,同时它也知道如何避开对方及其他障碍物。
二、NavMesh设置

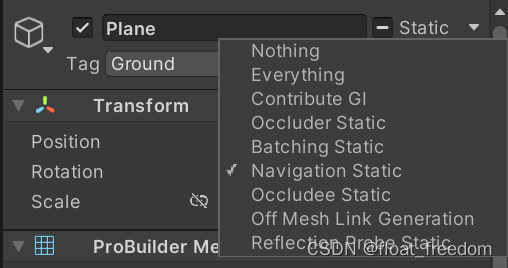

需要作为障碍物使得Agent无法通过的物体区域需要将其设置为静态(Navigation Static)。这样在后续烘焙过程中才能产生效果。
三、Inspector面板参数调节

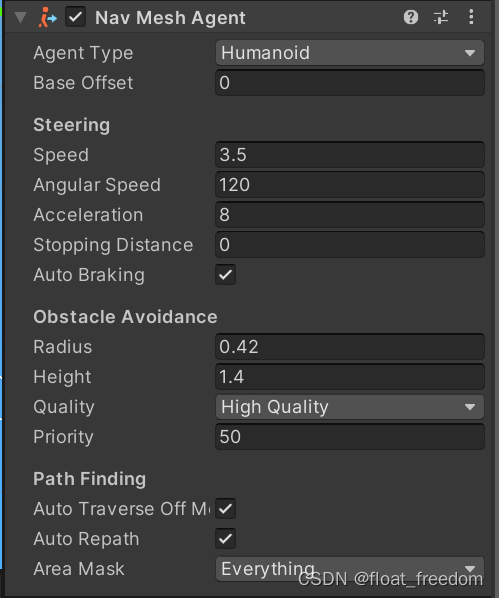

在Inspector面板中可以对Agent对象的参数进行调整。以下是一些常用的参数及其使用说明。
参数 | 说明 |
---|---|
Speed | 运动速度 |
Angular Speed | 旋转速度 |
Acceleration | 加速度 |
Stopping Distance | 停止距离(距目标多远时停止运动) |
Quality | 品质(高品质的避障会减少Agent的重叠概率,但会有更大计算消耗) |
Priority | 优先级(在执行回避时,优先级较低的代理将被该代理忽略) |

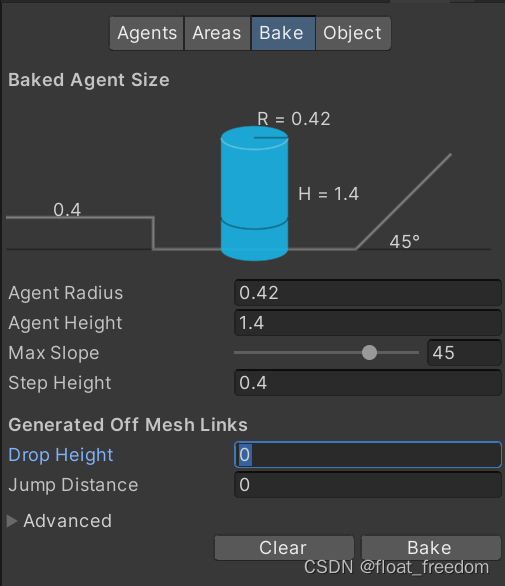

点击Agent Type -> Open Agent Settings后开启以下窗口,在Bake窗口中可以调节Agent检测的高度、半径大小以及可以爬坡的坡度等参数,用以确定Agent的可移动区域。
在调整完后点击Bake对场景进行再次烘焙。
四、示例代码
1.为角色添加代理
//PlayerController.cs
private <
