Taken from 2015 midterm question 5. See also the first part of this question: mt2015_muxdff

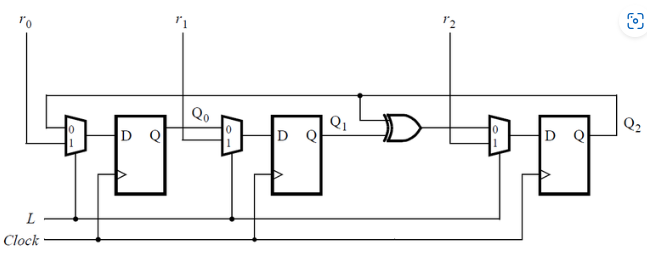

Write the Verilog code for this sequential circuit (Submodules are ok, but the top-level must be named top_module). Assume that you are going to implement the circuit on the DE1-SoC board. Connect the R inputs to the SW switches, connect Clock to KEY[0], and L to KEY[1]. Connect the Q outputs to the red lights LEDR.

module top_module (
	input [2:0] SW,      // R
	input [1:0] KEY,     // L and clk
	output [2:0] LEDR);  // Q

    always@(posedge KEY[0])
    begin
        LEDR[2] <= KEY[1] ? SW[2] : LEDR[1] ^ LEDR[2];
        LEDR[1] <= KEY[1] ? SW[1] : LEDR[0];
        LEDR[0] <= KEY[1] ? SW[0] : LEDR[2];
    end

endmodule
