从框架源码中学习结构型设计模式

从框架源码学习结构型设计模式

模式	包括
结构型模式 这些设计模式关注类和对象的组合。继承的概念被用来组合接口和定义组合对象获得新功能的方式。	适配器模式（Adapter Pattern） 桥接模式（Bridge Pattern） 过滤器模式（Filter、Criteria Pattern） 组合模式（Composite Pattern） 装饰器模式（Decorator Pattern） 外观模式（Facade Pattern） 享元模式（Flyweight Pattern） 代理模式（Proxy Pattern）

适配器模式

使接口不兼容的那些类可以一起工作，其别名为包装器(Wrapper)。最典型的例子如：读卡器是作为内存卡和笔记本之间的适配器。您将内存卡插入读卡器，再将读卡器插入笔记本，这样就可以通过笔记本来读取内存卡

应用实例

JAVA JDK 1.1 提供了 Enumeration 接口，而在 1.2 中提供了 Iterator 接口，想要使用 1.2 的 JDK，则要将以前系统的 Enumeration 接口转化为 Iterator 接口，这时就需要适配器模式。

public class EnumerationAdapter<E> implements Iterator<E> {

    Enumeration<E> enumeration;

    public EnumerationAdapter(Enumeration<E> enumeration) {
        this.enumeration = enumeration;
    }

    @Override
    public boolean hasNext() {
        return enumeration.hasMoreElements();
    }

    @Override
    public E next() {
        return enumeration.nextElement();
    }

    @Override
    public void remove() {
        throw new UnsupportedOperationException("remove");
    }
}

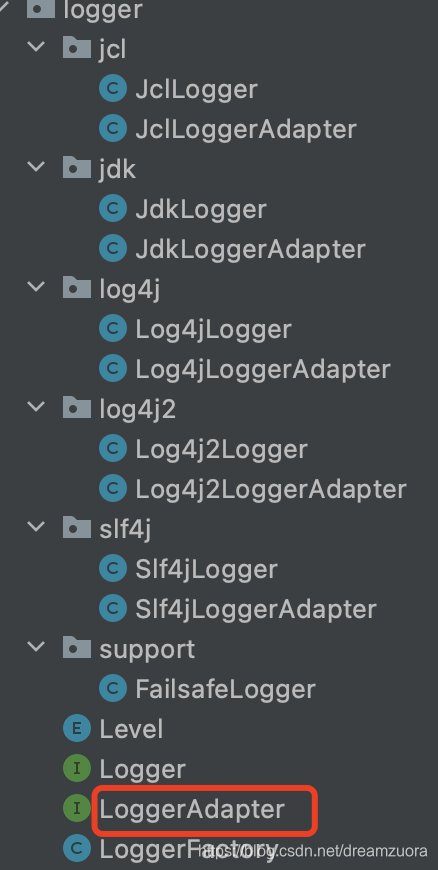

案例一：dubbo框架日志适配器

dubbo中通过LoggerFactory日志工厂创建log对象，流行的日志框架有log4j、sl4j、log4j2、logback等而他们创建日志的对象各不相同，如果不用适配器直接在LoggerFactory上创建日志对象，那么每新加入一个新的日志框架都需要去修改LoggerFactory类，而利用适配器的话新加入的日志框架可以基于SPI实现LoggerAdapter接口实现对象创建逻辑，并且通过Adapter封装统一的getLogger()、setLogger()、setLevel()统一方法，然后通过LoggerFactory#setLoggerAdapter()方法将对象放入日志工厂中。

Logger接口

public interface Logger {

    /**
     * Logs a message with trace log level.
     *
     * @param msg log this message
     */
    void trace(String msg);

    /**
     * Logs an error with trace log level.
     *
     * @param e log this cause
     */
    void trace(Throwable e);

    /**
     * Logs an error with trace log level.
     *
     * @param msg log this message
     * @param e   log this cause
     */
    void trace(String msg, Throwable e);

    /**
     * Logs a message with debug log level.
     *
     * @param msg log this message
     */
    void debug(String msg);

    /**
     * Logs an error with debug log level.
     *
     * @param e log this cause
     */
    void debug(Throwable e);

    /**
     * Logs an error with debug log level.
     *
     * @param msg log this message
     * @param e   log this cause
     */
    void debug(String msg, Throwable e);

    /**
     * Logs a message with info log level.
     *
     * @param msg log this message
     */
    void info(String msg);

    /**
     * Logs an error with info log level.
     *
     * @param e log this cause
     */
    void info(Throwable e);

    /**
     * Logs an error with info log level.
     *
     * @param msg log this message
     * @param e   log this cause
     */
    void info(String msg, Throwable e);

    /**
     * Logs a message with warn log level.
     *
     * @param msg log this message
     */
    void warn(String msg);

    /**
     * Logs a message with warn log level.
     *
     * @param e log this message
     */
    void warn(Throwable e);

    /**
     * Logs a message with warn log level.
     *
     * @param msg log this message
     * @param e   log this cause
     */
    void warn(String msg, Throwable e);

    /**
     * Logs a message with error log level.
     *
     * @param msg log this message
     */
    void error(String msg);

    /**
     * Logs an error with error log level.
     *
     * @param e log this cause
     */
    void error(Throwable e);

    /**
     * Logs an error with error log level.
     *
     * @param msg log this message
     * @param e   log this cause
     */
    void error(String msg, Throwable e);

    /**
     * Is trace logging currently enabled?
     *
     * @return true if trace is enabled
     */
    boolean isTraceEnabled();

    /**
     * Is debug logging currently enabled?
     *
     * @return true if debug is enabled
     */
    boolean isDebugEnabled();

    /**
     * Is info logging currently enabled?
     *
     * @return true if info is enabled
     */
    boolean isInfoEnabled();

    /**
     * Is warn logging currently enabled?
     *
     * @return true if warn is enabled
     */
    boolean isWarnEnabled();

    /**
     * Is error logging currently enabled?
     *
     * @return true if error is enabled
     */
    boolean isErrorEnabled();

}

日志实现类

public class Log4jLogger implements Logger {

    private static final String FQCN = FailsafeLogger.class.getName();

    private final org.apache.log4j.Logger logger;

    public Log4jLogger(org.apache.log4j.Logger logger) {
        this.logger = logger;
    }

    @Override
    public void trace(String msg) {
        logger.log(FQCN, Level.TRACE, msg, null);
    }

    @Override
    public void trace(Throwable e) {
        logger.log(FQCN, Level.TRACE, e == null ? null : e.getMessage(), e);
    }

    @Override
    public void trace(String msg, Throwable e) {
        logger.log(FQCN, Level.TRACE, msg, e);
    }

    @Override
    public void debug(String msg) {
        logger.log(FQCN, Level.DEBUG, msg, null);
    }

    @Override
    public void debug(Throwable e) {
        logger.log(FQCN, Level.DEBUG, e == null ? null : e.getMessage(), e);
    }

    @Override
    public void debug(String msg, Throwable e) {
        logger.log(FQCN, Level.DEBUG, msg, e);
    }

    @Override
    public void info(String msg) {
        logger.log(FQCN, Level.INFO, msg, null);
    }

    @Override
    public void info(Throwable e) {
        logger.log(FQCN, Level.INFO, e == null ? null : e.getMessage(), e);
    }

    @Override
    public void info(String msg, Throwable e) {
        logger.log(FQCN, Level.INFO, msg, e);
    }

    @Override
    public void warn(String msg) {
        logger.log(FQCN, Level.WARN, msg, null);
    }

    @Override
    public void warn(Throwable e) {
        logger.log(FQCN, Level.WARN, e == null ? null : e.getMessage(), e);
    }

    @Override
    public void warn(String msg, Throwable e) {
        logger.log(FQCN, Level.WARN, msg, e);
    }

    @Override
    public void error(String msg) {
        logger.log(FQCN, Level.ERROR, msg, null);
    }

    @Override
    public void error(Throwable e) {
        logger.log(FQCN, Level.ERROR, e == null ? null : e.getMessage(), e);
    }

    @Override
    public void error(String msg, Throwable e) {
        logger.log(FQCN, Level.ERROR, msg, e);
    }

    @Override
    public boolean isTraceEnabled() {
        return logger.isTraceEnabled();
    }

    @Override
    public boolean isDebugEnabled() {
        return logger.isDebugEnabled();
    }

    @Override
    public boolean isInfoEnabled() {
        return logger.isInfoEnabled();
    }

    @Override
    public boolean isWarnEnabled() {
        return logger.isEnabledFor(Level.WARN);
    }

    @Override
    public boolean isErrorEnabled() {
        return logger.isEnabledFor(Level.ERROR);
    }

}

Logger适配器接口

@SPI
public interface LoggerAdapter {

    /**
     * Get a logger
     *
     * @param key the returned logger will be named after clazz
     * @return logger
     */
    Logger getLogger(Class<?> key);

    /**
     * Get a logger
     *
     * @param key the returned logger will be named after key
     * @return logger
     */
    Logger getLogger(String key);

    /**
     * Get the current logging level
     *
     * @return current logging level
     */
    Level getLevel();

    /**
     * Set the current logging level
     *
     * @param level logging level
     */
    void setLevel(Level level);

    /**
     * Get the current logging file
     *
     * @return current logging file
     */
    File getFile();

    /**
     * Set the current logging file
     *
     * @param file logging file
     */
    void setFile(File file);
}

LoggerAdapter实现类

public class Log4jLoggerAdapter implements LoggerAdapter {

    private File file;

    @SuppressWarnings("unchecked")
    public Log4jLoggerAdapter() {
        try {
            org.apache.log4j.Logger logger = LogManager.getRootLogger();
            if (logger != null) {
                Enumeration<Appender> appenders = logger.getAllAppenders();
                if (appenders != null) {
                    while (appenders.hasMoreElements()) {
                        Appender appender = appenders.nextElement();
                        if (appender instanceof FileAppender) {
                            FileAppender fileAppender = (FileAppender) appender;
                            String filename = fileAppender.getFile();
                            file = new File(filename);
                            break;
                        }
                    }
                }
            }
        } catch (Throwable t) {
        }
    }

    private static org.apache.log4j.Level toLog4jLevel(Level level) {
        if (level == Level.ALL) {
            return org.apache.log4j.Level.ALL;
        }
        if (level == Level.TRACE) {
            return org.apache.log4j.Level.TRACE;
        }
        if (level == Level.DEBUG) {
            return org.apache.log4j.Level.DEBUG;
        }
        if (level == Level.INFO) {
            return org.apache.log4j.Level.INFO;
        }
        if (level == Level.WARN) {
            return org.apache.log4j.Level.WARN;
        }
        if (level == Level.ERROR) {
            return org.apache.log4j.Level.ERROR;
        }
        // if (level == Level.OFF)
        return org.apache.log4j.Level.OFF;
    }

    private static Level fromLog4jLevel(org.apache.log4j.Level level) {
        if (level == org.apache.log4j.Level.ALL) {
            return Level.ALL;
        }
        if (level == org.apache.log4j.Level.TRACE) {
            return Level.TRACE;
        }
        if (level == org.apache.log4j.Level.DEBUG) {
            return Level.DEBUG;
        }
        if (level == org.apache.log4j.Level.INFO) {
            return Level.INFO;
        }
        if (level == org.apache.log4j.Level.WARN) {
            return Level.WARN;
        }
        if (level == org.apache.log4j.Level.ERROR) {
            return Level.ERROR;
        }
        // if (level == org.apache.log4j.Level.OFF)
        return Level.OFF;
    }

    @Override
    public Logger getLogger(Class<?> key) {
        return new Log4jLogger(LogManager.getLogger(key));
    }

    @Override
    public Logger getLogger(String key) {
        return new Log4jLogger(LogManager.getLogger(key));
    }

    @Override
    public Level getLevel() {
        return fromLog4jLevel(LogManager.getRootLogger().getLevel());
    }

    @Override
    public void setLevel(Level level) {
        LogManager.getRootLogger().setLevel(toLog4jLevel(level));
    }

    @Override
    public File getFile() {
        return file;
    }

    @Override
    public void setFile(File file) {

    }

}

Logger日志工厂

public class LoggerFactory {

    private static final ConcurrentMap<String, FailsafeLogger> LOGGERS = new ConcurrentHashMap<>();
    private static volatile LoggerAdapter LOGGER_ADAPTER;

    // search common-used logging frameworks
    static {
        String logger = System.getProperty("dubbo.application.logger", "");
        switch (logger) {
            case "slf4j":
                setLoggerAdapter(new Slf4jLoggerAdapter());
                break;
            case "jcl":
                setLoggerAdapter(new JclLoggerAdapter());
                break;
            case "log4j":
                setLoggerAdapter(new Log4jLoggerAdapter());
                break;
            case "jdk":
                setLoggerAdapter(new JdkLoggerAdapter());
                break;
            case "log4j2":
                setLoggerAdapter(new Log4j2LoggerAdapter());
                break;
            default:
                List<Class<? extends LoggerAdapter>> candidates = Arrays.asList(
                        Log4jLoggerAdapter.class,
                        Slf4jLoggerAdapter.class,
                        Log4j2LoggerAdapter.class,
                        JclLoggerAdapter.class,
                        JdkLoggerAdapter.class
                );
                for (Class<? extends LoggerAdapter> clazz : candidates) {
                    try {
                        setLoggerAdapter(clazz.newInstance());
                        break;
                    } catch (Throwable ignored) {
                    }
                }
        }
    }

    private LoggerFactory() {
    }

    public static void setLoggerAdapter(String loggerAdapter) {
        if (loggerAdapter != null && loggerAdapter.length() > 0) {
            setLoggerAdapter(ExtensionLoader.getExtensionLoader(LoggerAdapter.class).getExtension(loggerAdapter));
        }
    }

    /**
     * Set logger provider
     *
     * @param loggerAdapter logger provider
     */
    public static void setLoggerAdapter(LoggerAdapter loggerAdapter) {
        if (loggerAdapter != null) {
            Logger logger = loggerAdapter.getLogger(LoggerFactory.class.getName());
            logger.info("using logger: " + loggerAdapter.getClass().getName());
            LoggerFactory.LOGGER_ADAPTER = loggerAdapter;
            for (Map.Entry<String, FailsafeLogger> entry : LOGGERS.entrySet()) {
                entry.getValue().setLogger(LOGGER_ADAPTER.getLogger(entry.getKey()));
            }
        }
    }

    /**
     * Get logger provider
     *
     * @param key the returned logger will be named after clazz
     * @return logger
     */
    public static Logger getLogger(Class<?> key) {
        return LOGGERS.computeIfAbsent(key.getName(), name -> new FailsafeLogger(LOGGER_ADAPTER.getLogger(name)));
    }

    /**
     * Get logger provider
     *
     * @param key the returned logger will be named after key
     * @return logger provider
     */
    public static Logger getLogger(String key) {
        return LOGGERS.computeIfAbsent(key, k -> new FailsafeLogger(LOGGER_ADAPTER.getLogger(k)));
    }

    /**
     * Get logging level
     *
     * @return logging level
     */
    public static Level getLevel() {
        return LOGGER_ADAPTER.getLevel();
    }

    /**
     * Set the current logging level
     *
     * @param level logging level
     */
    public static void setLevel(Level level) {
        LOGGER_ADAPTER.setLevel(level);
    }

    /**
     * Get the current logging file
     *
     * @return current logging file
     */
    public static File getFile() {
        return LOGGER_ADAPTER.getFile();
    }

}

桥接模式

桥我们大家都熟悉，顾名思义就是用来将河的两岸联系起来的。而此处的桥是用来将两个独立的结构联系起来，而这两个被联系起来的结构可以独立的变化，所有其他的理解只要建立在这个层面上就会比较容易。

它通过提供抽象化和实现化之间的桥接结构，来实现二者的解耦。

优先文章链接：

1. 《菜鸟教程-桥接模式》
2. 《知乎-秒懂设计模式》
3. 《设计模式-桥接模式（诺基亚：我觉得我还能抢救下）》

应用场景

按照手机分类有智能手机、按钮手机、翻盖手机等，按照商品又有华为、小米、诺基亚等等

public class BridgeModel {

    /**
     * 品牌
     */
    public interface Brand{
        void start();

        void shutdown();
    }

    /**
     * 手机抽象类
     */
    public abstract class Phone{
        Brand brand;

        /**
         * 这段代码就是"桥接"思想，将另一个类和抽象类组合
         * @param brand
         */
        public Phone(Brand brand) {
            this.brand = brand;
        }

        void start(){
            this.brand.start();
        }

        void shutdown(){
            this.brand.shutdown();
        }
    }

    class HuaWei implements Brand{
        @Override
        public void start() {
            System.out.println("华为 开机");
        }

        @Override
        public void shutdown() {
            System.out.println("华为 关机");
        }
    }

    class XiaoMi implements Brand{
        @Override
        public void start() {
            System.out.println("小米 开机");
        }

        @Override
        public void shutdown() {
            System.out.println("小米 关机");
        }
    }

    class Nokia implements Brand{
        @Override
        public void start() {
            System.out.println("诺基亚 开机");
        }

        @Override
        public void shutdown() {
            System.out.println("诺基亚 关机");
        }
    }

    /**
     * 带键盘按钮手机
     */
    class ButtonIphone extends Phone{
        public ButtonIphone(Brand brand) {
            super(brand);
        }
    }

    /**
     * 智能手机
     */
    class SmartIphone extends Phone{
        public SmartIphone(Brand brand) {
            super(brand);
        }
    }

    @Test
    public void runTest() {
        ButtonIphone buttonIphone = new ButtonIphone(new Nokia());
        buttonIphone.start();
        buttonIphone.shutdown();

        SmartIphone huawei = new SmartIphone(new HuaWei());
        huawei.start();
        huawei.shutdown();

        SmartIphone xiaomi = new SmartIphone(new XiaoMi());
        xiaomi.start();
        xiaomi.shutdown();
    }

}

案例：dubbo源码-远程调用模块channelHandler设计

ChannelHandler是一个SPI拓展接口,用户可以定制自己的Handler

@SPI
public interface ChannelHandler {

    /**
     * on channel connected.
     *
     * @param channel channel.
     */
    void connected(Channel channel) throws RemotingException;

    /**
     * on channel disconnected.
     *
     * @param channel channel.
     */
    void disconnected(Channel channel) throws RemotingException;

    /**
     * on message sent.
     *
     * @param channel channel.
     * @param message message.
     */
    void sent(Channel channel, Object message) throws RemotingException;

    /**
     * on message received.
     *
     * @param channel channel.
     * @param message message.
     */
    void received(Channel channel, Object message) throws RemotingException;

    /**
     * on exception caught.
     *
     * @param channel   channel.
     * @param exception exception.
     */
    void caught(Channel channel, Throwable exception) throws RemotingException;

}

抽象类：桥接ChannelHandler并实现自己的Handler

public abstract class AbstractChannelHandlerDelegate implements ChannelHandlerDelegate {

    protected ChannelHandler handler;

    protected AbstractChannelHandlerDelegate(ChannelHandler handler) {
        Assert.notNull(handler, "handler == null");
        this.handler = handler;
    }

    @Override
    public ChannelHandler getHandler() {
        if (handler instanceof ChannelHandlerDelegate) {
            return ((ChannelHandlerDelegate) handler).getHandler();
        }
        return handler;
    }

    @Override
    public void connected(Channel channel) throws RemotingException {
        handler.connected(channel);
    }

    @Override
    public void disconnected(Channel channel) throws RemotingException {
        handler.disconnected(channel);
    }

    @Override
    public void sent(Channel channel, Object message) throws RemotingException {
        handler.sent(channel, message);
    }

    @Override
    public void received(Channel channel, Object message) throws RemotingException {
        handler.received(channel, message);
    }

    @Override
    public void caught(Channel channel, Throwable exception) throws RemotingException {
        handler.caught(channel, exception);
    }
}

ChannelHandler实现类

public class MockedChannelHandler implements ChannelHandler {
    //    ConcurrentMap<String, Channel> channels = new ConcurrentHashMap<String, Channel>();
    ConcurrentHashSet<Channel> channels = new ConcurrentHashSet<Channel>();

    @Override
    public void connected(Channel channel) throws RemotingException {
        channels.add(channel);
    }

    @Override
    public void disconnected(Channel channel) throws RemotingException {
        channels.remove(channel);
    }

    @Override
    public void sent(Channel channel, Object message) throws RemotingException {
        channel.send(message);
    }

    @Override
    public void received(Channel channel, Object message) throws RemotingException {
        //echo
        channel.send(message);
    }

    @Override
    public void caught(Channel channel, Throwable exception) throws RemotingException {
        throw new RemotingException(channel, exception);

    }

    public Set<Channel> getChannels() {
        return Collections.unmodifiableSet(channels);
    }
}

抽象类实现类

public class MultiMessageHandler extends AbstractChannelHandlerDelegate {

    public MultiMessageHandler(ChannelHandler handler) {
        super(handler);
    }

    @SuppressWarnings("unchecked")
    @Override
    public void received(Channel channel, Object message) throws RemotingException {
        if (message instanceof MultiMessage) {
            MultiMessage list = (MultiMessage) message;
            for (Object obj : list) {
                handler.received(channel, obj);
            }
        } else {
            handler.received(channel, message);
        }
    }
}

组合模式

组合（Composite Pattern）模式的定义：有时又叫作整体-部分（Part-Whole）模式，它是一种将对象组合成树状的层次结构的模式，用来表示“整体-部分”的关系，使用户对单个对象和组合对象具有一致的访问性。

具体可以参考该文章：http://c.biancheng.net/view/1373.html

装饰器模式

装饰器模式（Decorator Pattern）允许向一个现有的对象添加新的功能，同时又不改变其结构。这种类型的设计模式属于结构型模式，它是作为现有的类的一个包装。

这种模式创建了一个装饰类，用来包装原有的类，并在保持类方法签名完整性的前提下，提供了额外的功能。

案例：apache common-collections源码List分析

apache common-collections是对jdk collections功能的补充，用了大量的装饰器设计模式，一下摘取List为例

commons-collections使用介绍之List

jdk List接口源码

public interface List<E> extends Collection<E> {
    //继承了Collection接口
    int size();

    boolean isEmpty();

    boolean contains(Object o);

    Iterator<E> iterator();

    Object[] toArray();

    <T> T[] toArray(T[] a);

    boolean add(E e);

    boolean remove(Object o);

    boolean containsAll(Collection<?> c);

    boolean addAll(Collection<? extends E> c);

    boolean removeAll(Collection<?> c);

    boolean retainAll(Collection<?> c);

    boolean equals(Object o);

    int hashCode();

    default Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, Spliterator.ORDERED);
    }
}

List装饰器抽象方法

public abstract class AbstractListDecorator extends AbstractCollectionDecorator implements List {
    protected AbstractListDecorator() {
    }

    protected AbstractListDecorator(List list) {
        super(list);
    }

    protected List getList() {
        return (List)this.getCollection();
    }

    public void add(int index, Object object) {
        this.getList().add(index, object);
    }

    public boolean addAll(int index, Collection coll) {
        return this.getList().addAll(index, coll);
    }

    public Object get(int index) {
        return this.getList().get(index);
    }

    public int indexOf(Object object) {
        return this.getList().indexOf(object);
    }

    public int lastIndexOf(Object object) {
        return this.getList().lastIndexOf(object);
    }

    public ListIterator listIterator() {
        return this.getList().listIterator();
    }

    public ListIterator listIterator(int index) {
        return this.getList().listIterator(index);
    }

    public Object remove(int index) {
        return this.getList().remove(index);
    }

    public Object set(int index, Object object) {
        return this.getList().set(index, object);
    }

    public List subList(int fromIndex, int toIndex) {
        return this.getList().subList(fromIndex, toIndex);
    }
}

序列化装饰器抽象方法

public abstract class AbstractSerializableListDecorator extends AbstractListDecorator implements Serializable {
    private static final long serialVersionUID = 2684959196747496299L;

    protected AbstractSerializableListDecorator(List list) {
        super(list);
    }

    private void writeObject(ObjectOutputStream out) throws IOException {
        out.defaultWriteObject();
        out.writeObject(this.collection);
    }

    private void readObject(ObjectInputStream in) throws IOException, ClassNotFoundException {
        in.defaultReadObject();
        this.collection = (Collection)in.readObject();
    }
}

FixedSizeList源码

FixedSizeList修饰另一个列表防止添加/删除并且固定列表大小。add、remove、clear和retain操作是不被支持的，set方法是允许的但是不会影响列表大小。

public class FixedSizeList extends AbstractSerializableListDecorator implements BoundedCollection {
    private static final long serialVersionUID = -2218010673611160319L;

    public static List decorate(List list) {
        return new FixedSizeList(list);
    }

    protected FixedSizeList(List list) {
        super(list);
    }

    public boolean add(Object object) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public void add(int index, Object object) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public boolean addAll(Collection coll) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public boolean addAll(int index, Collection coll) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public void clear() {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public Object get(int index) {
        return this.getList().get(index);
    }

    public int indexOf(Object object) {
        return this.getList().indexOf(object);
    }

    public Iterator iterator() {
        return UnmodifiableIterator.decorate(this.getCollection().iterator());
    }

    public int lastIndexOf(Object object) {
        return this.getList().lastIndexOf(object);
    }

    public ListIterator listIterator() {
        return new FixedSizeList.FixedSizeListIterator(this.getList().listIterator(0));
    }

    public ListIterator listIterator(int index) {
        return new FixedSizeList.FixedSizeListIterator(this.getList().listIterator(index));
    }

    public Object remove(int index) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public boolean remove(Object object) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public boolean removeAll(Collection coll) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public boolean retainAll(Collection coll) {
        throw new UnsupportedOperationException("List is fixed size");
    }

    public Object set(int index, Object object) {
        return this.getList().set(index, object);
    }

    public List subList(int fromIndex, int toIndex) {
        List sub = this.getList().subList(fromIndex, toIndex);
        return new FixedSizeList(sub);
    }

    public boolean isFull() {
        return true;
    }

    public int maxSize() {
        return this.size();
    }

    static class FixedSizeListIterator extends AbstractListIteratorDecorator {
        protected FixedSizeListIterator(ListIterator iterator) {
            super(iterator);
        }

        public void remove() {
            throw new UnsupportedOperationException("List is fixed size");
        }

        public void add(Object object) {
            throw new UnsupportedOperationException("List is fixed size");
        }
    }
}

LazyList实现类

LazyList修饰另一个列表，当调用get方法时，如果索引超出列表长度，列表会自动增长，我们可以通过一个工厂获得超出索引位置的值。LazyList和GrowthList都可以实现对修饰的列表进行增长，但是LazyList发生在get时候，而GrowthList发生在set和add时候，我们也可以混合使用这两种列表。

public class LazyList extends AbstractSerializableListDecorator {
    private static final long serialVersionUID = -1708388017160694542L;
    protected final Factory factory;

    public static List decorate(List list, Factory factory) {
        return new LazyList(list, factory);
    }

    protected LazyList(List list, Factory factory) {
        super(list);
        if (factory == null) {
            throw new IllegalArgumentException("Factory must not be null");
        } else {
            this.factory = factory;
        }
    }

    public Object get(int index) {
        int size = this.getList().size();
        Object object;
        if (index < size) {
            object = this.getList().get(index);
            if (object == null) {
                object = this.factory.create();
                this.getList().set(index, object);
                return object;
            } else {
                return object;
            }
        } else {
            for(int i = size; i < index; ++i) {
                this.getList().add((Object)null);
            }

            object = this.factory.create();
            this.getList().add(object);
            return object;
        }
    }

    public List subList(int fromIndex, int toIndex) {
        List sub = this.getList().subList(fromIndex, toIndex);
        return new LazyList(sub, this.factory);
    }
}

外观模式(门面模式)

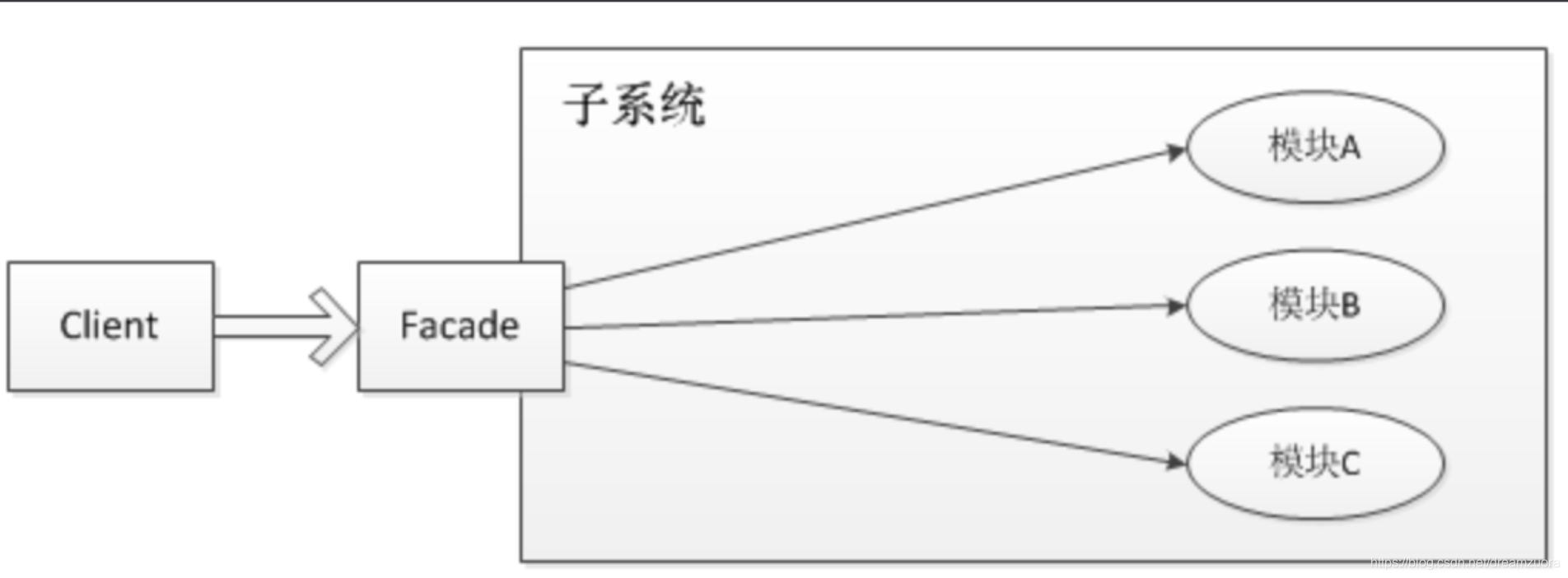

其核心为外部与一个子系统的通信必须通过一个统一的外观对象进行，使得子系统更易于使用。用一张图来表示门面模式的结构为：

简单来说，该模式就是把一些复杂的流程封装成一个接口供给外部用户更简单的使用。这个模式中，设计到3个角色。

1）门面角色：外观模式的核心。它被客户角色调用，它熟悉子系统的功能。内部根据客户角色的需求预定了几种功能的组合（模块）。

2）子系统（模块）角色：实现了子系统的功能。它对客户角色和 Facade 是未知的。它内部可以有系统内的相互交互，也可以由供外界调用的接口。

3）客户角色：通过调用 Facede 来完成要实现的功能。

日志门面（抽象层）	日志实现
JCL(java.util.logging)	JUL
SLF4j	log4j、log4j2、logback

slf4j的作用：只要所有代码都使用门面对象slf4j，我们就不需要关心其具体实现，最终所有地方使用一种具体实现即可，更换、维护都非常方便。

sl4j作用以及原理

案例：sl4j日志使用

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class HelloWorld {
  public static void main(String[] args) {
    // HelloWorld.class 就是你要打印的指定类的日志，
    // 如果你想在其它类中打印，那就把 HelloWorld.class 替换成目标类名.class 即可。
    Logger logger = LoggerFactory.getLogger(HelloWorld.class);
    logger.info("Hello World");
  }
}

享元模式

享元模式（Flyweight Pattern）主要用于减少创建对象的数量，以减少内存占用和提高性能。

RocketMQ过滤器工厂创建Filter

public class FilterFactory {

    public static final FilterFactory INSTANCE = new FilterFactory();

    protected static final Map<String, FilterSpi> FILTER_SPI_HOLDER = new HashMap<String, FilterSpi>(4);

    static {
        FilterFactory.INSTANCE.register(new SqlFilter());
    }

    /**
     * Register a filter.
     * <br>
     * Note:
     * <li>1. Filter registered will be used in broker server, so take care of it's reliability and performance.</li>
     */
    public void register(FilterSpi filterSpi) {
        if (FILTER_SPI_HOLDER.containsKey(filterSpi.ofType())) {
            throw new IllegalArgumentException(String.format("Filter spi type(%s) already exist!", filterSpi.ofType()));
        }

        FILTER_SPI_HOLDER.put(filterSpi.ofType(), filterSpi);
    }

    /**
     * Un register a filter.
     */
    public FilterSpi unRegister(String type) {
        return FILTER_SPI_HOLDER.remove(type);
    }

    /**
     * Get a filter registered, null if none exist.
     */
    public FilterSpi get(String type) {
        return FILTER_SPI_HOLDER.get(type);
    }

代理模式

由于某些原因需要给某对象提供一个代理以控制对该对象的访问。这时，访问对象不适合或者不能直接引用目标对象，代理对象作为访问对象和目标对象之间的中介。

静态代理

静态代理的代理关系在编译期间就已经确定了的。它适合于代理类较少且确定的情况

案例：rocketmq中滚动记录文件，先将日志记录到指定文件代理类实现

    private static InternalLogger createLogger(final String loggerName) {
        String clientLogLevel = System.getProperty(CLIENT_LOG_LEVEL, "INFO");
        boolean additive = "true".equalsIgnoreCase(System.getProperty(CLIENT_LOG_ADDITIVE));
        InternalLogger logger = InternalLoggerFactory.getLogger(loggerName);
        InnerLoggerFactory.InnerLogger innerLogger = (InnerLoggerFactory.InnerLogger) logger;
        Logger realLogger = innerLogger.getLogger();

        //if (rocketmqClientAppender == null) {
        //   createClientAppender();
        //}

        realLogger.addAppender(new AppenderProxy());
        realLogger.setLevel(Level.toLevel(clientLogLevel));
        realLogger.setAdditivity(additive);
        return logger;
    }


static class AppenderProxy extends Appender {
        private Appender proxy;

        @Override
        protected void append(LoggingEvent event) {
            if (null == proxy) {
                proxy = ClientLogger.createClientAppender();
            }
            proxy.doAppend(event);
        }

        @Override
        public void close() {
            if (null != proxy) {
                proxy.close();
            }
        }
    }

动态代理

代理类在程序运行时创建的代理方式叫动态代理

JDK动态代理

JDK动态代理是基于接口的方式，换句话来说就是代理类和目标类都实现同一个接口,利用jdk自带的包通过目标类实现类创建代理类，具体参考我另一个博客jdk、cglib动态代理代码示例

案例：dubbo中jdk动态代理工厂实现

public class JdkProxyFactory extends AbstractProxyFactory {

    @Override
    @SuppressWarnings("unchecked")
    public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) {
        return (T) Proxy.newProxyInstance(Thread.currentThread().getContextClassLoader(), interfaces, new InvokerInvocationHandler(invoker));
    }

    @Override
    public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {
        return new AbstractProxyInvoker<T>(proxy, type, url) {
            @Override
            protected Object doInvoke(T proxy, String methodName,
                                      Class<?>[] parameterTypes,
                                      Object[] arguments) throws Throwable {
                Method method = proxy.getClass().getMethod(methodName, parameterTypes);
                return method.invoke(proxy, arguments);
            }
        };
    }
}

其他相关类源码

public interface Node {

    URL getUrl();

    boolean isAvailable();

    void destroy();
}

public interface Invoker<T> extends Node {

    Class<T> getInterface();

    Result invoke(Invocation invocation) throws RpcException;
}

public abstract class AbstractProxyInvoker<T> implements Invoker<T> {
    Logger logger = LoggerFactory.getLogger(AbstractProxyInvoker.class);

    private final T proxy;

    private final Class<T> type;

    private final URL url;

    public AbstractProxyInvoker(T proxy, Class<T> type, URL url) {
        if (proxy == null) {
            throw new IllegalArgumentException("proxy == null");
        }
        if (type == null) {
            throw new IllegalArgumentException("interface == null");
        }
        if (!type.isInstance(proxy)) {
            throw new IllegalArgumentException(proxy.getClass().getName() + " not implement interface " + type);
        }
        this.proxy = proxy;
        this.type = type;
        this.url = url;
    }

    @Override
    public Class<T> getInterface() {
        return type;
    }

    @Override
    public URL getUrl() {
        return url;
    }

    @Override
    public boolean isAvailable() {
        return true;
    }

    @Override
    public void destroy() {
    }

    @Override
    public Result invoke(Invocation invocation) throws RpcException {
        try {
            Object value = doInvoke(proxy, invocation.getMethodName(), invocation.getParameterTypes(), invocation.getArguments());
			CompletableFuture<Object> future = wrapWithFuture(value);
            CompletableFuture<AppResponse> appResponseFuture = future.handle((obj, t) -> {
                AppResponse result = new AppResponse();
                if (t != null) {
                    if (t instanceof CompletionException) {
                        result.setException(t.getCause());
                    } else {
                        result.setException(t);
                    }
                } else {
                    result.setValue(obj);
                }
                return result;
            });
            return new AsyncRpcResult(appResponseFuture, invocation);
        } catch (InvocationTargetException e) {
            if (RpcContext.getContext().isAsyncStarted() && !RpcContext.getContext().stopAsync()) {
                logger.error("Provider async started, but got an exception from the original method, cannot write the exception back to consumer because an async result may have returned the new thread.", e);
            }
            return AsyncRpcResult.newDefaultAsyncResult(null, e.getTargetException(), invocation);
        } catch (Throwable e) {
            throw new RpcException("Failed to invoke remote proxy method " + invocation.getMethodName() + " to " + getUrl() + ", cause: " + e.getMessage(), e);
        }
    }

	private CompletableFuture<Object> wrapWithFuture(Object value) {
        if (RpcContext.getContext().isAsyncStarted()) {
            return ((AsyncContextImpl)(RpcContext.getContext().getAsyncContext())).getInternalFuture();
        } else if (value instanceof CompletableFuture) {
            return (CompletableFuture<Object>) value;
        }
        return CompletableFuture.completedFuture(value);
    }

    protected abstract Object doInvoke(T proxy, String methodName, Class<?>[] parameterTypes, Object[] arguments) throws Throwable;

    @Override
    public String toString() {
        return getInterface() + " -> " + (getUrl() == null ? " " : getUrl().toString());
    }


}

public class InvokerInvocationHandler implements InvocationHandler {
    private static final Logger logger = LoggerFactory.getLogger(InvokerInvocationHandler.class);
    private final Invoker<?> invoker;
    private ConsumerModel consumerModel;
    private URL url;
    private String protocolServiceKey;

    public InvokerInvocationHandler(Invoker<?> handler) {
        this.invoker = handler;
        this.url = invoker.getUrl();
        String serviceKey = this.url.getServiceKey();
        this.protocolServiceKey = this.url.getProtocolServiceKey();
        if (serviceKey != null) {
            this.consumerModel = ApplicationModel.getConsumerModel(serviceKey);
        }
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        if (method.getDeclaringClass() == Object.class) {
            return method.invoke(invoker, args);
        }
        String methodName = method.getName();
        Class<?>[] parameterTypes = method.getParameterTypes();
        if (parameterTypes.length == 0) {
            if ("toString".equals(methodName)) {
                return invoker.toString();
            } else if ("$destroy".equals(methodName)) {
                invoker.destroy();
                return null;
            } else if ("hashCode".equals(methodName)) {
                return invoker.hashCode();
            }
        } else if (parameterTypes.length == 1 && "equals".equals(methodName)) {
            return invoker.equals(args[0]);
        }
        RpcInvocation rpcInvocation = new RpcInvocation(method, invoker.getInterface().getName(), protocolServiceKey, args);
        String serviceKey = invoker.getUrl().getServiceKey();
        rpcInvocation.setTargetServiceUniqueName(serviceKey);

        // invoker.getUrl() returns consumer url.
        RpcContext.setRpcContext(invoker.getUrl());

        if (consumerModel != null) {
            rpcInvocation.put(Constants.CONSUMER_MODEL, consumerModel);
            rpcInvocation.put(Constants.METHOD_MODEL, consumerModel.getMethodModel(method));
        }

        return invoker.invoke(rpcInvocation).recreate();
    }
}

@SPI("javassist")
public interface ProxyFactory {

    /**
     * create proxy.
     *
     * @param invoker
     * @return proxy
     */
    @Adaptive({PROXY_KEY})
    <T> T getProxy(Invoker<T> invoker) throws RpcException;

    /**
     * create proxy.
     *
     * @param invoker
     * @return proxy
     */
    @Adaptive({PROXY_KEY})
    <T> T getProxy(Invoker<T> invoker, boolean generic) throws RpcException;

    /**
     * create invoker.
     *
     * @param <T>
     * @param proxy
     * @param type
     * @param url
     * @return invoker
     */
    @Adaptive({PROXY_KEY})
    <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) throws RpcException;

public abstract class AbstractProxyFactory implements ProxyFactory {
    private static final Class<?>[] INTERNAL_INTERFACES = new Class<?>[]{
            EchoService.class, Destroyable.class
    };

    @Override
    public <T> T getProxy(Invoker<T> invoker) throws RpcException {
        return getProxy(invoker, false);
    }

    @Override
    public <T> T getProxy(Invoker<T> invoker, boolean generic) throws RpcException {
        Set<Class<?>> interfaces = new HashSet<>();

        String config = invoker.getUrl().getParameter(INTERFACES);
        if (config != null && config.length() > 0) {
            String[] types = COMMA_SPLIT_PATTERN.split(config);
            for (String type : types) {
                // TODO can we load successfully for a different classloader?.
                interfaces.add(ReflectUtils.forName(type));
            }
        }

        if (generic) {
            if (!GenericService.class.isAssignableFrom(invoker.getInterface())) {
                interfaces.add(com.alibaba.dubbo.rpc.service.GenericService.class);
            }

            try {
                // find the real interface from url
                String realInterface = invoker.getUrl().getParameter(Constants.INTERFACE);
                interfaces.add(ReflectUtils.forName(realInterface));
            } catch (Throwable e) {
                // ignore
            }
        }

        interfaces.add(invoker.getInterface());
        interfaces.addAll(Arrays.asList(INTERNAL_INTERFACES));

        return getProxy(invoker, interfaces.toArray(new Class<?>[0]));
    }

    public abstract <T> T getProxy(Invoker<T> invoker, Class<?>[] types);

}

CGLIB动态代理

CGLib动态代理是代理类去继承目标类，然后重写其中目标类的方法

案例：dubbo中cglib创建代理类

    @Test
    public void testCglibProxy() throws Exception {
        ITest test = (ITest) Proxy.getProxy(ITest.class).newInstance((proxy, method, args) -> {
            System.out.println(method.getName());
            return null;
        });

        Enhancer enhancer = new Enhancer();
        enhancer.setSuperclass(test.getClass());
        enhancer.setCallback((MethodInterceptor) (obj, method, args, proxy) -> null);
        try {
            enhancer.create();
        } catch (IllegalArgumentException e) {
            e.printStackTrace();
            Assertions.fail();
        }
    }

javassist动态代码创建

javassist的强大之处在于它操作字节码的能力，可以动态的修改类，加载类，添加删除字段、方法等操作。当然也可以实现动态代理

简单使用案例

public class JavassistProxyFactory extends AbstractProxyFactory {

    @Override
    @SuppressWarnings("unchecked")
    public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) {
        return (T) Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker));
    }

    @Override
    public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {
        // TODO Wrapper cannot handle this scenario correctly: the classname contains '$'
        final Wrapper wrapper = Wrapper.getWrapper(proxy.getClass().getName().indexOf('$') < 0 ? proxy.getClass() : type);
        return new AbstractProxyInvoker<T>(proxy, type, url) {
            @Override
            protected Object doInvoke(T proxy, String methodName,
                                      Class<?>[] parameterTypes,
                                      Object[] arguments) throws Throwable {
                return wrapper.invokeMethod(proxy, methodName, parameterTypes, arguments);
            }
        };
    }

动态字节码生成

    public static Wrapper getWrapper(Class<?> c) {
        while (ClassGenerator.isDynamicClass(c)) // can not wrapper on dynamic class.
        {
            c = c.getSuperclass();
        }

        if (c == Object.class) {
            return OBJECT_WRAPPER;
        }

        return WRAPPER_MAP.computeIfAbsent(c, Wrapper::makeWrapper);
    }

    private static Wrapper makeWrapper(Class<?> c) {
        if (c.isPrimitive()) {
            throw new IllegalArgumentException("Can not create wrapper for primitive type: " + c);
        }

        String name = c.getName();
        ClassLoader cl = ClassUtils.getClassLoader(c);

        StringBuilder c1 = new StringBuilder("public void setPropertyValue(Object o, String n, Object v){ ");
        StringBuilder c2 = new StringBuilder("public Object getPropertyValue(Object o, String n){ ");
        StringBuilder c3 = new StringBuilder("public Object invokeMethod(Object o, String n, Class[] p, Object[] v) throws " + InvocationTargetException.class.getName() + "{ ");

        c1.append(name).append(" w; try{ w = ((").append(name).append(")$1); }catch(Throwable e){ throw new IllegalArgumentException(e); }");
        c2.append(name).append(" w; try{ w = ((").append(name).append(")$1); }catch(Throwable e){ throw new IllegalArgumentException(e); }");
        c3.append(name).append(" w; try{ w = ((").append(name).append(")$1); }catch(Throwable e){ throw new IllegalArgumentException(e); }");

        Map<String, Class<?>> pts = new HashMap<>(); // <property name, property types>
        Map<String, Method> ms = new LinkedHashMap<>(); // <method desc, Method instance>
        List<String> mns = new ArrayList<>(); // method names.
        List<String> dmns = new ArrayList<>(); // declaring method names.

        // get all public field.
        for (Field f : c.getFields()) {
            String fn = f.getName();
            Class<?> ft = f.getType();
            if (Modifier.isStatic(f.getModifiers()) || Modifier.isTransient(f.getModifiers())) {
                continue;
            }

            c1.append(" if( $2.equals(\"").append(fn).append("\") ){ w.").append(fn).append("=").append(arg(ft, "$3")).append("; return; }");
            c2.append(" if( $2.equals(\"").append(fn).append("\") ){ return ($w)w.").append(fn).append("; }");
            pts.put(fn, ft);
        }

        Method[] methods = c.getMethods();
        // get all public method.
        boolean hasMethod = hasMethods(methods);
        if (hasMethod) {
            c3.append(" try{");
            for (Method m : methods) {
                //ignore Object's method.
                if (m.getDeclaringClass() == Object.class) {
                    continue;
                }

                String mn = m.getName();
                c3.append(" if( \"").append(mn).append("\".equals( $2 ) ");
                int len = m.getParameterTypes().length;
                c3.append(" && ").append(" $3.length == ").append(len);

                boolean overload = false;
                for (Method m2 : methods) {
                    if (m != m2 && m.getName().equals(m2.getName())) {
                        overload = true;
                        break;
                    }
                }
                if (overload) {
                    if (len > 0) {
                        for (int l = 0; l < len; l++) {
                            c3.append(" && ").append(" $3[").append(l).append("].getName().equals(\"")
                                    .append(m.getParameterTypes()[l].getName()).append("\")");
                        }
                    }
                }

                c3.append(" ) { ");

                if (m.getReturnType() == Void.TYPE) {
                    c3.append(" w.").append(mn).append('(').append(args(m.getParameterTypes(), "$4")).append(");").append(" return null;");
                } else {
                    c3.append(" return ($w)w.").append(mn).append('(').append(args(m.getParameterTypes(), "$4")).append(");");
                }

                c3.append(" }");

                mns.add(mn);
                if (m.getDeclaringClass() == c) {
                    dmns.add(mn);
                }
                ms.put(ReflectUtils.getDesc(m), m);
            }
            c3.append(" } catch(Throwable e) { ");
            c3.append("     throw new java.lang.reflect.InvocationTargetException(e); ");
            c3.append(" }");
        }

        c3.append(" throw new " + NoSuchMethodException.class.getName() + "(\"Not found method \\\"\"+$2+\"\\\" in class " + c.getName() + ".\"); }");

        // deal with get/set method.
        Matcher matcher;
        for (Map.Entry<String, Method> entry : ms.entrySet()) {
            String md = entry.getKey();
            Method method = entry.getValue();
            if ((matcher = ReflectUtils.GETTER_METHOD_DESC_PATTERN.matcher(md)).matches()) {
                String pn = propertyName(matcher.group(1));
                c2.append(" if( $2.equals(\"").append(pn).append("\") ){ return ($w)w.").append(method.getName()).append("(); }");
                pts.put(pn, method.getReturnType());
            } else if ((matcher = ReflectUtils.IS_HAS_CAN_METHOD_DESC_PATTERN.matcher(md)).matches()) {
                String pn = propertyName(matcher.group(1));
                c2.append(" if( $2.equals(\"").append(pn).append("\") ){ return ($w)w.").append(method.getName()).append("(); }");
                pts.put(pn, method.getReturnType());
            } else if ((matcher = ReflectUtils.SETTER_METHOD_DESC_PATTERN.matcher(md)).matches()) {
                Class<?> pt = method.getParameterTypes()[0];
                String pn = propertyName(matcher.group(1));
                c1.append(" if( $2.equals(\"").append(pn).append("\") ){ w.").append(method.getName()).append("(").append(arg(pt, "$3")).append("); return; }");
                pts.put(pn, pt);
            }
        }
        c1.append(" throw new " + NoSuchPropertyException.class.getName() + "(\"Not found property \\\"\"+$2+\"\\\" field or setter method in class " + c.getName() + ".\"); }");
        c2.append(" throw new " + NoSuchPropertyException.class.getName() + "(\"Not found property \\\"\"+$2+\"\\\" field or getter method in class " + c.getName() + ".\"); }");

        // make class
        long id = WRAPPER_CLASS_COUNTER.getAndIncrement();
        ClassGenerator cc = ClassGenerator.newInstance(cl);
        cc.setClassName((Modifier.isPublic(c.getModifiers()) ? Wrapper.class.getName() : c.getName() + "$sw") + id);
        cc.setSuperClass(Wrapper.class);

        cc.addDefaultConstructor();
        cc.addField("public static String[] pns;"); // property name array.
        cc.addField("public static " + Map.class.getName() + " pts;"); // property type map.
        cc.addField("public static String[] mns;"); // all method name array.
        cc.addField("public static String[] dmns;"); // declared method name array.
        for (int i = 0, len = ms.size(); i < len; i++) {
            cc.addField("public static Class[] mts" + i + ";");
        }

        cc.addMethod("public String[] getPropertyNames(){ return pns; }");
        cc.addMethod("public boolean hasProperty(String n){ return pts.containsKey($1); }");
        cc.addMethod("public Class getPropertyType(String n){ return (Class)pts.get($1); }");
        cc.addMethod("public String[] getMethodNames(){ return mns; }");
        cc.addMethod("public String[] getDeclaredMethodNames(){ return dmns; }");
        cc.addMethod(c1.toString());
        cc.addMethod(c2.toString());
        cc.addMethod(c3.toString());

        try {
            Class<?> wc = cc.toClass();
            // setup static field.
            wc.getField("pts").set(null, pts);
            wc.getField("pns").set(null, pts.keySet().toArray(new String[0]));
            wc.getField("mns").set(null, mns.toArray(new String[0]));
            wc.getField("dmns").set(null, dmns.toArray(new String[0]));
            int ix = 0;
            for (Method m : ms.values()) {
                wc.getField("mts" + ix++).set(null, m.getParameterTypes());
            }
            return (Wrapper) wc.newInstance();
        } catch (RuntimeException e) {
            throw e;
        } catch (Throwable e) {
            throw new RuntimeException(e.getMessage(), e);
        } finally {
            cc.release();
            ms.clear();
            mns.clear();
            dmns.clear();
        }
    }

优秀文章：菜鸟教程
