文章介绍了在OpenSceneGraph(OSG)中如何仅使坦克模型的炮塔部分旋转，而非整个模型。通过创建DOFTransform节点在3D建模软件中实现自由度控制，然后在OSG中利用自定义回调函数更新这些DOF节点，从而在每一帧动画中控制炮塔和机枪的旋转与俯仰。
目录
1. 问题的提出

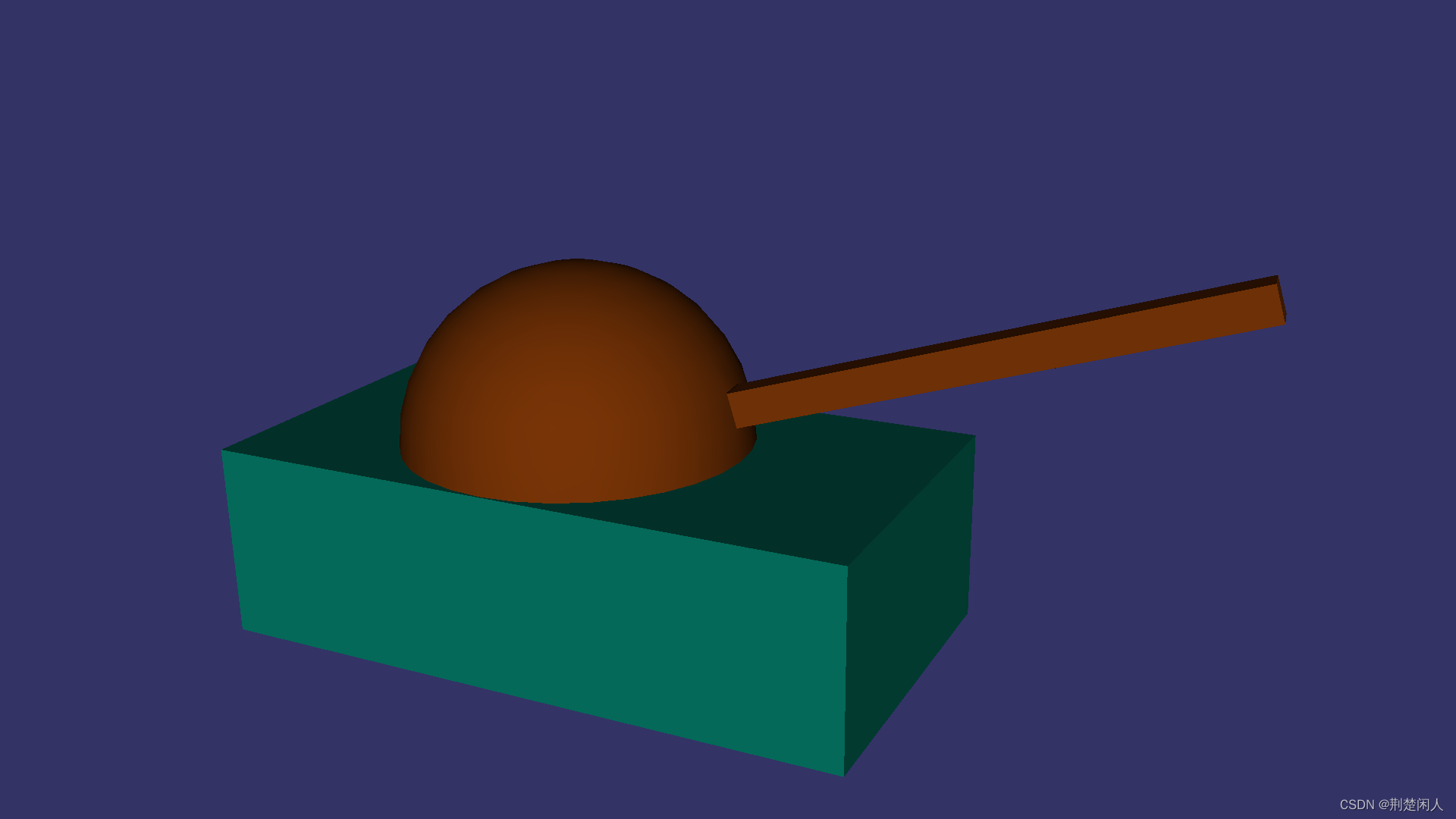

一般地，我们通过osg的osgDB::readNodeFile函数（或类似函数）加载*.osg、*.obj等模型文件到场景中，如果没啥问题，场景就能显示该模型,但对模型进行转动时，只能对整个模型进行转动，而不能对模型的部分转动，如下为一个文件表示的坦克模型：
现在我们只想坦克的炮塔转动，而底座不转动。利用osg::MatrixTransform类显然是不行的，因为osg::MatrixTransform类只能对整个模型形成的根节点进行转动，即整个坦克整体运动。
2. 三维模型制作
要实现一个模型文件形成的模型中部分区域动作，模型制作必须保证有DOFTransform节点，在3DMAX等模型制作软件中，可以装个osg的插件（如：osgExp，网上自行搜索）），此时就可以制作出DOF节点来，而炮塔则是DOF节点的子节点，然后再导出osg格式。关于怎么在3DMAX中制作DOF节点，这超出了osg及本博文的范围了，可以参考下述链接：
3. 回调概览及代码实现
用户可以使用回调来实现与场景图形的交互。回调可以被理解成是一种用户自定义的函数，根据遍历方式的不同（更新update，拣选cull，绘制draw），回调函数将自动地执行。回调可以与个别的节点或者选定类型（及子类型）的节点相关联。在场景图形的各次遍历中，如果遇到的某个节点已经与用户定义的回调类和函数相关联，则这个节点的回调将被执行。
3.1.创建一个更新回调
更新回调将在场景图形每一次运行更新遍历时被执行。与更新回调相关的代码可以在每一帧被执行，且实现过程是在拣选回调之前，因此回调相关的代码可以插入到主仿真循环的viewer.update()和viewer.frame()函数之间。而OSG的回调也提供了维护更为方便的接口来实现上述的功能。善于使用回调的程序代码也可以在多线程的工作中更加高效地运行。
如果我们需要自动更新与坦克模型的炮塔航向角和机枪倾角相关联的DOF（自由度）节点，我们可以采取多种方式来完成这一任务。譬如，针对我们将要操作的各个节点编写相应的回调函数：包括一个与机枪节点相关联的回调，一个与炮塔节点相关联的回调，等等。这种方法的缺陷是，与不同模型相关联的函数无法被集中化，因此增加了代码阅读、维护和更新的复杂性。另一种（极端的）方法是，只编写一个更新回调函数，来完成整个场景的节点操作。本质上来说，这种方法和上一种具有同样的问题，因为所有的代码都会集中到仿真循环当中。当仿真的复杂程度不断增加时，这个唯一的更新回调函数也会变得愈发难以阅读、维护和修改。关于编写场景中节点/子树回调函数的方法，并没有一定之规。在本例中我们将创建单一的坦克节点回调，这个回调函数将负责更新炮塔和机枪的自由度节点。
为了实现这一回调，我们需要在节点类原有的基础上添加新的数据。我们需要获得与炮塔和机枪相关联的DOF节点的句柄，以更新炮塔旋转和机枪俯仰的角度值。角度值的变化要建立在上一次变化的基础上。因为回调是作为场景遍历的一部分进行初始化的，我们所需的参数通常只有两个：一个是与回调相关联的节点指针，一个是用于执行遍历的节点访问器指针。为了获得更多的参数数据（炮塔和机枪DOF的句柄，旋转和俯仰角度值），我们可以使用节点类的userData数据成员。userData是一个指向用户定义类的指针，其中包含了关联某个特定节点时所需的一切数据集。而对于用户自定义类，只有一个条件是必需的，即，它必须继承自osg::Referenced类。Referenced类提供了智能指针的功能，用于协助用户管理内存分配。智能指针记录了分配给一个类的实例的引用计数值。这个类的实例只有在引用计数值到达0的时候才会被删除。基于上述的需求，我们向坦克节点添加如下的代码：
class tankDataType
{
public:
//公有成员
protected:
osgSim::DOFTransform* tankTurretNode;
osgSim::DOFTransform* tankGunNode;
double rotation; //（弧度值）
double elevation; //（弧度值）
double transion;
};
为了正确实现tankData类，我们需要获取DOF节点的句柄。这一工作可以在类的构造函数中使用findNodeVisitor类完成。findNodeVisitor将从一个起始节点开始遍历。本例中我们将从表示坦克的子树的根节点开始执行遍历，因此我们需要向tankDataType的构造函数传递坦克节点的指针。因此，tankDataType类的构造函数代码应当编写为：（向特定节点分配用户数据的步骤将随后给出）
tankDataType::tankDataType(osg::Node* n)
{
rotation = 0;
elevation = 0;
transion = 0;
findNodeVisitor findTurret("DOF001"); // DOF001就是炮塔的DOF节点名称
n->accept(findTurret);
tankTurretNode = dynamic_cast <osgSim::DOFTransform*> (findTurret.getFirst());
findNodeVisitor findGun("gun");
n->accept(findGun);
tankGunNode = dynamic_cast< osgSim::DOFTransform*> (findGun.getFirst());
}
我们也可以在tankDataType类中定义更新炮塔旋转和机枪俯仰的方法。现在我们只需要简单地让炮塔和机枪角度每帧改变一个固定值即可。对于机枪的俯仰角，我们需要判断它是否超过了实际情况的限制值。如果达到限制值，则重置仰角为0。炮塔的旋转可以在一个圆周内自由进行。
void tankDataType::updateTurretRotation() //控制坦克的炮塔将旋转不同的角度
{
rotation += 0.01;
tankTurretNode->setCurrentHPR( osg::Vec3(rotation,0,0) );
}
void tankDataType::updateGunElevation() //控制坦克的枪管在y方向上的仰角，控制枪管的升降
{
elevation += 0.01;
tankGunNode->setCurrentHPR( osg::Vec3(0,elevation,0) );
if (elevation > 0.5)
elevation = 0.0;
}
将上述代码添加到类的内容后，我们新定义的类如下所示：
class tankDataType : public osg::Referenced
{
public:
tankDataType(osg::Node*n);
void updateTurretRotation();
void updateGunElevation();
void updateTurretTranslate();
protected:
osgSim::DOFTransform* tankTurretNode;
osgSim::DOFTransform* tankGunNode;
double rotation; //（弧度值）
double elevation; //（弧度值）
double transion;
};
下一个步骤是创建回调，并将其关联到坦克节点上。为了创建这个回调，我们需要重载“()”操作符，它包括两个参数：节点指针和节点访问器的指针。在这个函数中我们将执行DOF节点的更新。因此，我们需要执行tankData实例的更新方法，其中tankData实例使用坦克节点的userData成员与坦克节点相关联。坦克节点的指针可以通过使用getUserData方法来获取。由于这个方法的返回值是一个osg::Referenced基类的指针，因此需要将其安全地转换为tankDataType类的指针。为了保证用户数据的引用计数值是正确的，我们使用模板类型osg::ref_ptr指向用户数据。整个类的定义如下：
```cpp
class tankNodeCallback : public osg::NodeCallback
{
public:
virtual void operator()(osg::Node* node, osg::NodeVisitor* nv)
{
osg::ref_ptr<tankDataType> tankData = dynamic_cast<tankDataType*> (node->getUserData() );
if(tankData)
{
tankData->updateTurretRotation();
tankData->updateGunElevation();
tankData->updateTurretTranslate();
}
traverse(node, nv);
}
};
下一步的工作是“安装”回调：将其关联给我们要修改的坦克节点，以实现每帧的更新函数执行。因此，我们首先要保证坦克节点的用户数据（tankDataType类的实例）是正确的。然后，我们使用osg::Node类的setUpdateCallback方法将回调与正确的节点相关联。代码如下所示：
// 初始化变量和模型，建立场景
osg::ref_ptr<osg::Node> tankNode = osgDB::readNodeFile("tankTurret.osg");
tankDataType* tankData = new tankDataType(tankNode);
tankNode->setUserData( tankData );
tankNode->setUpdateCallback(new tankNodeCallback);
创建了回调之后，我们进入仿真循环。仿真循环的代码不用加以改变。当我们调用视口类实例的frame()方法时，我们即进入一个更新遍历。当更新遍历及至坦克节点时，将触发tankNodeCallback类的操作符“()”函数。
完整的源程序代码如下：
#include <osgViewer/Viewer>
#include <osgDB/ReadFile>
#include <osg/NodeVisitor>
#include <osg/Node>
#include <osg/Group>
#include <osgSim/DOFTransform>
#include <osgUtil/Optimizer>
#include <osg/NodeVisitor>
#include <iostream>
#include <vector>
//模型中使用DOF节点，以便清晰表达坦克的某个部分。例如炮塔节点可以旋转，机枪节点可以升高
class findNodeVisitor : public osg::NodeVisitor
{
public:
findNodeVisitor();
findNodeVisitor(const std::string &searchName) ;
virtual void apply(osg::Node &searchNode);
virtual void apply(osg::Transform &searchNode);
void setNameToFind(const std::string &searchName);
osg::Node* getFirst();
typedef std::vector<osg::Node*> nodeListType;
nodeListType& getNodeList() { return foundNodeList; }
private:
std::string searchForName;
nodeListType foundNodeList;
};
findNodeVisitor::findNodeVisitor() : osg::NodeVisitor(TRAVERSE_ALL_CHILDREN),searchForName()
{
}
findNodeVisitor::findNodeVisitor(const std::string &searchName):osg::NodeVisitor(TRAVERSE_ALL_CHILDREN),searchForName(searchName)
{
}
void findNodeVisitor::setNameToFind(const std::string &searchName)
{
searchForName = searchName;
foundNodeList.clear();
}
osg::Node* findNodeVisitor::getFirst()
{
return *(foundNodeList.begin());
}
void findNodeVisitor::apply(osg::Node &searchNode)
{
if (searchNode.getName() == searchForName)
{
foundNodeList.push_back(&searchNode);
}
traverse(searchNode);
}
void findNodeVisitor::apply(osg::Transform &searchNode)
{
osgSim::DOFTransform* dofNode =
dynamic_cast<osgSim::DOFTransform*> (&searchNode);
if (dofNode)
{
dofNode->setAnimationOn(false);
}
apply ( (osg::Node&) searchNode);
traverse(searchNode);
}
class tankDataType : public osg::Referenced
{
public:
tankDataType(osg::Node*n);
void updateTurretRotation();
void updateGunElevation();
void updateTurretTranslate();
protected:
osgSim::DOFTransform* tankTurretNode;
osgSim::DOFTransform* tankGunNode;
double rotation; //（弧度值）
double elevation; //（弧度值）
double transion;
};
tankDataType::tankDataType(osg::Node* n)
{
rotation = 0;
elevation = 0;
transion= 0;
findNodeVisitor findTurret("DOF001"); // DOF001是炮塔DOF节点名称
n->accept(findTurret);
tankTurretNode = dynamic_cast <osgSim::DOFTransform*> (findTurret.getFirst());
findNodeVisitor findGun("gun");
n->accept(findGun);
tankGunNode = dynamic_cast< osgSim::DOFTransform*> (findGun.getFirst());
}
void tankDataType::updateTurretRotation() //控制坦克的炮塔将旋转不同的角度
{
rotation += 0.02;
tankTurretNode->setCurrentHPR( osg::Vec3(rotation,0,0) );
}
void tankDataType::updateTurretTranslate() //控制坦克的炮塔移动
{
transion += 0.005;
tankTurretNode->setCurrentTranslate(osg::Vec3(transion, 0, 0));
}
void tankDataType::updateGunElevation() //控制坦克的枪管在y方向上的仰角，控制枪管的升降
{
//elevation += 0.02; //控制坦克的枪管在y方向上的升降
tankGunNode->setCurrentHPR( osg::Vec3(0,elevation,0) );
if (elevation > 0.5)
elevation = 0.0;
}
class tankNodeCallback : public osg::NodeCallback
{
public:
virtual void operator()(osg::Node* node, osg::NodeVisitor* nv)
{
osg::ref_ptr<tankDataType> tankData = dynamic_cast<tankDataType*> (node->getUserData() );
if(tankData)
{
tankData->updateTurretRotation();
tankData->updateGunElevation();
tankData->updateTurretTranslate();
}
traverse(node, nv);
}
};
int main(void)
{
// 初始化变量和模型，建立场景
osg::ref_ptr<osgViewer::Viewer> viewer = new osgViewer::Viewer();
osg::ref_ptr<osg::Group> root = new osg::Group();
osg::ref_ptr<osg::Node> tankNode = osgDB::readNodeFile("tankTurret.osg");
tankDataType* tankData = new tankDataType(tankNode);
tankNode->setUserData( tankData );
tankNode->setUpdateCallback(new tankNodeCallback);
root->addChild(tankNode.get());
//优化场景数据
osgUtil::Optimizer optimizer;
optimizer.optimize(root.get());
//设置场景数据
viewer->setSceneData(root.get());
//初始化并创建窗口
viewer->realize();
//开始渲染
viewer->run();
return 0;
}

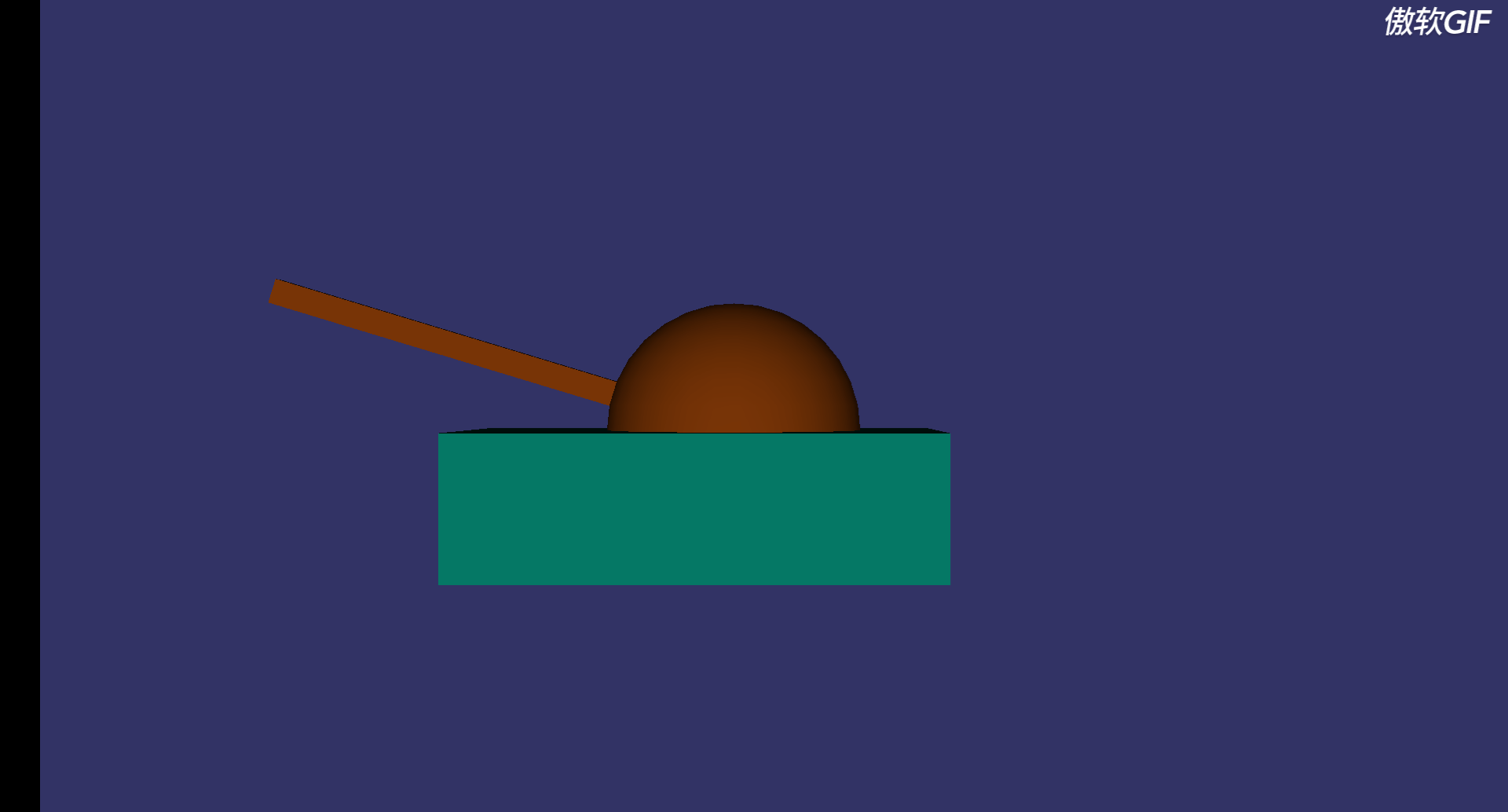

炮塔边旋转边移动，效果如下：
提供tankTurret.osg格式如下：
说明：
- 请将下面的全部复制到记事本文件，然后将.txt后缀名改为osg。
- 下面的tankTurret.osg文件中，由于当时模型制作人员很忙，对炮管没有附加DOF节点，如果利用该文件对前面代码测试，则请将上面的91~93,111~114行注释掉，否则tankGunNode为空，导致程序崩溃。
Group {
DataVariance STATIC
name "场景根"
nodeMask 0xffffffff
cullingActive TRUE
StateSet {
rendering_hint DEFAULT_BIN
renderBinMode INHERIT
GL_LIGHTING ON
GL_NORMALIZE ON
}
num_children 2
MatrixTransform {
DataVariance STATIC
name "dipan"
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
Matrix {
1 0 0 0
0 1 0 0
0 0 1 0
3.1969 -1.6377 0 1
}
num_children 1
Geode {
UniqueID Geode_0
DataVariance STATIC
name "dipan-GEODE"
nodeMask 0xffffffff
cullingActive TRUE
num_drawables 1
Geometry {
StateSet {
rendering_hint DEFAULT_BIN
renderBinMode INHERIT
}
useDisplayList TRUE
useVertexBufferObjects FALSE
PrimitiveSets 1
{
DrawArrays TRIANGLES 0 36
}
VertexArray Vec3Array 36
{
-39.7135 -20.7335 0
-39.7135 20.7335 0
39.7135 20.7335 0
39.7135 20.7335 0
39.7135 -20.7335 0
-39.7135 -20.7335 0
-39.7135 -20.7335 23.5186
39.7135 -20.7335 23.5186
39.7135 20.7335 23.5186
39.7135 20.7335 23.5186
-39.7135 20.7335 23.5186
-39.7135 -20.7335 23.5186
-39.7135 -20.7335 0
39.7135 -20.7335 0
39.7135 -20.7335 23.5186
39.7135 -20.7335 23.5186
-39.7135 -20.7335 23.5186
-39.7135 -20.7335 0
39.7135 -20.7335 0
39.7135 20.7335 0
39.7135 20.7335 23.5186
39.7135 20.7335 23.5186
39.7135 -20.7335 23.5186
39.7135 -20.7335 0
39.7135 20.7335 0
-39.7135 20.7335 0
-39.7135 20.7335 23.5186
-39.7135 20.7335 23.5186
39.7135 20.7335 23.5186
39.7135 20.7335 0
-39.7135 20.7335 0
-39.7135 -20.7335 0
-39.7135 -20.7335 23.5186
-39.7135 -20.7335 23.5186
-39.7135 20.7335 23.5186
-39.7135 20.7335 0
}
NormalBinding PER_VERTEX
NormalArray Vec3Array 36
{
0 0 -1
0 0 -1
0 0 -1
0 0 -1
0 0 -1
0 0 -1
0 0 1
0 -0 1
0 0 1
0 0 1
-0 0 1
0 0 1
0 -1 0
0 -1 0
0 -1 0
0 -1 0
0 -1 0
0 -1 0
1 0 0
1 0 -0
1 0 0
1 0 0
1 -0 0
1 0 0
0 1 0
0 1 0
0 1 0
0 1 0
0 1 0
0 1 0
-1 0 0
-1 0 0
-1 0 0
-1 0 0
-1 -0 -0
-1 0 0
}
ColorBinding OVERALL
ColorArray Vec4Array 1
{
0.0235294 0.529412 0.443137 1
}
}
}
}
MatrixTransform {
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
Matrix {
1 0 0 0
0 1 0 0
0 0 1 0
0 -1.12194 23.6176 1
}
num_children 1
osgSim::DOFTransform {
DataVariance DYNAMIC
name "DOF001"
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
PutMatrix {
1 0 0 0
0 1 0 0
0 0 1 0
0 0 0 1
}
minHPR 0 0 0
maxHPR 0 0 0
incrementHPR 0 0 0
currentHPR 0 0 0
minTranslate 0 0 0
maxTranslate 0 0 0
incrementTranslate 0 0 0
currentTranslate 0 0 0
minScale 1 1 1
maxScale 1 1 1
incrementScale 0 0 0
currentScale 1 1 1
multOrder HPR
limitationFlags 0x0
animationOn FALSE
num_children 1
MatrixTransform {
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
Matrix {
1 0 0 0
0 1 0 0
0 0 1 0
-0 1.12194 -23.6176 1
}
num_children 2
MatrixTransform {
DataVariance STATIC
name "paota"
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
Matrix {
1 0 0 0
0 1 0 0
0 0 1 0
0 -1.12194 23.6176 1
}
num_children 1
Geode {
UniqueID Geode_1
DataVariance STATIC
name "paota-GEODE"
nodeMask 0xffffffff
cullingActive TRUE
num_drawables 1
Geometry {
StateSet {
rendering_hint DEFAULT_BIN
renderBinMode INHERIT
}
useDisplayList TRUE
useVertexBufferObjects FALSE
PrimitiveSets 1
{
DrawArrays TRIANGLES 0 1434
}
VertexArray Vec3Array 1434
{
0 0 21.2653
-1.81344e-07 4.14866 20.8567
-0.809363 4.06894 20.8567
0 0 21.2653
-0.809363 4.06894 20.8567
-1.58762 3.83286 20.8567
0 0 21.2653
-1.58762 3.83286 20.8567
-2.30487 3.44948 20.8567
0 0 21.2653
-2.30487 3.44948 20.8567
-2.93354 2.93354 20.8567
0 0 21.2653
-2.93354 2.93354 20.8567
-3.44948 2.30487 20.8567
0 0 21.2653
-3.44948 2.30487 20.8567
-3.83286 1.58762 20.8567
0 0 21.2653
-3.83286 1.58762 20.8567
-4.06894 0.809362 20.8567
0 0 21.2653
-4.06894 0.809362 20.8567
-4.14866 -1.3518e-06 20.8567
0 0 21.2653
-4.14866 -1.3518e-06 20.8567
-4.06894 -0.809365 20.8567
0 0 21.2653
-4.06894 -0.809365 20.8567
-3.83286 -1.58762 20.8567
0 0 21.2653
-3.83286 -1.58762 20.8567
-3.44948 -2.30487 20.8567
0 0 21.2653
-3.44948 -2.30487 20.8567
-2.93354 -2.93355 20.8567
0 0 21.2653
-2.93354 -2.93355 20.8567
-2.30487 -3.44949 20.8567
0 0 21.2653
-2.30487 -3.44949 20.8567
-1.58762 -3.83286 20.8567
0 0 21.2653
-1.58762 -3.83286 20.8567
-0.809359 -4.06894 20.8567
0 0 21.2653
-0.809359 -4.06894 20.8567
4.00594e-06 -4.14866 20.8567
0 0 21.2653
4.00594e-06 -4.14866 20.8567
0.809367 -4.06894 20.8567
0 0 21.2653
0.809367 -4.06894 20.8567
1.58763 -3.83286 20.8567
0 0 21.2653
1.58763 -3.83286 20.8567
2.30488 -3.44948 20.8567
0 0 21.2653
2.30488 -3.44948 20.8567
2.93355 -2.93354 20.8567
0 0 21.2653
2.93355 -2.93354 20.8567
3.44949 -2.30487 20.8567
0 0 21.2653
3.44949 -2.30487 20.8567
3.83286 -1.58762 20.8567
0 0 21.2653
3.83286 -1.58762 20.8567
4.06894 -0.809357 20.8567
0 0 21.2653
4.06894 -0.809357 20.8567
4.14866 6.66008e-06 20.8567
0 0 21.2653
4.14866 6.66008e-06 20.8567
4.06894 0.80937 20.8567
0 0 21.2653
4.06894 0.80937 20.8567
3.83286 1.58763 20.8567
0 0 21.2653
3.83286 1.58763 20.8567
3.44948 2.30488 20.8567
0 0 21.2653
3.44948 2.30488 20.8567
2.93354 2.93355 20.8567
0 0 21.2653
2.93354 2.93355 20.8567
2.30486 3.44949 20.8567
0 0 21.2653
2.30486 3.44949 20.8567
1.58761 3.83286 20.8567
0 0 21.2653
1.58761 3.83286 20.8567
0.809354 4.06894 20.8567
0 0 21.2653
0.809354 4.06894 20.8567
-1.81344e-07 4.14866 20.8567
-1.58762 7.98152 19.6466
-0.809363 4.06894 20.8567
-1.81344e-07 4.14866 20.8567
-1.81344e-07 4.14866 20.8567
-3.55718e-07 8.13789 19.6466
-1.58762 7.98152 19.6466
-3.11423 7.51843 19.6466
-1.58762 3.83286 20.8567
-0.809363 4.06894 20.8567
-0.809363 4.06894 20.8567
-1.58762 7.98152 19.6466
-3.11423 7.51843 19.6466
-4.52117 6.76641 19.6466
-2.30487 3.44948 20.8567
-1.58762 3.83286 20.8567
-1.58762 3.83286 20.8567
-3.11423 7.51843 19.6466
-4.52117 6.76641 19.6466
-5.75435 5.75435 19.6466
-2.93354 2.93354 20.8567
-2.30487 3.44948 20.8567
-2.30487 3.44948 20.8567
-4.52117 6.76641 19.6466
-5.75435 5.75435 19.6466
-6.76641 4.52117 19.6466
-3.44948 2.30487 20.8567
-2.93354 2.93354 20.8567
-2.93354 2.93354 20.8567
-5.75435 5.75435 19.6466
-6.76641 4.52117 19.6466
-7.51843 3.11423 19.6466
-3.83286 1.58762 20.8567
-3.44948 2.30487 20.8567
-3.44948 2.30487 20.8567
-6.76641 4.52117 19.6466
-7.51843 3.11423 19.6466
-7.98152 1.58762 19.6466
-4.06894 0.809362 20.8567
-3.83286 1.58762 20.8567
-3.83286 1.58762 20.8567
-7.51843 3.11423 19.6466
-7.98152 1.58762 19.6466
-8.13789 -2.65166e-06 19.6466
-4.14866 -1.3518e-06 20.8567
-4.06894 0.809362 20.8567
-4.06894 0.809362 20.8567
-7.98152 1.58762 19.6466
-8.13789 -2.65166e-06 19.6466
-7.98152 -1.58763 19.6466
-4.06894 -0.809365 20.8567
-4.14866 -1.3518e-06 20.8567
-4.14866 -1.3518e-06 20.8567
-8.13789 -2.65166e-06 19.6466
-7.98152 -1.58763 19.6466
-7.51843 -3.11424 19.6466
-3.83286 -1.58762 20.8567
-4.06894 -0.809365 20.8567
-4.06894 -0.809365 20.8567
-7.98152 -1.58763 19.6466
-7.51843 -3.11424 19.6466
-6.7664 -4.52117 19.6466
-3.44948 -2.30487 20.8567
-3.83286 -1.58762 20.8567
-3.83286 -1.58762 20.8567
-7.51843 -3.11424 19.6466
-6.7664 -4.52117 19.6466
-5.75435 -5.75436 19.6466
-2.93354 -2.93355 20.8567
-3.44948 -2.30487 20.8567
-3.44948 -2.30487 20.8567
-6.7664 -4.52117 19.6466
-5.75435 -5.75436 19.6466
-4.52116 -6.76641 19.6466
-2.30487 -3.44949 20.8567
-2.93354 -2.93355 20.8567
-2.93354 -2.93355 20.8567
-5.75435 -5.75436 19.6466
-4.52116 -6.76641 19.6466
-3.11423 -7.51843 19.6466
-1.58762 -3.83286 20.8567
-2.30487 -3.44949 20.8567
-2.30487 -3.44949 20.8567
-4.52116 -6.76641 19.6466
-3.11423 -7.51843 19.6466
-1.58762 -7.98152 19.6466
-0.809359 -4.06894 20.8567
-1.58762 -3.83286 20.8567
-1.58762 -3.83286 20.8567
-3.11423 -7.51843 19.6466
-1.58762 -7.98152 19.6466
7.85794e-06 -8.13789 19.6466
4.00594e-06 -4.14866 20.8567
-0.809359 -4.06894 20.8567
-0.809359 -4.06894 20.8567
-1.58762 -7.98152 19.6466
7.85794e-06 -8.13789 19.6466
1.58763 -7.98152 19.6466
0.809367 -4.06894 20.8567
4.00594e-06 -4.14866 20.8567
4.00594e-06 -4.14866 20.8567
7.85794e-06 -8.13789 19.6466
1.58763 -7.98152 19.6466
3.11424 -7.51842 19.6466
1.58763 -3.83286 20.8567
0.809367 -4.06894 20.8567
0.809367 -4.06894 20.8567
1.58763 -7.98152 19.6466
3.11424 -7.51842 19.6466
4.52118 -6.7664 19.6466
2.30488 -3.44948 20.8567
1.58763 -3.83286 20.8567
1.58763 -3.83286 20.8567
3.11424 -7.51842 19.6466
4.52118 -6.7664 19.6466
5.75436 -5.75435 19.6466
2.93355 -2.93354 20.8567
2.30488 -3.44948 20.8567
2.30488 -3.44948 20.8567
4.52118 -6.7664 19.6466
5.75436 -5.75435 19.6466
6.76641 -4.52116 19.6466
3.44949 -2.30487 20.8567
2.93355 -2.93354 20.8567
2.93355 -2.93354 20.8567
5.75436 -5.75435 19.6466
6.76641 -4.52116 19.6466
7.51843 -3.11422 19.6466
3.83286 -1.58762 20.8567
3.44949 -2.30487 20.8567
3.44949 -2.30487 20.8567
6.76641 -4.52116 19.6466
7.51843 -3.11422 19.6466
7.98152 -1.58761 19.6466
4.06894 -0.809357 20.8567
3.83286 -1.58762 20.8567
3.83286 -1.58762 20.8567
7.51843 -3.11422 19.6466
7.98152 -1.58761 19.6466
8.13789 1.30642e-05 19.6466
4.14866 6.66008e-06 20.8567
4.06894 -0.809357 20.8567
4.06894 -0.809357 20.8567
7.98152 -1.58761 19.6466
8.13789 1.30642e-05 19.6466
7.98152 1.58764 19.6466
4.06894 0.80937 20.8567
4.14866 6.66008e-06 20.8567
4.14866 6.66008e-06 20.8567
8.13789 1.30642e-05 19.6466
7.98152 1.58764 19.6466
7.51842 3.11425 19.6466
3.83286 1.58763 20.8567
4.06894 0.80937 20.8567
4.06894 0.80937 20.8567
7.98152 1.58764 19.6466
7.51842 3.11425 19.6466
6.7664 4.52118 19.6466
3.44948 2.30488 20.8567
3.83286 1.58763 20.8567
3.83286 1.58763 20.8567
7.51842 3.11425 19.6466
6.7664 4.52118 19.6466
5.75434 5.75437 19.6466
2.93354 2.93355 20.8567
3.44948 2.30488 20.8567
3.44948 2.30488 20.8567
6.7664 4.52118 19.6466
5.75434 5.75437 19.6466
4.52115 6.76641 19.6466
2.30486 3.44949 20.8567
2.93354 2.93355 20.8567
2.93354 2.93355 20.8567
5.75434 5.75437 19.6466
4.52115 6.76641 19.6466
3.11422 7.51843 19.6466
1.58761 3.83286 20.8567
2.30486 3.44949 20.8567
2.30486 3.44949 20.8567
4.52115 6.76641 19.6466
3.11422 7.51843 19.6466
1.58761 7.98152 19.6466
0.809354 4.06894 20.8567
1.58761 3.83286 20.8567
1.58761 3.83286 20.8567
3.11422 7.51843 19.6466
1.58761 7.98152 19.6466
-3.55718e-07 8.13789 19.6466
-1.81344e-07 4.14866 20.8567
0.809354 4.06894 20.8567
0.809354 4.06894 20.8567
1.58761 7.98152 19.6466
-3.55718e-07 8.13789 19.6466
-2.30487 11.5874 17.6815
-1.58762 7.98152 19.6466
-3.55718e-07 8.13789 19.6466
-3.55718e-07 8.13789 19.6466
-5.16423e-07 11.8144 17.6815
-2.30487 11.5874 17.6815
-4.52117 10.9151 17.6815
-3.11423 7.51843 19.6466
-1.58762 7.98152 19.6466
-1.58762 7.98152 19.6466
-2.30487 11.5874 17.6815
-4.52117 10.9151 17.6815
-6.56372 9.8233 17.6815
-4.52117 6.76641 19.6466
-3.11423 7.51843 19.6466
-3.11423 7.51843 19.6466
-4.52117 10.9151 17.6815
-6.56372 9.8233 17.6815
-8.35403 8.35403 17.6815
-5.75435 5.75435 19.6466
-4.52117 6.76641 19.6466
-4.52117 6.76641 19.6466
-6.56372 9.8233 17.6815
-8.35403 8.35403 17.6815
-9.8233 6.56372 17.6815
-6.76641 4.52117 19.6466
-5.75435 5.75435 19.6466
-5.75435 5.75435 19.6466
-8.35403 8.35403 17.6815
-9.8233 6.56372 17.6815
-10.9151 4.52117 17.6815
-7.51843 3.11423 19.6466
-6.76641 4.52117 19.6466
-6.76641 4.52117 19.6466
-9.8233 6.56372 17.6815
-10.9151 4.52117 17.6815
-11.5874 2.30487 17.6815
-7.98152 1.58762 19.6466
-7.51843 3.11423 19.6466
-7.51843 3.11423 19.6466
-10.9151 4.52117 17.6815
-11.5874 2.30487 17.6815
-11.8144 -3.84961e-06 17.6815
-8.13789 -2.65166e-06 19.6466
-7.98152 1.58762 19.6466
-7.98152 1.58762 19.6466
-11.5874 2.30487 17.6815
-11.8144 -3.84961e-06 17.6815
-11.5874 -2.30488 17.6815
-7.98152 -1.58763 19.6466
-8.13789 -2.65166e-06 19.6466
-8.13789 -2.65166e-06 19.6466
-11.8144 -3.84961e-06 17.6815
-11.5874 -2.30488 17.6815
-10.9151 -4.52117 17.6815
-7.51843 -3.11424 19.6466
-7.98152 -1.58763 19.6466
-7.98152 -1.58763 19.6466
-11.5874 -2.30488 17.6815
-10.9151 -4.52117 17.6815
-9.82329 -6.56372 17.6815
-6.7664 -4.52117 19.6466
-7.51843 -3.11424 19.6466
-7.51843 -3.11424 19.6466
-10.9151 -4.52117 17.6815
-9.82329 -6.56372 17.6815
-8.35402 -8.35403 17.6815
-5.75435 -5.75436 19.6466
-6.7664 -4.52117 19.6466
-6.7664 -4.52117 19.6466
-9.82329 -6.56372 17.6815
-8.35402 -8.35403 17.6815
-6.56371 -9.8233 17.6815
-4.52116 -6.76641 19.6466
-5.75435 -5.75436 19.6466
-5.75435 -5.75436 19.6466
-8.35402 -8.35403 17.6815
-6.56371 -9.8233 17.6815
-4.52116 -10.9151 17.6815
-3.11423 -7.51843 19.6466
-4.52116 -6.76641 19.6466
-4.52116 -6.76641 19.6466
-6.56371 -9.8233 17.6815
-4.52116 -10.9151 17.6815
-2.30486 -11.5874 17.6815
-1.58762 -7.98152 19.6466
-3.11423 -7.51843 19.6466
-3.11423 -7.51843 19.6466
-4.52116 -10.9151 17.6815
-2.30486 -11.5874 17.6815
1.1408e-05 -11.8144 17.6815
7.85794e-06 -8.13789 19.6466
-1.58762 -7.98152 19.6466
-1.58762 -7.98152 19.6466
-2.30486 -11.5874 17.6815
1.1408e-05 -11.8144 17.6815
2.30488 -11.5874 17.6815
1.58763 -7.98152 19.6466
7.85794e-06 -8.13789 19.6466
7.85794e-06 -8.13789 19.6466
1.1408e-05 -11.8144 17.6815
2.30488 -11.5874 17.6815
4.52118 -10.9151 17.6815
3.11424 -7.51842 19.6466
1.58763 -7.98152 19.6466
1.58763 -7.98152 19.6466
2.30488 -11.5874 17.6815
4.52118 -10.9151 17.6815
6.56373 -9.82329 17.6815
4.52118 -6.7664 19.6466
3.11424 -7.51842 19.6466
3.11424 -7.51842 19.6466
4.52118 -10.9151 17.6815
6.56373 -9.82329 17.6815
8.35404 -8.35402 17.6815
5.75436 -5.75435 19.6466
4.52118 -6.7664 19.6466
4.52118 -6.7664 19.6466
6.56373 -9.82329 17.6815
8.35404 -8.35402 17.6815
9.82331 -6.5637 17.6815
6.76641 -4.52116 19.6466
5.75436 -5.75435 19.6466
5.75436 -5.75435 19.6466
8.35404 -8.35402 17.6815
9.82331 -6.5637 17.6815
10.9151 -4.52115 17.6815
7.51843 -3.11422 19.6466
6.76641 -4.52116 19.6466
6.76641 -4.52116 19.6466
9.82331 -6.5637 17.6815
10.9151 -4.52115 17.6815
11.5874 -2.30485 17.6815
7.98152 -1.58761 19.6466
7.51843 -3.11422 19.6466
7.51843 -3.11422 19.6466
10.9151 -4.52115 17.6815
11.5874 -2.30485 17.6815
11.8144 1.89663e-05 17.6815
8.13789 1.30642e-05 19.6466
7.98152 -1.58761 19.6466
7.98152 -1.58761 19.6466
11.5874 -2.30485 17.6815
11.8144 1.89663e-05 17.6815
11.5874 2.30489 17.6815
7.98152 1.58764 19.6466
8.13789 1.30642e-05 19.6466
8.13789 1.30642e-05 19.6466
11.8144 1.89663e-05 17.6815
11.5874 2.30489 17.6815
10.9151 4.52119 17.6815
7.51842 3.11425 19.6466
7.98152 1.58764 19.6466
7.98152 1.58764 19.6466
11.5874 2.30489 17.6815
10.9151 4.52119 17.6815
9.82329 6.56374 17.6815
6.7664 4.52118 19.6466
7.51842 3.11425 19.6466
7.51842 3.11425 19.6466
10.9151 4.52119 17.6815
9.82329 6.56374 17.6815
8.35401 8.35404 17.6815
5.75434 5.75437 19.6466
6.7664 4.52118 19.6466
6.7664 4.52118 19.6466
9.82329 6.56374 17.6815
8.35401 8.35404 17.6815
6.5637 9.82331 17.6815
4.52115 6.76641 19.6466
5.75434 5.75437 19.6466
5.75434 5.75437 19.6466
8.35401 8.35404 17.6815
6.5637 9.82331 17.6815
4.52114 10.9151 17.6815
3.11422 7.51843 19.6466
4.52115 6.76641 19.6466
4.52115 6.76641 19.6466
6.5637 9.82331 17.6815
4.52114 10.9151 17.6815
2.30485 11.5874 17.6815
1.58761 7.98152 19.6466
3.11422 7.51843 19.6466
3.11422 7.51843 19.6466
4.52114 10.9151 17.6815
2.30485 11.5874 17.6815
-5.16423e-07 11.8144 17.6815
-3.55718e-07 8.13789 19.6466
1.58761 7.98152 19.6466
1.58761 7.98152 19.6466
2.30485 11.5874 17.6815
-5.16423e-07 11.8144 17.6815
-2.93354 14.7479 15.0369
-2.30487 11.5874 17.6815
-5.16423e-07 11.8144 17.6815
-5.16423e-07 11.8144 17.6815
-6.57282e-07 15.0369 15.0369
-2.93354 14.7479 15.0369
-5.75435 13.8922 15.0369
-4.52117 10.9151 17.6815
-2.30487 11.5874 17.6815
-2.30487 11.5874 17.6815
-2.93354 14.7479 15.0369
-5.75435 13.8922 15.0369
-8.35403 12.5027 15.0369
-6.56372 9.8233 17.6815
-4.52117 10.9151 17.6815
-4.52117 10.9151 17.6815
-5.75435 13.8922 15.0369
-8.35403 12.5027 15.0369
-10.6327 10.6327 15.0369
-8.35403 8.35403 17.6815
-6.56372 9.8233 17.6815
-6.56372 9.8233 17.6815
-8.35403 12.5027 15.0369
-10.6327 10.6327 15.0369
-12.5027 8.35403 15.0369
-9.8233 6.56372 17.6815
-8.35403 8.35403 17.6815
-8.35403 8.35403 17.6815
-10.6327 10.6327 15.0369
-12.5027 8.35403 15.0369
-13.8922 5.75435 15.0369
-10.9151 4.52117 17.6815
-9.8233 6.56372 17.6815
-9.8233 6.56372 17.6815
-12.5027 8.35403 15.0369
-13.8922 5.75435 15.0369
-14.7479 2.93354 15.0369
-11.5874 2.30487 17.6815
-10.9151 4.52117 17.6815
-10.9151 4.52117 17.6815
-13.8922 5.75435 15.0369
-14.7479 2.93354 15.0369
-15.0369 -4.89963e-06 15.0369
-11.8144 -3.84961e-06 17.6815
-11.5874 2.30487 17.6815
-11.5874 2.30487 17.6815
-14.7479 2.93354 15.0369
-15.0369 -4.89963e-06 15.0369
-14.7479 -2.93355 15.0369
-11.5874 -2.30488 17.6815
-11.8144 -3.84961e-06 17.6815
-11.8144 -3.84961e-06 17.6815
-15.0369 -4.89963e-06 15.0369
-14.7479 -2.93355 15.0369
-13.8922 -5.75436 15.0369
-10.9151 -4.52117 17.6815
-11.5874 -2.30488 17.6815
-11.5874 -2.30488 17.6815
-14.7479 -2.93355 15.0369
-13.8922 -5.75436 15.0369
-12.5027 -8.35404 15.0369
-9.82329 -6.56372 17.6815
-10.9151 -4.52117 17.6815
-10.9151 -4.52117 17.6815
-13.8922 -5.75436 15.0369
-12.5027 -8.35404 15.0369
-10.6327 -10.6327 15.0369
-8.35402 -8.35403 17.6815
-9.82329 -6.56372 17.6815
-9.82329 -6.56372 17.6815
-12.5027 -8.35404 15.0369
-10.6327 -10.6327 15.0369
-8.35402 -12.5027 15.0369
-6.56371 -9.8233 17.6815
-8.35402 -8.35403 17.6815
-8.35402 -8.35403 17.6815
-10.6327 -10.6327 15.0369
-8.35402 -12.5027 15.0369
-5.75434 -13.8922 15.0369
-4.52116 -10.9151 17.6815
-6.56371 -9.8233 17.6815
-6.56371 -9.8233 17.6815
-8.35402 -12.5027 15.0369
-5.75434 -13.8922 15.0369
-2.93353 -14.7479 15.0369
-2.30486 -11.5874 17.6815
-4.52116 -10.9151 17.6815
-4.52116 -10.9151 17.6815
-5.75434 -13.8922 15.0369
-2.93353 -14.7479 15.0369
1.45196e-05 -15.0369 15.0369
1.1408e-05 -11.8144 17.6815
-2.30486 -11.5874 17.6815
-2.30486 -11.5874 17.6815
-2.93353 -14.7479 15.0369
1.45196e-05 -15.0369 15.0369
2.93356 -14.7479 15.0369
2.30488 -11.5874 17.6815
1.1408e-05 -11.8144 17.6815
1.1408e-05 -11.8144 17.6815
1.45196e-05 -15.0369 15.0369
2.93356 -14.7479 15.0369
5.75437 -13.8922 15.0369
4.52118 -10.9151 17.6815
2.30488 -11.5874 17.6815
2.30488 -11.5874 17.6815
2.93356 -14.7479 15.0369
5.75437 -13.8922 15.0369
8.35404 -12.5027 15.0369
6.56373 -9.82329 17.6815
4.52118 -10.9151 17.6815
4.52118 -10.9151 17.6815
5.75437 -13.8922 15.0369
8.35404 -12.5027 15.0369
10.6327 -10.6326 15.0369
8.35404 -8.35402 17.6815
6.56373 -9.82329 17.6815
6.56373 -9.82329 17.6815
8.35404 -12.5027 15.0369
10.6327 -10.6326 15.0369
12.5027 -8.35401 15.0369
9.82331 -6.5637 17.6815
8.35404 -8.35402 17.6815
8.35404 -8.35402 17.6815
10.6327 -10.6326 15.0369
12.5027 -8.35401 15.0369
13.8922 -5.75433 15.0369
10.9151 -4.52115 17.6815
9.82331 -6.5637 17.6815
9.82331 -6.5637 17.6815
12.5027 -8.35401 15.0369
13.8922 -5.75433 15.0369
14.7479 -2.93352 15.0369
11.5874 -2.30485 17.6815
10.9151 -4.52115 17.6815
10.9151 -4.52115 17.6815
13.8922 -5.75433 15.0369
14.7479 -2.93352 15.0369
15.0369 2.41395e-05 15.0369
11.8144 1.89663e-05 17.6815
11.5874 -2.30485 17.6815
11.5874 -2.30485 17.6815
14.7479 -2.93352 15.0369
15.0369 2.41395e-05 15.0369
14.7479 2.93357 15.0369
11.5874 2.30489 17.6815
11.8144 1.89663e-05 17.6815
11.8144 1.89663e-05 17.6815
15.0369 2.41395e-05 15.0369
14.7479 2.93357 15.0369
13.8922 5.75438 15.0369
10.9151 4.52119 17.6815
11.5874 2.30489 17.6815
11.5874 2.30489 17.6815
14.7479 2.93357 15.0369
13.8922 5.75438 15.0369
12.5027 8.35405 15.0369
9.82329 6.56374 17.6815
10.9151 4.52119 17.6815
10.9151 4.52119 17.6815
13.8922 5.75438 15.0369
12.5027 8.35405 15.0369
10.6326 10.6327 15.0369
8.35401 8.35404 17.6815
9.82329 6.56374 17.6815
9.82329 6.56374 17.6815
12.5027 8.35405 15.0369
10.6326 10.6327 15.0369
8.354 12.5027 15.0369
6.5637 9.82331 17.6815
8.35401 8.35404 17.6815
8.35401 8.35404 17.6815
10.6326 10.6327 15.0369
8.354 12.5027 15.0369
5.75433 13.8923 15.0369
4.52114 10.9151 17.6815
6.5637 9.82331 17.6815
6.5637 9.82331 17.6815
8.354 12.5027 15.0369
5.75433 13.8923 15.0369
2.93351 14.7479 15.0369
2.30485 11.5874 17.6815
4.52114 10.9151 17.6815
4.52114 10.9151 17.6815
5.75433 13.8923 15.0369
2.93351 14.7479 15.0369
-6.57282e-07 15.0369 15.0369
-5.16423e-07 11.8144 17.6815
2.30485 11.5874 17.6815
2.30485 11.5874 17.6815
2.93351 14.7479 15.0369
-6.57282e-07 15.0369 15.0369
-3.44948 17.3417 11.8144
-2.93354 14.7479 15.0369
-6.57282e-07 15.0369 15.0369
-6.57282e-07 15.0369 15.0369
-7.72882e-07 17.6815 11.8144
-3.44948 17.3417 11.8144
-6.7664 16.3355 11.8144
-5.75435 13.8922 15.0369
-2.93354 14.7479 15.0369
-2.93354 14.7479 15.0369
-3.44948 17.3417 11.8144
-6.7664 16.3355 11.8144
-9.8233 14.7016 11.8144
-8.35403 12.5027 15.0369
-5.75435 13.8922 15.0369
-5.75435 13.8922 15.0369
-6.7664 16.3355 11.8144
-9.8233 14.7016 11.8144
-12.5027 12.5027 11.8144
-10.6327 10.6327 15.0369
-8.35403 12.5027 15.0369
-8.35403 12.5027 15.0369
-9.8233 14.7016 11.8144
-12.5027 12.5027 11.8144
-14.7016 9.8233 11.8144
-12.5027 8.35403 15.0369
-10.6327 10.6327 15.0369
-10.6327 10.6327 15.0369
-12.5027 12.5027 11.8144
-14.7016 9.8233 11.8144
-16.3355 6.7664 11.8144
-13.8922 5.75435 15.0369
-12.5027 8.35403 15.0369
-12.5027 8.35403 15.0369
-14.7016 9.8233 11.8144
-16.3355 6.7664 11.8144
-17.3417 3.44948 11.8144
-14.7479 2.93354 15.0369
-13.8922 5.75435 15.0369
-13.8922 5.75435 15.0369
-16.3355 6.7664 11.8144
-17.3417 3.44948 11.8144
-17.6815 -5.76135e-06 11.8144
-15.0369 -4.89963e-06 15.0369
-14.7479 2.93354 15.0369
-14.7479 2.93354 15.0369
-17.3417 3.44948 11.8144
-17.6815 -5.76135e-06 11.8144
-17.3417 -3.44949 11.8144
-14.7479 -2.93355 15.0369
-15.0369 -4.89963e-06 15.0369
-15.0369 -4.89963e-06 15.0369
-17.6815 -5.76135e-06 11.8144
-17.3417 -3.44949 11.8144
-16.3355 -6.76641 11.8144
-13.8922 -5.75436 15.0369
-14.7479 -2.93355 15.0369
-14.7479 -2.93355 15.0369
-17.3417 -3.44949 11.8144
-16.3355 -6.76641 11.8144
-14.7016 -9.82331 11.8144
-12.5027 -8.35404 15.0369
-13.8922 -5.75436 15.0369
-13.8922 -5.75436 15.0369
-16.3355 -6.76641 11.8144
-14.7016 -9.82331 11.8144
-12.5027 -12.5027 11.8144
-10.6327 -10.6327 15.0369
-12.5027 -8.35404 15.0369
-12.5027 -8.35404 15.0369
-14.7016 -9.82331 11.8144
-12.5027 -12.5027 11.8144
-9.82329 -14.7016 11.8144
-8.35402 -12.5027 15.0369
-10.6327 -10.6327 15.0369
-10.6327 -10.6327 15.0369
-12.5027 -12.5027 11.8144
-9.82329 -14.7016 11.8144
-6.76639 -16.3356 11.8144
-5.75434 -13.8922 15.0369
-8.35402 -12.5027 15.0369
-8.35402 -12.5027 15.0369
-9.82329 -14.7016 11.8144
-6.76639 -16.3356 11.8144
-3.44947 -17.3417 11.8144
-2.93353 -14.7479 15.0369
-5.75434 -13.8922 15.0369
-5.75434 -13.8922 15.0369
-6.76639 -16.3356 11.8144
-3.44947 -17.3417 11.8144
1.70732e-05 -17.6815 11.8144
1.45196e-05 -15.0369 15.0369
-2.93353 -14.7479 15.0369
-2.93353 -14.7479 15.0369
-3.44947 -17.3417 11.8144
1.70732e-05 -17.6815 11.8144
3.4495 -17.3417 11.8144
2.93356 -14.7479 15.0369
1.45196e-05 -15.0369 15.0369
1.45196e-05 -15.0369 15.0369
1.70732e-05 -17.6815 11.8144
3.4495 -17.3417 11.8144
6.76642 -16.3355 11.8144
5.75437 -13.8922 15.0369
2.93356 -14.7479 15.0369
2.93356 -14.7479 15.0369
3.4495 -17.3417 11.8144
6.76642 -16.3355 11.8144
9.82332 -14.7016 11.8144
8.35404 -12.5027 15.0369
5.75437 -13.8922 15.0369
5.75437 -13.8922 15.0369
6.76642 -16.3355 11.8144
9.82332 -14.7016 11.8144
12.5027 -12.5027 11.8144
10.6327 -10.6326 15.0369
8.35404 -12.5027 15.0369
8.35404 -12.5027 15.0369
9.82332 -14.7016 11.8144
12.5027 -12.5027 11.8144
14.7016 -9.82328 11.8144
12.5027 -8.35401 15.0369
10.6327 -10.6326 15.0369
10.6327 -10.6326 15.0369
12.5027 -12.5027 11.8144
14.7016 -9.82328 11.8144
16.3356 -6.76638 11.8144
13.8922 -5.75433 15.0369
12.5027 -8.35401 15.0369
12.5027 -8.35401 15.0369
14.7016 -9.82328 11.8144
16.3356 -6.76638 11.8144
17.3417 -3.44946 11.8144
14.7479 -2.93352 15.0369
13.8922 -5.75433 15.0369
13.8922 -5.75433 15.0369
16.3356 -6.76638 11.8144
17.3417 -3.44946 11.8144
17.6815 2.83851e-05 11.8144
15.0369 2.41395e-05 15.0369
14.7479 -2.93352 15.0369
14.7479 -2.93352 15.0369
17.3417 -3.44946 11.8144
17.6815 2.83851e-05 11.8144
17.3417 3.44951 11.8144
14.7479 2.93357 15.0369
15.0369 2.41395e-05 15.0369
15.0369 2.41395e-05 15.0369
17.6815 2.83851e-05 11.8144
17.3417 3.44951 11.8144
16.3355 6.76643 11.8144
13.8922 5.75438 15.0369
14.7479 2.93357 15.0369
14.7479 2.93357 15.0369
17.3417 3.44951 11.8144
16.3355 6.76643 11.8144
14.7016 9.82333 11.8144
12.5027 8.35405 15.0369
13.8922 5.75438 15.0369
13.8922 5.75438 15.0369
16.3355 6.76643 11.8144
14.7016 9.82333 11.8144
12.5027 12.5027 11.8144
10.6326 10.6327 15.0369
12.5027 8.35405 15.0369
12.5027 8.35405 15.0369
14.7016 9.82333 11.8144
12.5027 12.5027 11.8144
9.82327 14.7016 11.8144
8.354 12.5027 15.0369
10.6326 10.6327 15.0369
10.6326 10.6327 15.0369
12.5027 12.5027 11.8144
9.82327 14.7016 11.8144
6.76637 16.3356 11.8144
5.75433 13.8923 15.0369
8.354 12.5027 15.0369
8.354 12.5027 15.0369
9.82327 14.7016 11.8144
6.76637 16.3356 11.8144
3.44945 17.3417 11.8144
2.93351 14.7479 15.0369
5.75433 13.8923 15.0369
5.75433 13.8923 15.0369
6.76637 16.3356 11.8144
3.44945 17.3417 11.8144
-7.72882e-07 17.6815 11.8144
-6.57282e-07 15.0369 15.0369
2.93351 14.7479 15.0369
2.93351 14.7479 15.0369
3.44945 17.3417 11.8144
-7.72882e-07 17.6815 11.8144
-3.83286 19.2691 8.13789
-3.44948 17.3417 11.8144
-7.72882e-07 17.6815 11.8144
-7.72882e-07 17.6815 11.8144
-8.5878e-07 19.6466 8.13789
-3.83286 19.2691 8.13789
-7.51843 18.1511 8.13789
-6.7664 16.3355 11.8144
-3.44948 17.3417 11.8144
-3.44948 17.3417 11.8144
-3.83286 19.2691 8.13789
-7.51843 18.1511 8.13789
-10.9151 16.3355 8.13789
-9.8233 14.7016 11.8144
-6.7664 16.3355 11.8144
-6.7664 16.3355 11.8144
-7.51843 18.1511 8.13789
-10.9151 16.3355 8.13789
-13.8922 13.8922 8.13789
-12.5027 12.5027 11.8144
-9.8233 14.7016 11.8144
-9.8233 14.7016 11.8144
-10.9151 16.3355 8.13789
-13.8922 13.8922 8.13789
-16.3355 10.9151 8.13789
-14.7016 9.8233 11.8144
-12.5027 12.5027 11.8144
-12.5027 12.5027 11.8144
-13.8922 13.8922 8.13789
-16.3355 10.9151 8.13789
-18.1511 7.51842 8.13789
-16.3355 6.7664 11.8144
-14.7016 9.8233 11.8144
-14.7016 9.8233 11.8144
-16.3355 10.9151 8.13789
-18.1511 7.51842 8.13789
-19.2691 3.83286 8.13789
-17.3417 3.44948 11.8144
-16.3355 6.7664 11.8144
-16.3355 6.7664 11.8144
-18.1511 7.51842 8.13789
-19.2691 3.83286 8.13789
-19.6466 -6.40167e-06 8.13789
-17.6815 -5.76135e-06 11.8144
-17.3417 3.44948 11.8144
-17.3417 3.44948 11.8144
-19.2691 3.83286 8.13789
-19.6466 -6.40167e-06 8.13789
-19.2691 -3.83287 8.13789
-17.3417 -3.44949 11.8144
-17.6815 -5.76135e-06 11.8144
-17.6815 -5.76135e-06 11.8144
-19.6466 -6.40167e-06 8.13789
-19.2691 -3.83287 8.13789
-18.1511 -7.51844 8.13789
-16.3355 -6.76641 11.8144
-17.3417 -3.44949 11.8144
-17.3417 -3.44949 11.8144
-19.2691 -3.83287 8.13789
-18.1511 -7.51844 8.13789
-16.3355 -10.9151 8.13789
-14.7016 -9.82331 11.8144
-16.3355 -6.76641 11.8144
-16.3355 -6.76641 11.8144
-18.1511 -7.51844 8.13789
-16.3355 -10.9151 8.13789
-13.8922 -13.8923 8.13789
-12.5027 -12.5027 11.8144
-14.7016 -9.82331 11.8144
-14.7016 -9.82331 11.8144
-16.3355 -10.9151 8.13789
-13.8922 -13.8923 8.13789
-10.9151 -16.3356 8.13789
-9.82329 -14.7016 11.8144
-12.5027 -12.5027 11.8144
-12.5027 -12.5027 11.8144
-13.8922 -13.8923 8.13789
-10.9151 -16.3356 8.13789
-7.51841 -18.1511 8.13789
-6.76639 -16.3356 11.8144
-9.82329 -14.7016 11.8144
-9.82329 -14.7016 11.8144
-10.9151 -16.3356 8.13789
-7.51841 -18.1511 8.13789
-3.83284 -19.2691 8.13789
-3.44947 -17.3417 11.8144
-6.76639 -16.3356 11.8144
-6.76639 -16.3356 11.8144
-7.51841 -18.1511 8.13789
-3.83284 -19.2691 8.13789
1.89707e-05 -19.6466 8.13789
1.70732e-05 -17.6815 11.8144
-3.44947 -17.3417 11.8144
-3.44947 -17.3417 11.8144
-3.83284 -19.2691 8.13789
1.89707e-05 -19.6466 8.13789
3.83288 -19.2691 8.13789
3.4495 -17.3417 11.8144
1.70732e-05 -17.6815 11.8144
1.70732e-05 -17.6815 11.8144
1.89707e-05 -19.6466 8.13789
3.83288 -19.2691 8.13789
7.51845 -18.1511 8.13789
6.76642 -16.3355 11.8144
3.4495 -17.3417 11.8144
3.4495 -17.3417 11.8144
3.83288 -19.2691 8.13789
7.51845 -18.1511 8.13789
10.9151 -16.3355 8.13789
9.82332 -14.7016 11.8144
6.76642 -16.3355 11.8144
6.76642 -16.3355 11.8144
7.51845 -18.1511 8.13789
10.9151 -16.3355 8.13789
13.8923 -13.8922 8.13789
12.5027 -12.5027 11.8144
9.82332 -14.7016 11.8144
9.82332 -14.7016 11.8144
10.9151 -16.3355 8.13789
13.8923 -13.8922 8.13789
16.3356 -10.915 8.13789
14.7016 -9.82328 11.8144
12.5027 -12.5027 11.8144
12.5027 -12.5027 11.8144
13.8923 -13.8922 8.13789
16.3356 -10.915 8.13789
18.1511 -7.5184 8.13789
16.3356 -6.76638 11.8144
14.7016 -9.82328 11.8144
14.7016 -9.82328 11.8144
16.3356 -10.915 8.13789
18.1511 -7.5184 8.13789
19.2691 -3.83283 8.13789
17.3417 -3.44946 11.8144
16.3356 -6.76638 11.8144
16.3356 -6.76638 11.8144
18.1511 -7.5184 8.13789
19.2691 -3.83283 8.13789
19.6466 3.15398e-05 8.13789
17.6815 2.83851e-05 11.8144
17.3417 -3.44946 11.8144
17.3417 -3.44946 11.8144
19.2691 -3.83283 8.13789
19.6466 3.15398e-05 8.13789
19.2691 3.83289 8.13789
17.3417 3.44951 11.8144
17.6815 2.83851e-05 11.8144
17.6815 2.83851e-05 11.8144
19.6466 3.15398e-05 8.13789
19.2691 3.83289 8.13789
18.1511 7.51846 8.13789
16.3355 6.76643 11.8144
17.3417 3.44951 11.8144
17.3417 3.44951 11.8144
19.2691 3.83289 8.13789
18.1511 7.51846 8.13789
16.3355 10.9151 8.13789
14.7016 9.82333 11.8144
16.3355 6.76643 11.8144
16.3355 6.76643 11.8144
18.1511 7.51846 8.13789
16.3355 10.9151 8.13789
13.8922 13.8923 8.13789
12.5027 12.5027 11.8144
14.7016 9.82333 11.8144
14.7016 9.82333 11.8144
16.3355 10.9151 8.13789
13.8922 13.8923 8.13789
10.915 16.3356 8.13789
9.82327 14.7016 11.8144
12.5027 12.5027 11.8144
12.5027 12.5027 11.8144
13.8922 13.8923 8.13789
10.915 16.3356 8.13789
7.51839 18.1511 8.13789
6.76637 16.3356 11.8144
9.82327 14.7016 11.8144
9.82327 14.7016 11.8144
10.915 16.3356 8.13789
7.51839 18.1511 8.13789
3.83282 19.2691 8.13789
3.44945 17.3417 11.8144
6.76637 16.3356 11.8144
6.76637 16.3356 11.8144
7.51839 18.1511 8.13789
3.83282 19.2691 8.13789
-8.5878e-07 19.6466 8.13789
-7.72882e-07 17.6815 11.8144
3.44945 17.3417 11.8144
3.44945 17.3417 11.8144
3.83282 19.2691 8.13789
-8.5878e-07 19.6466 8.13789
-4.06894 20.456 4.14866
-3.83286 19.2691 8.13789
-8.5878e-07 19.6466 8.13789
-8.5878e-07 19.6466 8.13789
-9.11676e-07 20.8567 4.14866
-4.06894 20.456 4.14866
-7.98152 19.2691 4.14866
-7.51843 18.1511 8.13789
-3.83286 19.2691 8.13789
-3.83286 19.2691 8.13789
-4.06894 20.456 4.14866
-7.98152 19.2691 4.14866
-11.5874 17.3417 4.14866
-10.9151 16.3355 8.13789
-7.51843 18.1511 8.13789
-7.51843 18.1511 8.13789
-7.98152 19.2691 4.14866
-11.5874 17.3417 4.14866
-14.7479 14.7479 4.14866
-13.8922 13.8922 8.13789
-10.9151 16.3355 8.13789
-10.9151 16.3355 8.13789
-11.5874 17.3417 4.14866
-14.7479 14.7479 4.14866
-17.3417 11.5874 4.14866
-16.3355 10.9151 8.13789
-13.8922 13.8922 8.13789
-13.8922 13.8922 8.13789
-14.7479 14.7479 4.14866
-17.3417 11.5874 4.14866
-19.2691 7.98152 4.14866
-18.1511 7.51842 8.13789
-16.3355 10.9151 8.13789
-16.3355 10.9151 8.13789
-17.3417 11.5874 4.14866
-19.2691 7.98152 4.14866
-20.456 4.06894 4.14866
-19.2691 3.83286 8.13789
-18.1511 7.51842 8.13789
-18.1511 7.51842 8.13789
-19.2691 7.98152 4.14866
-20.456 4.06894 4.14866
-20.8567 -6.79598e-06 4.14866
-19.6466 -6.40167e-06 8.13789
-19.2691 3.83286 8.13789
-19.2691 3.83286 8.13789
-20.456 4.06894 4.14866
-20.8567 -6.79598e-06 4.14866
-20.456 -4.06895 4.14866
-19.2691 -3.83287 8.13789
-19.6466 -6.40167e-06 8.13789
-19.6466 -6.40167e-06 8.13789
-20.8567 -6.79598e-06 4.14866
-20.456 -4.06895 4.14866
-19.2691 -7.98153 4.14866
-18.1511 -7.51844 8.13789
-19.2691 -3.83287 8.13789
-19.2691 -3.83287 8.13789
-20.456 -4.06895 4.14866
-19.2691 -7.98153 4.14866
-17.3417 -11.5874 4.14866
-16.3355 -10.9151 8.13789
-18.1511 -7.51844 8.13789
-18.1511 -7.51844 8.13789
-19.2691 -7.98153 4.14866
-17.3417 -11.5874 4.14866
-14.7479 -14.7479 4.14866
-13.8922 -13.8923 8.13789
-16.3355 -10.9151 8.13789
-16.3355 -10.9151 8.13789
-17.3417 -11.5874 4.14866
-14.7479 -14.7479 4.14866
-11.5874 -17.3417 4.14866
-10.9151 -16.3356 8.13789
-13.8922 -13.8923 8.13789
-13.8922 -13.8923 8.13789
-14.7479 -14.7479 4.14866
-11.5874 -17.3417 4.14866
-7.9815 -19.2691 4.14866
-7.51841 -18.1511 8.13789
-10.9151 -16.3356 8.13789
-10.9151 -16.3356 8.13789
-11.5874 -17.3417 4.14866
-7.9815 -19.2691 4.14866
-4.06892 -20.456 4.14866
-3.83284 -19.2691 8.13789
-7.51841 -18.1511 8.13789
-7.51841 -18.1511 8.13789
-7.9815 -19.2691 4.14866
-4.06892 -20.456 4.14866
2.01392e-05 -20.8567 4.14866
1.89707e-05 -19.6466 8.13789
-3.83284 -19.2691 8.13789
-3.83284 -19.2691 8.13789
-4.06892 -20.456 4.14866
2.01392e-05 -20.8567 4.14866
4.06896 -20.456 4.14866
3.83288 -19.2691 8.13789
1.89707e-05 -19.6466 8.13789
1.89707e-05 -19.6466 8.13789
2.01392e-05 -20.8567 4.14866
4.06896 -20.456 4.14866
7.98154 -19.2691 4.14866
7.51845 -18.1511 8.13789
3.83288 -19.2691 8.13789
3.83288 -19.2691 8.13789
4.06896 -20.456 4.14866
7.98154 -19.2691 4.14866
11.5874 -17.3417 4.14866
10.9151 -16.3355 8.13789
7.51845 -18.1511 8.13789
7.51845 -18.1511 8.13789
7.98154 -19.2691 4.14866
11.5874 -17.3417 4.14866
14.7479 -14.7479 4.14866
13.8923 -13.8922 8.13789
10.9151 -16.3355 8.13789
10.9151 -16.3355 8.13789
11.5874 -17.3417 4.14866
14.7479 -14.7479 4.14866
17.3417 -11.5873 4.14866
16.3356 -10.915 8.13789
13.8923 -13.8922 8.13789
13.8923 -13.8922 8.13789
14.7479 -14.7479 4.14866
17.3417 -11.5873 4.14866
19.2691 -7.98149 4.14866
18.1511 -7.5184 8.13789
16.3356 -10.915 8.13789
16.3356 -10.915 8.13789
17.3417 -11.5873 4.14866
19.2691 -7.98149 4.14866
20.456 -4.06891 4.14866
19.2691 -3.83283 8.13789
18.1511 -7.5184 8.13789
18.1511 -7.5184 8.13789
19.2691 -7.98149 4.14866
20.456 -4.06891 4.14866
20.8567 3.34825e-05 4.14866
19.6466 3.15398e-05 8.13789
19.2691 -3.83283 8.13789
19.2691 -3.83283 8.13789
20.456 -4.06891 4.14866
20.8567 3.34825e-05 4.14866
19.2691 7.98155 4.14866
18.1511 7.51846 8.13789
19.2691 3.83289 8.13789
19.2691 3.83289 8.13789
20.456 4.06898 4.14866
19.2691 7.98155 4.14866
17.3417 11.5874 4.14866
16.3355 10.9151 8.13789
18.1511 7.51846 8.13789
18.1511 7.51846 8.13789
19.2691 7.98155 4.14866
17.3417 11.5874 4.14866
14.7479 14.748 4.14866
13.8922 13.8923 8.13789
16.3355 10.9151 8.13789
16.3355 10.9151 8.13789
17.3417 11.5874 4.14866
14.7479 14.748 4.14866
11.5873 17.3417 4.14866
10.915 16.3356 8.13789
13.8922 13.8923 8.13789
13.8922 13.8923 8.13789
14.7479 14.748 4.14866
11.5873 17.3417 4.14866
7.98148 19.2691 4.14866
7.51839 18.1511 8.13789
10.915 16.3356 8.13789
10.915 16.3356 8.13789
11.5873 17.3417 4.14866
7.98148 19.2691 4.14866
4.0689 20.456 4.14866
3.83282 19.2691 8.13789
7.51839 18.1511 8.13789
7.51839 18.1511 8.13789
7.98148 19.2691 4.14866
4.0689 20.456 4.14866
-9.11676e-07 20.8567 4.14866
-8.5878e-07 19.6466 8.13789
3.83282 19.2691 8.13789
3.83282 19.2691 8.13789
4.0689 20.456 4.14866
-9.11676e-07 20.8567 4.14866
-4.14866 20.8567 1.60549e-06
-4.06894 20.456 4.14866
-9.11676e-07 20.8567 4.14866
-9.11676e-07 20.8567 4.14866
-9.29537e-07 21.2653 1.60549e-06
-4.14866 20.8567 1.60549e-06
-8.13789 19.6466 1.60549e-06
-7.98152 19.2691 4.14866
-4.06894 20.456 4.14866
-4.06894 20.456 4.14866
-4.14866 20.8567 1.60549e-06
-8.13789 19.6466 1.60549e-06
-11.8144 17.6815 1.60549e-06
-11.5874 17.3417 4.14866
-7.98152 19.2691 4.14866
-7.98152 19.2691 4.14866
-8.13789 19.6466 1.60549e-06
-11.8144 17.6815 1.60549e-06
-15.0369 15.0369 1.60549e-06
-14.7479 14.7479 4.14866
-11.5874 17.3417 4.14866
-11.5874 17.3417 4.14866
-11.8144 17.6815 1.60549e-06
-15.0369 15.0369 1.60549e-06
-17.6815 11.8144 1.60549e-06
-17.3417 11.5874 4.14866
-14.7479 14.7479 4.14866
-14.7479 14.7479 4.14866
-15.0369 15.0369 1.60549e-06
-17.6815 11.8144 1.60549e-06
-19.6466 8.13788 1.60549e-06
-19.2691 7.98152 4.14866
-17.3417 11.5874 4.14866
-17.3417 11.5874 4.14866
-17.6815 11.8144 1.60549e-06
-19.6466 8.13788 1.60549e-06
-20.8567 4.14865 1.60549e-06
-20.456 4.06894 4.14866
-19.2691 7.98152 4.14866
-19.2691 7.98152 4.14866
-19.6466 8.13788 1.60549e-06
-20.8567 4.14865 1.60549e-06
-21.2653 -6.92912e-06 1.60549e-06
-20.8567 -6.79598e-06 4.14866
-20.456 4.06894 4.14866
-20.456 4.06894 4.14866
-20.8567 4.14865 1.60549e-06
-21.2653 -6.92912e-06 1.60549e-06
-20.8567 -4.14867 1.60549e-06
-20.456 -4.06895 4.14866
-20.8567 -6.79598e-06 4.14866
-20.8567 -6.79598e-06 4.14866
-21.2653 -6.92912e-06 1.60549e-06
-20.8567 -4.14867 1.60549e-06
-19.6466 -8.1379 1.60549e-06
-19.2691 -7.98153 4.14866
-20.456 -4.06895 4.14866
-20.456 -4.06895 4.14866
-20.8567 -4.14867 1.60549e-06
-19.6466 -8.1379 1.60549e-06
-17.6815 -11.8144 1.60549e-06
-17.3417 -11.5874 4.14866
-19.2691 -7.98153 4.14866
-19.2691 -7.98153 4.14866
-19.6466 -8.1379 1.60549e-06
-17.6815 -11.8144 1.60549e-06
-15.0368 -15.0369 1.60549e-06
-14.7479 -14.7479 4.14866
-17.3417 -11.5874 4.14866
-17.3417 -11.5874 4.14866
-17.6815 -11.8144 1.60549e-06
-15.0368 -15.0369 1.60549e-06
-11.8144 -17.6815 1.60549e-06
-11.5874 -17.3417 4.14866
-14.7479 -14.7479 4.14866
-14.7479 -14.7479 4.14866
-15.0368 -15.0369 1.60549e-06
-11.8144 -17.6815 1.60549e-06
-8.13787 -19.6466 1.60549e-06
-7.9815 -19.2691 4.14866
-11.5874 -17.3417 4.14866
-11.5874 -17.3417 4.14866
-11.8144 -17.6815 1.60549e-06
-8.13787 -19.6466 1.60549e-06
-4.14864 -20.8567 1.60549e-06
-4.06892 -20.456 4.14866
-7.9815 -19.2691 4.14866
-7.9815 -19.2691 4.14866
-8.13787 -19.6466 1.60549e-06
-4.14864 -20.8567 1.60549e-06
2.05338e-05 -21.2653 1.60549e-06
2.01392e-05 -20.8567 4.14866
-4.06892 -20.456 4.14866
-4.06892 -20.456 4.14866
-4.14864 -20.8567 1.60549e-06
2.05338e-05 -21.2653 1.60549e-06
4.14868 -20.8567 1.60549e-06
4.06896 -20.456 4.14866
2.01392e-05 -20.8567 4.14866
2.01392e-05 -20.8567 4.14866
2.05338e-05 -21.2653 1.60549e-06
4.14868 -20.8567 1.60549e-06
8.13791 -19.6466 1.60549e-06
7.98154 -19.2691 4.14866
4.06896 -20.456 4.14866
4.06896 -20.456 4.14866
4.14868 -20.8567 1.60549e-06
8.13791 -19.6466 1.60549e-06
11.8144 -17.6815 1.60549e-06
11.5874 -17.3417 4.14866
7.98154 -19.2691 4.14866
7.98154 -19.2691 4.14866
8.13791 -19.6466 1.60549e-06
11.8144 -17.6815 1.60549e-06
15.0369 -15.0368 1.60549e-06
14.7479 -14.7479 4.14866
11.5874 -17.3417 4.14866
11.5874 -17.3417 4.14866
11.8144 -17.6815 1.60549e-06
15.0369 -15.0368 1.60549e-06
17.6815 -11.8144 1.60549e-06
17.3417 -11.5873 4.14866
14.7479 -14.7479 4.14866
14.7479 -14.7479 4.14866
15.0369 -15.0368 1.60549e-06
17.6815 -11.8144 1.60549e-06
19.6466 -8.13786 1.60549e-06
19.2691 -7.98149 4.14866
17.3417 -11.5873 4.14866
17.3417 -11.5873 4.14866
17.6815 -11.8144 1.60549e-06
19.6466 -8.13786 1.60549e-06
20.8567 -4.14863 1.60549e-06
20.456 -4.06891 4.14866
19.2691 -7.98149 4.14866
19.2691 -7.98149 4.14866
19.6466 -8.13786 1.60549e-06
20.8567 -4.14863 1.60549e-06
21.2653 3.41384e-05 1.60549e-06
20.8567 3.34825e-05 4.14866
20.456 -4.06891 4.14866
20.456 -4.06891 4.14866
20.8567 -4.14863 1.60549e-06
21.2653 3.41384e-05 1.60549e-06
20.8567 4.14869 1.60549e-06
20.456 4.06898 4.14866
20.8567 3.34825e-05 4.14866
20.8567 3.34825e-05 4.14866
21.2653 3.41384e-05 1.60549e-06
20.8567 4.14869 1.60549e-06
19.6466 8.13792 1.60549e-06
19.2691 7.98155 4.14866
20.456 4.06898 4.14866
20.456 4.06898 4.14866
20.8567 4.14869 1.60549e-06
19.6466 8.13792 1.60549e-06
17.6814 11.8144 1.60549e-06
17.3417 11.5874 4.14866
19.2691 7.98155 4.14866
19.2691 7.98155 4.14866
19.6466 8.13792 1.60549e-06
17.6814 11.8144 1.60549e-06
15.0368 15.0369 1.60549e-06
14.7479 14.748 4.14866
17.3417 11.5874 4.14866
17.3417 11.5874 4.14866
17.6814 11.8144 1.60549e-06
15.0368 15.0369 1.60549e-06
11.8143 17.6815 1.60549e-06
11.5873 17.3417 4.14866
14.7479 14.748 4.14866
14.7479 14.748 4.14866
15.0368 15.0369 1.60549e-06
11.8143 17.6815 1.60549e-06
8.13785 19.6466 1.60549e-06
7.98148 19.2691 4.14866
11.5873 17.3417 4.14866
11.5873 17.3417 4.14866
11.8143 17.6815 1.60549e-06
8.13785 19.6466 1.60549e-06
4.14861 20.8567 1.60549e-06
4.0689 20.456 4.14866
7.98148 19.2691 4.14866
7.98148 19.2691 4.14866
8.13785 19.6466 1.60549e-06
4.14861 20.8567 1.60549e-06
-9.29537e-07 21.2653 1.60549e-06
-9.11676e-07 20.8567 4.14866
4.0689 20.456 4.14866
4.0689 20.456 4.14866
4.14861 20.8567 1.60549e-06
-9.29537e-07 21.2653 1.60549e-06
}
NormalBinding PER_VERTEX
NormalArray Vec3Array 1434
{
4.77266e-08 -3.14311e-08 1
-1.40801e-07 0.200969 0.979598
-0.0392071 0.197107 0.979598
4.77266e-08 -3.14311e-08 1
-0.0392071 0.197107 0.979598
-0.0769075 0.185671 0.979598
4.77266e-08 -3.14311e-08 1
-0.0769075 0.185671 0.979598
-0.111652 0.167099 0.979598
4.77266e-08 -3.14311e-08 1
-0.111652 0.167099 0.979598
-0.142106 0.142106 0.979598
4.77266e-08 -3.14311e-08 1
-0.142106 0.142106 0.979598
-0.167099 0.111652 0.979598
4.77266e-08 -3.14311e-08 1
-0.167099 0.111652 0.979598
-0.185671 0.0769074 0.979598
4.77266e-08 -3.14311e-08 1
-0.185671 0.0769074 0.979598
-0.197107 0.039207 0.979598
4.77266e-08 -3.14311e-08 1
-0.197107 0.039207 0.979598
-0.200969 -5.60817e-08 0.979598
4.77266e-08 -3.14311e-08 1
-0.200969 -5.60817e-08 0.979598
-0.197107 -0.0392072 0.979598
4.77266e-08 -3.14311e-08 1
-0.197107 -0.0392072 0.979598
-0.185671 -0.0769075 0.979598
4.77266e-08 -3.14311e-08 1
-0.185671 -0.0769075 0.979598
-0.167099 -0.111652 0.979598
4.77266e-08 -3.14311e-08 1
-0.167099 -0.111652 0.979598
-0.142106 -0.142107 0.979598
4.77266e-08 -3.14311e-08 1
-0.142106 -0.142107 0.979598
-0.111652 -0.1671 0.979598
4.77266e-08 -3.14311e-08 1
-0.111652 -0.1671 0.979598
-0.0769073 -0.185671 0.979598
4.77266e-08 -3.14311e-08 1
-0.0769073 -0.185671 0.979598
-0.0392069 -0.197107 0.979598
4.77266e-08 -3.14311e-08 1
-0.0392069 -0.197107 0.979598
1.75852e-07 -0.200969 0.979598
4.77266e-08 -3.14311e-08 1
1.75852e-07 -0.200969 0.979598
0.0392073 -0.197107 0.979598
4.77266e-08 -3.14311e-08 1
0.0392073 -0.197107 0.979598
0.0769076 -0.185671 0.979598
4.77266e-08 -3.14311e-08 1
0.0769076 -0.185671 0.979598
0.111653 -0.167099 0.979598
4.77266e-08 -3.14311e-08 1
0.111653 -0.167099 0.979598
0.142107 -0.142106 0.979598
4.77266e-08 -3.14311e-08 1
0.142107 -0.142106 0.979598
0.1671 -0.111652 0.979598
4.77266e-08 -3.14311e-08 1
0.1671 -0.111652 0.979598
0.185671 -0.0769072 0.979598
4.77266e-08 -3.14311e-08 1
0.185671 -0.0769072 0.979598
0.197107 -0.0392068 0.979598
4.77266e-08 -3.14311e-08 1
0.197107 -0.0392068 0.979598
0.200969 2.92639e-07 0.979598
4.77266e-08 -3.14311e-08 1
0.200969 2.92639e-07 0.979598
0.197107 0.0392074 0.979598
4.77266e-08 -3.14311e-08 1
0.197107 0.0392074 0.979598
0.185671 0.0769078 0.979598
4.77266e-08 -3.14311e-08 1
0.185671 0.0769078 0.979598
0.167099 0.111653 0.979598
4.77266e-08 -3.14311e-08 1
0.167099 0.111653 0.979598
0.142106 0.142107 0.979598
4.77266e-08 -3.14311e-08 1
0.142106 0.142107 0.979598
0.111652 0.1671 0.979598
4.77266e-08 -3.14311e-08 1
0.111652 0.1671 0.979598
0.0769071 0.185671 0.979598
4.77266e-08 -3.14311e-08 1
0.0769071 0.185671 0.979598
0.0392068 0.197107 0.979598
4.77266e-08 -3.14311e-08 1
0.0392068 0.197107 0.979598
-1.40801e-07 0.200969 0.979598
-0.075673 0.380434 0.921707
-0.0392071 0.197107 0.979598
-1.40801e-07 0.200969 0.979598
-1.40801e-07 0.200969 0.979598
-2.85661e-07 0.387887 0.921707
-0.075673 0.380434 0.921707
-0.148438 0.358361 0.921707
-0.0769075 0.185671 0.979598
-0.0392071 0.197107 0.979598
-0.0392071 0.197107 0.979598
-0.075673 0.380434 0.921707
-0.148438 0.358361 0.921707
-0.215498 0.322516 0.921707
-0.111652 0.167099 0.979598
-0.0769075 0.185671 0.979598
-0.0769075 0.185671 0.979598
-0.148438 0.358361 0.921707
-0.215498 0.322516 0.921707
-0.274277 0.274277 0.921707
-0.142106 0.142106 0.979598
-0.111652 0.167099 0.979598
-0.111652 0.167099 0.979598
-0.215498 0.322516 0.921707
-0.274277 0.274277 0.921707
-0.322516 0.215498 0.921707
-0.167099 0.111652 0.979598
-0.142106 0.142106 0.979598
-0.142106 0.142106 0.979598
-0.274277 0.274277 0.921707
-0.322516 0.215498 0.921707
-0.358361 0.148438 0.921707
-0.185671 0.0769074 0.979598
-0.167099 0.111652 0.979598
-0.167099 0.111652 0.979598
-0.322516 0.215498 0.921707
-0.358361 0.148438 0.921707
-0.380434 0.0756729 0.921707
-0.197107 0.039207 0.979598
-0.185671 0.0769074 0.979598
-0.185671 0.0769074 0.979598
-0.358361 0.148438 0.921707
-0.380434 0.0756729 0.921707
-0.387887 -1.09961e-07 0.921707
-0.200969 -5.60817e-08 0.979598
-0.197107 0.039207 0.979598
-0.197107 0.039207 0.979598
-0.380434 0.0756729 0.921707
-0.387887 -1.09961e-07 0.921707
-0.380434 -0.0756732 0.921707
-0.197107 -0.0392072 0.979598
-0.200969 -5.60817e-08 0.979598
-0.200969 -5.60817e-08 0.979598
-0.387887 -1.09961e-07 0.921707
-0.380434 -0.0756732 0.921707
-0.358361 -0.148438 0.921707
-0.185671 -0.0769075 0.979598
-0.197107 -0.0392072 0.979598
-0.197107 -0.0392072 0.979598
-0.380434 -0.0756732 0.921707
-0.358361 -0.148438 0.921707
-0.322516 -0.215499 0.921707
-0.167099 -0.111652 0.979598
-0.185671 -0.0769075 0.979598
-0.185671 -0.0769075 0.979598
-0.358361 -0.148438 0.921707
-0.322516 -0.215499 0.921707
-0.274277 -0.274278 0.921707
-0.142106 -0.142107 0.979598
-0.167099 -0.111652 0.979598
-0.167099 -0.111652 0.979598
-0.322516 -0.215499 0.921707
-0.274277 -0.274278 0.921707
-0.215498 -0.322516 0.921707
-0.111652 -0.1671 0.979598
-0.142106 -0.142107 0.979598
-0.142106 -0.142107 0.979598
-0.274277 -0.274278 0.921707
-0.215498 -0.322516 0.921707
-0.148438 -0.358361 0.921707
-0.0769073 -0.185671 0.979598
-0.111652 -0.1671 0.979598
-0.111652 -0.1671 0.979598
-0.215498 -0.322516 0.921707
-0.148438 -0.358361 0.921707
-0.0756726 -0.380434 0.921707
-0.0392069 -0.197107 0.979598
-0.0769073 -0.185671 0.979598
-0.0769073 -0.185671 0.979598
-0.148438 -0.358361 0.921707
-0.0756726 -0.380434 0.921707
3.55582e-07 -0.387887 0.921707
1.75852e-07 -0.200969 0.979598
-0.0392069 -0.197107 0.979598
-0.0392069 -0.197107 0.979598
-0.0756726 -0.380434 0.921707
3.55582e-07 -0.387887 0.921707
0.0756734 -0.380434 0.921707
0.0392073 -0.197107 0.979598
1.75852e-07 -0.200969 0.979598
1.75852e-07 -0.200969 0.979598
3.55582e-07 -0.387887 0.921707
0.0756734 -0.380434 0.921707
0.148438 -0.358361 0.921707
0.0769076 -0.185671 0.979598
0.0392073 -0.197107 0.979598
0.0392073 -0.197107 0.979598
0.0756734 -0.380434 0.921707
0.148438 -0.358361 0.921707
0.215499 -0.322516 0.921707
0.111653 -0.167099 0.979598
0.0769076 -0.185671 0.979598
0.0769076 -0.185671 0.979598
0.148438 -0.358361 0.921707
0.215499 -0.322516 0.921707
0.274278 -0.274277 0.921707
0.142107 -0.142106 0.979598
0.111653 -0.167099 0.979598
0.111653 -0.167099 0.979598
0.215499 -0.322516 0.921707
0.274278 -0.274277 0.921707
0.322517 -0.215498 0.921707
0.1671 -0.111652 0.979598
0.142107 -0.142106 0.979598
0.142107 -0.142106 0.979598
0.274278 -0.274277 0.921707
0.322517 -0.215498 0.921707
0.358361 -0.148437 0.921707
0.185671 -0.0769072 0.979598
0.1671 -0.111652 0.979598
0.1671 -0.111652 0.979598
0.322517 -0.215498 0.921707
0.358361 -0.148437 0.921707
0.380434 -0.0756724 0.921707
0.197107 -0.0392068 0.979598
0.185671 -0.0769072 0.979598
0.185671 -0.0769072 0.979598
0.358361 -0.148437 0.921707
0.380434 -0.0756724 0.921707
0.387887 5.80584e-07 0.921707
0.200969 2.92639e-07 0.979598
0.197107 -0.0392068 0.979598
0.197107 -0.0392068 0.979598
0.380434 -0.0756724 0.921707
0.387887 5.80584e-07 0.921707
0.380434 0.0756736 0.921707
0.197107 0.0392074 0.979598
0.200969 2.92639e-07 0.979598
0.200969 2.92639e-07 0.979598
0.387887 5.80584e-07 0.921707
0.380434 0.0756736 0.921707
0.35836 0.148439 0.921707
0.185671 0.0769078 0.979598
0.197107 0.0392074 0.979598
0.197107 0.0392074 0.979598
0.380434 0.0756736 0.921707
0.35836 0.148439 0.921707
0.322516 0.215499 0.921707
0.167099 0.111653 0.979598
0.185671 0.0769078 0.979598
0.185671 0.0769078 0.979598
0.35836 0.148439 0.921707
0.322516 0.215499 0.921707
0.274277 0.274278 0.921707
0.142106 0.142107 0.979598
0.167099 0.111653 0.979598
0.167099 0.111653 0.979598
0.322516 0.215499 0.921707
0.274277 0.274278 0.921707
0.215498 0.322517 0.921707
0.111652 0.1671 0.979598
0.142106 0.142107 0.979598
0.142106 0.142107 0.979598
0.274277 0.274278 0.921707
0.215498 0.322517 0.921707
0.148437 0.358361 0.921707
0.0769071 0.185671 0.979598
0.111652 0.1671 0.979598
0.111652 0.1671 0.979598
0.215498 0.322517 0.921707
0.148437 0.358361 0.921707
0.0756724 0.380434 0.921707
0.0392068 0.197107 0.979598
0.0769071 0.185671 0.979598
0.0769071 0.185671 0.979598
0.148437 0.358361 0.921707
0.0756724 0.380434 0.921707
-2.85661e-07 0.387887 0.921707
-1.40801e-07 0.200969 0.979598
0.0392068 0.197107 0.979598
0.0392068 0.197107 0.979598
0.0756724 0.380434 0.921707
-2.85661e-07 0.387887 0.921707
-0.109207 0.549019 0.828645
-0.075673 0.380434 0.921707
-2.85661e-07 0.387887 0.921707
-2.85661e-07 0.387887 0.921707
-3.87968e-07 0.559775 0.828645
-0.109207 0.549019 0.828645
-0.214217 0.517165 0.828645
-0.148438 0.358361 0.921707
-0.075673 0.380434 0.921707
-0.075673 0.380434 0.921707
-0.109207 0.549019 0.828645
-0.214217 0.517165 0.828645
-0.310994 0.465436 0.828645
-0.215498 0.322516 0.921707
-0.148438 0.358361 0.921707
-0.148438 0.358361 0.921707
-0.214217 0.517165 0.828645
-0.310994 0.465436 0.828645
-0.395821 0.395821 0.828645
-0.274277 0.274277 0.921707
-0.215498 0.322516 0.921707
-0.215498 0.322516 0.921707
-0.310994 0.465436 0.828645
-0.395821 0.395821 0.828645
-0.465436 0.310994 0.828645
-0.322516 0.215498 0.921707
-0.274277 0.274277 0.921707
-0.274277 0.274277 0.921707
-0.395821 0.395821 0.828645
-0.465436 0.310994 0.828645
-0.517165 0.214217 0.828645
-0.358361 0.148438 0.921707
-0.322516 0.215498 0.921707
-0.322516 0.215498 0.921707
-0.465436 0.310994 0.828645
-0.517165 0.214217 0.828645
-0.549019 0.109207 0.828645
-0.380434 0.0756729 0.921707
-0.358361 0.148438 0.921707
-0.358361 0.148438 0.921707
-0.517165 0.214217 0.828645
-0.549019 0.109207 0.828645
-0.559775 -1.17947e-07 0.828645
-0.387887 -1.09961e-07 0.921707
-0.380434 0.0756729 0.921707
-0.380434 0.0756729 0.921707
-0.549019 0.109207 0.828645
-0.559775 -1.17947e-07 0.828645
-0.549019 -0.109207 0.828645
-0.380434 -0.0756732 0.921707
-0.387887 -1.09961e-07 0.921707
-0.387887 -1.09961e-07 0.921707
-0.559775 -1.17947e-07 0.828645
-0.549019 -0.109207 0.828645
-0.517165 -0.214217 0.828645
-0.358361 -0.148438 0.921707
-0.380434 -0.0756732 0.921707
-0.380434 -0.0756732 0.921707
-0.549019 -0.109207 0.828645
-0.517165 -0.214217 0.828645
-0.465436 -0.310995 0.828645
-0.322516 -0.215499 0.921707
-0.358361 -0.148438 0.921707
-0.358361 -0.148438 0.921707
-0.517165 -0.214217 0.828645
-0.465436 -0.310995 0.828645
-0.39582 -0.395821 0.828645
-0.274277 -0.274278 0.921707
-0.322516 -0.215499 0.921707
-0.322516 -0.215499 0.921707
-0.465436 -0.310995 0.828645
-0.39582 -0.395821 0.828645
-0.310994 -0.465436 0.828645
-0.215498 -0.322516 0.921707
-0.274277 -0.274278 0.921707
-0.274277 -0.274278 0.921707
-0.39582 -0.395821 0.828645
-0.310994 -0.465436 0.828645
-0.214216 -0.517165 0.828645
-0.148438 -0.358361 0.921707
-0.215498 -0.322516 0.921707
-0.215498 -0.322516 0.921707
-0.310994 -0.465436 0.828645
-0.214216 -0.517165 0.828645
-0.109206 -0.549019 0.828645
-0.0756726 -0.380434 0.921707
-0.148438 -0.358361 0.921707
-0.148438 -0.358361 0.921707
-0.214216 -0.517165 0.828645
-0.109206 -0.549019 0.828645
5.66385e-07 -0.559775 0.828645
3.55582e-07 -0.387887 0.921707
-0.0756726 -0.380434 0.921707
-0.0756726 -0.380434 0.921707
-0.109206 -0.549019 0.828645
5.66385e-07 -0.559775 0.828645
0.109207 -0.549019 0.828645
0.0756734 -0.380434 0.921707
3.55582e-07 -0.387887 0.921707
3.55582e-07 -0.387887 0.921707
5.66385e-07 -0.559775 0.828645
0.109207 -0.549019 0.828645
0.214217 -0.517165 0.828645
0.148438 -0.358361 0.921707
0.0756734 -0.380434 0.921707
0.0756734 -0.380434 0.921707
0.109207 -0.549019 0.828645
0.214217 -0.517165 0.828645
0.310995 -0.465436 0.828645
0.215499 -0.322516 0.921707
0.148438 -0.358361 0.921707
0.148438 -0.358361 0.921707
0.214217 -0.517165 0.828645
0.310995 -0.465436 0.828645
0.395821 -0.39582 0.828645
0.274278 -0.274277 0.921707
0.215499 -0.322516 0.921707
0.215499 -0.322516 0.921707
0.310995 -0.465436 0.828645
0.395821 -0.39582 0.828645
0.465436 -0.310994 0.828645
0.322517 -0.215498 0.921707
0.274278 -0.274277 0.921707
0.274278 -0.274277 0.921707
0.395821 -0.39582 0.828645
0.465436 -0.310994 0.828645
0.517165 -0.214216 0.828645
0.358361 -0.148437 0.921707
0.322517 -0.215498 0.921707
0.322517 -0.215498 0.921707
0.465436 -0.310994 0.828645
0.517165 -0.214216 0.828645
0.549019 -0.109206 0.828645
0.380434 -0.0756724 0.921707
0.358361 -0.148437 0.921707
0.358361 -0.148437 0.921707
0.517165 -0.214216 0.828645
0.549019 -0.109206 0.828645
0.559775 8.19043e-07 0.828645
0.387887 5.80584e-07 0.921707
0.380434 -0.0756724 0.921707
0.380434 -0.0756724 0.921707
0.549019 -0.109206 0.828645
0.559775 8.19043e-07 0.828645
0.549019 0.109208 0.828645
0.380434 0.0756736 0.921707
0.387887 5.80584e-07 0.921707
0.387887 5.80584e-07 0.921707
0.559775 8.19043e-07 0.828645
0.549019 0.109208 0.828645
0.517164 0.214218 0.828645
0.35836 0.148439 0.921707
0.380434 0.0756736 0.921707
0.380434 0.0756736 0.921707
0.549019 0.109208 0.828645
0.517164 0.214218 0.828645
0.465435 0.310995 0.828645
0.322516 0.215499 0.921707
0.35836 0.148439 0.921707
0.35836 0.148439 0.921707
0.517164 0.214218 0.828645
0.465435 0.310995 0.828645
0.39582 0.395822 0.828645
0.274277 0.274278 0.921707
0.322516 0.215499 0.921707
0.322516 0.215499 0.921707
0.465435 0.310995 0.828645
0.39582 0.395822 0.828645
0.310994 0.465437 0.828645
0.215498 0.322517 0.921707
0.274277 0.274278 0.921707
0.274277 0.274278 0.921707
0.39582 0.395822 0.828645
0.310994 0.465437 0.828645
0.214216 0.517165 0.828645
0.148437 0.358361 0.921707
0.215498 0.322517 0.921707
0.215498 0.322517 0.921707
0.310994 0.465437 0.828645
0.214216 0.517165 0.828645
0.109206 0.549019 0.828645
0.0756724 0.380434 0.921707
0.148437 0.358361 0.921707
0.148437 0.358361 0.921707
0.214216 0.517165 0.828645
0.109206 0.549019 0.828645
-3.87968e-07 0.559775 0.828645
-2.85661e-07 0.387887 0.921707
0.0756724 0.380434 0.921707
0.0756724 0.380434 0.921707
0.109206 0.549019 0.828645
-3.87968e-07 0.559775 0.828645
-0.138542 0.696496 0.704059
-0.109207 0.549019 0.828645
-3.87968e-07 0.559775 0.828645
-3.87968e-07 0.559775 0.828645
-4.34268e-07 0.710141 0.704059
-0.138542 0.696496 0.704059
-0.271759 0.656085 0.704059
-0.214217 0.517165 0.828645
-0.109207 0.549019 0.828645
-0.109207 0.549019 0.828645
-0.138542 0.696496 0.704059
-0.271759 0.656085 0.704059
-0.394533 0.590461 0.704059
-0.310994 0.465436 0.828645
-0.214217 0.517165 0.828645
-0.214217 0.517165 0.828645
-0.271759 0.656085 0.704059
-0.394533 0.590461 0.704059
-0.502146 0.502146 0.704059
-0.395821 0.395821 0.828645
-0.310994 0.465436 0.828645
-0.310994 0.465436 0.828645
-0.394533 0.590461 0.704059
-0.502146 0.502146 0.704059
-0.590461 0.394533 0.704059
-0.465436 0.310994 0.828645
-0.395821 0.395821 0.828645
-0.395821 0.395821 0.828645
-0.502146 0.502146 0.704059
-0.590461 0.394533 0.704059
-0.656085 0.271759 0.704059
-0.517165 0.214217 0.828645
-0.465436 0.310994 0.828645
-0.465436 0.310994 0.828645
-0.590461 0.394533 0.704059
-0.656085 0.271759 0.704059
-0.696496 0.138542 0.704059
-0.549019 0.109207 0.828645
-0.517165 0.214217 0.828645
-0.517165 0.214217 0.828645
-0.656085 0.271759 0.704059
-0.696496 0.138542 0.704059
-0.710141 -2.39327e-07 0.704059
-0.559775 -1.17947e-07 0.828645
-0.549019 0.109207 0.828645
-0.549019 0.109207 0.828645
-0.696496 0.138542 0.704059
-0.710141 -2.39327e-07 0.704059
-0.696496 -0.138542 0.704059
-0.549019 -0.109207 0.828645
-0.559775 -1.17947e-07 0.828645
-0.559775 -1.17947e-07 0.828645
-0.710141 -2.39327e-07 0.704059
-0.696496 -0.138542 0.704059
-0.656085 -0.27176 0.704059
-0.517165 -0.214217 0.828645
-0.549019 -0.109207 0.828645
-0.549019 -0.109207 0.828645
-0.696496 -0.138542 0.704059
-0.656085 -0.27176 0.704059
-0.590461 -0.394534 0.704059
-0.465436 -0.310995 0.828645
-0.517165 -0.214217 0.828645
-0.517165 -0.214217 0.828645
-0.656085 -0.27176 0.704059
-0.590461 -0.394534 0.704059
-0.502146 -0.502146 0.704059
-0.39582 -0.395821 0.828645
-0.465436 -0.310995 0.828645
-0.465436 -0.310995 0.828645
-0.590461 -0.394534 0.704059
-0.502146 -0.502146 0.704059
-0.394533 -0.590461 0.704059
-0.310994 -0.465436 0.828645
-0.39582 -0.395821 0.828645
-0.39582 -0.395821 0.828645
-0.502146 -0.502146 0.704059
-0.394533 -0.590461 0.704059
-0.271759 -0.656085 0.704059
-0.214216 -0.517165 0.828645
-0.310994 -0.465436 0.828645
-0.310994 -0.465436 0.828645
-0.394533 -0.590461 0.704059
-0.271759 -0.656085 0.704059
-0.138541 -0.696496 0.704059
-0.109206 -0.549019 0.828645
-0.214216 -0.517165 0.828645
-0.214216 -0.517165 0.828645
-0.271759 -0.656085 0.704059
-0.138541 -0.696496 0.704059
6.08814e-07 -0.710141 0.704059
5.66385e-07 -0.559775 0.828645
-0.109206 -0.549019 0.828645
-0.109206 -0.549019 0.828645
-0.138541 -0.696496 0.704059
6.08814e-07 -0.710141 0.704059
0.138543 -0.696496 0.704059
0.109207 -0.549019 0.828645
5.66385e-07 -0.559775 0.828645
5.66385e-07 -0.559775 0.828645
6.08814e-07 -0.710141 0.704059
0.138543 -0.696496 0.704059
0.27176 -0.656085 0.704059
0.214217 -0.517165 0.828645
0.109207 -0.549019 0.828645
0.109207 -0.549019 0.828645
0.138543 -0.696496 0.704059
0.27176 -0.656085 0.704059
0.394534 -0.590461 0.704059
0.310995 -0.465436 0.828645
0.214217 -0.517165 0.828645
0.214217 -0.517165 0.828645
0.27176 -0.656085 0.704059
0.394534 -0.590461 0.704059
0.502146 -0.502145 0.704059
0.395821 -0.39582 0.828645
0.310995 -0.465436 0.828645
0.310995 -0.465436 0.828645
0.394534 -0.590461 0.704059
0.502146 -0.502145 0.704059
0.590462 -0.394533 0.704059
0.465436 -0.310994 0.828645
0.395821 -0.39582 0.828645
0.395821 -0.39582 0.828645
0.502146 -0.502145 0.704059
0.590462 -0.394533 0.704059
0.656086 -0.271758 0.704059
0.517165 -0.214216 0.828645
0.465436 -0.310994 0.828645
0.465436 -0.310994 0.828645
0.590462 -0.394533 0.704059
0.656086 -0.271758 0.704059
0.696496 -0.138541 0.704059
0.549019 -0.109206 0.828645
0.517165 -0.214216 0.828645
0.517165 -0.214216 0.828645
0.656086 -0.271758 0.704059
0.696496 -0.138541 0.704059
0.710141 1.03948e-06 0.704059
0.559775 8.19043e-07 0.828645
0.549019 -0.109206 0.828645
0.549019 -0.109206 0.828645
0.696496 -0.138541 0.704059
0.710141 1.03948e-06 0.704059
0.696496 0.138543 0.704059
0.549019 0.109208 0.828645
0.559775 8.19043e-07 0.828645
0.559775 8.19043e-07 0.828645
0.710141 1.03948e-06 0.704059
0.696496 0.138543 0.704059
0.656085 0.271761 0.704059
0.517164 0.214218 0.828645
0.549019 0.109208 0.828645
0.549019 0.109208 0.828645
0.696496 0.138543 0.704059
0.656085 0.271761 0.704059
0.59046 0.394535 0.704059
0.465435 0.310995 0.828645
0.517164 0.214218 0.828645
0.517164 0.214218 0.828645
0.656085 0.271761 0.704059
0.59046 0.394535 0.704059
0.502145 0.502147 0.704059
0.39582 0.395822 0.828645
0.465435 0.310995 0.828645
0.465435 0.310995 0.828645
0.59046 0.394535 0.704059
0.502145 0.502147 0.704059
0.394532 0.590462 0.704059
0.310994 0.465437 0.828645
0.39582 0.395822 0.828645
0.39582 0.395822 0.828645
0.502145 0.502147 0.704059
0.394532 0.590462 0.704059
0.271758 0.656086 0.704059
0.214216 0.517165 0.828645
0.310994 0.465437 0.828645
0.310994 0.465437 0.828645
0.394532 0.590462 0.704059
0.271758 0.656086 0.704059
0.138541 0.696497 0.704059
0.109206 0.549019 0.828645
0.214216 0.517165 0.828645
0.214216 0.517165 0.828645
0.271758 0.656086 0.704059
0.138541 0.696497 0.704059
-4.34268e-07 0.710141 0.704059
-3.87968e-07 0.559775 0.828645
0.109206 0.549019 0.828645
0.109206 0.549019 0.828645
0.138541 0.696497 0.704059
-4.34268e-07 0.710141 0.704059
-0.162576 0.817327 0.552761
-0.138542 0.696496 0.704059
-4.34268e-07 0.710141 0.704059
-4.34268e-07 0.710141 0.704059
-5.04686e-07 0.83334 0.552761
-0.162576 0.817327 0.552761
-0.318905 0.769906 0.552761
-0.271759 0.656085 0.704059
-0.138542 0.696496 0.704059
-0.138542 0.696496 0.704059
-0.162576 0.817327 0.552761
-0.318905 0.769906 0.552761
-0.462979 0.692896 0.552761
-0.394533 0.590461 0.704059
-0.271759 0.656085 0.704059
-0.271759 0.656085 0.704059
-0.318905 0.769906 0.552761
-0.462979 0.692896 0.552761
-0.58926 0.58926 0.552761
-0.502146 0.502146 0.704059
-0.394533 0.590461 0.704059
-0.394533 0.590461 0.704059
-0.462979 0.692896 0.552761
-0.58926 0.58926 0.552761
-0.692897 0.462979 0.552761
-0.590461 0.394533 0.704059
-0.502146 0.502146 0.704059
-0.502146 0.502146 0.704059
-0.58926 0.58926 0.552761
-0.692897 0.462979 0.552761
-0.769905 0.318905 0.552761
-0.656085 0.271759 0.704059
-0.590461 0.394533 0.704059
-0.590461 0.394533 0.704059
-0.692897 0.462979 0.552761
-0.769905 0.318905 0.552761
-0.817327 0.162576 0.552761
-0.696496 0.138542 0.704059
-0.656085 0.271759 0.704059
-0.656085 0.271759 0.704059
-0.769905 0.318905 0.552761
-0.817327 0.162576 0.552761
-0.83334 -2.60754e-07 0.552761
-0.710141 -2.39327e-07 0.704059
-0.696496 0.138542 0.704059
-0.696496 0.138542 0.704059
-0.817327 0.162576 0.552761
-0.83334 -2.60754e-07 0.552761
-0.817327 -0.162577 0.552761
-0.696496 -0.138542 0.704059
-0.710141 -2.39327e-07 0.704059
-0.710141 -2.39327e-07 0.704059
-0.83334 -2.60754e-07 0.552761
-0.817327 -0.162577 0.552761
-0.769905 -0.318906 0.552761
-0.656085 -0.27176 0.704059
-0.696496 -0.138542 0.704059
-0.696496 -0.138542 0.704059
-0.817327 -0.162577 0.552761
-0.769905 -0.318906 0.552761
-0.692896 -0.462979 0.552761
-0.590461 -0.394534 0.704059
-0.656085 -0.27176 0.704059
-0.656085 -0.27176 0.704059
-0.769905 -0.318906 0.552761
-0.692896 -0.462979 0.552761
-0.58926 -0.58926 0.552761
-0.502146 -0.502146 0.704059
-0.590461 -0.394534 0.704059
-0.590461 -0.394534 0.704059
-0.692896 -0.462979 0.552761
-0.58926 -0.58926 0.552761
-0.462978 -0.692897 0.552761
-0.394533 -0.590461 0.704059
-0.502146 -0.502146 0.704059
-0.502146 -0.502146 0.704059
-0.58926 -0.58926 0.552761
-0.462978 -0.692897 0.552761
-0.318905 -0.769906 0.552761
-0.271759 -0.656085 0.704059
-0.394533 -0.590461 0.704059
-0.394533 -0.590461 0.704059
-0.462978 -0.692897 0.552761
-0.318905 -0.769906 0.552761
-0.162576 -0.817327 0.552761
-0.138541 -0.696496 0.704059
-0.271759 -0.656085 0.704059
-0.271759 -0.656085 0.704059
-0.318905 -0.769906 0.552761
-0.162576 -0.817327 0.552761
6.98149e-07 -0.83334 0.552761
6.08814e-07 -0.710141 0.704059
-0.138541 -0.696496 0.704059
-0.138541 -0.696496 0.704059
-0.162576 -0.817327 0.552761
6.98149e-07 -0.83334 0.552761
0.162577 -0.817327 0.552761
0.138543 -0.696496 0.704059
6.08814e-07 -0.710141 0.704059
6.08814e-07 -0.710141 0.704059
6.98149e-07 -0.83334 0.552761
0.162577 -0.817327 0.552761
0.318906 -0.769905 0.552761
0.27176 -0.656085 0.704059
0.138543 -0.696496 0.704059
0.138543 -0.696496 0.704059
0.162577 -0.817327 0.552761
0.318906 -0.769905 0.552761
0.46298 -0.692896 0.552761
0.394534 -0.590461 0.704059
0.27176 -0.656085 0.704059
0.27176 -0.656085 0.704059
0.318906 -0.769905 0.552761
0.46298 -0.692896 0.552761
0.589261 -0.589259 0.552761
0.502146 -0.502145 0.704059
0.394534 -0.590461 0.704059
0.394534 -0.590461 0.704059
0.46298 -0.692896 0.552761
0.589261 -0.589259 0.552761
0.692897 -0.462978 0.552761
0.590462 -0.394533 0.704059
0.502146 -0.502145 0.704059
0.502146 -0.502145 0.704059
0.589261 -0.589259 0.552761
0.692897 -0.462978 0.552761
0.769906 -0.318904 0.552761
0.656086 -0.271758 0.704059
0.590462 -0.394533 0.704059
0.590462 -0.394533 0.704059
0.692897 -0.462978 0.552761
0.769906 -0.318904 0.552761
0.817327 -0.162575 0.552761
0.696496 -0.138541 0.704059
0.656086 -0.271758 0.704059
0.656086 -0.271758 0.704059
0.769906 -0.318904 0.552761
0.817327 -0.162575 0.552761
0.83334 1.34823e-06 0.552761
0.710141 1.03948e-06 0.704059
0.696496 -0.138541 0.704059
0.696496 -0.138541 0.704059
0.817327 -0.162575 0.552761
0.83334 1.34823e-06 0.552761
0.817327 0.162578 0.552761
0.696496 0.138543 0.704059
0.710141 1.03948e-06 0.704059
0.710141 1.03948e-06 0.704059
0.83334 1.34823e-06 0.552761
0.817327 0.162578 0.552761
0.769905 0.318907 0.552761
0.656085 0.271761 0.704059
0.696496 0.138543 0.704059
0.696496 0.138543 0.704059
0.817327 0.162578 0.552761
0.769905 0.318907 0.552761
0.692896 0.46298 0.552761
0.59046 0.394535 0.704059
0.656085 0.271761 0.704059
0.656085 0.271761 0.704059
0.769905 0.318907 0.552761
0.692896 0.46298 0.552761
0.589259 0.589261 0.552761
0.502145 0.502147 0.704059
0.59046 0.394535 0.704059
0.59046 0.394535 0.704059
0.692896 0.46298 0.552761
0.589259 0.589261 0.552761
0.462977 0.692897 0.552761
0.394532 0.590462 0.704059
0.502145 0.502147 0.704059
0.502145 0.502147 0.704059
0.589259 0.589261 0.552761
0.462977 0.692897 0.552761
0.318904 0.769906 0.552761
0.271758 0.656086 0.704059
0.394532 0.590462 0.704059
0.394532 0.590462 0.704059
0.462977 0.692897 0.552761
0.318904 0.769906 0.552761
0.162575 0.817327 0.552761
0.138541 0.696497 0.704059
0.271758 0.656086 0.704059
0.271758 0.656086 0.704059
0.318904 0.769906 0.552761
0.162575 0.817327 0.552761
-5.04686e-07 0.83334 0.552761
-4.34268e-07 0.710141 0.704059
0.138541 0.696497 0.704059
0.138541 0.696497 0.704059
0.162575 0.817327 0.552761
-5.04686e-07 0.83334 0.552761
-0.180413 0.906996 0.380537
-0.162576 0.817327 0.552761
-5.04686e-07 0.83334 0.552761
-5.04686e-07 0.83334 0.552761
-6.66588e-07 0.924766 0.380537
-0.180413 0.906996 0.380537
-0.353892 0.854372 0.380537
-0.318905 0.769906 0.552761
-0.162576 0.817327 0.552761
-0.162576 0.817327 0.552761
-0.180413 0.906996 0.380537
-0.353892 0.854372 0.380537
-0.513772 0.768915 0.380537
-0.462979 0.692896 0.552761
-0.318905 0.769906 0.552761
-0.318905 0.769906 0.552761
-0.353892 0.854372 0.380537
-0.513772 0.768915 0.380537
-0.653908 0.653908 0.380537
-0.58926 0.58926 0.552761
-0.462979 0.692896 0.552761
-0.462979 0.692896 0.552761
-0.513772 0.768915 0.380537
-0.653908 0.653908 0.380537
-0.768915 0.513772 0.380537
-0.692897 0.462979 0.552761
-0.58926 0.58926 0.552761
-0.58926 0.58926 0.552761
-0.653908 0.653908 0.380537
-0.768915 0.513772 0.380537
-0.854372 0.353892 0.380537
-0.769905 0.318905 0.552761
-0.692897 0.462979 0.552761
-0.692897 0.462979 0.552761
-0.768915 0.513772 0.380537
-0.854372 0.353892 0.380537
-0.906996 0.180413 0.380537
-0.817327 0.162576 0.552761
-0.769905 0.318905 0.552761
-0.769905 0.318905 0.552761
-0.854372 0.353892 0.380537
-0.906996 0.180413 0.380537
-0.924766 -3.66984e-07 0.380537
-0.83334 -2.60754e-07 0.552761
-0.817327 0.162576 0.552761
-0.817327 0.162576 0.552761
-0.906996 0.180413 0.380537
-0.924766 -3.66984e-07 0.380537
-0.906996 -0.180413 0.380537
-0.817327 -0.162577 0.552761
-0.83334 -2.60754e-07 0.552761
-0.83334 -2.60754e-07 0.552761
-0.924766 -3.66984e-07 0.380537
-0.906996 -0.180413 0.380537
-0.854372 -0.353893 0.380537
-0.769905 -0.318906 0.552761
-0.817327 -0.162577 0.552761
-0.817327 -0.162577 0.552761
-0.906996 -0.180413 0.380537
-0.854372 -0.353893 0.380537
-0.768914 -0.513773 0.380537
-0.692896 -0.462979 0.552761
-0.769905 -0.318906 0.552761
-0.769905 -0.318906 0.552761
-0.854372 -0.353893 0.380537
-0.768914 -0.513773 0.380537
-0.653907 -0.653908 0.380537
-0.58926 -0.58926 0.552761
-0.692896 -0.462979 0.552761
-0.692896 -0.462979 0.552761
-0.768914 -0.513773 0.380537
-0.653907 -0.653908 0.380537
-0.513772 -0.768915 0.380537
-0.462978 -0.692897 0.552761
-0.58926 -0.58926 0.552761
-0.58926 -0.58926 0.552761
-0.653907 -0.653908 0.380537
-0.513772 -0.768915 0.380537
-0.353892 -0.854372 0.380537
-0.318905 -0.769906 0.552761
-0.462978 -0.692897 0.552761
-0.462978 -0.692897 0.552761
-0.513772 -0.768915 0.380537
-0.353892 -0.854372 0.380537
-0.180412 -0.906997 0.380537
-0.162576 -0.817327 0.552761
-0.318905 -0.769906 0.552761
-0.318905 -0.769906 0.552761
-0.353892 -0.854372 0.380537
-0.180412 -0.906997 0.380537
8.87982e-07 -0.924766 0.380537
6.98149e-07 -0.83334 0.552761
-0.162576 -0.817327 0.552761
-0.162576 -0.817327 0.552761
-0.180412 -0.906997 0.380537
8.87982e-07 -0.924766 0.380537
0.180414 -0.906996 0.380537
0.162577 -0.817327 0.552761
6.98149e-07 -0.83334 0.552761
6.98149e-07 -0.83334 0.552761
8.87982e-07 -0.924766 0.380537
0.180414 -0.906996 0.380537
0.353893 -0.854372 0.380537
0.318906 -0.769905 0.552761
0.162577 -0.817327 0.552761
0.162577 -0.817327 0.552761
0.180414 -0.906996 0.380537
0.353893 -0.854372 0.380537
0.513773 -0.768914 0.380537
0.46298 -0.692896 0.552761
0.318906 -0.769905 0.552761
0.318906 -0.769905 0.552761
0.353893 -0.854372 0.380537
0.513773 -0.768914 0.380537
0.653909 -0.653907 0.380537
0.589261 -0.589259 0.552761
0.46298 -0.692896 0.552761
0.46298 -0.692896 0.552761
0.513773 -0.768914 0.380537
0.653909 -0.653907 0.380537
0.768915 -0.513771 0.380537
0.692897 -0.462978 0.552761
0.589261 -0.589259 0.552761
0.589261 -0.589259 0.552761
0.653909 -0.653907 0.380537
0.768915 -0.513771 0.380537
0.854373 -0.353891 0.380537
0.769906 -0.318904 0.552761
0.692897 -0.462978 0.552761
0.692897 -0.462978 0.552761
0.768915 -0.513771 0.380537
0.854373 -0.353891 0.380537
0.906997 -0.180411 0.380537
0.817327 -0.162575 0.552761
0.769906 -0.318904 0.552761
0.769906 -0.318904 0.552761
0.854373 -0.353891 0.380537
0.906997 -0.180411 0.380537
0.911198 -0.032535 0.410681
0.83334 1.34823e-06 0.552761
0.817327 -0.162575 0.552761
0.817327 -0.162575 0.552761
0.906997 -0.180411 0.380537
0.911198 -0.032535 0.410681
0.887342 0.209679 0.410681
0.817327 0.162578 0.552761
0.83334 1.34823e-06 0.552761
0.83334 1.34823e-06 0.552761
0.911198 -0.032535 0.410681
0.887342 0.209679 0.410681
0.854371 0.353894 0.380537
0.769905 0.318907 0.552761
0.817327 0.162578 0.552761
0.817327 0.162578 0.552761
0.887342 0.209679 0.410681
0.854371 0.353894 0.380537
0.768913 0.513774 0.380537
0.692896 0.46298 0.552761
0.769905 0.318907 0.552761
0.769905 0.318907 0.552761
0.854371 0.353894 0.380537
0.768913 0.513774 0.380537
0.653907 0.653909 0.380537
0.589259 0.589261 0.552761
0.692896 0.46298 0.552761
0.692896 0.46298 0.552761
0.768913 0.513774 0.380537
0.653907 0.653909 0.380537
0.513771 0.768916 0.380537
0.462977 0.692897 0.552761
0.589259 0.589261 0.552761
0.589259 0.589261 0.552761
0.653907 0.653909 0.380537
0.513771 0.768916 0.380537
0.353891 0.854373 0.380537
0.318904 0.769906 0.552761
0.462977 0.692897 0.552761
0.462977 0.692897 0.552761
0.513771 0.768916 0.380537
0.353891 0.854373 0.380537
0.180411 0.906997 0.380537
0.162575 0.817327 0.552761
0.318904 0.769906 0.552761
0.318904 0.769906 0.552761
0.353891 0.854373 0.380537
0.180411 0.906997 0.380537
-6.66588e-07 0.924766 0.380537
-5.04686e-07 0.83334 0.552761
0.162575 0.817327 0.552761
0.162575 0.817327 0.552761
0.180411 0.906997 0.380537
-6.66588e-07 0.924766 0.380537
-0.191387 0.962165 0.19393
-0.180413 0.906996 0.380537
-6.66588e-07 0.924766 0.380537
-6.66588e-07 0.924766 0.380537
-6.38256e-07 0.981015 0.19393
-0.191387 0.962165 0.19393
-0.375418 0.90634 0.19393
-0.353892 0.854372 0.380537
-0.180413 0.906996 0.380537
-0.180413 0.906996 0.380537
-0.191387 0.962165 0.19393
-0.375418 0.90634 0.19393
-0.545023 0.815684 0.19393
-0.513772 0.768915 0.380537
-0.353892 0.854372 0.380537
-0.353892 0.854372 0.380537
-0.375418 0.90634 0.19393
-0.545023 0.815684 0.19393
-0.693683 0.693683 0.19393
-0.653908 0.653908 0.380537
-0.513772 0.768915 0.380537
-0.513772 0.768915 0.380537
-0.545023 0.815684 0.19393
-0.693683 0.693683 0.19393
-0.815684 0.545023 0.19393
-0.768915 0.513772 0.380537
-0.653908 0.653908 0.380537
-0.653908 0.653908 0.380537
-0.693683 0.693683 0.19393
-0.815684 0.545023 0.19393
-0.90634 0.375418 0.19393
-0.854372 0.353892 0.380537
-0.768915 0.513772 0.380537
-0.768915 0.513772 0.380537
-0.815684 0.545023 0.19393
-0.90634 0.375418 0.19393
-0.962165 0.191386 0.19393
-0.906996 0.180413 0.380537
-0.854372 0.353892 0.380537
-0.854372 0.353892 0.380537
-0.90634 0.375418 0.19393
-0.962165 0.191386 0.19393
-0.981015 -2.84205e-07 0.19393
-0.924766 -3.66984e-07 0.380537
-0.906996 0.180413 0.380537
-0.906996 0.180413 0.380537
-0.962165 0.191386 0.19393
-0.981015 -2.84205e-07 0.19393
-0.962165 -0.191387 0.19393
-0.906996 -0.180413 0.380537
-0.924766 -3.66984e-07 0.380537
-0.924766 -3.66984e-07 0.380537
-0.981015 -2.84205e-07 0.19393
-0.962165 -0.191387 0.19393
-0.90634 -0.375419 0.19393
-0.854372 -0.353893 0.380537
-0.906996 -0.180413 0.380537
-0.906996 -0.180413 0.380537
-0.962165 -0.191387 0.19393
-0.90634 -0.375419 0.19393
-0.815684 -0.545023 0.19393
-0.768914 -0.513773 0.380537
-0.854372 -0.353893 0.380537
-0.854372 -0.353893 0.380537
-0.90634 -0.375419 0.19393
-0.815684 -0.545023 0.19393
-0.693682 -0.693683 0.19393
-0.653907 -0.653908 0.380537
-0.768914 -0.513773 0.380537
-0.768914 -0.513773 0.380537
-0.815684 -0.545023 0.19393
-0.693682 -0.693683 0.19393
-0.545022 -0.815685 0.19393
-0.513772 -0.768915 0.380537
-0.653907 -0.653908 0.380537
-0.653907 -0.653908 0.380537
-0.693682 -0.693683 0.19393
-0.545022 -0.815685 0.19393
-0.375417 -0.90634 0.19393
-0.353892 -0.854372 0.380537
-0.513772 -0.768915 0.380537
-0.513772 -0.768915 0.380537
-0.545022 -0.815685 0.19393
-0.375417 -0.90634 0.19393
-0.191386 -0.962166 0.19393
-0.180412 -0.906997 0.380537
-0.353892 -0.854372 0.380537
-0.353892 -0.854372 0.380537
-0.375417 -0.90634 0.19393
-0.191386 -0.962166 0.19393
9.11622e-07 -0.981015 0.19393
8.87982e-07 -0.924766 0.380537
-0.180412 -0.906997 0.380537
-0.180412 -0.906997 0.380537
-0.191386 -0.962166 0.19393
9.11622e-07 -0.981015 0.19393
0.191388 -0.962165 0.19393
0.180414 -0.906996 0.380537
8.87982e-07 -0.924766 0.380537
8.87982e-07 -0.924766 0.380537
9.11622e-07 -0.981015 0.19393
0.191388 -0.962165 0.19393
0.375419 -0.90634 0.19393
0.353893 -0.854372 0.380537
0.180414 -0.906996 0.380537
0.180414 -0.906996 0.380537
0.191388 -0.962165 0.19393
0.375419 -0.90634 0.19393
0.545024 -0.815684 0.19393
0.513773 -0.768914 0.380537
0.353893 -0.854372 0.380537
0.353893 -0.854372 0.380537
0.375419 -0.90634 0.19393
0.545024 -0.815684 0.19393
0.693684 -0.693682 0.19393
0.653909 -0.653907 0.380537
0.513773 -0.768914 0.380537
0.513773 -0.768914 0.380537
0.545024 -0.815684 0.19393
0.693684 -0.693682 0.19393
0.815685 -0.545022 0.19393
0.768915 -0.513771 0.380537
0.653909 -0.653907 0.380537
0.653909 -0.653907 0.380537
0.693684 -0.693682 0.19393
0.815685 -0.545022 0.19393
0.906341 -0.375417 0.19393
0.854373 -0.353891 0.380537
0.768915 -0.513771 0.380537
0.768915 -0.513771 0.380537
0.815685 -0.545022 0.19393
0.906341 -0.375417 0.19393
0.962166 -0.191385 0.19393
0.906997 -0.180411 0.380537
0.854373 -0.353891 0.380537
0.854373 -0.353891 0.380537
0.906341 -0.375417 0.19393
0.962166 -0.191385 0.19393
0.986353 -0.0310311 0.161693
0.911198 -0.032535 0.410681
0.906997 -0.180411 0.380537
0.906997 -0.180411 0.380537
0.962166 -0.191385 0.19393
0.986353 -0.0310311 0.161693
0.906339 0.37542 0.19393
0.854371 0.353894 0.380537
0.887342 0.209679 0.410681
0.887342 0.209679 0.410681
0.961346 0.222866 0.161693
0.906339 0.37542 0.19393
0.815683 0.545024 0.19393
0.768913 0.513774 0.380537
0.854371 0.353894 0.380537
0.854371 0.353894 0.380537
0.906339 0.37542 0.19393
0.815683 0.545024 0.19393
0.693681 0.693684 0.19393
0.653907 0.653909 0.380537
0.768913 0.513774 0.380537
0.768913 0.513774 0.380537
0.815683 0.545024 0.19393
0.693681 0.693684 0.19393
0.545021 0.815686 0.19393
0.513771 0.768916 0.380537
0.653907 0.653909 0.380537
0.653907 0.653909 0.380537
0.693681 0.693684 0.19393
0.545021 0.815686 0.19393
0.375416 0.906341 0.19393
0.353891 0.854373 0.380537
0.513771 0.768916 0.380537
0.513771 0.768916 0.380537
0.545021 0.815686 0.19393
0.375416 0.906341 0.19393
0.191385 0.962166 0.19393
0.180411 0.906997 0.380537
0.353891 0.854373 0.380537
0.353891 0.854373 0.380537
0.375416 0.906341 0.19393
0.191385 0.962166 0.19393
-6.38256e-07 0.981015 0.19393
-6.66588e-07 0.924766 0.380537
0.180411 0.906997 0.380537
0.180411 0.906997 0.380537
0.191385 0.962166 0.19393
-6.38256e-07 0.981015 0.19393
-0.194151 0.976063 0.0980173
-0.191387 0.962165 0.19393
-6.38256e-07 0.981015 0.19393
-6.38256e-07 0.981015 0.19393
-5.97008e-07 0.995185 0.0980173
-0.194151 0.976063 0.0980173
-0.380841 0.919431 0.0980173
-0.375418 0.90634 0.19393
-0.191387 0.962165 0.19393
-0.191387 0.962165 0.19393
-0.194151 0.976063 0.0980173
-0.380841 0.919431 0.0980173
-0.552895 0.827466 0.0980172
-0.545023 0.815684 0.19393
-0.375418 0.90634 0.19393
-0.375418 0.90634 0.19393
-0.380841 0.919431 0.0980173
-0.552895 0.827466 0.0980172
-0.703702 0.703702 0.0980172
-0.693683 0.693683 0.19393
-0.545023 0.815684 0.19393
-0.545023 0.815684 0.19393
-0.552895 0.827466 0.0980172
-0.703702 0.703702 0.0980172
-0.827466 0.552895 0.0980172
-0.815684 0.545023 0.19393
-0.693683 0.693683 0.19393
-0.693683 0.693683 0.19393
-0.703702 0.703702 0.0980172
-0.827466 0.552895 0.0980172
-0.919431 0.38084 0.0980172
-0.90634 0.375418 0.19393
-0.815684 0.545023 0.19393
-0.815684 0.545023 0.19393
-0.827466 0.552895 0.0980172
-0.919431 0.38084 0.0980172
-0.976063 0.194151 0.098017
-0.962165 0.191386 0.19393
-0.90634 0.375418 0.19393
-0.90634 0.375418 0.19393
-0.919431 0.38084 0.0980172
-0.976063 0.194151 0.098017
-0.995185 -3.16486e-07 0.0980171
-0.981015 -2.84205e-07 0.19393
-0.962165 0.191386 0.19393
-0.962165 0.191386 0.19393
-0.976063 0.194151 0.098017
-0.995185 -3.16486e-07 0.0980171
-0.976062 -0.194151 0.098017
-0.962165 -0.191387 0.19393
-0.981015 -2.84205e-07 0.19393
-0.981015 -2.84205e-07 0.19393
-0.995185 -3.16486e-07 0.0980171
-0.976062 -0.194151 0.098017
-0.919431 -0.380841 0.0980172
-0.90634 -0.375419 0.19393
-0.962165 -0.191387 0.19393
-0.962165 -0.191387 0.19393
-0.976062 -0.194151 0.098017
-0.919431 -0.380841 0.0980172
-0.827466 -0.552895 0.0980173
-0.815684 -0.545023 0.19393
-0.90634 -0.375419 0.19393
-0.90634 -0.375419 0.19393
-0.919431 -0.380841 0.0980172
-0.827466 -0.552895 0.0980173
-0.703701 -0.703702 0.0980173
-0.693682 -0.693683 0.19393
-0.815684 -0.545023 0.19393
-0.815684 -0.545023 0.19393
-0.827466 -0.552895 0.0980173
-0.703701 -0.703702 0.0980173
-0.552894 -0.827466 0.0980172
-0.545022 -0.815685 0.19393
-0.693682 -0.693683 0.19393
-0.693682 -0.693683 0.19393
-0.703701 -0.703702 0.0980173
-0.552894 -0.827466 0.0980172
-0.38084 -0.919431 0.0980172
-0.375417 -0.90634 0.19393
-0.545022 -0.815685 0.19393
-0.545022 -0.815685 0.19393
-0.552894 -0.827466 0.0980172
-0.38084 -0.919431 0.0980172
-0.19415 -0.976063 0.0980173
-0.191386 -0.962166 0.19393
-0.375417 -0.90634 0.19393
-0.375417 -0.90634 0.19393
-0.38084 -0.919431 0.0980172
-0.19415 -0.976063 0.0980173
8.82325e-07 -0.995185 0.0980173
9.11622e-07 -0.981015 0.19393
-0.191386 -0.962166 0.19393
-0.191386 -0.962166 0.19393
-0.19415 -0.976063 0.0980173
8.82325e-07 -0.995185 0.0980173
0.194152 -0.976062 0.0980173
0.191388 -0.962165 0.19393
9.11622e-07 -0.981015 0.19393
9.11622e-07 -0.981015 0.19393
8.82325e-07 -0.995185 0.0980173
0.194152 -0.976062 0.0980173
0.380842 -0.91943 0.098017
0.375419 -0.90634 0.19393
0.191388 -0.962165 0.19393
0.191388 -0.962165 0.19393
0.194152 -0.976062 0.0980173
0.380842 -0.91943 0.098017
0.552896 -0.827465 0.0980172
0.545024 -0.815684 0.19393
0.375419 -0.90634 0.19393
0.375419 -0.90634 0.19393
0.380842 -0.91943 0.098017
0.552896 -0.827465 0.0980172
0.703703 -0.703701 0.0980172
0.693684 -0.693682 0.19393
0.545024 -0.815684 0.19393
0.545024 -0.815684 0.19393
0.552896 -0.827465 0.0980172
0.703703 -0.703701 0.0980172
0.827466 -0.552894 0.0980171
0.815685 -0.545022 0.19393
0.693684 -0.693682 0.19393
0.693684 -0.693682 0.19393
0.703703 -0.703701 0.0980172
0.827466 -0.552894 0.0980171
0.919431 -0.380839 0.0980172
0.906341 -0.375417 0.19393
0.815685 -0.545022 0.19393
0.815685 -0.545022 0.19393
0.827466 -0.552894 0.0980171
0.919431 -0.380839 0.0980172
0.976063 -0.194149 0.0980173
0.962166 -0.191385 0.19393
0.906341 -0.375417 0.19393
0.906341 -0.375417 0.19393
0.919431 -0.380839 0.0980172
0.976063 -0.194149 0.0980173
0.995185 1.57764e-06 0.0980173
0.986353 -0.0310311 0.161693
0.962166 -0.191385 0.19393
0.962166 -0.191385 0.19393
0.976063 -0.194149 0.0980173
0.995185 1.57764e-06 0.0980173
0.976062 0.194152 0.098017
0.961346 0.222866 0.161693
0.986353 -0.0310311 0.161693
0.986353 -0.0310311 0.161693
0.995185 1.57764e-06 0.0980173
0.976062 0.194152 0.098017
0.91943 0.380842 0.0980173
0.906339 0.37542 0.19393
0.961346 0.222866 0.161693
0.961346 0.222866 0.161693
0.976062 0.194152 0.098017
0.91943 0.380842 0.0980173
0.827465 0.552896 0.098017
0.815683 0.545024 0.19393
0.906339 0.37542 0.19393
0.906339 0.37542 0.19393
0.91943 0.380842 0.0980173
0.827465 0.552896 0.098017
0.7037 0.703703 0.0980172
0.693681 0.693684 0.19393
0.815683 0.545024 0.19393
0.815683 0.545024 0.19393
0.827465 0.552896 0.098017
0.7037 0.703703 0.0980172
0.552893 0.827467 0.0980172
0.545021 0.815686 0.19393
0.693681 0.693684 0.19393
0.693681 0.693684 0.19393
0.7037 0.703703 0.0980172
0.552893 0.827467 0.0980172
0.380839 0.919432 0.0980172
0.375416 0.906341 0.19393
0.545021 0.815686 0.19393
0.545021 0.815686 0.19393
0.552893 0.827467 0.0980172
0.380839 0.919432 0.0980172
0.194149 0.976063 0.0980173
0.191385 0.962166 0.19393
0.375416 0.906341 0.19393
0.375416 0.906341 0.19393
0.380839 0.919432 0.0980172
0.194149 0.976063 0.0980173
-5.97008e-07 0.995185 0.0980173
-6.38256e-07 0.981015 0.19393
0.191385 0.962166 0.19393
0.191385 0.962166 0.19393
0.194149 0.976063 0.0980173
-5.97008e-07 0.995185 0.0980173
}
ColorBinding OVERALL
ColorArray Vec4Array 1
{
0.529412 0.231373 0.0313726 1
}
}
}
}
MatrixTransform {
DataVariance STATIC
name "paoguan"
nodeMask 0xffffffff
cullingActive TRUE
referenceFrame RELATIVE
Matrix {
1 0 0 0
0 1 0 0
0 0 1 0
0 -1.12194 23.5252 1
}
num_children 1
Geode {
UniqueID Geode_2
DataVariance STATIC
name "paoguan-GEODE"
nodeMask 0xffffffff
cullingActive TRUE
num_drawables 1
Geometry {
StateSet {
rendering_hint DEFAULT_BIN
renderBinMode INHERIT
}
useDisplayList TRUE
useVertexBufferObjects FALSE
PrimitiveSets 1
{
DrawArrays TRIANGLES 0 30
}
VertexArray Vec3Array 30
{
77.619 9.69914 21.4889
76.4322 9.46306 25.4781
76.8097 5.6302 25.4781
76.8097 5.6302 25.4781
78.0198 5.6302 21.4889
77.619 9.69914 21.4889
19.2691 3.83289 8.13789
19.6466 3.15398e-05 8.13789
76.8097 5.6302 25.4781
76.8097 5.6302 25.4781
76.4322 9.46306 25.4781
19.2691 3.83289 8.13789
19.6466 3.15398e-05 8.13789
20.8567 3.34825e-05 4.14866
78.0198 5.6302 21.4889
78.0198 5.6302 21.4889
76.8097 5.6302 25.4781
19.6466 3.15398e-05 8.13789
20.8567 3.34825e-05 4.14866
20.456 4.06898 4.14866
77.619 9.69914 21.4889
77.619 9.69914 21.4889
78.0198 5.6302 21.4889
20.8567 3.34825e-05 4.14866
20.456 4.06898 4.14866
19.2691 3.83289 8.13789
76.4322 9.46306 25.4781
76.4322 9.46306 25.4781
77.619 9.69914 21.4889
20.456 4.06898 4.14866
}
NormalBinding PER_VERTEX
NormalArray Vec3Array 30
{
0.952718 0.0938362 0.289004
0.952717 0.0938379 0.289006
0.952718 0.0938363 0.289004
0.952718 0.0938363 0.289004
0.952718 0.0938348 0.289003
0.952718 0.0938362 0.289004
-0.287612 -0.0283278 0.957328
-0.287612 -0.0283278 0.957328
-0.287612 -0.0283278 0.957328
-0.287612 -0.0283284 0.957328
-0.287612 -0.0283284 0.957328
-0.287612 -0.0283284 0.957328
0.0897956 -0.995588 0.0272387
0.0897956 -0.995588 0.0272387
0.0897956 -0.995588 0.0272387
0.0897957 -0.995588 0.0272386
0.0897957 -0.995588 0.0272386
0.0897957 -0.995588 0.0272386
0.287612 0.0283278 -0.957328
0.287612 0.0283278 -0.957328
0.287612 0.0283278 -0.957328
0.287612 0.0283274 -0.957328
0.287612 0.0283274 -0.957328
0.287612 0.0283274 -0.957328
-0.106162 0.993976 0.0272388
-0.106162 0.993976 0.0272388
-0.106162 0.993976 0.0272388
-0.106162 0.993976 0.0272387
-0.106162 0.993976 0.0272387
-0.106162 0.993976 0.0272387
}
ColorBinding OVERALL
ColorArray Vec4Array 1
{
0.529412 0.231373 0.0313726 1
}
}
}
}
}
}
}
}
扫一扫
712
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
