单片机故障排除篇--如何判定是硬件问题还是软件问题？

最新推荐文章于 2025-10-27 15:00:18 发布

原创最新推荐文章于 2025-10-27 15:00:18 发布 · 2.2k 阅读

8 ·

CC 4.0 BY-SA版权

文章标签：

#单片机 #嵌入式硬件 #51仿真

本文介绍了一个使用51单片机实现2000秒倒计时的程序设计案例。通过配置定时器0，利用中断服务程序进行计数，并在数码管上显示倒计时的时间。此外，还提供了外部中断0来切换定时状态，以及外部中断1来重置倒计时。

一段代码写完了，编译下载都ok。

但是没有看到想要的结果？怎么排错？？？

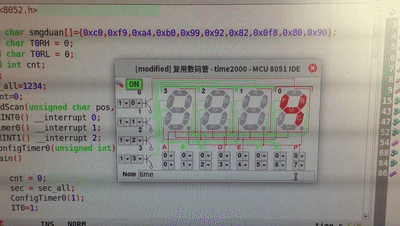

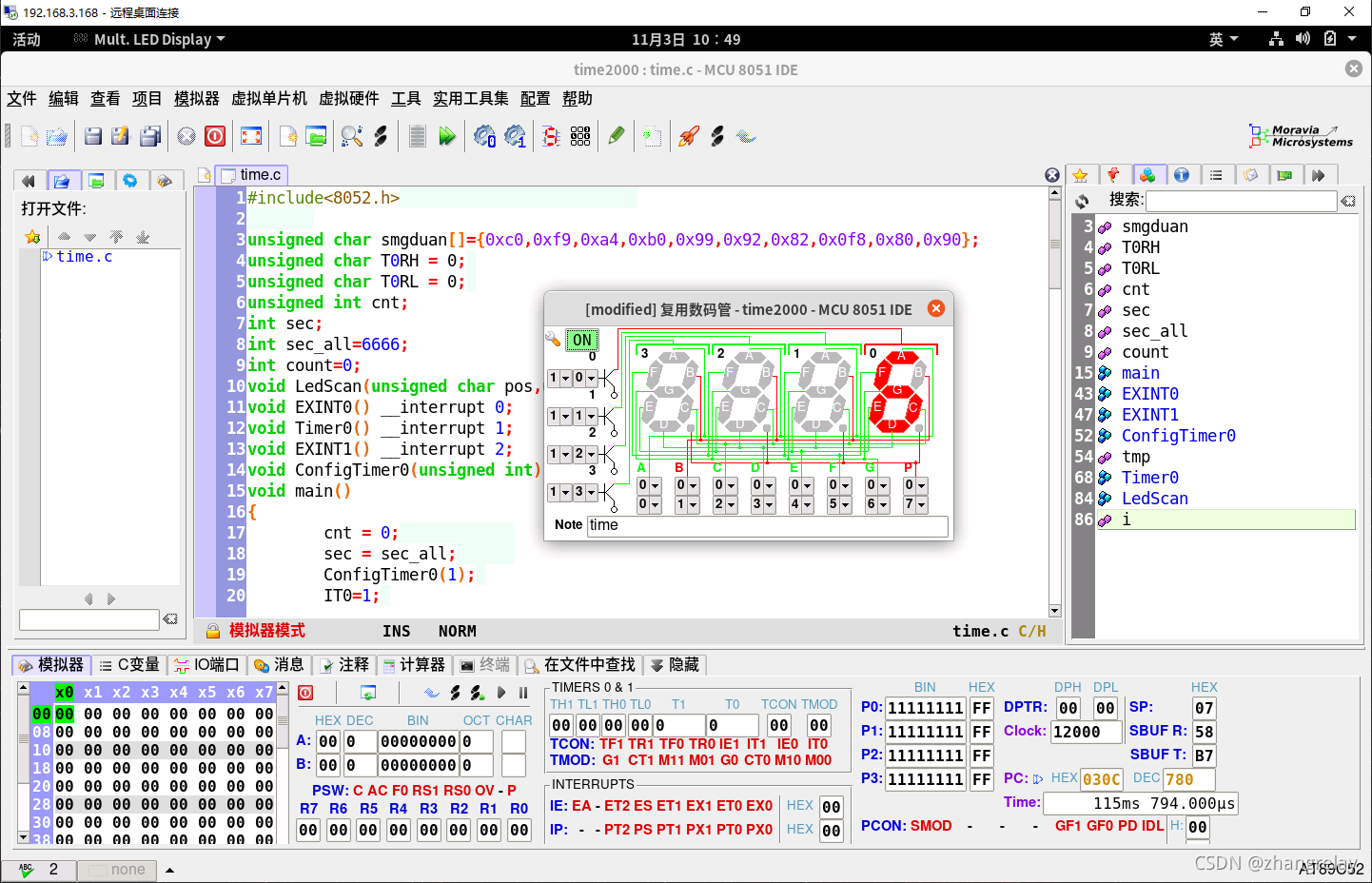

借一个别人正常的板子是一种方法，但是镜像提供了全仿真工具，试一下吧。

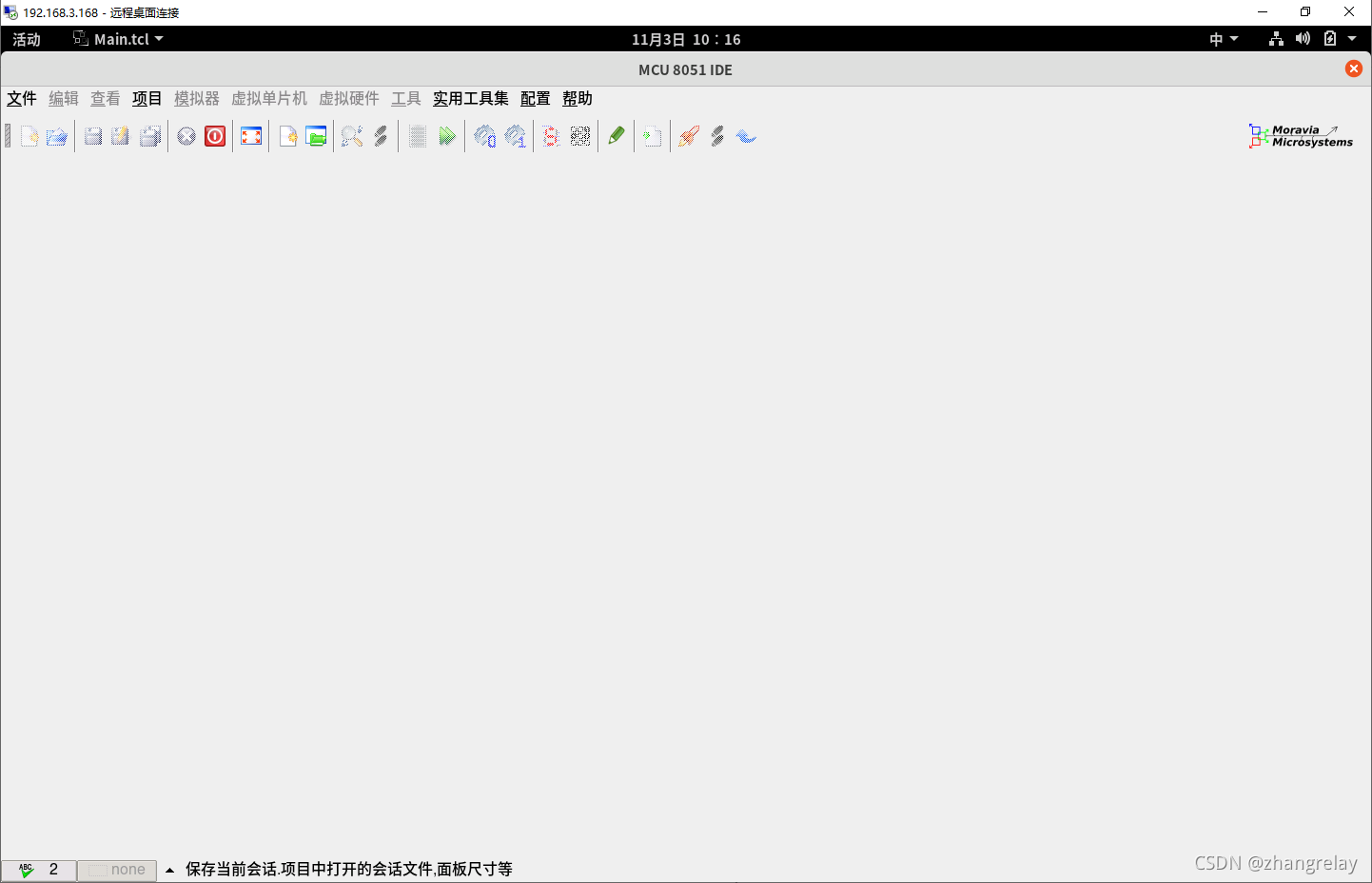

新建项目：

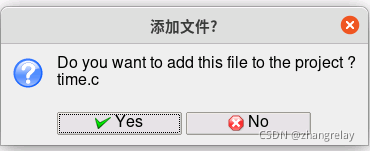

添加time.c到工程中！

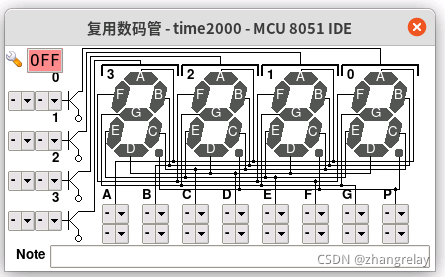

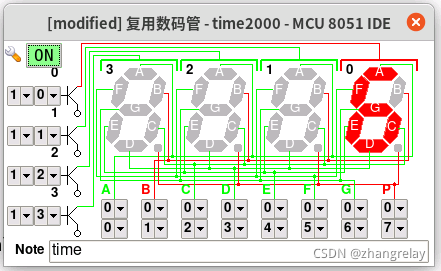

添加复用数码管。

当然程序要做微微调整。

单片机课堂思考题-2000秒倒计时？

参考上例程序：

先分配管脚和端口

#include<8052.h>

unsigned char smgduan[]={0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0x0f8,0x80,0x90};
unsigned char T0RH = 0;
unsigned char T0RL = 0;
unsigned int cnt;
int sec;
int sec_all=6666;
int count=0;
void LedScan(unsigned char pos,unsigned char dispcode);
void EXINT0() __interrupt 0;
void Timer0() __interrupt 1;
void EXINT1() __interrupt 2;
void ConfigTimer0(unsigned int);
void main()
{
	cnt = 0;
	sec = sec_all;
	ConfigTimer0(2);
	IT0=1;
	EX0=1;
	IT1=1;
	EX1=1;
	PX1=1;
        TR0=1;
	while(1)
	{
		LedScan(0,smgduan[sec%10]);
		LedScan(1,smgduan[sec/10%10]);
		LedScan(2,smgduan[sec/100%10]);
		LedScan(3,smgduan[sec/1000]);
		if(count%2==0)
		{
		  TR0 = 1;
		}
		else
		{
	          TR0 = 0;
		}
	}
}

void EXINT0() __interrupt 0
{
	count++;
}
void EXINT1() __interrupt 2
{
	sec_all=0;
}

void ConfigTimer0(unsigned int ms)
{
	unsigned long tmp;
	tmp = 11059200 / 12;
	tmp = (tmp * ms) / 1000;
	tmp = 65536 - tmp;
	tmp = tmp + 18;
	T0RH = (unsigned char)(tmp>>8);
	T0RL = (unsigned char)tmp;
	TMOD &= 0xF0;
	TMOD |= 0x01;
	TH0 = T0RH;
	TL0 = T0RL;
	ET0 = 1;
}

void Timer0() __interrupt 1
{
	TH0 = T0RH;
	TL0 = T0RL;
	cnt++;
	if (cnt >= 5)
	{
		cnt = 0;
		sec--;
		if (sec < 0)
		{
			sec = sec_all;
		}
	}
}

void LedScan(unsigned char pos,unsigned char dispcode)
{
 unsigned char i;
 for(i=0;i<=pos;i++)
 {
	switch(pos)	 	{
		case(0):
		P1_0=0;P1_1=1;P1_2=1;P1_3=1; break;
		case(1):
		P1_0=1;P1_1=0;P1_2=1;P1_3=1; break;
		case(2):
		P1_0=1;P1_1=1;P1_2=0;P1_3=1; break;
		case(3):
		P1_0=1;P1_1=1;P1_2=1;P1_3=0; break;
	}
	P0=dispcode;
 }
}
