C#调用海康工业相机SDK进行存图

        很多时候工业现场针对重要的生产环节，需要进行存档，以便后续追溯。如果安装监控设备的话，又无法与现场设备进行联动（例如PLC，传感器，报警灯等）。一些视觉算法软件也可以满足需求，但是免费的偏少。当我们学会对SDK进行开发就可以轻松的实现存图功能。

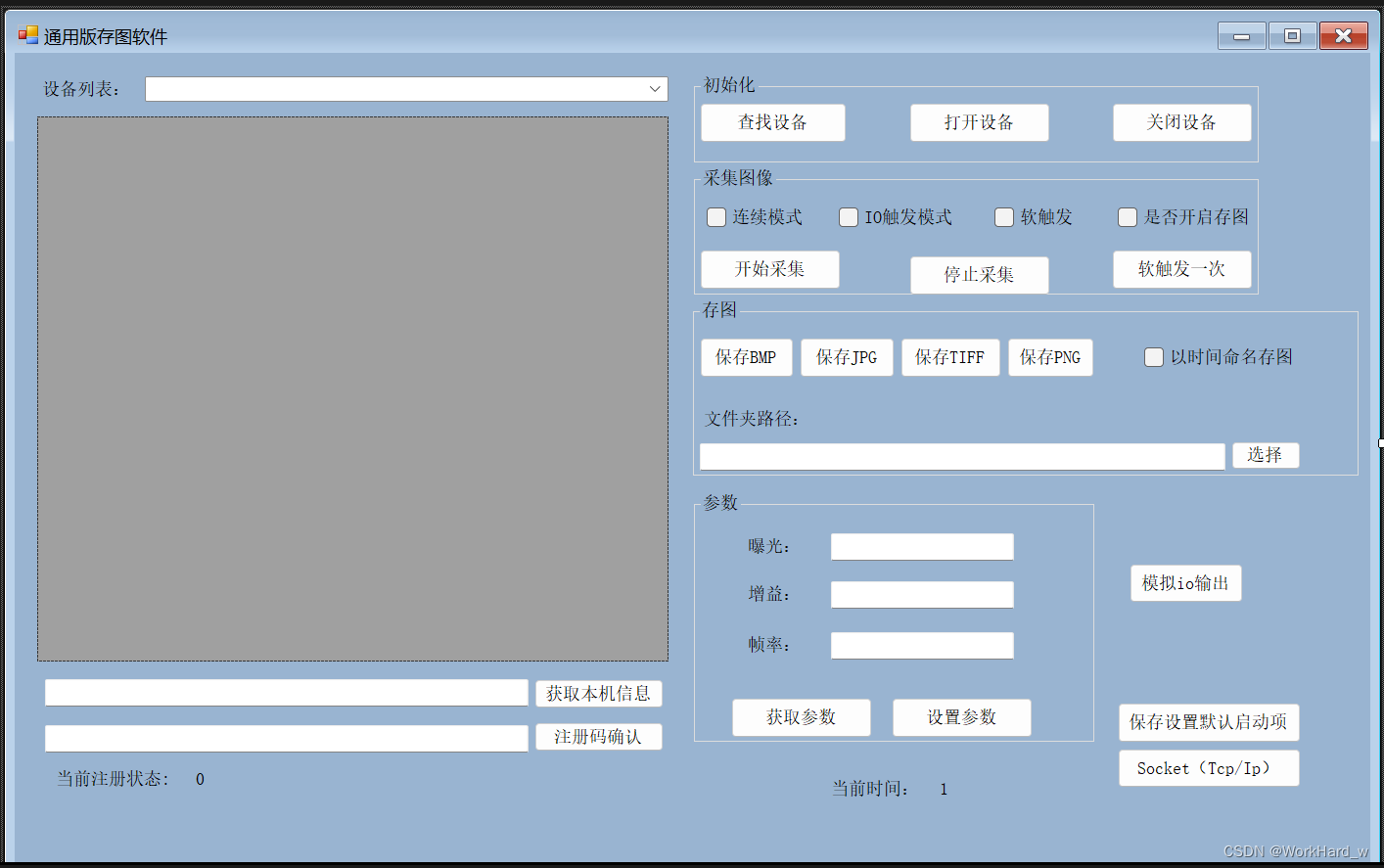

触发方式可以选择IO触发，软件触发，实时图像，当然也可以实现网络通讯

可以勾选存图是否开启

存图路径可以更改

相机的基本参数可以更改

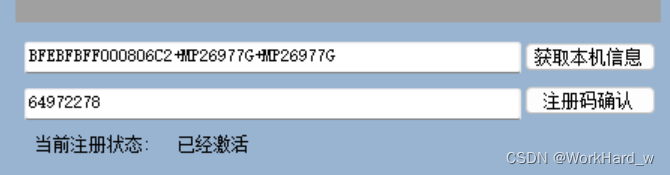

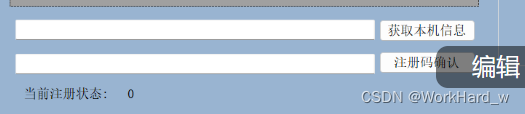

当然sdk的开发也是需要成本的，因此做了一个注册的功能，如图左下角。

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Drawing.Imaging;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using MvCamCtrl.NET;
using System.Management;
using System.Net.NetworkInformation;
using Microsoft.Win32;
using RWRegister;
using static System.DateTime;
using System.Diagnostics.Eventing.Reader;

namespace WindowsFormsApp1
{
    public partial class Form1 : Form
    {

        [DllImport("kernel32.dll", EntryPoint = "RtlMoveMemory", SetLastError = false)]

        private static extern void CopyMemory(IntPtr dest, IntPtr src, uint count);

        // ch:判断用户自定义像素格式 | en:Determine custom pixel format
        public const Int32 CUSTOMER_PIXEL_FORMAT = unchecked((Int32)0x80000000);

        MyCamera.MV_CC_DEVICE_INFO_LIST m_stDeviceList = new MyCamera.MV_CC_DEVICE_INFO_LIST();
        private MyCamera m_MyCamera = new MyCamera();
        bool m_bGrabbing = false;
        Thread m_hReceiveThread = null;
        MyCamera.MV_FRAME_OUT_INFO_EX m_stFrameInfo = new MyCamera.MV_FRAME_OUT_INFO_EX();

        // ch:用于从驱动获取图像的缓存 | en:Buffer for getting image from driver
        UInt32 m_nBufSizeForDriver = 0;
        IntPtr m_BufForDriver = IntPtr.Zero;
        private static Object BufForDriverLock = new Object();

        // ch:Bitmap及其像素格式 | en:Bitmap and Pixel Format
        Bitmap m_bitmap = null;
        PixelFormat m_bitmapPixelFormat = PixelFormat.DontCare;
        IntPtr m_ConvertDstBuf = IntPtr.Zero;
        UInt32 m_nConvertDstBufLen = 0;
        //时间标志位
        bool Tflag=false;
        //存图命名
        string sRightNow = System.DateTime.Now.ToString().Replace(" ", "").Replace(":", "").Replace("/", "");
        MyCamera.MV_CC_DEVICE_INFO_LIST m_pDeviceList;














        public Form1()
        {
            InitializeComponent();
            DeviceListAcq();
            Control.CheckForIllegalCrossThreadCalls = false;
        }
        //显示错误信息
        private void ShowErrorMsg(string csMessage, int nErrorNum)
        {
            string errorMsg;
            if (nErrorNum == 0)
            {
                errorMsg = csMessage;
            }
            else
            {
                errorMsg = csMessage + ": Error =" + String.Format("{0:X}", nErrorNum);
            }

            switch (nErrorNum)
            {
                case MyCamera.MV_E_HANDLE: errorMsg += " Error or invalid handle "; break;
                case MyCamera.MV_E_SUPPORT: errorMsg += " Not supported function "; break;
                case MyCamera.MV_E_BUFOVER: errorMsg += " Cache is full "; break;
                case MyCamera.MV_E_CALLORDER: errorMsg += " Function calling order error "; break;
                case MyCamera.MV_E_PARAMETER: errorMsg += " Incorrect parameter "; break;
                case MyCamera.MV_E_RESOURCE: errorMsg += " Applying resource failed "; break;
                case MyCamera.MV_E_NODATA: errorMsg += " No data "; break;
                case MyCamera.MV_E_PRECONDITION: errorMsg += " Precondition error, or running environment changed "; break;
                case MyCamera.MV_E_VERSION: errorMsg += " Version mismatches "; break;
                case MyCamera.MV_E_NOENOUGH_BUF: errorMsg += " Insufficient memory "; break;
                case MyCamera.MV_E_UNKNOW: errorMsg += " Unknown error "; break;
                case MyCamera.MV_E_GC_GENERIC: errorMsg += " General error "; break;
                case MyCamera.MV_E_GC_ACCESS: errorMsg += " Node accessing condition error "; break;
                case MyCamera.MV_E_ACCESS_DENIED: errorMsg += " No permission "; break;
                case MyCamera.MV_E_BUSY: errorMsg += " Device is busy, or network disconnected "; break;
                case MyCamera.MV_E_NETER: errorMsg += " Network error "; break;
            }

            MessageBox.Show(errorMsg, "PROMPT");
        }

        private void button2_Click(object sender, EventArgs e)//存图路径设置
        {
            folderBrowserDialog1.Description = "请选择文件夹";

            folderBrowserDialog1.RootFolder = Environment.SpecialFolder.MyComputer;//显示文件夹选择框时，默认讲路径定位到我的电脑目录；

            folderBrowserDialog1.ShowNewFolderButton = true;

            if (txtPath.Text.Length > 0) folderBrowserDialog1.SelectedPath = txtPath.Text;//如果地址栏中存在地址，再次打开文件夹选择框时，默认选中。这个提升用户体验效果显著
            if (folderBrowserDialog1.ShowDialog() == DialogResult.OK)
            {
                txtPath.Text = folderBrowserDialog1.SelectedPath;//将选中路径赋值给地址栏，可以给用户看，也可以在程序中直接使用 SelectedPath；
            }


        }
        //查找设备
        private void bnEnum_Click(object sender, EventArgs e)
        {
            DeviceListAcq();

        }
        private void DeviceListAcq()
        {
            // ch:创建设备列表 | en:Create Device List
            System.GC.Collect();
            cbDeviceList.Items.Clear();
            m_stDeviceList.nDeviceNum = 0;
            int nRet = MyCamera.MV_CC_EnumDevices_NET(MyCamera.MV_GIGE_DEVICE | MyCamera.MV_USB_DEVICE, ref m_stDeviceList);
            if (0 != nRet)
            {
                ShowErrorMsg("Enumerate devices fail!", 0);
                return;
            }

            // ch:在窗体列表中显示设备名 | en:Display device name in the form list
            for (int i = 0; i < m_stDeviceList.nDeviceNum; i++)
            {
                MyCamera.MV_CC_DEVICE_INFO device = (MyCamera.MV_CC_DEVICE_INFO)Marshal.PtrToStructure(m_stDeviceList.pDeviceInfo[i], typeof(MyCamera.MV_CC_DEVICE_INFO));
                string strUserDefinedName = "";
                if (device.nTLayerType == MyCamera.MV_GIGE_DEVICE)
                {
                    MyCamera.MV_GIGE_DEVICE_INFO gigeInfo = (MyCamera.MV_GIGE_DEVICE_INFO)MyCamera.ByteToStruct(device.stSpecialInfo.stGigEInfo, typeof(MyCamera.MV_GIGE_DEVICE_INFO));

                    if ((gigeInfo.chUserDefinedName.Length > 0) && (gigeInfo.chUserDefinedName[0] != '\0'))
                    {
                        if (MyCamera.IsTextUTF8(gigeInfo.chUserDefinedName))
                        {
                            strUserDefinedName = Encoding.UTF8.GetString(gigeInfo.chUserDefinedName).TrimEnd('\0');
                        }
                        else
                        {
                            strUserDefinedName = Encoding.Default.GetString(gigeInfo.chUserDefinedName).TrimEnd('\0');
                        }
                        cbDeviceList.Items.Add("GEV: " + strUserDefinedName + " (" + gigeInfo.chSerialNumber + ")");
                    }
                    else
                    {
                        cbDeviceList.Items.Add("GEV: " + gigeInfo.chManufacturerName + " " + gigeInfo.chModelName + " (" + gigeInfo.chSerialNumber + ")");
                    }
                }
                else if (device.nTLayerType == MyCamera.MV_USB_DEVICE)
                {
                    MyCamera.MV_USB3_DEVICE_INFO usbInfo = (MyCamera.MV_USB3_DEVICE_INFO)MyCamera.ByteToStruct(device.stSpecialInfo.stUsb3VInfo, typeof(MyCamera.MV_USB3_DEVICE_INFO));

                    if ((usbInfo.chUserDefinedName.Length > 0) && (usbInfo.chUserDefinedName[0] != '\0'))
                    {
                        if (MyCamera.IsTextUTF8(usbInfo.chUserDefinedName))
                        {
                            strUserDefinedName = Encoding.UTF8.GetString(usbInfo.chUserDefinedName).TrimEnd('\0');
                        }
                        else
                        {
                            strUserDefinedName = Encoding.Default.GetString(usbInfo.chUserDefinedName).TrimEnd('\0');
                        }
                        cbDeviceList.Items.Add("U3V: " + strUserDefinedName + " (" + usbInfo.chSerialNumber + ")");
                    }
                    else
                    {
                        cbDeviceList.Items.Add("U3V: " + usbInfo.chManu
