DSP28379系统时钟配置

本文介绍了TI DSP28379型号的系统时钟配置,通过库函数InitSysCtrl(void)进行初始化。该函数位于F2837xD_sysCtrl.c文件中,用于设置系统的时钟系统配置。时钟配置对于设备的性能和效率至关重要。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

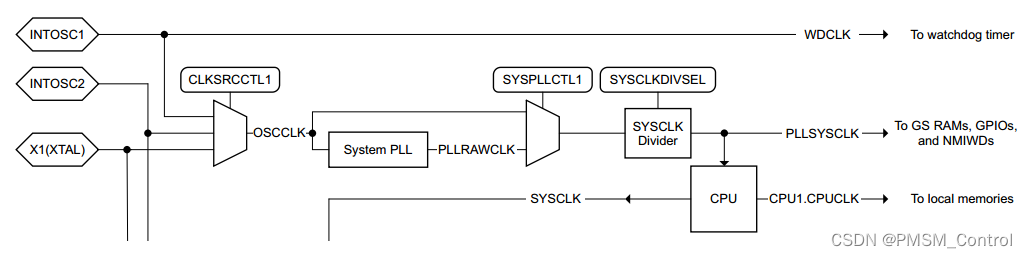

TI提供了库函数void InitSysCtrl(void),可以直接对系统进行初始化配置。该函数定义于F2837xD_sysCtrl.c源文件中。系统配置系统框图如下:

代码如下:

void InitSysCtrl(void)
{
    //
    // Disable the watchdog
    //
    DisableDog();

#ifdef _FLASH
    //
    // Copy time critical code and Flash setup code to RAM. This includes the
    // following functions: InitFlash()
    //
    // The  RamfuncsLoadStart, RamfuncsLoadSize, and RamfuncsRunStart
    // symbols are created by the linker. Refer to the device .cmd file.
    //
    memcpy(&RamfuncsRunStart, &RamfuncsLoadStart, (size_t)&RamfuncsLoadSize);

    //
    // Call Flash Initialization to setup flash waitstates. This function must
    // reside in RAM.
    //
    InitFlash();
#endif

    //
    //      *IMPORTANT*
    //
    // The Device_cal function, which copies the ADC &am
