基于opencv4和Yolo-Fastest，实现PC和单片机通信，控制步进电机捕获目标

该博客介绍了如何使用OpenCV4和YOLO在PC端实现目标检测，通过串口通信将目标位置信息传递给单片机，进而控制步进电机调整摄像头捕获目标。代码详细展示了视频流处理、YOLO模型应用、物体中心点获取及串口通信过程，并提供了单片机接收数据后的步进电机控制逻辑。

效果视频

基于opencv4和yolo，实现PC和单片机通信，控制步进电机捕获目标

PC端代码

//
#include "opencv2/core.hpp"
#include "opencv2/imgproc.hpp"
#include "opencv2/highgui.hpp"
#include <opencv2/dnn.hpp>

#include <fstream>
#include <iostream>
#include <cstdlib>
#include <string>
#include <assert.h>

#include "CSerialPort.h"
int port;
CSerialPort mySerialPort;
#define HEAD_FRAME 0XFD
#define secomd_FRAME 0XDE
unsigned char pData[9] = {

    0 };



using namespace cv;
using namespace cv::dnn;
using namespace std;

void PortOpen() {


	cout << "Please insert your port number : " << endl;
	cin >> port;

	if (!mySerialPort.InitPort(port, 115200, 'N', 8, 1, EV_RXCHAR))
	{


		std::cout << "initPort fail !" << std::endl;
		PortOpen();
	}
	else
	{


		std::cout << "initPort success !" << std::endl;
	}
}

int main(int argc, char** argv)
{


	//串口的一些配置
	PortOpen();
	if (!mySerialPort.OpenListenThread()) {


		std::cout << "OpenListenThread fail !" << std::endl;
	}
	else {


		std::cout << "OpenListenThread success !" << std::endl;
	}

	pData[0] = 'a';
	pData[1] = 'b';



	string _cfg = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/WZX/wzx.cfg";

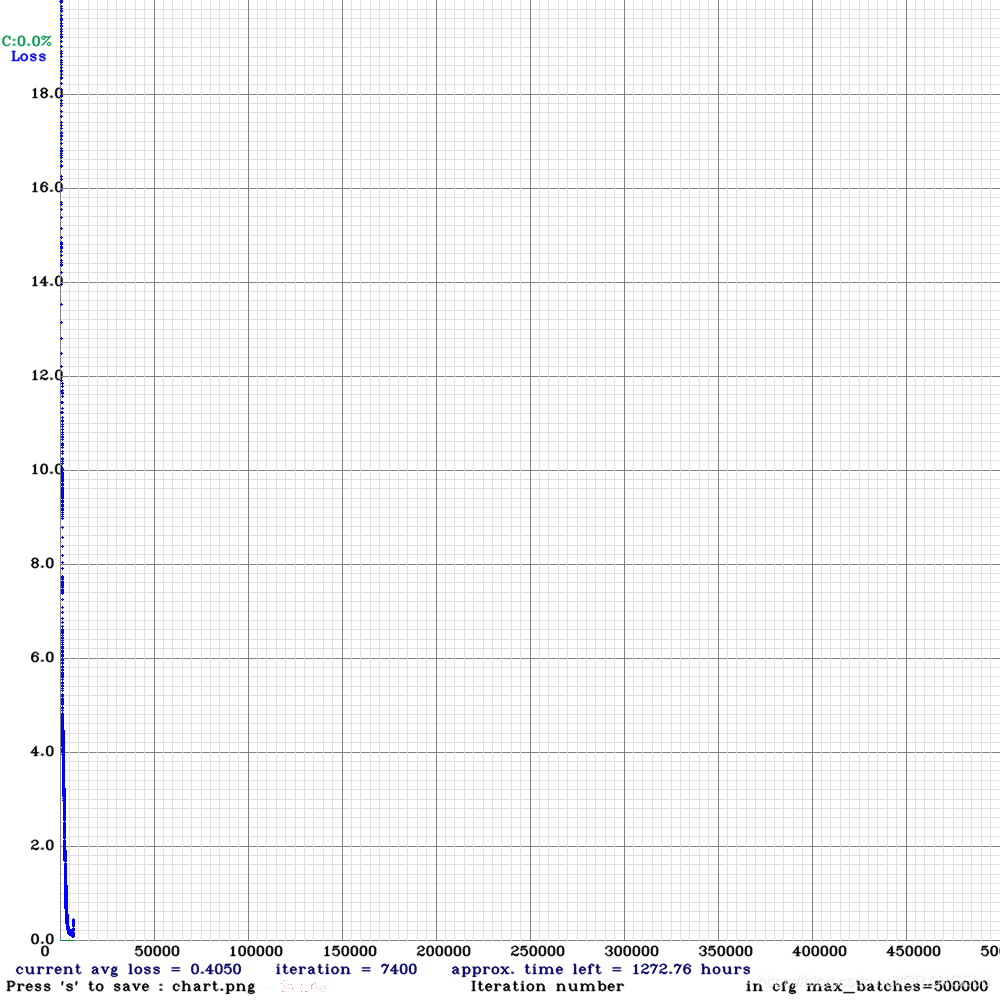

	string _model = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/WZX/yolo-fastest_7000.weights";
	string _labels = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/WZX/wzx.names";

	//string _cfg = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/COCO/yolo-fastest.cfg";
	//string _model = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/COCO/yolo-fastest.weights";
	//string _labels = "H:/VS/Opencv/program/opencv_yolov4_c++/opencv_yolov4_c++/opencv_yolov4_c++/COCO/coco.names";

	Net net = readNetFromDarknet(_cfg, _model);

	net.setPreferableBackend(DNN_BACKEND_CUDA);
	net.setPreferableTarget(DNN_TARGET_CUDA);

	vector<string>outputLayerName = net.getUnconnectedOutLayersNames();
	for (int i = 0; i < outputLayerName.size(); i++)
	{


		cout << outputLayerName[i] << endl;
	}

	ifstream labels_file(_labels);		//_labels	labels_txt_file
	if (!labels_file.is_open())
	{


		cout << "can't open labels file" << endl;
		exit(-1);
	}



	string label;
	vector<string&g
