【优化算法】多目标蝗虫优化算法（MOGOA）

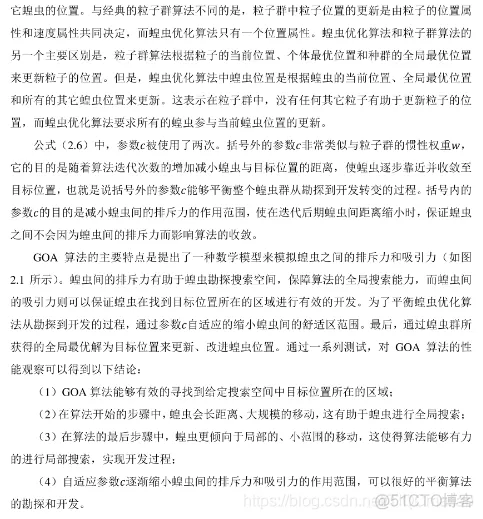

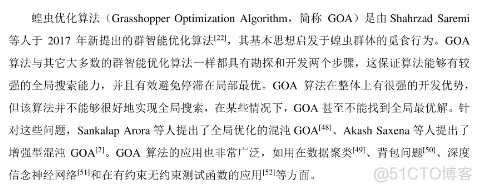

一、简介

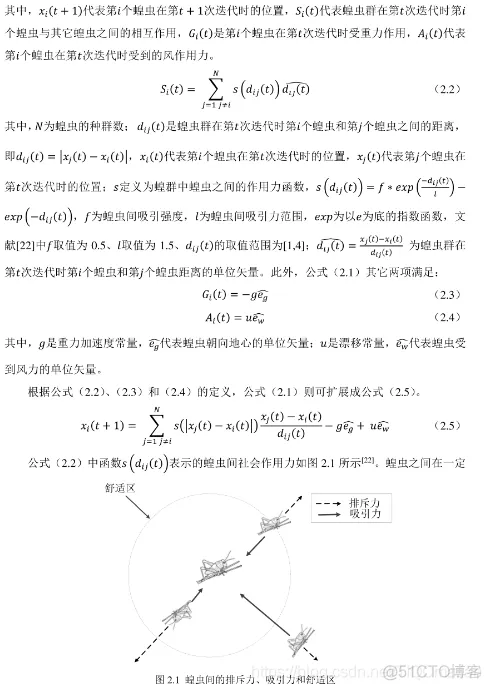

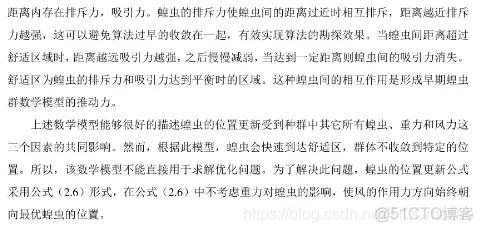

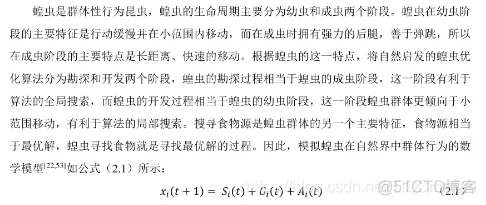

1 GOA数学模型

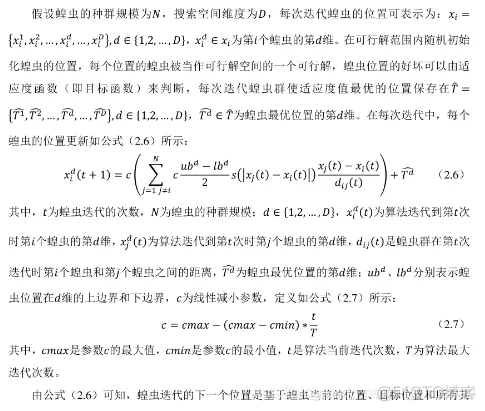

2 GOA迭代模型

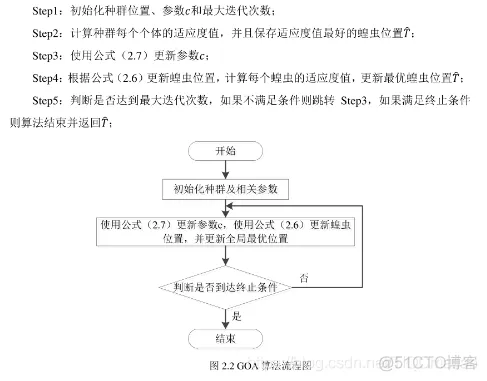

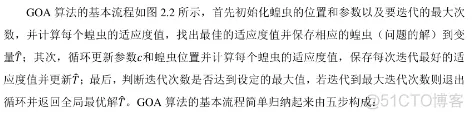

3 GOA算法的基本流程

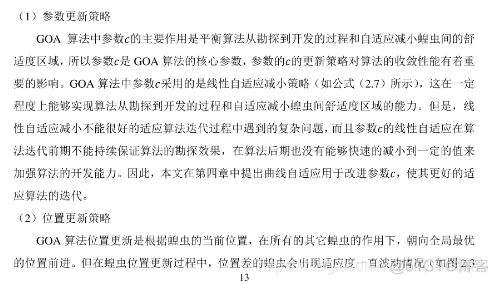

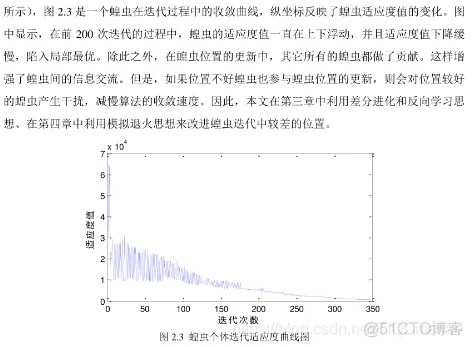

4 GOA缺点

二、源代码

登录后复制

clc;
clear;
close all;

% Change these details with respect to your problem%%%%%%%%%%%%%%
ObjectiveFunction=@ZDT1;
dim=5;
lb=0;
ub=1;
obj_no=2;

if size(ub,2)==1
    ub=ones(1,dim)*ub;
    lb=ones(1,dim)*lb;
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
flag=0;
if (rem(dim,2)~=0)
    dim = dim+1;
    ub = [ub, 1];
    lb = [lb, 0];
    flag=1;
end


max_iter=100;
N=200;
ArchiveMaxSize=100;

Archive_X=zeros(100,dim);
Archive_F=ones(100,obj_no)*inf;

Archive_member_no=0;

%Initialize the positions of artificial whales
GrassHopperPositions=initialization(N,dim,ub,lb);

TargetPosition=zeros(dim,1);
TargetFitness=inf*ones(1,obj_no);

cMax=1;
cMin=0.00004;
%calculate the fitness of initial grasshoppers

for iter=1:max_iter
    for i=1:N

        Flag4ub=GrassHopperPositions(:,i)>ub';
        Flag4lb=GrassHopperPositions(:,i)<lb';
        GrassHopperPositions(:,i)=(GrassHopperPositions(:,i).*(~(Flag4ub+Flag4lb)))+ub'.*Flag4ub+lb'.*Flag4lb;

        GrassHopperFitness(i,:)=ObjectiveFunction(GrassHopperPositions(:,i)');
        if dominates(GrassHopperFitness(i,:),TargetFitness)
            TargetFitness=GrassHopperFitness(i,:);
            TargetPosition=GrassHopperPositions(:,i);
        end

    end

    [Archive_X, Archive_F, Archive_member_no]=UpdateArchive(Archive_X, Archive_F, GrassHopperPositions, GrassHopperFitness, Archive_member_no);

    if Archive_member_no>ArchiveMaxSize
        Archive_mem_ranks=RankingProcess(Archive_F, ArchiveMaxSize, obj_no);
        [Archive_X, Archive_F, Archive_mem_ranks, Archive_member_no]=HandleFullArchive(Archive_X, Archive_F, Archive_member_no, Archive_mem_ranks, ArchiveMaxSize);
    else
        Archive_mem_ranks=RankingProcess(Archive_F, ArchiveMaxSize, obj_no);
    end

    Archive_mem_ranks=RankingProcess(Archive_F, ArchiveMaxSize, obj_no);
    index=RouletteWheelSelection(1./Archive_mem_ranks);
    if index==-1
        index=1;
    end
    TargetFitness=Archive_F(index,:);
    TargetPosition=Archive_X(index,:)';

    c=cMax-iter*((cMax-cMin)/max_iter); % Eq. (3.8) in the paper

    for i=1:N

        temp= GrassHopperPositions;

        for k=1:2:dim
            S_i=zeros(2,1);
            for j=1:N
                if i~=j
                    Dist=distance(temp(k:k+1,j), temp(k:k+1,i));
                    r_ij_vec=(temp(k:k+1,j)-temp(k:k+1,i))/(Dist+eps);
                    xj_xi=2+rem(Dist,2);

                    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% % Eq. (3.2) in the paper
                    s_ij=((ub(k:k+1)' - lb(k:k+1)') .*c/2)*S_func(xj_xi).*r_ij_vec;
                    S_i=S_i+s_ij;
                    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
                end
            end
            S_i_total(k:k+1, :) = S_i;

        end

        X_new=c*S_i_total'+(TargetPosition)'; % Eq. (3.7) in the paper
        GrassHopperPositions_temp(i,:)=X_new';
    end
    % GrassHopperPositions
    GrassHopperPositions=GrassHopperPositions_temp';

    display(['At the iteration ', num2str(iter), ' there are ', num2str(Archive_member_no), ' non-dominated solutions in the archive']);
end


if (flag==1)
    TargetPosition = TargetPosition(1:dim-1);
end

figure

Draw_ZDT1();

hold on

plot(Archive_F(:,1),Archive_F(:,2),'ro','MarkerSize',8,'markerfacecolor','k');

legend('True PF','Obtained PF');
title('MOGOA');

set(gcf, 'pos', [403   466   230   200])

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.
• 53.
• 54.
• 55.
• 56.
• 57.
• 58.
• 59.
• 60.
• 61.
• 62.
• 63.
• 64.
• 65.
• 66.
• 67.
• 68.
• 69.
• 70.
• 71.
• 72.
• 73.
• 74.
• 75.
• 76.
• 77.
• 78.
• 79.
• 80.
• 81.
• 82.
• 83.
• 84.
• 85.
• 86.
• 87.
• 88.
• 89.
• 90.
• 91.
• 92.
• 93.
• 94.
• 95.
• 96.
• 97.
• 98.
• 99.
• 100.
• 101.
• 102.
• 103.
• 104.
• 105.
• 106.
• 107.
• 108.
• 109.
• 110.
• 111.
• 112.
• 113.
• 114.
• 115.
• 116.
• 117.
• 118.
• 119.
• 120.
• 121.
• 122.
• 123.
• 124.
• 125.
• 126.
• 127.
• 128.

三、运行结果

四、备注

版本：2014a
