一、简介

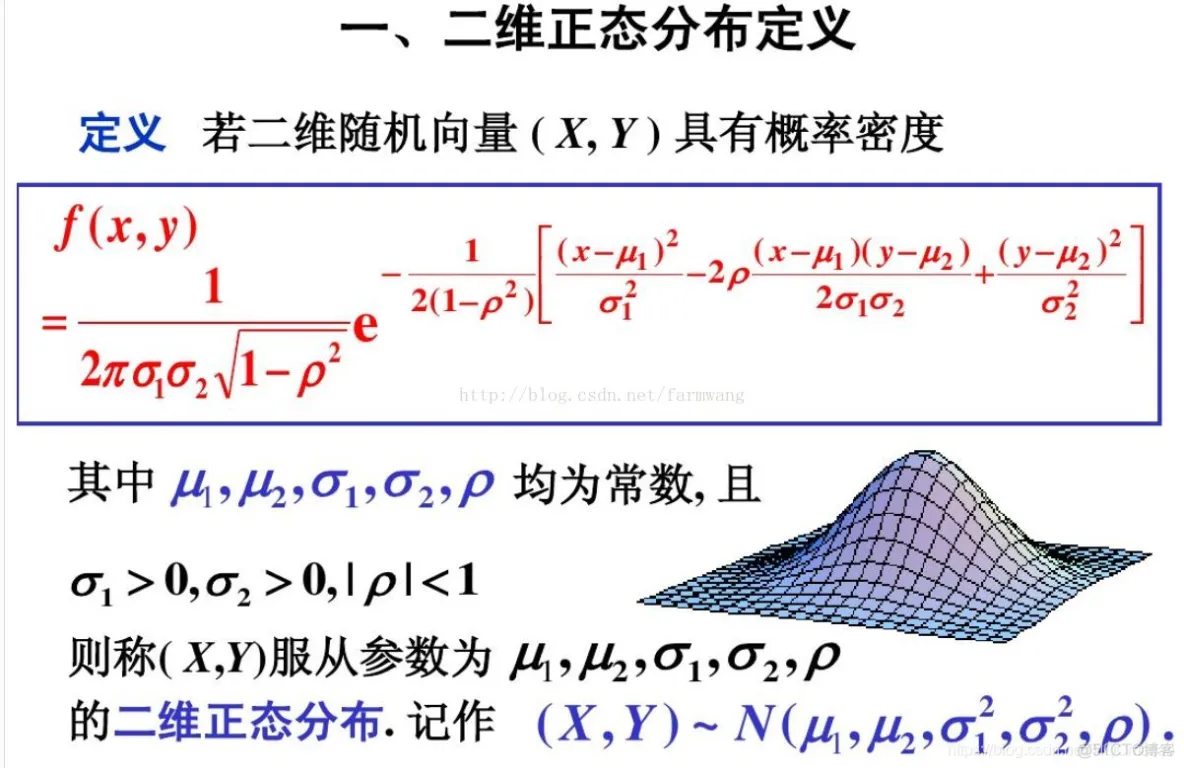

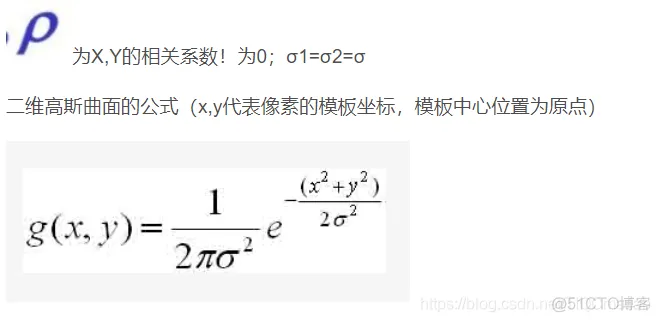

【图像隐写】基于高斯模型的JPEG图像隐写matlab源码_matlab【图像隐写】基于高斯模型的JPEG图像隐写matlab源码_matlab_02

二、源代码

% This example demonstrates how to use the MG embedding function
clc
clear all
close all
% Read the input cover image
Cover = double(imread ('1.pgm'));
% Set the payload to 0.4 bpp
Payload = 0.4;
% MG embedding
tStart = tic;
[Stego, pChange, ChangeRate] = MG( Cover, Payload );
tEnd = toc(tStart);
fprintf('MG embedding is done in: %f (sec)\n',tEnd);
%%
figure;
imshow (Cover,[]);
title ('Cover image');

function [Stego, pChange, ChangeRate] = MG ( Cover, Payload )
% -------------------------------------------------------------------------
% Multivariate Gaussian Embedding    |   September 2015    |   version 1.0
% -------------------------------------------------------------------------
% INPUT:
%  - Cover - Path to the cover image or the cover image itself.
%  - Payload - Embedding payload in bits per pixel (bpp).
% OUTPUT:
%  - Stego - Resulting image with embedded payload
%  - pChange - Embedding change probabilities.
%  - ChangeRate - Average number of changed pixels
% -------------------------------------------------------------------------
% Copyright (c) 2015 DDE Lab, Binghamton University, NY.
% All Rights Reserved.
% -------------------------------------------------------------------------
% Permission to use, copy, modify, and distribute this software for
% educational, research and non-profit purposes, without fee, and without a
% written agreement is hereby granted, provided that this copyright notice
% appears in all copies. The program is supplied "as is," without any
% accompanying services from DDE Lab. DDE Lab does not warrant the
% operation of the program will be uninterrupted or error-free. The
% end-user understands that the program was developed for research purposes
% and is advised not to rely exclusively on the program for any reason. In
% no event shall Binghamton University or DDE Lab be liable to any party
% for direct, indirect, special, incidental, or consequential damages,
% including lost profits, arising out of the use of this software. DDE Lab
% disclaims any warranties, and has no obligations to provide maintenance,
% support, updates, enhancements or modifications.
% -------------------------------------------------------------------------
% Contact: vsedigh1@binghamton.edu | fridrich@binghamton.edu
%          September 2015
%          http://dde.binghamton.edu/download/
% -------------------------------------------------------------------------
% References:
% [1] - J. Fridrich and J. Kodovsky. Multivariate Gaussian model for
% designing additive distortion for steganography. Proc. IEEE, ICASSP,
% Vancouver, Canada, May 26-31, 2013.
% -------------------------------------------------------------------------
% Read and convert the input cover image into double format
if ischar( Cover )
    Cover = double( imread(Cover) );
else
    Cover = double( Cover );
end
% Compute Variance and do the flooring for numerical stability
Variance = VarianceEstimation(Cover);
Variance(Variance< 1) = 1;
% Compute Fisher information and smooth it
FisherInformation = 1./Variance.^2;
% Compute embedding change probabilities and execute embedding
FI = FisherInformation(:)';

% Ternary embedding change probabilities
beta = TernaryProbs(FI,Payload);
% Simulate embedding
Stego = Cover;
beta = 2 * beta;
r = rand(1,numel(Cover));
ModifPM1 = (r < beta);                % Cover elements to be modified by +-1
r = rand(1,numel(Cover));
Stego(ModifPM1) = Cover(ModifPM1) + 2*(round(r(ModifPM1))) - 1; % Modifying X by +-1
Stego(Stego>255) = 253;                    % Taking care of boundary cases
Stego(Stego<0)   = 2;
ChangeRate = sum(ModifPM1(:))/numel(Cover); % Computing the change rate
pChange = reshape(beta/2,size(Cover));

end
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
  • 50.
  • 51.
  • 52.
  • 53.
  • 54.
  • 55.
  • 56.
  • 57.
  • 58.
  • 59.
  • 60.
  • 61.
  • 62.
  • 63.
  • 64.
  • 65.
  • 66.
  • 67.
  • 68.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 75.
  • 76.
  • 77.
  • 78.
  • 79.
  • 80.
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.

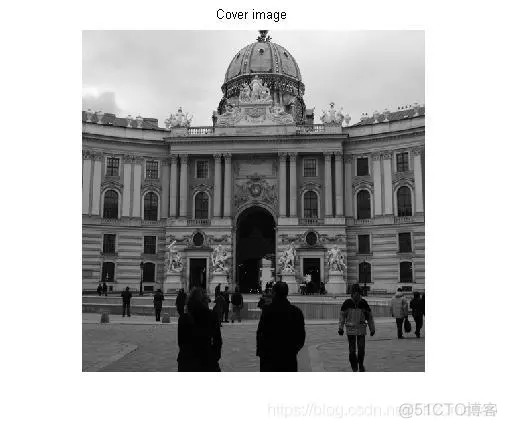

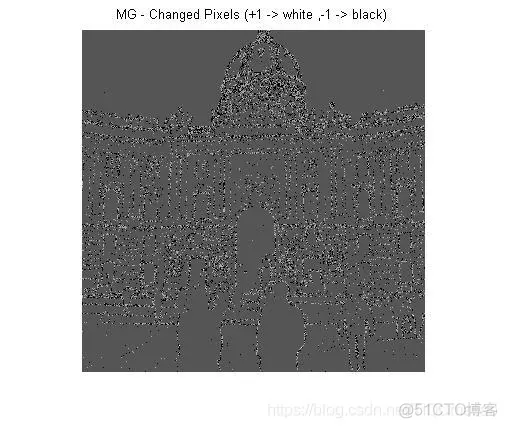

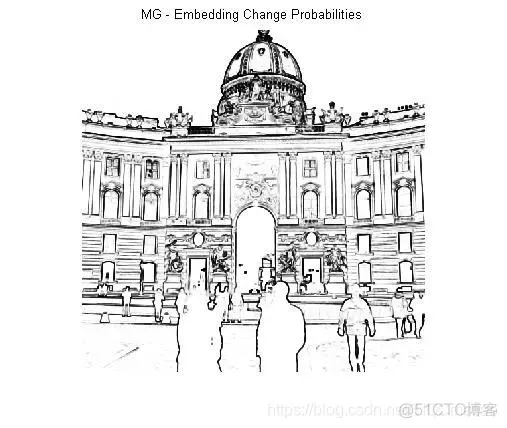

三、运行结果

【图像隐写】基于高斯模型的JPEG图像隐写matlab源码_matlab_03【图像隐写】基于高斯模型的JPEG图像隐写matlab源码_图像处理_04【图像隐写】基于高斯模型的JPEG图像隐写matlab源码_图像处理_05
