一、下载与安装

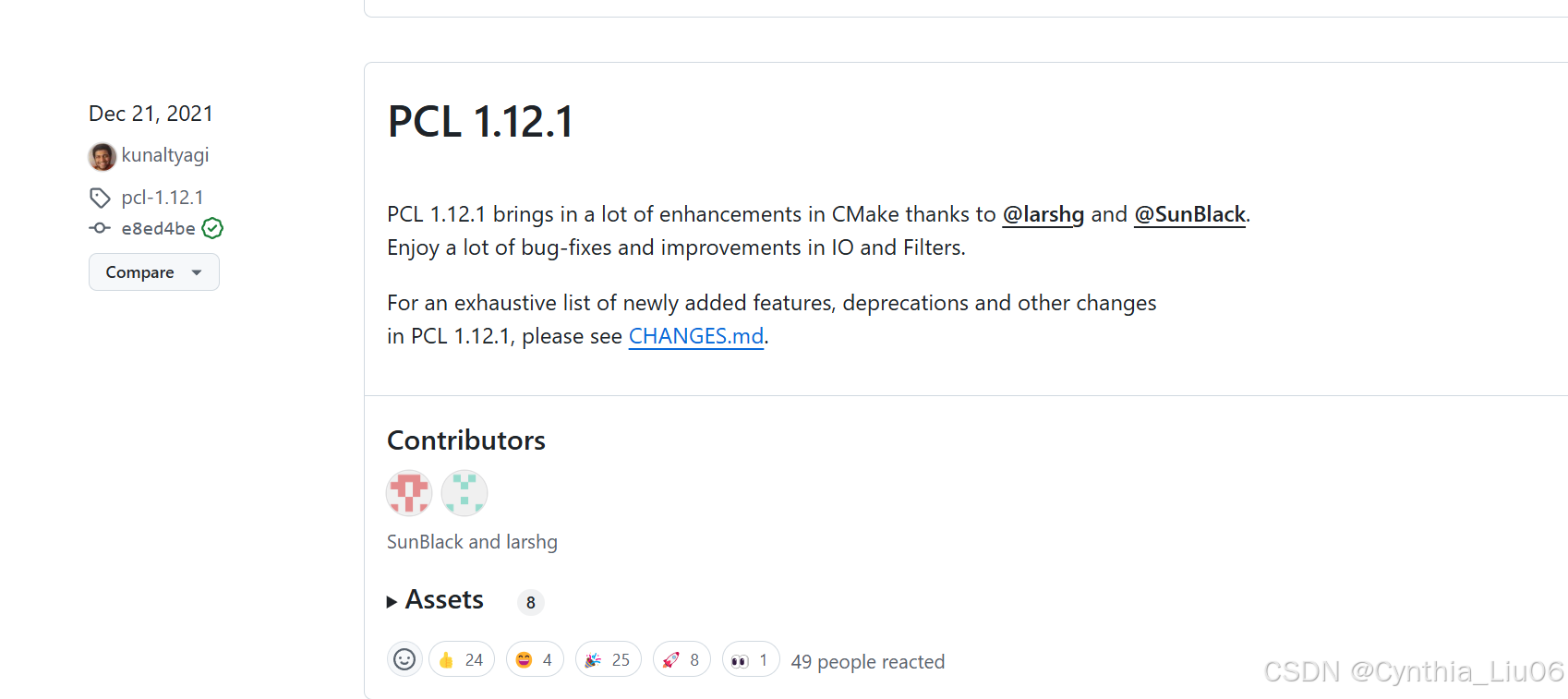

1.下载与VS2019对应版本的pcl

https://github.com/PointCloudLibrary/pcl/releases

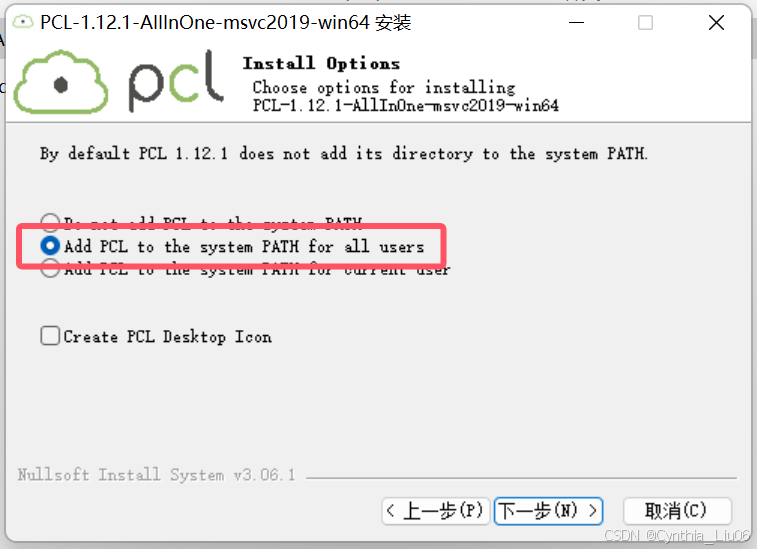

2.安装pcl-1.12.1-AlllnOne文件

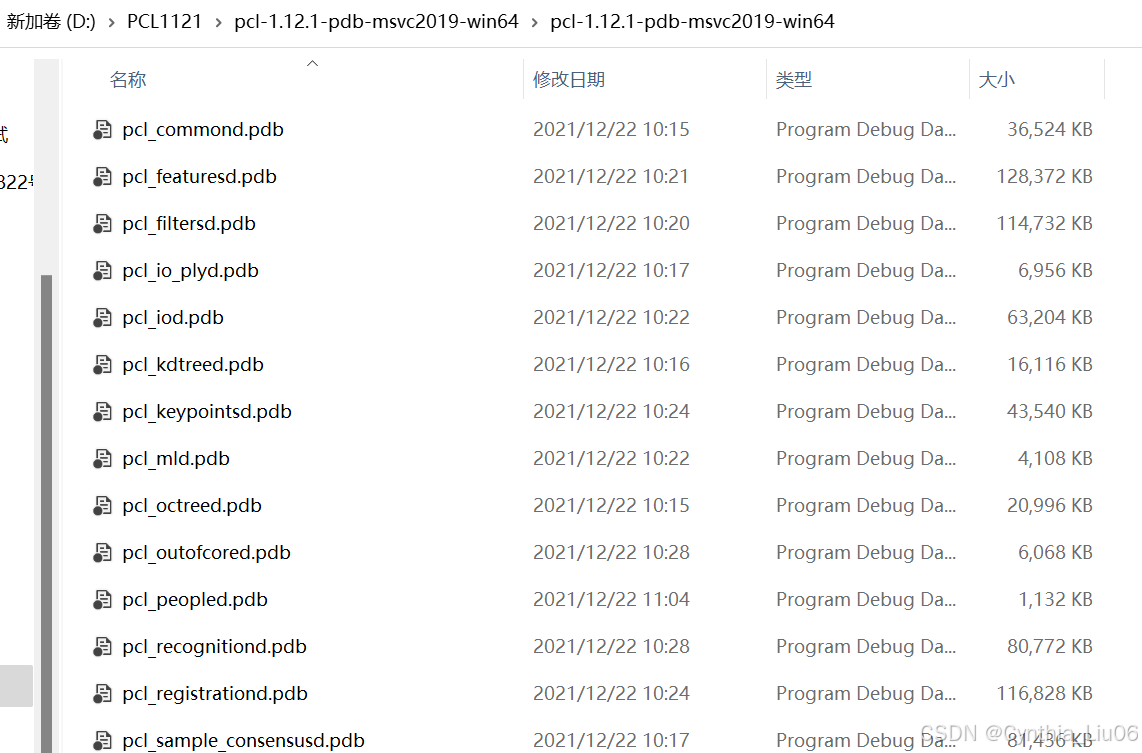

3.bin文件拷贝

将pdb msvc中的文件全部粘贴到安装程序的lib文件夹下

二、环境配置

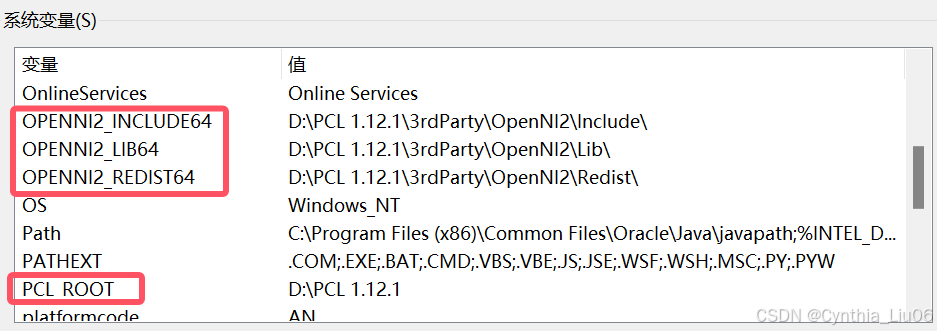

1.安装好后软件自动配置

如下：

2.打开环境变量设置，编辑path

添加路径如下，设置完后重启电脑。

%OPENNI2_INCLUDE64%
%OPENNI2_LIB64%
%OPENNI2_REDIST64%
D:\PCL 1.12.1\3rdParty\VTK\bin
D:\PCL 1.12.1\3rdParty\FLANN\bin
D:\PCL 1.12.1\bin

3.在VS2019中搭建pcl

1）新建一个空文档
2）设置项目属性

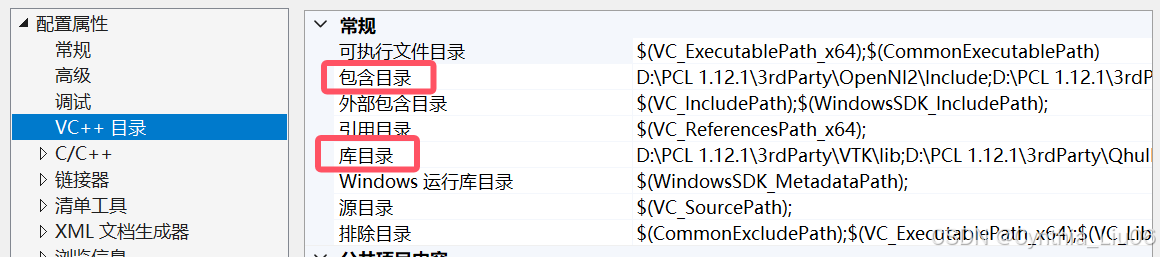

设置包含目录与库目录

包含目录

D:\PCL 1.12.1\3rdParty\OpenNI2\Include
D:\PCL 1.12.1\3rdParty\VTK\include\vtk-9.1
D:\PCL 1.12.1\3rdParty\Qhull\include
D:\PCL 1.12.1\3rdParty\FLANN\include
D:\PCL 1.12.1\3rdParty\Eigen\eigen3
D:\PCL 1.12.1\3rdParty\Boost\include\boost-1_78
D:\PCL 1.12.1\include\pcl-1.12
D:\VS2019\VC\Tools\MSVC\14.29.30133\include
D:\VS2019\VC\Tools\MSVC\14.29.30133\atlmfc\include
D:\VS2019\VC\Auxiliary\VS\include
D:\Windows Kits\10\Include\10.0.19041.0\ucrt
D:\Windows Kits\10\Include\10.0.19041.0\um
D:\Windows Kits\10\Include\10.0.19041.0\shared
D:\Windows Kits\10\Include\10.0.19041.0\winrt
D:\Windows Kits\10\Include\10.0.19041.0\cppwinrt
C:\Program Files (x86)\Windows Kits\NETFXSDK\4.8\Include\um

库目录

D:\PCL 1.12.1\3rdParty\VTK\lib
D:\PCL 1.12.1\3rdParty\Qhull\lib
D:\PCL 1.12.1\3rdParty\OpenNI2\Lib
D:\PCL 1.12.1\3rdParty\FLANN\lib
D:\PCL 1.12.1\3rdParty\Boost\lib
D:\PCL 1.12.1\lib
D:\VS2019\VC\Tools\MSVC\14.29.30133\lib\x64
D:\VS2019\VC\Tools\MSVC\14.29.30133\atlmfc\lib\x64
D:\VS2019\VC\Auxiliary\VS\lib\x64
D:\Windows Kits\10\lib\10.0.19041.0\ucrt\x64
D:\Windows Kits\10\lib\10.0.19041.0\um\x64
C:\Program Files (x86)\Windows Kits\NETFXSDK\4.8\lib\um\x64

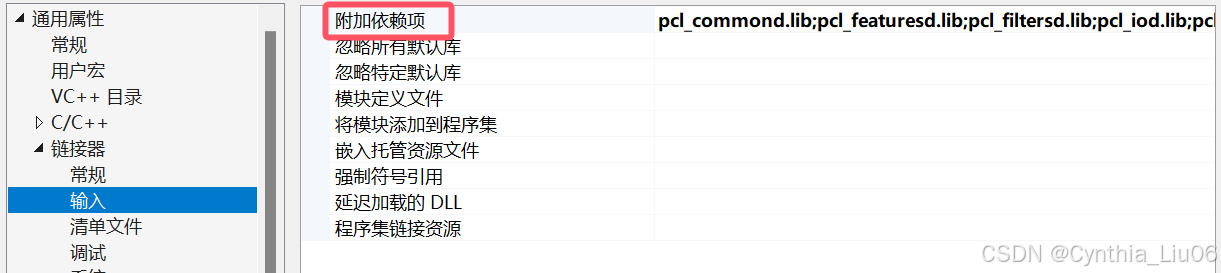

设置链接器

编辑加入如下内容，添加内容为PCL根目录下的lib文件和PCL\3rdParty\VTK下的lib文件

pcl_commond.lib
pcl_featuresd.lib
pcl_filtersd.lib
pcl_iod.lib
pcl_io_plyd.lib
pcl_kdtreed.lib
pcl_keypointsd.lib
pcl_mld.lib
pcl_octreed.lib
pcl_outofcored.lib
pcl_peopled.lib
pcl_recognitiond.lib
pcl_registrationd.lib
pcl_sample_consensusd.lib
pcl_searchd.lib
pcl_segmentationd.lib
pcl_stereod.lib
pcl_surfaced.lib
pcl_trackingd.lib
pcl_visualizationd.lib
libboost_atomic-vc142-mt-gd-x64-1_78.lib
libboost_bzip2-vc142-mt-gd-x64-1_78.lib
libboost_chrono-vc142-mt-gd-x64-1_78.lib
libboost_container-vc142-mt-gd-x64-1_78.lib
libboost_context-vc142-mt-gd-x64-1_78.lib
libboost_contract-vc142-mt-gd-x64-1_78.lib
libboost_coroutine-vc142-mt-gd-x64-1_78.lib
libboost_date_time-vc142-mt-gd-x64-1_78.lib
libboost_exception-vc142-mt-gd-x64-1_78.lib
libboost_filesystem-vc142-mt-gd-x64-1_78.lib
libboost_graph-vc142-mt-gd-x64-1_78.lib
libboost_graph_parallel-vc142-mt-gd-x64-1_78.lib
libboost_iostreams-vc142-mt-gd-x64-1_78.lib
libboost_json-vc142-mt-gd-x64-1_78.lib
libboost_locale-vc142-mt-gd-x64-1_78.lib
libboost_log-vc142-mt-gd-x64-1_78.lib
libboost_log_setup-vc142-mt-gd-x64-1_78.lib
libboost_math_c99-vc142-mt-gd-x64-1_78.lib
libboost_math_c99f-vc142-mt-gd-x64-1_78.lib
libboost_math_c99l-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1f-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1l-vc142-mt-gd-x64-1_78.lib
libboost_mpi-vc142-mt-gd-x64-1_78.lib
libboost_nowide-vc142-mt-gd-x64-1_78.lib
libboost_numpy38-vc142-mt-gd-x64-1_78.lib
libboost_prg_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_program_options-vc142-mt-gd-x64-1_78.lib
libboost_python38-vc142-mt-gd-x64-1_78.lib
libboost_random-vc142-mt-gd-x64-1_78.lib
libboost_regex-vc142-mt-gd-x64-1_78.lib
libboost_serialization-vc142-mt-gd-x64-1_78.lib
libboost_system-vc142-mt-gd-x64-1_78.lib
libboost_test_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_thread-vc142-mt-gd-x64-1_78.lib
libboost_timer-vc142-mt-gd-x64-1_78.lib
libboost_type_erasure-vc142-mt-gd-x64-1_78.lib
libboost_unit_test_framework-vc142-mt-gd-x64-1_78.lib
libboost_wave-vc142-mt-gd-x64-1_78.lib
libboost_wserialization-vc142-mt-gd-x64-1_78.lib
libboost_zlib-vc142-mt-gd-x64-1_78.lib
flann-gd.lib
flann_cpp-gd.lib
flann_cpp_s-gd.lib
flann_s-gd.lib
OpenNI2.lib
qhullcpp_d.lib
qhullstatic_d.lib
qhullstatic_rd.lib
qhull_rd.lib
vtkcgns-9.1d.lib
vtkChartsCore-9.1d.lib
vtkCommonColor-9.1d.lib
vtkCommonComputationalGeometry-9.1d.lib
vtkCommonCore-9.1d.lib
vtkCommonDataModel-9.1d.lib
vtkCommonExecutionModel-9.1d.lib
vtkCommonMath-9.1d.lib
vtkCommonMisc-9.1d.lib
vtkCommonSystem-9.1d.lib
vtkCommonTransforms-9.1d.lib
vtkDICOMParser-9.1d.lib
vtkDomainsChemistry-9.1d.lib
vtkDomainsChemistryOpenGL2-9.1d.lib
vtkdoubleconversion-9.1d.lib
vtkexodusII-9.1d.lib
vtkexpat-9.1d.lib
vtkFiltersAMR-9.1d.lib
vtkFiltersCore-9.1d.lib
vtkFiltersExtraction-9.1d.lib
vtkFiltersFlowPaths-9.1d.lib
vtkFiltersGeneral-9.1d.lib
vtkFiltersGeneric-9.1d.lib
vtkFiltersGeometry-9.1d.lib
vtkFiltersHybrid-9.1d.lib
vtkFiltersHyperTree-9.1d.lib
vtkFiltersImaging-9.1d.lib
vtkFiltersModeling-9.1d.lib
vtkFiltersParallel-9.1d.lib
vtkFiltersParallelImaging-9.1d.lib
vtkFiltersPoints-9.1d.lib
vtkFiltersProgrammable-9.1d.lib
vtkFiltersSelection-9.1d.lib
vtkFiltersSMP-9.1d.lib
vtkFiltersSources-9.1d.lib
vtkFiltersStatistics-9.1d.lib
vtkFiltersTexture-9.1d.lib
vtkFiltersTopology-9.1d.lib
vtkFiltersVerdict-9.1d.lib
vtkfmt-9.1d.lib
vtkfreetype-9.1d.lib
vtkGeovisCore-9.1d.lib
vtkgl2ps-9.1d.lib
vtkglew-9.1d.lib
vtkhdf5-9.1d.lib
vtkhdf5_hl-9.1d.lib
vtkImagingColor-9.1d.lib
vtkImagingCore-9.1d.lib
vtkImagingFourier-9.1d.lib
vtkImagingGeneral-9.1d.lib
vtkImagingHybrid-9.1d.lib
vtkImagingMath-9.1d.lib
vtkImagingMorphological-9.1d.lib
vtkImagingSources-9.1d.lib
vtkImagingStatistics-9.1d.lib
vtkImagingStencil-9.1d.lib
vtkInfovisCore-9.1d.lib
vtkInfovisLayout-9.1d.lib
vtkInteractionImage-9.1d.lib
vtkInteractionStyle-9.1d.lib
vtkInteractionWidgets-9.1d.lib
vtkIOAMR-9.1d.lib
vtkIOAsynchronous-9.1d.lib
vtkIOCGNSReader-9.1d.lib
vtkIOChemistry-9.1d.lib
vtkIOCityGML-9.1d.lib
vtkIOCONVERGECFD-9.1d.lib
vtkIOCore-9.1d.lib
vtkIOEnSight-9.1d.lib
vtkIOExodus-9.1d.lib
vtkIOExport-9.1d.lib
vtkIOExportGL2PS-9.1d.lib
vtkIOExportPDF-9.1d.lib
vtkIOGeometry-9.1d.lib
vtkIOHDF-9.1d.lib
vtkIOImage-9.1d.lib
vtkIOImport-9.1d.lib
vtkIOInfovis-9.1d.lib
vtkIOIOSS-9.1d.lib
vtkIOLegacy-9.1d.lib
vtkIOLSDyna-9.1d.lib
vtkIOMINC-9.1d.lib
vtkIOMotionFX-9.1d.lib
vtkIOMovie-9.1d.lib
vtkIONetCDF-9.1d.lib
vtkIOOggTheora-9.1d.lib
vtkIOParallel-9.1d.lib
vtkIOParallelXML-9.1d.lib
vtkIOPLY-9.1d.lib
vtkIOSegY-9.1d.lib
vtkIOSQL-9.1d.lib
vtkioss-9.1d.lib
vtkIOTecplotTable-9.1d.lib
vtkIOVeraOut-9.1d.lib
vtkIOVideo-9.1d.lib
vtkIOXML-9.1d.lib
vtkIOXMLParser-9.1d.lib
vtkjpeg-9.1d.lib
vtkjsoncpp-9.1d.lib
vtkkissfft-9.1d.lib
vtklibharu-9.1d.lib
vtklibproj-9.1d.lib
vtklibxml2-9.1d.lib
vtkloguru-9.1d.lib
vtklz4-9.1d.lib
vtklzma-9.1d.lib
vtkmetaio-9.1d.lib
vtknetcdf-9.1d.lib
vtkogg-9.1d.lib
vtkParallelCore-9.1d.lib
vtkParallelDIY-9.1d.lib
vtkpng-9.1d.lib
vtkpugixml-9.1d.lib
vtkRenderingAnnotation-9.1d.lib
vtkRenderingContext2D-9.1d.lib
vtkRenderingContextOpenGL2-9.1d.lib
vtkRenderingCore-9.1d.lib
vtkRenderingFreeType-9.1d.lib
vtkRenderingGL2PSOpenGL2-9.1d.lib
vtkRenderingImage-9.1d.lib
vtkRenderingLabel-9.1d.lib
vtkRenderingLOD-9.1d.lib
vtkRenderingOpenGL2-9.1d.lib
vtkRenderingSceneGraph-9.1d.lib
vtkRenderingUI-9.1d.lib
vtkRenderingVolume-9.1d.lib
vtkRenderingVolumeOpenGL2-9.1d.lib
vtkRenderingVtkJS-9.1d.lib
vtksqlite-9.1d.lib
vtksys-9.1d.lib
vtkTestingRendering-9.1d.lib
vtktheora-9.1d.lib
vtktiff-9.1d.lib
vtkverdict-9.1d.lib
vtkViewsContext2D-9.1d.lib
vtkViewsCore-9.1d.lib
vtkViewsInfovis-9.1d.lib
vtkWrappingTools-9.1d.lib
vtkzlib-9.1d.lib
kernel32.lib
user32.lib
gdi32.lib
winspool.lib
comdlg32.lib
advapi32.lib
shell32.lib
ole32.lib
oleaut32.lib
uuid.lib
odbc32.lib
odbccp32.lib
3)新建属性表

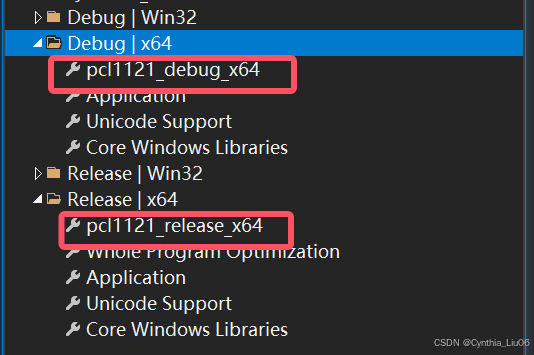

  • 打开属性管理器，在Debug|x64和Release|x64下分别新建属性表pcl

  • 设置属性

debug和release的包含目录与库目录

包含目录

D:\PCL 1.12.1\3rdParty\OpenNI2\Include
D:\PCL 1.12.1\3rdParty\VTK\include\vtk-9.1
D:\PCL 1.12.1\3rdParty\Qhull\include
D:\PCL 1.12.1\3rdParty\FLANN\include
D:\PCL 1.12.1\3rdParty\Eigen\eigen3
D:\PCL 1.12.1\3rdParty\Boost\include\boost-1_78

库目录

D:\PCL 1.12.1\3rdParty\VTK\lib
D:\PCL 1.12.1\3rdParty\Qhull\lib
D:\PCL 1.12.1\3rdParty\OpenNI2\Lib
D:\PCL 1.12.1\3rdParty\FLANN\lib
D:\PCL 1.12.1\3rdParty\Boost\lib
D:\PCL 1.12.1\lib

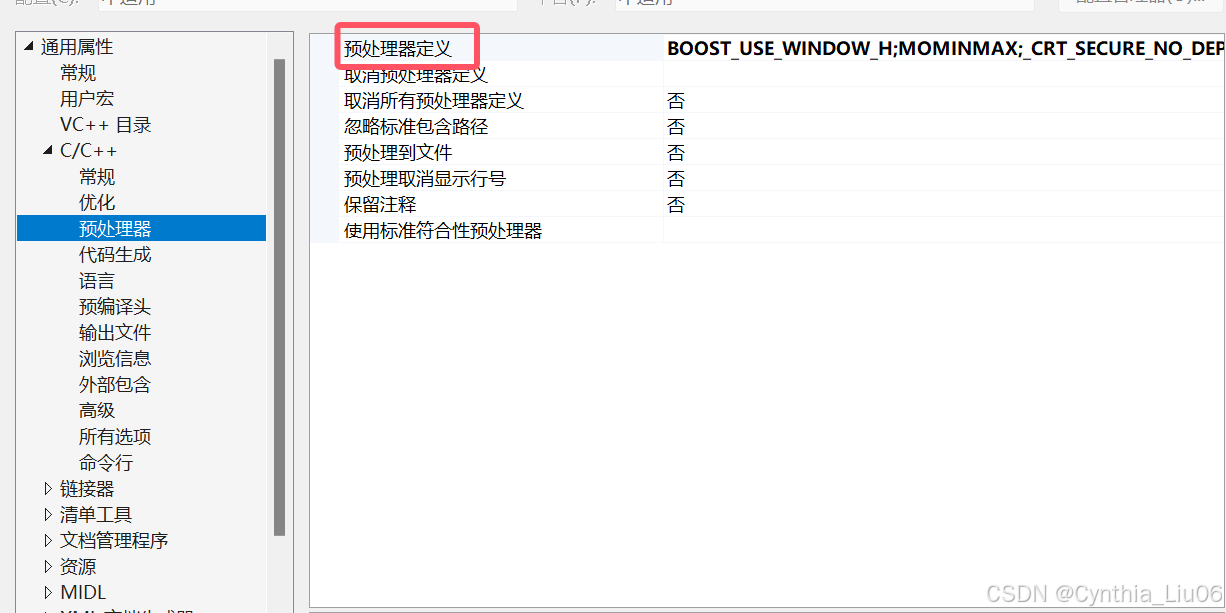

预处理器定义

BOOST_USE_WINDOW_H
MOMINMAX
_CRT_SECURE_NO_DEPRECATE

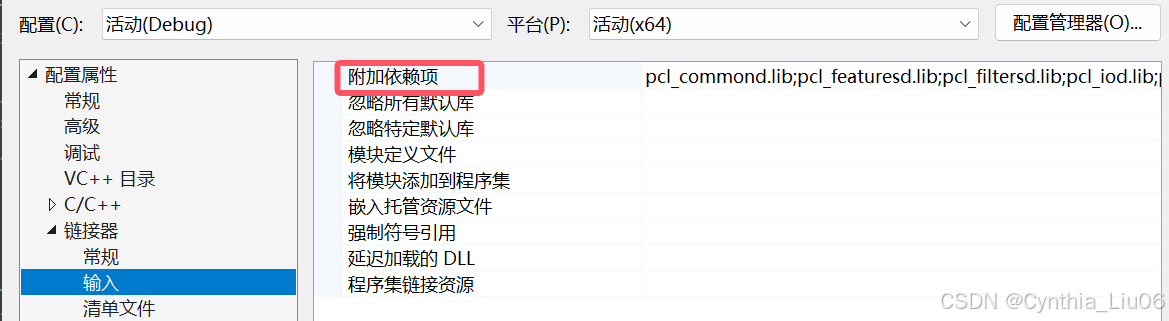

debug和release的pcl表在附加依赖项设置有不同

debug pcl附加依赖项

pcl_commond.lib
pcl_featuresd.lib
pcl_filtersd.lib
pcl_iod.lib
pcl_io_plyd.lib
pcl_kdtreed.lib
pcl_keypointsd.lib
pcl_mld.lib
pcl_octreed.lib
pcl_outofcored.lib
pcl_peopled.lib
pcl_recognitiond.lib
pcl_registrationd.lib
pcl_sample_consensusd.lib
pcl_searchd.lib
pcl_segmentationd.lib
pcl_stereod.lib
pcl_surfaced.lib
pcl_trackingd.lib
pcl_visualizationd.lib
libboost_atomic-vc142-mt-gd-x64-1_78.lib
libboost_bzip2-vc142-mt-gd-x64-1_78.lib
libboost_chrono-vc142-mt-gd-x64-1_78.lib
libboost_container-vc142-mt-gd-x64-1_78.lib
libboost_context-vc142-mt-gd-x64-1_78.lib
libboost_contract-vc142-mt-gd-x64-1_78.lib
libboost_coroutine-vc142-mt-gd-x64-1_78.lib
libboost_date_time-vc142-mt-gd-x64-1_78.lib
libboost_exception-vc142-mt-gd-x64-1_78.lib
libboost_filesystem-vc142-mt-gd-x64-1_78.lib
libboost_graph-vc142-mt-gd-x64-1_78.lib
libboost_graph_parallel-vc142-mt-gd-x64-1_78.lib
libboost_iostreams-vc142-mt-gd-x64-1_78.lib
libboost_json-vc142-mt-gd-x64-1_78.lib
libboost_locale-vc142-mt-gd-x64-1_78.lib
libboost_log-vc142-mt-gd-x64-1_78.lib
libboost_log_setup-vc142-mt-gd-x64-1_78.lib
libboost_math_c99-vc142-mt-gd-x64-1_78.lib
libboost_math_c99f-vc142-mt-gd-x64-1_78.lib
libboost_math_c99l-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1f-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1l-vc142-mt-gd-x64-1_78.lib
libboost_mpi-vc142-mt-gd-x64-1_78.lib
libboost_nowide-vc142-mt-gd-x64-1_78.lib
libboost_numpy38-vc142-mt-gd-x64-1_78.lib
libboost_prg_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_program_options-vc142-mt-gd-x64-1_78.lib
libboost_python38-vc142-mt-gd-x64-1_78.lib
libboost_random-vc142-mt-gd-x64-1_78.lib
libboost_regex-vc142-mt-gd-x64-1_78.lib
libboost_serialization-vc142-mt-gd-x64-1_78.lib
libboost_system-vc142-mt-gd-x64-1_78.lib
libboost_test_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_thread-vc142-mt-gd-x64-1_78.lib
libboost_timer-vc142-mt-gd-x64-1_78.lib
libboost_type_erasure-vc142-mt-gd-x64-1_78.lib
libboost_unit_test_framework-vc142-mt-gd-x64-1_78.lib
libboost_wave-vc142-mt-gd-x64-1_78.lib
libboost_wserialization-vc142-mt-gd-x64-1_78.lib
libboost_zlib-vc142-mt-gd-x64-1_78.lib
flann-gd.lib
flann_cpp-gd.lib
flann_cpp_s-gd.lib
flann_s-gd.lib
OpenNI2.lib
qhullcpp_d.lib
qhullstatic_d.lib
qhullstatic_rd.lib
qhull_rd.lib
vtkcgns-9.1d.lib
vtkChartsCore-9.1d.lib
vtkCommonColor-9.1d.lib
vtkCommonComputationalGeometry-9.1d.lib
vtkCommonCore-9.1d.lib
vtkCommonDataModel-9.1d.lib
vtkCommonExecutionModel-9.1d.lib
vtkCommonMath-9.1d.lib
vtkCommonMisc-9.1d.lib
vtkCommonSystem-9.1d.lib
vtkCommonTransforms-9.1d.lib
vtkDICOMParser-9.1d.lib
vtkDomainsChemistry-9.1d.lib
vtkDomainsChemistryOpenGL2-9.1d.lib
vtkdoubleconversion-9.1d.lib
vtkexodusII-9.1d.lib
vtkexpat-9.1d.lib
vtkFiltersAMR-9.1d.lib
vtkFiltersCore-9.1d.lib
vtkFiltersExtraction-9.1d.lib
vtkFiltersFlowPaths-9.1d.lib
vtkFiltersGeneral-9.1d.lib
vtkFiltersGeneric-9.1d.lib
vtkFiltersGeometry-9.1d.lib
vtkFiltersHybrid-9.1d.lib
vtkFiltersHyperTree-9.1d.lib
vtkFiltersImaging-9.1d.lib
vtkFiltersModeling-9.1d.lib
vtkFiltersParallel-9.1d.lib
vtkFiltersParallelImaging-9.1d.lib
vtkFiltersPoints-9.1d.lib
vtkFiltersProgrammable-9.1d.lib
vtkFiltersSelection-9.1d.lib
vtkFiltersSMP-9.1d.lib
vtkFiltersSources-9.1d.lib
vtkFiltersStatistics-9.1d.lib
vtkFiltersTexture-9.1d.lib
vtkFiltersTopology-9.1d.lib
vtkFiltersVerdict-9.1d.lib
vtkfmt-9.1d.lib
vtkfreetype-9.1d.lib
vtkGeovisCore-9.1d.lib
vtkgl2ps-9.1d.lib
vtkglew-9.1d.lib
vtkhdf5-9.1d.lib
vtkhdf5_hl-9.1d.lib
vtkImagingColor-9.1d.lib
vtkImagingCore-9.1d.lib
vtkImagingFourier-9.1d.lib
vtkImagingGeneral-9.1d.lib
vtkImagingHybrid-9.1d.lib
vtkImagingMath-9.1d.lib
vtkImagingMorphological-9.1d.lib
vtkImagingSources-9.1d.lib
vtkImagingStatistics-9.1d.lib
vtkImagingStencil-9.1d.lib
vtkInfovisCore-9.1d.lib
vtkInfovisLayout-9.1d.lib
vtkInteractionImage-9.1d.lib
vtkInteractionStyle-9.1d.lib
vtkInteractionWidgets-9.1d.lib
vtkIOAMR-9.1d.lib
vtkIOAsynchronous-9.1d.lib
vtkIOCGNSReader-9.1d.lib
vtkIOChemistry-9.1d.lib
vtkIOCityGML-9.1d.lib
vtkIOCONVERGECFD-9.1d.lib
vtkIOCore-9.1d.lib
vtkIOEnSight-9.1d.lib
vtkIOExodus-9.1d.lib
vtkIOExport-9.1d.lib
vtkIOExportGL2PS-9.1d.lib
vtkIOExportPDF-9.1d.lib
vtkIOGeometry-9.1d.lib
vtkIOHDF-9.1d.lib
vtkIOImage-9.1d.lib
vtkIOImport-9.1d.lib
vtkIOInfovis-9.1d.lib
vtkIOIOSS-9.1d.lib
vtkIOLegacy-9.1d.lib
vtkIOLSDyna-9.1d.lib
vtkIOMINC-9.1d.lib
vtkIOMotionFX-9.1d.lib
vtkIOMovie-9.1d.lib
vtkIONetCDF-9.1d.lib
vtkIOOggTheora-9.1d.lib
vtkIOParallel-9.1d.lib
vtkIOParallelXML-9.1d.lib
vtkIOPLY-9.1d.lib
vtkIOSegY-9.1d.lib
vtkIOSQL-9.1d.lib
vtkioss-9.1d.lib
vtkIOTecplotTable-9.1d.lib
vtkIOVeraOut-9.1d.lib
vtkIOVideo-9.1d.lib
vtkIOXML-9.1d.lib
vtkIOXMLParser-9.1d.lib
vtkjpeg-9.1d.lib
vtkjsoncpp-9.1d.lib
vtkkissfft-9.1d.lib
vtklibharu-9.1d.lib
vtklibproj-9.1d.lib
vtklibxml2-9.1d.lib
vtkloguru-9.1d.lib
vtklz4-9.1d.lib
vtklzma-9.1d.lib
vtkmetaio-9.1d.lib
vtknetcdf-9.1d.lib
vtkogg-9.1d.lib
vtkParallelCore-9.1d.lib
vtkParallelDIY-9.1d.lib
vtkpng-9.1d.lib
vtkpugixml-9.1d.lib
vtkRenderingAnnotation-9.1d.lib
vtkRenderingContext2D-9.1d.lib
vtkRenderingContextOpenGL2-9.1d.lib
vtkRenderingCore-9.1d.lib
vtkRenderingFreeType-9.1d.lib
vtkRenderingGL2PSOpenGL2-9.1d.lib
vtkRenderingImage-9.1d.lib
vtkRenderingLabel-9.1d.lib
vtkRenderingLOD-9.1d.lib
vtkRenderingOpenGL2-9.1d.lib
vtkRenderingSceneGraph-9.1d.lib
vtkRenderingUI-9.1d.lib
vtkRenderingVolume-9.1d.lib
vtkRenderingVolumeOpenGL2-9.1d.lib
vtkRenderingVtkJS-9.1d.lib
vtksqlite-9.1d.lib
vtksys-9.1d.lib
vtkTestingRendering-9.1d.lib
vtktheora-9.1d.lib
vtktiff-9.1d.lib
vtkverdict-9.1d.lib
vtkViewsContext2D-9.1d.lib
vtkViewsCore-9.1d.lib
vtkViewsInfovis-9.1d.lib
vtkWrappingTools-9.1d.lib
vtkzlib-9.1d.lib

release pcl附加依赖项

pcl_common.lib
pcl_features.lib
pcl_filters.lib
pcl_io.lib
pcl_io_ply.lib
pcl_kdtree.lib
pcl_keypoints.lib
pcl_ml.lib
pcl_octree.lib
pcl_outofcore.lib
pcl_people.lib
pcl_recognition.lib
pcl_registration.lib
pcl_sample_consensus.lib
pcl_search.lib
pcl_segmentation.lib
pcl_stereo.lib
pcl_surface.lib
pcl_tracking.lib
pcl_visualization.lib
libboost_atomic-vc142-mt-x64-1_78.lib
libboost_bzip2-vc142-mt-x64-1_78.lib
libboost_chrono-vc142-mt-x64-1_78.lib
libboost_container-vc142-mt-x64-1_78.lib
libboost_context-vc142-mt-x64-1_78.lib
libboost_contract-vc142-mt-x64-1_78.lib
libboost_coroutine-vc142-mt-x64-1_78.lib
libboost_date_time-vc142-mt-x64-1_78.lib
libboost_exception-vc142-mt-x64-1_78.lib
libboost_filesystem-vc142-mt-x64-1_78.lib
libboost_graph-vc142-mt-x64-1_78.lib
libboost_graph_parallel-vc142-mt-x64-1_78.lib
libboost_iostreams-vc142-mt-x64-1_78.lib
libboost_json-vc142-mt-x64-1_78.lib
libboost_locale-vc142-mt-x64-1_78.lib
libboost_log-vc142-mt-x64-1_78.lib
libboost_log_setup-vc142-mt-x64-1_78.lib
libboost_math_c99-vc142-mt-x64-1_78.lib
libboost_math_c99f-vc142-mt-x64-1_78.lib
libboost_math_c99l-vc142-mt-x64-1_78.lib
libboost_math_tr1-vc142-mt-x64-1_78.lib
libboost_math_tr1f-vc142-mt-x64-1_78.lib
libboost_math_tr1l-vc142-mt-x64-1_78.lib
libboost_mpi-vc142-mt-x64-1_78.lib
libboost_nowide-vc142-mt-x64-1_78.lib
libboost_numpy38-vc142-mt-x64-1_78.lib
libboost_prg_exec_monitor-vc142-mt-x64-1_78.lib
libboost_program_options-vc142-mt-x64-1_78.lib
libboost_python38-vc142-mt-x64-1_78.lib
libboost_random-vc142-mt-x64-1_78.lib
libboost_regex-vc142-mt-x64-1_78.lib
libboost_serialization-vc142-mt-x64-1_78.lib
libboost_system-vc142-mt-x64-1_78.lib
libboost_test_exec_monitor-vc142-mt-x64-1_78.lib
libboost_thread-vc142-mt-x64-1_78.lib
libboost_timer-vc142-mt-x64-1_78.lib
libboost_type_erasure-vc142-mt-x64-1_78.lib
libboost_unit_test_framework-vc142-mt-x64-1_78.lib
libboost_wave-vc142-mt-x64-1_78.lib
libboost_wserialization-vc142-mt-x64-1_78.lib
libboost_zlib-vc142-mt-x64-1_78.lib
flann.lib
flann_cpp.lib
flann_cpp_s.lib
flann_s.lib
OpenNI2.lib
qhullcpp.lib
qhullstatic.lib
qhullstatic_r.lib
qhull_r.lib
vtkcgns-9.1.lib
vtkChartsCore-9.1.lib
vtkCommonColor-9.1.lib
vtkCommonComputationalGeometry-9.1.lib
vtkCommonCore-9.1.lib
vtkCommonDataModel-9.1.lib
vtkCommonExecutionModel-9.1.lib
vtkCommonMath-9.1.lib
vtkCommonMisc-9.1.lib
vtkCommonSystem-9.1.lib
vtkCommonTransforms-9.1.lib
vtkDICOMParser-9.1.lib
vtkDomainsChemistry-9.1.lib
vtkDomainsChemistryOpenGL2-9.1.lib
vtkdoubleconversion-9.1.lib
vtkexodusII-9.1.lib
vtkexpat-9.1.lib
vtkFiltersAMR-9.1.lib
vtkFiltersCore-9.1.lib
vtkFiltersExtraction-9.1.lib
vtkFiltersFlowPaths-9.1.lib
vtkFiltersGeneral-9.1.lib
vtkFiltersGeneric-9.1.lib
vtkFiltersGeometry-9.1.lib
vtkFiltersHybrid-9.1.lib
vtkFiltersHyperTree-9.1.lib
vtkFiltersImaging-9.1.lib
vtkFiltersModeling-9.1.lib
vtkFiltersParallel-9.1.lib
vtkFiltersParallelImaging-9.1.lib
vtkFiltersPoints-9.1.lib
vtkFiltersProgrammable-9.1.lib
vtkFiltersSelection-9.1.lib
vtkFiltersSMP-9.1.lib
vtkFiltersSources-9.1.lib
vtkFiltersStatistics-9.1.lib
vtkFiltersTexture-9.1.lib
vtkFiltersTopology-9.1.lib
vtkFiltersVerdict-9.1.lib
vtkfmt-9.1.lib
vtkfreetype-9.1.lib
vtkGeovisCore-9.1.lib
vtkgl2ps-9.1.lib
vtkglew-9.1.lib
vtkhdf5-9.1.lib
vtkhdf5_hl-9.1.lib
vtkImagingColor-9.1.lib
vtkImagingCore-9.1.lib
vtkImagingFourier-9.1.lib
vtkImagingGeneral-9.1.lib
vtkImagingHybrid-9.1.lib
vtkImagingMath-9.1.lib
vtkImagingMorphological-9.1.lib
vtkImagingSources-9.1.lib
vtkImagingStatistics-9.1.lib
vtkImagingStencil-9.1.lib
vtkInfovisCore-9.1.lib
vtkInfovisLayout-9.1.lib
vtkInteractionImage-9.1.lib
vtkInteractionStyle-9.1.lib
vtkInteractionWidgets-9.1.lib
vtkIOAMR-9.1.lib
vtkIOAsynchronous-9.1.lib
vtkIOCGNSReader-9.1.lib
vtkIOChemistry-9.1.lib
vtkIOCityGML-9.1.lib
vtkIOCONVERGECFD-9.1.lib
vtkIOCore-9.1.lib
vtkIOEnSight-9.1.lib
vtkIOExodus-9.1.lib
vtkIOExport-9.1.lib
vtkIOExportGL2PS-9.1.lib
vtkIOExportPDF-9.1.lib
vtkIOGeometry-9.1.lib
vtkIOHDF-9.1.lib
vtkIOImage-9.1.lib
vtkIOImport-9.1.lib
vtkIOInfovis-9.1.lib
vtkIOIOSS-9.1.lib
vtkIOLegacy-9.1.lib
vtkIOLSDyna-9.1.lib
vtkIOMINC-9.1.lib
vtkIOMotionFX-9.1.lib
vtkIOMovie-9.1.lib
vtkIONetCDF-9.1.lib
vtkIOOggTheora-9.1.lib
vtkIOParallel-9.1.lib
vtkIOParallelXML-9.1.lib
vtkIOPLY-9.1.lib
vtkIOSegY-9.1.lib
vtkIOSQL-9.1.lib
vtkioss-9.1.lib
vtkIOTecplotTable-9.1.lib
vtkIOVeraOut-9.1.lib
vtkIOVideo-9.1.lib
vtkIOXML-9.1.lib
vtkIOXMLParser-9.1.lib
vtkjpeg-9.1.lib
vtkjsoncpp-9.1.lib
vtkkissfft-9.1.lib
vtklibharu-9.1.lib
vtklibproj-9.1.lib
vtklibxml2-9.1.lib
vtkloguru-9.1.lib
vtklz4-9.1.lib
vtklzma-9.1.lib
vtkmetaio-9.1.lib
vtknetcdf-9.1.lib
vtkogg-9.1.lib
vtkParallelCore-9.1.lib
vtkParallelDIY-9.1.lib
vtkpng-9.1.lib
vtkpugixml-9.1.lib
vtkRenderingAnnotation-9.1.lib
vtkRenderingContext2D-9.1.lib
vtkRenderingContextOpenGL2-9.1.lib
vtkRenderingCore-9.1.lib
vtkRenderingFreeType-9.1.lib
vtkRenderingGL2PSOpenGL2-9.1.lib
vtkRenderingImage-9.1.lib
vtkRenderingLabel-9.1.lib
vtkRenderingLOD-9.1.lib
vtkRenderingOpenGL2-9.1.lib
vtkRenderingSceneGraph-9.1.lib
vtkRenderingUI-9.1.lib
vtkRenderingVolume-9.1.lib
vtkRenderingVolumeOpenGL2-9.1.lib
vtkRenderingVtkJS-9.1.lib
vtksqlite-9.1.lib
vtksys-9.1.lib
vtkTestingRendering-9.1.lib
vtktheora-9.1.lib
vtktiff-9.1.lib
vtkverdict-9.1.lib
vtkViewsContext2D-9.1.lib
vtkViewsCore-9.1.lib
vtkViewsInfovis-9.1.lib
vtkWrappingTools-9.1.lib
vtkzlib-9.1.lib

设置完后保存两个pcl，在以后的项目中即可直接使用

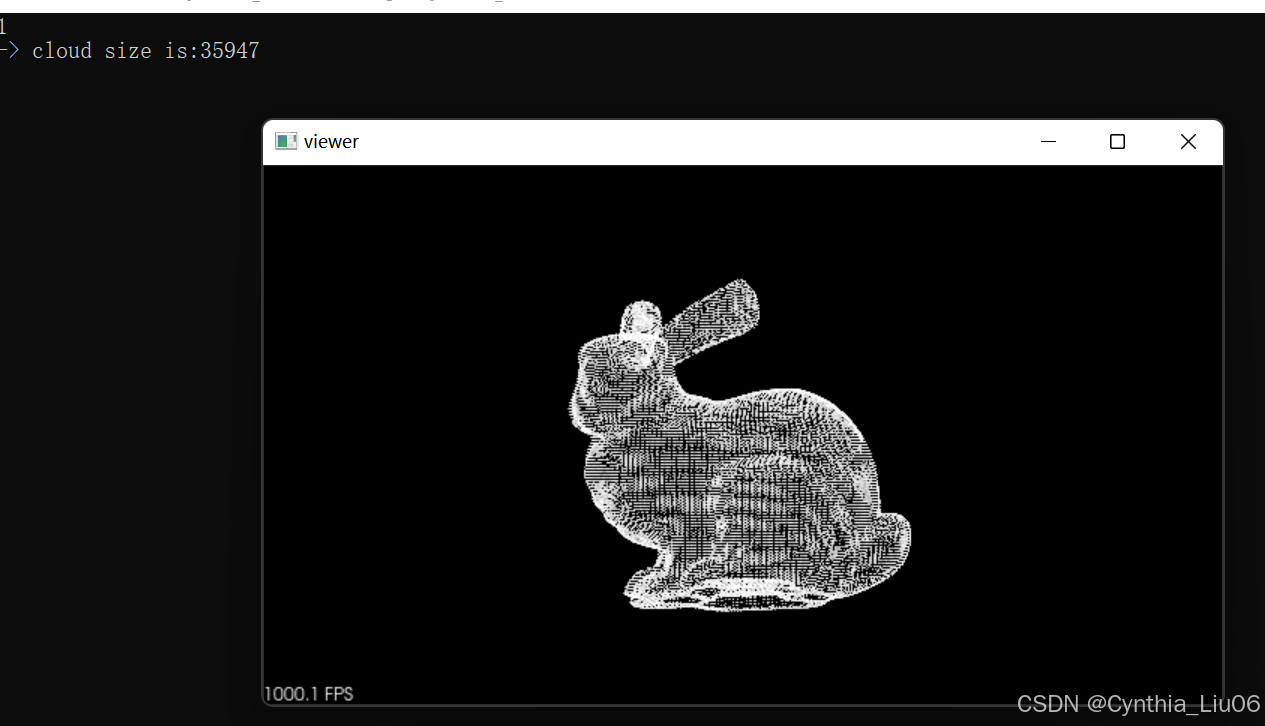

4.调试

回到解决方案管理器，在源文件中建立新项目

#include <pcl/io/pcd_io.h>
#include <boost/thread/thread.hpp>
#include <pcl/visualization/pcl_visualizer.h>

int main()
{
	std::cout << "1\n";
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
	pcl::io::loadPCDFile("D:\\PCL\\vs2019配置PCL属性表及兔子测试\\rabbit.pcd", *cloud);
	std::cout << "-> cloud size is:" << cloud->size() << "\n";

	boost::shared_ptr<pcl::visualization::PCLVisualizer> viewer(new pcl::visualization::PCLVisualizer("viewer"));
	viewer->addPointCloud(cloud, "rabbit");

	while (!viewer->wasStopped())
	{
		viewer->spinOnce(100);
		boost::this_thread::sleep(boost::posix_time::microseconds(10000));
	}

	return 0;
}

Cynthia_Liu06
关注
【win11+Visual Studio 2019 配置 PCL 1.12.1 的经验总结分享】
weixin_47869094的博客
06-19 2275
如果不是1.12.1,那么lib文件可能有一点不一样，pcl前面部分的lib文件大多数是一样的，只有和VTK中的lib文件C:\Program Files\PCL 1.12.1\3rdParty\VTK\lib里面的文件相差较大可以用以下命令取出来。和VTK中的lib文件C:\Program Files\PCL 1.12.1\3rdParty\VTK\lib这两个位置的lib文件。那么文件名字在相对的文件，debug以及release的lib文件。7）链接器-》输入-》附加依赖项-》编辑，添加lib文件。
win11+visualstudio2022+pcl 1.12.1安装配置
qq_53545309的博客
07-19 1939
win11+visualstudio2022+pcl 1.12.1安装配置
PCL 1.12.1 全家桶 (适用于 MSVC2019 Win64)
gitblog_06753的博客
04-12 354
PCL 1.12.1 全家桶 (适用于 MSVC2019 Win64) 【下载地址】PCL1.12.1全家桶适用于MSVC2019Win64 该项目提供了 Point Cloud Library (PCL) 1.12.1 版本的完整安装包，专为 Microsoft Visual Studio 2019 (MSVC2019...
vs2019配置点云库PCL1.12.1
最新发布
wangmengmeng99的博客
04-18 315
首先是下载pcl1.12.1，PCL-1.12.1-AllInOne-msvc2019-win64.exe。安装完后，路径会自动配置好路径，不需要单独动手去配，安装的时候会配置到路径下的。注意flann的库最好往前放。均配置完就可以正常使用了，
VS2019 配置PCL 1.11.0 debug版本lib
11-11
PCL 1.11.0 debug版本lib，自测可用
PCL 1.12.1 +VS 2019 环境配置
m0_53217734的博客
03-19 1899
PCL1.12.1+VS2019环境配置
PCL1.12.1安装（自用）
Vincentvictory的博客
06-11 479
2.OpenIN2也要加入系统变量。3.VS2022环境添加。1.PCL环境变量添加。
VS2019+pcl1.12.1配置详解
biubiubiu011的博客
10-04 5482
Visual Studio 2019配置pcl1.12.1过程详解
PCL学习：Win10/11环境下Visual Studio 2019 配置PCL 1.12.1
Your_dafuni的博客
06-19 988
在win10/11系统环境下，VS2019配置PCL 1.12.1环境+测试代码
VS2019+PCL1.12.1+OpenCV4.6.0详细配置流程
weixin_46402470的博客
09-28 577
vs+pcl+opencv
vs2019配置pcl1.12.1
01-05
为了顺利配置PCL，在Windows环境中需先下载并安装Visual Studio 2019以及PCL的相关文件。可以从微软官方网站获取Visual Studio 2019的最新版[^4]。 对于PCL本身，则建议前往GitHub上的官方发布页面下载适用于MSVC ...
PCL1.12.1安装及在VS下的环境配置
qq_40041064的博客
08-17 1379
PCL1.12.1安装及在VS下的环境配置
VS2019+PCL1.12.1
Hanishizhu的博客
08-02 1177
PCL环境配置
VS2019配置pcl1.12.0点云环境
qiaodahua的博客
12-30 1940
本文介绍了如何配置pcl，使用vs2019配置pcl1.12.0
VisualStudio2019配置PCL
qq_36955294的博客
12-14 1213
VisualStudio2019配置pcl1.9.1 PCL1.9.1下载与安装 1.下载 链接: https://github.com/PointCloudLibrary/pcl/releases. 根据自己的编译器环境选择下载win64或者winX32的版本，下载 PCL-1.9.1-AllInOne-msvc2017-win64.exe pcl-1.9.1-pdb-msvc2017-win64.zip 两个文件。 2.安装 安装步骤很简单，傻瓜式安装，点击“PCL-1.9.0-AllI.
VS2019 pcl1.12.1配置
wjclc123的博客
03-14 5931
VS2019 pcl1.12.1配置 最近在配置PCL库，遇到了不少的坑，我这边总结了一下我的配置过程，希望对其他人能有所帮助。 pcl库下载（版本） 首先是去到网站下载两个安装文件 PCL库下载地址： 然后是运行安装，注意事项： 1、添加PCL到系统path。2、系统盘如果不够大建议安装到其他盘。3、路径全英文。4、安装OpenNI2的时候记得选择路径到3rdParty下。 安装完成后，将pcl-1.12.1-pdb-msvc2019-win64.zip解压，将.pdb文件拷贝到pcl\bin目录下。
VS2019+PCL配置（Windows-小白上手版）
weixin_43710577的博客
06-13 678
PCL配置
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
