《Keras 3 ：AI用于动作识别的脑电图信号分类》
作者：Suvaditya Mukherjee
创建日期：2022/11/03
最后修改时间：2022/11/05
描述：训练卷积模型以对暴露于某些刺激产生的脑电图信号进行分类。
（i） 此示例使用 Keras 3
介绍
以下示例探讨了如何使基于卷积的神经网络 对受试者 暴露于不同的刺激。 我们从头开始训练一个模型，因为这样的信号分类模型相当稀缺 以预训练格式。 我们使用的数据来自加州大学伯克利分校 Biosense 实验室，在那里收集了数据 同时来自 15 名受试者。 我们的流程如下：
- 加载 UC Berkeley-Biosense 同步脑电波数据集
- 可视化数据中的随机样本
- 对数据进行预处理、整理和缩放，最终制作 tf.data.Dataset
- 准备班级权重以解决主要不平衡问题
- 创建基于 Conv1D 和 Dense 的模型以执行分类
- 定义回调和超参数
- 训练模型
- 绘制 History 中的度量并执行评估
此示例需要以下外部依赖项（Gdown、Scikit-learn、Pandas、 Numpy， Matplotlib）.您可以通过以下命令安装它。
Gdown 是一个外部软件包，用于从 Google Drive 下载大文件。要知道 更多，您可以在此处参考其 PyPi 页面
设置和数据下载
首先，让我们安装我们的依赖项：
!pip install gdown -q
!pip install sklearn -q
!pip install pandas -q
!pip install numpy -q
!pip install matplotlib -q
接下来，让我们下载我们的数据集。 使用 gdown 软件包，可以轻松地从 Google Drive 下载数据：
!gdown 1V5B7Bt6aJm0UHbR7cRKBEK8jx7lYPVuX
!# gdown will download eeg-data.csv onto the local drive for use. Total size of
!# eeg-data.csv is 105.7 MB
import pandas as pd
import matplotlib.pyplot as plt
import json
import numpy as np
import keras
from keras import layers
import tensorflow as tf
from sklearn import preprocessing, model_selection
import random
QUALITY_THRESHOLD = 128
BATCH_SIZE = 64
SHUFFLE_BUFFER_SIZE = BATCH_SIZE * 2
Downloading... From (uriginal): https://drive.google.com/uc?id=1V5B7Bt6aJm0UHbR7cRKBEK8jx7lYPVuX From (redirected): https://drive.google.com/uc?id=1V5B7Bt6aJm0UHbR7cRKBEK8jx7lYPVuX&confirm=t&uuid=4d50d1e7-44b5-4984-aa04-cb4e08803cb8 To: /home/fchollet/keras-io/scripts/tmp_3333846/eeg-data.csv 100%|█████████████████████████████████████████| 106M/106M [00:00<00:00, 259MB/s] 读取数据来源eeg-data.csv
我们使用 Pandas 库读取文件并显示前 5 行 使用命令eeg-data.csv.head()
eeg = pd.read_csv("eeg-data.csv")
我们从数据集中删除未标记的样本，因为它们对模型没有贡献。我们 同时对训练数据不需要的列执行作 制备.drop()
unlabeled_eeg = eeg[eeg["label"] == "unlabeled"]
eeg = eeg.loc[eeg["label"] != "unlabeled"]
eeg = eeg.loc[eeg["label"] != "everyone paired"]
eeg.drop(
[
"indra_time",
"Unnamed: 0",
"browser_latency",
"reading_time",
"attention_esense",
"meditation_esense",
"updatedAt",
"createdAt",
],
axis=1,
inplace=True,
)
eeg.reset_index(drop=True, inplace=True)
eeg.head()
| 身份证 | eeg_power | raw_values | signal_quality | 标签 | |
|---|---|---|---|---|---|
| 0 | 7 | [56887.0, 45471.0, 20074.0, 5359.0, 22594.0, 7... | [99.0, 96.0, 91.0, 89.0, 91.0, 89.0, 87.0, 93.... | 0 | blinkInstruction |
| 1 | 5 | [11626.0, 60301.0, 5805.0, 15729.0, 4448.0, 33... | [23.0, 40.0, 64.0, 89.0, 86.0, 33.0, -14.0, -1... | 0 | blinkInstruction |
| 2 | 1 | [15777.0, 33461.0, 21385.0, 44193.0, 11741.0, ... | [41.0, 26.0, 16.0, 20.0, 34.0, 51.0, 56.0, 55.... | 0 | blinkInstruction |
| 3 | 13 | [311822.0, 44739.0, 19000.0, 19100.0, 2650.0, ... | [208.0, 198.0, 122.0, 84.0, 161.0, 249.0, 216.... | 0 | blinkInstruction |
| 4 | 4 | [687393.0, 10289.0, 2942.0, 9874.0, 1059.0, 29... | [129.0, 133.0, 114.0, 105.0, 101.0, 109.0, 99.... | 0 | blinkInstruction |
在数据中，记录的样本根据 0 到 128 的得分 校准良好，传感器为 （0 表示最好，200 表示最差）。我们过滤值 基于任意截止限值 128。
def convert_string_data_to_values(value_string):
str_list = json.loads(value_string)
return str_list
eeg["raw_values"] = eeg["raw_values"].apply(convert_string_data_to_values)
eeg = eeg.loc[eeg["signal_quality"] < QUALITY_THRESHOLD]
eeg.head()
| 身份证 | eeg_power | raw_values | signal_quality | 标签 | |
|---|---|---|---|---|---|
| 0 | 7 | [56887.0, 45471.0, 20074.0, 5359.0, 22594.0, 7... | [99.0, 96.0, 91.0, 89.0, 91.0, 89.0, 87.0, 93.... | 0 | blinkInstruction |
| 1 | 5 | [11626.0, 60301.0, 5805.0, 15729.0, 4448.0, 33... | [23.0, 40.0, 64.0, 89.0, 86.0, 33.0, -14.0, -1... | 0 | blinkInstruction |
| 2 | 1 | [15777.0, 33461.0, 21385.0, 44193.0, 11741.0, ... | [41.0, 26.0, 16.0, 20.0, 34.0, 51.0, 56.0, 55.... | 0 | blinkInstruction |
| 3 | 13 | [311822.0, 44739.0, 19000.0, 19100.0, 2650.0, ... | [208.0, 198.0, 122.0, 84.0, 161.0, 249.0, 216.... | 0 | blinkInstruction |
| 4 | 4 | [687393.0, 10289.0, 2942.0, 9874.0, 1059.0, 29... | [129.0, 133.0, 114.0, 105.0, 101.0, 109.0, 99.... | 0 | blinkInstruction |

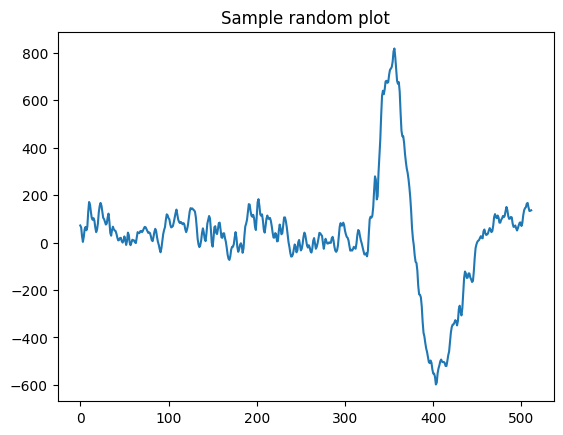

可视化数据中的一个随机样本
我们从数据中可视化一个样本，以了解刺激诱导信号的外观 喜欢
def view_eeg_plot(idx):
data = eeg.loc[idx, "raw_values"]
plt.plot(data)
plt.title(f"Sample random plot")
plt.show()
view_eeg_plot(7)
预处理和整理数据
数据中总共存在 67 个不同的标签，其中有编号 子标签。我们根据它们的编号将它们整理到一个标签下并替换它们 在数据本身中。按照这个过程，我们执行简单的 Label 编码来获取它们 以整数格式。
print("Before replacing labels")
print(eeg["label"].unique(), "\n")
print(len(eeg["label"].unique()), "\n")
eeg.replace(
{
"label": {
"blink1": "blink",
"blink2": "blink",
"blink3": "blink",
"blink4": "blink",
"blink5": "blink",
"math1": "math",
"math2": "math",
"math3": "math",
"math4": "math",
"math5": "math",
"math6": "math",
"math7": "math",
"math8": "math",
"math9": "math",
"math10": "math",
"math11": "math",
"math12": "math",
"thinkOfItems-ver1": "thinkOfItems",
"thinkOfItems-ver2": "thinkOfItems",
"video-ver1": "video",
"video-ver2": "video",
"thinkOfItemsInstruction-ver1": "thinkOfItemsInstruction",
"thinkOfItemsInstruction-ver2": "thinkOfItemsInstruction",
"colorRound1-1": "colorRound1",
"colorRound1-2": "colorRound1",
"colorRound1-3": "colorRound1",
"colorRound1-4": "colorRound1",
"colorRound1-5": "colorRound1",
"colorRound1-6": "colorRound1",
"colorRound2-1": "colorRound2",
"colorRound2-2": "colorRound2",
"colorRound2-3": "colorRound2",
"colorRound2-4": "colorRound2",
"colorRound2-5": "colorRound2",
"colorRound2-6": "colorRound2",
"colorRound3-1": "colorRound3",
"colorRound3-2": "colorRound3",
"colorRound3-3": "colorRound3",
"colorRound3-4": "colorRound3",
"colorRound3-5": "colorRound3",
"colorRound3-6": "colorRound3",
"colorRound4-1": "colorRound4",
"colorRound4-2": "colorRound4",
"colorRound4-3": "colorRound4",
"colorRound4-4": "colorRound4",
"colorRound4-5": "colorRound4",
"colorRound4-6": "colorRound4",
"colorRound5-1": "colorRound5",
"colorRound5-2": "colorRound5",
"colorRound5-3": "colorRound5",
"colorRound5-4": "colorRound5",
"colorRound5-5": "colorRound5",
"colorRound5-6": "colorRound5",
"colorInstruction1": "colorInstruction",
"colorInstruction2": "colorInstruction",
"readyRound1": "readyRound",
"readyRound2": "readyRound",
"readyRound3": "readyRound",
"readyRound4": "readyRound",
"readyRound5": "readyRound",
"colorRound1": "colorRound",
"colorRound2": "colorRound",
"colorRound3": "colorRound",
"colorRound4": "colorRound",
"colorRound5": "colorRound",
}
},
inplace=True,
)
print("After replacing labels")
print(eeg["label"].unique())
print(len(eeg["label"].unique()))
le = preprocessing.LabelEncoder() # Generates a look-up table
le.fit(eeg["label"])
eeg["label"] = le.transform(eeg["label"])
Before replacing labels ['blinkInstruction' 'blink1' 'blink2' 'blink3' 'blink4' 'blink5' 'relaxInstruction' 'relax' 'mathInstruction' 'math1' 'math2' 'math3' 'math4' 'math5' 'math6' 'math7' 'math8' 'math9' 'math10' 'math11' 'math12' 'musicInstruction' 'music' 'videoInstruction' 'video-ver1' 'thinkOfItemsInstruction-ver1' 'thinkOfItems-ver1' 'colorInstruction1' 'colorInstruction2' 'readyRound1' 'colorRound1-1' 'colorRound1-2' 'colorRound1-3' 'colorRound1-4' 'colorRound1-5' 'colorRound1-6' 'readyRound2' 'colorRound2-1' 'colorRound2-2' 'colorRound2-3' 'colorRound2-4' 'colorRound2-5' 'colorRound2-6' 'readyRound3' 'colorRound3-1' 'colorRound3-2' 'colorRound3-3' 'colorRound3-4' 'colorRound3-5' 'colorRound3-6' 'readyRound4' 'colorRound4-1' 'colorRound4-2' 'colorRound4-3' 'colorRound4-4' 'colorRound4-5' 'colorRound4-6' 'readyRound5' 'colorRound5-1' 'colorRound5-2' 'colorRound5-3' 'colorRound5-4' 'colorRound5-5' 'colorRound5-6' 'video-ver2' 'thinkOfItemsInstruction-ver2' 'thinkOfItems-ver2'] 67 After replacing labels ['blinkInstruction' 'blink' 'relaxInstruction' 'relax' 'mathInstruction' 'math' 'musicInstruction' 'music' 'videoInstruction' 'video' 'thinkOfItemsInstruction' 'thinkOfItems' 'colorInstruction' 'readyRound' 'colorRound1' 'colorRound2' 'colorRound3' 'colorRound4' 'colorRound5'] 19 我们提取数据中存在的唯一类的数量
num_classes = len(eeg["label"].unique())
print(num_classes)

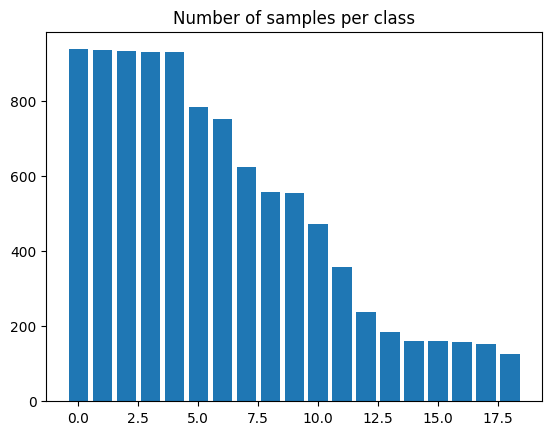

19 现在，我们使用条形图可视化每个类中存在的样本数。
plt.bar(range(num_classes), eeg["label"].value_counts())
plt.title("Number of samples per class")
plt.show()
缩放和拆分数据
我们执行一个简单的 Min-Max 缩放，使值范围介于 0 和 1 之间。我们没有 使用标准缩放，因为数据不服从高斯分布。
scaler = preprocessing.MinMaxScaler()
series_list = [
scaler.fit_transform(np.asarray(i).reshape(-1, 1)) for i in eeg["raw_values"]
]
labels_list = [i for i in eeg["label"]]
现在，我们创建一个 15% 保留集的 Train-test 拆分。在此之后，我们重塑 data 创建长度为 512 的序列。我们还会将标签从其当前 标签编码的形式转换为 one-hot 编码，以便使用多种不同的函数。keras.metrics
x_train, x_test, y_train, y_test = model_selection.train_test_split(
series_list, labels_list, test_size=0.15, random_state=42, shuffle=True
)
print(
f"Length of x_train : {len(x_train)}\nLength of x_test : {len(x_test)}\nLength of y_train : {len(y_train)}\nLength of y_test : {len(y_test)}"
)
x_train = np.asarray(x_train).astype(np.float32).reshape(-1, 512, 1)
y_train = np.asarray(y_train).astype(np.float32).reshape(-1, 1)
y_train = keras.utils.to_categorical(y_train)
x_test = np.asarray(x_test).astype(np.float32).reshape(-1, 512, 1)
y_test = np.asarray(y_test).astype(np.float32).reshape(-1, 1)
y_test = keras.utils.to_categorical(y_test)
Length of x_train : 8460 Length of x_test : 1494 Length of y_train : 8460 Length of y_test : 1494 准备 tf.data.Dataset
现在，我们从这些数据创建一个 tf.data.Dataset 来准备训练。我们还 随机排序和批处理数据以供以后使用。
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
test_dataset = tf.data.Dataset.from_tensor_slices((x_test, y_test))
train_dataset = train_dataset.shuffle(SHUFFLE_BUFFER_SIZE).batch(BATCH_SIZE)
test_dataset = test_dataset.batch(BATCH_SIZE)
使用 Naive 方法制作类权重
从每个类的样本数图中可以看出，数据集是不平衡的。 因此，我们计算每个类的权重，以确保模型在 公平的方式，由于样本数量更多，不会偏爱任何特定类别。
我们使用一种朴素的方法来计算这些权重，找到 每个类，并将其用作权重。
vals_dict = {}
for i in eeg["label"]:
if i in vals_dict.keys():
vals_dict[i] += 1
else:
vals_dict[i] = 1
total = sum(vals_dict.values())
# Formula used - Naive method where
# weight = 1 - (no. of samples present / total no. of samples)
# So more the samples, lower the weight
weight_dict = {k: (1 - (v / total)) for k, v in vals_dict.items()}
print(weight_dict)
{1: 0.9872413100261201, 0: 0.975989551938919, 14: 0.9841269841269842, 13: 0.9061683745228049, 9: 0.9838255977496484, 8: 0.9059674502712477, 11: 0.9847297568816556, 10: 0.9063692987743621, 18: 0.9838255977496484, 17: 0.9057665260196905, 16: 0.9373116335141651, 15: 0.9065702230259193, 2: 0.9211372312638135, 12: 0.9525818766325096, 3: 0.9245529435402853, 4: 0.943841671689773, 5: 0.9641350210970464, 6: 0.981514968856741, 7: 0.9443439823186659} 定义简单函数来绘制keras.callbacks.History
对象
def plot_history_metrics(history: keras.callbacks.History):
total_plots = len(history.history)
cols = total_plots // 2
rows = total_plots // cols
if total_plots % cols != 0:
rows += 1
pos = range(1, total_plots + 1)
plt.figure(figsize=(15, 10))
for i, (key, value) in enumerate(history.history.items()):
plt.subplot(rows, cols, pos[i])
plt.plot(range(len(value)), value)
plt.title(str(key))
plt.show()
定义函数以生成卷积模型
def create_model():
input_layer = keras.Input(shape=(512, 1))
x = layers.Conv1D(
filters=32, kernel_size=3, strides=2, activation="relu", padding="same"
)(input_layer)
x = layers.BatchNormalization()(x)
x = layers.Conv1D(
filters=64, kernel_size=3, strides=2, activation="relu", padding="same"
)(x)
x = layers.BatchNormalization()(x)
x = layers.Conv1D(
filters=128, kernel_size=5, strides=2, activation="relu", padding="same"
)(x)
x = layers.BatchNormalization()(x)
x = layers.Conv1D(
filters=256, kernel_size=5, strides=2, activation="relu", padding="same"
)(x)
x = layers.BatchNormalization()(x)
x = layers.Conv1D(
filters=512, kernel_size=7, strides=2, activation="relu", padding="same"
)(x)
x = layers.BatchNormalization()(x)
x = layers.Conv1D(
filters=1024,
kernel_size=7,
strides=2,
activation="relu",
padding="same",
)(x)
x = layers.BatchNormalization()(x)
x = layers.Dropout(0.2)(x)
x = layers.Flatten()(x)
x = layers.Dense(4096, activation="relu")(x)
x = layers.Dropout(0.2)(x)
x = layers.Dense(
2048, activation="relu", kernel_regularizer=keras.regularizers.L2()
)(x)
x = layers.Dropout(0.2)(x)
x = layers.Dense(
1024, activation="relu", kernel_regularizer=keras.regularizers.L2()
)(x)
x = layers.Dropout(0.2)(x)
x = layers.Dense(
128, activation="relu", kernel_regularizer=keras.regularizers.L2()
)(x)
output_layer = layers.Dense(num_classes, activation="softmax")(x)
return keras.Model(inputs=input_layer, outputs=output_layer)
获取模型摘要
conv_model = create_model()
conv_model.summary()
Model: "functional_1"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┓
┃ Layer (type) ┃ Output Shape ┃ Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━┩
│ input_layer (InputLayer) │ (None, 512, 1) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d (Conv1D) │ (None, 256, 32) │ 128 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization │ (None, 256, 32) │ 128 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d_1 (Conv1D) │ (None, 128, 64) │ 6,208 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization_1 │ (None, 128, 64) │ 256 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d_2 (Conv1D) │ (None, 64, 128) │ 41,088 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization_2 │ (None, 64, 128) │ 512 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d_3 (Conv1D) │ (None, 32, 256) │ 164,096 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization_3 │ (None, 32, 256) │ 1,024 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d_4 (Conv1D) │ (None, 16, 512) │ 918,016 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization_4 │ (None, 16, 512) │ 2,048 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ conv1d_5 (Conv1D) │ (None, 8, 1024) │ 3,671,040 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ batch_normalization_5 │ (None, 8, 1024) │ 4,096 │
│ (BatchNormalization) │ │ │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dropout (Dropout) │ (None, 8, 1024) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ flatten (Flatten) │ (None, 8192) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dense (Dense) │ (None, 4096) │ 33,558,528 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dropout_1 (Dropout) │ (None, 4096) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dense_1 (Dense) │ (None, 2048) │ 8,390,656 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dropout_2 (Dropout) │ (None, 2048) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dense_2 (Dense) │ (None, 1024) │ 2,098,176 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dropout_3 (Dropout) │ (None, 1024) │ 0 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dense_3 (Dense) │ (None, 128) │ 131,200 │
├─────────────────────────────────┼───────────────────────────┼────────────┤
│ dense_4 (Dense) │ (None, 19) │ 2,451 │
└─────────────────────────────────┴───────────────────────────┴────────────┘
Total params: 48,989,651 (186.88 MB)
Trainable params: 48,985,619 (186.87 MB)
Non-trainable params: 4,032 (15.75 KB)
定义回调、优化器、损失和指标
在进行大量实验后，我们将 epoch 数设置为 30。它被看到了 这是在执行 Early-Stopping 分析之后的最佳数字。 我们定义了一个 Model Checkpoint 回调，以确保我们只得到最好的模型 权重。 我们还定义了一个 ReduceLROnPlateau，因为在 实验，其中损失在某个时间点后停滞不前。另一方面，一个 发现 direct LRScheduler 的衰变过于激进。
epochs = 30
callbacks = [
keras.callbacks.ModelCheckpoint(
"best_model.keras", save_best_only=True, monitor="loss"
),
keras.callbacks.ReduceLROnPlateau(
monitor="val_top_k_categorical_accuracy",
factor=0.2,
patience=2,
min_lr=0.000001,
),
]
optimizer = keras.optimizers.Adam(amsgrad=True, learning_rate=0.001)
loss = keras.losses.CategoricalCrossentropy()
编译模型并调用model.fit()
我们使用优化器，因为它通常被认为是 初步培训，并被发现是最好的优化器。 我们使用 as the loss，因为我们的标签是 one-hot-encoded 的形式。AdamCategoricalCrossentropy
我们将 、 和 指标定义为 进一步帮助更好地理解模型。TopKCategoricalAccuracy(k=3)AUCPrecisionRecall
conv_model.compile(
optimizer=optimizer,
loss=loss,
metrics=[
keras.metrics.TopKCategoricalAccuracy(k=3),
keras.metrics.AUC(),
keras.metrics.Precision(),
keras.metrics.Recall(),
],
)
conv_model_history = conv_model.fit(
train_dataset,
epochs=epochs,
callbacks=callbacks,
validation_data=test_dataset,
class_weight=weight_dict,
)
Epoch 1/30 8/133 ━[37m━━━━━━━━━━━━━━━━━━━ 1s 16ms/step - auc: 0.5550 - loss: 45.5990 - precision: 0.0183 - recall: 0.0049 - top_k_categorical_accuracy: 0.2154 WARNING: All log messages before absl::InitializeLog() is called are written to STDERR I0000 00:00:1699421521.552287 4412 device_compiler.h:186] Compiled cluster using XLA! This line is logged at most once for the lifetime of the process. W0000 00:00:1699421521.578522 4412 graph_launch.cc:671] Fallback to op-by-op mode because memset node breaks graph update 133/133 ━━━━━━━━━━━━━━━━━━━━ 0s 134ms/step - auc: 0.6119 - loss: 24.8582 - precision: 0.0465 - recall: 0.0022 - top_k_categorical_accuracy: 0.2479 W0000 00:00:1699421539.207966 4409 graph_launch.cc:671] Fallback to op-by-op mode because memset node breaks graph update W0000 00:00:1699421541.374400 4408 graph_launch.cc:671] Fallback to op-by-op mode because memset node breaks graph update W0000 00:00:1699421542.991471 4406 graph_launch.cc:671] Fallback to op-by-op mode because memset node breaks graph update 133/133 ━━━━━━━━━━━━━━━━━━━━ 44s 180ms/step - auc: 0.6122 - loss: 24.7734 - precision: 0.0466 - recall: 0.0022 - top_k_categorical_accuracy: 0.2481 - val_auc: 0.6470 - val_loss: 4.1950 - val_precision: 0.0000e+00 - val_recall: 0.0000e+00 - val_top_k_categorical_accuracy: 0.2610 - learning_rate: 0.0010 Epoch 2/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.6958 - loss: 3.5651 - precision: 0.0000e+00 - recall: 0.0000e+00 - top_k_categorical_accuracy: 0.3162 - val_auc: 0.6364 - val_loss: 3.3169 - val_precision: 0.0000e+00 - val_recall: 0.0000e+00 - val_top_k_categorical_accuracy: 0.2436 - learning_rate: 0.0010 Epoch 3/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.7068 - loss: 2.8805 - precision: 0.1910 - recall: 1.2846e-04 - top_k_categorical_accuracy: 0.3220 - val_auc: 0.6313 - val_loss: 3.0662 - val_precision: 0.0000e+00 - val_recall: 0.0000e+00 - val_top_k_categorical_accuracy: 0.2503 - learning_rate: 0.0010 Epoch 4/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.7370 - loss: 2.6265 - precision: 0.0719 - recall: 2.8215e-04 - top_k_categorical_accuracy: 0.3572 - val_auc: 0.5952 - val_loss: 3.1744 - val_precision: 0.0000e+00 - val_recall: 0.0000e+00 - val_top_k_categorical_accuracy: 0.2282 - learning_rate: 2.0000e-04 Epoch 5/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 65ms/step - auc: 0.7703 - loss: 2.4886 - precision: 0.3738 - recall: 0.0022 - top_k_categorical_accuracy: 0.4029 - val_auc: 0.6320 - val_loss: 3.3036 - val_precision: 0.0000e+00 - val_recall: 0.0000e+00 - val_top_k_categorical_accuracy: 0.2564 - learning_rate: 2.0000e-04 Epoch 6/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 66ms/step - auc: 0.8187 - loss: 2.3009 - precision: 0.6264 - recall: 0.0082 - top_k_categorical_accuracy: 0.4852 - val_auc: 0.6743 - val_loss: 3.4905 - val_precision: 0.1957 - val_recall: 0.0060 - val_top_k_categorical_accuracy: 0.3179 - learning_rate: 4.0000e-05 Epoch 7/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.8577 - loss: 2.1272 - precision: 0.6079 - recall: 0.0307 - top_k_categorical_accuracy: 0.5553 - val_auc: 0.6674 - val_loss: 3.8436 - val_precision: 0.2184 - val_recall: 0.0127 - val_top_k_categorical_accuracy: 0.3286 - learning_rate: 4.0000e-05 Epoch 8/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.8875 - loss: 1.9671 - precision: 0.6614 - recall: 0.0580 - top_k_categorical_accuracy: 0.6400 - val_auc: 0.6577 - val_loss: 4.2607 - val_precision: 0.2212 - val_recall: 0.0167 - val_top_k_categorical_accuracy: 0.3186 - learning_rate: 4.0000e-05 Epoch 9/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9143 - loss: 1.7926 - precision: 0.6770 - recall: 0.0992 - top_k_categorical_accuracy: 0.7189 - val_auc: 0.6465 - val_loss: 4.8088 - val_precision: 0.1780 - val_recall: 0.0228 - val_top_k_categorical_accuracy: 0.3112 - learning_rate: 4.0000e-05 Epoch 10/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9347 - loss: 1.6323 - precision: 0.6741 - recall: 0.1508 - top_k_categorical_accuracy: 0.7832 - val_auc: 0.6483 - val_loss: 4.8556 - val_precision: 0.2424 - val_recall: 0.0268 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 8.0000e-06 Epoch 11/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 64ms/step - auc: 0.9442 - loss: 1.5469 - precision: 0.6985 - recall: 0.1855 - top_k_categorical_accuracy: 0.8095 - val_auc: 0.6443 - val_loss: 5.0003 - val_precision: 0.2216 - val_recall: 0.0288 - val_top_k_categorical_accuracy: 0.3052 - learning_rate: 8.0000e-06 Epoch 12/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 64ms/step - auc: 0.9490 - loss: 1.4935 - precision: 0.7196 - recall: 0.2063 - top_k_categorical_accuracy: 0.8293 - val_auc: 0.6411 - val_loss: 5.0008 - val_precision: 0.2383 - val_recall: 0.0341 - val_top_k_categorical_accuracy: 0.3112 - learning_rate: 1.6000e-06 Epoch 13/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 65ms/step - auc: 0.9514 - loss: 1.4739 - precision: 0.7071 - recall: 0.2147 - top_k_categorical_accuracy: 0.8371 - val_auc: 0.6411 - val_loss: 5.0279 - val_precision: 0.2356 - val_recall: 0.0355 - val_top_k_categorical_accuracy: 0.3126 - learning_rate: 1.6000e-06 Epoch 14/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 2s 14ms/step - auc: 0.9512 - loss: 1.4739 - precision: 0.7102 - recall: 0.2141 - top_k_categorical_accuracy: 0.8349 - val_auc: 0.6407 - val_loss: 5.0457 - val_precision: 0.2340 - val_recall: 0.0368 - val_top_k_categorical_accuracy: 0.3099 - learning_rate: 1.0000e-06 Epoch 15/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 9s 64ms/step - auc: 0.9533 - loss: 1.4524 - precision: 0.7206 - recall: 0.2240 - top_k_categorical_accuracy: 0.8421 - val_auc: 0.6400 - val_loss: 5.0557 - val_precision: 0.2292 - val_recall: 0.0368 - val_top_k_categorical_accuracy: 0.3092 - learning_rate: 1.0000e-06 Epoch 16/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9536 - loss: 1.4489 - precision: 0.7201 - recall: 0.2218 - top_k_categorical_accuracy: 0.8367 - val_auc: 0.6401 - val_loss: 5.0850 - val_precision: 0.2336 - val_recall: 0.0382 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 1.0000e-06 Epoch 17/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9542 - loss: 1.4429 - precision: 0.7207 - recall: 0.2353 - top_k_categorical_accuracy: 0.8404 - val_auc: 0.6397 - val_loss: 5.1047 - val_precision: 0.2249 - val_recall: 0.0375 - val_top_k_categorical_accuracy: 0.3086 - learning_rate: 1.0000e-06 Epoch 18/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9547 - loss: 1.4353 - precision: 0.7195 - recall: 0.2323 - top_k_categorical_accuracy: 0.8455 - val_auc: 0.6389 - val_loss: 5.1215 - val_precision: 0.2305 - val_recall: 0.0395 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 1.0000e-06 Epoch 19/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9554 - loss: 1.4271 - precision: 0.7254 - recall: 0.2326 - top_k_categorical_accuracy: 0.8492 - val_auc: 0.6386 - val_loss: 5.1395 - val_precision: 0.2269 - val_recall: 0.0395 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 1.0000e-06 Epoch 20/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9559 - loss: 1.4221 - precision: 0.7248 - recall: 0.2471 - top_k_categorical_accuracy: 0.8439 - val_auc: 0.6385 - val_loss: 5.1655 - val_precision: 0.2264 - val_recall: 0.0402 - val_top_k_categorical_accuracy: 0.3052 - learning_rate: 1.0000e-06 Epoch 21/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 64ms/step - auc: 0.9565 - loss: 1.4170 - precision: 0.7169 - recall: 0.2421 - top_k_categorical_accuracy: 0.8543 - val_auc: 0.6385 - val_loss: 5.1851 - val_precision: 0.2271 - val_recall: 0.0415 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 1.0000e-06 Epoch 22/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9577 - loss: 1.4029 - precision: 0.7305 - recall: 0.2518 - top_k_categorical_accuracy: 0.8536 - val_auc: 0.6384 - val_loss: 5.2043 - val_precision: 0.2279 - val_recall: 0.0415 - val_top_k_categorical_accuracy: 0.3059 - learning_rate: 1.0000e-06 Epoch 23/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9574 - loss: 1.4048 - precision: 0.7285 - recall: 0.2575 - top_k_categorical_accuracy: 0.8527 - val_auc: 0.6382 - val_loss: 5.2247 - val_precision: 0.2308 - val_recall: 0.0442 - val_top_k_categorical_accuracy: 0.3106 - learning_rate: 1.0000e-06 Epoch 24/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9579 - loss: 1.3998 - precision: 0.7426 - recall: 0.2588 - top_k_categorical_accuracy: 0.8503 - val_auc: 0.6386 - val_loss: 5.2479 - val_precision: 0.2308 - val_recall: 0.0442 - val_top_k_categorical_accuracy: 0.3092 - learning_rate: 1.0000e-06 Epoch 25/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9585 - loss: 1.3918 - precision: 0.7348 - recall: 0.2609 - top_k_categorical_accuracy: 0.8607 - val_auc: 0.6378 - val_loss: 5.2648 - val_precision: 0.2287 - val_recall: 0.0448 - val_top_k_categorical_accuracy: 0.3106 - learning_rate: 1.0000e-06 Epoch 26/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9587 - loss: 1.3881 - precision: 0.7425 - recall: 0.2669 - top_k_categorical_accuracy: 0.8544 - val_auc: 0.6380 - val_loss: 5.2877 - val_precision: 0.2226 - val_recall: 0.0448 - val_top_k_categorical_accuracy: 0.3099 - learning_rate: 1.0000e-06 Epoch 27/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9590 - loss: 1.3834 - precision: 0.7469 - recall: 0.2665 - top_k_categorical_accuracy: 0.8599 - val_auc: 0.6379 - val_loss: 5.3021 - val_precision: 0.2252 - val_recall: 0.0455 - val_top_k_categorical_accuracy: 0.3072 - learning_rate: 1.0000e-06 Epoch 28/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 64ms/step - auc: 0.9597 - loss: 1.3763 - precision: 0.7600 - recall: 0.2701 - top_k_categorical_accuracy: 0.8628 - val_auc: 0.6380 - val_loss: 5.3241 - val_precision: 0.2244 - val_recall: 0.0469 - val_top_k_categorical_accuracy: 0.3119 - learning_rate: 1.0000e-06 Epoch 29/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9601 - loss: 1.3692 - precision: 0.7549 - recall: 0.2761 - top_k_categorical_accuracy: 0.8634 - val_auc: 0.6372 - val_loss: 5.3494 - val_precision: 0.2229 - val_recall: 0.0469 - val_top_k_categorical_accuracy: 0.3119 - learning_rate: 1.0000e-06 Epoch 30/30 133/133 ━━━━━━━━━━━━━━━━━━━━ 8s 63ms/step - auc: 0.9604 - loss: 1.3694 - precision: 0.7447 - recall: 0.2723 - top_k_categorical_accuracy: 0.8648 - val_auc: 0.6372 - val_loss: 5.3667 - val_precision: 0.2226 - val_recall: 0.0475 - val_top_k_categorical_accuracy: 0.3119 - learning_rate: 1.0000e-06 在训练期间可视化模型指标

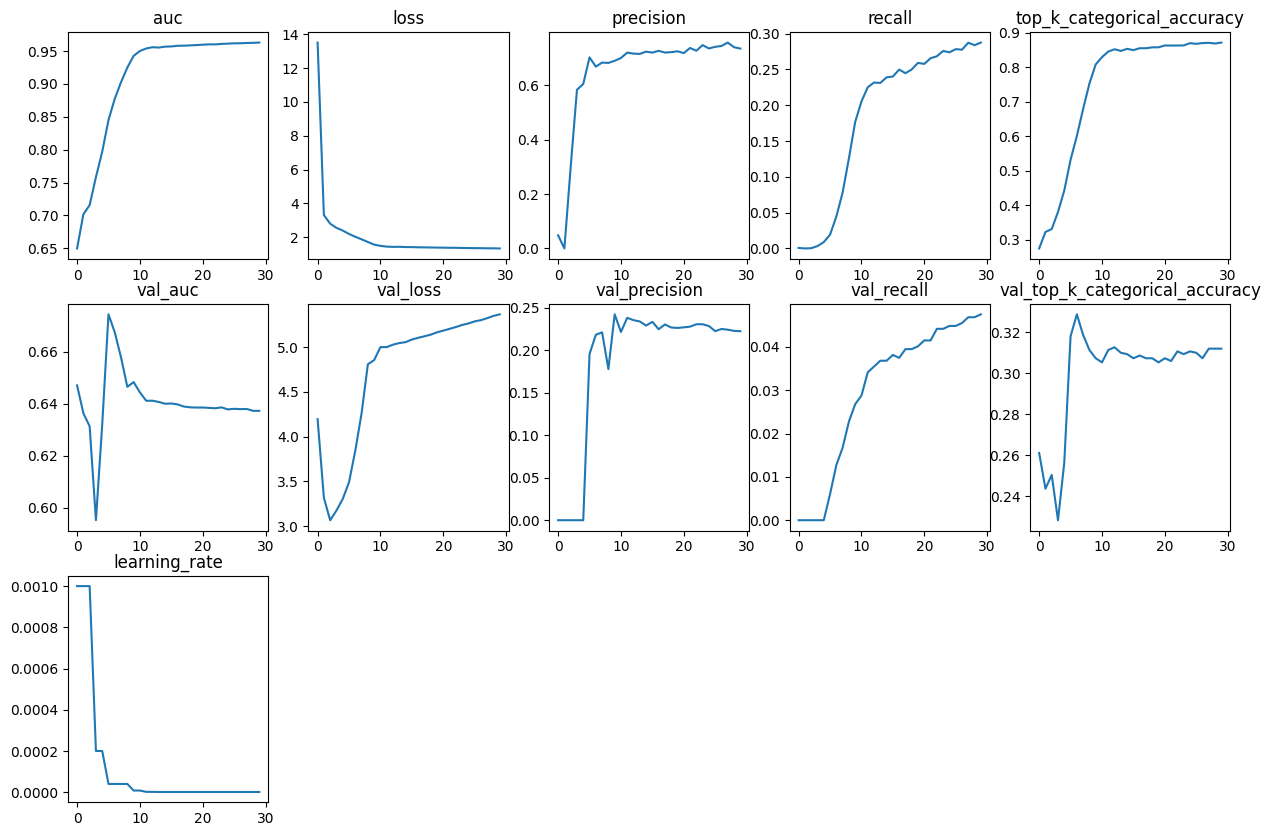

我们使用上面定义的函数在训练期间查看模型指标。
plot_history_metrics(conv_model_history)
根据测试数据评估模型
loss, accuracy, auc, precision, recall = conv_model.evaluate(test_dataset)
print(f"Loss : {loss}")
print(f"Top 3 Categorical Accuracy : {accuracy}")
print(f"Area under the Curve (ROC) : {auc}")
print(f"Precision : {precision}")
print(f"Recall : {recall}")

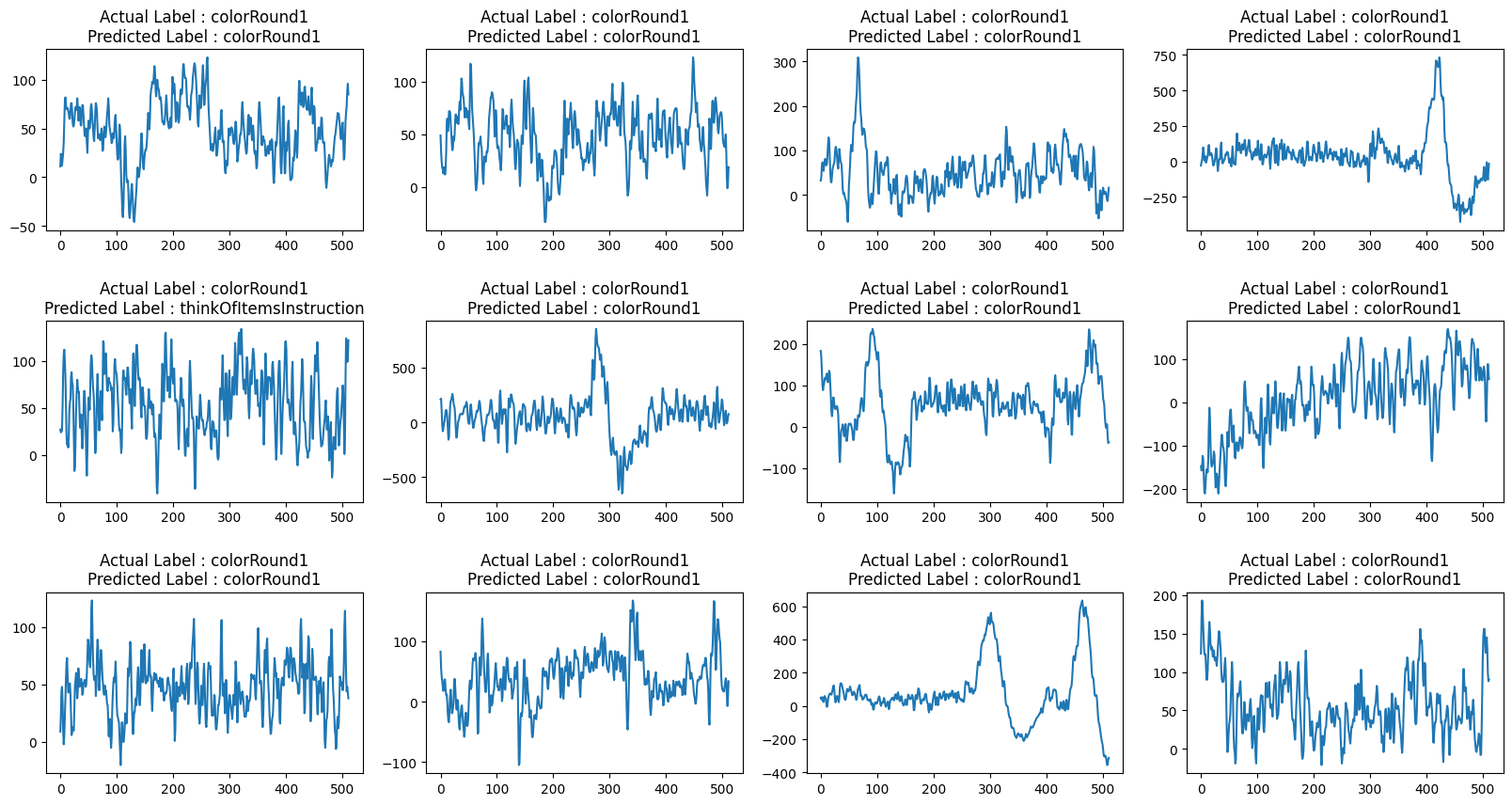

def view_evaluated_eeg_plots(model):
start_index = random.randint(10, len(eeg))
end_index = start_index + 11
data = eeg.loc[start_index:end_index, "raw_values"]
data_array = [scaler.fit_transform(np.asarray(i).reshape(-1, 1)) for i in data]
data_array = [np.asarray(data_array).astype(np.float32).reshape(-1, 512, 1)]
original_labels = eeg.loc[start_index:end_index, "label"]
predicted_labels = np.argmax(model.predict(data_array, verbose=0), axis=1)
original_labels = [
le.inverse_transform(np.array(label).reshape(-1))[0]
for label in original_labels
]
predicted_labels = [
le.inverse_transform(np.array(label).reshape(-1))[0]
for label in predicted_labels
]
total_plots = 12
cols = total_plots // 3
rows = total_plots // cols
if total_plots % cols != 0:
rows += 1
pos = range(1, total_plots + 1)
fig = plt.figure(figsize=(20, 10))
for i, (plot_data, og_label, pred_label) in enumerate(
zip(data, original_labels, predicted_labels)
):
plt.subplot(rows, cols, pos[i])
plt.plot(plot_data)
plt.title(f"Actual Label : {og_label}\nPredicted Label : {pred_label}")
fig.subplots_adjust(hspace=0.5)
plt.show()
view_evaluated_eeg_plots(conv_model)
24/24 ━━━━━━━━━━━━━━━━━━━━ 0s 4ms/step - auc: 0.6438 - loss: 5.3150 - precision: 0.2589 - recall: 0.0565 - top_k_categorical_accuracy: 0.3281 Loss : 5.366718769073486 Top 3 Categorical Accuracy : 0.6372398138046265 Area under the Curve (ROC) : 0.222570538520813 Precision : 0.04752342775464058 Recall : 0.311914324760437 W0000 00:00:1699421785.101645 4408 graph_launch.cc:671] Fallback to op-by-op mode because memset node breaks graph update
扫一扫
999
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
