QT6 源（129）QAbstractListModel 与 QAbstractTableModel：列表模型基类与表格基类的源码阅读与注释

（1）本类相对于其基类，没有做大的扩展，所以不再测试了 ：

class Q_CORE_EXPORT QAbstractListModel : public QAbstractItemModel
{
    Q_OBJECT //又插入了此宏

protected:

    QAbstractListModel(QAbstractItemModelPrivate & dd, QObject * parent); //有参构造函数

private:

    Q_DISABLE_COPY(QAbstractListModel)

    QModelIndex parent(const QModelIndex & child ) const override; //私有函数不能再被调用了

    int    columnCount(const QModelIndex & parent) const override;

    bool   hasChildren(const QModelIndex & parent) const override;

public:
    explicit QAbstractListModel(QObject * parent = nullptr); //有参构造函数

    ~QAbstractListModel(); //析构函数

    using QObject::parent; //QObject * QObject::parent() const 返回本对象的容器父类

    //Reimplements: QAbstractItemModel::flags(const QModelIndex & index) const.
    Qt::ItemFlags flags(const QModelIndex & index) const override;

    //QModelIndex QAbstractItemModel::index(int row, int column,
    //                          const QModelIndex & parent = QModelIndex()) const = 0;
    //本子类相对于父类，重写此函数的不同之处，就是为形参 2的列参数指定了默认值，因为只有一列。
    //Returns the index of the data in row and column with parent.
    QModelIndex   index(int   row,    int   column = 0, //也是重写的基类成员函数
                        const QModelIndex & parent = QModelIndex()) const override;

    QModelIndex sibling(int row, int column, const QModelIndex & idx) const override;
    //Reimplements: QAbstractItemModel::sibling(int row, int column, QModelIndex & index).

    bool dropMimeData(const QMimeData * data, Qt::DropAction action, //也是重写父类成员函数
                      int row, int column, const QModelIndex & parent) override;
    //Reimplements: QAbstractItemModel::dropMimeData(QMimeData * data,
    //      Qt::DropAction action, int row, int column, QModelIndex & parent).

}; //完结 class QAbstractListModel : public QAbstractItemModel

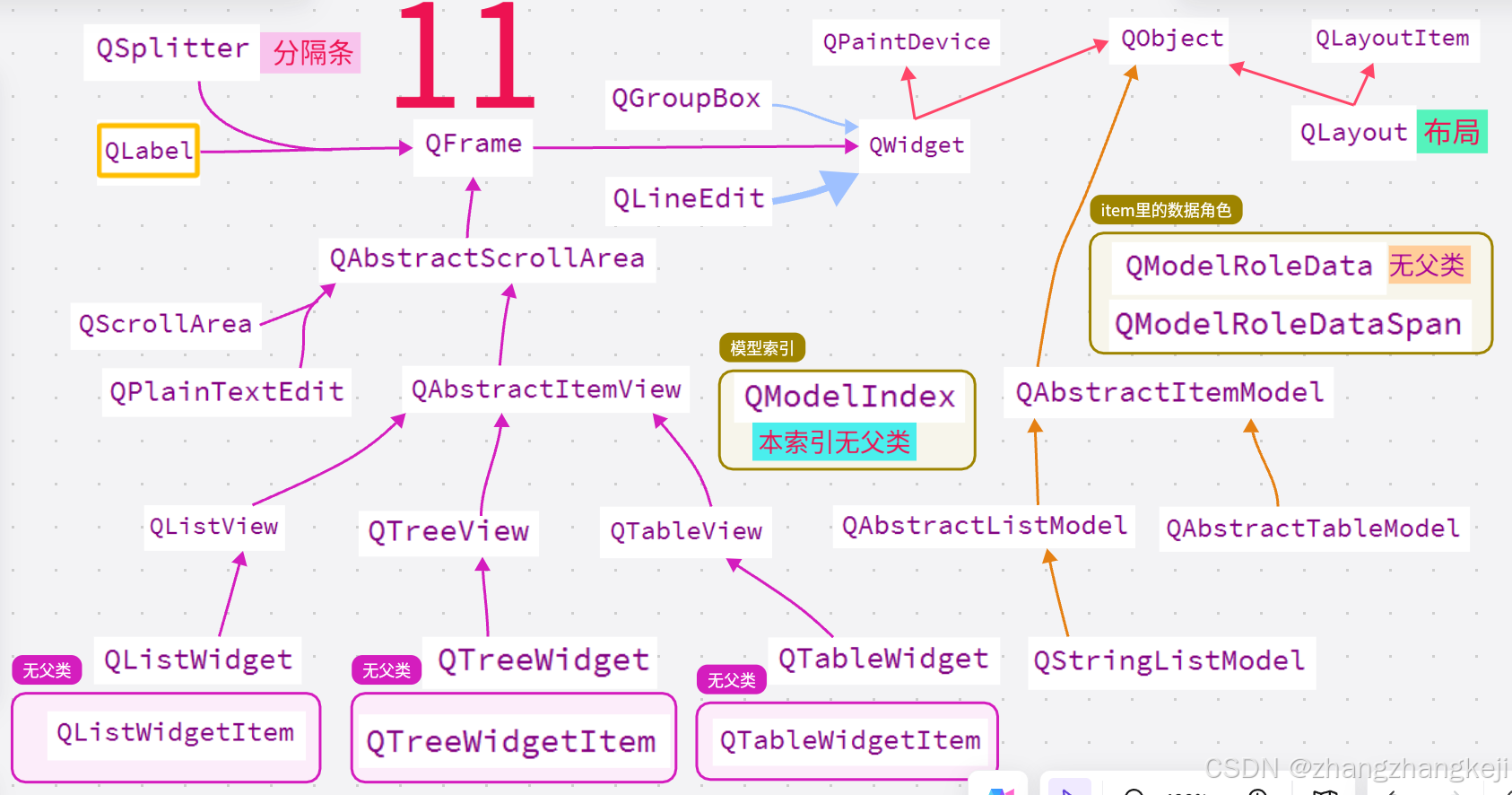

（2）给出本类的继承关系图 ：

（3）表格基类里的内容也非常少：

class Q_CORE_EXPORT QAbstractTableModel : public QAbstractItemModel
{
    Q_OBJECT //又插入了此宏

protected:
    QAbstractTableModel(QAbstractItemModelPrivate & dd, QObject * parent); //有参构造函数

private:
    Q_DISABLE_COPY(QAbstractTableModel)
    QModelIndex      parent(const QModelIndex & child ) const override; //禁用了这俩函数
    bool        hasChildren(const QModelIndex & parent) const override;

public:
    explicit QAbstractTableModel(QObject * parent = nullptr); //有参构造函数

    ~QAbstractTableModel();  //析构函数

    using QObject::parent ;  //QObject * QObject::parent() const 返回本对象的容器父类

    //Reimplements: QAbstractItemModel::flags(const QModelIndex & index) const.
    Qt::ItemFlags flags(const QModelIndex & index) const override;

    //QModelIndex QAbstractItemModel::index(int row, int column,
    //                          const QModelIndex & parent = QModelIndex()) const = 0;
    //Returns the index of the data in row and column with parent.
    QModelIndex   index(int row, int column,
                        const QModelIndex & parent = QModelIndex()  ) const override;

    //Reimplements: QAbstractItemModel::index(int row, int column, QModelIndex & parent).
    //Returns the index of the data in row and column with parent.
    QModelIndex sibling(int row, int column, const QModelIndex & idx) const override;

    bool   dropMimeData(const QMimeData * data, Qt::DropAction action,
                        int row, int column, const QModelIndex & parent) override;
    //Reimplements: QAbstractItemModel::dropMimeData(QMimeData * data,
    //      Qt::DropAction action, int row, int column, QModelIndex & parent).


}; //完结 class QAbstractTableModel : public QAbstractItemModel

（4）
