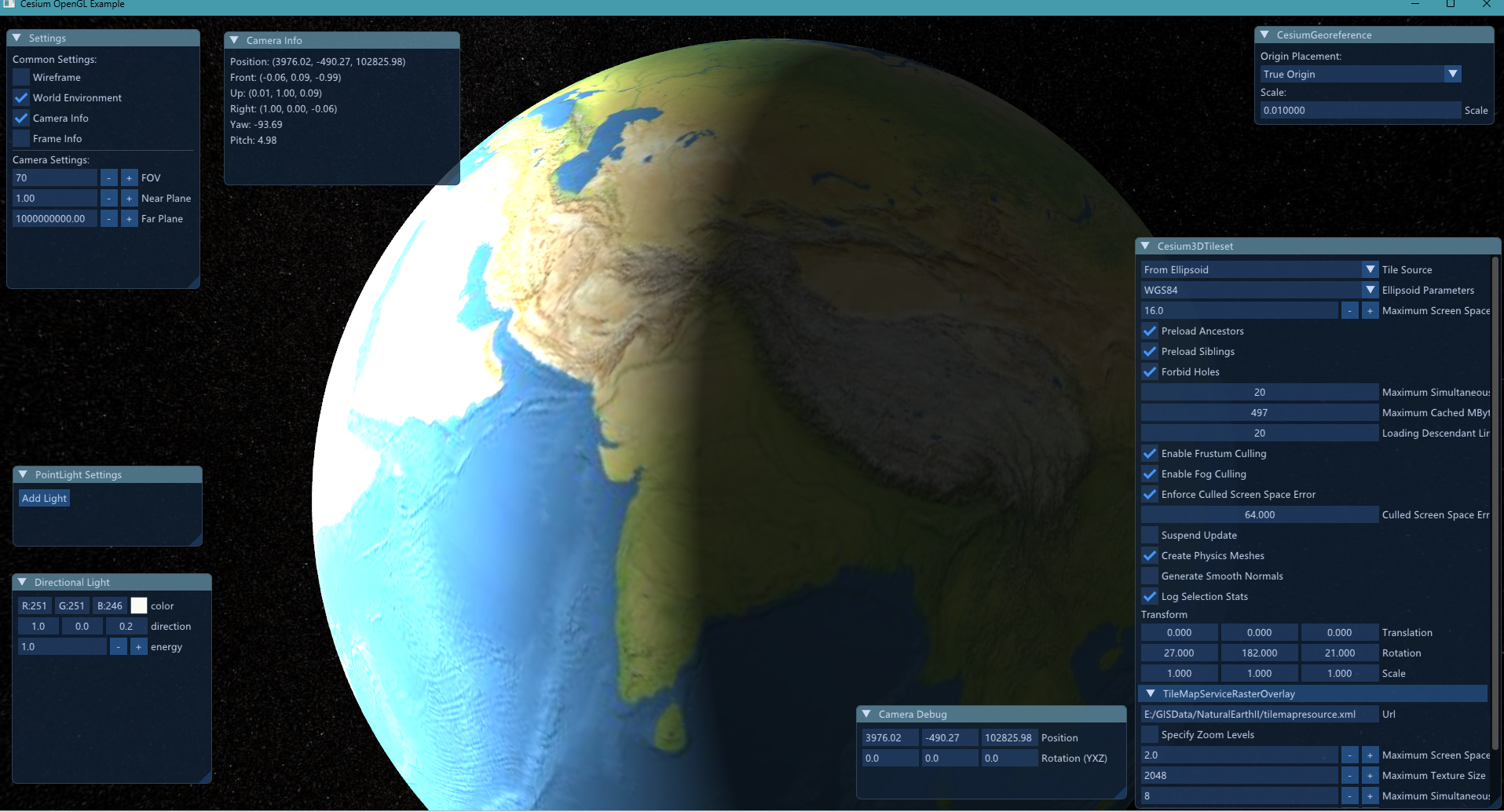

cesium-native+OpenGL开发笔记—渲染GIS球

坐标系转换

• OpenGL 坐标系
  右手坐标系，X 轴水平向右，Y 轴竖直向上，Z 轴指向屏幕外面。

          Y（绿色，朝上）
          ^
          |
          |
          |
          *----> X（红色，向右）
         /
        /
       Z（蓝色，向前）
      （指向屏幕外）

• 3D Tiles 坐标系
  右手坐标系， Z 轴朝上

         Z（蓝色，朝上）
         ^
         |
         | /  Y（绿色，朝屏幕内）
         |/
         *----> X（红色，朝右）

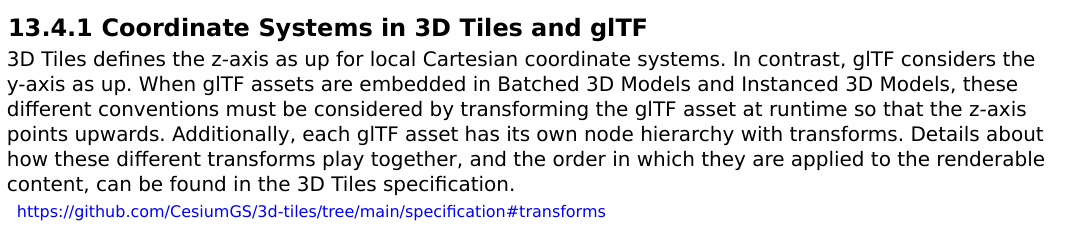

• glTF 模型坐标系
  右手坐标系，Y 轴朝上

• 3D Tiles 和 OpenGL 坐标系上方向存在差异，实际绘制是在 OpenGL 坐标系下进行，需要调整。

CesiumGeospatial::LocalHorizontalCoordinateSystem CesiumGeoreference::createCoordinateSystem() {
    double scaleToMeters = 1.0 / scale;
    if (originPlacement == CesiumGeoreferenceOriginPlacement::TrueOrigin) {
    // 3D Tiles 坐标系轴向与OpenGL不同，需要转换
         glm::dmat4 localToEcef(
             glm::dvec4(scaleToMeters, 0.0, 0.0, 0.0),
             glm::dvec4(0.0, 0.0, scaleToMeters, 0.0), // 将 3D Tiles 朝上的 Z 轴作为 OpenGL 朝上的 Y 轴
             glm::dvec4(0.0, -scaleToMeters, 0.0, 0.0), // 根据右手法则，在 X 轴朝向相同的情况下，3D Tiles Y 轴负方向作为 OpenGL Z 轴正方向
            glm::dvec4(0.0, 0.0, 0.0, 1.0)
        );
        return CesiumGeospatial::LocalHorizontalCoordinateSystem(localToEcef);
    }
	/**
     east(X)-up(Z)-south(Y)地理方位构成右手坐标系
           N
           |
     W ----|----- E
           |
           S

    **/
    if (originAuthority == CesiumGeoreferenceOriginAuthority::EarthCenteredEarthFixed) {
        return CesiumGeospatial::LocalHorizontalCoordinateSystem(glm::dvec3(ecefX, ecefY, ecefZ),
                                                                 CesiumGeospatial::LocalDirection::East,
                                                                 CesiumGeospatial::LocalDirection::Up,
                                                                 CesiumGeospatial::LocalDirection::South,
                                                                 scaleToMeters,
                                                                 ellipsoid->getNativeEllipsoid());
    }
    return CesiumGeospatial::LocalHorizontalCoordinateSystem(glm::dvec3(longitude, latitude, height),
                                                             CesiumGeospatial::LocalDirection::East,
                                                             CesiumGeospatial::LocalDirection::Up,
                                                             CesiumGeospatial::LocalDirection::South,
                                                             scaleToMeters,
                                                             ellipsoid->getNativeEllipsoid());
}

void *PrepareRendererResources::prepareInMainThread(Cesium3DTilesSelection::Tile &tile, void *pLoadThreadResult_) {
    // SPDLOG_INFO("---------prepare in main---------");
    const Cesium3DTilesSelection::TileContent &content = tile.getContent();
    const Cesium3DTilesSelection::TileRenderContent *pRenderContent = content.getRenderContent();
    if (!pRenderContent) {
        return nullptr;
    }

    std::unique_ptr<LoadThreadResult> pLoadThreadResult(static_cast<LoadThreadResult *>(pLoadThreadResult_));
    std::vector<std::shared_ptr<Mesh>> meshes = pLoadThreadResult->meshes;
    const std::vector<CesiumPrimitiveInfo> &primitiveInfos = pLoadThreadResult->primitiveInfos;

    const CesiumGltf::Model &model = pRenderContent->getModel();
    glm::dmat4 tileTransform = tile.getTransform();

    tileTransform = CesiumGltfContent::GltfUtilities::applyRtcCenter(model, tileTransform);
    tileTransform = CesiumGltfContent::GltfUtilities::applyGltfUpAxisTransform(model, tileTransform);
    // 将模型从 glTF 的 Y 轴向上坐标系转换为 Cesium 的 Z 轴向上坐标系。
    tileTransform = tileTransform * CesiumGeometry::Transforms::Y_UP_TO_Z_UP;

    int32_t meshSize = meshes.size();
    if (!meshSize) {
        return nullptr;
    }

    std::string name = "glTF";
    auto urlIt = model.extras.find("Cesium3DTiles_TileUrl");
    if (urlIt != model.extras.end()) {
        name = urlIt->second.getStringOrDefault("glTF");
    }

    size_t meshIndex = 0;

    GameComponent* tilesetComponentPtr = pTileset;
    CesiumGeoreference* georeferencePtr = pTileset->getGeoreference();
    model.forEachPrimitiveInScene(
        -1,
        [tilesetComponentPtr, georeferencePtr, &meshes, &primitiveInfos, &meshIndex, &tile, &tileTransform](const CesiumGltf::Model &gltf,
                                                      const CesiumGltf::Node &node,
                                                      const CesiumGltf::Mesh &mesh,
                                                      const CesiumGltf::MeshPrimitive &primitive,
                                                      const glm::dmat4 &transform) {
        auto positionAccessorIt = primitive.attributes.find("POSITION");
        if (positionAccessorIt == primitive.attributes.end()) {
            return;
        }

        int32_t positionAccessorID = positionAccessorIt->second;
        CesiumGltf::AccessorView<glm::vec3> positionView(gltf, positionAccessorID);
        if (positionView.status() != CesiumGltf::AccessorViewStatus::Valid) {
            return;
        }

        const CesiumPrimitiveInfo &primitiveInfo = primitiveInfos[meshIndex];
        glm::dmat4 modelToEcef = tileTransform * transform;

        auto meshInstancePtr = meshes[meshIndex];
        meshInstancePtr->setParent(tilesetComponentPtr);

        // 地球锚点配置
        CesiumGlobeAnchor* anchor= new CesiumGlobeAnchor(georeferencePtr);
        meshInstancePtr->addGlobeAnchor(anchor);
        anchor->setDetectTransformChanges(false);
        anchor->setAdjustOrientationForGlobeWhenMoving(false);
        anchor->updateLocalToGlobeFixedMatrixAndEcef(modelToEcef);
        anchor->setParent(meshInstancePtr.get());

        const CesiumGltf::Material *pMaterial = CesiumGltf::Model::getSafe(&gltf.materials, primitive.material);
        if (pMaterial) {
            setGltfMaterialParameterValues(gltf, primitiveInfo, pMaterial, meshes[meshIndex++]);
        }
    });

    return new CesiumGltfObject{std::move(meshes), std::move(pLoadThreadResult->primitiveInfos)};
}

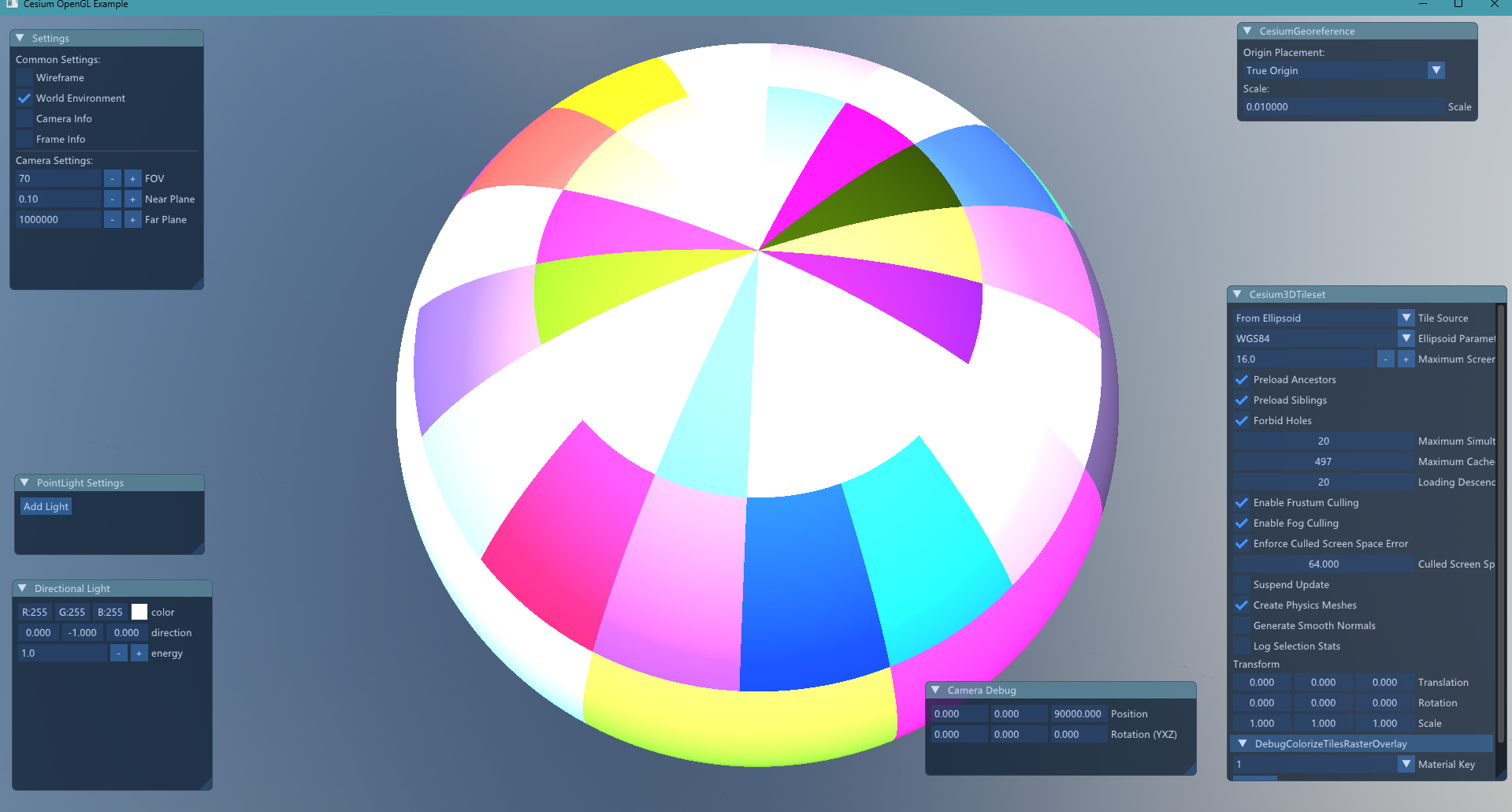

void PrepareRendererResources::attachRasterInMainThread(const Cesium3DTilesSelection::Tile &tile,
                                                        int32_t overlayTextureCoordinateID,
                                                        const CesiumRasterOverlays::RasterOverlayTile &rasterTile,
                                                        void *pMainThreadRendererResources,
                                                        const glm::dvec2 &translation,
                                                        const glm::dvec2 &scale) {
    const Cesium3DTilesSelection::TileContent &content = tile.getContent();
    const Cesium3DTilesSelection::TileRenderContent *pRenderContent = content.getRenderContent();
    if (!pRenderContent) {
        return;
    }

    CesiumGltfObject *pCesiumGltfObj = static_cast<CesiumGltfObject *>(pRenderContent->getRenderResources());
    Texture *pTexture = static_cast<Texture *>(pMainThreadRendererResources);
    if (!pCesiumGltfObj || pCesiumGltfObj->meshes.empty() || !pTexture) {
        return;
    }

    std::string key = rasterTile.getOverlay().getName();
    size_t primitiveIndex = 0;
    std::vector<std::shared_ptr<Mesh>> meshes = pCesiumGltfObj->meshes;
    std::vector<CesiumPrimitiveInfo> primitiveInfos = pCesiumGltfObj->primitiveInfos;
    for (size_t i = 0, len = meshes.size(); i < len; ++i) {
        const CesiumPrimitiveInfo &primitiveInfo = primitiveInfos[primitiveIndex++];
        auto texCoordIndexIt = primitiveInfo.rasterOverlayUvIndexMap.find(overlayTextureCoordinateID);
        if (texCoordIndexIt == primitiveInfo.rasterOverlayUvIndexMap.end()) {
            continue;
        }

        pTexture->offset = translation;
        pTexture->scale = scale;
        pTexture->flipY = true; // 纹理在Y方向需要翻转，否则瓦片贴图错乱

        std::vector<Texture> textures{*pTexture};
        meshes[i]->setTextures(textures);
    }
};
