在LC480T上部署xapp1052

已于 2025-07-18 17:01:20 修改
阅读量238 收藏
点赞数 1
CC 4.0 BY-SA版权
分类专栏： Verilog 文章标签： pcie fpga verilog linux 驱动
于 2025-07-12 22:32:46 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/xiaolangyangyang/article/details/149301274
实验环境：LC480T加速卡

开发环境：windows11+vivado2020
运行环境：ubuntu22.04
硬件电路：LC480T加速卡(xc7k480tffg1156-2)
vivado工程文件下载：
https://download.youkuaiyun.com/download/xiaolangyangyang/91349686
https://download.youkuaiyun.com/download/xiaolangyangyang/91388174
驱动及应用代码下载：https://download.youkuaiyun.com/download/xiaolangyangyang/91349692
LC480T引脚说明下载：https://download.youkuaiyun.com/download/xiaolangyangyang/91350582
xapp1052_xbmd寄存器说明下载：https://download.youkuaiyun.com/download/xiaolangyangyang/91350584
7 Series FPGAs Integrated Block for PCI Express spec：AMD Technical Information Portal

一、说明

        xilinx官网xapp1052例程是基于Kintex-7 KC705 Evaluation Platform (xc7k325tffg900-2)开发板，使用7 Series FPGAs Integrated Block for PCI Express ip核，如果直接将项目修改成device为xc7k480tffg1156-2生成bit文件过程会报错，所以重新构建工程，将官网xapp1052例程的xbmd文件夹拷贝到工程，修改顶层文件及约束文件，生成bit文件。

        xilinx官网xapp1052例程软件基于Fedora-10操作系统，内核很旧，代码在ubuntu22.04上编译不过，所以考虑从新编写驱动及应用代码。

二、构建vivado项目并生成bin文件

        打开工程，生成bit即可，约束文件如下：

##-----------------------------------------------------------------------------
##
## (c) Copyright 2010-2011 Xilinx, Inc. All rights reserved.
##
## This file contains confidential and proprietary information
## of Xilinx, Inc. and is protected under U.S. and
## international copyright and other intellectual property
## laws.
##
## DISCLAIMER
## This disclaimer is not a license and does not grant any
## rights to the materials distributed herewith. Except as
## otherwise provided in a valid license issued to you by
## Xilinx, and to the maximum extent permitted by applicable
## law: (1) THESE MATERIALS ARE MADE AVAILABLE "AS IS" AND
## WITH ALL FAULTS, AND XILINX HEREBY DISCLAIMS ALL WARRANTIES
## AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
## BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-
## INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and
## (2) Xilinx shall not be liable (whether in contract or tort,
## including negligence, or under any other theory of
## liability) for any loss or damage of any kind or nature
## related to, arising under or in connection with these
## materials, including for any direct, or any indirect,
## special, incidental, or consequential loss or damage
## (including loss of data, profits, goodwill, or any type of
## loss or damage suffered as a result of any action brought
## by a third party) even if such damage or loss was
## reasonably foreseeable or Xilinx had been advised of the
## possibility of the same.
##
## CRITICAL APPLICATIONS
## Xilinx products are not designed or intended to be fail-
## safe, or for use in any application requiring fail-safe
## performance, such as life-support or safety devices or
## systems, Class III medical devices, nuclear facilities,
## applications related to the deployment of airbags, or any
## other applications that could lead to death, personal
## injury, or severe property or environmental damage
## (individually and collectively, "Critical
## Applications"). Customer assumes the sole risk and
## liability of any use of Xilinx products in Critical
## Applications, subject only to applicable laws and
## regulations governing limitations on product liability.
##
## THIS COPYRIGHT NOTICE AND DISCLAIMER MUST BE RETAINED AS
## PART OF THIS FILE AT ALL TIMES.
##
##-----------------------------------------------------------------------------
## Project    : Series-7 Integrated Block for PCI Express
## File       : xilinx_pcie_7x_ep_x8g2.xdc
## Version    : 3.3
#
###############################################################################
# User Configuration
# Link Width   - x8
# Link Speed   - gen2
# Family       - kintex7
# Part         - xc7k480t
# Package      - ffg1156
# Speed grade  - -2
# PCIe Block   - X0Y0
###############################################################################
#
###############################################################################
# User Time Names / User Time Groups / Time Specs
###############################################################################

###############################################################################
# User Physical Constraints
###############################################################################


###############################################################################
# Pinout and Related I/O Constraints
###############################################################################

#
# SYS reset (input) signal.  The sys_reset_n signal should be
# obtained from the PCI Express interface if possible.  For
# slot based form factors, a system reset signal is usually
# present on the connector.  For cable based form factors, a
# system reset signal may not be available.  In this case, the
# system reset signal must be generated locally by some form of
# supervisory circuit.  You may change the IOSTANDARD and LOC
# to suit your requirements and VCCO voltage banking rules.
# Some 7 series devices do not have 3.3 V I/Os available.
# Therefore the appropriate level shift is required to operate
# with these devices that contain only 1.8 V banks.
#

set_property PULLUP true [get_ports sys_rst_n]

###############################################################################
# Physical Constraints
###############################################################################
#
# SYS clock 100 MHz (input) signal. The sys_clk_p and sys_clk_n
# signals are the PCI Express reference clock. Virtex-7 GT
# Transceiver architecture requires the use of a dedicated clock
# resources (FPGA input pins) associated with each GT Transceiver.
# To use these pins an IBUFDS primitive (refclk_ibuf) is
# instantiated in user's design.
# Please refer to the Virtex-7 GT Transceiver User Guide
# (UG) for guidelines regarding clock resource selection.
#

set_property LOC IBUFDS_GTE2_X0Y9 [get_cells refclk_ibuf]

###############################################################################
# Timing Constraints
###############################################################################
#
create_clock -name sys_clk -period 10 [get_ports sys_clk_p]
#
#
set_false_path -to [get_pins {pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/S0}]
set_false_path -to [get_pins {pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/S1}]
#
#
create_generated_clock -name clk_125mhz_x0y0 [get_pins pcie_7x_0_support_i/pipe_clock_i/mmcm_i/CLKOUT0]
create_generated_clock -name clk_250mhz_x0y0 [get_pins pcie_7x_0_support_i/pipe_clock_i/mmcm_i/CLKOUT1]
create_generated_clock -name clk_125mhz_mux_x0y0 \
                        -source [get_pins pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/I0] \
                        -divide_by 1 \
                        [get_pins pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/O]
#
create_generated_clock -name clk_250mhz_mux_x0y0 \
                        -source [get_pins pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/I1] \
                        -divide_by 1 -add -master_clock [get_clocks -of [get_pins pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/I1]] \
                        [get_pins pcie_7x_0_support_i/pipe_clock_i/pclk_i1_bufgctrl.pclk_i1/O]
#
set_clock_groups -name pcieclkmux -physically_exclusive -group clk_125mhz_mux_x0y0 -group clk_250mhz_mux_x0y0

#
# Timing ignoring the below pins to avoid CDC analysis, but care has been taken in RTL to sync properly to other clock domain.
#
#
##############################################################################
# Tandem Configuration Constraints
###############################################################################

set_false_path -from [get_ports sys_rst_n]

set_property PACKAGE_PIN J8 [get_ports sys_clk_p]
set_property IOSTANDARD LVCMOS33 [get_ports sys_rst_n]
set_property PACKAGE_PIN Y26 [get_ports sys_rst_n]

set_property LOC GTXE2_CHANNEL_X0Y23 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[0].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN F2 [get_ports {pci_exp_txp[0]}]
set_property LOC GTXE2_CHANNEL_X0Y22 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[1].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN H2 [get_ports {pci_exp_txp[1]}]
set_property LOC GTXE2_CHANNEL_X0Y21 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[2].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN K2 [get_ports {pci_exp_txp[2]}]
set_property LOC GTXE2_CHANNEL_X0Y20 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[3].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN M2 [get_ports {pci_exp_txp[3]}]
set_property LOC GTXE2_CHANNEL_X0Y19 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[4].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN N4 [get_ports {pci_exp_txp[4]}]
set_property LOC GTXE2_CHANNEL_X0Y18 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[5].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN P2 [get_ports {pci_exp_txp[5]}]
set_property LOC GTXE2_CHANNEL_X0Y17 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[6].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN T2 [get_ports {pci_exp_txp[6]}]
set_property LOC GTXE2_CHANNEL_X0Y16 [get_cells {pcie_7x_1_support_i/pcie_7x_1_i/inst/inst/gt_top_i/pipe_wrapper_i/pipe_lane[7].gt_wrapper_i/gtx_channel.gtxe2_channel_i}]
set_property PACKAGE_PIN U4 [get_ports {pci_exp_txp[7]}]

###############################################################################
# End
###############################################################################

三、代码列表

        头文件：

//--------------------------------------------------------------------------------
//-- Filename: xbmd.h
//--
//-- Description: Main header file for kernel driver
//--
//-- XBMD is an example Red Hat device driver which exercises XBMD design
//-- Device driver has been tested on Red Hat Fedora FC9 2.6.15.
//--------------------------------------------------------------------------------
// Define Result values
#define SUCCESS                    0
#define CRIT_ERR                  -1

// Debug - define will output more info
#define Verbose 1

// Max DMA Buffer Size
#define BUF_SIZE                  (4096 * 2)

enum {

  INITCARD,
  INITRST,
  DISPREGS,
  RDDCSR,
  RDDDMACR,
  RDWDMATLPA,
  RDWDMATLPS,
  RDWDMATLPC,
  RDWDMATLPP,
  RDRDMATLPP,
  RDRDMATLPA,
  RDRDMATLPS,
  RDRDMATLPC,
  RDWDMAPERF,
  RDRDMAPERF,
  RDRDMASTAT,
  RDNRDCOMP,
  RDRCOMPDSIZE,
  RDDLWSTAT,
  RDDLTRSSTAT,
  RDDMISCCONT,
  RDDMISCONT,
  RDDLNKC,
  DFCCTL,
  DFCPINFO,
  DFCNPINFO,
  DFCINFO,

  WRDDMACR,
  WRWDMATLPS,
  WRWDMATLPC,
  WRWDMATLPP,
  WRRDMATLPS,
  WRRDMATLPC,
  WRRDMATLPP,
  WRDMISCCONT,
  WRDDLNKC,

  NUMCOMMANDS

};

        linux驱动代码：


#include <linux/module.h>
#include <linux/pci.h>
#include <linux/kernel.h>
#include <linux/fs.h>
#include <linux/cdev.h>
#include <linux/interrupt.h>
#include <linux/device.h>

#include "xbmd.h"

#define CLASS_NAME "xbmd"
#define DEVICE_NAME "xbmd"

static int major_number = 530;
static struct cdev *xbmd_cdev;
void __iomem *regs;
struct pci_dev *gDev = NULL;
static struct class *xbmd_class = NULL;
static struct device *xbmd_device = NULL;
char *gReadBuffer = NULL;
char *gWriteBuffer = NULL;
dma_addr_t gReadHWAddr;
dma_addr_t gWriteHWAddr;
int gIrq;

static const struct pci_device_id xbmd_ids[] = {
    { PCI_DEVICE(0x10ee, 0x7028) },
    { 0, }
};

dev_t devno = MKDEV(295, 0);

MODULE_DEVICE_TABLE(pci, xbmd_ids);

u32 XPCIe_ReadReg (u32 dw_offset)
{
    u32 ret = 0;

    ret = ioread32(regs + (4 * dw_offset));
    printk("XPCIe_ReadReg @0x%x = 0x%x", regs + (4 * dw_offset), ret);

    return ret;
}

void XPCIe_WriteReg (u32 dw_offset, u32 val)
{
    printk("XPCIe_WriteReg @0x%x = 0x%x", regs + (4 * dw_offset), val);
    iowrite32(val, (regs + (4 * dw_offset)));
}

u32 XPCIe_ReadCfgReg (u32 byte)
{
   u32 pciReg;

   if (pci_read_config_dword(gDev, byte, &pciReg) < 0) {
        printk("%s: XPCIe_ReadCfgReg: Reading PCI interface failed.", DEVICE_NAME);
        return (-1);
   }

   return (pciReg);
}

u32 XPCIe_WriteCfgReg (u32 byte, u32 val)
{
   if (pci_write_config_dword(gDev, byte, val) < 0) {
        printk("%s: XPCIe_Read Device Control: Reading PCI interface failed.", DEVICE_NAME);
        return (-1);
   }

   return 1;
}

void XPCIe_InitCard(void)
{
    XPCIe_WriteReg(0, 1);               // Write: DCSR (offset 0) with value of 1 (Reset Device)
    XPCIe_WriteReg(0, 0);               // Write: DCSR (offset 0) with value of 0 (Make Active)
    XPCIe_WriteReg(1, 0);

    XPCIe_WriteReg(2, gWriteHWAddr);    // Write: Write DMA TLP Address register with starting address
    XPCIe_WriteReg(3, 0x20);            // Write: Write DMA TLP Size register with default value (32dwords)
    XPCIe_WriteReg(4, 0x2000);          // Write: Write DMA TLP Count register with default value (2000)
    XPCIe_WriteReg(5, 0x00000000);      // Write: Write DMA TLP Pattern register with default value (0x0)

    XPCIe_WriteReg(6, 0xfeedbeef);      // Write: Read DMA Expected Data Pattern with default value (feedbeef)
    XPCIe_WriteReg(7, gReadHWAddr);     // Write: Read DMA TLP Address register with starting address.
    XPCIe_WriteReg(8, 0x20);            // Write: Read DMA TLP Size register with default value (32dwords)
    XPCIe_WriteReg(9, 0x2000);          // Write: Read DMA TLP Count register with default value (2000)

    printk("XPCIe_InitCard ok");
}

void XPCIe_InitiatorReset(void)
{
    XPCIe_WriteReg(0, 1);                   // Write: DCSR (offset 0) with value of 1 (Reset Device)
    XPCIe_WriteReg(0, 0);                   // Write: DCSR (offset 0) with value of 0 (Make Active)

    printk("XPCIe_InitiatorReset ok");
}

static int xbmd_open(struct inode *inode, struct file *file)
{
    printk(KERN_INFO "Device opened\n");
    return 0;
}

static int xbmd_release(struct inode *inode, struct file *file)
{
    printk(KERN_INFO "Device released\n");
    return 0;
}

static ssize_t xbmd_read(struct file *file, char __user *buffer, size_t length, loff_t *offset)
{
    copy_to_user(buffer, gWriteBuffer, length);
    printk(KERN_INFO "%s: XPCIe_Read: %d bytes have been read...\n", DEVICE_NAME, length);

    return 0;
}

static ssize_t xbmd_write(struct file *file, const char __user *buffer, size_t length, loff_t *offset)
{
    int ret = SUCCESS;

    copy_from_user(gReadBuffer, buffer, length);
    printk(KERN_INFO "%s: XPCIe_Write: %d bytes have been written...\n", DEVICE_NAME, length);

    return ret;
}

long xbmd_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
    u32 regx;
    long ret = SUCCESS;

    switch (cmd) {

        case INITCARD:                    // Initailizes XBMD application
            XPCIe_InitCard();
            memset(gReadBuffer, 0x0, sizeof(gReadBuffer));
            memset(gWriteBuffer, 0x0, sizeof(gWriteBuffer));
            break;
        case INITRST:                     // Resets XBMD applications
            XPCIe_InitiatorReset();
            break;
        case DISPREGS:
            break;

        case RDDCSR:                     // Read: Device Control Status Register
            regx = XPCIe_ReadReg(0);
            __put_user(regx, (int *)arg);
            break;
        case RDDDMACR:                   // Read: DMA Control Status Register
            regx = XPCIe_ReadReg(1);
            __put_user(regx, (int *)arg);
            break;
        case RDWDMATLPA:                 // Read: Write DMA TLP Address Register
            regx = XPCIe_ReadReg(2);
            __put_user(regx, (int *)arg);
            break;
        case RDWDMATLPS:                 // Read: Write DMA TLP Size Register
            regx = XPCIe_ReadReg(3);
            __put_user(regx, (int *)arg);
            break;
        case RDWDMATLPC:                 // Read: Write DMA TLP Count Register
            regx = XPCIe_ReadReg(4);
            __put_user(regx, (int *)arg);
            break;
        case RDWDMATLPP:                 // Read: Write DMA TLP Pattern Register
            regx = XPCIe_ReadReg(5);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMATLPP:                 // Read: Read DMA TLP Pattern Register
            regx = XPCIe_ReadReg(6);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMATLPA:                 // Read: Read DMA TLP Address Register
            regx = XPCIe_ReadReg(7);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMATLPS:                 // Read: Read DMA TLP Size Register
            regx = XPCIe_ReadReg(8);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMATLPC:                 // Read: Read DMA TLP Count Register
            regx = XPCIe_ReadReg(9);
            __put_user(regx, (int *)arg);
            break;
        case RDWDMAPERF:                 // Read: Write DMA Performance Register
            regx = XPCIe_ReadReg(10);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMAPERF:                 // Read: Read DMA Performance Register
            regx = XPCIe_ReadReg(11);
            __put_user(regx, (int *)arg);
            break;
        case RDRDMASTAT:                 // Read: Read DMA Status Register
            regx = XPCIe_ReadReg(12);
            __put_user(regx, (int *)arg);
            break;
        case RDNRDCOMP:                  // Read: Number of Read Completion w/ Data Register
            regx = XPCIe_ReadReg(13);
            __put_user(regx, (int *)arg);
            break;
        case RDRCOMPDSIZE:               // Read: Read Completion Size Register
            regx = XPCIe_ReadReg(14);
            __put_user(regx, (int *)arg);
            break;
        case RDDLWSTAT:                  // Read: Device Link Width Status Register
            regx = XPCIe_ReadReg(15);
            __put_user(regx, (int *)arg);
            break;
        case RDDLTRSSTAT:                // Read: Device Link Transaction Size Status Register
            regx = XPCIe_ReadReg(16);
            __put_user(regx, (int *)arg);
            break;
        case RDDMISCCONT:                // Read: Device Miscellaneous Control Register
            regx = XPCIe_ReadReg(17);
            __put_user(regx, (int *)arg);
            break;
        case RDDMISCONT:                // Read: Device MSI Control
            regx = XPCIe_ReadReg(18);
            __put_user(regx, (int *)arg);
            break;
        case RDDLNKC:                   // Read: Device Directed Link Change Register
            regx = XPCIe_ReadReg(19);
            __put_user(regx, (int *)arg);
            break;
        case DFCCTL:                    // Read: Device FC Control Register
            regx = XPCIe_ReadReg(20);
            __put_user(regx, (int *)arg);
            break;
        case DFCPINFO:                  // Read: Device FC Posted Information
            regx = XPCIe_ReadReg(21);
            __put_user(regx, (int *)arg);
            break;
        case DFCNPINFO:                 // Read: Device FC Non Posted Information
            regx = XPCIe_ReadReg(22);
            __put_user(regx, (int *)arg);
            break;
        case DFCINFO:                  // Read: Device FC Completion Information
            regx = XPCIe_ReadReg(23);
            __put_user(regx, (int *)arg);
            break;

        case WRDDMACR:                 // Write: DMA Control Status Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(1, regx);
            break;
        case WRWDMATLPS:               // Write: Write DMA TLP Size Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(3, regx);
            break;
        case WRWDMATLPC:               // Write: Write DMA TLP Count Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(4, regx);
            break;
        case WRWDMATLPP:               // Write: Write DMA TLP Pattern Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(5, regx);
            break;
        case WRRDMATLPS:               // Write: Read DMA TLP Size Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(8, regx);
            break;
        case WRRDMATLPC:               // Write: Read DMA TLP Count Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(9, regx);
            break;
        case WRRDMATLPP:               // Write: Read DMA TLP Pattern Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(6, regx);
            break;
        case WRDMISCCONT:              // Write: Device Miscellaneous Control Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(18, regx);
            break;
        case WRDDLNKC:                 // Write: Device Directed Link Change Register
            __get_user(regx, (int *)arg);
            XPCIe_WriteReg(19, regx);
            break;

        default:
            break;
    }

    return ret;
}

static struct file_operations xbmd_fops = {
    .owner = THIS_MODULE,
    .open = xbmd_open,
    .release = xbmd_release,
    .read = xbmd_read,
    .write = xbmd_write,
    .unlocked_ioctl = xbmd_ioctl,
};

irqreturn_t XPCIe_IRQHandler(int irq, void *dev_id)
{
    u32 i, regx;

    printk(KERN_WARNING"%s: Interrupt Handler Start ..", DEVICE_NAME);

    for (i = 0; i < 32; i++) {
        regx = XPCIe_ReadReg(i);
        printk(KERN_WARNING"%s : REG<%d> : 0x%X\n", DEVICE_NAME, i, regx);
    }

    printk(KERN_WARNING"%s Interrupt Handler End ..\n", DEVICE_NAME);

    return IRQ_NONE;
}

static int xbmd_probe(struct pci_dev *pdev, const struct pci_device_id *id)
{
    int ret;

    gDev = pdev;

    ret = pci_enable_device(pdev);
    if (ret) {
        printk(KERN_ERR "Failed to enable PCI device\n");
        return ret;
    }

    ret = pci_request_regions(pdev, "xbmd_driver");
    if (ret) {
        printk(KERN_ERR "Failed to request regions\n");
        goto err_disable;
    }

    regs = pci_ioremap_bar(pdev, 0);	// BAR0
    if (!regs) {
        printk(KERN_ERR "Failed to map BAR0\n");
        ret = -ENOMEM;
        goto err_release;
    }

    //u32 value = ioread32(regs);
    //printk(KERN_INFO "Register @0x%x value: 0x%x\n", regs, value);

    gIrq = gDev->irq;
    printk(KERN_INFO"%s: Init: Device IRQ: %d\n",DEVICE_NAME, gIrq);

    printk(KERN_INFO"%s: ISR Setup..\n", DEVICE_NAME);
    if (0 > request_irq(gIrq, XPCIe_IRQHandler, IRQF_SHARED, DEVICE_NAME, gDev)) {
        printk(KERN_INFO"%s: Init: Unable to allocate IRQ",DEVICE_NAME);
        return (CRIT_ERR);
    }

    gReadBuffer = dma_alloc_coherent(&pdev->dev, BUF_SIZE, &gReadHWAddr, GFP_KERNEL);
    if (NULL == gReadBuffer) {
        printk(KERN_INFO"%s: Init: Unable to allocate gBuffer.\n", DEVICE_NAME);
        return (CRIT_ERR);
    }
    printk(KERN_INFO"%s: Read Buffer Allocation: %X->%X\n", DEVICE_NAME, (u32)gReadBuffer, (u32)gReadHWAddr);

    gWriteBuffer = dma_alloc_coherent(&pdev->dev, BUF_SIZE, &gWriteHWAddr, GFP_KERNEL);
    if (NULL == gWriteBuffer) {
        printk(KERN_INFO"%s: Init: Unable to allocate gBuffer.\n", DEVICE_NAME);
        return (CRIT_ERR);
    }
    printk(KERN_INFO"%s: Write Buffer Allocation: %X->%X\n", DEVICE_NAME, (u32)gWriteBuffer, (u32)gWriteHWAddr);

    XPCIe_InitCard();
    printk("xbmd_probe ok\n");

    return 0;

err_release:
    pci_release_regions(pdev);
err_disable:
    pci_disable_device(pdev);

    return ret;
}

static void xbmd_remove(struct pci_dev *pdev)
{
    free_irq(gIrq, gDev);

    pci_release_regions(pdev);
    pci_disable_device(pdev);

    dma_free_coherent(&gDev->dev, BUF_SIZE, gReadBuffer, gReadHWAddr);
    dma_free_coherent(&gDev->dev, BUF_SIZE, gWriteBuffer, gWriteHWAddr);

    if (NULL != gReadBuffer)
        (void) kfree(gReadBuffer);
    if (NULL != gWriteBuffer)
        (void) kfree(gWriteBuffer);

    gReadBuffer = NULL;
    gWriteBuffer = NULL;

    if (regs) {
    	printk("Iounmap\n");
        iounmap(regs);
    }

    printk("xbmd_remove ok\n");
}

static struct pci_driver xbmd_driver = {
    .name     = "xbmd_driver",
    .id_table = xbmd_ids,
    .probe    = xbmd_probe,
    .remove   = xbmd_remove,
};

#if 1
static int __init xbmd_init(void)
{
    int ret;

    ret = pci_register_driver(&xbmd_driver);
    if (ret < 0)
        return ret;

    major_number = register_chrdev(0, DEVICE_NAME, &xbmd_fops);
    if (major_number < 0) {
        printk(KERN_ALERT "Registering char device failed with %d\n", major_number);
        goto out_pci_unregister_driver;
    }
    printk(KERN_INFO "Char device registered with major number %d\n", major_number);

    xbmd_class = class_create(CLASS_NAME);
    if (IS_ERR(xbmd_class)) {
        ret = PTR_ERR(xbmd_class);
        goto out_unregister_chedev;
    }

    xbmd_device = device_create(xbmd_class, NULL, MKDEV(major_number, 0), NULL, DEVICE_NAME);
    if (IS_ERR(xbmd_device)) {
        ret = PTR_ERR(xbmd_device);
        goto out_device_destroy;
    }

    printk("xbmd_init ok\n");

    return 0;

out_device_destroy:
    class_destroy(xbmd_class);
out_unregister_chedev:
    unregister_chrdev(major_number, DEVICE_NAME);
out_pci_unregister_driver:
    pci_unregister_driver(&xbmd_driver);

exit:
    return ret;
}
#else
static int __init xbmd_init(void)
{
    int ret;

    ret = pci_register_driver(&xbmd_driver);
    if (ret < 0)
        return ret;

#if 0
    ret = alloc_chrdev_region(&devno, 0, 1, DEVICE_NAME);
    if (ret < 0)
        goto out_pci_unregister_driver;
#else
    ret = register_chrdev_region(devno, 1, DEVICE_NAME);
    if (ret < 0)
        goto out_pci_unregister_driver;
#endif

    xbmd_cdev = cdev_alloc();
    if (IS_ERR(xbmd_cdev)) {
        ret = PTR_ERR(xbmd_cdev);
        goto out_unregister_dev;
    }
    cdev_init(xbmd_cdev, &xbmd_fops);
    xbmd_cdev->owner = THIS_MODULE;
    ret = cdev_add(xbmd_cdev, devno, 1);
    if (ret)
        goto out_free_cdev;

    xbmd_class = class_create(CLASS_NAME);
    if (IS_ERR(xbmd_class)) {
        ret = PTR_ERR(xbmd_class);
        goto out_unregister_cdev;
    }

    xbmd_device = device_create(xbmd_class, NULL, devno, NULL, DEVICE_NAME);
    if (IS_ERR(xbmd_device)) {
        ret = PTR_ERR(xbmd_device);
        goto out_del_class;
    }

    return 0;

out_del_class:
    class_destroy(xbmd_class);
out_unregister_cdev:
    cdev_del(xbmd_cdev);
out_free_cdev:
    kfree(xbmd_cdev);
out_unregister_dev:
    unregister_chrdev_region(devno, 1);
out_pci_unregister_driver:
    pci_unregister_driver(&xbmd_driver);

    return ret;
}
#endif

#if 1
static void __exit xbmd_exit(void)
{
    if (xbmd_class) {
    	printk("Destroy device and class\n");
        device_destroy(xbmd_class, MKDEV(major_number, 0));
        class_destroy(xbmd_class);
    }

    unregister_chrdev(major_number, DEVICE_NAME);

    pci_unregister_driver(&xbmd_driver);

    printk("xbmd_exit ok\n");
}
#else
static void __exit xbmd_exit(void)
{
    if (xbmd_class) {
    	printk("Destroy device and class\n");
        device_destroy(xbmd_class, devno);
        class_destroy(xbmd_class);
    }

    cdev_del(xbmd_cdev);
    kfree(xbmd_cdev);
    unregister_chrdev_region(devno, 1);

    pci_unregister_driver(&xbmd_driver);

    printk("xbmd_exit ok\n");
}
#endif

module_init(xbmd_init);
module_exit(xbmd_exit);

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Charley Zhang");
MODULE_DESCRIPTION("Xilinx xbmd");

        linux应用层代码


#include <sys/ioctl.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include <fcntl.h>
#include <unistd.h>
#include "xbmd.h"

unsigned int rxBuffer[1024];
unsigned int txBuffer[1024];

int main(int)
{
    int ret = 0;
    int devFd = 0;
    int i;

    for (i = 0; i < 1024; i++) {
        rxBuffer[i] = 0x0;
        txBuffer[i] = 0xfeedbeef;
    }

    devFd = open("/dev/xbmd", O_RDWR);
    if ( devFd < 0 )  {
        printf("Open /dev/xbmd failed!\n");
        return -1;
    }

    // initcard
    ioctl(devFd, INITCARD, &ret);

    write(devFd, txBuffer, sizeof(txBuffer));

    // enable irq & start dma
    ret = 0x00810081;
    ioctl(devFd, WRDDMACR, &ret);

    // wait dma complete
    usleep(1000);

    ioctl(devFd, RDDDMACR, &ret);
    printf("RDDDMACR = 0x%x\n", ret);

    // check data
    ret = read(devFd, rxBuffer, sizeof(rxBuffer));
    printf("rxBuffer[0] = 0x%x\n", rxBuffer[0]);
    printf("rxBuffer[1] = 0x%x\n", rxBuffer[1]);

    return 0;
}

        Makefile

obj-m += xbmd.o

all:
	make -C /lib/modules/$(shell uname -r)/build M=$(PWD) modules

clean:
	make -C /lib/modules/$(shell uname -r)/build M=$(PWD) clean
	rm -rf app

        测试脚本

dmesg -c

make clean
make

gcc-12 -o app app.c

rmmod xbmd.ko
dmesg -c
insmod xbmd.ko
dmesg -c

./app
dmesg -c

四、测试

# ./run_bmd.csh

五、测试结果

        实际运行dma没有启动，原因待分析。

六、固化bit文件

        使用BPI Flash，待研究。

七、疑问

        7 Series FPGAs Integrated Block for PCI Express 实现了CfgRd0 CfgRd1 CfgWr0 CfgWr1等配置TLP吗？还是xbmd代码实现的，如下的BMD_CFG_CTRL.v文件有什么作用？

  1. EP配置空间由IP实现，通过CFG端口将部分配置寄存器映射到信号上，同时CFG端口提供cfg_mgmt_dwaddr、cfg_mgmt_di、cfg_mgmt_do信号按地址偏移读取配置寄存器，中断由CFG端口interrupt信号线触发，所以无需在AXI总线上回复配置相关TLP包，也无需通过AXI总线写MWr的TLP包去触发中断；
  2. BMD_CFG_CTRL.v文件主要实现EP对配置寄存器的读写；
  3. MEM是如何绑定到BAR0：EP端的MEM地址为0x0，PC读写EP端MEM时，TLP包中的地址为PC端分配的PCIe域地址，EP端解析地址时取了地址的bit[12:2]，最终带入MEM的地址取了其中的bit[8:2]，由于BAR0配置为0xFFFFF800，BAR0长度为2K，所以这个过程已经减去了BAR0的基地址，屏蔽了[1:0]，所以是4byte对其，地址线到MEM模块就直接是寄存器编号了。

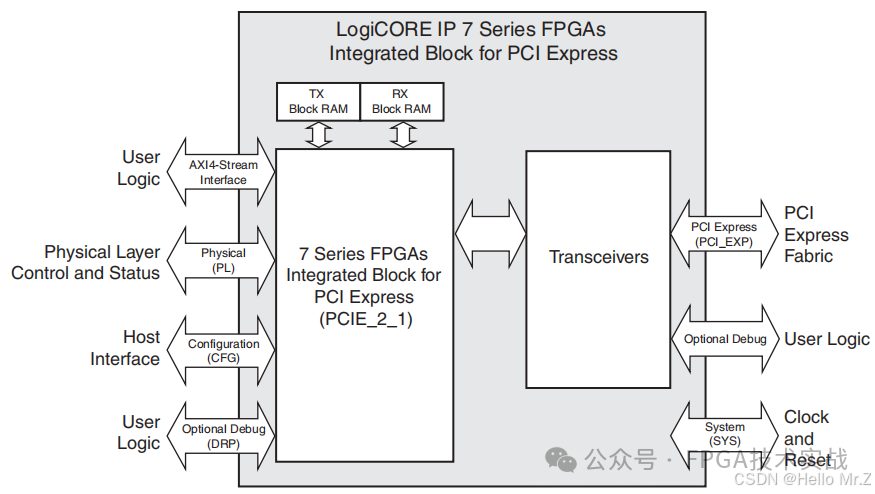

八、7 Series FPGAs Integrated Block for PCI Express 信号

//----------------------------------------------------------------------------------------------------------------//
// PCI Express (pci_exp) Interface                                                                                //
//----------------------------------------------------------------------------------------------------------------//
// Tx
output [3:0]pci_exp_txn;			( pci_exp_txn ),
output [3:0]pci_exp_txp;			( pci_exp_txp ),

// Rx
input [3:0]pci_exp_rxn;				( pci_exp_rxn ),
input [3:0]pci_exp_rxp;				( pci_exp_rxp ),

//----------------------------------------------------------------------------------------------------------------//
// AXI-S Interface                                                                                                //
//----------------------------------------------------------------------------------------------------------------//
// Common
output user_clk_out;				( user_clk ),
output user_reset_out;				( user_reset ),
output user_lnk_up;					( user_lnk_up ),
output user_app_rdy;				( ),

// TX
output s_axis_tx_tready;			( s_axis_tx_tready ),								// connect to pcie_app_7xconnect
input [63:0]s_axis_tx_tdata;		( s_axis_tx_tdata ),								// connect to pcie_app_7xconnect
input [7:0]s_axis_tx_tkeep;			( s_axis_tx_tkeep ),								// connect to pcie_app_7xconnect
input [3:0]s_axis_tx_tuser;			( s_axis_tx_tuser ),								// connect to pcie_app_7xconnect
input s_axis_tx_tlast;				( s_axis_tx_tlast ),								// connect to pcie_app_7xconnect
input s_axis_tx_tvalid;				( s_axis_tx_tvalid ),								// connect to pcie_app_7xconnect

// Rx
output [63:0]m_axis_rx_tdata;		( m_axis_rx_tdata ),								// connect to pcie_app_7xconnect
output [7:0]m_axis_rx_tkeep;		( m_axis_rx_tkeep ),								// connect to pcie_app_7xconnect
output m_axis_rx_tlast;				( m_axis_rx_tlast ),								// connect to pcie_app_7xconnect
output m_axis_rx_tvalid;			( m_axis_rx_tvalid ),								// connect to pcie_app_7xconnect
input m_axis_rx_tready;				( m_axis_rx_tready ),								// connect to pcie_app_7xconnect
output [21:0]m_axis_rx_tuser;		( m_axis_rx_tuser ),								// connect to pcie_app_7xconnect

input tx_cfg_gnt;					( tx_cfg_gnt ),										// connect to pcie_app_7xconnect
input rx_np_ok;						( rx_np_ok ),										// connect to pcie_app_7xconnect
input rx_np_req;					( rx_np_req ),										// connect to pcie_app_7xconnect
input cfg_trn_pending;				( cfg_trn_pending ),								// connect to pcie_app_7xconnect
input cfg_pm_halt_aspm_l0s;			( cfg_pm_halt_aspm_l0s ),
input cfg_pm_halt_aspm_l1;			( cfg_pm_halt_aspm_l1 ),
input cfg_pm_force_state_en;		( cfg_pm_force_state_en ),
input [1:0]cfg_pm_force_state;		( cfg_pm_force_state ),
input [63:0]cfg_dsn;				( cfg_dsn ),										// connect to pcie_app_7xconnect
input cfg_turnoff_ok;				( cfg_turnoff_ok ),									// connect to pcie_app_7xconnect
input cfg_pm_wake;					( cfg_pm_wake ),									// connect to pcie_app_7xconnect
input cfg_pm_send_pme_to;			( 1'b0 ),
input [7:0]cfg_ds_bus_number;		( 8'b0 ),
input [4:0]cfg_ds_device_number;	( 5'b0 ),
input [2:0]cfg_ds_function_number;	( 3'b0 ),

//----------------------------------------------------------------------------------------------------------------//
// Flow Control Interface                                                                                         //
//----------------------------------------------------------------------------------------------------------------//
output [11:0]fc_cpld;				( ),
output [7:0]fc_cplh;				( ),
output [11:0]fc_npd;				( ),
output [7:0]fc_nph;					( ),
output [11:0]fc_pd;					( ),
output [7:0]fc_ph;					( ),
input [2:0]fc_sel;					( fc_sel ),

//----------------------------------------------------------------------------------------------------------------//
// Configuration (CFG) Interface                                                                                  //
//----------------------------------------------------------------------------------------------------------------//
output [7:0]cfg_bus_number;			( cfg_bus_number ),									// connect to pcie_app_7xconnect
output [4:0]cfg_device_number;		( cfg_device_number ),								// connect to pcie_app_7xconnect
output [2:0]cfg_function_number;	( cfg_function_number ),							// connect to pcie_app_7xconnect
output [15:0]cfg_status;			( cfg_status ),										// connect to pcie_app_7xconnect
output [15:0]cfg_command;			( cfg_command ),									// connect to pcie_app_7xconnect
output [15:0]cfg_dstatus;			( cfg_dstatus ),									// connect to pcie_app_7xconnect
output [15:0]cfg_dcommand;			( cfg_dcommand ),									// connect to pcie_app_7xconnect
output [15:0]cfg_dcommand2;			( cfg_dcommand2 ),									// connect to pcie_app_7xconnect
output [15:0]cfg_lstatus;			( cfg_lstatus ),									// connect to pcie_app_7xconnect
output [15:0]cfg_lcommand;			( cfg_lcommand ),									// connect to pcie_app_7xconnect

output cfg_pmcsr_pme_status;		( ),
output cfg_to_turnoff;				( cfg_to_turnoff ),									// connect to pcie_app_7xconnect
output cfg_received_func_lvl_rst;	( ),
output [2:0]cfg_pcie_link_state;	( cfg_pcie_link_state ),							// connect to pcie_app_7xconnect
output cfg_pmcsr_pme_en;			( ),
output [1:0]cfg_pmcsr_powerstate;	( ),
output [5:0]tx_buf_av;				( tx_buf_av ),										// connect to pcie_app_7xconnect
output tx_err_drop;					( tx_err_drop ),									// connect to pcie_app_7xconnect
output tx_cfg_req;					( tx_cfg_req ),										// connect to pcie_app_7xconnect
//------------------------------------------------//
// RP Only                                        //
//------------------------------------------------//
output cfg_bridge_serr_en;							( ),
output cfg_slot_control_electromech_il_ctl_pulse;	( ),
output cfg_root_control_syserr_corr_err_en;			( ),
output cfg_root_control_syserr_non_fatal_err_en;	( ),
output cfg_root_control_syserr_fatal_err_en;		( ),
output cfg_root_control_pme_int_en;					( ),
output cfg_aer_rooterr_corr_err_reporting_en;		( ),
output cfg_aer_rooterr_non_fatal_err_reporting_en;	( ),
output cfg_aer_rooterr_fatal_err_reporting_en;		( ),
output cfg_aer_rooterr_corr_err_received;			( ),
output cfg_aer_rooterr_non_fatal_err_received;		( ),
output cfg_aer_rooterr_fatal_err_received;			( ),

//----------------------------------------------------------------------------------------------------------------//
// VC interface                                                                                                   //
//----------------------------------------------------------------------------------------------------------------//
output [6:0]cfg_vc_tcvc_map;		( ),

// Management Interface
input [31:0]cfg_mgmt_di;			( cfg_mgmt_di ),									// connect to pcie_app_7xconnect
input [3:0]cfg_mgmt_byte_en;		( cfg_mgmt_byte_en ),								// connect to pcie_app_7xconnect
input [9:0]cfg_mgmt_dwaddr;			( cfg_mgmt_dwaddr ),								// connect to pcie_app_7xconnect
input cfg_mgmt_wr_en;				( cfg_mgmt_wr_en ),									// connect to pcie_app_7xconnect
input cfg_mgmt_rd_en;				( cfg_mgmt_rd_en ),									// connect to pcie_app_7xconnect
input cfg_mgmt_wr_readonly;			( cfg_mgmt_wr_readonly ),
input cfg_mgmt_wr_rw1c_as_rw;		( 1'b0 ),
//------------------------------------------------//
// EP and RP                                      //
//------------------------------------------------//
output [31:0]cfg_mgmt_do;			( cfg_do ),											// connect to pcie_app_7xconnect
output cfg_mgmt_rd_wr_done;			( cfg_rd_wr_done),									// connect to pcie_app_7xconnect

// Error Reporting Interface
input cfg_err_ecrc;						( cfg_err_ecrc ),								// connect to pcie_app_7xconnect
input cfg_err_ur;						( cfg_err_ur ),									// connect to pcie_app_7xconnect
input cfg_err_cpl_timeout;				( cfg_err_cpl_timeout ),						// connect to pcie_app_7xconnect
input cfg_err_cpl_unexpect;				( cfg_err_cpl_unexpect ),						// connect to pcie_app_7xconnect
input cfg_err_cpl_abort;				( cfg_err_cpl_abort ),							// connect to pcie_app_7xconnect
input cfg_err_posted;					( cfg_err_posted ),								// connect to pcie_app_7xconnect
input cfg_err_cor;						( cfg_err_cor ),								// connect to pcie_app_7xconnect
input cfg_err_atomic_egress_blocked;	( 1'b0 ),
input cfg_err_internal_cor;				( 1'b0 ),
input cfg_err_malformed;				( 1'b0 ),
input cfg_err_mc_blocked;				( 1'b0 ),
input cfg_err_poisoned;					( 1'b0 ),
input cfg_err_norecovery;				( 1'b0 ),
input [47:0]cfg_err_tlp_cpl_header;		( cfg_err_tlp_cpl_header ),						// connect to pcie_app_7xconnect
output cfg_err_cpl_rdy;					( cfg_err_cpl_rdy ),							// connect to pcie_app_7xconnect
input cfg_err_locked;					( cfg_err_locked ),								// connect to pcie_app_7xconnect
input cfg_err_acs;						( 1'b0 ),
input cfg_err_internal_uncor;			( 1'b0 ),
//----------------------------------------------------------------------------------------------------------------//
// AER Interface                                                                                                  //
//----------------------------------------------------------------------------------------------------------------//
input [127:0]cfg_err_aer_headerlog;		( cfg_err_aer_headerlog ),
input [4:0]cfg_aer_interrupt_msgnum;	( cfg_aer_interrupt_msgnum ),
output cfg_err_aer_headerlog_set;		( ),
output cfg_aer_ecrc_check_en;			( ),
output cfg_aer_ecrc_gen_en;				( ),

//------------------------------------------------//
// EP Only                                        //
//------------------------------------------------//
input cfg_interrupt;						( cfg_interrupt ),							// connect to pcie_app_7xconnect
output cfg_interrupt_rdy;					( cfg_interrupt_rdy ),						// connect to pcie_app_7xconnect
input cfg_interrupt_assert;					( cfg_interrupt_assert ),					// connect to pcie_app_7xconnect
input [7:0]cfg_interrupt_di;				( cfg_interrupt_di ),						// connect to pcie_app_7xconnect
output [7:0]cfg_interrupt_do;				( cfg_interrupt_do ),						// connect to pcie_app_7xconnect
output [2:0]cfg_interrupt_mmenable;			( cfg_interrupt_mmenable ),					// connect to pcie_app_7xconnect
output cfg_interrupt_msienable;				( cfg_interrupt_msienable ),				// connect to pcie_app_7xconnect
output cfg_interrupt_msixenable;			( cfg_interrupt_msixenable ),				// connect to pcie_app_7xconnect
output cfg_interrupt_msixfm;				( cfg_interrupt_msixfm ),					// connect to pcie_app_7xconnect
input cfg_interrupt_stat;					( cfg_interrupt_stat ),
input [4:0]cfg_pciecap_interrupt_msgnum;	( cfg_pciecap_interrupt_msgnum ),

output cfg_msg_received_err_cor;			( ),
output cfg_msg_received_err_non_fatal;		( ),
output cfg_msg_received_err_fatal;			( ),
output cfg_msg_received_pm_as_nak;			( ),
output cfg_msg_received_pme_to_ack;			( ),
output cfg_msg_received_assert_int_a;		( ),
output cfg_msg_received_assert_int_b;		( ),
output cfg_msg_received_assert_int_c;		( ),
output cfg_msg_received_assert_int_d;		( ),
output cfg_msg_received_deassert_int_a;		( ),
output cfg_msg_received_deassert_int_b;		( ),
output cfg_msg_received_deassert_int_c;		( ),
output cfg_msg_received_deassert_int_d;		( ),

output cfg_msg_received_pm_pme;				( ),
output cfg_msg_received_setslotpowerlimit;	( ),
output cfg_msg_received;					( ),
output [15:0]cfg_msg_data;					( ),

//----------------------------------------------------------------------------------------------------------------//
// Physical Layer Control and Status (PL) Interface                                                               //
//----------------------------------------------------------------------------------------------------------------//
input [1:0]pl_directed_link_change;		( pl_directed_link_change ),					// connect to pcie_app_7xconnect
input [1:0]pl_directed_link_width;		( pl_directed_link_width ),						// connect to pcie_app_7xconnect
input pl_directed_link_speed;			( pl_directed_link_speed ),    					// connect to pcie_app_7xconnect
input pl_directed_link_auton;			( pl_directed_link_auton ),						// connect to pcie_app_7xconnect
input pl_upstream_prefer_deemph;		( pl_upstream_prefer_deemph ),					// connect to pcie_app_7xconnect

output pl_sel_lnk_rate;					( pl_sel_link_rate ),							// connect to pcie_app_7xconnect
output [1:0]pl_sel_lnk_width;			( pl_sel_link_width ),  						// connect to pcie_app_7xconnect
output [5:0]pl_ltssm_state;				( pl_ltssm_state ),								// connect to pcie_app_7xconnect
output [1:0]pl_lane_reversal_mode;		( pl_lane_reversal_mode ),						// connect to pcie_app_7xconnect

output pl_phy_lnk_up;					( ),
output [2:0]pl_tx_pm_state;				( ),
output [1:0]pl_rx_pm_state;				( ),

output pl_link_upcfg_cap;				( pl_link_upcfg_capable ),						// connect to pcie_app_7xconnect
output pl_link_gen2_cap;				( pl_link_gen2_capable ),						// connect to pcie_app_7xconnect
output pl_link_partner_gen2_supported;	( pl_link_partner_gen2_supported ),				// connect to pcie_app_7xconnect
output [2:0]pl_initial_link_width;		( pl_initial_link_width ),						// connect to pcie_app_7xconnect

output pl_directed_change_done;			( ),

//------------------------------------------------//
// EP Only                                        //
//------------------------------------------------//
output pl_received_hot_rst;				( pl_received_hot_rst ),						// connect to pcie_app_7xconnect

//------------------------------------------------//
// RP Only                                        //
//------------------------------------------------//
input pl_transmit_hot_rst;				( 1'b0 ),
input pl_downstream_deemph_source;		( 1'b0 ),

//----------------------------------------------------------------------------------------------------------------//
// System  (SYS) Interface                                                                                        //
//----------------------------------------------------------------------------------------------------------------//
input sys_clk;							( sys_clk ),
input sys_rst_n;						( sys_rst_n_c )

FPGA再入门-1-480T板卡试用
YPCB-00338-1P1 FPGA 板卡 逆向 – TiferKing的学习笔记
PCIe应用实战
一步一步开始FPGA逻辑设计 - 高速接口之PCIe

1. 如何写Linux PCI驱动
怎么编写linux PCI驱动
一、如何编写Linux PCI驱动程序

验证工程师如何快速上手PCIe

GPU到底是如何工作的？这篇AI Infra入门全部告诉你
了解 CUDA GPU 计算的汇编语言 PTX
从PTX到SASS：编译器视角

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
