STM32F10X驱动OLED显示屏（IIC协议），显示中文，取字模教程

已于 2025-01-22 17:07:54 修改
阅读量1.6k 收藏 35
点赞数 14
文章标签： stm32 嵌入式硬件 单片机
于 2025-01-22 17:00:46 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/weixin_73983170/article/details/145289503
版权

1.OLED显示屏原理略解

(1)OLED显示屏原理

     发光原理


OLED（Organic Light-Emitting Diode）即有机发光二极管，是一种利用有机半导体材料和发光材料在电场驱动下，通过载流子注入和复合导致发光的现象制成的显示器。其工作原理是，在外界电压的驱动下，由电极注入的电子与空穴在有机材料中复合而释放出能量，并将能量传递给有机发光物质的分子，使其受到激发，从基态跃迁到激发态，当受激分子从激发态回到基态时辐射跃迁而产生发光现象。

OLED显示技术与传统的LCD显示方式不同，无需背光灯，采用非常薄的有机材料涂层和玻璃基板（或柔性有机基板），当有电流通过时，这些有机材料就会发光。OLED显示屏幕可以做得更轻更薄，可视角度更大，并且能够显著节省电能。

驱动原理

OLED有自己的驱动芯片，它负责接收来自CPU或微控制器的显示数据，并将其转换为OLED屏幕能够识别的信号。驱动芯片通常集成了电流源、时序控制、存储器接口等关键功能。

存储器：用于存储显示数据，包括每个像素的亮度、颜色等信息。存储器通常与驱动芯片集成在一起，以便快速访问和更新显示数据。

大致流程：

1.CPU或微控制器发出显示指令。
2.显示指令通过驱动电路转换为OLED能够识别的信号。
3.驱动电路根据信号调整电流源输出的电流大小，从而控制OLED的亮度。
4.时序控制模块确定OLED屏幕的发光时间和频率。
5.存储器存储并读取每个像素点的亮度数据，确保图像的稳定性和一致性。
6.OLED屏幕根据接收到的信号和电流控制发光状态，实现图像的显示。

所以我们需要发送显示的指令，然后把要显示的数据发送给OLED显示屏，这样OLED显示屏的存储器里的数据更新，

显示新的数据，发送空的数据覆盖掉原来的数据，再发送新的数据到存储器

发送数据和指令通过IIC，也可以SPI

(2)IIC通信协略解

这里略解，想要详细的了解单片机是怎样把数据发送给OLED的可以学习IIC的原理

I2C协议采用双线结构传输数据，包括一个数据线（SDA）和一个时钟线（SCL）。其中SDA线用于双向数据传输，而SCL线则用于同步数据传输的时钟信号。通信始终由主设备（Master）控制，从设备（Slave）被动接收和回应。

I2C协议具有广泛的应用范围，如连接传感器、存储器、显示器等设备，常用于微控制器和嵌入式系统中，因为它使用的引脚较少，可以同时连接多个设备，并且具有简单的硬件和软件实现。

2.代码实现

以下是一个简单的STM32驱动0.96英寸OLED（IIC）显示屏的代码示例。

工程创建省略oled.c,oled.h,

main.c

#include "stm32f10x.h"
#include "delay.h"
#include "oled.h"

/*****************Workkiss******************

 * 项目			:OLED 4针IIC驱动
 * 版本			: V1.0
 * 日期			: 2025.1.21
 * MCU			:STM32F103C8T6
 * 接口			:参看oled.h
 * 优快云_ID		:weixin_73983170
 * 作者			:wokkiss

**********************BEGIN***********************/


int main(void)
{

    SystemInit();//配置系统时钟为72M
    delay_init(72);//延时初始化

    OLED_Init();

    delay_ms(500);

    //显示“你好：”
    OLED_ShowChinese(0,1, 0,12,1);
    OLED_ShowChinese(12,1, 1,12,1);
    OLED_ShowChar(24, 1, ':',16,1);

}

接线：

VCC：3.3V

GND:  负极

SCL：PB6

SDL:   PB7

可以在oled.h一次性修改

 oled.c

#include "oled.h"
#include "stdlib.h"
#include "OLED_Font.h"
#include "delay.h"

u8 OLED_GRAM[128][8];//这是一个二维数组，用于存储OLED屏幕的显示内容（显存)
//反显函数
void OLED_ColorTurn(u8 i)
{
	if(i==0)
		{
			OLED_WR_Byte(0xA6,OLED_CMD);//正常显示
		}
	if(i==1)
		{
			OLED_WR_Byte(0xA7,OLED_CMD);//反色显示
		}
}

//I2C通信的延时
void IIC_delay(void)
{
	u8 t=2;
	while(t){
		delay_us(1);
		t--;
}
}
//产生I2C通信的起始信号
//SDA高到低
void OLED_I2C_Start(void)
{
	OLED_SDA_Set();//将SDA线的电平拉高
	OLED_SCL_Set();//Set：将SCL线的电平拉高
	IIC_delay();//I2C通信的延时
	OLED_SDA_Clr();//Clr:将SDA线的电平拉低
	IIC_delay();//I2C通信的延时
	OLED_SCL_Clr();//将SCL线的电平拉低
	IIC_delay();
}

//产生I2C通信的停止信号。
//SDA低到高
void OLED_I2C_Stop(void)
{
	OLED_SDA_Clr();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SDA_Set();
}

//产生I2C通信的应答信号。
void OLED_I2C_WaitAck(void)
{
	OLED_SDA_Set();
	IIC_delay();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SCL_Clr();
	IIC_delay();
}

//写入一个字节
void OLED_Send_Byte(u8 dat)
{
	u8 i;
	for(i=0;i<8;i++)
	{
		// 检查dat的最高位是否为1
		if(dat&0x80)// 使用位与操作检查最高位，0x80是二进制的10000000
		{
			OLED_SDA_Set();
    }
		else
		{
			OLED_SDA_Clr();
    }
		IIC_delay();//确保SDA电平在SCL上升沿之前稳定，满足数据保持时间的要求。
		OLED_SCL_Set();
		IIC_delay();//确保SCL的高电平持续足够时间，满足时钟线的高电平持续时间要求。
		OLED_SCL_Clr();// 将时钟信号SCL设置为低电平，为下一位数据的传输做准备
		dat<<=1;      // 将dat左移一位，以便在下一次循环中处理下一位数据

  }
}

//发送一个字节
//dat - 要发送的数据或命令；mode - 0表示命令，1表示数据。
//根据mode的值，将dat作为命令或数据发送给OLED。
void OLED_WR_Byte(u8 dat,u8 mode)
{
	// 产生I2C起始
	OLED_I2C_Start();
	// 发送OLED显示屏的设备地址（0x78，包含写操作位，通常最高位是写操作位）
	OLED_Send_Byte(0x78);

	// 等待OLED显示屏的应答信号
	OLED_I2C_WaitAck();//等待 OLED 显示屏拉低 SDA 线来应答

	// 如果mode为1（非0），则发送0x40表示接下来的数据是显示数据
    // 如果mode为0，则发送0x00通常表示接下来的数据是命令
	if(mode){OLED_Send_Byte(0x40);}
    else{OLED_Send_Byte(0x00);}

	OLED_I2C_WaitAck();
	OLED_Send_Byte(dat);
	OLED_I2C_WaitAck();
	OLED_I2C_Stop();
}


//更新显存到OLED
void OLED_Refresh(void)
{
	u8 i,n;
	for(i=0;i<8;i++)
	{
		OLED_WR_Byte(0xb0+i,OLED_CMD); // 设置页面地址。0xb0是页面地址的起始值，i是当前页面的偏移量。

		OLED_WR_Byte(0x00,OLED_CMD);   // 设置列地址的低8位为0x00，即列的起始地址为0。

		OLED_WR_Byte(0x10,OLED_CMD);  //设置起始列地址高四位。

		OLED_I2C_Start();
		// 发送OLED显示屏的I2C地址（包括写操作位）
		OLED_Send_Byte(0x78);
		OLED_I2C_WaitAck();
		OLED_Send_Byte(0x40);
		OLED_I2C_WaitAck();
		for(n=0;n<128;n++)
		{
			OLED_Send_Byte(OLED_GRAM[n][i]);
			OLED_I2C_WaitAck();
		}
		OLED_I2C_Stop();
  }
}
//清屏函数
//将 GRAM 中对应位置的值设置为 0
void OLED_Clear(void)
{
	u8 i,n;
	//循环遍历 OLED 显示屏的每个像素点的值为0
	for(i=0;i<8;i++)
	{
	   for(n=0;n<128;n++)
			{
			 OLED_GRAM[n][i]=0;//清除所有数据
			}
  }
	OLED_Refresh();//更新显示，显示新的内容
}
//x:0~127
//y:0~63
//t:1 填充 0,清空
void OLED_DrawPoint(u8 x,u8 y,u8 t)
{
	u8 i,m,n;
	i=y/8; // 计算点的页面（或行）索引
	m=y%8;// 计算点在页面内的位偏移
	n=1<<m;// 根据位偏移生成位掩码
	if(t){OLED_GRAM[x][i]|=n;}
	else
	{
		 OLED_GRAM[x][i] &= ~n; // 如果 t 为0，则熄灭该点
	}
}
//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//size1:选择字体 6x8/6x12/8x16/12x24
//mode:0,反色显示;1,正常显示
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 size1,u8 mode)
{
	u8 i,m,temp,size2,chr1;
	u8 x0=x,y0=y;
	if(size1==8)size2=6;
	else size2=(size1/8+((size1%8)?1:0))*(size1/2);  //得到字体一个字符对应点阵集所占的字节数
	chr1=chr-' ';  //计算偏移后的值
	for(i=0;i<size2;i++)
	{
		if(size1==8)
			  {temp=asc2_0806[chr1][i];} //调用0806字体
		else if(size1==12)
        {temp=asc2_1206[chr1][i];} //调用1206字体
		else if(size1==16)
        {temp=asc2_1608[chr1][i];} //调用1608字体
		else if(size1==24)
        {temp=asc2_2412[chr1][i];} //调用2412字体
		else return;
		for(m=0;m<8;m++)
		{
			if(temp&0x01)OLED_DrawPoint(x,y,mode);
			else OLED_DrawPoint(x,y,!mode);
			temp>>=1;
			y++;
		}
		x++;
		if((size1!=8)&&((x-x0)==size1/2))
		{x=x0;y0=y0+8;}
		y=y0;
  }
	OLED_Refresh();
}


//显示字符串
//x,y:起点坐标
//size1:字体大小
//*chr:字符串起始地址
//mode:0,反色显示;1,正常显示
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 size1,u8 mode)
{
	while((*chr>=' ')&&(*chr<='~'))//判断是不是非法字符!
	{
		OLED_ShowChar(x,y,*chr,size1,mode);
		if(size1==8)x+=6;
		else x+=size1/2;
		chr++;
  }
	OLED_Refresh();
}

//m^n
u32 OLED_Pow(u8 m,u8 n)
{
	u32 result=1;
	while(n--)
	{
	  result*=m;
	}
	return result;
}

//显示数字
//x,y :起点坐标
//num :要显示的数字
//len :数字的位数
//size:字体大小
//mode:0,反色显示;1,正常显示
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size1,u8 mode)
{
	u8 t,temp,m=0;
	if(size1==8)m=2;
	for(t=0;t<len;t++)
	{
		temp=(num/OLED_Pow(10,len-t-1))%10;
			if(temp==0)
			{
				OLED_ShowChar(x+(size1/2+m)*t,y,'0',size1,mode);
      }
			else
			{
			  OLED_ShowChar(x+(size1/2+m)*t,y,temp+'0',size1,mode);
			}
  }
	OLED_Refresh();
}

//显示汉字
//x,y:起点坐标
//num:汉字对应的序号
//mode:0,反色显示;1,正常显示
void OLED_ShowChinese(u8 x,u8 y,u8 num,u8 size1,u8 mode)
{
	// 临时变量，用于循环和存储临时值
	u8 m,temp;
	// 保存起始位置的副本，用于后续计算换行
	u8 x0=x,y0=y;
	u16 i,size3=(size1/8+((size1%8)?1:0))*size1;  // 计算一个字对应点阵集所占的字节数

    // 遍历字符的点阵数据
	for(i=0;i<size3;i++)
	{
		// 根据字体大小选择对应的字库
		if(size1==12)
				{temp=Hzk1[num][i];}//调用12*12字体
		else if(size1==24)
				{temp=Hzk2[num][i];}//调用24*24字体
		else if(size1==32)
				{temp=Hzk3[num][i];}//调用32*32字体
		else if(size1==64)
				{temp=Hzk4[num][i];}//调用64*64字体
		else return;// 如果字体大小不是预期的，函数返回
		// 遍历当前字节的每一位，用于绘制字符
		for(m=0;m<8;m++)
		{
			// 根据当前位的状态（0或1）调用OLED_DrawPoint函数绘制点
            // temp&0x01 检查temp的最低位（即当前处理的位）
            // 如果最低位为1，则绘制点（mode为亮），否则不绘制（!mode为暗）
			if(temp&0x01)OLED_DrawPoint(x,y,mode);
			else OLED_DrawPoint(x,y,!mode);
			 // 将temp右移一位，以处理下一位
			temp>>=1;
			 // 移到下一个像素位置（垂直方向）
			y++;
		}
		// 移到下一个像素位置（水平方向）
		x++;
		  // 检查是否完成了当前行的绘制，如果是，则换行
		if((x-x0)==size1)
		{x=x0;y0=y0+8;}//y0增加8，因为每行有8个像素
		y=y0;
	}
	OLED_Refresh();
}
//OLED的初始化
void OLED_Init(void)
{
	GPIO_InitTypeDef  GPIO_InitStructure;// 定义一个GPIO初始化结构体

    // 使能OLED SCL和SDA引脚所在的GPIO端口的时钟
 	RCC_APB2PeriphClockCmd(OLED_SCL_GPIO_CLK|OLED_SDA_GPIO_CLK, ENABLE);
	GPIO_InitStructure.GPIO_Pin = OLED_SCL_PIN;
 	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_OD;  //推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; //速度50MHz
 	GPIO_Init(OLED_SCL_PROT, &GPIO_InitStructure);	  //初始化SCL引脚所在的GPIO端口
 	GPIO_SetBits(OLED_SCL_PROT,OLED_SCL_PIN);//将SCL引脚设置为高电平（用于I2C通信的初始状态）

	GPIO_InitStructure.GPIO_Pin = OLED_SDA_PIN;	// 初始化SDA引脚所在的GPIO端口
	GPIO_Init(OLED_SDA_PROT, &GPIO_InitStructure);
 	GPIO_SetBits(OLED_SDA_PROT,OLED_SDA_PIN);//将SDA引脚设置为高电平（用于I2C通信的初始状态）

	delay_ms(500);// 延时，确保OLED显示屏有足够的时间准备接收初始化命令

	//向OLED显示屏发送特定的命令（通过OLED_CMD参数指示）
	//和参数，以配置显示屏的工作模式、亮度、对比度等

	OLED_WR_Byte(0xAE,OLED_CMD);	//关闭显示

	OLED_WR_Byte(0xD5,OLED_CMD);	//设置显示时钟分频比/振荡器频率
	OLED_WR_Byte(0x80,OLED_CMD);

	OLED_WR_Byte(0xA8,OLED_CMD);	//设置多路复用率
	OLED_WR_Byte(0x3F,OLED_CMD);

	OLED_WR_Byte(0xD3,OLED_CMD);	//设置显示偏移
	OLED_WR_Byte(0x00,OLED_CMD);

	OLED_WR_Byte(0x40,OLED_CMD);	//设置显示开始行

	OLED_WR_Byte(0xA1,OLED_CMD);	//设置左右方向，0xA1正常 0xA0左右反置

	OLED_WR_Byte(0xC8,OLED_CMD);	//设置上下方向，0xC8正常 0xC0上下反置

	OLED_WR_Byte(0xDA,OLED_CMD);	//设置COM引脚硬件配置
	OLED_WR_Byte(0x12,OLED_CMD);

	OLED_WR_Byte(0x81,OLED_CMD);	//设置对比度控制
	OLED_WR_Byte(0xCF,OLED_CMD);

	OLED_WR_Byte(0xD9,OLED_CMD);	//设置预充电周期
	OLED_WR_Byte(0xF1,OLED_CMD);

	OLED_WR_Byte(0xDB,OLED_CMD);	//设置VCOMH取消选择级别
	OLED_WR_Byte(0x30,OLED_CMD);

	OLED_WR_Byte(0xA4,OLED_CMD);	//设置整个显示打开/关闭

	OLED_WR_Byte(0xA6,OLED_CMD);	//设置正常/倒转显示

	OLED_WR_Byte(0x8D,OLED_CMD);	//设置充电泵
	OLED_WR_Byte(0x14,OLED_CMD);

	OLED_WR_Byte(0xAF,OLED_CMD);	//开启显示

	OLED_Clear();				//OLED清屏
}

oled.h

#ifndef __OLED_H
#define __OLED_H
#include "stm32f10x.h"
// 数据线SDA即用来表示数据，时钟线SCL用于数据收发同步。
// 定义OLED显示屏的时钟线（SCL）相关的GPIO端口、引脚和时钟
#define OLED_SCL_PROT  			GPIOB          // SCL连接到的GPIO端口B
#define OLED_SCL_PIN			GPIO_Pin_6     // SCL连接到GPIO端口B第6引脚
#define OLED_SCL_GPIO_CLK       RCC_APB2Periph_GPIOB //SCL所在GPIO端口的时钟，用于使能GPIOB的时钟

// 定义OLED显示屏的数据线（SDA）相关的GPIO端口、引脚和时钟
#define OLED_SDA_PROT  			GPIOB         // SDA连接到的GPIO端口B
#define OLED_SDA_PIN		    GPIO_Pin_7    // SDA连接到的具体引脚，GPIO端口B的第7引脚
#define OLED_SDA_GPIO_CLK       RCC_APB2Periph_GPIOB // SDA所在GPIO端口的时钟，用于使能GPIOB的时钟

/********************************************************/

// 定义宏来清除（拉低）SCL线的电平，用于IIC通信中的时钟控制
#define OLED_SCL_Clr() GPIO_ResetBits(OLED_SCL_PROT,OLED_SCL_PIN)//Clr：将SCL线的电平拉低
// 定义宏来设置（拉高）SCL线的电平
#define OLED_SCL_Set() GPIO_SetBits(OLED_SCL_PROT,OLED_SCL_PIN)//Set：将SCL线的电平拉高

// 定义宏来清除（拉低）SDA线的电平，用于SPI通信中的数据发送
#define OLED_SDA_Clr() GPIO_ResetBits(OLED_SDA_PROT,OLED_SDA_PIN)//Clr:将SDA线的电平拉低，用于发送数据0
// 定义宏来设置（拉高）SDA线的电平，用于SPI通信中的数据发送
#define OLED_SDA_Set() GPIO_SetBits(OLED_SDA_PROT,OLED_SDA_PIN)//Set:将SDA线的电平拉高，用于发送数据1
/*******************************************/


#define OLED_CMD  0	//向OLED显示屏发送命令时,指示当前传输的是命令而不是数据。
#define OLED_DATA 1	//当向OLED显示屏发送数据时，指示当前传输的是数据而不是命令。


void OLED_DisplayTurn(u8 i);
void OLED_I2C_Start(void);
void OLED_I2C_Stop(void);
void OLED_I2C_WaitAck(void);
void OLED_Send_Byte(u8 dat);
void OLED_WR_Byte(u8 dat,u8 mode);
void OLED_Refresh(void);
void OLED_Clear(void);
void OLED_DrawPoint(u8 x,u8 y,u8 t);
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 size1,u8 mode);
void OLED_ShowChar6x8(u8 x,u8 y,u8 chr,u8 mode);
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 size1,u8 mode);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size1,u8 mode);
void OLED_ShowChinese(u8 x,u8 y,u8 num,u8 size1,u8 mode);
void OLED_ShowPicture(u8 x,u8 y,u8 sizex,u8 sizey,u8 BMP[],u8 mode);
void OLED_Init(void);

#endif

 oledfont.h

所有的要显示的内容的信息都保存到这里，通过oled.c进一步处理，再传输给oled显示屏

#ifndef __OLEDFONT_H
#define __OLEDFONT_H
const unsigned char asc2_0806[][6] =
{
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00},// sp
{0x00, 0x00, 0x00, 0x2f, 0x00, 0x00},// !
{0x00, 0x00, 0x07, 0x00, 0x07, 0x00},// "
{0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14},// #
{0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12},// $
{0x00, 0x62, 0x64, 0x08, 0x13, 0x23},// %
{0x00, 0x36, 0x49, 0x55, 0x22, 0x50},// &
{0x00, 0x00, 0x05, 0x03, 0x00, 0x00},// '
{0x00, 0x00, 0x1c, 0x22, 0x41, 0x00},// (
{0x00, 0x00, 0x41, 0x22, 0x1c, 0x00},// )
{0x00, 0x14, 0x08, 0x3E, 0x08, 0x14},// *
{0x00, 0x08, 0x08, 0x3E, 0x08, 0x08},// +
{0x00, 0x00, 0x00, 0xA0, 0x60, 0x00},// ,
{0x00, 0x08, 0x08, 0x08, 0x08, 0x08},// -
{0x00, 0x00, 0x60, 0x60, 0x00, 0x00},// .
{0x00, 0x20, 0x10, 0x08, 0x04, 0x02},// /
{0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E},// 0
{0x00, 0x00, 0x42, 0x7F, 0x40, 0x00},// 1
{0x00, 0x42, 0x61, 0x51, 0x49, 0x46},// 2
{0x00, 0x21, 0x41, 0x45, 0x4B, 0x31},// 3
{0x00, 0x18, 0x14, 0x12, 0x7F, 0x10},// 4
{0x00, 0x27, 0x45, 0x45, 0x45, 0x39},// 5
{0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30},// 6
{0x00, 0x01, 0x71, 0x09, 0x05, 0x03},// 7
{0x00, 0x36, 0x49, 0x49, 0x49, 0x36},// 8
{0x00, 0x06, 0x49, 0x49, 0x29, 0x1E},// 9
{0x00, 0x00, 0x36, 0x36, 0x00, 0x00},// :
{0x00, 0x00, 0x56, 0x36, 0x00, 0x00},// ;
{0x00, 0x08, 0x14, 0x22, 0x41, 0x00},// <
{0x00, 0x14, 0x14, 0x14, 0x14, 0x14},// =
{0x00, 0x00, 0x41, 0x22, 0x14, 0x08},// >
{0x00, 0x02, 0x01, 0x51, 0x09, 0x06},// ?
{0x00, 0x32, 0x49, 0x59, 0x51, 0x3E},// @
{0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C},// A
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x36},// B
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x22},// C
{0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C},// D
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x41},// E
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x01},// F
{0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A},// G
{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F},// H
{0x00, 0x00, 0x41, 0x7F, 0x41, 0x00},// I
{0x00, 0x20, 0x40, 0x41, 0x3F, 0x01},// J
{0x00, 0x7F, 0x08, 0x14, 0x22, 0x41},// K
{0x00, 0x7F, 0x40, 0x40, 0x40, 0x40},// L
{0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F},// M
{0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F},// N
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E},// O
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x06},// P
{0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E},// Q
{0x00, 0x7F, 0x09, 0x19, 0x29, 0x46},// R
{0x00, 0x46, 0x49, 0x49, 0x49, 0x31},// S
{0x00, 0x01, 0x01, 0x7F, 0x01, 0x01},// T
{0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F},// U
{0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F},// V
{0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F},// W
{0x00, 0x63, 0x14, 0x08, 0x14, 0x63},// X
{0x00, 0x07, 0x08, 0x70, 0x08, 0x07},// Y
{0x00, 0x61, 0x51, 0x49, 0x45, 0x43},// Z
{0x00, 0x00, 0x7F, 0x41, 0x41, 0x00},// [
{0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55},// 55
{0x00, 0x00, 0x41, 0x41, 0x7F, 0x00},// ]
{0x00, 0x04, 0x02, 0x01, 0x02, 0x04},// ^
{0x00, 0x40, 0x40, 0x40, 0x40, 0x40},// _
{0x00, 0x00, 0x01, 0x02, 0x04, 0x00},// '
{0x00, 0x20, 0x54, 0x54, 0x54, 0x78},// a
{0x00, 0x7F, 0x48, 0x44, 0x44, 0x38},// b
{0x00, 0x38, 0x44, 0x44, 0x44, 0x20},// c
{0x00, 0x38, 0x44, 0x44, 0x48, 0x7F},// d
{0x00, 0x38, 0x54, 0x54, 0x54, 0x18},// e
{0x00, 0x08, 0x7E, 0x09, 0x01, 0x02},// f
{0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C},// g
{0x00, 0x7F, 0x08, 0x04, 0x04, 0x78},// h
{0x00, 0x00, 0x44, 0x7D, 0x40, 0x00},// i
{0x00, 0x40, 0x80, 0x84, 0x7D, 0x00},// j
{0x00, 0x7F, 0x10, 0x28, 0x44, 0x00},// k
{0x00, 0x00, 0x41, 0x7F, 0x40, 0x00},// l
{0x00, 0x7C, 0x04, 0x18, 0x04, 0x78},// m
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x78},// n
{0x00, 0x38, 0x44, 0x44, 0x44, 0x38},// o
{0x00, 0xFC, 0x24, 0x24, 0x24, 0x18},// p
{0x00, 0x18, 0x24, 0x24, 0x18, 0xFC},// q
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x08},// r
{0x00, 0x48, 0x54, 0x54, 0x54, 0x20},// s
{0x00, 0x04, 0x3F, 0x44, 0x40, 0x20},// t
{0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C},// u
{0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C},// v
{0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C},// w
{0x00, 0x44, 0x28, 0x10, 0x28, 0x44},// x
{0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C},// y
{0x00, 0x44, 0x64, 0x54, 0x4C, 0x44},// z
{0x14, 0x14, 0x14, 0x14, 0x14, 0x14},// horiz lines
};
//12*12 ASCII字符集点阵
const unsigned char asc2_1206[95][12]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"!",1*/
{0x00,0x0C,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x90,0xD0,0xBC,0xD0,0xBC,0x90,0x00,0x03,0x00,0x03,0x00,0x00},/*"#",3*/
{0x18,0x24,0xFE,0x44,0x8C,0x00,0x03,0x02,0x07,0x02,0x01,0x00},/*"$",4*/
{0x18,0x24,0xD8,0xB0,0x4C,0x80,0x00,0x03,0x00,0x01,0x02,0x01},/*"%",5*/
{0xC0,0x38,0xE4,0x38,0xE0,0x00,0x01,0x02,0x02,0x01,0x02,0x02},/*"&",6*/
{0x08,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xF8,0x04,0x02,0x00,0x00,0x00,0x01,0x02,0x04},/*"(",8*/
{0x00,0x02,0x04,0xF8,0x00,0x00,0x00,0x04,0x02,0x01,0x00,0x00},/*")",9*/
{0x90,0x60,0xF8,0x60,0x90,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"*",10*/
{0x20,0x20,0xFC,0x20,0x20,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x06,0x00,0x00,0x00,0x00},/*",",12*/
{0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x80,0x60,0x1C,0x02,0x00,0x04,0x03,0x00,0x00,0x00,0x00},/*"/",15*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"0",16*/
{0x00,0x08,0xFC,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"1",17*/
{0x18,0x84,0x44,0x24,0x18,0x00,0x03,0x02,0x02,0x02,0x02,0x00},/*"2",18*/
{0x08,0x04,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"3",19*/
{0x40,0xB0,0x88,0xFC,0x80,0x00,0x00,0x00,0x00,0x03,0x02,0x00},/*"4",20*/
{0x3C,0x24,0x24,0x24,0xC4,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"5",21*/
{0xF8,0x24,0x24,0x2C,0xC0,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"6",22*/
{0x0C,0x04,0xE4,0x1C,0x04,0x00,0x00,0x00,0x03,0x00,0x00,0x00},/*"7",23*/
{0xD8,0x24,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"8",24*/
{0x38,0x44,0x44,0x44,0xF8,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"9",25*/
{0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00},/*";",27*/
{0x00,0x20,0x50,0x88,0x04,0x02,0x00,0x00,0x00,0x00,0x01,0x02},/*"<",28*/
{0x90,0x90,0x90,0x90,0x90,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x02,0x04,0x88,0x50,0x20,0x00,0x02,0x01,0x00,0x00,0x00},/*">",30*/
{0x18,0x04,0xC4,0x24,0x18,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"?",31*/
{0xF8,0x04,0xE4,0x94,0xF8,0x00,0x01,0x02,0x02,0x02,0x02,0x00},/*"@",32*/
{0x00,0xE0,0x9C,0xF0,0x80,0x00,0x02,0x03,0x00,0x00,0x03,0x02},/*"A",33*/
{0x04,0xFC,0x24,0x24,0xD8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"B",34*/
{0xF8,0x04,0x04,0x04,0x0C,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"C",35*/
{0x04,0xFC,0x04,0x04,0xF8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"D",36*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"E",37*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"F",38*/
{0xF0,0x08,0x04,0x44,0xCC,0x40,0x00,0x01,0x02,0x02,0x01,0x00},/*"G",39*/
{0x04,0xFC,0x20,0x20,0xFC,0x04,0x02,0x03,0x00,0x00,0x03,0x02},/*"H",40*/
{0x04,0x04,0xFC,0x04,0x04,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"I",41*/
{0x00,0x04,0x04,0xFC,0x04,0x04,0x06,0x04,0x04,0x03,0x00,0x00},/*"J",42*/
{0x04,0xFC,0x24,0xD0,0x0C,0x04,0x02,0x03,0x02,0x00,0x03,0x02},/*"K",43*/
{0x04,0xFC,0x04,0x00,0x00,0x00,0x02,0x03,0x02,0x02,0x02,0x03},/*"L",44*/
{0xFC,0x3C,0xC0,0x3C,0xFC,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"M",45*/
{0x04,0xFC,0x30,0xC4,0xFC,0x04,0x02,0x03,0x02,0x00,0x03,0x00},/*"N",46*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"O",47*/
{0x04,0xFC,0x24,0x24,0x18,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"P",48*/
{0xF8,0x84,0x84,0x04,0xF8,0x00,0x01,0x02,0x02,0x07,0x05,0x00},/*"Q",49*/
{0x04,0xFC,0x24,0x64,0x98,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"R",50*/
{0x18,0x24,0x24,0x44,0x8C,0x00,0x03,0x02,0x02,0x02,0x01,0x00},/*"S",51*/
{0x0C,0x04,0xFC,0x04,0x0C,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"T",52*/
{0x04,0xFC,0x00,0x00,0xFC,0x04,0x00,0x01,0x02,0x02,0x01,0x00},/*"U",53*/
{0x04,0x7C,0x80,0xE0,0x1C,0x04,0x00,0x00,0x03,0x00,0x00,0x00},/*"V",54*/
{0x1C,0xE0,0x3C,0xE0,0x1C,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"W",55*/
{0x04,0x9C,0x60,0x9C,0x04,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"X",56*/
{0x04,0x1C,0xE0,0x1C,0x04,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"Y",57*/
{0x0C,0x84,0x64,0x1C,0x04,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"Z",58*/
{0x00,0x00,0xFE,0x02,0x02,0x00,0x00,0x00,0x07,0x04,0x04,0x00},/*"[",59*/
{0x00,0x0E,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00},/*"\",60*/
{0x00,0x02,0x02,0xFE,0x00,0x00,0x00,0x04,0x04,0x07,0x00,0x00},/*"]",61*/
{0x00,0x04,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08},/*"_",63*/
{0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x40,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"a",65*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"b",66*/
{0x00,0xC0,0x20,0x20,0x60,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"c",67*/
{0x00,0xC0,0x20,0x24,0xFC,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"d",68*/
{0x00,0xC0,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"e",69*/
{0x00,0x20,0xF8,0x24,0x24,0x04,0x00,0x02,0x03,0x02,0x02,0x00},/*"f",70*/
{0x00,0x40,0xA0,0xA0,0x60,0x20,0x00,0x07,0x0A,0x0A,0x0A,0x04},/*"g",71*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"h",72*/
{0x00,0x20,0xE4,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"i",73*/
{0x00,0x00,0x20,0xE4,0x00,0x00,0x08,0x08,0x08,0x07,0x00,0x00},/*"j",74*/
{0x04,0xFC,0x80,0xE0,0x20,0x20,0x02,0x03,0x02,0x00,0x03,0x02},/*"k",75*/
{0x04,0x04,0xFC,0x00,0x00,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"l",76*/
{0xE0,0x20,0xE0,0x20,0xC0,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"m",77*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"n",78*/
{0x00,0xC0,0x20,0x20,0xC0,0x00,0x00,0x01,0x02,0x02,0x01,0x00},/*"o",79*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x08,0x0F,0x0A,0x02,0x01,0x00},/*"p",80*/
{0x00,0xC0,0x20,0x20,0xE0,0x00,0x00,0x01,0x02,0x0A,0x0F,0x08},/*"q",81*/
{0x20,0xE0,0x40,0x20,0x20,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"r",82*/
{0x00,0x60,0xA0,0xA0,0x20,0x00,0x00,0x02,0x02,0x02,0x03,0x00},/*"s",83*/
{0x00,0x20,0xF8,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x02,0x00},/*"t",84*/
{0x20,0xE0,0x00,0x20,0xE0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"u",85*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x00,0x00,0x03,0x01,0x00,0x00},/*"v",86*/
{0x60,0x80,0xE0,0x80,0x60,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"w",87*/
{0x20,0x60,0x80,0x60,0x20,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"x",88*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x08,0x08,0x07,0x01,0x00,0x00},/*"y",89*/
{0x00,0x20,0xA0,0x60,0x20,0x00,0x00,0x02,0x03,0x02,0x02,0x00},/*"z",90*/
{0x00,0x00,0x20,0xDE,0x02,0x00,0x00,0x00,0x00,0x07,0x04,0x00},/*"{",91*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x0F,0x00,0x00},/*"|",92*/
{0x00,0x02,0xDE,0x20,0x00,0x00,0x00,0x04,0x07,0x00,0x00,0x00},/*"}",93*/
{0x02,0x01,0x02,0x04,0x04,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//16*16 ASCII字符集点阵
const unsigned char asc2_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//24*24 ASICII字符集点阵
const unsigned char asc2_2412[][36]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x7F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x80,0x60,0x30,0x1C,0x8C,0x60,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x86,0xE6,0x9F,0x86,0x86,0x86,0x86,0xE6,0x9F,0x86,0x00,0x00,0x01,0x1F,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x00},/*"#",3*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0xF8,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0xFF,0x70,0xE1,0x81,0x00,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x7F,0x10,0x0F,0x07,0x00,0x00},/*"$",4*/
{0x80,0x60,0x20,0x60,0x80,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,0x0F,0x30,0x20,0x30,0x9F,0x70,0xDC,0x37,0x10,0x30,0xC0,0x00,0x00,0x00,0x10,0x0E,0x03,0x00,0x07,0x18,0x10,0x18,0x07,0x00},/*"%",5*/
{0x00,0x00,0xC0,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x1F,0x38,0xE8,0x87,0x03,0xC4,0x3C,0x04,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x0B,0x07,0x0D,0x10,0x10,0x08,0x00},/*"&",6*/
{0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x30,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x04,0x08,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x66,0x66,0x3C,0x18,0xFF,0x18,0x3C,0x66,0x66,0x42,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x38,0x0C,0x00,0x00,0x00,0x00,0x00,0x80,0x70,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x60,0x38,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0E,0x07,0x01,0x00},/*"0",16*/
{0x00,0x00,0x80,0x80,0x80,0xC0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"1",17*/
{0x00,0x80,0x40,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x03,0x03,0x00,0x80,0x40,0x20,0x38,0x1F,0x07,0x00,0x00,0x00,0x1C,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x80,0xC0,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0x00,0x00,0x00,0x00,0xC0,0xB0,0x88,0x86,0x81,0x80,0xFF,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00},/*"4",20*/
{0x00,0x00,0xE0,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00,0x3F,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x07,0x0B,0x10,0x10,0x10,0x10,0x1C,0x0F,0x03,0x00,0x00},/*"5",21*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0xFC,0xFF,0x21,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x01,0x07,0x0C,0x18,0x10,0x10,0x10,0x08,0x0F,0x03,0x00},/*"6",22*/
{0x00,0x00,0xC0,0xE0,0x60,0x60,0x60,0x60,0x60,0xE0,0x60,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x87,0xEF,0x2C,0x18,0x18,0x30,0x30,0x68,0xCF,0x83,0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"8",24*/
{0x00,0x00,0xC0,0xC0,0x20,0x20,0x20,0x20,0xC0,0x80,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x40,0x20,0x10,0xFF,0xFE,0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x0E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x58,0x38,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x20,0x10,0x00,0x00,0x00,0x10,0x28,0x44,0x82,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x82,0x44,0x28,0x10,0x00,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x30,0xE0,0xC0,0x00,0x00,0x03,0x03,0x00,0x00,0xF0,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0xC0,0x40,0x60,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xFC,0xFF,0x01,0xF0,0x0E,0x03,0xC1,0xFE,0x03,0x80,0x7F,0x00,0x01,0x07,0x0E,0x08,0x11,0x11,0x10,0x11,0x09,0x04,0x02},/*"@",32*/
{0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7C,0x43,0x40,0x47,0x7F,0xF8,0x80,0x00,0x00,0x10,0x18,0x1F,0x10,0x00,0x00,0x00,0x00,0x13,0x1F,0x1C,0x10},/*"A",33*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"B",34*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0x20,0x60,0xE0,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x08,0x04,0x03,0x00},/*"C",35*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x40,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x18,0x08,0x0E,0x07,0x01,0x00},/*"D",36*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"E",37*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x01,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x40,0xE0,0x00,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x40,0x40,0xC0,0xC1,0x40,0x40,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00},/*"G",39*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10},/*"H",40*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x60,0xE0,0x80,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"J",42*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x20,0xA0,0x60,0x20,0x20,0x00,0x00,0xFF,0xFF,0x30,0x18,0x7C,0xE3,0xC0,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10},/*"K",43*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"L",44*/
{0x20,0xE0,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,0xFF,0x01,0x3F,0xFE,0xC0,0xE0,0x1E,0x01,0xFF,0xFF,0x00,0x10,0x1F,0x10,0x00,0x03,0x1F,0x03,0x00,0x10,0x1F,0x1F,0x10},/*"M",45*/
{0x20,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0x00,0x03,0x07,0x1C,0x78,0xE0,0x80,0x00,0xFF,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x1F,0x00},/*"N",46*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0C,0x07,0x01,0x00},/*"O",47*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x30,0x1F,0x0F,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x11,0x11,0x13,0x3C,0x7C,0x67,0x21,0x00},/*"Q",49*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x30,0xF0,0xD0,0x08,0x0F,0x07,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10},/*"R",50*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x40,0x40,0xE0,0x00,0x00,0x07,0x0F,0x0C,0x18,0x18,0x30,0x30,0x60,0xE0,0x81,0x00,0x00,0x1F,0x0C,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"S",51*/
{0x80,0x60,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x60,0x80,0x01,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00},/*"T",52*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x00},/*"U",53*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x07,0x7F,0xF8,0x80,0x00,0x80,0x7C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1C,0x07,0x00,0x00,0x00,0x00},/*"V",54*/
{0x20,0xE0,0xE0,0x20,0x00,0xE0,0xE0,0x20,0x00,0x20,0xE0,0x20,0x00,0x07,0xFF,0xF8,0xE0,0x1F,0xFF,0xFC,0xE0,0x1F,0x00,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x01,0x1F,0x03,0x00,0x00,0x00},/*"W",55*/
{0x00,0x20,0x60,0xE0,0xA0,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x00,0x00,0x03,0x8F,0x7C,0xF8,0xC6,0x01,0x00,0x00,0x00,0x00,0x10,0x18,0x1E,0x13,0x00,0x01,0x17,0x1F,0x18,0x10,0x00},/*"X",56*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x01,0x07,0x3E,0xF8,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x80,0x60,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x3E,0x0F,0x03,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x00,0x10,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x1C,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x70,0x80,0x00},/*"\",60*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x10,0x08,0x0C,0x04,0x0C,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x00,0x00,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x98,0xD8,0x44,0x64,0x24,0x24,0xFC,0xF8,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x10,0x08,0x1F,0x1F,0x10,0x18},/*"a",65*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x18,0x08,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x1F,0x0F,0x18,0x10,0x10,0x10,0x18,0x0F,0x03,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x18,0x04,0x04,0x04,0x3C,0x38,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x08,0x06,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x48,0x44,0x44,0x44,0x4C,0x78,0x70,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0xE0,0xC0,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xF8,0x8C,0x04,0x04,0x8C,0xF8,0x74,0x04,0x0C,0x00,0x70,0x76,0xCF,0x8D,0x8D,0x8D,0x89,0xC8,0x78,0x70,0x00},/*"g",71*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"j",74*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0xF4,0x1C,0x04,0x04,0x00,0x00,0x00,0x10,0x1F,0x1F,0x11,0x00,0x03,0x1F,0x1C,0x10,0x10,0x00},/*"k",75*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x00,0x10,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x08,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x0C,0x18,0xF0,0xE0,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x80,0xFF,0xFF,0x88,0x90,0x10,0x10,0x1C,0x0F,0x03,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x90,0x88,0xFF,0xFF,0x80,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x10,0x08,0x04,0x04,0x0C,0x0C,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x78,0xCC,0xC4,0x84,0x84,0x84,0x0C,0x1C,0x00,0x00,0x00,0x1E,0x18,0x10,0x10,0x10,0x11,0x19,0x0F,0x06,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0x10,0x10,0x10,0x0C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0x00,0xC4,0x3C,0x0C,0x04,0x00,0x00,0x00,0x00,0x01,0x0F,0x1E,0x0E,0x01,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x3C,0xFC,0xC4,0x00,0xE4,0x7C,0xFC,0x84,0x80,0x7C,0x04,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x07,0x1F,0x07,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x1C,0x7C,0xE4,0xC0,0x34,0x1C,0x04,0x04,0x00,0x00,0x10,0x10,0x1C,0x16,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0xC4,0x3C,0x04,0x04,0x00,0x00,0x00,0xC0,0x80,0xC1,0x37,0x0E,0x01,0x00,0x00,0x00,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x04,0x04,0xC4,0xF4,0x7C,0x1C,0x04,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x11,0x10,0x10,0x18,0x0E,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x28,0xEF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0x40,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x00,0x00,0x04,0x0C,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEF,0x28,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x18,0x06,0x02,0x02,0x04,0x08,0x10,0x20,0x20,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/



};
const unsigned char Hzk1[][32]={


{0x20,0x10,0xFC,0x03,0x10,0xCF,0x04,0xF4,0x04,0x54,0x8C,0x00,0x00,0x00,0x0F,0x00,0x02,0x01,0x08,0x0F,0x00,0x00,0x03,0x00},/*"你",0*/
{0x88,0x78,0x0F,0x88,0x78,0x42,0x42,0xF2,0x4A,0x46,0x40,0x00,0x08,0x05,0x02,0x05,0x08,0x00,0x08,0x0F,0x00,0x00,0x00,0x00},/*"好",1*/







};
const unsigned char Hzk2[][72]={
{0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xFC,0x84,0x80,0x80,0x80,0x80,0x80,0x80,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/

};
const unsigned char Hzk3[][128]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xFF,0xFF,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/


};

const unsigned char Hzk4[][512]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0xF0,0xF0,0x70,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0xFF,0x07,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0xFF,0xFF,0xFF,0xFF,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/

};
#endif

3.中文显示教程（取字模）

(1)取字模

需要用到一个软件

通过网盘分享的文件：PCtoLCD2002完美版.zip
链接: https://pan.baidu.com/s/11RI4hWdxa4gXKqSwgRSOkQ?pwd=WOKI 提取码: WOKI

1.打开取模软件

2汉字取模

2.1 点击模式，选择字符模式

2.2点击选项，进行设置

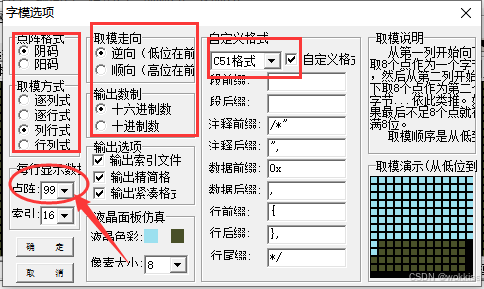

设置如下，点阵内的数字手动输入99，完成之后记得点击确定。

3.以生成12x12的汉字为例

3.1字宽，字高选择12

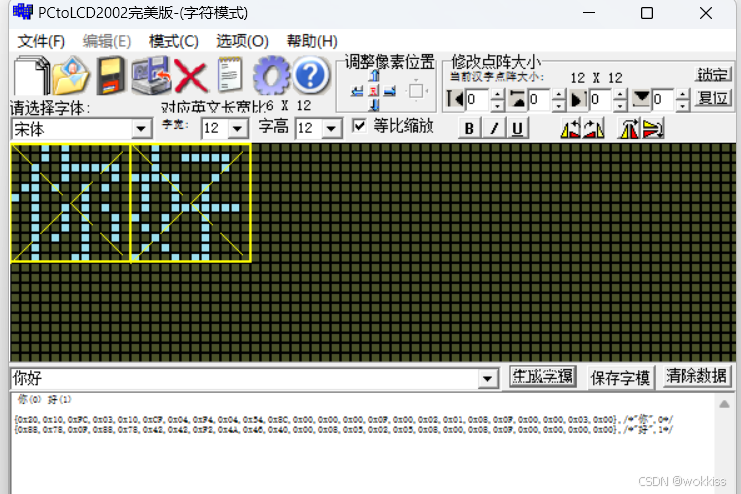

3.2在输入栏输入需要取模的汉字（只能是汉字）可多个汉字一起取模，然后点击生成字模。

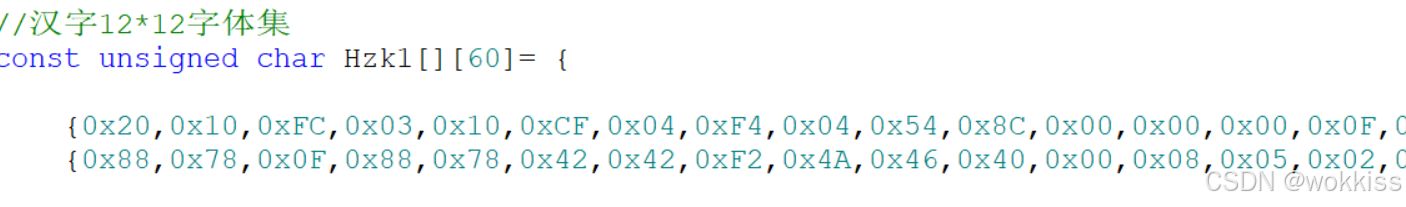

3.3将生成的字模复制到oledfont.h的数组中

(2)调用OLED_ShowChinese

在main.c调用这个函数

//x,y:起点坐标
//num:汉字对应的序号，汉字在oledfont.h里面数组的序号
//mode:0,反色显示;1,正常显示

//size：字体大小
void OLED_ShowChinese(u8 x,u8 y,u8 num,u8 size1,u8 mode)

OLED_ShowChinese(0,32, 0,12,1);
 OLED_ShowChinese(12,32, 1,12,1);

wokkiss
关注
STM32 OLED显示字符汉字
wuyiyu_的博客
03-12 1万+
OLED屏幕是一种高对比度、高亮度、低功耗、灵活可弯曲的显示技术。在电子产品中，OLED 屏幕通常用于显示各种文本、图标、图像等内容。本篇文章将介绍使用 I2C 接口 在 OLED 屏幕上显示字符，汉字。显示字符，字符串的 原理都一样，只不过显示字符串要 逐个显示每个字符，大家可以自己试试。
从0开始点亮OLED屏幕（五）OLED显示汉字，图片
qq_62637071的博客
04-28 2021
size1/8＋size1％8的作用是取出汉字所占页数，乘上字宽也就得出需要写的次数。（一次写8个竖着的像素点，原理前文有介绍过）利用画点函数吧八个竖着的像素数据画出来，x就往下自增1，当x的增量为字宽时，就移到下一页继续写，这个就是现实汉字的原理了。如果是从我第一篇文章看起，这个还是很容易理解的。
STM32 OLED显示汉字及屏幕滚动（I2C协议）
cjhz2333的博客
11-26 1万+
本次实验主要使用标准库导入了AHT20模块和OLED模块，实现了显示温湿度数据和学号姓名的滚动显示。OLED屏的使用比较方便，用来调试啥的也很不错。
6.（OLED屏幕）在STM32C8T6上使用OLED模块
最新发布
2301_77128574的博客
04-11 1210
将OLED模块与STM32设置的打开I2C的GPIO口相连，并将写好的代码通过stlink烧录进STM32中，实现点亮OLED屏幕
（STM32）OLED显示汉字
05-12
int main(void) { delay_init(); //延时函数初始化 NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2); //设置NVIC中断分组2:2位抢占优先级，2位响应优先级 LED_Init(); //LED端口初始化 OLED_Init(); //初始化OLED OLED_Show_FontN(0,56,2); OLED_Show_FontN(8,56,0); OLED_Show_FontN(16,56,1); OLED_Show_FontN(24,56,7); OLED_Show(); while(1) { delay_ms(500); LED0=!LED0; } }
stm32教程：OLED屏显示字母、汉字、图片工程讲解
黑不拉几的小白兔和你一起努力
11-15 5796
大佬们，是不是总想过怎么在显示屏上显示字符、数字、汉字、图片，在项目中总是需要一些图像的显示，这一期里小白兔就来解决你的这些问题，干货满满喔~！
oled汉字显示
12-14
oled汉字显示， 代码就是有点参考意义 自己去改
STM32F103硬件IIC驱动显示OLED
weixin_54139141的博客
06-29 281
【代码】STM32F103硬件IIC驱动显示OLED。
STM32F103，OLED（模拟I2C/IIC），中文/图片显示详细新手入门教程
Wsy445257918的博客
11-27 1762
温馨提示，本篇文章较长，请通过左边的目录选择。本次教程不讲废话，只讲硬菜，请按需进食（点击左边目录，选择自己想要了解的部分）。本次实验使用的是0.96寸，4针脚的oled显示屏，接下来我将讲解如何让oled显示单个字符，字符串，数字，汉字，图片。
江协科技之STM32驱动1.3寸/0.96寸/0.91寸OLED显示屏介绍
m0_75090944的博客
11-13 3379
编码介绍+取模软件介绍+江协科技OLED库
基于STM32的0.96寸OLED显示屏显示数据
cleveryoga的博客
11-21 3885
文章目录一、SPI1.简介2.SPI 的物理层和协议层2.1物理层2.2协议层3.通讯引脚二、使用0.96寸OLED显示屏显示数据1.显示屏介绍2.题目要求三、显示学号和姓名1.工程建立2.编译测试3.电路连接4.结果 一、SPI 1.简介 SPI 协议是由摩托罗拉公司提出的通讯协议(Serial Peripheral Interface)，即串行外围设备接口，是一种高速全双工的通信总线。它被广泛地使用在 ADC、LCD 等设备与 MCU 间，要求通讯速率较高的场合。 2.SPI 的物理层和协议层 2.1物
OLED显示汉字
02-08
STM32F103显示汉字实验，新手教程代码，
stm32汉字取模显示
07-29
stm32TFT屏幕汉字取模的方法显示汉字字符。简单实用。（非字库显示方法）
IIC-OLED显示屏资料(SSD1306) 0.96
02-06
IIC-OLED显示屏资料(SSD1306) 0.96 用stm32 keil编译环境
IIC-OLED显示屏资料(SSD1306) 0.96.zip
07-09
IIC-OLED显示屏资料(SSD1306) 0.96.zip
STM32 - OLED/TFT显示中文
热门推荐
zhp搁浅的博客
10-29 2万+
一：材料准备 stm32单片机、OLED/TFT一个 二：之前有过学习原子教程的基础 这里以OLED显示中文为例（TFT一样） 1，显示一个字符： （16号字体举例：宽8 高16） 自行理解这一行意思 u8 csize=(size/8 + ((size%8)?1:0)) * (size/2); //得到字体一个字符对应点阵集所占的字节数 /****************...
STM32 0.96寸OLED显示中文
qq_65590953的博客
06-05 947
stm32的OLED模块显示中文代码流程
STM32 IIC OLED中英文显示
位文杰的博客
08-05 1万+
简介 ; II2C OLED 中英文显示 ADC数据采集实时显示 八路ADC 一 先上代码 #include "oled.h" #include "sys.h" #include "delay.h" #include "oledfont.h" #include "delay.h" #include "bmp.h" #include "gbk.h" #de...
STM32驱动OLED显示汉字，字符------IIC
m0_63171897的博客
10-15 1万+
OLED由于同时具备自发光，不需背光源、对比度高、厚度薄、视角广、反应速度快、可用于挠曲性面板、使用温度范围广、构造及制程较简单等优异之特性，被认为是下一代的平面显示器新兴应用技术。以目前的技术，OLED的尺寸还难以大型化，但是分辨率确可以做到很高。总线在传送数据过程中共有三种类型信号， 它们分别是：开始信号、结束信号和应答。这些信号中，起始信号是必需的，结束信号和应答信号，都可以不要。模拟IIC三种类型信号：开始信号，结束信号，等待应答信号。显示汉字，字体大小可以调12，16，32，64。
基于stm32的标准库函数写一个iic协议的0.96寸oled的驱动程序
05-22
这个驱动程序使用了STM32F10x的标准库函数来实现IIC协议的通信，并且可以在0.96寸OLED屏幕上显示字符和字符串。需要注意的是，这个程序中的OLED屏幕地址是0x78，如果你使用的是其他OLED屏幕，可能需要修改这个地址。...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
