STM32 0.96寸OLED显示中文

OLED显示代码，输入行列来确定中文显示的位置

void OLED_ShowCHinese(uint16_t Y,uint16_t X,uint16_t no)
{
    u8 t;
    OLED_SetCursor((Y-1)*2, (X-1)*16);
    for(t=0;t<16;t++)
    {
        OLED_WriteData(OLED_F8x32[2*no][t]);
    }
    OLED_SetCursor((Y-1)*2+1, (X-1)*16);
    for(t=0;t<16;t++)
    {
        OLED_WriteData(OLED_F8x32[2*no+1][t]);
    }
}

这是定位到行列位置代码

void OLED_SetCursor(uint8_t Y, uint8_t X)
{
    OLED_WriteCommand(0xB0 | Y);                    //设置Y位置
    OLED_WriteCommand(0x10 | ((X & 0xF0) >> 4));    //设置X位置高4位
    OLED_WriteCommand(0x00 | (X & 0x0F));            //设置X位置低4位
}
写入数据代码

void OLED_WriteData(uint8_t Data)
{
    OLED_I2C_Start();
    OLED_I2C_SendByte(0x78);        //从机地址
    OLED_I2C_SendByte(0x40);        //写数据
    OLED_I2C_SendByte(Data);
    OLED_I2C_Stop();
}
OLED字体库里存放代码的形式

const uint8_t OLED_F8x32[][32]={
 {0x10,0x10,0x14,0xD4,0x54,0x54,0x54,0xFC,0x52,0x52,0x52,0xD3,0x12,0x10,0x10,0x00},
 {0x40,0x40,0x50,0x57,0x55,0x55,0x55,0x7F,0x55,0x55,0x55,0x57,0x50,0x40,0x40,0x00},/*"重", {0x20,0x20,0x20,0xBE,0xAA,0xAA,0xAA,0xAA,0xAA,0xAA,0xAA,0xBE,0x20,0x20,0x20,0x00},  {0x00,0x80,0x80,0xAF,0xAA,0xAA,0xAA,0xFF,0xAA,0xAA,0xAA,0xAF,0x80,0x80,0x00,0x00},/*"量",
};

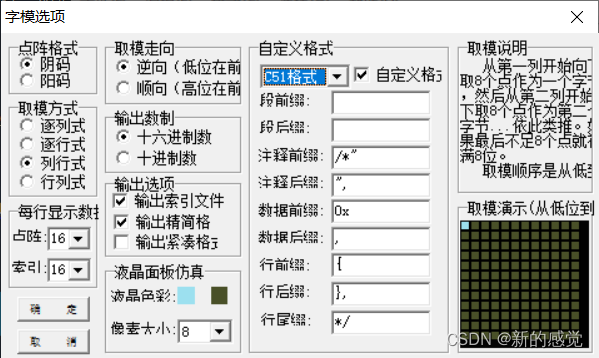

取模软件格式如下：
