UVM实战_2_TLM总结

本文总结了UVM实战中关于TLM(Transaction Level Modeling)的内容,包括put、get、transport端口的术语和用法,分析了PORT、EXPORT、IMP之间的关系,并探讨了analysis端口在monitor与scoreboard连接中的应用,以及FIFO在通信中的作用和优势。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

提示:文章写完后,目录可以自动生成,如何生成可参考右边的帮助文档


前言

总结《UVM实战》第4章内容


一、put、get、transport端口

1.术语

   A为发起者(port),B为目标(export)
  • put: A发送给B一个数据
  • get: A从B拿到一个数据
  • transport: 相当于put+get,A发出一个请求,B返回一个应答
  • peek: 复制一个数据送出去,原来的数据还在

2.PORT、EXPORT、IMP、TRANSPORT

  • 优先级:port > export > imp
  • 在有port, export, imp连接的data path中,有且必须以imp作为终点,否则的话,程序会报错。port, export相当于一道门,没用存储作用
  • imp在声明时相较于port, export多了一个类型参数IMP,第一个参数是传输的transaction,第二个参数是实现这个接口的component
  • 端口连接举例:

2.1 port-export-imp

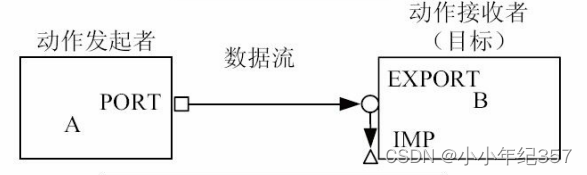

在这里插入图片描述
A代码

class A extends uvm_component;
   `uvm_component_utils(A)

   uvm_blocking_put_port#(my_transaction) A_port;
   function new(string name, uvm_component parent);
      super.new(name, parent);
   endfunction

   extern function void build_phase(uvm_phase phase);
   extern virtual  task main_phase(uvm_phase phase);
endclass

function void A::build_phase(uvm_phase phase);
   super.build_phase(phase);
   A_port = new("A_port", this);
endfunction

task A::main_phase(uvm_phase phase);
   my_transaction tr;
   repeat(10) begin
      #10;
      tr = new("tr");
      assert(tr.randomize());
      A_port.put(tr);
   end
endtask

B代码

class B extends uvm_component;
   `uvm_component_utils(B)

   uvm_blocking_put_export#(my_transaction) B_export;
   uvm_blocking_put_imp#(my_transaction, B) B_imp;
   function new(string name, uvm_component parent);
      super.new(name, parent);
   endfunction

   extern function void build_phase(uvm_phase phase);
   extern function void connect_phase(uvm_phase phase);
   extern function void put(my_transaction tr);
   extern virtual  task main_phase(uvm_phase phase);
endclass

function void B::build_phase(uvm_phase phase);
   super.build_phase(phase);
   B_export = new("B_export", this);
   B_imp = new("B_imp", this);
endfunction

function void B::connect_phase(uvm_phase phase);
   super.connect_phase(phase);
   B_export.connect(B_imp);
endfunction

function void B::put(my_transaction tr);
   `uvm_info("B", "receive a transaction", UVM_LOW)
   tr.print();
endfunction

task B::main_phase(uvm_phase phase);
endtask

env代码

class my_env extends uvm_env;

   A   A_inst;
   B   B_inst;


   function new(string name = "my_env", uvm_component parent);
      super.new(name, parent);
   endfunction

   virtual function void build_phase(uvm_phase phase);
      super.build_phase(phase);

      A_inst = A::type_id::create("A_inst", this);
      B_inst = B::type_id::create("B_inst", this);

   endfunction

   extern virtual function void connect_phase(uvm_phase phase);

   `uvm_component_utils(my_env)
endclass

function void my_env::connect_phase(uvm_phase phase);
   super.connect_phase(phase);
   A_inst.A_port.connect(B_inst.B_export)
