OLED.C

#include "main.h"
#include "oled_app.h"
#include "oledfront_app.h"
#define OLED_W_SCL(x) HAL_GPIO_WritePin(GPIOB, GPIO_PIN_8, (GPIO_PinState)(x))
#define OLED_W_SDA(x) HAL_GPIO_WritePin(GPIOB, GPIO_PIN_9, (GPIO_PinState)(x))

/**
* @brief I2C起始信号
*/
static void OLED_I2C_Start(void)
{
OLED_W_SDA(1); // SDA线高电平
OLED_W_SCL(1); // SCL线高电平
OLED_W_SDA(0); // SDA线拉低：起始信号
OLED_W_SCL(0); // SCL线拉低：准备发送数据
}

/**
* @brief I2C停止信号
*/
static void OLED_I2C_Stop(void)
{
OLED_W_SDA(0); // SDA线低电平
OLED_W_SCL(1); // SCL线高电平：时钟信号
OLED_W_SDA(1); // SDA线拉高：停止信号
}

/**
* @brief I2C发送一个字节
* @param Byte：要发送的字节
*/
static void OLED_I2C_SendByte(uint8_t Byte)
{
uint8_t i;
for (i = 0; i < 8; i++)
{
// 发送高位在前（0x80为最高位）
OLED_W_SDA(!!(Byte & (0x80 >> i))); // 提取当前位并转换为高低电平
OLED_W_SCL(1); // 时钟高电平：数据有效
OLED_W_SCL(0); // 时钟低电平：准备下一位
}
OLED_W_SCL(1); // 额外时钟脉冲（不处理应答信号）
OLED_W_SCL(0);
}

/**
* @brief OLED写命令
* @param Command：要写入的命令
*/
static void OLED_WriteCommand(uint8_t Command)
{
OLED_I2C_Start();
OLED_I2C_SendByte(0x78); // OLED从机地址（0x3C << 1 = 0x78）
OLED_I2C_SendByte(0x00); // 写命令标志（D/C#=0）
OLED_I2C_SendByte(Command);
OLED_I2C_Stop();
}

/**
* @brief OLED写数据
* @param Data：要写入的数据
*/
static void OLED_WriteData(uint8_t Data)
{
OLED_I2C_Start();
OLED_I2C_SendByte(0x78); // OLED从机地址
OLED_I2C_SendByte(0x40); // 写数据标志（D/C#=1）
OLED_I2C_SendByte(Data);
OLED_I2C_Stop();
}

/**
* @brief 设置光标位置
* @param Y：行坐标（0~7，以左上角为原点，向下为正）
* @param X：列坐标（0~127，以左上角为原点，向右为正）
*/
static void OLED_SetCursor(uint8_t Y, uint8_t X)
{
OLED_WriteCommand(0xB0 | Y); // 设置页地址（Y位置）
OLED_WriteCommand(0x10 | ((X & 0xF0) >> 4)); // 设置列地址高4位
OLED_WriteCommand(0x00 | (X & 0x0F)); // 设置列地址低4位
}

/**
* @brief OLED清屏（填充全屏为0x00）
*/
void OLED_Clear(void)
{
uint8_t i, j;
for (j = 0; j < 8; j++) // 遍历8页（Y=0~7）
{
OLED_SetCursor(j, 0); // 定位到第j页，第0列
for (i = 0; i < 128; i++) // 遍历128列（X=0~127）
{
OLED_WriteData(0x00); // 写入空数据（熄灭像素）
}
}
}

/**
* @brief 显示单个字符（8x16点阵）
* @param Line：行位置（1~4，共4行）
* @param Column：列位置（1~16，共16列）
* @param Char：要显示的字符（ASCII可见字符，如'A'、'1'等）
*/
void OLED_ShowChar(uint8_t Line, uint8_t Column, char Char)
{
uint8_t i;
// 定位到字符上半部分（8行）
OLED_SetCursor((Line - 1) * 2, (Column - 1) * 8);
for (i = 0; i < 8; i++)
{
OLED_WriteData(OLED_F8x16[Char - ' '][i]); // 显示上8行像素
}
// 定位到字符下半部分（8行）
OLED_SetCursor((Line - 1) * 2 + 1, (Column - 1) * 8);
for (i = 0; i < 8; i++)
{
OLED_WriteData(OLED_F8x16[Char - ' '][i + 8]); // 显示下8行像素
}
}

/**
* @brief 显示字符串（连续显示多个字符）
* @param Line：起始行位置（1~4）
* @param Column：起始列位置（1~16）
* @param String：要显示的字符串（以'\0'结尾）
*/
void OLED_ShowString(uint8_t Line, uint8_t Column, char *String)
{
uint8_t i;
for (i = 0; String[i] != '\0'; i++) // 遍历字符串直到结束符
{
OLED_ShowChar(Line, Column + i, String[i]); // 逐个显示字符
}
}

/**
* @brief 次方计算（辅助函数，用于数字拆分）
* @param X：底数
* @param Y：指数（Y≥0）
* @retval X的Y次方结果
*/
static uint32_t OLED_Pow(uint32_t X, uint32_t Y)
{
uint32_t Result = 1;
while (Y--) // 循环Y次，每次乘以X
{
Result *= X;
}
return Result;
}

/**
* @brief 显示十进制正数
* @param Line：起始行位置（1~4）
* @param Column：起始列位置（1~16）
* @param Number：要显示的数字（0~4294967295）
* @param Length：显示位数（1~10）
*/
void OLED_ShowNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
uint8_t i;
for (i = 0; i < Length; i++)
{
// 提取第i位数字并转换为字符（如1→'1'）
OLED_ShowChar(Line, Column + i,
Number / OLED_Pow(10, Length - i - 1) % 10 + '0');
}
}

/**
* @brief 显示十进制带符号数（可显示负数）
* @param Line：起始行位置（1~4）
* @param Column：起始列位置（1~16）
* @param Number：要显示的数字（-2147483648~2147483647）
* @param Length：数字部分的位数（1~10，不含符号位）
*/
void OLED_ShowSignedNum(uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length)
{
uint32_t Number1;
if (Number >= 0)
{
OLED_ShowChar(Line, Column, '+'); // 显示正号
Number1 = Number;
}
else
{
OLED_ShowChar(Line, Column, '-'); // 显示负号
Number1 = -Number; // 取绝对值
}
// 显示数字部分（复用无符号数显示函数）
OLED_ShowNum(Line, Column + 1, Number1, Length);
}

/**
* @brief 显示十六进制数（正数）
* @param Line：起始行位置（1~4）
* @param Column：起始列位置（1~16）
* @param Number：要显示的数字（0~0xFFFFFFFF）
* @param Length：显示位数（1~8）
*/
void OLED_ShowHexNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
uint8_t i, SingleNumber;
for (i = 0; i < Length; i++)
{
// 提取第i位十六进制数
SingleNumber = Number / OLED_Pow(16, Length - i - 1) % 16;
if (SingleNumber < 10)
{
OLED_ShowChar(Line, Column + i, SingleNumber + '0'); // 0~9：直接转换
}
else
{
OLED_ShowChar(Line, Column + i, SingleNumber - 10 + 'A'); // A~F：偏移转换
}
}
}

/**
* @brief 显示二进制数（正数）
* @param Line：起始行位置（1~4）
* @param Column：起始列位置（1~16）
* @param Number：要显示的数字（0~65535）
* @param Length：显示位数（1~16）
*/
void OLED_ShowBinNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
uint8_t i;
for (i = 0; i < Length; i++)
{
// 提取第i位二进制数（0或1）并转换为字符
OLED_ShowChar(Line, Column + i,
Number / OLED_Pow(2, Length - i - 1) % 2 + '0');
}
}

/**
* @brief OLED初始化（包含硬件初始化和命令配置）
*/
void OLED_Init(void)
{
HAL_Delay(100); // 上电延时（确保OLED电源稳定）

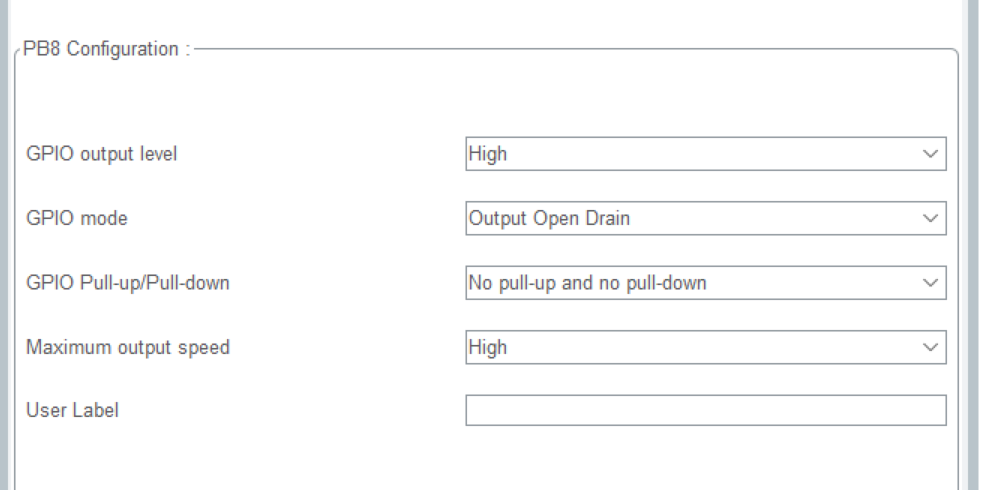

/* 引脚初始化（仅设置初始电平，模式由CubeMX配置） */
OLED_W_SCL(1); // SCL线初始高电平（空闲状态）
OLED_W_SDA(1); // SDA线初始高电平（空闲状态）

/* OLED控制器初始化命令序列 */
OLED_WriteCommand(0xAE); // 关闭显示

OLED_WriteCommand(0xD5); // 设置显示时钟分频比/振荡器频率
OLED_WriteCommand(0x80); // 默认值（分频比1，振荡器频率默认）

OLED_WriteCommand(0xA8); // 设置多路复用率
OLED_WriteCommand(0x3F); // 64行（0x3F = 63，64行复用）

OLED_WriteCommand(0xD3); // 设置显示偏移
OLED_WriteCommand(0x00); // 无偏移

OLED_WriteCommand(0x40); // 设置显示开始行（从第0行开始）

OLED_WriteCommand(0xA1); // 设置段重定向（列地址0映射到SEG0，正常显示）

OLED_WriteCommand(0xC8); // 设置COM扫描方向（从COM63到COM0，正常显示）

OLED_WriteCommand(0xDA); // 设置COM引脚硬件配置
OLED_WriteCommand(0x12); // 序列配置，左右COM引脚交替

OLED_WriteCommand(0x81); // 设置对比度控制
OLED_WriteCommand(0xCF); // 对比度值（0x00~0xFF，0xCF为较高对比度）

OLED_WriteCommand(0xD9); // 设置预充电周期
OLED_WriteCommand(0xF1); // 预充电9个时钟，放电1个时钟

OLED_WriteCommand(0xDB); // 设置VCOMH取消选择级别
OLED_WriteCommand(0x30); // VCOMH = 0.83V * VCC

OLED_WriteCommand(0xA4); // 开启正常显示（按GDDRAM内容显示，非强制全亮）

OLED_WriteCommand(0xA6); // 设置正常显示（非反显）

OLED_WriteCommand(0x8D); // 电荷泵设置
OLED_WriteCommand(0x14); // 开启电荷泵（需要外部VCC时启用）

OLED_WriteCommand(0xAF); // 开启显示

OLED_Clear(); // 初始化清屏（确保无乱码）
}

OLED.H

#ifndef __OLED_APP_H__
#define __OLED_APP_H__

#include <stdint.h>
// 引脚定义（与CubeMX配置一致）
#define OLED_W_SCL(x) HAL_GPIO_WritePin(GPIOB, GPIO_PIN_8, (GPIO_PinState)(x))
#define OLED_W_SDA(x) HAL_GPIO_WritePin(GPIOB, GPIO_PIN_9, (GPIO_PinState)(x))

// 函数声明
void OLED_Init(void);
void OLED_Clear(void);
void OLED_ShowChar(uint8_t Line, uint8_t Column, char Char);
void OLED_ShowString(uint8_t Line, uint8_t Column, char *String);
void OLED_ShowNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
void OLED_ShowSignedNum(uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length);
void OLED_ShowHexNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
void OLED_ShowBinNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);

#endif

OLEDFRONT.H

#ifndef __OLEDFRONT_APP_H__
#define __OLEDFRONT_APP_H__
#include <stdint.h>
/*OLED字模库，宽8像素，高16像素*/
const uint8_t OLED_F8x16[][16]=
{
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0

   0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,
   0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1

   0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2

   0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,
   0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3

   0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,
   0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4

   0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,
   0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5

   0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,
   0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6

   0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7

   0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,
   0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8

   0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,
   0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9

   0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,
   0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10

   0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,
   0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11

   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
   0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12

   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
   0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13

   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
   0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14

   0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,
   0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15

   0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,
   0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16

   0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,
   0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17

   0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,
   0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18

   0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,
   0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19

   0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,
   0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20

   0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,
   0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21

   0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,
   0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22

   0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,
   0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23

   0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,
   0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24

   0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,
   0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25

   0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,
   0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26

   0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,
   0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27

   0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,
   0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28

   0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,
   0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29

   0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,
   0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30

   0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,
   0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31

   0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,
   0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32

   0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,
   0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33

   0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,
   0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34

   0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,
   0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35

   0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,
   0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36

   0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,
   0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37

   0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,
   0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38

   0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,
   0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39

   0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,
   0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40

   0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,
   0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41

   0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,
   0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42

   0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,
   0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43

   0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,
   0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44

   0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,
   0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45

   0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,
   0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46

   0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,
   0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47

   0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,
   0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48

   0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,
   0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49

   0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,
   0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50

   0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,
   0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51

   0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,
   0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52

   0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,
   0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53

   0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,
   0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54

   0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,
   0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55

   0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,
   0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56

   0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,
   0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57

   0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,
   0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58

   0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,
   0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59

   0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,
   0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60

   0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,
   0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61

   0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62

   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
   0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63

   0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64

   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
   0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65

   0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,
   0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66

   0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,
   0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67

   0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,
   0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68

   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
   0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69

   0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,
   0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70

   0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,
   0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71

   0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,
   0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72

   0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,
   0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73

   0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,
   0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74

   0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,
   0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75

   0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,
   0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76

   0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,
   0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77

   0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,
   0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78

   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
   0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79

   0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,
   0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80

   0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,
   0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81

   0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,
   0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82

   0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,
   0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83

   0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,
   0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84

   0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,
   0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85

   0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,
   0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86

   0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,
   0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87

   0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,
   0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88

   0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,
   0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89

   0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,
   0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90

   0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,
   0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91

   0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,
   0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92

   0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,
   0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93

   0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,
   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};
