KSFramework是整合多种工具的Unity Asset Bundle开发框架，支持热重载。本文介绍其开源地址和文档，重点讲述在Windows 10、Unity 2021.3.21环境下打包时遇到的三个报错，如CS1615、FileNotFoundException、CS1061等，并给出了相应的解决办法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

简介

KSFramework是一个整合KEngine、SLua、xLua、ILRuntime的Unity Asset Bundle开发框架，并为程序、美术、策划、运营提供辅助工具集。（支持热重载）

KSFramework开源地址： https://github.com/mr-kelly/KSFramework
文档： https://mr-kelly.github.io/KSFramework/

环境

Windows 10
Unity 2021.3.21

打包报错

坑1：

Assets\XLua\Gen\UnityEngine_MaterialWrap.cs(628,58): error CS1615: Argument 1 may not be passed with the ‘ref’ keyword

解决： 找到 LuaClassWrap.tpl.txt 文件。其中有一句：

if pi ~= 0 then %>, <% end; if parameter.IsOut and
parameter.ParameterType.IsByRef then %>out <% elseif
parameter.ParameterType.IsByRef then %>ref <% end
%><%=LocalName(parameter.Name)%><% end) %> );

修改为：

if pi ~= 0 then %>, <% end; if parameter.IsOut and
parameter.ParameterType.IsByRef then %>out <% elseif parameter.IsIn
and parameter.ParameterType.IsByRef then %>in <% elseif
parameter.ParameterType.IsByRef then %>ref <% end
%><%=LocalName(parameter.Name)%><% end) %> );

然后执行：XLua->Clear Generated Code清除生成的代码；再重新执行打包流程。

坑2：

FileNotFoundException: Could not find file
‘F:\Unity\Project\KSFramework-master\KSFramework\Product\Windows-version.txt’.

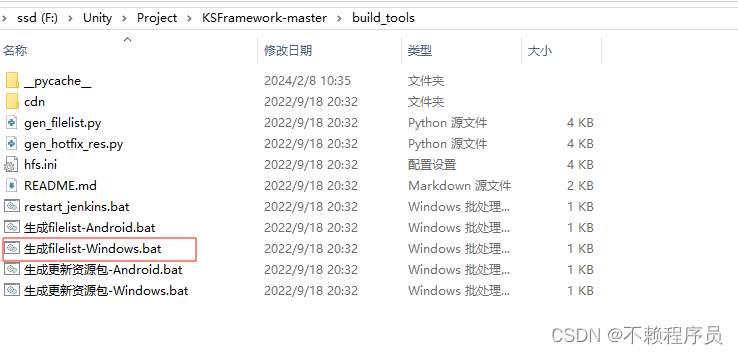

解决： 找到下图.bat（根据打包的目标平台选择对应的bat文件）文件双击执行会自动
工具路径

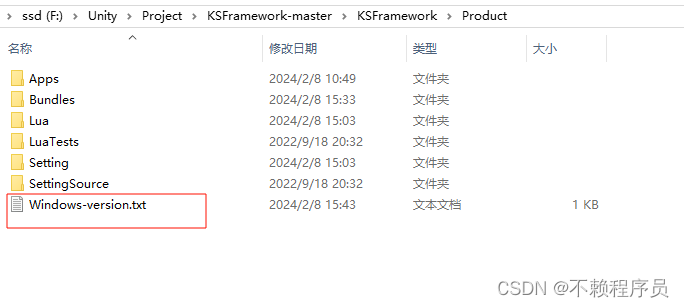

自动生成的version文件路径如下所示：

version文件路径
再次执行KEngine->AutoBuilder\Windows L2CPP，该错误消失。

坑3：

Assets\XLua\Gen\UnityEngine_AudioSourceWrap.cs(169,58): error CS1061: ‘AudioSource’ does not contain a definition for ‘PlayOnGamepad’ and no accessible extension method ‘PlayOnGamepad’ accepting a first argument of type ‘AudioSource’ could be found (are you missing a using directive or an assembly reference?)

解决：
找到ExampleGenConfig.cs文件，搜索 [BlackList]，定位到如下位置：

    //黑名单
    [BlackList]
    public static List<List<string>> BlackList = new List<List<string>>()  {
                new List<string>(){"System.Xml.XmlNodeList", "ItemOf"},
                new List<string>(){"UnityEngine.WWW", "movie"},
    #if UNITY_WEBGL
                new List<string>(){"UnityEngine.WWW", "threadPriority"},
    #endif
                new List<string>(){"UnityEngine.Texture2D", "alphaIsTransparency"},
                new List<string>(){"UnityEngine.Security", "GetChainOfTrustValue"},
                new List<string>(){"UnityEngine.CanvasRenderer", "onRequestRebuild"},
                new List<string>(){"UnityEngine.Light", "areaSize"},
                new List<string>(){"UnityEngine.Light", "lightmapBakeType"},
                new List<string>(){"UnityEngine.WWW", "MovieTexture"},
                new List<string>(){"UnityEngine.WWW", "GetMovieTexture"},
                new List<string>(){"UnityEngine.AnimatorOverrideController", "PerformOverrideClipListCleanup"},
    #if !UNITY_WEBPLAYER
                new List<string>(){"UnityEngine.Application", "ExternalEval"},
    #endif
                new List<string>(){"UnityEngine.GameObject", "networkView"}, //4.6.2 not support
                new List<string>(){"UnityEngine.Component", "networkView"},  //4.6.2 not support
                new List<string>(){"System.IO.FileInfo", "GetAccessControl", "System.Security.AccessControl.AccessControlSections"},
                new List<string>(){"System.IO.FileInfo", "SetAccessControl", "System.Security.AccessControl.FileSecurity"},
                new List<string>(){"System.IO.DirectoryInfo", "GetAccessControl", "System.Security.AccessControl.AccessControlSections"},
                new List<string>(){"System.IO.DirectoryInfo", "SetAccessControl", "System.Security.AccessControl.DirectorySecurity"},
                new List<string>(){"System.IO.DirectoryInfo", "CreateSubdirectory", "System.String", "System.Security.AccessControl.DirectorySecurity"},
                new List<string>(){"System.IO.DirectoryInfo", "Create", "System.Security.AccessControl.DirectorySecurity"},
                new List<string>(){"UnityEngine.MonoBehaviour", "runInEditMode"},
            };

在 #if UNITY_WEBGL上方插入一下代码：

    //Texture
    new List<string>(){"UnityEngine.Texture", "imageContentsHash"},

    //MeshRenderer
    new List<string>(){"UnityEngine.MeshRenderer", "scaleInLightmap"},
    new List<string>(){"UnityEngine.MeshRenderer", "receiveGI"},
    new List<string>(){"UnityEngine.MeshRenderer", "stitchLightmapSeams"},
    new List<string>(){"UnityEngine.MeshRenderer", "scaleInLightmap"},
    new List<string>(){"UnityEngine.MeshRenderer", "receiveGI"},
    new List<string>(){"UnityEngine.MeshRenderer", "stitchLightmapSeams"},

    //AudioSource
    new List<string>(){"UnityEngine.AudioSource", "gamepadSpeakerOutputType"},
    new List<string>(){"UnityEngine.AudioSource", "PlayOnGamepad","System.Int32"},
    new List<string>(){"UnityEngine.AudioSource", "DisableGamepadOutput"},
    new List<string>(){"UnityEngine.AudioSource", "SetGamepadSpeakerMixLevel","System.Int32","System.Int32"},
    new List<string>(){"UnityEngine.AudioSource", "SetGamepadSpeakerMixLevelDefault","System.Int32"},
    new List<string>(){"UnityEngine.AudioSource", "SetGamepadSpeakerRestrictedAudio","System.Int32","System.Boolean"},
    new List<string>(){"UnityEngine.AudioSource", "GamepadSpeakerSupportsOutputType","UnityEngine.GamepadSpeakerOutputType"},
