1.环境

准备4台机器

ip地址：192.168.5.135（note01 主）

ip地址：192.168.5.136（note02 备）

ip地址：192.168.5.137（note03 nginx）

ip地址：192.168.5.138（note04 nginx）

2.主机安装环境192.168.5.135（note01 主）

(1）安装阿里云源

家里网络，这里为了方便安装，配置一下阿里云的yum源和epel源

#yum install -y wget

#wget http://mirrors.aliyun.com/repo/Centos-7.repo #下载阿里的云源

#wget http://mirrors.aliyun.com/repo/epel-7.repo #下载阿里云的源

#cd /etc/yum.repos.d/ #替换源

# ll

# mkdir repo_bak #系统自带的源，备份一下

# mv *.repo repo_bak/

# mv /root/*.repo ./ #移入阿里源

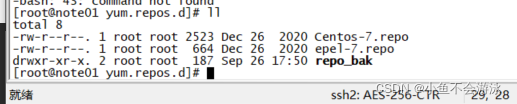

# ll

(2).安装keppalived

#yum -y install keepalived

2.配置

#vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {
        router_id note01 #节点标识字条串，通常为hostname
}
#配置 nginx 状态检测
vrrp_script chk_nginx {
        script "/etc/keepalived/check_nginx.sh"  #脚本存放路径
        interval 2 #检测时间间隔
        weight 2 #配置节点权重
}
## 定义虚拟路由， VI_1 为虚拟路由的标示符
vrrp_instance VI_1 {
        state MASTER  # 主节点为 MASTER， 对应的备份节点为 BACKUP
        interface ens33 #绑定虚拟 IP 的网络接口，与本机 IP 地址接口相同
        virtual_router_id 51 #虚拟路由的 ID 号， 两个节点设置必须一样
        mcast_src_ip 192.168.5.135 #本机 IP 地址
        priority 100 # 节点优先级，值范围 0-254，MASTER要比BACKUP高
        nopreempt #配置MASTER异常恢复后再次抢占
        advert_int 1 # 组播信息发送间隔，两个节点设置必须一样， 默认 1s
        #设置验证信息，两个节点必须一致
        authentication {
                auth_type PASS
                auth_pass 1111 #自定义配置
        }
        #将 track_script 块加入 instance 配置块
        track_script {
                chk_nginx #执行Nginx状态检测的服务
        }
        # 设置虚拟 IP 池, 两个节点设置必须一样
        virtual_ipaddress {
                192.168.5.100 #虚拟 ip，可以定义多个
        }
}

#vim /etc/keepalived/check_nginx.sh

#!/bin/bash


a=$(ps -C nginx --no-header | wc -l)


if [ $a -eq 0 ];then
　　systemctl restart nginx
　　if [ `ps -C nginx --no-header | wc -l` -eq 0 ];then
　　　　systemctl stop keepalived
　　fi
fi

#chmod 755 /etc/keepalived/check_nginx.sh

(3).安装nginx

#yum -y install nginx
#vim /etc/nginx/nginx.conf

在原配置文件上增加代码：

        #server外
        upstream webs {  #添加地址池
　　　　        server 192.168.5.137:80;
　　　　        server 192.168.5.138:80;
　　    }
        #server内
　　    location / {
　　　　        proxy_pass http://webs/; #进行匹配
       }

完整的nginx.conf

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;


# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;


events {
    worker_connections 1024;
}


http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';


    access_log  /var/log/nginx/access.log  main;


    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;


    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;


    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;


    upstream webs {  #添加地址池
　　　　 server 192.168.5.137:80;
　　　　 server 192.168.5.138:80;
　　 }


    server {
        listen       80;
        listen       [::]:80;
        server_name  192.168.5.100;
        root         /usr/share/nginx/html;


        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;
　　    location / {
　　　　        proxy_pass http://webs/; #进行匹配
　　    }
        error_page 404 /404.html;
        location = /404.html {
        }


        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
        }
    }


# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers HIGH:!aNULL:!MD5;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#            location = /40x.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#            location = /50x.html {
#        }
#    }


}

退出保存

重启nginx

#systemctl restart nginx
#systemctl enable nginx
#systemctl restart keepalived
#systemctl enable keepalived
#sudo iptables -F #关下防火墙

3.备机安装环境192.168.5.136（note06 备）

(1）执行2的步骤

(2）keepalived配置修改

router_id note02

state BACKUP

mcast_src_ip 192.168.5.136

priority 50

4.分别在web服务器安装nignx服务

(1)ip地址：192.168.5.137（note03 nginx）

#yum -y install nginx

配置nginx.conf

#vim /etc/nginx/nginx.conf

只改下这行：server_name  192.168.5.137;

完整的

# For more information on configuration, see:
#   * Official English Documentation: http://nginx.org/en/docs/
#   * Official Russian Documentation: http://nginx.org/ru/docs/


user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;


# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;


events {
    worker_connections 1024;
}


http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';


    access_log  /var/log/nginx/access.log  main;


    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;


    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;


    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;


    server {
        listen       80;
        listen       [::]:80;
        server_name  192.168.5.137;
        root         /usr/share/nginx/html;


        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;


        error_page 404 /404.html;
        location = /404.html {
        }


        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
        }
    }


# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers HIGH:!aNULL:!MD5;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#            location = /40x.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#            location = /50x.html {
#        }
#    }


}

#sudo iptables -F #关下防火墙

#service nginx restart

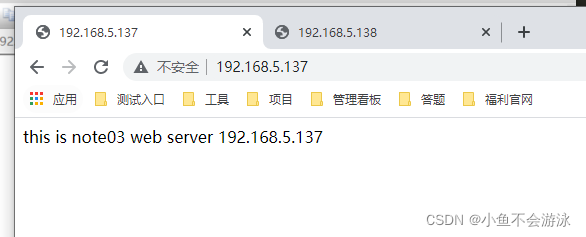

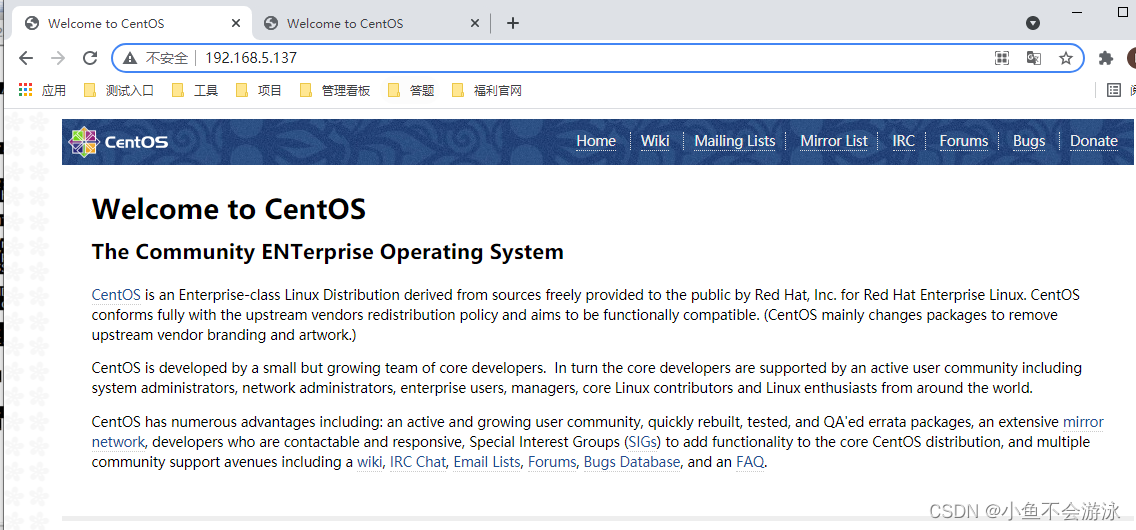

浏览器访问：http://192.168.5.137

修改下index.html内容

#vim /usr/share/nginx/html/index.html

this is note03 web server 192.168.5.137

(2)ip地址：192.168.5.138（note04 nginx）

#yum -y install nginx

配置nginx.conf

#vim /etc/nginx/nginx.conf

只改下这行：server_name  192.168.5.138;

#sudo iptables -F #关下防火墙

#service nginx restart

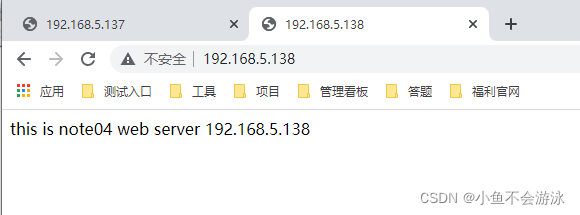

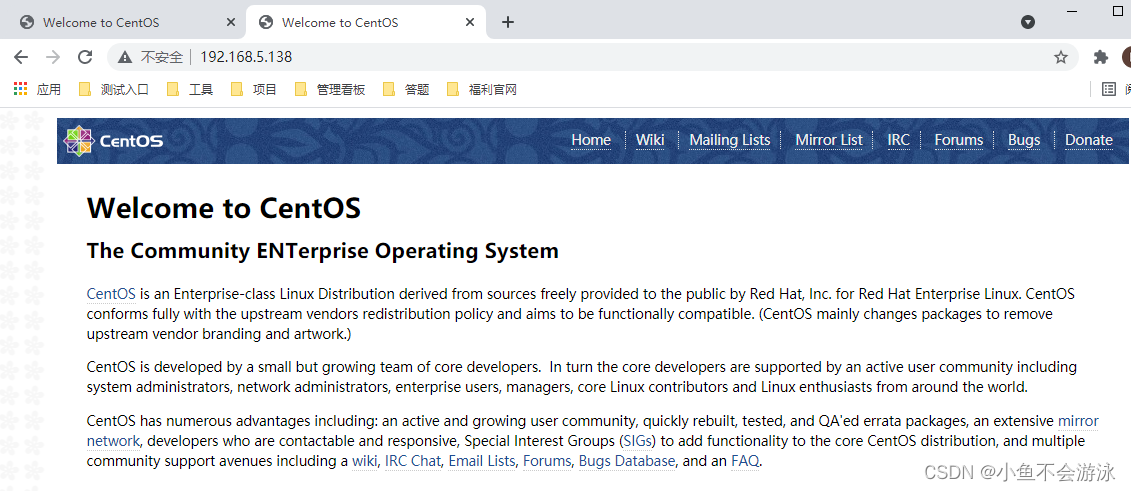

浏览器访问：http://192.168.5.138

#vim /usr/share/nginx/html/index.html

this is note04 web server 192.168.5.138

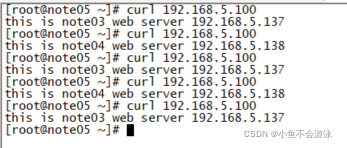

(3)检验结果：访问http://192.168.5.100/

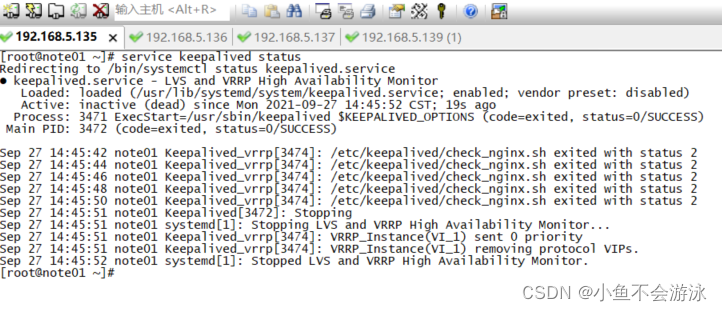

把主机停掉再试

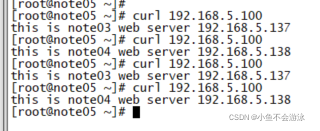

访问正常

5.如果自动ip分配变化，可以设置静态ip

1.编辑网卡

#ip addr

# cd /etc/sysconfig/network-scripts/

#vim ifcfg-ens33

或者

#vim /etc/sysconfig/network-scripts/ifcfg-ens33

各项说明：

TYPE=Ethernet                # 网卡类型：为以太网
PROXY_METHOD=none            # 代理方式：关闭状态
BROWSER_ONLY=no                # 只是浏览器：否
BOOTPROTO=dhcp                # 网卡的引导协议：DHCP[中文名称: 动态主机配置协议]
DEFROUTE=yes                # 默认路由：是, 不明白的可以百度关键词 `默认路由`
IPV4_FAILURE_FATAL=no        # 是不开启IPV4致命错误检测：否
IPV6INIT=yes                # IPV6是否自动初始化: 是[不会有任何影响, 现在还没用到IPV6]
IPV6_AUTOCONF=yes            # IPV6是否自动配置：是[不会有任何影响, 现在还没用到IPV6]
IPV6_DEFROUTE=yes            # IPV6是否可以为默认路由：是[不会有任何影响, 现在还没用到IPV6]
IPV6_FAILURE_FATAL=no        # 是不开启IPV6致命错误检测：否
IPV6_ADDR_GEN_MODE=stable-privacy            # IPV6地址生成模型：stable-privacy [这只一种生成IPV6的策略]
NAME=ens33                    # 网卡物理设备名称
UUID=f47bde51-fa78-4f79-b68f-d5dd90cfc698    # 通用唯一识别码, 每一个网卡都会有, 不能重复, 否两台linux只有一台网卡可用
DEVICE=ens33                    # 网卡设备名称, 必须和 `NAME` 值一样
ONBOOT=yes                        # 是否开机启动， 要想网卡开机就启动或通过 `systemctl restart network`控制网卡,必须设置为 `yes`

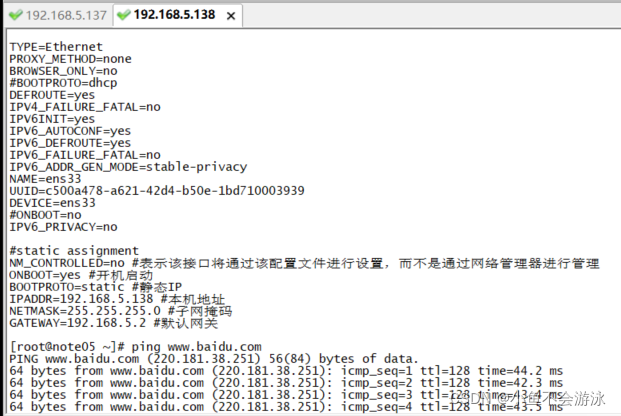

这里我们修改配置：

TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
#BOOTPROTO=dhcp
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
UUID=c500a478-a621-42d4-b50e-1bd710003939
DEVICE=ens33
#ONBOOT=no
IPV6_PRIVACY=no


#static assignment
NM_CONTROLLED=no #表示该接口将通过该配置文件进行设置，而不是通过网络管理器进行管理
ONBOOT=yes #开机启动
BOOTPROTO=static #静态IP
IPADDR=192.168.5.138 #本机地址
NETMASK=255.255.255.0 #子网掩码
GATEWAY=192.168.5.2 #默认网关

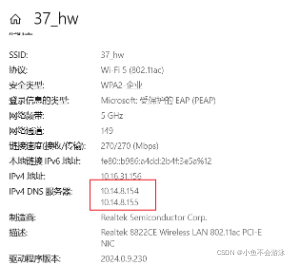

DNS1=10.14.8.154
DNS2=10.14.8.155

保存退出

#systemctl restart network

#ping www.baidu.com
