本文介绍了一种基于经纬线扫描法和alphashapes算法的点云轮廓提取方法，并提供了具体的C++实现代码。通过这两种方法可以有效地从原始点云中提取内外侧轮廓。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

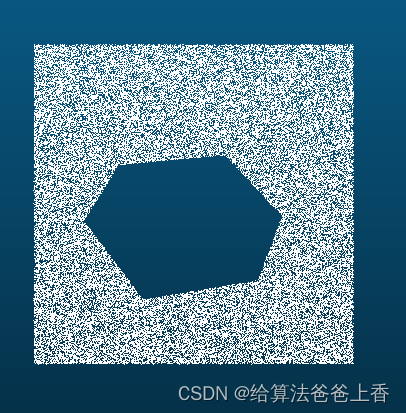

原点云如图所示：
在这里插入图片描述
外侧轮廓提取用的方法是经纬线扫描法，全轮廓提取的方法是alpha shapes算法（点云边界提取方法总结），从全轮廓中剔除外侧轮廓得到内侧轮廓。

alpha shapes算法轮廓提取结果：
在这里插入图片描述

经纬线扫描法轮廓提取结果：

在这里插入图片描述

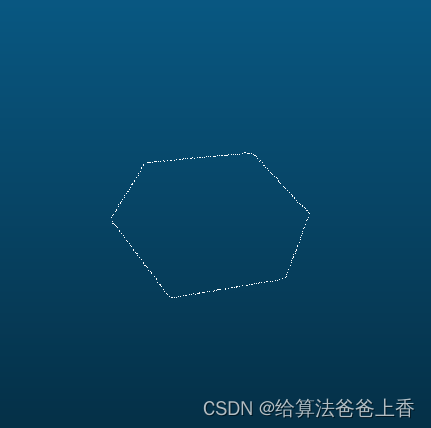

内侧轮廓：

#include <pcl/io/pcd_io.h>
#include <pcl/point_types.h>
#include <pcl/surface/concave_hull.h>


void BoundaryExtraction1(const pcl::PointCloud<pcl::PointXYZ>::Ptr& cloud, pcl::PointCloud<pcl::PointXYZ>::Ptr& cloud_boundary, int resolution)
{
	pcl::PointXYZ px_min = *std::min_element(cloud->begin(), cloud->end(), [](pcl::PointXYZ pt1, pcl::PointXYZ pt2) {return pt1.x < pt2.x; });
	pcl::PointXYZ px_max = *std::max_element(cloud->begin(), cloud->end(), [](pcl::PointXYZ pt1, pcl::PointXYZ pt2) {return pt1.x < pt2.x; });

	float delta_x = (px_max.x - px_min.x) / resolution;
	float min_y = INT_MAX, max_y = -INT_MAX;
	std::vector<int> indexs_x(2 * resolution);
	std::vector<std::pair<float, float>> minmax_x(resolution, { INT_MAX,-INT_MAX });
	for (size_t i = 0; i < cloud->size(); ++i)
	{
		int id = (cloud->points[i].x - px_min.x) / delta_x;
		if (cloud->points[i].y < minmax_x[id].first)
		{
			minmax_x[id].first = cloud->points[i].y;
			indexs_x[id] = i;
		}
		else if (cloud->points[i].y > minmax_x[id].second)
		{
			minmax_x[id].second = cloud->points[i].y;
			indexs_x[id + resolution] = i;
		}
	}

	pcl::PointXYZ py_min = *std::min_element(cloud->begin(), cloud->end(), [](pcl::PointXYZ pt1, pcl::PointXYZ pt2) {return pt1.y < pt2.y; });
	pcl::PointXYZ py_max = *std::max_element(cloud->begin(), cloud->end(), [](pcl::PointXYZ pt1, pcl::PointXYZ pt2) {return pt1.y < pt2.y; });

	float delta_y = (py_max.y - py_min.y) / resolution;
	float min_x = INT_MAX, max_x = -INT_MAX;
	std::vector<int> indexs_y(2 * resolution);
	std::vector<std::pair<float, float>> minmax_y(resolution, { INT_MAX,-INT_MAX });
	for (size_t i = 0; i < cloud->size(); ++i)
	{
		int id = (cloud->points[i].y - py_min.y) / delta_y;
		if (cloud->points[i].x < minmax_y[id].first)
		{
			minmax_y[id].first = cloud->points[i].x;
			indexs_y[id] = i;
		}
		else if (cloud->points[i].x > minmax_y[id].second)
		{
			minmax_y[id].second = cloud->points[i].x;
			indexs_y[id + resolution] = i;
		}
	}

	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_xboundary(new pcl::PointCloud<pcl::PointXYZ>);
	pcl::copyPointCloud(*cloud, indexs_x, *cloud_xboundary);
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_yboundary(new pcl::PointCloud<pcl::PointXYZ>);
	pcl::copyPointCloud(*cloud, indexs_y, *cloud_yboundary);
	*cloud_boundary = *cloud_xboundary + *cloud_yboundary;
}


void BoundaryExtraction2(const pcl::PointCloud<pcl::PointXYZ>::Ptr& cloud, pcl::PointCloud<pcl::PointXYZ>::Ptr& cloud_boundary, double alpha)
{
	pcl::ConcaveHull<pcl::PointXYZ> chull;
	chull.setInputCloud(cloud);
	chull.setAlpha(alpha);
	chull.reconstruct(*cloud_boundary);
}


int main(int argc, char* argv[])
{
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_boundary1(new  pcl::PointCloud<pcl::PointXYZ>);
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_boundary2(new  pcl::PointCloud<pcl::PointXYZ>);
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_boundary3(new  pcl::PointCloud<pcl::PointXYZ>);
	pcl::io::loadPCDFile("test.pcd", *cloud);

	BoundaryExtraction1(cloud, cloud_boundary1, 200); //经纬线扫描法
	pcl::io::savePCDFile("boundary1.pcd", *cloud_boundary1);

	BoundaryExtraction2(cloud, cloud_boundary2, 3); //alpha shapes算法
	pcl::io::savePCDFile("boundary2.pcd", *cloud_boundary2);

	//求cloud_boundary2-cloud_boundary1
	pcl::search::KdTree<pcl::PointXYZ>::Ptr kdtree(new pcl::search::KdTree<pcl::PointXYZ>);
	kdtree->setInputCloud(cloud_boundary1);

	std::vector<int> pointIdxRadiusSearch;
	std::vector<float> pointRadiusSquaredDistance;
	std::vector<int> indices;
	float radius = 3;

	for (size_t i = 0; i < cloud_boundary2->size(); i++)
	{
		if (kdtree->radiusSearch(cloud_boundary2->points[i], radius, pointIdxRadiusSearch, pointRadiusSquaredDistance) > 0)
		{
			indices.push_back(i);
		}
	}

	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud3(new pcl::PointCloud<pcl::PointXYZ>);
	for (size_t i = 0; i < cloud_boundary2->size(); i++)
	{
		if (find(indices.begin(), indices.end(), i) == indices.end())
			cloud_boundary3->push_back(cloud_boundary2->points[i]);
	}

	pcl::io::savePCDFile("boundary3.pcd", *cloud_boundary3);

	return EXIT_SUCCESS;
}
