一、数据集预处理
1. 数据集准备
训练的数据集包括以下两种情况：自己数据集和公开数据集。
（1）自己数据集
标注自己的分割数据集:
使用labelme（支持大模型辅助）进行标注，标注好后的数据包括images文件夹（存放分割图像）和labels文件夹（存放分割后对应的.json文件）。
具体标注流程参考本作者的另外一篇文章：
https://blog.youkuaiyun.com/sunshineine/article/details/147231877?spm=1001.2014.3001.5502
数据转化（将.json格式标签转化成伪彩图图像）:
使用labelme中提供的一个命令行工具labelme_export_json将.json格式标签转化成伪彩图图像，并每个图片文件夹中的label.png文件保存在一个总的文件夹中。
具体转化流程参考本作者的另外一篇文章：
https://blog.youkuaiyun.com/sunshineine/article/details/147422668
（2）公开数据集
2. 将分割数据集中的“图像 + GT + 嵌入” 数据打包
为了减少后续image encoder（比如 ViT-H）对每张图做 embedding 的计算成本，将分割数据集中的“图像 + GT + 嵌入” 数据提前打包保存好，可以让之后训练、测试、推理阶段更快。
具体打包流程参考本作者的另外一篇文章：
https://blog.youkuaiyun.com/sunshineine/article/details/147465912
3. 编写Dataset类
为了灵活地处理自定义的.npz数据格式和任务需求，需要构造自己的 Dataset 并继承 PyTorch 的 Dataset 类。
具体编写流程参考本作者的另外一篇文章：
https://blog.youkuaiyun.com/sunshineine/article/details/147472085?spm=1001.2014.3001.5502
二、创建SAM项目
1. 代码上传到服务器

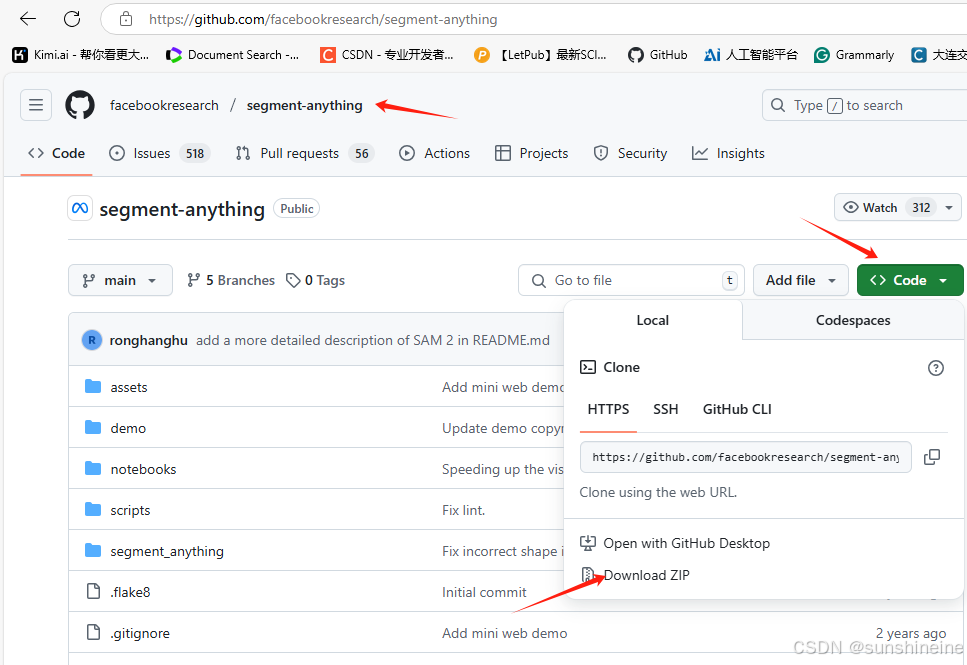

在github中下载SAM的源代码到本地，下载好后的代码通过xftp8传送到服务器当中。
https://github.com/facebookresearch/segment-anything
2. 环境配置
后续操作在服务器中实现，创建虚拟环境sam，训练SAM需要配置好cuda、cudnn、torch、torchvision、torchaudio，具体版本如下：
python=3.8、cuda=11.8.0、cudnn=9.3.0.75、torch=2.0.0+cu118、torchaudio=2.0.0+cu118、torchvision=0.15.1+cu118
# Name Version Build Channel
_libgcc_mutex 0.1 conda_forge conda-forge
_openmp_mutex 4.5 2_gnu conda-forge
brotli-python 1.1.0 py38h17151c0_1 conda-forge
bzip2 1.0.8 h4bc722e_7 conda-forge
ca-certificates 2025.1.31 hbcca054_0 conda-forge
certifi 2024.8.30 pyhd8ed1ab_0 conda-forge
charset-normalizer 3.4.0 pyhd8ed1ab_0 conda-forge
cmake 4.0.0 pypi_0 pypi
coloredlogs 15.0.1 pypi_0 pypi
contourpy 1.1.1 pypi_0 pypi
cuda-version 11.8 h70ddcb2_3 conda-forge
cudatoolkit 11.8.0 h4ba93d1_13 conda-forge
cudnn 9.3.0.75 hc149ed2_0 <unknown>
cycler 0.12.1 pypi_0 pypi
filelock 3.16.1 pyhd8ed1ab_0 conda-forge
flatbuffers 25.2.10 pypi_0 pypi
fonttools 4.56.0 pypi_0 pypi
freetype 2.13.3 h48d6fc4_0 conda-forge
humanfriendly 10.0 pypi_0 pypi
idna 3.10 pyhd8ed1ab_0 conda-forge
importlib-resources 6.4.5 pypi_0 pypi
jinja2 3.1.4 pyhd8ed1ab_0 conda-forge
kernel-headers_linux-64 3.10.0 he073ed8_18 conda-forge
kiwisolver 1.4.7 pypi_0 pypi
lcms2 2.15 h7f713cb_2 conda-forge
ld_impl_linux-64 2.43 h712a8e2_4 conda-forge
lerc 4.0.0 h27087fc_0 conda-forge
libabseil 20230802.1 cxx17_h59595ed_0 conda-forge
libblas 3.9.0 31_h59b9bed_openblas conda-forge
libcblas 3.9.0 31_he106b2a_openblas conda-forge
libdeflate 1.19 hd590300_0 conda-forge
libffi 3.4.6 h2dba641_0 conda-forge
libgcc 14.2.0 h767d61c_2 conda-forge
libgcc-ng 14.2.0 h69a702a_2 conda-forge
libgfortran 14.2.0 h69a702a_2 conda-forge
libgfortran5 14.2.0 hf1ad2bd_2 conda-forge
libgomp 14.2.0 h767d61c_2 conda-forge
libjpeg-turbo 2.1.5.1 hd590300_1 conda-forge
liblapack 3.9.0 31_h7ac8fdf_openblas conda-forge
liblzma 5.6.4 hb9d3cd8_0 conda-forge
liblzma-devel 5.6.4 hb9d3cd8_0 conda-forge
libnsl 2.0.1 hd590300_0 conda-forge
libopenblas 0.3.29 pthreads_h94d23a6_0 conda-forge
libpng 1.6.47 h943b412_0 conda-forge
libprotobuf 4.24.4 hf27288f_0 conda-forge
libsqlite 3.49.1 hee588c1_2 conda-forge
libstdcxx 14.2.0 h8f9b012_2 conda-forge
libstdcxx-ng 14.2.0 h4852527_2 conda-forge
libtiff 4.6.0 h29866fb_1 conda-forge
libuuid 2.38.1 h0b41bf4_0 conda-forge
libuv 1.50.0 hb9d3cd8_0 conda-forge
libwebp-base 1.5.0 h851e524_0 conda-forge
libxcb 1.15 h0b41bf4_0 conda-forge
libxcrypt 4.4.36 hd590300_1 conda-forge
libzlib 1.3.1 hb9d3cd8_2 conda-forge
lit 18.1.8 pypi_0 pypi
markupsafe 2.1.5 py38h01eb140_0 conda-forge
matplotlib 3.7.5 pypi_0 pypi
monai 1.3.2 pypi_0 pypi
mpmath 1.3.0 pyhd8ed1ab_0 conda-forge
ncurses 6.5 h2d0b736_3 conda-forge
networkx 3.1 pyhd8ed1ab_0 conda-forge
nomkl 1.0 h5ca1d4c_0 conda-forge
numpy 1.24.4 py38h59b608b_0 conda-forge
onnx 1.17.0 pypi_0 pypi
onnxruntime 1.19.2 pypi_0 pypi
opencv-python 4.11.0.86 pypi_0 pypi
openjpeg 2.5.2 h488ebb8_0 conda-forge
openssl 3.4.1 h7b32b05_0 conda-forge
packaging 24.2 pypi_0 pypi
pillow 10.0.1 py38h71741d6_1 conda-forge
pip 24.3.1 pyh8b19718_0 conda-forge
protobuf 5.29.4 pypi_0 pypi
pthread-stubs 0.4 hb9d3cd8_1002 conda-forge
pycocotools 2.0.7 pypi_0 pypi
pyparsing 3.1.4 pypi_0 pypi
pysocks 1.7.1 pyha2e5f31_6 conda-forge
python 3.8.20 h4a871b0_2_cpython conda-forge
python-dateutil 2.9.0.post0 pypi_0 pypi
python_abi 3.8 5_cp38 conda-forge
readline 8.2 h8c095d6_2 conda-forge
requests 2.32.3 pyhd8ed1ab_0 conda-forge
segment-anything 1.0 dev_0 <develop>
setuptools 75.3.0 pyhd8ed1ab_0 conda-forge
six 1.17.0 pypi_0 pypi
sleef 3.8 h1b44611_0 conda-forge
sympy 1.13.3 pyh04b8f61_4 conda-forge
sysroot_linux-64 2.17 h0157908_18 conda-forge
tk 8.6.13 noxft_h4845f30_101 conda-forge
torch 2.0.0+cu118 pypi_0 pypi
torchaudio 2.0.0+cu118 pypi_0 pypi
torchvision 0.15.1+cu118 pypi_0 pypi
tqdm 4.67.1 pypi_0 pypi
triton 2.0.0 pypi_0 pypi
typing_extensions 4.12.2 pyha770c72_0 conda-forge
tzdata 2025b h78e105d_0 conda-forge
urllib3 2.2.2 pyhd8ed1ab_0 conda-forge
wheel 0.45.1 pyhd8ed1ab_0 conda-forge
xorg-libxau 1.0.12 hb9d3cd8_0 conda-forge
xorg-libxdmcp 1.1.5 hb9d3cd8_0 conda-forge
xz 5.6.4 hbcc6ac9_0 conda-forge
xz-gpl-tools 5.6.4 hbcc6ac9_0 conda-forge
xz-tools 5.6.4 hb9d3cd8_0 conda-forge
zipp 3.20.2 pypi_0 pypi
zstd 1.5.7 hb8e6e7a_2 conda-forge有时候租的服务器中没有匹配的虚拟环境，则需要自己重新配置虚拟环境。
具体配置流程参考本作者的另外一篇文章：
https://mpbeta.youkuaiyun.com/mp_blog/creation/editor/146763545
3. 配置环境
在服务器中激活虚拟环境sam
conda activate sam打开通过xftp8上传的sam项目的路径
cd sam-main

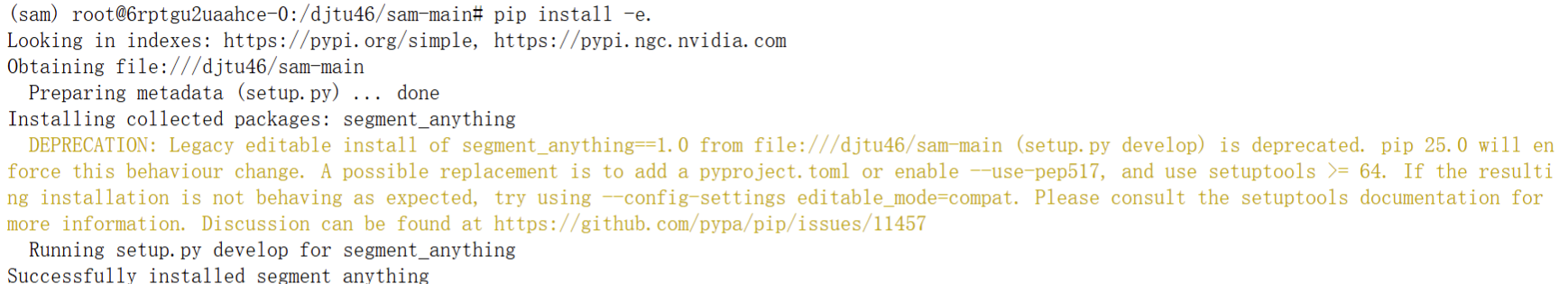

执行以下命令安装python包
pip install -e.

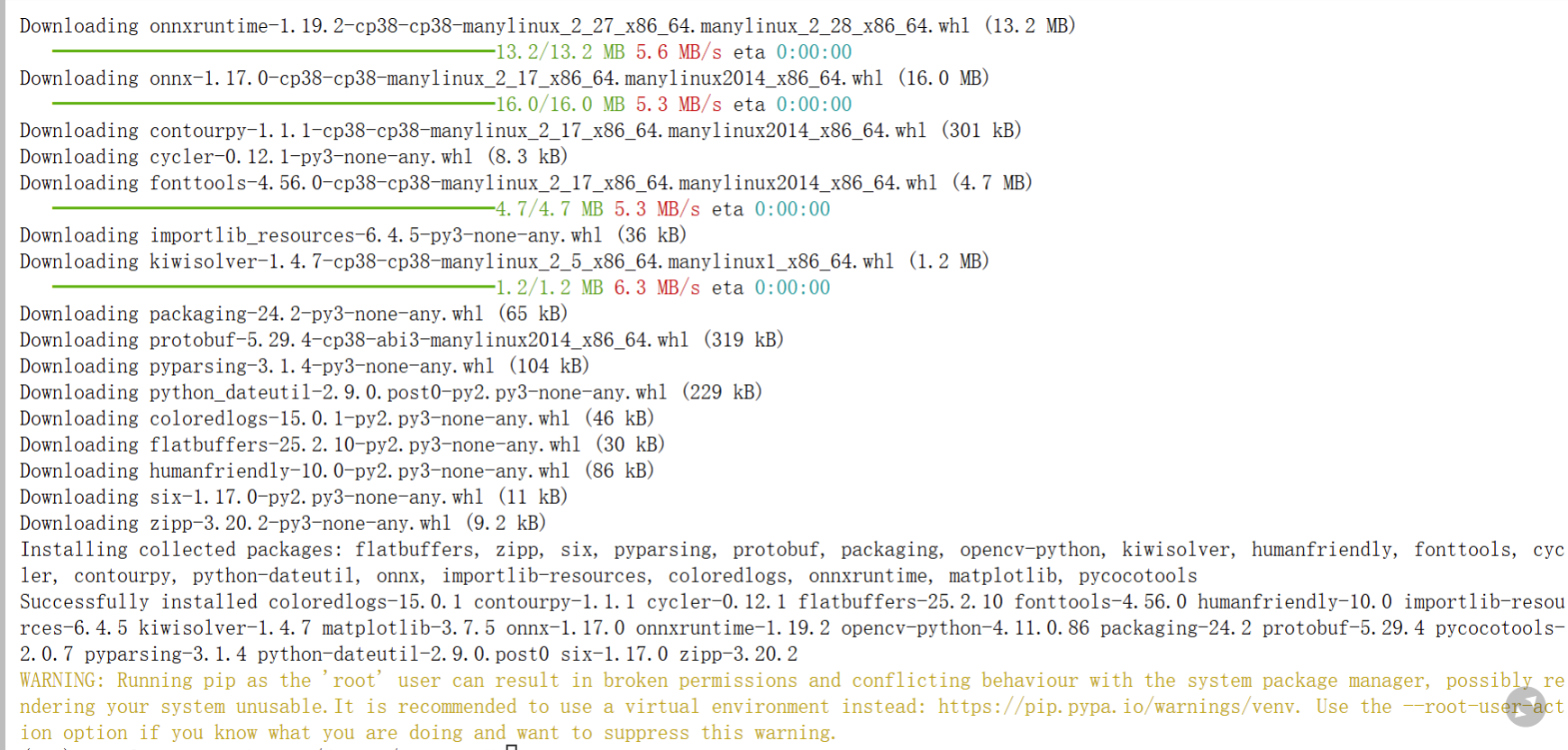

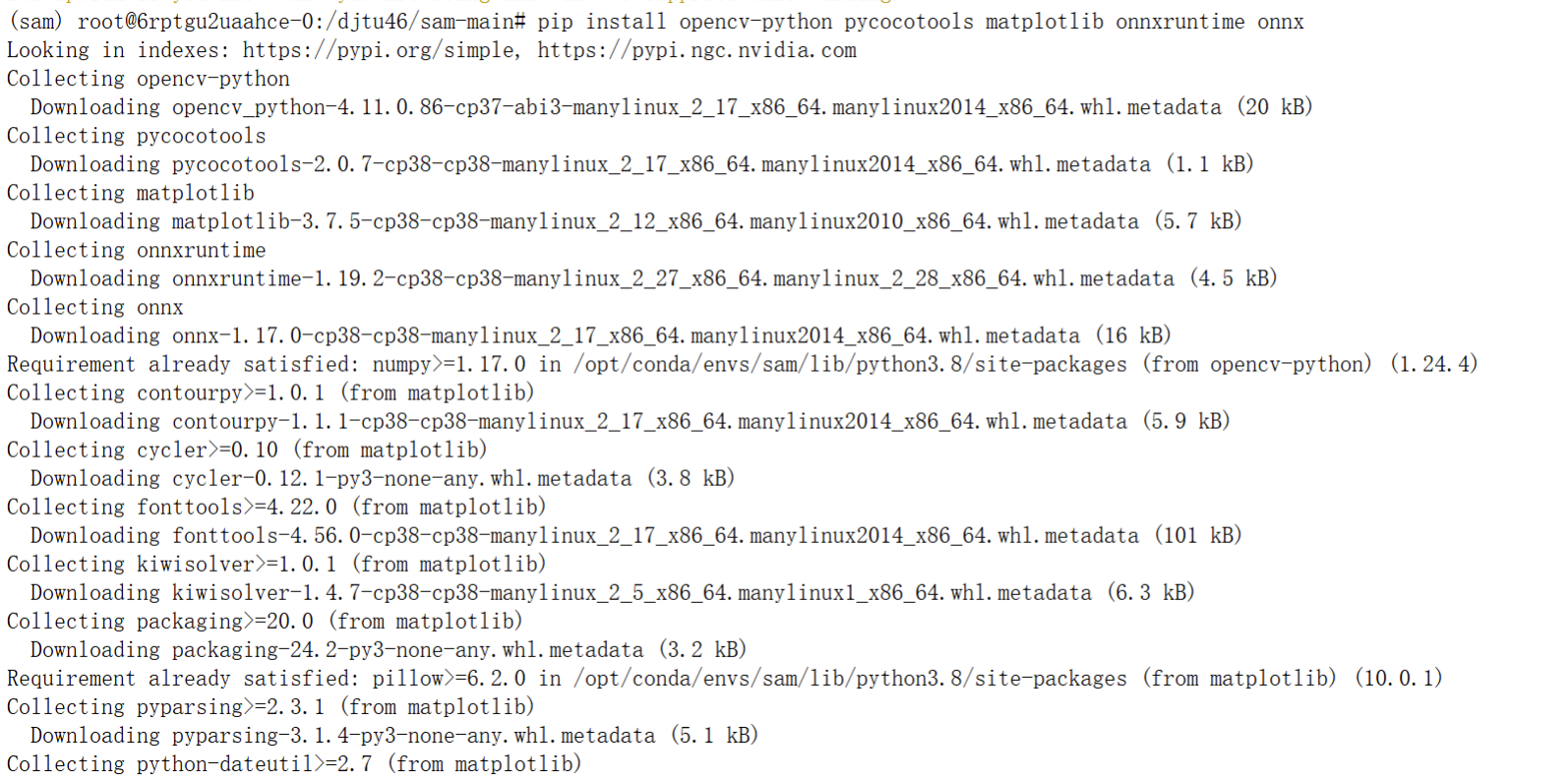

安装可选依赖项
pip install opencv-python pycocotools matplotlib onnxruntime onnx
4. 文件讲解
assets：存放资源文件
data：存放自己的数据集，包括训练集和验证集
images：存放预测图像
models：存放训练好的模型（权重文件）
notebook：存放官方提供的一些案例的脚本文件
scripts：存放数据增强（amg.py）和模型导出（export_onnx_model.py）的脚本文件
segment_anything：代码的核心内容，包括如下
modeling：主要包含图像编码器、提示编码器和掩码解码器三大部件的代码
三、模型训练
import os
import torch
import numpy as np
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
from tqdm import tqdm
import monai
from datetime import datetime
from segment_anything import sam_model_registry
from segment_anything.utils.transforms import ResizeLongestSide
from data.npzdataset import MyselfDataset
import random
# ================== 配置参数 ==================
npz_tr_path = 'D:/1/SAM/sam-main/data/data.npz'
model_type = 'vit_h'
checkpoint = 'D:/1/SAM/segment-anything-main/models/sam_vit_h_4b8939.pth'
model_save_root = './ultimate'
timestamp = datetime.now().strftime("%Y%m%d_%H%M%S")
save_dir = os.path.join(model_save_root, f"train_{timestamp}")
os.makedirs(save_dir, exist_ok=True)
os.makedirs(os.path.join(save_dir, 'vis_results'), exist_ok=True)
device = 'cuda:0'
num_epochs = 100
batch_size = 4
num_classes = 3 # 0: 背景, 1: rail, 2: obstacle
# ================== 模型与优化器 ==================
sam_model = sam_model_registry[model_type](checkpoint=checkpoint).to(device)
sam_model.train()
optimizer = torch.optim.Adam(sam_model.mask_decoder.parameters(), lr=1e-5)
seg_loss_dice = monai.losses.DiceCELoss(
to_onehot_y=True, softmax=True, include_background=True,
sigmoid=False, squared_pred=True, reduction='mean'
)
# ================== 数据加载 ==================
train_dataset = MyselfDataset(npz_tr_path)
train_dataloader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
losses, accuracies = [], []
best_loss = float('inf')
# ================== 训练循环 ==================
for epoch in range(num_epochs):
epoch_loss, correct_pixels, total_pixels = 0, 0, 0
for step, batch in enumerate(tqdm(train_dataloader)):
img_embed, gt, box, pts, lbls, image, class_label = batch
img_embed = img_embed.view(img_embed.shape[0], 256, 64, 64).to(device)
gt = gt.to(device)
def forward_class(gt, box, pts, lbls):
sam_trans = ResizeLongestSide(sam_model.image_encoder.img_size)
box_np = box.numpy()
box_trans = sam_trans.apply_boxes(box_np, (gt.shape[-2], gt.shape[-1]))
box_torch = torch.as_tensor(box_trans, dtype=torch.float, device=device)
pts_torch = torch.as_tensor(pts, dtype=torch.float, device=device)
lbls_torch = torch.as_tensor(lbls, dtype=torch.int, device=device)
pt = (pts_torch, lbls_torch)
sparse, dense = sam_model.prompt_encoder(points=pt, boxes=box_torch, masks=None)
mask_pred, _ = sam_model.mask_decoder(
image_embeddings=img_embed,
image_pe=sam_model.prompt_encoder.get_dense_pe(),
sparse_prompt_embeddings=sparse,
dense_prompt_embeddings=dense,
multimask_output=False,
)
mask_pred = mask_pred.repeat(1, num_classes, 1, 1)
return mask_pred, gt
mask_pred, gt = forward_class(gt, box, pts, lbls)
loss = seg_loss_dice(mask_pred, gt)
optimizer.zero_grad()
loss.backward()
optimizer.step()
epoch_loss += loss.item()
with torch.no_grad():
pred = torch.argmax(mask_pred, dim=1)
correct_pixels += (pred == gt.squeeze(1)).sum().item()
total_pixels += torch.numel(gt)
epoch_loss /= (step + 1)
accuracy = correct_pixels / total_pixels
losses.append(epoch_loss)
accuracies.append(accuracy)
print(f"[Epoch {epoch+1}/{num_epochs}] Loss: {epoch_loss:.6f}, Accuracy: {accuracy:.4f}")
torch.save(sam_model.state_dict(), os.path.join(save_dir, "latest_model.pth"))
if epoch_loss < best_loss:
best_loss = epoch_loss
torch.save(sam_model.state_dict(), os.path.join(save_dir, "best_model.pth"))
# ================== 可视化 ==================
def smooth_curve(points, factor=0.8):
smoothed = []
for point in points:
if smoothed:
smoothed.append(smoothed[-1] * factor + point * (1 - factor))
else:
smoothed.append(point)
return smoothed
plt.figure(figsize=(8, 5))
plt.plot(range(1, num_epochs + 1), smooth_curve(losses), label='Smoothed Loss')
plt.xlabel('Epoch'); plt.ylabel('Loss'); plt.title('Training Loss'); plt.grid(True)
plt.tight_layout()
plt.savefig(os.path.join(save_dir, 'training_loss.png'))
plt.close()
plt.figure(figsize=(8, 5))
plt.plot(range(1, num_epochs + 1), smooth_curve(accuracies), label='Smoothed Accuracy', color='orange')
plt.xlabel('Epoch'); plt.ylabel('Accuracy'); plt.title('Training Accuracy'); plt.grid(True)
plt.tight_layout()
plt.savefig(os.path.join(save_dir, 'training_accuracy.png'))
plt.close()
# ================== 可视化预测 ==================
print("Loading best model for visualization...")
sam_model.load_state_dict(torch.load(os.path.join(save_dir, "best_model.pth")))
sam_model.eval()
# Ground Truth 彩色掩码
def color_mask(gt):
color_map = np.array([
[0.0, 0.0, 0.0], # class 0
[0.0, 1.0, 0.0], # class 1
[1.0, 0.0, 0.0], # class 2
])
return color_map[gt]
# 预测掩码
def predict_overlay(img_embed, gt, box, pts, lbls):
img_embed = img_embed.view(1, 256, 64, 64).to(device)
gt = gt.unsqueeze(0).to(device)
sam_trans = ResizeLongestSide(sam_model.image_encoder.img_size)
box = sam_trans.apply_boxes(box.numpy(), (gt.shape[-2], gt.shape[-1]))
box_torch = torch.as_tensor(box, dtype=torch.float, device=device).unsqueeze(0)
coords_torch = torch.as_tensor(pts, dtype=torch.float, device=device).unsqueeze(0)
labels_torch = torch.as_tensor(lbls, dtype=torch.int, device=device).unsqueeze(0)
pt = (coords_torch, labels_torch)
with torch.no_grad():
sparse_embeddings, dense_embeddings = sam_model.prompt_encoder(
points=pt, boxes=box_torch, masks=None
)
pred, _ = sam_model.mask_decoder(
image_embeddings=img_embed,
image_pe=sam_model.prompt_encoder.get_dense_pe(),
sparse_prompt_embeddings=sparse_embeddings,
dense_prompt_embeddings=dense_embeddings,
multimask_output=False,
)
pred = pred.repeat(1, num_classes, 1, 1)
pred = torch.argmax(pred, dim=1).cpu().squeeze().numpy()
return pred
# 顺时针旋转 90 度
def rotate_clockwise_90(img):
return np.rot90(img, k=3)
# 叠加图像和掩码（图像已旋转）
def overlay_with_rotated_image(image_np, mask):
rotated_img = rotate_clockwise_90(image_np)
color_map = np.array([
[0.0, 0.0, 0.0],
[0.0, 1.0, 0.0],
[1.0, 0.0, 0.0],
])
color_mask = color_map[mask]
return 0.5 * rotated_img + 0.5 * color_mask
# 可视化3个样本
os.makedirs(os.path.join(save_dir, 'vis_results'), exist_ok=True)
sample_indices = random.sample(range(len(train_dataset)), 10)
for vis_idx, idx in enumerate(sample_indices):
img_embed, gt, box, pts, lbls, image, class_label = train_dataset[idx]
pred = predict_overlay(img_embed, gt, box, pts, lbls)
image_np = image.cpu().numpy()
if image_np.shape[0] == 3:
image_np = image_np.transpose(1, 2, 0)
image_np = np.clip(image_np, 0, 1)
fig, axs = plt.subplots(1, 4, figsize=(16, 4))
axs[0].imshow(rotate_clockwise_90(image_np))
axs[0].set_title("Original (Rotated)")
axs[1].imshow(color_mask(gt.squeeze().numpy()))
axs[1].set_title("Ground Truth")
axs[2].imshow(pred, cmap='gray', vmin=0, vmax=2)
axs[2].set_title("Prediction")
axs[3].imshow(overlay_with_rotated_image(image_np, pred))
axs[3].set_title("Overlay (Image Rotated)")
for ax in axs:
ax.axis('off')
plt.tight_layout()
plt.savefig(os.path.join(save_dir, 'vis_results', f'vis_{vis_idx}.png'))
plt.close()
扫一扫
6118
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
