一.关于STM32 MDK中USE_STDPERIPH_DRIVER问题

初学STM32,在RealView MDK 环境中使用STM32固件库建立工程时,初学者可能会遇到编译不通过的问题。出现如下警告或错误提示:

warning: #223-D: function "assert_param" declared implicitly;assert_param(IS_GPIO_ALL_PERIPH(GPIOx));

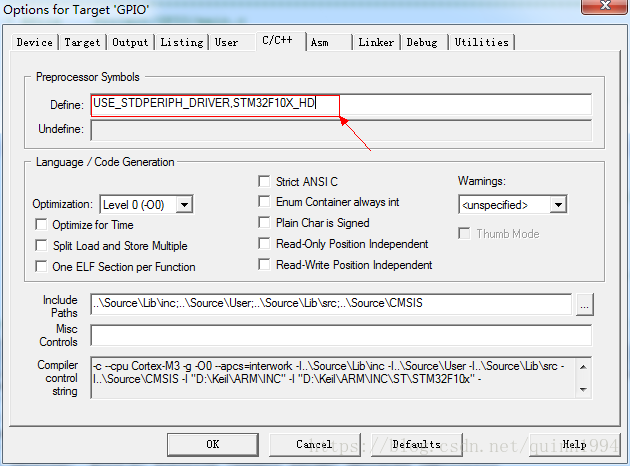

这时候我们需要在“Target Options”中的“C/C++”选项卡中如图1所示红框中添加USE_STDPERIPH_DRIVER、STM32F10X_HD。这样才能使编顺利通过。

                                                                                                     图-1

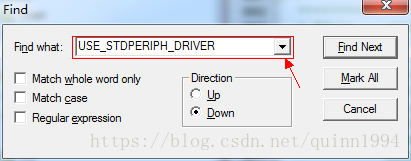

  我们知道,程序的执行是从“main.c”文件开始的,其中必须包含有头文件“stm32f10x.h”。我们打开“stm32f10x.h”,按下“Ctrl+F”键,查找USE_STDPERIPH_DRIVER,在“Find What”栏中输入“USE_STDPERIPH_DRIVER”。如图2所示。点击“Find Next”,出现“USE_STDPERIPH_DRIVER”对应的代码行,重复上边操作三次,第三次的时候我们能在第8296-8298行找到如图3所示代码段。

                                                                                                图2

                                                                                                图3

  这段代码的意思是,只有用预编译指令预定义了“USE_STDPERIPH_DRIVER”,才会将"stm32f10x_conf.h"包含进“stm32f10x.h”中,从而被"main.c"用到。这就解释了,为什么我们没有在“main.c”中包含"stm32f10x_conf.h",而在编译之后却被包含进了"main.c"中,出现如图4所示的情况。"stm32f10x_conf.h"文件相当于一个开关文件,如果要用到STM32固件库驱动标准外设,则外设驱动头文件是必不可少的,如“stm32f10x_gpio.h”。在"stm32f10x_conf.h"中我们通过代码#include "stm32f10x_gpio.h"来实现这个操作。

实际上,在v3.5的stm32标准库,已经有了以下的补充代码:

#if !defined (STM32F10X_LD) && !defined (STM32F10X_LD_VL) && !defined (STM32F10X_MD) && !defined (STM32F10X_MD_VL) && !defined (STM32F10X_HD) && !defined (STM32F10X_HD_VL) && !defined (STM32F10X_XL) && !defined (STM32F10X_CL)
 #error "Please select first the target STM32F10x device used in your application (in stm32f10x.h file)"
#endif

#if !defined  USE_STDPERIPH_DRIVER
/**
 * @brief Comment the line below if you will not use the peripherals drivers.
   In this case, these drivers will not be included and the application code will
   be based on direct access to peripherals registers
   */
#define USE_STDPERIPH_DRIVER  /*#define USE_STDPERIPH_DRIVER*/
#endif

这里我们就无需再宏定义了。

二. STM32F10X_LD,STM32F10X_MD,STM32F10X_HD,STM32F10X_CL宏定义的选择

 如果你使用stm32f10x_stdperiph_lib,会发现在stm32f10x.h文件会有一段关于宏选择的代码,如:

#if !defined (STM32F10X_LD) && !defined (STM32F10X_LD_VL) && !defined (STM32F10X_MD) && !defined (STM32F10X_MD_VL) && !defined (STM32F10X_HD) && !defined (STM32F10X_HD_VL) && !defined (STM32F10X_XL) && !defined (STM32F10X_CL)
  /* #define STM32F10X_LD */     /*!< STM32F10X_LD: STM32 Low density devices */
  /* #define STM32F10X_LD_VL */  /*!< STM32F10X_LD_VL: STM32 Low density Value Line devices */
#define STM32F10X_MD  /* #define STM32F10X_MD */     /*!< STM32F10X_MD: STM32 Medium density devices */
  /* #define STM32F10X_MD_VL */  /*!< STM32F10X_MD_VL: STM32 Medium density Value Line devices */
  /* #define STM32F10X_HD */     /*!< STM32F10X_HD: STM32 High density devices */
  /* #define STM32F10X_HD_VL */  /*!< STM32F10X_HD_VL: STM32 High density value line devices */
  /* #define STM32F10X_XL */     /*!< STM32F10X_XL: STM32 XL-density devices */
  /* #define STM32F10X_CL */     /*!< STM32F10X_CL: STM32 Connectivity line devices */
#endif

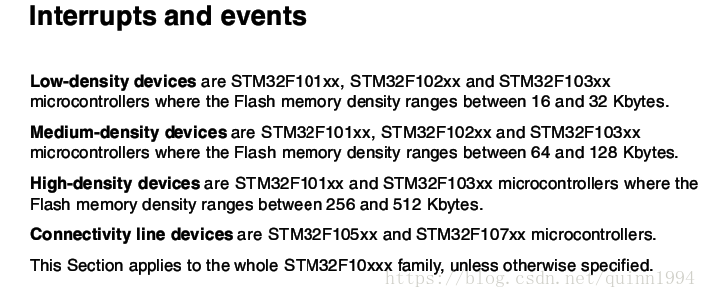

这里我们就有一个问题,我们应该选择哪个宏定义?这要根据你所用的设备来选。参考手册中给了如下:

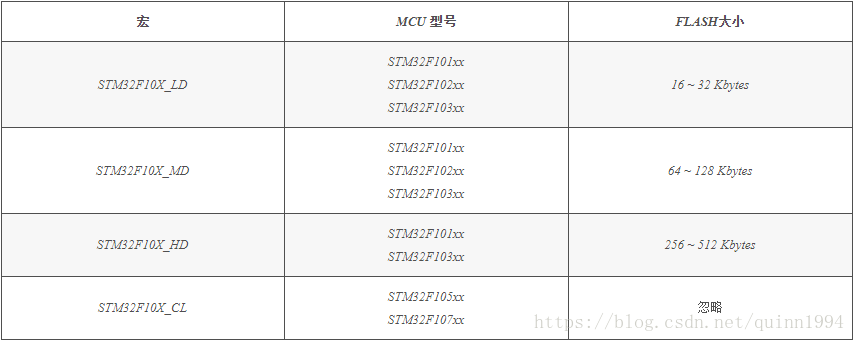

这里告诉我们flash容量在16~32kbytes的是ld,64~128的是md,256~512的是Hd。如下表:
