K210 LCD显示

整体代码：

import lcd, sensor, time

sensor.reset()
sensor.set_pixformat(sensor.RGB565)
sensor.set_framesize(sensor.QVGA)
sensor.set_auto_exposure(1)
sensor.set_auto_gain(0, gain_db = 12)
sensor.set_auto_whitebal(0, rgb_gain_db = (0,0,0))
sensor.set_vflip(1)
sensor.set_hmirror(1)
sensor.skip_frames(time = 2000)

class lcd_show_data():
    year = 2024
    month = 01
    dat = 24
    hour = 21
    minute = 23
ping = lcd_show_data()
def lcd_show():
    lcd.draw_string(0, 0,  "Hello World", lcd.RED, lcd.WHITE)
    lcd.draw_string(0, 15, str(ping.year)+"/"+str(ping.month)+"/"+str(ping.dat), lcd.RED, lcd.WHITE)
    lcd.draw_string(0, 30, str(ping.hour)+":"+str(ping.minute), lcd.RED, lcd.WHITE)

lcd.init(freq=15000000,color=0XFFFF,invert=1,lcd_type=0)
clock = time.clock()

while(True):
    clock.tick()
    img = sensor.snapshot()
    fps = clock.fps()
    img.draw_string(230,0,("%2.1ffps"%(fps)),color=(0,0,128),scale=2)
    lcd.display(img)
    lcd_show()

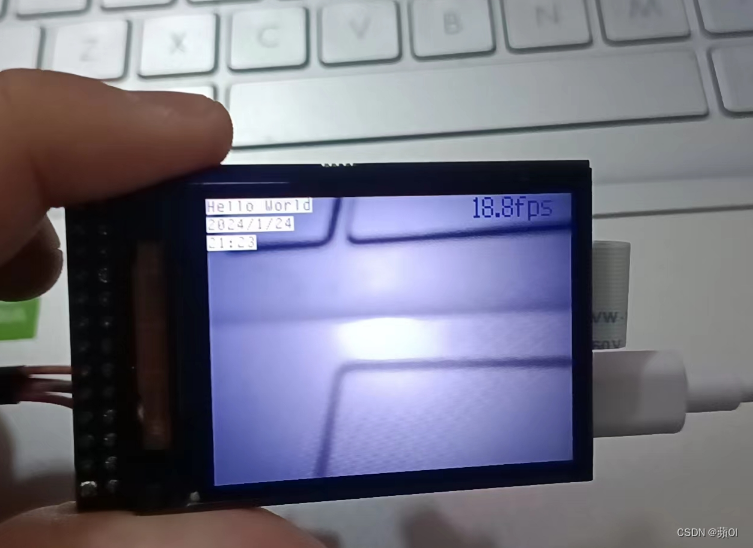

效果展示：

程序说明：

1.导入库文件

import lcd, sensor, time

2.感光元件配置

sensor.reset()
sensor.set_pixformat(sensor.RGB565)
sensor.set_framesize(sensor.QVGA)
sensor.set_auto_exposure(1)
sensor.set_auto_gain(0, gain_db = 12)
sensor.set_auto
