定义两个包，mylib mynode ,mylib 创建.so文件，mynode调用.so文件定义的东西

项目开源地址如下

GitHub - yusongmin1/my.so: make a .so file and use it in ros2

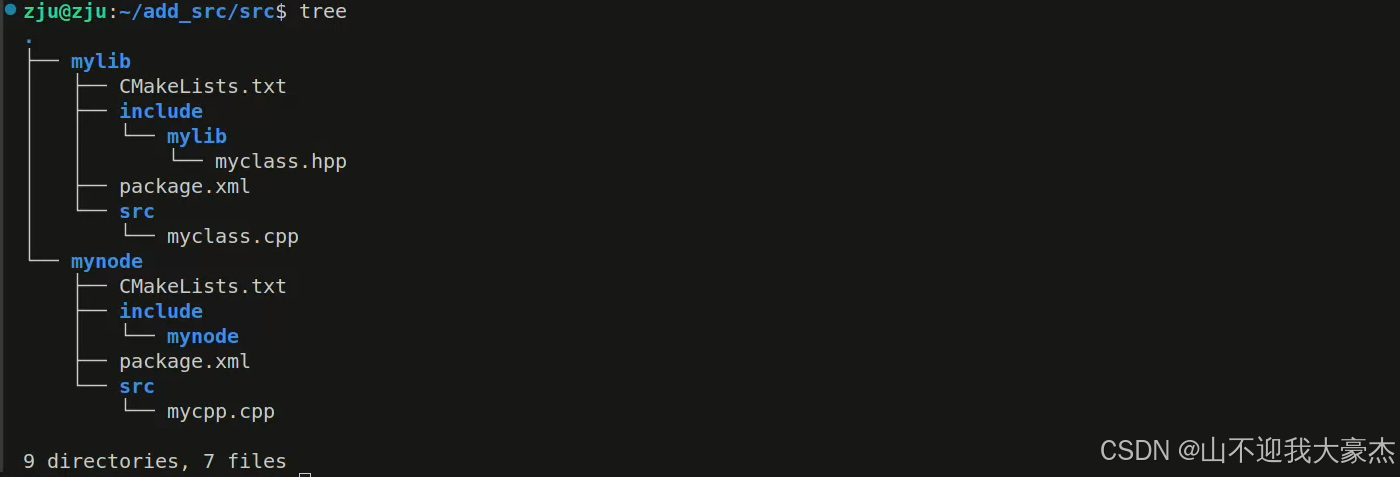

具体目录如下

通过如下命令创建这两个包，cmakelist.txt也跟着生成成功。

ros2 pkg create --build-type ament_cmake --dependencies rclcpp rclpy std_msgs --node-name mycpp mynode

ros2 pkg create --build-type ament_cmake --dependencies rclcpp rclpy std_msgs --node-name myclass mylib

myclass.hpp 定义了一个类和一个函数，

#ifndef MY_CLASS_HPP
#define MY_CLASS_HPP
#include<iostream>
class MYCLASS{
public:
    int a;
    int b;
    MYCLASS(int a,int b);
    ~MYCLASS();
    int MYCLASS_ADD();
};

void print_myclass()
{
    std::cout<<"我创建的.so文件输出东西了\n";
}
#endif //MY_CLASS_HPP

myclass.cpp 类的初始化和函数定义

#include "mylib/myclass.hpp"

int MYCLASS::MYCLASS_ADD() {
    return this->a + this->b;
}

MYCLASS::MYCLASS(int a, int b) {
    this->a = a;
    this->b = b;
}

MYCLASS::~MYCLASS() {
  std::cout<<"cnmcnmcnmcncmcnmccnm\n";
}

int main(int argc, char ** argv)
{
  (void) argc;
  (void) argv;

  ;
}

创建.so文件有两种使用方式，第一种：生成.so文件，保留.hpp文件，把这两个文件放到所需要使用这个.so文件的包里，第二种，导出成一个库，然后用类似

find_package(ament_cmake REQUIRED)这种指令调用。

第一种方式，对应开源地址里的first分支

mylib包里的 cmakelist.txt修改如下,其中不加注释的就是默认生成的代码，了解即可

cmake_minimum_required(VERSION 3.8)
project(mylib)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
  add_compile_options(-Wall -Wextra -Wpedantic)
endif()

# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(rclpy REQUIRED)
find_package(std_msgs REQUIRED)

add_library(myclass SHARED src/myclass.cpp)#生成.so文件
# add_executable(myclass src/myclass.cpp)
target_include_directories(myclass PUBLIC
  $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>
  $<INSTALL_INTERFACE:include/${PROJECT_NAME}>)#包含include目录
target_compile_features(myclass PUBLIC c_std_99 cxx_std_17)  # Require C99 and C++17
ament_target_dependencies(
  myclass
  "rclcpp"
  "rclpy"
  "std_msgs"
)
install(DIRECTORY include/
  DESTINATION include
)#把include文件夹复制到install目录

install(TARGETS myclass
  DESTINATION lib)#把.so文件安装到安装目录

# # Export CMake configuration
# ament_export_include_directories(include)
# ament_export_libraries(myclass)

ament_package()

安装目录出现如下东西就算成功了

将这两个东西复制到要用到.so文件的mynode目录下，

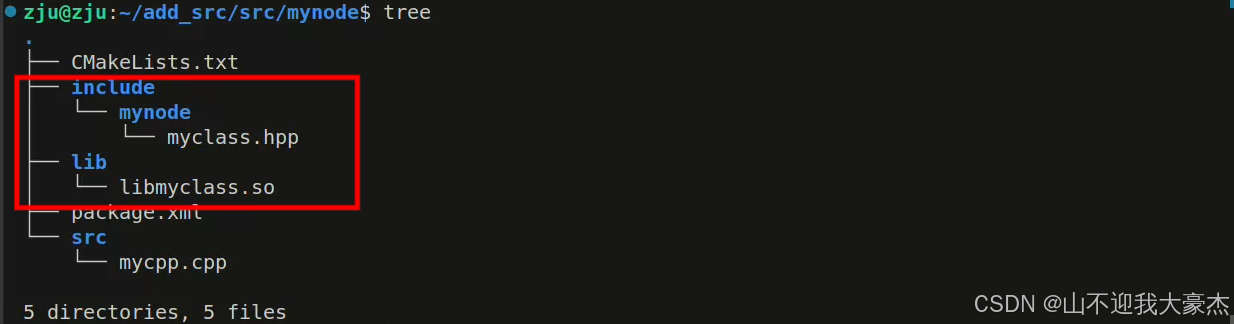

变成这样就可以了

mycpp.cpp文件如下，非常简单，有手就行，注意！！！！不要忘记包含.so文件的头文件

#include "rclcpp/rclcpp.hpp"
#include "mynode/myclass.hpp"
int main(int argc, char **argv)
{
    rclcpp::init(argc,argv);
    auto node_=std::make_shared<rclcpp::Node>("mynode");
    MYCLASS* myclass=new MYCLASS(1,1);
    while (rclcpp::ok())
    {
      std::cout<<"开始使用类了"<<myclass->MYCLASS_ADD()<<"\n";
      myclass->a++;
      sleep(1);
    }
    return 0;
    rclcpp::shutdown();
}

cmakelist.txt 如下

cmake_minimum_required(VERSION 3.8)
project(mynode)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
  add_compile_options(-Wall -Wextra -Wpedantic)
endif()

# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)



add_executable(mycpp src/mycpp.cpp)
target_include_directories(mycpp PUBLIC
  $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>
  $<INSTALL_INTERFACE:include>)#包含include目录

ament_target_dependencies(
  mycpp
  rclcpp
)#不可或缺添加

install(DIRECTORY include/
  DESTINATION include
)#把include文件夹复制到install目录

install(FILES
lib/libmyclass.so
DESTINATION lib
)#.so文件复制到安装目录

target_link_libraries(mycpp  ${CMAKE_CURRENT_SOURCE_DIR}/lib/libmyclass.so)#链接.so库文件

install(TARGETS mycpp
  DESTINATION lib/${PROJECT_NAME})



ament_package()

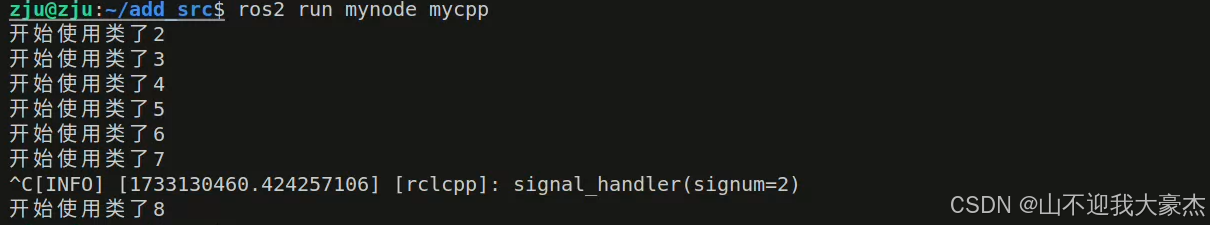

colcon build ,source 一下

第一种方式就算完成了

第二种方式对应开源地址里的master分支,这个分支需要先编译mylib ，然后source 一下才可以编译mynode，否则报错。克隆命令

git clone -b master git@github.com:yusongmin1/my.so.git

colcon build --packages-select mylib
source ./install/local_setup.bash
colcon build --packages-select mynode

mycpp.cpp需要更改包含的头文件，具体如下

#include "mylib/myclass.hpp"

两个包的cmakelist.txt 需要修改

mylib的，注意这里导出的库文件名称应和工程名称一致project(mylib)，主要部分就是不可删除的那两部分

cmake_minimum_required(VERSION 3.8)
project(mylib)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
  add_compile_options(-Wall -Wextra -Wpedantic)
endif()

# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(rclpy REQUIRED)
find_package(std_msgs REQUIRED)

add_library(mylib SHARED src/myclass.cpp)#生成.so文件
# add_executable(mylib src/mylib.cpp)
target_include_directories(mylib PUBLIC
  $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>
  $<INSTALL_INTERFACE:include/${PROJECT_NAME}>)#包含include目录
target_compile_features(mylib PUBLIC c_std_99 cxx_std_17)  # Require C99 and C++17
ament_target_dependencies(
  mylib
  "rclcpp"
  "rclpy"
  "std_msgs"
)

install(DIRECTORY include/
  DESTINATION include
)#把include文件夹复制到install目录

# Install library 必须有，不可删除
install(TARGETS mylib
  EXPORT export_mylib
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

# # Export CMake configuration 必须有，不可删除
ament_export_include_directories(include)
ament_export_libraries(mylib)

ament_package()

导出库的基准，都这么写

# Install library 必须有，不可删除
install(TARGETS mylib
  EXPORT export_mylib
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

使用ament_export_include_directories来导出头文件目录，这样其他包可以通过find_package找到并包含这些头文件。使用ament_export_libraries来导出你的库文件。

# # Export CMake configuration 必须有，不可删除
ament_export_include_directories(include)
ament_export_libraries(mylib)

mynode 的cmakelist.txt

cmake_minimum_required(VERSION 3.8)
project(mynode)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
  add_compile_options(-Wall -Wextra -Wpedantic)
endif()

# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(mylib REQUIRED)#包含生成的库文件


add_executable(mycpp src/mycpp.cpp)
target_include_directories(mycpp PUBLIC
  $<BUILD_INTERFACE:${PROJECT_SOURCE_DIR}/include>
  $<INSTALL_INTERFACE:include>)#包含include目录

ament_target_dependencies(
  mycpp
  rclcpp
  mylib#包含生成的库文件
)#不可或缺添加

install(DIRECTORY include/
  DESTINATION include
)#把include文件夹复制到install目录


install(TARGETS mycpp
  DESTINATION lib/${PROJECT_NAME})



ament_package()

注意两点 find_package(mylib REQUIRED)#包含生成的库文件，

ament_target_dependencies(
mycpp
rclcpp
mylib#包含生成的库文件
)#不可或缺添加
