LCD_init.h

LCD_init.c

void LCD_GPIO_Init(void)

void LCD_Writ_Bus(u8 dat)

void LCD_WR_DATA8(u8 dat)

void LCD_WR_DATA(u16 dat)

void LCD_WR_REG(u8 dat)

void LCD_Address_Set(u16 x1,u16 y1,u16 x2,u16 y2)

void LCD_Init(void)

lcd.h

lcd.c

void LCD_Fill(u16 xsta,u16 ysta,u16 xend,u16 yend,u16 color)

void LCD_DrawPoint(u16 x,u16 y,u16 color)

void LCD_DrawLine(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)

void LCD_DrawRectangle(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)

void Draw_Circle(u16 x0,u16 y0,u8 r,u16 color)

void LCD_ShowChinese(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChinese12x12(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChinese16x16(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChinese24x24(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChinese32x32(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChar(u16 x,u16 y,u8 num,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowString(u16 x,u16 y,const u8 *p,u16 fc,u16 bc,u8 sizey,u8 mode)

u32 mypow(u8 m,u8 n)

void LCD_ShowIntNum(u16 x,u16 y,u16 num,u8 len,u16 fc,u16 bc,u8 sizey)

void LCD_ShowFloatNum1(u16 x,u16 y,float num,u8 len,u16 fc,u16 bc,u8 sizey)

void LCD_ShowPicture(u16 x,u16 y,u16 length,u16 width,const u8 pic[])

lcdfont.h

pic.h

main.c

LCD_init.h

#ifndef __LCD_INIT_H

#define __LCD_INIT_H

//预定义

#include "sys.h"

#define USE_HORIZONTAL 0 //设置横屏或者竖屏显示 0或1为竖屏 2或3为横屏

#if USE_HORIZONTAL==0||USE_HORIZONTAL==1

#define LCD_W 320

#define LCD_H 480

//0或1为竖屏

#else

#define LCD_W 480

#define LCD_H 320

#endif

//2或3为横屏

//-----------------LCD端口定义-----------------

#define LCD_SCLK_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_1) //SCL=SCLK时钟

#define LCD_SCLK_Set() GPIO_SetBits(GPIOA,GPIO_Pin_1)

#define LCD_MOSI_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_2) //SDA=MOSI数据

#define LCD_MOSI_Set() GPIO_SetBits(GPIOA,GPIO_Pin_2)

#define LCD_RES_Clr() GPIO_ResetBits(GPIOC,GPIO_Pin_3) //RES复位

#define LCD_RES_Set() GPIO_SetBits(GPIOC,GPIO_Pin_3)

#define LCD_DC_Clr() GPIO_ResetBits(GPIOC,GPIO_Pin_2) //DC命令

#define LCD_DC_Set() GPIO_SetBits(GPIOC,GPIO_Pin_2)

#define LCD_CS_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_3) //CS片选

#define LCD_CS_Set() GPIO_SetBits(GPIOA,GPIO_Pin_3)

#define LCD_BLK_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_5) //BLK背光

#define LCD_BLK_Set() GPIO_SetBits(GPIOA,GPIO_Pin_5)

void LCD_GPIO_Init(void); //初始化GPIO

void LCD_Writ_Bus(u8 dat); //模拟SPI时序

void LCD_WR_DATA8(u8 dat); //写入一个字节

void LCD_WR_DATA(u16 dat); //写入两个字节

void LCD_WR_REG(u8 dat); //写入一个指令

void LCD_Address_Set(u16 x1,u16 y1,u16 x2,u16 y2); //设置坐标函数

void LCD_Init(void); //LCD初始化

#endif

LCD_init.c

#include "lcd_init.h"

#include "delay.h"

//包含了延时函数头文件

void LCD_GPIO_Init(void)

void LCD_GPIO_Init(void)

{

GPIO_InitTypeDef GPIO_InitStructure;

RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOA|RCC_AHB1Periph_GPIOC|, ENABLE); //使能PORTA和PORTC时钟

GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_5;

GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT; //普通输出模式

GPIO_InitStructure.GPIO_OType = GPIO_OType_PP; //推挽输出

GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz; //100MHz

GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP; //上拉

GPIO_Init(GPIOA, &GPIO_InitStructure); //初始化

GPIO_SetBits(GPIOA,GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_5);

//初始化拉高

GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2|GPIO_Pin_3;

GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT; //普通输出模式

GPIO_InitStructure.GPIO_OType = GPIO_OType_PP; //推挽输出

GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz; //100MHz

GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP; //上拉

GPIO_Init(GPIOC, &GPIO_InitStructure); //初始化

GPIO_SetBits(GPIOC,GPIO_Pin_2|GPIO_Pin_3);

//初始化拉高

}

/******************************************************************************

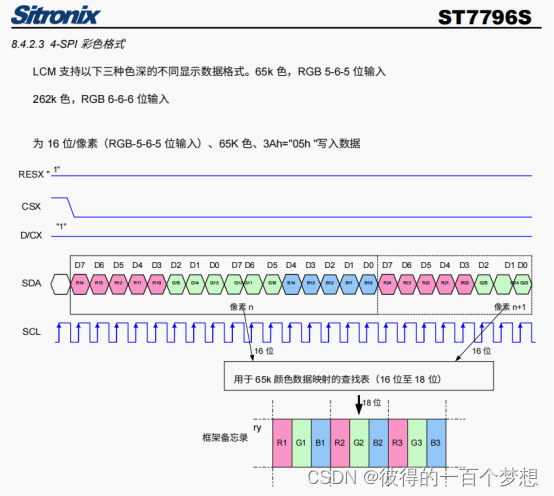

函数说明：LCD串行数据写入函数

入口数据：dat 要写入的串行数据

返回值：无

******************************************************************************/

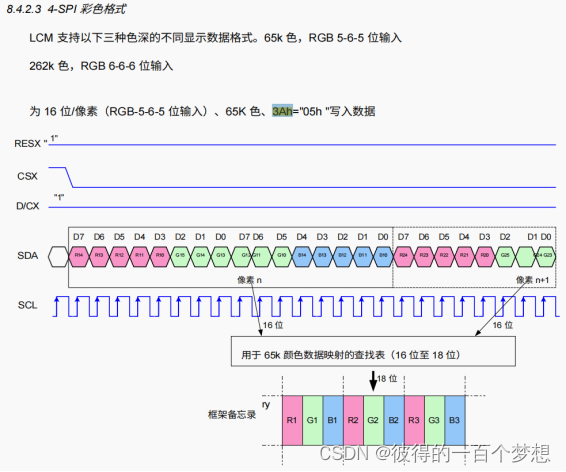

void LCD_Writ_Bus(u8 dat)

void LCD_Writ_Bus(u8 dat)

{

u8 i;

LCD_CS_Clr(); //片选引脚拉低

for(i=0;i<8;i++)

{

LCD_SCLK_Clr(); //时钟引脚拉低

if(dat&0x80)

{

LCD_MOSI_Set(); //数据引脚拉高

}

else

{

LCD_MOSI_Clr(); //数据引脚拉低

}

LCD_SCLK_Set(); //时钟引脚拉高

dat<<=1; //数据左移一位

}

LCD_CS_Set(); //片选引脚拉高

}

/******************************************************************************

函数说明：LCD写入8位数据

入口数据：dat 写入的8位数据

返回值：无

******************************************************************************/

void LCD_WR_DATA8(u8 dat)

void LCD_WR_DATA8(u8 dat)

{

LCD_Writ_Bus(dat); //写入8位

}

/******************************************************************************

函数说明：LCD写入16位数据

入口数据：dat 写入的16位数据

返回值：无

******************************************************************************/

void LCD_WR_DATA(u16 dat)

void LCD_WR_DATA(u16 dat)

{

LCD_Writ_Bus(dat>>8); //右移8位，将16位的前8位发送出去

LCD_Writ_Bus(dat); //将16位的后8位发送出去

}

/******************************************************************************

函数说明：LCD写入8位命令

入口数据：dat 写入的8位命令

返回值：无

******************************************************************************/

void LCD_WR_REG(u8 dat)

void LCD_WR_REG(u8 dat)

{

LCD_DC_Clr(); //DC命令引脚拉低，写命令

LCD_Writ_Bus(dat); //写入8位

LCD_DC_Set(); //DC命令引脚拉高，写数据

}

/******************************************************************************

函数说明：设置起始和结束地址

入口数据：x1,x2 设置列的起始和结束地址

y1,y2 设置行的起始和结束地址

返回值：无

******************************************************************************/

void LCD_Address_Set(u16 x1,u16 y1,u16 x2,u16 y2)

void LCD_Address_Set(u16 x1,u16 y1,u16 x2,u16 y2)

{

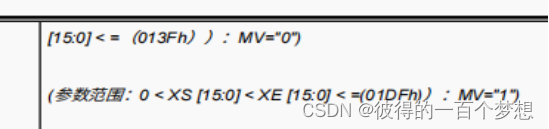

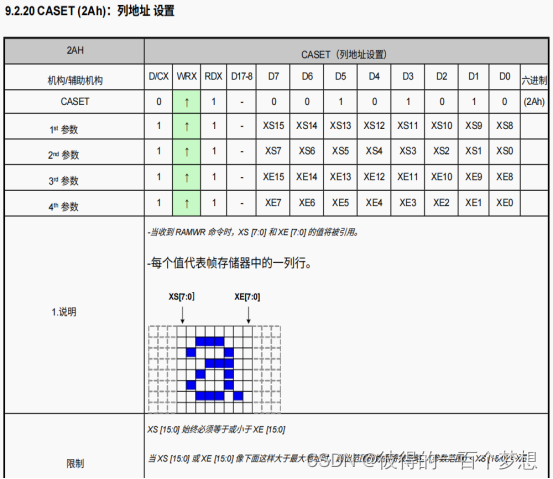

LCD_WR_REG(0x2a); //列地址设置

//发送命令0x2A,0<x1<x2

LCD_WR_DATA(x1);

LCD_WR_DATA(x2);

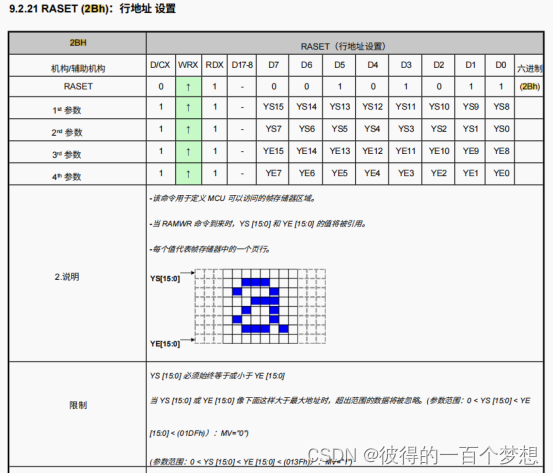

LCD_WR_REG(0x2b); //行地址设置

//发送命令0x2B,0<y1<y2

LCD_WR_DATA(y1);

LCD_WR_DATA(y2);

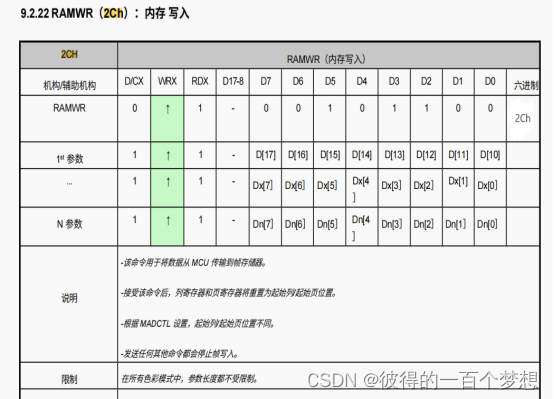

LCD_WR_REG(0x2c); //储存器写

//发送命令0x2C,后内存写入数据

}

void LCD_Init(void)

void LCD_Init(void)

{

LCD_GPIO_Init(); //初始化GPIO引脚

LCD_RES_Clr(); //复位

//RES复位引脚拉低

delay_ms(100); //100毫秒延时

LCD_RES_Set();

//RES复位引脚拉高

delay_ms(100); //100毫秒延时

LCD_BLK_Set(); //打开背光

//BLK(backlight)背光引脚拉高

delay_ms(100); //100毫秒延时

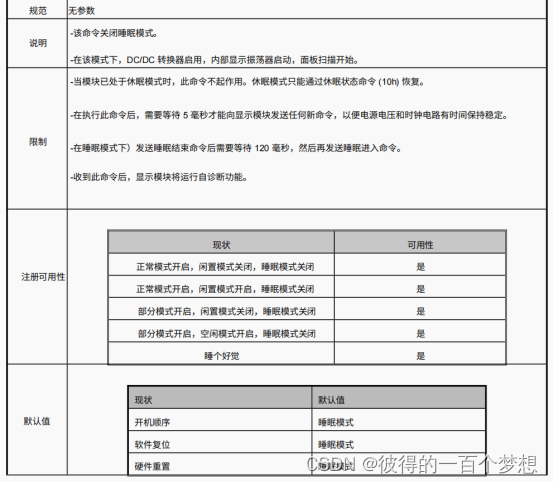

LCD_WR_REG(0x11); //Sleep out

delay_ms(120); //Delay 120ms

//发送睡眠结束命令，等待120毫秒以便结束睡眠模式

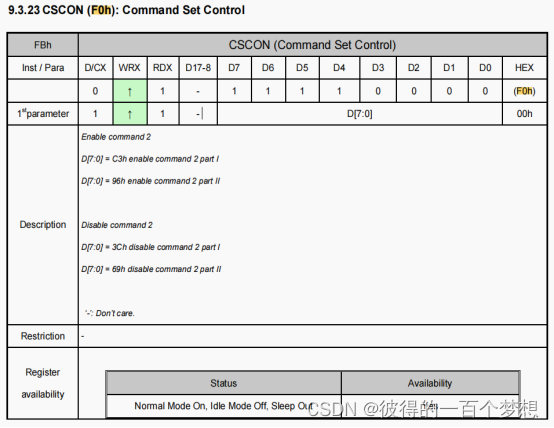

LCD_WR_REG(0Xf0);

LCD_WR_DATA8(0xc3); //启用命令集2的第一部分

LCD_WR_REG(0Xf0);

LCD_WR_DATA8(0x96); //启用命令集2的第二部分

//开启命令集，分别启用命令集2的第一部分和第二部分

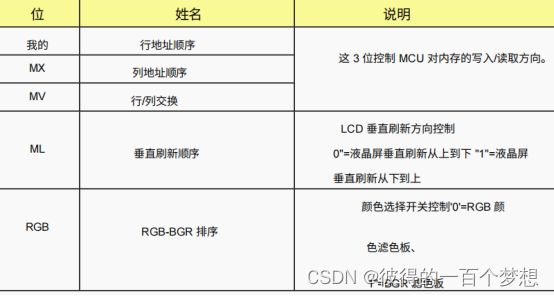

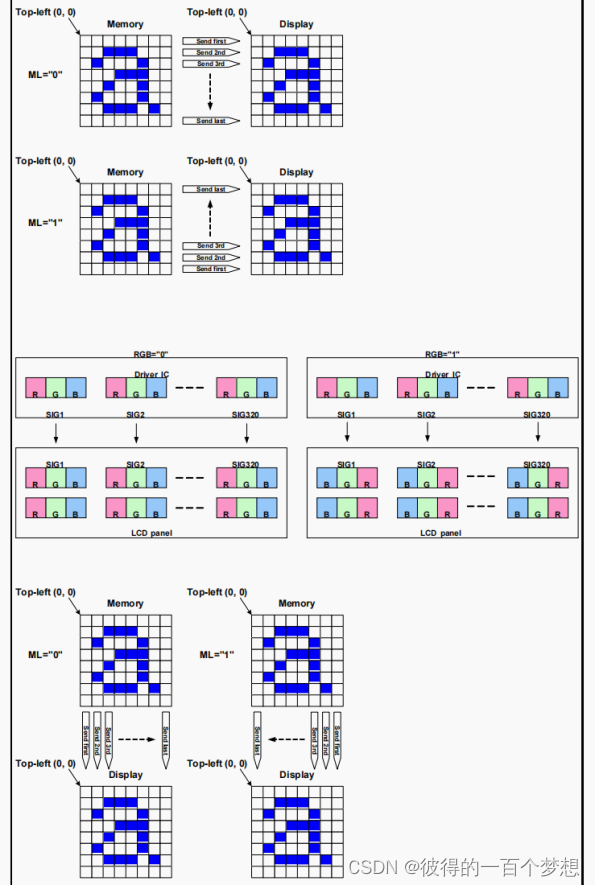

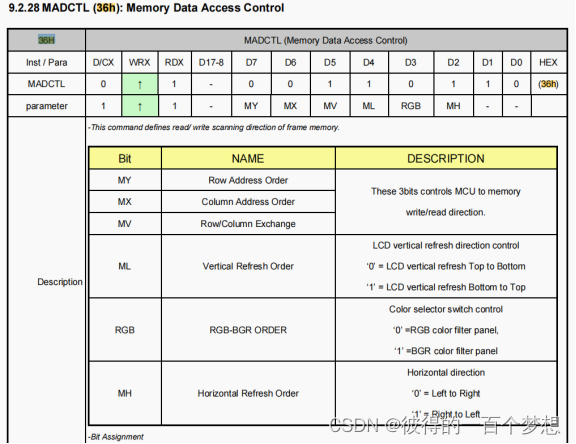

LCD_WR_REG(0x36); //Memory Access Control//内存访问控制

if(USE_HORIZONTAL==0)LCD_WR_DATA8(0x48); //0100 1000/0X48

//MX=1,RGB=1,MX为1就从右到左发送

else if(USE_HORIZONTAL==1)LCD_WR_DATA8(0x88); //1000 1000/0X88

//MY=1,RGB=1,MY为1就从下到上发送

else if(USE_HORIZONTAL==2)LCD_WR_DATA8(0x28); //0010 1000/0X28

//MV=1,RGB=1，MV为1就行列交换发送

else LCD_WR_DATA8(0xE8); //1110 1000/0XE8

//MY=1,MX=1,MV=1,RGB=1

//MX为1就从右到左发送,MY为1就从下到上发送，MV为1就行列交换发送

//初始MY=0,MX=0,MV=0是从左到右从上到下行列不交换发送，MX为1就从右到左发送

//MY为1就从下到上发送，MV为1就行列交换发送

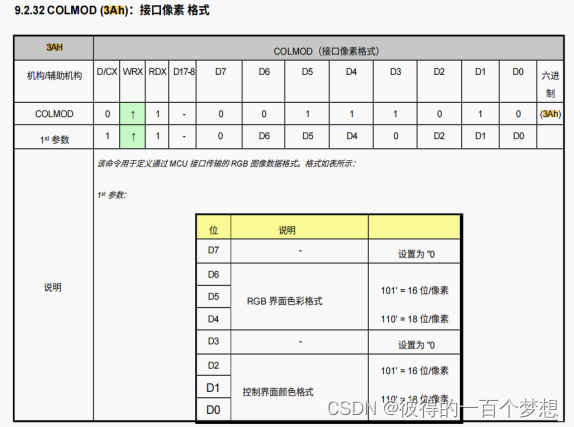

LCD_WR_REG(0X3a);

LCD_WR_DATA8(0x05); //0000 0101/0X05/16位像素

LCD_WR_REG(0Xe6); //调节ST7796内部电压的指令

LCD_WR_DATA8(0x0f);

LCD_WR_DATA8(0xf2);

LCD_WR_DATA8(0x3f);

LCD_WR_DATA8(0x4f);

LCD_WR_DATA8(0x28);

LCD_WR_DATA8(0x0e);

LCD_WR_DATA8(0x00);

LCD_WR_REG(0Xc5); //设置VCOM的值

LCD_WR_DATA8(0x2a); //42

LCD_WR_REG(0Xe0); //0XE0H,Positive Gamma Control

LCD_WR_DATA8(0xf0);

LCD_WR_DATA8(0x03);

LCD_WR_DATA8(0x0a);

LCD_WR_DATA8(0x11);

LCD_WR_DATA8(0x14);

LCD_WR_DATA8(0x1c);

LCD_WR_DATA8(0x3b);

LCD_WR_DATA8(0x55);

LCD_WR_DATA8(0x4a);

LCD_WR_DATA8(0x0a);

LCD_WR_DATA8(0x13);

LCD_WR_DATA8(0x14);

LCD_WR_DATA8(0x1c);

LCD_WR_DATA8(0x1f);

LCD_WR_REG(0Xe1); //0XE1H,Negative Gamma Control

LCD_WR_DATA8(0xf0);

LCD_WR_DATA8(0x03);

LCD_WR_DATA8(0x0a);

LCD_WR_DATA8(0x0c);

LCD_WR_DATA8(0x09);

LCD_WR_DATA8(0x36);

LCD_WR_DATA8(0x54);

LCD_WR_DATA8(0x49);

LCD_WR_DATA8(0x0f);

LCD_WR_DATA8(0x1b);

LCD_WR_DATA8(0x18);

LCD_WR_DATA8(0x1b);

LCD_WR_DATA8(0x1f);

LCD_WR_REG(0Xf0);

LCD_WR_DATA8(0x3c); //禁用命令集2的第一部分

LCD_WR_REG(0Xf0);

LCD_WR_DATA8(0x69); //禁用命令集2的第二部分

//禁用命令集，分别禁用命令集2的第一部分和第二部分

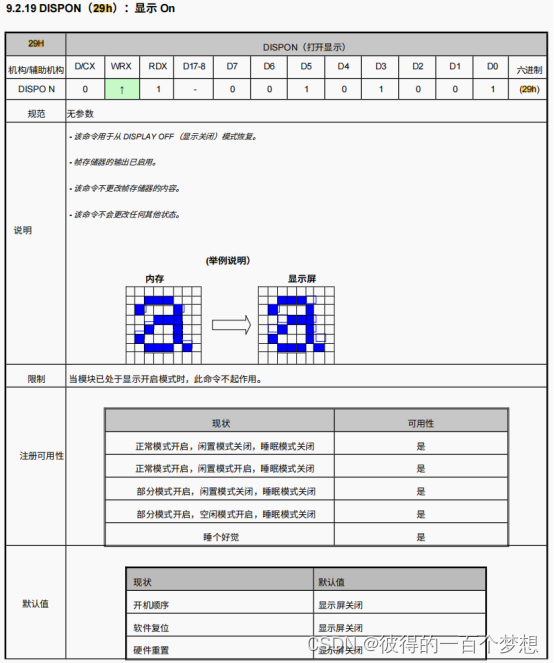

LCD_WR_REG(0X29); //显示屏开启命令

}

lcd.h

#ifndef __LCD_H

#define __LCD_H

#include "sys.h" //包含位带操作

void LCD_Fill(u16 xsta,u16 ysta,u16 xend,u16 yend,u16 color); //指定区域填充颜色

void LCD_DrawPoint(u16 x,u16 y,u16 color); //在指定位置画一个点

void LCD_DrawLine(u16 x1,u16 y1,u16 x2,u16 y2,u16 color); //在指定位置画一条线

void LCD_DrawRectangle(u16 x1,u16 y1,u16 x2,u16 y2,u16 color); //在指定位置画一个矩形

void Draw_Circle(u16 x0,u16 y0,u8 r,u16 color); //在指定位置画一个圆

void LCD_ShowChinese(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode); //显示汉字串

void LCD_ShowChinese12x12(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode);

//显示单个12x12汉字

void LCD_ShowChinese16x16(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode);

//显示单个16x16汉字

void LCD_ShowChinese24x24(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode);

//显示单个24x24汉字

void LCD_ShowChinese32x32(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode);

//显示单个32x32汉字

void LCD_ShowChar(u16 x,u16 y,u8 num,u16 fc,u16 bc,u8 sizey,u8 mode);//显示一个字符

void LCD_ShowString(u16 x,u16 y,const u8 *p,u16 fc,u16 bc,u8 sizey,u8 mode);//显示字符串

u32 mypow(u8 m,u8 n);//求幂

void LCD_ShowIntNum(u16 x,u16 y,u16 num,u8 len,u16 fc,u16 bc,u8 sizey);//显示整数变量

void LCD_ShowFloatNum1(u16 x,u16 y,float num,u8 len,u16 fc,u16 bc,u8 sizey);

//显示两位小数变量

void LCD_ShowPicture(u16 x,u16 y,u16 length,u16 width,const u8 pic[]);//显示图片

//画笔颜色

//采用RGB565形式的颜色，一个像素颜色俩个字节长度

#define WHITE 0xFFFF //白色

#define BLACK 0x0000 //黑色

#define BLUE 0x001F //蓝色

#define BRED 0XF81F //黑红色

#define GRED 0XFFE0 //宝石红色

#define GBLUE 0X07FF //宝石蓝色

#define RED 0xF800 //红色

#define MAGENTA 0xF81F //紫红色

#define GREEN 0x07E0 //绿色

#define CYAN 0x7FFF //青色

#define YELLOW 0xFFE0 //黄色

#define BROWN 0XBC40 //棕色

#define BRRED 0XFC07 //棕红色

#define GRAY 0X8430 //灰色

#define DARKBLUE 0X01CF //深蓝色

#define LIGHTBLUE 0X7D7C //浅蓝色

#define GRAYBLUE 0X5458 //灰蓝色

#define LIGHTGREEN 0X841F //浅绿色

#define LGRAY 0XC618 //浅灰色(PANNEL),窗体背景色

#define LGRAYBLUE 0XA651 //浅灰蓝色(中间层颜色)

#define LBBLUE 0X2B12 //浅棕蓝色(选择条目的反色)

#endif

lcd.c

#include "lcd.h"

#include "lcd_init.h"

#include "lcdfont.h" //包含字体头文件

#include "delay.h" //延时函数

/******************************************************************************

函数说明：在指定区域填充颜色

入口数据：xsta,ysta 起始坐标

xend,yend 终止坐标

color 要填充的颜色

返回值：无

******************************************************************************/

void LCD_Fill(u16 xsta,u16 ysta,u16 xend,u16 yend,u16 color)

void LCD_Fill(u16 xsta,u16 ysta,u16 xend,u16 yend,u16 color)
{
	u16 i,j;
	LCD_Address_Set(xsta,ysta,xend-1,yend-1);			//设置显示范围
	for(i=ysta;i<yend;i++)
	{
		for(j=xsta;j<xend;j++)
		{
			LCD_WR_DATA(color);
		}
	}
}
//设置好行和列的地址后存储器就开始逐行逐列的往存储器写颜色数据

/******************************************************************************

函数说明：在指定位置画点

入口数据：x,y 画点坐标

color 点的颜色

返回值：无

******************************************************************************/

void LCD_DrawPoint(u16 x,u16 y,u16 color)

void LCD_DrawPoint(u16 x,u16 y,u16 color)
{
	LCD_Address_Set(x,y,x,y);		//设置光标位置
	LCD_WR_DATA(color);
}

/******************************************************************************

函数说明：画线

入口数据：x1,y1 起始坐标

x2,y2 终止坐标

color 线的颜色

返回值：无

******************************************************************************/

void LCD_DrawLine(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)

void LCD_DrawLine(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)
{
	u16 t;
	int xerr=0,yerr=0,delta_x,delta_y,distance;
	int incx,incy,uRow,uCol;
	delta_x=x2-x1;							//计算横坐标增量
	delta_y=y2-y1;							//计算纵坐标增量
	uRow=x1;								//画线起点横坐标
	uCol=y1;								//画线起点纵坐标

	if(delta_x>0)incx=1;					//设置单步横向方向
	else if (delta_x==0)incx=0;				//垂直线
	else {incx=-1;delta_x=-delta_x;}			//横坐标距离是负值就取绝对值即取反

	if(delta_y>0)incy=1;					//设置单步纵向方向
	else if (delta_y==0)incy=0;				//水平线
	else {incy=-1;delta_y=-delta_y;}			//纵坐标距离是负值就取绝对值即取反

	if(delta_x>delta_y)distance=delta_x;		//选取基本增量坐标轴
	else distance=delta_y;



	for(t=0;t<distance+1;t++)				//使用了Bresenham算法
	{
		LCD_DrawPoint(uRow,uCol,color);		//画点
		xerr+=delta_x;
		yerr+=delta_y;

		if(xerr>distance)
		{
			xerr-=distance;
			uRow+=incx;
		}

		if(yerr>distance)
		{
			yerr-=distance;
			uCol+=incy;
		}
	}
}
/*函数的实现方式是使用了Bresenham算法，通过计算坐标增量、单步方向和基本增量坐标轴等参数来逐个画出每个点，从而实现画直线的效果。通过计算每个像素点距离直线的距离来确定哪些像素需要被绘制。该算法通过比较直线斜率与1的大小关系，选择更接近于水平或竖直方向的方向进行绘制，然后在每个步骤中判断当前像素点距离直线的距离与下一个像素点距离直线的距离的大小关系，从而确定哪些像素需要被绘制。如果当前像素点距离直线更近，则该像素点需要被绘制，否则不需要被绘制。*/

/******************************************************************************

函数说明：画矩形

入口数据：x1,y1 起始坐标

x2,y2 终止坐标

color 矩形的颜色

返回值：无

******************************************************************************/

void LCD_DrawRectangle(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)

void LCD_DrawRectangle(u16 x1,u16 y1,u16 x2,u16 y2,u16 color)
{
	LCD_DrawLine(x1,y1,x2,y1,color);
	LCD_DrawLine(x1,y1,x1,y2,color);
	LCD_DrawLine(x1,y2,x2,y2,color);
	LCD_DrawLine(x2,y1,x2,y2,color);
}

/******************************************************************************

函数说明：画圆

入口数据：x0,y0 圆心坐标

r 半径

color 圆的颜色

返回值：无

******************************************************************************/

void Draw_Circle(u16 x0,u16 y0,u8 r,u16 color)

void Draw_Circle(u16 x0,u16 y0,u8 r,u16 color)
{
	int a,b;
	a=0;b=r;
	while(a<=b)
	{
		LCD_DrawPoint(x0-b,y0-a,color);
		LCD_DrawPoint(x0+b,y0-a,color);
		LCD_DrawPoint(x0-a,y0+b,color);
		LCD_DrawPoint(x0-a,y0-b,color);
		LCD_DrawPoint(x0+b,y0+a,color);
		LCD_DrawPoint(x0+a,y0-b,color);
		LCD_DrawPoint(x0+a,y0+b,color);
		LCD_DrawPoint(x0-b,y0+a,color);
		a++;
		if((a*a+b*b)>(r*r))							//判断要画的点是否过远
		{
			b--;
		}
	}
}

/******************************************************************************

函数说明：显示汉字串

入口数据：x,y显示坐标

*s 要显示的汉字串

fc 字的颜色

bc 字的背景色

sizey 字号可选 16 24 32

mode: 0 非叠加模式 1 叠加模式

返回值：无

******************************************************************************/

**void LCD_ShowChinese(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)**

void LCD_ShowChinese(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	while(*s!=0)				//如果字符串不为空
	{
		if(sizey==12)			LCD_ShowChinese12x12(x,y,s,fc,bc,sizey,mode);
		else if(sizey==16)		LCD_ShowChinese16x16(x,y,s,fc,bc,sizey,mode);
		else if(sizey==24)		LCD_ShowChinese24x24(x,y,s,fc,bc,sizey,mode);
		else if(sizey==32)		LCD_ShowChinese32x32(x,y,s,fc,bc,sizey,mode);
		else		return;
		s+=2;			//一个字符占俩个字节
		x+=sizey;			//横坐标增加一个字符位
	}
}

/******************************************************************************

函数说明：显示单个12x12汉字

入口数据：x,y显示坐标

*s 要显示的汉字

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

void LCD_ShowChinese12x12(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChinese12x12(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	u8 i,j,m=0;
	u16 k;
	u16 HZnum;									//汉字数目
	u16 TypefaceNum;								//一个字符所占字节大小
	u16 x0=x;										//要显示的横坐标起点
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;		//一个字符所占字节大小

	HZnum=sizeof(tfont12)/sizeof(typFNT_GB12);		//统计汉字数目
//tfont12:单汉字结构体，typFNT_GB12:汉字群结构体
	for(k=0;k<HZnum;k++)
	{
		if((tfont12[k].Index[0]==*(s))&&(tfont12[k].Index[1]==*(s+1)))
//遍历汉字群直到找到俩个字节的索引完全相同即确定了相应的汉字
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);		//设置要显示的方框



			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)							//非叠加方式
					{
						if(tfont12[k].Msk[i]&(0x01<<j))
LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
//非叠加方式就是显示背景色
					else							//叠加方式
					{
						if(tfont12[k].Msk[i]&(0x01<<j))
LCD_DrawPoint(x,y,fc);		//画一个点
//不按单点函数画可能造成背景色缺失
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
//叠加方式就是不显示背景色
				}
			}
		}
		continue;
//遍历字库，如果遇到索引值相同但汉字不同的那只能显示字库最靠后的那个汉字
	}
}

/******************************************************************************

函数说明：显示单个16x16汉字

入口数据：x,y显示坐标

*s 要显示的汉字

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

**void LCD_ShowChinese16x16(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)**

void LCD_ShowChinese16x16(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	u8 i,j,m=0;
	u16 k;
	u16 HZnum;									//汉字数目
	u16 TypefaceNum;								//一个字符所占字节大小
	u16 x0=x;										//要显示的横坐标起点
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;		//一个字符所占字节大小

	HZnum=sizeof(tfont16)/sizeof(typFNT_GB16);		//统计汉字数目
//tfont16:单汉字结构体，typFNT_GB16:汉字群结构体

	for(k=0;k<HZnum;k++)
	{
		if ((tfont16[k].Index[0]==*(s))&&(tfont16[k].Index[1]==*(s+1)))
//遍历汉字群直到找到俩个字节的索引完全相同即确定了相应的汉字
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);		//设置要显示的方框



			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)								//非叠加方式
					{
						if(tfont16[k].Msk[i]&(0x01<<j))
LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else									//叠加方式
					{
						if(tfont16[k].Msk[i]&(0x01<<j))
LCD_DrawPoint(x,y,fc);				//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;
}
}

/******************************************************************************

函数说明：显示单个24x24汉字

入口数据：x,y显示坐标

*s 要显示的汉字

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

**void LCD_ShowChinese24x24(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)**

void LCD_ShowChinese24x24(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	u8 i,j,m=0;
	u16 k;
	u16 HZnum;											//汉字数目
	u16 TypefaceNum;										//一个字符所占字节大小
	u16 x0=x;
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;
	HZnum=sizeof(tfont24)/sizeof(typFNT_GB24);				//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if ((tfont24[k].Index[0]==*(s))&&(tfont24[k].Index[1]==*(s+1)))
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);
			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)									//非叠加方式
					{
						if(tfont24[k].Msk[i]&(0x01<<j))
LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else										//叠加方式
					{
						if(tfont24[k].Msk[i]&(0x01<<j))
LCD_DrawPoint(x,y,fc);					//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;
	}
}

/******************************************************************************

函数说明：显示单个32x32汉字

入口数据：x,y显示坐标

*s 要显示的汉字

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

**void LCD_ShowChinese32x32(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)**

void LCD_ShowChinese32x32(u16 x,u16 y,u8 *s,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	u8 i,j,m=0;
	u16 k;
	u16 HZnum;										//汉字数目
	u16 TypefaceNum;									//一个字符所占字节大小
	u16 x0=x;
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;
	HZnum=sizeof(tfont32)/sizeof(typFNT_GB32);			//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if ((tfont32[k].Index[0]==*(s))&&(tfont32[k].Index[1]==*(s+1)))
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);


			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)							//非叠加方式
					{
						if(tfont32[k].Msk[i]&(0x01<<j))
LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else								//叠加方式
					{
						if(tfont32[k].Msk[i]&(0x01<<j))
LCD_DrawPoint(x,y,fc);			//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;
	}
}

/******************************************************************************

函数说明：显示单个字符

入口数据：x,y显示坐标

num 要显示的字符

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

void LCD_ShowChar(u16 x,u16 y,u8 num,u16 fc,u16 bc,u8 sizey,u8 mode)

void LCD_ShowChar(u16 x,u16 y,u8 num,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	u8 temp,sizex,t,m=0;
	u16 i,TypefaceNum;						//一个字符所占字节大小
	u16 x0=x;									//要显示的横坐标起点
	sizex=sizey/2;								//字符横向是字符纵向的一半长
	TypefaceNum=(sizex/8+((sizex%8)?1:0))*sizey;	//一个字符所占字节大小
	num=num-' ';								//得到偏移后的值去掉第一个空格值
	LCD_Address_Set(x,y,x+sizex-1,y+sizey-1);		//设置单个字符要显示的窗口
	for(i=0;i<TypefaceNum;i++)
	{
		if(sizey==12)temp=ascii_1206[num][i];				//调用6x12字体
		else if(sizey==16)temp=ascii_1608[num][i];			//调用8x16字体
		else if(sizey==24)temp=ascii_2412[num][i];			//调用12x24字体
		else if(sizey==32)temp=ascii_3216[num][i];			//调用16x32字体
		else return;



		for(t=0;t<8;t++)
		{
			if(!mode)									//非叠加模式
			{
				if(temp&(0x01<<t))
LCD_WR_DATA(fc);
				else LCD_WR_DATA(bc);
				m++;
				if(m%sizex==0)
				{
					m=0;
					break;
				}
			}

			else											//叠加模式
			{
				if(temp&(0x01<<t))
LCD_DrawPoint(x,y,fc);						//画一个点
				x++;
				if((x-x0)==sizex)
				{
					x=x0;
					y++;
					break;
				}
			}
		}
	}
}

/******************************************************************************

函数说明：显示字符串

入口数据：x,y显示坐标

*p 要显示的字符串

fc 字的颜色

bc 字的背景色

sizey 字号

mode: 0非叠加模式 1叠加模式

返回值：无

******************************************************************************/

**void LCD_ShowString(u16 x,u16 y,const u8 *p,u16 fc,u16 bc,u8 sizey,u8 mode)**

void LCD_ShowString(u16 x,u16 y,const u8 *p,u16 fc,u16 bc,u8 sizey,u8 mode)
{
	while(*p!='\0')
	{
		LCD_ShowChar(x,y,*p,fc,bc,sizey,mode);
		x+=sizey/2;
		p++;
	}
}
//遍历给定的字符串，并使用LCD_ShowChar函数在LCD上的指定位置逐个显示字符串中//的字符。
/*在C语言中，空字符（null character）或称为终止字符（terminator character），是一个特殊的字符，其ASCII值为0（十六进制表示为\0或0x00）。它在字符串中用于标记字符串的结束。当C语言的函数（如printf,strlen,strcpy等）处理字符串时，它们会查找这个空字符来确定字符串的结束位置。C编译器会自动在字符串的末尾添加一个空字符来标记字符串的结束。这是因为字符串在C语言中是以字符数组的形式存储的，而数组必须有一个明确的结束位置，以便函数能够知道何时停止读取或写入数据。*/

/******************************************************************************

函数说明：计算指数函数

入口数据：m底数，n指数

返回值：无

******************************************************************************/

u32 mypow(u8 m,u8 n)

u32 mypow(u8 m,u8 n)
{
	u32 result=1;
	while(n--)result*=m;				//就是有n个m进行相乘积
	return result;
}

/******************************************************************************

函数说明：显示整数变量

入口数据：x,y显示坐标

num 要显示整数变量

len 要显示的位数

fc 字的颜色

bc 字的背景色

sizey 字号

返回值：无

******************************************************************************/

void LCD_ShowIntNum(u16 x,u16 y,u16 num,u8 len,u16 fc,u16 bc,u8 sizey)

void LCD_ShowIntNum(u16 x,u16 y,u16 num,u8 len,u16 fc,u16 bc,u8 sizey)
{
	u8 t,temp;
	u8 enshow=0;							//一个标志，用于判断是否应该显示前导零。
	u8 sizex=sizey/2;						//整数横向是整数纵向的一半长
	for(t=0;t<len;t++)
	{
		temp=(num/mypow(10,len-t-1))%10;
		if(enshow==0&&t<(len-1))
		{
			if(temp==0)
			{
				LCD_ShowChar(x+t*sizex,y,' ',fc,bc,sizey,0);		//非叠加模式
//前导0模式下，整数之前位置都显示的是空格
				continue;
			}else enshow=1;
		}
	 	LCD_ShowChar(x+t*sizex,y,temp+48,fc,bc,sizey,0);
	}
}
/*如果enshow为0（即还没有显示非零数字）且当前位不是最低位（即t不等于len-1），则检查当前位是否为0。如果当前位为0，则在LCD上显示一个空格字符（ASCII值为32的字符），并继续下一次循环（即不显示这个0）。如果当前位不为0，则将enshow设置为1，表示已经开始显示非零数字，之后的所有位（包括这个位）都应该被显示。*/
/*使用LCD_ShowChar函数在LCD上显示字符。字符是通过将temp（0-9）加上48
（ASCII值中'0'的偏移量）得到的。这样0-9的整数就会转换为对应的字符'0'-'9'。*/

/******************************************************************************

函数说明：显示两位小数变量

入口数据：x,y显示坐标

num 要显示小数变量

len 要显示的位数

fc 字的颜色

bc 字的背景色

sizey 字号

返回值：无

******************************************************************************/

void LCD_ShowFloatNum1(u16 x,u16 y,float num,u8 len,u16 fc,u16 bc,u8 sizey)

{
	u8 t,temp,sizex;			//定义临时变量
	u16 num1;
	sizex=sizey/2;				//数横向是数纵向的一半长
	num1=num*100;			//将浮点数转换为整数（假设要显示两位小数）
	for(t=0;t<len;t++)			//遍历每一位数字进行显示
	{
		temp=(num1/mypow(10,len-t-1))%10;					//计算当前位的值（0-9）
		if(t==(len-2))									//如果当前位是倒数第二位
		{
			LCD_ShowChar(x+(len-2)*sizex,y,'.',fc,bc,sizey,0);
//在倒数第二位显示一个小数点
			t++;				//小数点后下一位
			len+=1;			//总长度加一
		}
		LCD_ShowChar(x+t*sizex,y,temp+48,fc,bc,sizey,0);			//显示数字
	}
}

/******************************************************************************

函数说明：显示图片

入口数据：x,y起点坐标

length 图片长度

width 图片宽度

pic[] 图片数组

返回值：无

******************************************************************************/

void LCD_ShowPicture(u16 x,u16 y,u16 length,u16 width,const u8 pic[])

void LCD_ShowPicture(u16 x,u16 y,u16 length,u16 width,const u8 pic[])
{
	u16 i,j;
	u32 k=0;
	LCD_Address_Set(x,y,x+length-1,y+width-1);
//函数设置LCD的显示区域，从(x,y)开始，到(x+length-1,y+width-1)结束。
	for(i=0;i<length;i++)
	{
		for(j=0;j<width;j++)
//一行一行的输入
		{
			LCD_WR_DATA8(pic[k*2]);
			LCD_WR_DATA8(pic[k*2+1]);
/*每次迭代都会从pic[]数组中取出两个字节的数据（即一个16位的RGB565像素值），并使用LCD_WR_DATA8函数分两次写入到LCD。这里假设LCD_WR_DATA8函数是用于向LCD写入一个8位（即1字节）数据的。由于RGB565像素值是16位的，所以需要分两次写入。*/
			k++;
		}
	}
}

lcdfont.h

#ifndef __LCDFONT_H
#define __LCDFONT_H

const unsigned char ascii_1206[][12]={

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x04,0x00,0x00},/*"!",1*/
{0x14,0x14,0x0A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x0A,0x0A,0x1F,0x0A,0x0A,0x1F,0x0A,0x0A,0x00,0x00},/*"#",3*/
{0x00,0x04,0x0E,0x15,0x05,0x06,0x0C,0x14,0x15,0x0E,0x04,0x00},/*"$",4*/
{0x00,0x00,0x12,0x15,0x0D,0x15,0x2E,0x2C,0x2A,0x12,0x00,0x00},/*"%",5*/
{0x00,0x00,0x04,0x0A,0x0A,0x36,0x15,0x15,0x29,0x16,0x00,0x00},/*"&",6*/
{0x02,0x02,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x10,0x08,0x08,0x04,0x04,0x04,0x04,0x04,0x08,0x08,0x10,0x00},/*"(",8*/
{0x02,0x04,0x04,0x08,0x08,0x08,0x08,0x08,0x04,0x04,0x02,0x00},/*")",9*/
{0x00,0x00,0x00,0x04,0x15,0x0E,0x0E,0x15,0x04,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x08,0x08,0x3E,0x08,0x08,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x02,0x01,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00},/*".",14*/
{0x00,0x20,0x10,0x10,0x08,0x08,0x04,0x04,0x02,0x02,0x01,0x00},/*"/",15*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x11,0x11,0x0E,0x00,0x00},/*"0",16*/
{0x00,0x00,0x04,0x06,0x04,0x04,0x04,0x04,0x04,0x0E,0x00,0x00},/*"1",17*/
{0x00,0x00,0x0E,0x11,0x11,0x08,0x04,0x02,0x01,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x00,0x0E,0x11,0x10,0x0C,0x10,0x10,0x11,0x0E,0x00,0x00},/*"3",19*/
{0x00,0x00,0x08,0x0C,0x0C,0x0A,0x09,0x1F,0x08,0x1C,0x00,0x00},/*"4",20*/
{0x00,0x00,0x1F,0x01,0x01,0x0F,0x11,0x10,0x11,0x0E,0x00,0x00},/*"5",21*/
{0x00,0x00,0x0C,0x12,0x01,0x0D,0x13,0x11,0x11,0x0E,0x00,0x00},/*"6",22*/
{0x00,0x00,0x1E,0x10,0x08,0x08,0x04,0x04,0x04,0x04,0x00,0x00},/*"7",23*/
{0x00,0x00,0x0E,0x11,0x11,0x0E,0x11,0x11,0x11,0x0E,0x00,0x00},/*"8",24*/
{0x00,0x00,0x0E,0x11,0x11,0x19,0x16,0x10,0x09,0x06,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x04,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x04,0x04,0x00},/*";",27*/
{0x00,0x00,0x10,0x08,0x04,0x02,0x02,0x04,0x08,0x10,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x3F,0x00,0x3F,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x02,0x04,0x08,0x10,0x10,0x08,0x04,0x02,0x00,0x00},/*">",30*/
{0x00,0x00,0x0E,0x11,0x11,0x08,0x04,0x04,0x00,0x04,0x00,0x00},/*"?",31*/
{0x00,0x00,0x1C,0x22,0x29,0x2D,0x2D,0x1D,0x22,0x1C,0x00,0x00},/*"@",32*/
{0x00,0x00,0x04,0x04,0x0C,0x0A,0x0A,0x1E,0x12,0x33,0x00,0x00},/*"A",33*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x12,0x12,0x12,0x0F,0x00,0x00},/*"B",34*/
{0x00,0x00,0x1E,0x11,0x01,0x01,0x01,0x01,0x11,0x0E,0x00,0x00},/*"C",35*/
{0x00,0x00,0x0F,0x12,0x12,0x12,0x12,0x12,0x12,0x0F,0x00,0x00},/*"D",36*/
{0x00,0x00,0x1F,0x12,0x0A,0x0E,0x0A,0x02,0x12,0x1F,0x00,0x00},/*"E",37*/
{0x00,0x00,0x1F,0x12,0x0A,0x0E,0x0A,0x02,0x02,0x07,0x00,0x00},/*"F",38*/
{0x00,0x00,0x1C,0x12,0x01,0x01,0x39,0x11,0x12,0x0C,0x00,0x00},/*"G",39*/
{0x00,0x00,0x33,0x12,0x12,0x1E,0x12,0x12,0x12,0x33,0x00,0x00},/*"H",40*/
{0x00,0x00,0x1F,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"I",41*/
{0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x09,0x07},/*"J",42*/
{0x00,0x00,0x37,0x12,0x0A,0x06,0x0A,0x12,0x12,0x37,0x00,0x00},/*"K",43*/
{0x00,0x00,0x07,0x02,0x02,0x02,0x02,0x02,0x22,0x3F,0x00,0x00},/*"L",44*/
{0x00,0x00,0x3B,0x1B,0x1B,0x1B,0x15,0x15,0x15,0x35,0x00,0x00},/*"M",45*/
{0x00,0x00,0x3B,0x12,0x16,0x16,0x1A,0x1A,0x12,0x17,0x00,0x00},/*"N",46*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x11,0x11,0x0E,0x00,0x00},/*"O",47*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x02,0x02,0x02,0x07,0x00,0x00},/*"P",48*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x17,0x19,0x0E,0x18,0x00},/*"Q",49*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x0A,0x12,0x12,0x37,0x00,0x00},/*"R",50*/
{0x00,0x00,0x1E,0x11,0x01,0x06,0x08,0x10,0x11,0x0F,0x00,0x00},/*"S",51*/
{0x00,0x00,0x1F,0x15,0x04,0x04,0x04,0x04,0x04,0x0E,0x00,0x00},/*"T",52*/
{0x00,0x00,0x33,0x12,0x12,0x12,0x12,0x12,0x12,0x0C,0x00,0x00},/*"U",53*/
{0x00,0x00,0x33,0x12,0x12,0x0A,0x0A,0x0C,0x04,0x04,0x00,0x00},/*"V",54*/
{0x00,0x00,0x15,0x15,0x15,0x15,0x0E,0x0A,0x0A,0x0A,0x00,0x00},/*"W",55*/
{0x00,0x00,0x1B,0x0A,0x0A,0x04,0x04,0x0A,0x0A,0x1B,0x00,0x00},/*"X",56*/
{0x00,0x00,0x1B,0x0A,0x0A,0x0A,0x04,0x04,0x04,0x0E,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x1F,0x09,0x08,0x04,0x04,0x02,0x12,0x1F,0x00,0x00},/*"Z",58*/
{0x1C,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1C,0x00},/*"[",59*/
{0x00,0x02,0x02,0x04,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x00},/*"\",60*/
{0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x0E,0x00},/*"]",61*/
{0x04,0x0A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F},/*"_",63*/
{0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x1C,0x12,0x3C,0x00,0x00},/*"a",65*/
{0x00,0x03,0x02,0x02,0x02,0x0E,0x12,0x12,0x12,0x0E,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x12,0x02,0x12,0x0C,0x00,0x00},/*"c",67*/
{0x00,0x18,0x10,0x10,0x10,0x1C,0x12,0x12,0x12,0x3C,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x1E,0x02,0x1C,0x00,0x00},/*"e",69*/
{0x00,0x18,0x24,0x04,0x04,0x1E,0x04,0x04,0x04,0x1E,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x12,0x0C,0x02,0x1C,0x22,0x1C},/*"g",71*/
{0x00,0x03,0x02,0x02,0x02,0x0E,0x12,0x12,0x12,0x37,0x00,0x00},/*"h",72*/
{0x00,0x04,0x04,0x00,0x00,0x06,0x04,0x04,0x04,0x0E,0x00,0x00},/*"i",73*/
{0x00,0x08,0x08,0x00,0x00,0x0C,0x08,0x08,0x08,0x08,0x08,0x07},/*"j",74*/
{0x00,0x03,0x02,0x02,0x02,0x1A,0x0A,0x06,0x0A,0x13,0x00,0x00},/*"k",75*/
{0x00,0x07,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x15,0x15,0x15,0x15,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x12,0x12,0x12,0x37,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x12,0x12,0x0C,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x12,0x12,0x12,0x0E,0x02,0x07},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x12,0x12,0x12,0x1C,0x10,0x38},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x06,0x02,0x02,0x07,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x1E,0x02,0x0C,0x10,0x1E,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x04,0x04,0x1E,0x04,0x04,0x04,0x1C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x12,0x12,0x12,0x3C,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x0A,0x0A,0x04,0x04,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x15,0x15,0x0E,0x0A,0x0A,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x0A,0x04,0x0A,0x1B,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x33,0x12,0x12,0x0C,0x08,0x04,0x03},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x1E,0x08,0x04,0x04,0x1E,0x00,0x00},/*"z",90*/
{0x18,0x08,0x08,0x08,0x08,0x0C,0x08,0x08,0x08,0x08,0x18,0x00},/*"{",91*/
{0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08},/*"|",92*/
{0x06,0x04,0x04,0x04,0x04,0x08,0x04,0x04,0x04,0x04,0x06,0x00},/*"}",93*/
{0x16,0x09,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};

const unsigned char ascii_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,0x18,0x18,0x00,0x00},/*"!",1*/
{0x00,0x48,0x6C,0x24,0x12,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x24,0x24,0x24,0x7F,0x12,0x12,0x12,0x7F,0x12,0x12,0x12,0x00,0x00},/*"#",3*/
{0x00,0x00,0x08,0x1C,0x2A,0x2A,0x0A,0x0C,0x18,0x28,0x28,0x2A,0x2A,0x1C,0x08,0x08},/*"$",4*/
{0x00,0x00,0x00,0x22,0x25,0x15,0x15,0x15,0x2A,0x58,0x54,0x54,0x54,0x22,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x0C,0x12,0x12,0x12,0x0A,0x76,0x25,0x29,0x11,0x91,0x6E,0x00,0x00},/*"&",6*/
{0x00,0x06,0x06,0x04,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x40,0x20,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x10,0x10,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x04,0x02,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x08,0x08,0x6B,0x1C,0x1C,0x6B,0x08,0x08,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x7F,0x08,0x08,0x08,0x08,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x06,0x04,0x03},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x06,0x00,0x00},/*".",14*/
{0x00,0x00,0x80,0x40,0x40,0x20,0x20,0x10,0x10,0x08,0x08,0x04,0x04,0x02,0x02,0x00},/*"/",15*/
{0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x08,0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x20,0x20,0x10,0x08,0x04,0x42,0x7E,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x20,0x18,0x20,0x40,0x40,0x42,0x22,0x1C,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x20,0x30,0x28,0x24,0x24,0x22,0x22,0x7E,0x20,0x20,0x78,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x7E,0x02,0x02,0x02,0x1A,0x26,0x40,0x40,0x42,0x22,0x1C,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x38,0x24,0x02,0x02,0x1A,0x26,0x42,0x42,0x42,0x24,0x18,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x7E,0x22,0x22,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x64,0x58,0x40,0x40,0x24,0x1C,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x04},/*";",27*/
{0x00,0x00,0x00,0x40,0x20,0x10,0x08,0x04,0x02,0x04,0x08,0x10,0x20,0x40,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x02,0x04,0x08,0x10,0x20,0x40,0x20,0x10,0x08,0x04,0x02,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x46,0x40,0x20,0x10,0x10,0x00,0x18,0x18,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x1C,0x22,0x5A,0x55,0x55,0x55,0x55,0x2D,0x42,0x22,0x1C,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x08,0x08,0x18,0x14,0x14,0x24,0x3C,0x22,0x42,0x42,0xE7,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x1E,0x22,0x42,0x42,0x42,0x22,0x1F,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x7C,0x42,0x42,0x01,0x01,0x01,0x01,0x01,0x42,0x22,0x1C,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x1F,0x22,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x22,0x1F,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x3F,0x42,0x12,0x12,0x1E,0x12,0x12,0x02,0x42,0x42,0x3F,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x3F,0x42,0x12,0x12,0x1E,0x12,0x12,0x02,0x02,0x02,0x07,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x3C,0x22,0x22,0x01,0x01,0x01,0x71,0x21,0x22,0x22,0x1C,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x11,0x0F},/*"J",42*/
{0x00,0x00,0x00,0x77,0x22,0x12,0x0A,0x0E,0x0A,0x12,0x12,0x22,0x22,0x77,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x07,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x7F,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x77,0x36,0x36,0x36,0x36,0x2A,0x2A,0x2A,0x2A,0x2A,0x6B,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0xE3,0x46,0x46,0x4A,0x4A,0x52,0x52,0x52,0x62,0x62,0x47,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x1C,0x22,0x41,0x41,0x41,0x41,0x41,0x41,0x41,0x22,0x1C,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x3F,0x42,0x42,0x42,0x42,0x3E,0x02,0x02,0x02,0x02,0x07,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x1C,0x22,0x41,0x41,0x41,0x41,0x41,0x4D,0x53,0x32,0x1C,0x60,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x3F,0x42,0x42,0x42,0x3E,0x12,0x12,0x22,0x22,0x42,0xC7,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x7C,0x42,0x42,0x02,0x04,0x18,0x20,0x40,0x42,0x42,0x3E,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x7F,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x1C,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x22,0x24,0x24,0x14,0x14,0x18,0x08,0x08,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x6B,0x49,0x49,0x49,0x49,0x55,0x55,0x36,0x22,0x22,0x22,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x18,0x18,0x18,0x24,0x24,0x42,0xE7,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x77,0x22,0x22,0x14,0x14,0x08,0x08,0x08,0x08,0x08,0x1C,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x7E,0x21,0x20,0x10,0x10,0x08,0x04,0x04,0x42,0x42,0x3F,0x00,0x00},/*"Z",58*/
{0x00,0x78,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x78,0x00},/*"[",59*/
{0x00,0x00,0x02,0x02,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x20,0x20,0x20,0x40,0x40},/*"\",60*/
{0x00,0x1E,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1E,0x00},/*"]",61*/
{0x00,0x38,0x44,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},/*"_",63*/
{0x00,0x06,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x78,0x44,0x42,0x42,0xFC,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x1A,0x26,0x42,0x42,0x42,0x26,0x1A,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x02,0x02,0x02,0x44,0x38,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x60,0x40,0x40,0x40,0x78,0x44,0x42,0x42,0x42,0x64,0xD8,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x7E,0x02,0x02,0x42,0x3C,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0xF0,0x88,0x08,0x08,0x7E,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x22,0x22,0x1C,0x02,0x3C,0x42,0x42,0x3C},/*"g",71*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x3A,0x46,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x0E,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x38,0x20,0x20,0x20,0x20,0x20,0x20,0x22,0x1E},/*"j",74*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x72,0x12,0x0A,0x16,0x12,0x22,0x77,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x92,0x92,0x92,0x92,0x92,0xB7,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3B,0x46,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1B,0x26,0x42,0x42,0x42,0x22,0x1E,0x02,0x07},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x44,0x42,0x42,0x42,0x44,0x78,0x40,0xE0},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x77,0x4C,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x42,0x02,0x3C,0x40,0x42,0x3E,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x3E,0x08,0x08,0x08,0x08,0x08,0x30,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x63,0x42,0x42,0x42,0x42,0x62,0xDC,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x14,0x08,0x08,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEB,0x49,0x49,0x55,0x55,0x22,0x22,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x76,0x24,0x18,0x18,0x18,0x24,0x6E,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x14,0x18,0x08,0x08,0x07},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x22,0x10,0x08,0x08,0x44,0x7E,0x00,0x00},/*"z",90*/
{0x00,0xC0,0x20,0x20,0x20,0x20,0x20,0x10,0x20,0x20,0x20,0x20,0x20,0x20,0xC0,0x00},/*"{",91*/
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},/*"|",92*/
{0x00,0x06,0x08,0x08,0x08,0x08,0x08,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x06,0x00},/*"}",93*/
{0x0C,0x32,0xC2,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
const unsigned char ascii_2412[][48]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x00,0x60,0x06,0x60,0x06,0x30,0x03,0x98,0x01,0x88,0x00,0x44,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x02,0x10,0x02,0x10,0x02,0x10,0x02,0xFE,0x07,0xFE,0x07,0x08,0x02,0x08,0x01,0x08,0x01,0x08,0x01,0x08,0x01,0xFE,0x07,0xFE,0x07,0x04,0x01,0x04,0x01,0x04,0x01,0x04,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"#",3*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x40,0x00,0xF0,0x01,0x58,0x03,0x4C,0x03,0xCC,0x03,0x4C,0x00,0x58,0x00,0x70,0x00,0xE0,0x00,0xC0,0x01,0xC0,0x01,0x40,0x03,0x4C,0x03,0x5C,0x03,0x4C,0x03,0x48,0x01,0xF0,0x00,0x40,0x00,0x40,0x00,0x00,0x00},/*"$",4*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x01,0x0A,0x01,0x91,0x00,0x91,0x00,0x91,0x00,0x51,0x00,0x51,0x00,0x3A,0x00,0xAE,0x03,0xA0,0x02,0x50,0x04,0x50,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0x84,0x02,0x84,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x2C,0x00,0x98,0x07,0x1C,0x01,0x1A,0x01,0x33,0x01,0x33,0x01,0x63,0x01,0xE3,0x00,0xC3,0x08,0xC6,0x09,0x3C,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"&",6*/
{0x00,0x00,0x00,0x00,0x0C,0x00,0x1C,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x80,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x00,0x02,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0xC0,0x00,0x40,0x00,0x46,0x0C,0x4E,0x0F,0xD0,0x01,0xF0,0x01,0x5E,0x0F,0x46,0x0C,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xFE,0x0F,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x1C,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x1C,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x03,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0x0C,0x03,0x98,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x00,0x84,0x01,0x02,0x03,0x06,0x03,0x06,0x03,0x00,0x03,0x00,0x01,0x80,0x01,0xC0,0x00,0x60,0x00,0x20,0x00,0x10,0x00,0x08,0x02,0x04,0x02,0x06,0x02,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0xC6,0x00,0x86,0x01,0x86,0x01,0x80,0x01,0x80,0x01,0xC0,0x00,0x70,0x00,0x80,0x01,0x00,0x01,0x00,0x03,0x00,0x03,0x06,0x03,0x06,0x03,0x86,0x01,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0x80,0x01,0xC0,0x01,0xA0,0x01,0xA0,0x01,0x90,0x01,0x88,0x01,0x88,0x01,0x84,0x01,0x82,0x01,0xFE,0x0F,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0xF4,0x00,0x8C,0x01,0x04,0x03,0x00,0x03,0x00,0x03,0x06,0x03,0x06,0x03,0x82,0x01,0x84,0x01,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x01,0x18,0x03,0x0C,0x03,0x0C,0x00,0x04,0x00,0x06,0x00,0xE6,0x01,0x16,0x03,0x0E,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x04,0x06,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x07,0x0C,0x06,0x04,0x02,0x04,0x01,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x02,0x1C,0x03,0xF0,0x00,0xC8,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x0C,0x01,0x0C,0x03,0x06,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x07,0x8C,0x06,0x78,0x06,0x00,0x06,0x00,0x03,0x00,0x03,0x0C,0x01,0x8C,0x01,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0x20,0x00,0x20,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x06,0x04,0x0C,0x04,0x0C,0x0C,0x0C,0x0C,0x0C,0x00,0x07,0x80,0x01,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x18,0x03,0x0C,0x02,0xCC,0x05,0x64,0x05,0x66,0x05,0xA6,0x05,0xB6,0x04,0xB6,0x04,0xB6,0x04,0xB6,0x04,0xB6,0x02,0xE4,0x01,0x0C,0x04,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x50,0x00,0xD0,0x00,0x90,0x00,0x90,0x00,0x88,0x00,0x88,0x01,0x08,0x01,0xF8,0x01,0x04,0x03,0x04,0x03,0x04,0x02,0x02,0x02,0x02,0x06,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x8C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x8C,0x01,0xFC,0x00,0x0C,0x03,0x0C,0x02,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0xFE,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x03,0x0C,0x06,0x0C,0x04,0x04,0x04,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x04,0x0C,0x04,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x8C,0x01,0x0C,0x03,0x0C,0x03,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0x0C,0x03,0x8C,0x01,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x03,0x06,0x03,0x06,0x04,0x06,0x04,0x06,0x00,0x86,0x00,0x86,0x00,0xFE,0x00,0x86,0x00,0x86,0x00,0x86,0x00,0x06,0x00,0x06,0x04,0x06,0x04,0x06,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x03,0x06,0x03,0x06,0x04,0x06,0x04,0x06,0x00,0x86,0x00,0x86,0x00,0xFE,0x00,0x86,0x00,0x86,0x00,0x86,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x18,0x01,0x0C,0x02,0x0C,0x02,0x04,0x02,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0xC6,0x0F,0x06,0x03,0x06,0x03,0x0C,0x03,0x0C,0x03,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFE,0x07,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x07,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC6,0x00,0x66,0x00,0x3C,0x00},/*"J",42*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xCF,0x03,0x86,0x01,0xC6,0x00,0x46,0x00,0x26,0x00,0x16,0x00,0x36,0x00,0x2E,0x00,0x6E,0x00,0x46,0x00,0xC6,0x00,0x86,0x00,0x86,0x01,0x06,0x01,0x06,0x03,0x8F,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x04,0x06,0x04,0x06,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x07,0x86,0x03,0x86,0x03,0x8E,0x03,0x8E,0x03,0x4E,0x03,0x4E,0x03,0x4A,0x03,0x5A,0x03,0x5A,0x03,0x3A,0x03,0x32,0x03,0x32,0x03,0x32,0x03,0x12,0x03,0x87,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x8E,0x0F,0x0C,0x02,0x1C,0x02,0x1C,0x02,0x34,0x02,0x34,0x02,0x64,0x02,0x64,0x02,0x44,0x02,0xC4,0x02,0x84,0x02,0x84,0x03,0x84,0x03,0x04,0x03,0x04,0x03,0x1F,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x02,0x0C,0x03,0x98,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x06,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x86,0x03,0xFE,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x76,0x06,0x4C,0x02,0xCC,0x03,0x98,0x01,0xF0,0x00,0x80,0x07,0x00,0x03,0x00,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x01,0x06,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x03,0xFE,0x00,0x46,0x00,0xC6,0x00,0x86,0x00,0x86,0x01,0x06,0x03,0x06,0x03,0x06,0x06,0x0F,0x0E,0x00,0x00,0x00,0x00,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x02,0x0C,0x03,0x06,0x02,0x06,0x02,0x06,0x00,0x0E,0x00,0x3C,0x00,0xF8,0x00,0xE0,0x03,0x80,0x03,0x00,0x07,0x02,0x06,0x02,0x06,0x06,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x62,0x04,0x61,0x08,0x61,0x08,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xF8,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1E,0x07,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x18,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x07,0x06,0x02,0x04,0x01,0x04,0x01,0x0C,0x01,0x0C,0x01,0x88,0x00,0x88,0x00,0x98,0x00,0x98,0x00,0x50,0x00,0x50,0x00,0x70,0x00,0x30,0x00,0x20,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF7,0x0E,0x62,0x04,0x42,0x04,0x46,0x04,0x46,0x04,0x64,0x02,0x64,0x02,0xE4,0x02,0xE4,0x02,0x9C,0x02,0x9C,0x01,0x98,0x01,0x98,0x01,0x88,0x01,0x88,0x00,0x88,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9E,0x07,0x0C,0x01,0x08,0x01,0x18,0x01,0x90,0x00,0xB0,0x00,0x60,0x00,0x20,0x00,0x60,0x00,0x60,0x00,0xD0,0x00,0x90,0x00,0x88,0x01,0x08,0x01,0x04,0x03,0x8E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x06,0x04,0x04,0x02,0x0C,0x02,0x08,0x01,0x18,0x01,0xB8,0x00,0xB0,0x00,0x70,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xF8,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x07,0x0C,0x02,0x06,0x03,0x02,0x01,0x80,0x01,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x18,0x00,0x08,0x04,0x0C,0x04,0x04,0x02,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0xE0,0x03,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0xE0,0x03,0x00,0x00},/*"[",59*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x04,0x00,0x08,0x00,0x08,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0xC0,0x00,0x80,0x00,0x80,0x00,0x00,0x01,0x00,0x01,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x04},/*"\",60*/
{0x00,0x00,0x00,0x00,0x7C,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x7C,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x60,0x00,0x90,0x00,0x08,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x0F},/*"_",63*/
{0x00,0x00,0x00,0x00,0x18,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x01,0x0C,0x03,0x0C,0x03,0x00,0x03,0xE0,0x03,0x1C,0x03,0x0E,0x03,0x06,0x03,0x06,0x03,0x8E,0x0B,0x7C,0x0E,0x00,0x00,0x00,0x00,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0xCC,0x01,0x3C,0x03,0x1C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x02,0x1C,0x03,0xE4,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x8C,0x01,0x8C,0x01,0x86,0x01,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x02,0x0C,0x02,0x0C,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0xC0,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x78,0x03,0x8C,0x03,0x0C,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x04,0x03,0x8C,0x07,0x78,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x01,0x18,0x03,0x08,0x02,0x0C,0x06,0x0C,0x06,0xFC,0x07,0x0C,0x00,0x0C,0x00,0x18,0x04,0x18,0x02,0xE0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x60,0x06,0x30,0x06,0x30,0x00,0x30,0x00,0xFE,0x01,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x07,0xD8,0x06,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x98,0x01,0xF8,0x00,0x0C,0x00,0xFC,0x00,0xCC,0x03,0x06,0x03,0x06,0x03,0x8E,0x03,0xF8,0x00},/*"g",71*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0xEC,0x01,0x1C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x01,0xC0,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0xF0,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xCC,0x00,0x7C,0x00},/*"j",74*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x8C,0x03,0x8C,0x00,0x8C,0x00,0x4C,0x00,0x6C,0x00,0x5C,0x00,0x8C,0x00,0x8C,0x01,0x0C,0x01,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x37,0x07,0xEE,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0xFF,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x01,0x1C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0x0C,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x01,0x1C,0x03,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0x1C,0x03,0xEC,0x01,0x0C,0x00,0x0C,0x00,0x3E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x02,0x8C,0x03,0x0C,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x04,0x03,0x8C,0x03,0x78,0x03,0x00,0x03,0x00,0x03,0xC0,0x07},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9F,0x03,0x58,0x06,0x38,0x06,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x03,0x1C,0x03,0x0C,0x02,0x0C,0x02,0x38,0x00,0xF0,0x00,0xC0,0x03,0x04,0x03,0x04,0x03,0x8C,0x03,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x20,0x00,0x30,0x00,0x30,0x00,0xFE,0x01,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x02,0x30,0x02,0xE0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x02,0x8E,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9C,0x07,0x78,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1E,0x07,0x0C,0x02,0x08,0x01,0x08,0x01,0x18,0x01,0x90,0x00,0xB0,0x00,0xB0,0x00,0x60,0x00,0x60,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF7,0x0E,0x62,0x04,0x46,0x04,0x64,0x02,0x64,0x02,0xEC,0x02,0x9C,0x01,0x98,0x01,0x98,0x01,0x98,0x01,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xBC,0x07,0x18,0x01,0x10,0x01,0xB0,0x00,0x60,0x00,0x60,0x00,0xE0,0x00,0x90,0x00,0x08,0x01,0x08,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9E,0x07,0x08,0x01,0x08,0x01,0x08,0x01,0x90,0x00,0x90,0x00,0xB0,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x20,0x00,0x20,0x00,0x24,0x00,0x1C,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x01,0x84,0x01,0xC4,0x00,0x44,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x18,0x02,0x08,0x02,0x0C,0x03,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x03,0x00,0x00},/*"{",91*/
{0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00},/*"|",92*/
{0x00,0x00,0x00,0x00,0x0C,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x0C,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x1C,0x00,0x22,0x04,0xC2,0x04,0x80,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/


};
const unsigned char ascii_3216[][64]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x1C,0xE0,0x1C,0xF0,0x1E,0x70,0x0E,0x38,0x07,0x18,0x03,0x08,0x01,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x10,0x20,0x10,0x20,0x10,0x20,0x10,0x20,0x10,0xFE,0x7F,0xFE,0x7F,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0xFE,0x7F,0xFE,0x7F,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"#",3*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x01,0xC0,0x07,0x60,0x19,0x10,0x31,0x18,0x31,0x18,0x39,0x18,0x39,0x38,0x01,0x70,0x01,0xE0,0x01,0xC0,0x03,0x80,0x07,0x00,0x0F,0x00,0x1D,0x00,0x39,0x00,0x31,0x1C,0x31,0x1C,0x31,0x0C,0x31,0x0C,0x11,0x18,0x0D,0xE0,0x07,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00},/*"$",4*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x10,0x36,0x18,0x63,0x08,0x63,0x0C,0x63,0x04,0x63,0x04,0x63,0x02,0x63,0x02,0x63,0x01,0x36,0x1D,0x9C,0x37,0x80,0x22,0x80,0x63,0x40,0x63,0x40,0x63,0x20,0x63,0x20,0x63,0x30,0x63,0x10,0x22,0x18,0x36,0x08,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x00,0xCC,0x00,0x78,0x00,0x18,0x3E,0x1C,0x08,0x36,0x08,0x32,0x08,0x63,0x04,0x63,0x04,0xC3,0x04,0xC3,0x03,0x83,0x43,0x06,0x43,0x8E,0x26,0x78,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"&",6*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x3C,0x00,0x3C,0x00,0x30,0x00,0x30,0x00,0x10,0x00,0x0C,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x03,0x00,0x03,0x00,0x03,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x06,0x00,0x06,0x00,0x0C,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x60,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x60,0x00,0x60,0x00,0x30,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x03,0x80,0x03,0x00,0x01,0x1C,0x71,0x3C,0x79,0x78,0x3D,0xC0,0x07,0x00,0x01,0xC0,0x07,0x78,0x3D,0x3C,0x79,0x1C,0x71,0x00,0x01,0x80,0x03,0x80,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0xFC,0x7F,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x3C,0x00,0x3C,0x00,0x30,0x00,0x30,0x00,0x10,0x00,0x0C,0x00,0x06,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x3C,0x00,0x3C,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x10,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x03,0x00,0x01,0x80,0x01,0x80,0x00,0xC0,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x10,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x60,0x0C,0x30,0x18,0x18,0x30,0x18,0x30,0x18,0x20,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x20,0x18,0x30,0x18,0x30,0x30,0x18,0x60,0x0C,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xC0,0x03,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0x10,0x1C,0x08,0x18,0x04,0x30,0x04,0x30,0x0C,0x30,0x0C,0x30,0x00,0x30,0x00,0x18,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x20,0x10,0x20,0x08,0x20,0x04,0x30,0xFC,0x1F,0xFC,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x0E,0x0C,0x0C,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x00,0x18,0x00,0x0C,0x00,0x06,0xC0,0x03,0x00,0x0E,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x10,0x0C,0x18,0x18,0x0C,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x0E,0x00,0x0E,0x00,0x0F,0x80,0x0E,0x80,0x0E,0x40,0x0E,0x60,0x0E,0x20,0x0E,0x10,0x0E,0x10,0x0E,0x08,0x0E,0x04,0x0E,0x04,0x0E,0xFE,0x7F,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0xC0,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x3F,0xF0,0x3F,0x10,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x08,0x00,0xC8,0x07,0x28,0x0C,0x18,0x18,0x08,0x10,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x0C,0x30,0x0C,0x30,0x04,0x18,0x04,0x18,0x08,0x0C,0xF0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x0F,0xC0,0x10,0x20,0x30,0x10,0x30,0x18,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x8C,0x0F,0x6C,0x18,0x3C,0x30,0x1C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x60,0x18,0x20,0x30,0x30,0x60,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x3F,0xF8,0x3F,0x1C,0x10,0x0C,0x08,0x04,0x08,0x04,0x04,0x00,0x04,0x00,0x02,0x00,0x02,0x00,0x01,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0x30,0x0C,0x18,0x18,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x1C,0x30,0x38,0x18,0x70,0x08,0xE0,0x07,0xB0,0x07,0x18,0x0E,0x0C,0x1C,0x06,0x38,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x30,0x0C,0x18,0x18,0x0C,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x04,0x0C,0x08,0x0C,0x18,0x06,0x10,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x38,0x0C,0x3C,0x18,0x36,0xF0,0x31,0x00,0x30,0x00,0x18,0x00,0x18,0x00,0x18,0x0C,0x0C,0x0C,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0xC0,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x06,0x00,0x03,0x80,0x01,0xC0,0x00,0x60,0x00,0x30,0x00,0x18,0x00,0x0C,0x00,0x18,0x00,0x30,0x00,0x60,0x00,0xC0,0x00,0x80,0x01,0x00,0x03,0x00,0x06,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x60,0x00,0xC0,0x00,0x80,0x01,0x00,0x03,0x00,0x06,0x00,0x0C,0x00,0x18,0x00,0x30,0x00,0x18,0x00,0x0C,0x00,0x06,0x00,0x03,0x80,0x01,0xC0,0x00,0x60,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x30,0x18,0x08,0x30,0x08,0x60,0x0C,0x60,0x1C,0x60,0x1C,0x60,0x1C,0x60,0x00,0x30,0x00,0x1C,0x00,0x06,0x00,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x60,0x18,0x10,0x30,0x18,0x20,0x0C,0x2F,0x8C,0x4D,0x86,0x4C,0xC6,0x4C,0xC6,0x4C,0x66,0x4C,0x66,0x44,0x66,0x44,0x66,0x26,0x66,0x26,0x66,0x15,0xCC,0x1C,0x0C,0x40,0x08,0x20,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0x40,0x01,0x60,0x03,0x20,0x03,0x20,0x03,0x20,0x03,0x30,0x06,0x10,0x06,0x10,0x06,0x10,0x06,0xF8,0x0F,0x08,0x0C,0x08,0x0C,0x08,0x0C,0x0C,0x0C,0x04,0x18,0x04,0x18,0x06,0x18,0x1F,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x18,0x1C,0x18,0x38,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x18,0x18,0x0C,0xF8,0x07,0x18,0x18,0x18,0x30,0x18,0x20,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x18,0xFE,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x27,0x60,0x38,0x10,0x30,0x18,0x20,0x0C,0x40,0x0C,0x40,0x04,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x0C,0x40,0x0C,0x40,0x0C,0x20,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x03,0x18,0x0E,0x18,0x18,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x30,0x18,0x10,0x18,0x18,0x18,0x0E,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x3F,0x18,0x30,0x18,0x20,0x18,0x60,0x18,0x40,0x18,0x00,0x18,0x08,0x18,0x08,0x18,0x0C,0xF8,0x0F,0x18,0x0C,0x18,0x08,0x18,0x08,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x40,0x18,0x40,0x18,0x20,0x18,0x30,0xFE,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x18,0x70,0x18,0x40,0x18,0xC0,0x18,0x80,0x18,0x00,0x18,0x10,0x18,0x10,0x18,0x18,0xF8,0x1F,0x18,0x18,0x18,0x10,0x18,0x10,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x13,0x70,0x1C,0x10,0x10,0x18,0x10,0x0C,0x20,0x0C,0x20,0x04,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0xFC,0x06,0x30,0x06,0x30,0x0C,0x30,0x0C,0x30,0x18,0x30,0x18,0x30,0x30,0x08,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x7E,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0xFC,0x1F,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x3F,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x1F,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x7F,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x0E,0x06,0x0E,0x03,0x8E,0x01,0xFC,0x00},/*"J",42*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x18,0x18,0x18,0x08,0x18,0x04,0x18,0x06,0x18,0x02,0x18,0x01,0x98,0x01,0x98,0x01,0xD8,0x01,0xB8,0x03,0x38,0x03,0x18,0x07,0x18,0x06,0x18,0x0E,0x18,0x0C,0x18,0x1C,0x18,0x18,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x40,0x18,0x40,0x18,0x20,0x18,0x30,0xFE,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xF8,0x1C,0x38,0x1C,0x38,0x1C,0x38,0x1C,0x3C,0x34,0x34,0x34,0x34,0x34,0x34,0x34,0x36,0x74,0x32,0x64,0x32,0x64,0x32,0x64,0x32,0x64,0x31,0xC4,0x31,0xC4,0x31,0xC4,0x31,0xC4,0x30,0xC4,0x30,0x84,0x30,0x9F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x7C,0x1C,0x10,0x3C,0x10,0x34,0x10,0x34,0x10,0x74,0x10,0x64,0x10,0xE4,0x10,0xC4,0x10,0xC4,0x11,0x84,0x11,0x84,0x13,0x04,0x13,0x04,0x17,0x04,0x16,0x04,0x1E,0x04,0x1C,0x04,0x1C,0x04,0x1C,0x04,0x18,0x1F,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x30,0x0C,0x18,0x18,0x08,0x10,0x0C,0x30,0x0C,0x30,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x0C,0x20,0x0C,0x30,0x08,0x10,0x18,0x18,0x30,0x0C,0xC0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x0F,0x18,0x18,0x18,0x30,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x18,0xF8,0x0F,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x30,0x0C,0x18,0x18,0x0C,0x10,0x0C,0x30,0x0C,0x20,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0xE4,0x61,0x2C,0x33,0x1C,0x32,0x18,0x16,0x30,0x0E,0xC0,0x07,0x00,0x4C,0x00,0x7C,0x00,0x38,0x00,0x00,0x00,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x18,0x1C,0x18,0x38,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x18,0x18,0x0C,0xF8,0x07,0x98,0x03,0x18,0x03,0x18,0x07,0x18,0x06,0x18,0x06,0x18,0x0E,0x18,0x0C,0x18,0x0C,0x18,0x1C,0x18,0x18,0x7E,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x27,0x30,0x38,0x18,0x30,0x0C,0x20,0x0C,0x20,0x0C,0x00,0x0C,0x00,0x18,0x00,0x78,0x00,0xE0,0x03,0x80,0x0F,0x00,0x1E,0x00,0x38,0x00,0x70,0x00,0x60,0x04,0x60,0x04,0x60,0x08,0x60,0x18,0x30,0x38,0x18,0xC8,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x3F,0x8C,0x21,0x84,0x61,0x82,0x41,0x82,0x41,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x7C,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x08,0x08,0x38,0x04,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0xF8,0x18,0x20,0x18,0x20,0x18,0x20,0x30,0x10,0x30,0x10,0x30,0x10,0x30,0x10,0x60,0x08,0x60,0x08,0x60,0x08,0xE0,0x0C,0xC0,0x04,0xC0,0x04,0xC0,0x04,0x80,0x03,0x80,0x03,0x80,0x03,0x80,0x03,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xDF,0xF3,0x86,0x61,0x86,0x21,0x86,0x21,0x8C,0x21,0x0C,0x21,0x8C,0x23,0x8C,0x13,0x8C,0x13,0x8C,0x13,0x4C,0x13,0x58,0x12,0x58,0x16,0x58,0x0E,0x38,0x0E,0x38,0x0E,0x38,0x0E,0x30,0x0C,0x10,0x04,0x10,0x04,0x10,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x3E,0x18,0x08,0x38,0x08,0x30,0x04,0x30,0x04,0x70,0x02,0x60,0x02,0xE0,0x01,0xC0,0x01,0xC0,0x01,0x80,0x01,0x80,0x03,0x40,0x03,0x40,0x07,0x20,0x06,0x20,0x06,0x10,0x0C,0x10,0x0C,0x08,0x18,0x08,0x18,0x3E,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x1C,0x10,0x18,0x10,0x18,0x08,0x30,0x08,0x30,0x0C,0x70,0x04,0x60,0x04,0x60,0x02,0xC0,0x02,0xC0,0x02,0xC0,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x3F,0x18,0x18,0x08,0x18,0x04,0x0C,0x04,0x0E,0x00,0x06,0x00,0x07,0x00,0x03,0x80,0x03,0x80,0x01,0xC0,0x01,0xC0,0x00,0xE0,0x00,0x60,0x00,0x70,0x00,0x30,0x00,0x38,0x20,0x18,0x20,0x1C,0x10,0x0C,0x18,0xFE,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x3F,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xC0,0x3F,0x00,0x00,0x00,0x00},/*"[",59*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x18,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0xC0,0x00,0x80,0x00,0x80,0x01,0x80,0x01,0x00,0x01,0x00,0x03,0x00,0x02,0x00,0x06,0x00,0x06,0x00,0x04,0x00,0x0C,0x00,0x08,0x00,0x18,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x00},/*"\",60*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0xFC,0x03,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x07,0xC0,0x06,0x20,0x08,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF},/*"_",63*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0xC0,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x03,0x18,0x06,0x0C,0x0C,0x0C,0x0C,0x00,0x0C,0x80,0x0F,0x70,0x0C,0x1C,0x0C,0x0C,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x4C,0x0C,0x4F,0xF8,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x0F,0xD8,0x18,0x38,0x30,0x38,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x20,0x38,0x30,0x78,0x18,0xC8,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x70,0x0C,0x18,0x18,0x18,0x18,0x0C,0x18,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x20,0x18,0x20,0x18,0x10,0x30,0x08,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0xE0,0x1B,0x30,0x1C,0x18,0x18,0x18,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x08,0x18,0x18,0x1C,0x30,0x7A,0xE0,0x09,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x30,0x0C,0x18,0x18,0x08,0x10,0x0C,0x30,0x0C,0x30,0xFC,0x3F,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x18,0x20,0x18,0x10,0x70,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x80,0xC3,0x80,0xC0,0xC0,0xC0,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xFC,0x1F,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xF8,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x77,0x30,0x6C,0x10,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x10,0x18,0x30,0x0C,0xF0,0x07,0x18,0x00,0x18,0x00,0xF0,0x0F,0xF0,0x3F,0x08,0x70,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x38,0x38,0xE0,0x0F},/*"g",71*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x98,0x0F,0xD8,0x18,0x38,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x03,0x80,0x03,0x80,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x38,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x80,0x1F,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x18,0x0C,0x18,0x06,0xF0,0x03},/*"j",74*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x3E,0x18,0x0C,0x18,0x06,0x18,0x03,0x18,0x01,0x98,0x01,0xD8,0x01,0x38,0x03,0x18,0x07,0x18,0x06,0x18,0x0C,0x18,0x1C,0x18,0x18,0x7E,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0xEE,0x1C,0x9C,0x33,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0xDE,0x7B,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x0F,0xD8,0x18,0x38,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x70,0x1C,0x10,0x30,0x18,0x30,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x30,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x9E,0x0F,0x58,0x18,0x38,0x30,0x18,0x20,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x38,0x30,0x78,0x18,0x98,0x07,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x23,0x30,0x3C,0x18,0x38,0x18,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x08,0x30,0x18,0x38,0x30,0x3C,0xE0,0x33,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0xFC},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x7E,0x3C,0x60,0x66,0x60,0x61,0xE0,0x00,0xE0,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x27,0x30,0x38,0x18,0x30,0x18,0x20,0x18,0x00,0x70,0x00,0xE0,0x03,0x80,0x0F,0x00,0x1C,0x04,0x30,0x04,0x30,0x0C,0x30,0x1C,0x18,0xEC,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xC0,0x00,0xE0,0x00,0xFC,0x1F,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x20,0xC0,0x20,0x80,0x11,0x00,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x20,0x1E,0x3C,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x38,0x30,0xF4,0xE0,0x13,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x3C,0x18,0x18,0x18,0x08,0x38,0x08,0x30,0x04,0x30,0x04,0x70,0x02,0x60,0x02,0x60,0x02,0xE0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xDF,0xF7,0x8E,0x63,0x0C,0x23,0x8C,0x23,0x8C,0x23,0x98,0x13,0x98,0x13,0x58,0x16,0x58,0x16,0x70,0x0E,0x70,0x0E,0x70,0x0E,0x20,0x04,0x20,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x3E,0x70,0x08,0x70,0x04,0xE0,0x04,0xC0,0x02,0xC0,0x01,0x80,0x03,0x80,0x03,0x40,0x07,0x60,0x06,0x20,0x0C,0x10,0x0C,0x18,0x18,0x3E,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x18,0x18,0x18,0x08,0x30,0x08,0x30,0x08,0x30,0x04,0x60,0x04,0x60,0x04,0xC0,0x02,0xC0,0x02,0xC0,0x02,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x4C,0x00,0x3C,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x1F,0x0C,0x0C,0x04,0x0E,0x04,0x06,0x00,0x03,0x80,0x03,0x80,0x01,0xC0,0x00,0xE0,0x00,0x70,0x20,0x30,0x20,0x38,0x30,0x1C,0x18,0xFC,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x08,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x02,0x80,0x01,0x00,0x02,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x08,0x00,0x30,0x00,0x00},/*"{",91*/
{0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01},/*"|",92*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x80,0x01,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x0C,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x38,0x00,0xC4,0x00,0x86,0x40,0x02,0x61,0x00,0x22,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[24];
}typFNT_GB12;


const typFNT_GB12 tfont12[]={
"中",0x20,0x00,0x20,0x00,0x20,0x00,0xFE,0x03,0x22,0x02,0x22,0x02,0x22,0x02,0xFE,0x03,
0x22,0x02,0x20,0x00,0x20,0x00,0x20,0x00,/*"中",0*/
"景",0xFC,0x01,0x04,0x01,0xFC,0x01,0x04,0x01,0xFC,0x01,0x20,0x00,0xFF,0x07,0x04,0x01,
0xFC,0x01,0x20,0x00,0x24,0x01,0x32,0x02,/*"景",1*/
"园",0xFE,0x07,0x02,0x04,0xFA,0x04,0x02,0x04,0x02,0x04,0xFE,0x05,0x52,0x04,0x52,0x04,
0x4A,0x05,0x86,0x05,0x02,0x04,0xFE,0x07,/*"园",2*/
"电",0x10,0x00,0x10,0x00,0xFF,0x01,0x11,0x01,0x11,0x01,0xFF,0x01,0x11,0x01,0x11,0x01,
0xFF,0x01,0x11,0x04,0x10,0x04,0xE0,0x07,/*"电",3*/
"子",0x00,0x00,0xFC,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0xFF,0x07,0x20,0x00,
0x20,0x00,0x20,0x00,0x20,0x00,0x38,0x00,/*"子",4*/

};

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[32];
}typFNT_GB16;


const typFNT_GB16 tfont16[]={

"中",0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xFC,0x1F,0x84,0x10,0x84,0x10,0x84,0x10,
0x84,0x10,0x84,0x10,0xFC,0x1F,0x84,0x10,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,/*"中",0*/
"景",0xF8,0x0F,0x08,0x08,0xF8,0x0F,0x08,0x08,0xF8,0x0F,0x80,0x00,0xFF,0x7F,0x00,0x00,
0xF8,0x0F,0x08,0x08,0x08,0x08,0xF8,0x0F,0x80,0x00,0x84,0x10,0xA2,0x20,0x40,0x00,/*"景",1*/
"园",0x00,0x00,0xFE,0x3F,0x02,0x20,0xF2,0x27,0x02,0x20,0x02,0x20,0xFA,0x2F,0x22,0x21,
0x22,0x21,0x22,0x21,0x12,0x29,0x12,0x29,0x0A,0x2E,0x02,0x20,0xFE,0x3F,0x02,0x20,/*"园",2*/
"电",0x80,0x00,0x80,0x00,0x80,0x00,0xFC,0x1F,0x84,0x10,0x84,0x10,0x84,0x10,0xFC,0x1F,
0x84,0x10,0x84,0x10,0x84,0x10,0xFC,0x1F,0x84,0x50,0x80,0x40,0x80,0x40,0x00,0x7F,/*"电",3*/
"子",0x00,0x00,0xFE,0x1F,0x00,0x08,0x00,0x04,0x00,0x02,0x80,0x01,0x80,0x00,0xFF,0x7F,
0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xA0,0x00,0x40,0x00,/*"子",4*/
};


typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[72];
}typFNT_GB24;


const typFNT_GB24 tfont24[]={

"中",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,
0x08,0x00,0x08,0x08,0x18,0xF8,0xFF,0x1F,0x18,0x08,0x18,0x18,0x08,0x18,0x18,0x08,
0x18,0x18,0x08,0x18,0x18,0x08,0x18,0x18,0x08,0x18,0xF8,0xFF,0x1F,0x08,0x08,0x08,
0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x18,0x00,0x00,
0x18,0x00,0x00,0x18,0x00,0x00,0x00,0x00,/*"中",0*/

"景",0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x06,0xC0,0xFF,0x07,0x40,0x00,0x06,0xC0,
0xFF,0x07,0x40,0x00,0x06,0xC0,0xFF,0x07,0x40,0x08,0x02,0x00,0x30,0x00,0xFE,0xFF,
0x3F,0x00,0x00,0x00,0xC0,0xFF,0x07,0xC0,0x00,0x02,0xC0,0x00,0x02,0xC0,0x00,0x02,
0xC0,0xFF,0x03,0x80,0x10,0x00,0x80,0x11,0x01,0x60,0x10,0x0E,0x30,0x10,0x18,0x0C,
0x1E,0x30,0x00,0x1C,0x00,0x00,0x00,0x00,/*"景",1*/

"园",0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x30,0xF8,0xFF,0x1F,0x08,0x00,0x10,0x08,
0xC0,0x10,0x08,0x3F,0x10,0x08,0x00,0x10,0x08,0x00,0x10,0x08,0x00,0x13,0xC8,0xFF,
0x10,0x08,0x22,0x10,0x08,0x22,0x10,0x08,0x22,0x10,0x08,0x22,0x10,0x08,0x21,0x12,
0x08,0x21,0x14,0x88,0x60,0x16,0x48,0xC0,0x13,0x28,0x00,0x10,0x08,0x00,0x10,0xF8,
0xFF,0x1F,0x08,0x00,0x10,0x00,0x00,0x00,/*"园",2*/

"电",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,
0x08,0x00,0xF0,0xFF,0x0F,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,
0x04,0xF0,0xFF,0x07,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x04,
0xF0,0xFF,0x07,0x10,0x08,0x00,0x00,0x08,0x10,0x00,0x08,0x10,0x00,0x08,0x20,0x00,
0x18,0x30,0x00,0xF0,0x1F,0x00,0x00,0x00,/*"电",3*/

"子",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xF0,0xFF,0x0F,0x00,0x00,0x06,0x00,
0x00,0x01,0x00,0xC0,0x00,0x00,0x28,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,
0x30,0xFE,0xFF,0x7F,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,
0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,
0x1F,0x00,0x00,0x0C,0x00,0x00,0x00,0x00,/*"子",4*/

};


typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[128];
}typFNT_GB32;


const typFNT_GB32 tfont32[]={

"中",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x10,0x80,0x01,0x0C,0xF0,0xFF,0xFF,0x0F,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0xF0,0xFF,0xFF,0x07,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,/*"中",0*/
"景",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x01,
0x00,0xFF,0xFF,0x01,0x00,0x03,0x80,0x01,0x00,0x03,0x80,0x01,0x00,0xFF,0xFF,0x01,
0x00,0x03,0x80,0x01,0x00,0x03,0x80,0x01,0x00,0xFF,0xFF,0x01,0x00,0x81,0x81,0x00,
0x00,0x00,0x03,0x00,0x00,0x00,0x03,0x1C,0xFC,0xFF,0xFF,0x3F,0x00,0x00,0x40,0x00,
0x00,0x03,0xC0,0x01,0x00,0xFF,0xFF,0x01,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,
0x00,0x03,0xC0,0x00,0x00,0xFF,0xFF,0x00,0x00,0x01,0x41,0x00,0x00,0x04,0x01,0x00,
0x00,0x0E,0x71,0x00,0x00,0x07,0x81,0x01,0x80,0x01,0x01,0x07,0x60,0x00,0x01,0x0E,
0x18,0x98,0x01,0x1C,0x04,0xE0,0x01,0x18,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,/*"景",1*/
"园",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0xF0,0xFF,0xFF,0x1F,
0x30,0x00,0x00,0x0C,0x30,0x00,0x00,0x0C,0x30,0x00,0x10,0x0C,0x30,0xFE,0x3F,0x0C,
0x30,0x04,0x00,0x0C,0x30,0x00,0x00,0x0C,0x30,0x00,0x00,0x0C,0x30,0x00,0x00,0x0C,
0x30,0x00,0xC0,0x0C,0xF0,0xFF,0xFF,0x0D,0x30,0x30,0x06,0x0E,0x30,0x30,0x06,0x0C,
0x30,0x10,0x06,0x0C,0x30,0x10,0x06,0x0C,0x30,0x10,0x06,0x0C,0x30,0x18,0x86,0x0C,
0x30,0x18,0x86,0x0C,0x30,0x08,0x06,0x0D,0x30,0x0C,0x86,0x0D,0x30,0x06,0xEE,0x0F,
0x30,0x02,0xFC,0x0D,0x30,0x01,0x00,0x0C,0xF0,0x00,0x00,0x0C,0x30,0x00,0x00,0x0C,
0xF0,0xFF,0xFF,0x0F,0x30,0x00,0x00,0x0C,0x10,0x00,0x00,0x04,0x00,0x00,0x00,0x00,/*"园",2*/
"电",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x01,0x00,
0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,
0xE0,0xFF,0xFF,0x03,0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,
0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,0xE0,0xFF,0xFF,0x03,
0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,0x60,0xC0,0x00,0x03,
0x60,0xC0,0x00,0x03,0xE0,0xFF,0xFF,0x03,0x60,0xC0,0x00,0x01,0x60,0xC0,0x00,0x00,
0x00,0xC0,0x00,0x08,0x00,0xC0,0x00,0x10,0x00,0xC0,0x00,0x10,0x00,0xC0,0x00,0x18,
0x00,0xC0,0x01,0x38,0x00,0x80,0xFF,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"电",3*/
"子",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0xC0,0xFF,0xFF,0x07,0x00,0x00,0x80,0x07,0x00,0x00,0xC0,0x00,0x00,0x00,0x60,0x00,
0x00,0x00,0x18,0x00,0x00,0x00,0x0C,0x00,0x00,0x80,0x03,0x00,0x00,0x80,0x03,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x08,0x00,0x80,0x01,0x1C,0xFC,0xFF,0xFF,0x3F,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0xFC,0x01,0x00,0x00,0xE0,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,/*"子",4*/
};

#endif

pic.h

#ifndef __PIC_H
#define __PIC_H

const unsigned char gImage_1[3200] = { /* 0X10,0X10,0X00,0X28,0X00,0X28,0X01,0X1B, */
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XBE,
0XFF,0XFF,0XFF,0XDE,0XC6,0X38,0X8C,0X92,0X6B,0X8E,0X6B,0X6E,0X7C,0X10,0XAD,0X96,
0XE7,0X3C,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XEF,0X5D,
0X9D,0X15,0X63,0X4F,0X42,0X6C,0X32,0X0A,0X29,0X88,0X19,0X46,0X19,0X25,0X21,0X45,
0X31,0XE8,0X6B,0X8E,0XC6,0X38,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XA5,0X36,0X53,0X10,
0X4B,0X10,0X53,0X51,0X4B,0X0F,0X3A,0X6C,0X31,0XE9,0X21,0X67,0X19,0X25,0X10,0XE4,
0X08,0XA3,0X00,0X62,0X08,0X83,0X52,0XCB,0XD6,0X9A,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0X3C,0X63,0X70,0X63,0XB3,0X7C,0XB8,
0X63,0XF5,0X43,0X11,0X32,0X4D,0X29,0XEA,0X21,0X88,0X19,0X26,0X19,0X05,0X19,0X05,
0X11,0X04,0X11,0X04,0X10,0XE4,0X00,0X83,0X08,0XA3,0X8C,0X72,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDE,0XDB,0X3A,0X4B,0X42,0XF0,0X6C,0X35,0X4B,0X54,
0X32,0XB1,0X2A,0X2E,0X21,0XEB,0X21,0XA9,0X19,0X67,0X19,0X05,0X11,0X04,0X11,0X04,
0X11,0X04,0X11,0X04,0X11,0X04,0X19,0X05,0X10,0XE4,0X00,0X42,0X73,0XAF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XEF,0X5D,0X32,0X09,0X32,0X4C,0X4B,0X10,0X32,0X8F,0X2A,0X4F,
0X2A,0X2E,0X19,0XCC,0X19,0X89,0X21,0X89,0X19,0X47,0X19,0X05,0X11,0X04,0X11,0X04,
0X10,0XC4,0X10,0XC4,0X11,0X04,0X11,0X04,0X11,0X04,0X10,0XE4,0X00,0X42,0X84,0X31,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0X52,0XEC,0X19,0X47,0X32,0X4C,0X2A,0X0B,0X21,0XEC,0X21,0XEC,
0X22,0X0C,0X5B,0X91,0X4A,0XEE,0X11,0X06,0X19,0X26,0X19,0X04,0X10,0XE4,0X10,0XE4,
0X29,0XA7,0X21,0X66,0X08,0XA3,0X19,0X05,0X11,0X04,0X11,0X04,0X10,0XE4,0X00,0X82,
0XBD,0XF7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XA5,0X35,0X08,0X83,0X21,0X88,0X21,0X88,0X21,0X89,0X21,0XAA,0X21,0X8A,
0X42,0X6B,0X8C,0X71,0XFF,0XFF,0X8C,0X72,0X08,0X83,0X11,0X04,0X08,0XC4,0X42,0X29,
0XDE,0XFB,0XEF,0X5D,0X5A,0XEC,0X08,0X83,0X11,0X04,0X11,0X04,0X11,0X04,0X08,0X83,
0X31,0XE8,0XFF,0XDF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XF7,0XBE,0X31,0XC7,0X10,0XC4,0X19,0X25,0X19,0X26,0X19,0X47,0X19,0X47,0X29,0XA8,
0X52,0X8A,0X4A,0X28,0XAD,0X55,0XFF,0XFF,0X31,0XE8,0X08,0XA3,0X19,0X05,0X6B,0X4D,
0X6B,0X4D,0XFF,0XFF,0XEF,0X7D,0X21,0X45,0X10,0XC4,0X11,0X04,0X11,0X04,0X11,0X04,
0X00,0X62,0XAD,0X76,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XB5,0X96,0X00,0X62,0X11,0X04,0X19,0X04,0X11,0X05,0X19,0X05,0X08,0XC4,0X4A,0X8B,
0XB5,0XB6,0XEF,0X5D,0XBD,0XF7,0XFF,0XFF,0X6B,0X8E,0X00,0X62,0X42,0X29,0X5A,0XAA,
0X42,0X08,0XFF,0XFF,0XFF,0XFF,0X52,0XCC,0X08,0X83,0X11,0X04,0X11,0X04,0X11,0X04,
0X08,0XA3,0X52,0XAD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0X1C,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0X63,0X4E,0X00,0X62,0X11,0X04,0X11,0X04,0X11,0X04,0X10,0XE4,0X00,0X62,0X63,0X8E,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X73,0XCF,0X00,0X01,0X9C,0XF3,0X63,0X2C,
0XB5,0X96,0XFF,0XFF,0XFF,0XFF,0X5B,0X2D,0X00,0X83,0X11,0X04,0X11,0X04,0X11,0X04,
0X10,0XE4,0X21,0X67,0XEF,0X3D,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XBD,0XF8,0XB5,0XB7,0XEF,0X9E,0X52,0XCB,0X94,0XB3,0XFF,0XFF,0XFF,0XFF,0XFF,0XDF,
0X31,0XE8,0X08,0XA3,0X11,0X04,0X11,0X04,0X11,0X04,0X11,0X04,0X08,0XA3,0X42,0X49,
0XF7,0XFF,0XF7,0XFF,0XFF,0XFF,0XFF,0XFF,0X4A,0X6A,0X00,0X01,0X84,0X72,0XFF,0XFF,
0XFF,0XFF,0XF7,0XFF,0XEF,0XDF,0X3A,0X09,0X08,0XA3,0X11,0X04,0X11,0X04,0X11,0X04,
0X11,0X04,0X11,0X05,0XBE,0X18,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0X7B,0XF0,0X00,0X62,0X31,0XE8,0X31,0XC7,0X00,0X41,0XA5,0X35,0XFF,0XFF,0XEF,0X5D,
0X21,0X46,0X10,0XC4,0X11,0X04,0X11,0X04,0X11,0X04,0X11,0X04,0X10,0XE4,0X08,0XA3,
0X9D,0X76,0XF7,0XFF,0XFF,0XFF,0XAD,0XB7,0X08,0XA3,0X08,0XA3,0X31,0XC7,0XE7,0X9E,
0XF7,0XFF,0XF7,0XFF,0XA5,0X76,0X08,0XA3,0X10,0XE4,0X11,0X04,0X11,0X04,0X11,0X04,
0X11,0X05,0X11,0X05,0XA5,0X35,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XDE,0XDB,0X29,0XA7,0X00,0X83,0X10,0XC4,0X10,0XC4,0X10,0XC4,0XE7,0X1C,0XEF,0X9E,
0X11,0X05,0X10,0XE4,0X11,0X04,0X11,0X04,0X11,0X04,0X11,0X04,0X19,0X04,0X08,0XC4,
0X10,0XE5,0X6B,0XD1,0X6B,0XD1,0X08,0XC5,0X00,0X64,0X08,0XA5,0X00,0X43,0X32,0X2B,
0X9D,0X77,0X84,0XB3,0X19,0X25,0X10,0XC4,0X11,0X04,0X11,0X04,0X11,0X04,0X11,0X04,
0X19,0X25,0X09,0X26,0X9D,0X35,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0X73,0XAF,0X00,0X62,0X19,0X04,0X19,0X05,0X00,0X82,0X5B,0X0D,0X9B,0X8E,
0X10,0X62,0X11,0X05,0X11,0X04,0X11,0X04,0X19,0X04,0X10,0XE4,0X00,0X85,0X11,0X05,
0X39,0XC4,0X5A,0X81,0X7B,0X40,0X9C,0X22,0XAC,0X43,0XA4,0X03,0X9B,0X83,0X72,0X82,
0X49,0X82,0X18,0XC2,0X00,0XA4,0X00,0XC5,0X10,0XE4,0X19,0X04,0X11,0X04,0X19,0X05,
0X19,0X47,0X11,0X67,0X5A,0XEC,0XFF,0XBE,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XDF,0XDE,0XDB,0X10,0XC4,0X10,0XE4,0X11,0X04,0X11,0X05,0X18,0XA4,0XC0,0X01,
0X88,0X83,0X00,0XE4,0X19,0X05,0X19,0X04,0X08,0XC5,0X21,0X44,0X83,0X43,0XD5,0X23,
0XFE,0X42,0XFE,0XE4,0XFF,0X27,0XFF,0X07,0XFE,0XA4,0XFE,0X64,0XFE,0X03,0XFD,0XA3,
0XFC,0XE2,0XEC,0X42,0XB3,0X83,0X62,0X24,0X10,0XE5,0X08,0XC4,0X19,0X04,0X19,0X26,
0X19,0XA8,0X21,0X87,0X90,0X00,0XBC,0XD3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XDF,0XFF,0XFF,0X7C,0X10,0X00,0X42,0X19,0X05,0X11,0X05,0X28,0X83,0XD0,0X01,
0XF8,0X44,0X48,0XA3,0X00,0XE4,0X08,0XC5,0X5A,0X44,0XED,0X02,0XFD,0XE2,0XFE,0X02,
0XFE,0X66,0XFF,0X74,0XFF,0XB8,0XFF,0X73,0XF6,0XE7,0XF6,0XA6,0XF6,0X45,0XF5,0XA4,
0XFC,0XC3,0XFC,0X62,0XFC,0XC2,0XFC,0XC2,0XCB,0XE3,0X49,0XC4,0X11,0X06,0X19,0X88,
0X01,0X87,0X90,0XA4,0XF8,0X01,0X9A,0XEC,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XF7,0XBE,0X31,0XE8,0X00,0X83,0X09,0X05,0X40,0X82,0XC0,0X01,
0XF8,0X23,0XF0,0X85,0X48,0XA3,0X00,0XA4,0X5A,0X44,0XFD,0X02,0XCC,0X23,0XDC,0XC2,
0XFE,0X04,0XFE,0X28,0XF6,0X48,0XF6,0X46,0XF6,0X24,0XF5,0XE4,0XFD,0X64,0XFC,0XE3,
0XFC,0X62,0XFC,0XC2,0XE4,0X02,0XDC,0X02,0XFC,0XE2,0X7A,0XA4,0X01,0X48,0X01,0X67,
0X78,0XC4,0XF8,0X24,0XF8,0X02,0XB0,0X84,0XE7,0X7D,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDE,0XDB,0X19,0X25,0X00,0XA3,0X38,0XC4,0XE0,0X02,
0XD8,0X22,0XF8,0X44,0XF8,0XA6,0X78,0XA4,0X00,0X63,0X21,0X43,0X72,0X83,0X39,0X83,
0X9B,0X82,0XF5,0X21,0XFD,0X61,0XFD,0X22,0XFC,0XE2,0XFC,0XA2,0XFC,0X42,0XFC,0X42,
0XFC,0X42,0XAB,0X22,0X41,0X83,0X92,0XC3,0X52,0X04,0X01,0X26,0X19,0X25,0X98,0XA4,
0XF8,0X44,0XF8,0X23,0XF8,0X02,0XD0,0XA4,0XEF,0X9E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XD6,0X9A,0X29,0X87,0X00,0XA5,0XB8,0X43,
0XF8,0X22,0XE0,0X23,0XF8,0X65,0XF8,0XE8,0XC9,0X07,0X48,0X83,0X00,0X42,0X00,0XA3,
0X00,0X84,0X29,0X63,0X7A,0XA2,0XB3,0X62,0XCB,0XA2,0XD3,0X62,0XBB,0X02,0X8A,0X82,
0X39,0X83,0X00,0XA4,0X00,0XE5,0X00,0XE5,0X08,0XE5,0X60,0XC4,0XD8,0X64,0XF8,0X44,
0XF8,0X24,0XF8,0X23,0XF8,0X02,0X88,0X83,0XC6,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0X3D,0X5B,0X50,0X31,0X08,
0XE8,0X23,0XF8,0X43,0XF0,0X44,0XF8,0X65,0XF9,0X09,0XF9,0XAB,0XD1,0X89,0X89,0X06,
0X48,0XA3,0X18,0X42,0X00,0X02,0X00,0X42,0X00,0X61,0X00,0X82,0X00,0X62,0X00,0X62,
0X00,0X83,0X20,0XA3,0X50,0XC4,0X88,0XA5,0XD8,0X85,0XF8,0X65,0XF8,0X44,0XF8,0X44,
0XF8,0X23,0XF8,0X23,0XD0,0X03,0X10,0X82,0X29,0XC7,0XEF,0X5D,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X32,0X6C,
0X38,0XA5,0XD8,0X02,0XF8,0X23,0XF8,0X65,0XF8,0X66,0XF8,0XA7,0XF9,0X4A,0XFA,0X0C,
0XFA,0X4D,0XEA,0X4C,0XD2,0X0B,0XB9,0XA9,0XB1,0X68,0XA9,0X47,0XB1,0X27,0XB9,0X07,
0XD1,0X07,0XE8,0XE7,0XF8,0XC7,0XF8,0XA7,0XF8,0X65,0XF8,0X65,0XF8,0X44,0XF8,0X23,
0XF8,0X03,0XD0,0X02,0X28,0XA3,0X09,0X05,0X08,0XC4,0X5A,0XEC,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDE,0XFB,0X19,0X05,
0X00,0XC4,0X41,0XA7,0XC0,0XE6,0XF8,0X03,0XF8,0X86,0XF8,0XA7,0XF8,0X87,0XF8,0X86,
0XF8,0XC7,0XF9,0X29,0XF9,0X8A,0XF9,0XAB,0XF9,0XAB,0XF9,0X8B,0XF9,0X6A,0XF9,0X29,
0XF9,0X08,0XF8,0XC7,0XF8,0XA6,0XF8,0X86,0XF8,0X65,0XF8,0X64,0XF8,0X23,0XF0,0X02,
0XB1,0X06,0X29,0X25,0X00,0XE4,0X10,0XE4,0X19,0X25,0X19,0X25,0X9D,0X14,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XAD,0X96,0X00,0X62,
0X08,0X82,0X95,0X35,0XCE,0XBA,0XA2,0X8B,0XD0,0X44,0XF8,0X25,0XF8,0X87,0XF8,0XA7,
0XF8,0XC7,0XF8,0XA7,0XF8,0X87,0XF8,0X86,0XF8,0X86,0XF8,0X86,0XF8,0X87,0XF8,0XA7,
0XF8,0XA7,0XF8,0XA6,0XF8,0X85,0XF8,0X65,0XF8,0X64,0XF0,0X24,0XB8,0X64,0X93,0X0D,
0XB6,0XBB,0X63,0XCF,0X08,0X83,0X11,0X04,0X10,0XE4,0X21,0X66,0X3A,0X49,0XEF,0X5D,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X94,0XD3,0X00,0X42,
0X10,0XE4,0XCE,0XBB,0XFF,0XFF,0XE7,0XBE,0XB5,0X76,0XAA,0XCC,0XC1,0X07,0XE0,0X45,
0XF8,0X45,0XF8,0X46,0XF8,0X66,0XF8,0X86,0XF8,0X86,0XF8,0X86,0XF8,0X86,0XF8,0X65,
0XF8,0X45,0XF8,0X65,0XE8,0X65,0XD0,0X44,0XA8,0X43,0X88,0X01,0X90,0X82,0XD7,0X3C,
0XEF,0XFF,0X95,0X55,0X08,0X83,0X11,0X04,0X11,0X04,0X19,0X05,0X19,0X46,0X94,0XB3,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X94,0XB3,0X00,0X41,
0X21,0X86,0XDF,0X5D,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XDF,0XC6,0X7A,0XB4,0XD3,
0XB3,0X4E,0XC2,0X2A,0XD1,0X68,0XE0,0XE6,0XE8,0XA6,0XE8,0XA5,0XE8,0XA5,0XD8,0XE6,
0XC9,0X88,0XA9,0X06,0XA8,0X22,0XA8,0X02,0XA0,0X00,0XC8,0X00,0XD8,0X00,0XE5,0XF7,
0XE7,0XFF,0XAD,0XF8,0X10,0XC4,0X10,0XE4,0X11,0X04,0X10,0XE4,0X11,0X05,0X4A,0X8B,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XA5,0X55,0X00,0X41,
0X29,0XA7,0XDF,0X5D,0XF7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XEF,0XFF,0XDF,0X7D,0XCE,0XDB,0XCE,0X59,0XCD,0XF8,0XCD,0XD7,0XC5,0XF7,0XCE,0X79,
0XBE,0XFB,0XA2,0XAB,0XF0,0X03,0XF8,0X45,0XD0,0X42,0XE8,0X43,0XF0,0X00,0XD4,0X72,
0XDF,0XFF,0XAE,0X39,0X10,0XE4,0X10,0XE4,0X11,0X04,0X10,0XE4,0X11,0X05,0X29,0X87,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCE,0X59,0X08,0X83,
0X21,0X46,0XD7,0X1C,0XF7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XEF,0XFF,0XBA,0X8B,0XF8,0X04,0XF8,0X45,0XE0,0X62,0XF0,0X44,0XF8,0X00,0XDB,0X8E,
0XDF,0XFF,0XA5,0XF8,0X10,0XC4,0X10,0XE4,0X10,0XE4,0X11,0X04,0X10,0XE4,0X19,0X25,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XBE,0X29,0X87,
0X08,0X83,0XB6,0X39,0XF7,0XFF,0XF7,0XDF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XE7,0XBE,0XBA,0X4A,0XF8,0X03,0XF8,0X45,0XF8,0X64,0XF8,0X44,0XF8,0X00,0XE3,0X6E,
0XD7,0XFF,0X8C,0XF4,0X08,0X83,0X11,0X04,0X10,0XE4,0X10,0XE4,0X10,0XE4,0X19,0X05,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X73,0XEF,
0X00,0X00,0X84,0X72,0XEF,0XFF,0XEF,0XBE,0XFF,0XDF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XE7,0XDF,0XBA,0X8B,0XF8,0X03,0XF8,0X45,0XF8,0X45,0XF8,0X23,0XF8,0X00,0XD4,0XD3,
0XD7,0XFF,0X5B,0X4E,0X00,0X21,0X3A,0X29,0XA5,0X55,0X08,0X83,0X10,0XC4,0X19,0X25,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDE,0XFB,
0X08,0XA3,0X31,0XE8,0XDF,0X9E,0XE7,0X9E,0XEF,0XBF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XF7,0XFF,0XBC,0X51,0XE0,0X02,0XF8,0X03,0XF0,0X03,0XE0,0X43,0XC2,0XEC,0XCF,0X7E,
0XBE,0XFC,0X21,0X46,0X00,0X21,0X94,0XD3,0XFF,0XFF,0X84,0X51,0X00,0X00,0X29,0X87,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0X84,0X51,0X00,0X00,0X8C,0XF4,0XEF,0XFF,0XE7,0X9E,0XEF,0XBF,0XFF,0XDF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XDF,0X3D,0XBD,0X55,0XBC,0X52,0XBC,0X72,0XB5,0XB7,0XC7,0X5D,0XDF,0XFF,
0X6B,0XF0,0X00,0X00,0X3A,0X09,0XF7,0XBF,0XFF,0XFF,0XFF,0XFF,0X9D,0X14,0XA5,0X55,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0X4A,0XAC,0X08,0XA4,0XBE,0XBB,0XE7,0XDF,0XE7,0X7E,0XEF,0XBE,0XF7,0XDF,
0XFF,0XDF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XDF,0XF7,0XDF,0XEF,0XFF,0XDF,0XDF,0XD7,0XBF,0XD7,0X9E,0XDF,0XDF,0XA5,0XD8,
0X08,0X83,0X11,0X26,0XD6,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XEE,0X79,0XDC,0X8B,0X31,0X21,0X21,0XA9,0XCF,0X3D,0XDF,0XBF,0XDF,0X7E,0XE7,0X9E,
0XEF,0XBE,0XEF,0XBF,0XF7,0XDF,0XF7,0XDF,0XF7,0XDF,0XF7,0XDF,0XF7,0XDF,0XEF,0XBF,
0XEF,0XBE,0XE7,0X9E,0XDF,0X7E,0XD7,0X5E,0XD7,0X5E,0XDF,0XDF,0XB6,0X9A,0X19,0X26,
0X08,0X42,0XA3,0XED,0XFF,0XBF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDD,0X74,
0XDB,0XC0,0XFE,0X00,0XEE,0X42,0X42,0X02,0X21,0X89,0XB6,0X7B,0XDF,0XDF,0XD7,0X7E,
0XDF,0X7E,0XDF,0X7E,0XE7,0X9E,0XE7,0X9E,0XE7,0X9E,0XE7,0X9E,0XE7,0X9E,0XDF,0X7E,
0XDF,0X7E,0XD7,0X5D,0XD7,0X5D,0XDF,0X9E,0XE7,0XFF,0XA5,0XF8,0X11,0X07,0X18,0XE3,
0XC5,0X02,0XFD,0X60,0XD3,0XE6,0XEE,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0X9E,0XBA,0X84,
0XFC,0XC1,0XFE,0X42,0XFE,0X82,0XFE,0XA2,0X83,0X81,0X21,0X45,0X74,0X74,0XC7,0X5E,
0XDF,0XDF,0XD7,0X7E,0XD7,0X5E,0XD7,0X5D,0XD7,0X5E,0XD7,0X5E,0XD7,0X5D,0XD7,0X5D,
0XD7,0X5E,0XDF,0X9E,0XE7,0XFF,0XC7,0X3D,0X63,0XF1,0X08,0X84,0X52,0X42,0XE6,0X26,
0XFF,0X29,0XFE,0X86,0XF3,0XE0,0XC3,0X6A,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDE,0X18,0XD2,0XC1,
0XFD,0XA2,0XFE,0X22,0XFE,0X42,0XFE,0X42,0XFE,0X62,0XD4,0XE2,0X6A,0X41,0X42,0X49,
0X74,0X53,0XA6,0X3B,0XC7,0X3E,0XD7,0XBF,0XD7,0XBF,0XD7,0XBF,0XDF,0XBF,0XD7,0XBF,
0XC7,0X3E,0XA6,0X1A,0X63,0XF2,0X29,0XA7,0X41,0X82,0XB4,0X22,0XFE,0X62,0XFE,0X83,
0XFE,0XAA,0XFF,0X0F,0XFD,0X67,0XBA,0X63,0XEF,0X3C,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE6,0X9A,0XD2,0X80,
0XFD,0X21,0XFD,0XC2,0XF5,0XE2,0XF5,0XC2,0XF5,0X82,0XFD,0X82,0XFD,0X62,0XDC,0X61,
0X9B,0X21,0X6A,0X84,0X6A,0XE9,0X63,0X2C,0X63,0XAF,0X74,0X11,0X63,0X6E,0X63,0X2C,
0X5A,0X89,0X52,0X04,0X7A,0X81,0XCB,0XC2,0XFC,0XE2,0XFD,0X62,0XFD,0X82,0XFD,0XC2,
0XFD,0XC2,0XFD,0XE4,0XFD,0X24,0XCA,0X62,0XE7,0X1C,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCC,0XB1,
0XD2,0X81,0XF3,0XC0,0XFC,0XC1,0XFD,0X02,0XFD,0X02,0XFC,0XE2,0XFC,0XC2,0XFC,0XC2,
0XFC,0X81,0XFB,0X80,0XC9,0XC0,0X81,0XA4,0XAD,0X35,0XCE,0X59,0X9C,0X71,0X81,0X21,
0XDA,0X00,0XFB,0XA1,0XFC,0X82,0XFC,0XA2,0XFC,0X82,0XFC,0XA2,0XFD,0X02,0XFD,0X22,
0XFC,0XE2,0XFC,0X00,0XDA,0X60,0XCC,0X90,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XDE,0X59,0XC4,0X0D,0XCB,0X06,0XD2,0XE4,0XDB,0X03,0XDB,0X03,0XDA,0XE3,0XD2,0XC3,
0XC2,0XA4,0XB3,0X09,0XBC,0XD2,0XF7,0X9E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE6,0XFB,
0XB4,0X0E,0XBA,0XA6,0XD2,0X83,0XE2,0XE3,0XEB,0X02,0XEB,0X22,0XE3,0X22,0XDB,0X03,
0XD2,0XE4,0XC3,0X6A,0XD5,0XB6,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
};

#endif

main.c

#include "delay.h"
#include "sys.h"
#include "lcd_init.h"
#include "lcd.h"
#include "pic.h"


int main(void)
{
	u8 i,j;
	double t=0;
	delay_init(168);        //STM32F407延时初始化
	LCD_Init();             //LCD初始化
	LCD_Fill(0,0,LCD_W,LCD_H,WHITE);
	while(1)
	{
		LCD_ShowChinese(0,0,"中景园电子",RED,WHITE,32,0);
		LCD_ShowString(0,40,"LCD_W:",RED,WHITE,16,0);
		LCD_ShowIntNum(48,40,LCD_W,3,RED,WHITE,16);
		LCD_ShowString(80,40,"LCD_H:",RED,WHITE,16,0);
		LCD_ShowIntNum(128,40,LCD_H,3,RED,WHITE,16);
		LCD_ShowString(80,40,"LCD_H:",RED,WHITE,16,0);
		LCD_ShowString(0,70,"Increaseing Nun:",RED,WHITE,16,0);
		LCD_ShowFloatNum1(128,70,t,4,RED,WHITE,16);
		t+=0.11;
		for(j=0;j<7;j++)
		{
			for(i=0;i<8;i++)
			{
				LCD_ShowPicture(40*i,200+j*40,40,40,gImage_1);
			}
		}
	}
}
