二 QT+OSG结合可视化-使用CompositeViewer

1 项目介绍

改项目没有使用qt中的”OpenGLWidget“组件窗口，来实现qt与osg的结合，实现可视化；

本文所用方法：实现osgwidget类，osgwidget是继承的QWidget类，所以需要QWidget类或者子类的组件，将Widget内容设置成osgwidget即可，具体用什么widget，根据自身需要来设置就行。

该项目实现的是将osg嵌入到qt中，且代码直接可以运行的，不用其他隐藏操作。同时使用CompositeViewer，可以添加多个viewer，更加灵活的添加不同对象。

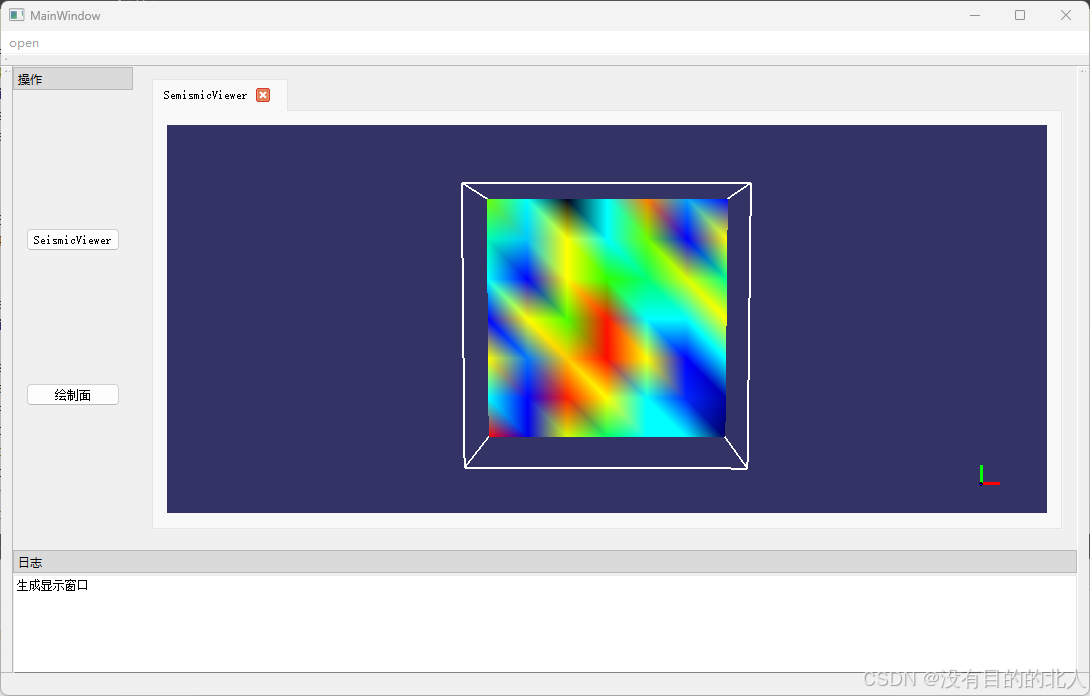

（1）该项目通过CompositeViewer，osg窗口中中间显示主要可视化对象，右下角加入了一个坐标轴，随主对象旋转而旋转，可以清晰的知道对象的旋转角度。

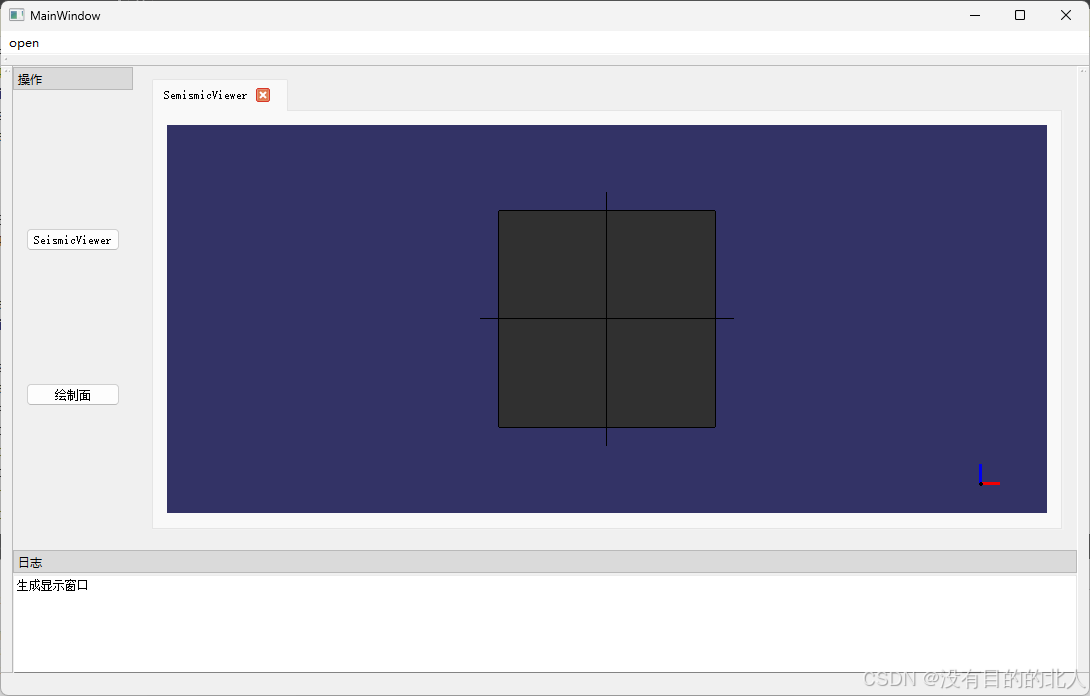

（2）在底部加入日志窗口，可以将后续操作在日志窗口中记录下来。

2 具体介绍

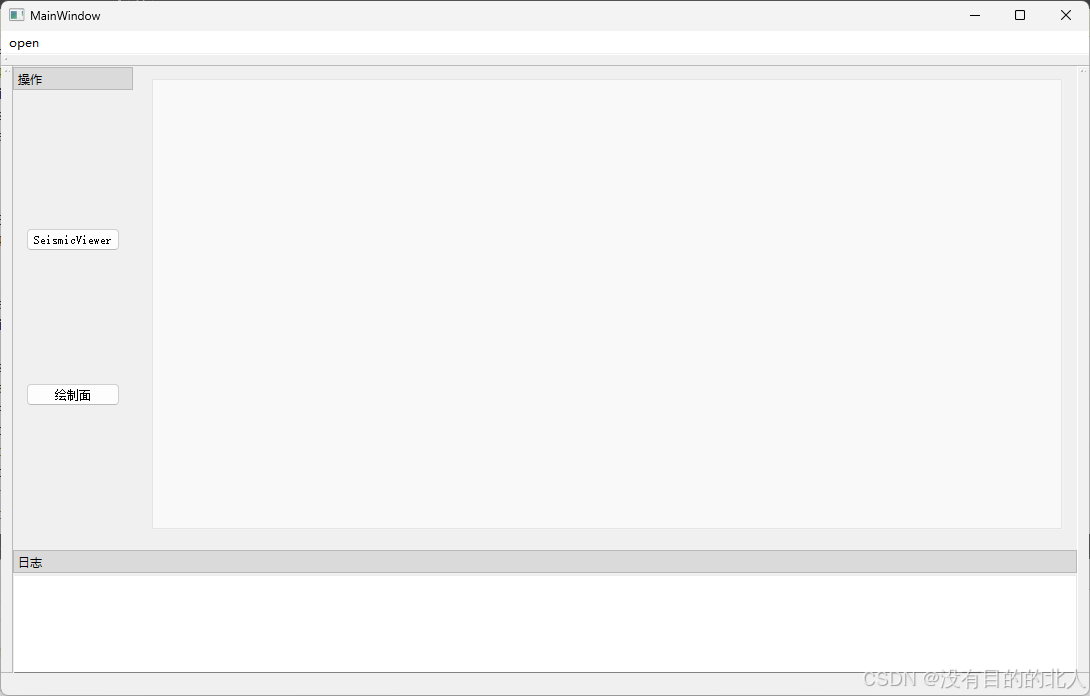

1）主界面搭建

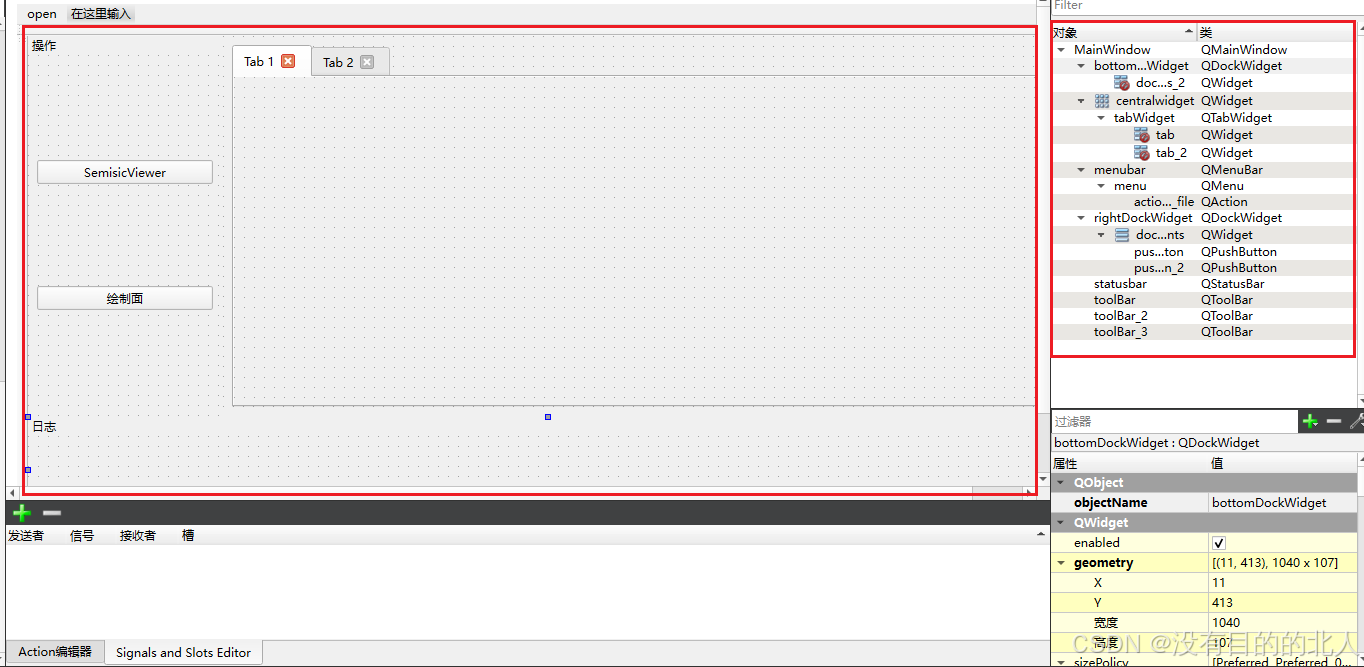

按照这个框架设置界面，按钮加了两个事件，用来添加可绘制体的；不一定非要按照这个框架，选QWidget组件就行。

2）OSG环境

.pro文件配置osg环境

ROOT = D:\SWEnvironment\OSG
FORMS    += mainwindow.ui
INCLUDEPATH  += $${ROOT}\include
LIBS += $${ROOT}\lib\OpenThreadsd.lib
LIBS += $${ROOT}\lib\osgd.lib
LIBS += $${ROOT}\lib\osgDBd.lib
LIBS += $${ROOT}\lib\osgGAd.lib
LIBS += $${ROOT}\lib\osgQt5d.lib
LIBS += $${ROOT}\lib\osgTextd.lib
LIBS += $${ROOT}\lib\osgUtild.lib
LIBS += $${ROOT}\lib\osgViewerd.lib
QT += opengl

3）OSGWidget类

OSGWidget类实现了几何对象的旋转、平移、缩放以及键盘事件（上下左右键可以恢复几何对象的上下左右视图）；代码如下：

OSGWidget.h

#ifndef OSGWIDGET_H
 #define OSGWIDGET_H
 ​
 #include <QWidget>
 #include <QTimer>
 #include <QTextCursor>
 #include <QTextEdit>
 #include <QString>
 ​
 #include <osgViewer/CompositeViewer>
 #include <osgQt/GraphicsWindowQt>
 #include <osgViewer/ViewerEventHandlers>
 #include <osgGA/TrackballManipulator>
 #include <osg/LineWidth>
 #include <osg/MatrixTransform>
 #include <osg/Group>
 #include <osgText/Text>
 #include <osg/ShapeDrawable>
 ​
 #include <vector>
 ​
 #include <QDebug>
 ​
 //qt控件需要在特定的类中初始化
 static QTextEdit* logRestore;//日志窗口
 ​
 static osg::ref_ptr<osg::Group> root = new osg::Group;//osg所有显示节点的根节点
 ​
 //相机矩阵
 //static osg::Vec3 position;//视点坐标
 //static osg::Vec3 center;
 //static osg::Vec3 up;
 ​
 ​
 static void UpdateLog(QString text)
 {
 ​
     logRestore->insertPlainText(text);
     //保持log文本编辑器在光标的最后一行（自动滚屏）
     logRestore->moveCursor(QTextCursor::End);
 }
 ​
 //显示最佳区间[7.5,7.5,7.5]至[-7.5,-7.5,-7.5]
 class OSGWidget : public QWidget, public osgViewer::CompositeViewer
 {
 public:
     OSGWidget(QWidget* parent = 0, Qt::WindowFlags f = 0, osgViewer::ViewerBase::ThreadingModel threadingModel = osgViewer::CompositeViewer::SingleThreaded);
 ​
     QWidget* addViewWidget(osgQt::GraphicsWindowQt* gw);
 ​
     osgQt::GraphicsWindowQt* createGraphicsWindow(int x, int y, int w, int h, const std::string& name = "", bool windowDecoration = false);
 ​
     virtual void paintEvent(QPaintEvent* event);
 ​
     osgViewer::Viewer* view;
 ​
     osg::ref_ptr<osg::Geode> makeCoordinate();
 ​
 protected:
     QTimer _timer;
 ​
 };
 ​
 /*******************以下为视角控制函数***********************/
 class ViewSelect : public osgGA::TrackballManipulator
 {
 public:
     ViewSelect() :TrackballManipulator() {}
 ​
 protected:
     bool handle(const osgGA::GUIEventAdapter& ea, osgGA::GUIActionAdapter& us){
         switch (ea.getEventType())
         {
         case osgGA::GUIEventAdapter::KEYDOWN:
             moveToView(ea);
             break;
         default:
             break;
         }
 ​
         if (ea.getHandled())
             return false;
 ​
         return   osgGA::StandardManipulator::handle(ea, us);
     }
 ​
 private:
     void moveToView(const osgGA::GUIEventAdapter& ea){
         _thrown = false;
 ​
         home(0.0);                 //this fuction does not trigger redraw
         switch (ea.getKey())
         {
         case osgGA::GUIEventAdapter::KEY_Down:                            //TOP_VIEW :
             this->setRotation(osg::Quat(1.0f, 0.0, 0.0, 0.0));
             UpdateLog("旋转至下视图\n");
             break;
         case osgGA::GUIEventAdapter::KEY_Up:                         //BOTTOM_VIEW :
             this->setRotation(osg::Quat(0.0f, 0.0f, 0.0f, 1.0f));
             UpdateLog("旋转至上视图\n");
             break;
         case osgGA::GUIEventAdapter::KEY_Left:                         // LEFT_VIEW :
             this->setRotation(osg::Quat(1.0f, -1.0, -1.0, 1.0f));
             UpdateLog("旋转至左视图\n");
             break;
         case osgGA::GUIEventAdapter::KEY_Right:                          //RIGHT_VIEW:
             this->setRotation(osg::Quat(1.0f, 1.0f, 1.0f, 1.0f));
             UpdateLog("旋转至右视图\n");
             break;
         case osgGA::GUIEventAdapter::KEY_1:
             this->setRotation(osg::Quat(0.0f,1.0f,1.0f,0.0f));
             UpdateLog("旋转至后视图\n");        // BACK_VIEW:
                 break;
         case osgGA::GUIEventAdapter::KEY_0:
             this->setRotation(osg::Quat(1.0f, 0.0f, 0.0f, 1.0f));
             UpdateLog("旋转至前视图\n");//FRONT_VIEW
             break;
         default:
             break;
         }
 ​
         ea.setHandled(true);           //been handled
     }
 ​
 };
 ​
 class HUDAxis :public osg::Camera
 {
 public:
     HUDAxis(){};
     HUDAxis(HUDAxis const& copy, osg::CopyOp copyOp = osg::CopyOp::SHALLOW_COPY):Camera(copy, copyOp),
         _mainCamera(copy._mainCamera){};
 ​
     META_Node(osg, HUDAxis);
     inline void setMainCamera(Camera* camera) { _mainCamera = camera; }
     virtual void traverse(osg::NodeVisitor& nv){
         double fovy, aspectRatio, vNear, vFar;
         _mainCamera->getProjectionMatrixAsPerspective(fovy, aspectRatio, vNear, vFar);
         //this->setProjectionMatrixAsOrtho(-10.0*aspectRatio, 10.0*aspectRatio, -10.0, 10.0, 2.0, -2.0); //设置投影矩阵，使缩放不起效果
         this->setProjectionMatrixAsOrtho2D(-10.0 * aspectRatio, 10.0 * aspectRatio, -10.0, 10.0);
         osg::Vec3 trans(8.5 * aspectRatio, -8.5, -8.0);
         if (_mainCamera.valid() && nv.getVisitorType() == osg::NodeVisitor::CULL_VISITOR)
         {
             osg::Matrix matrix = _mainCamera->getViewMatrix();//改变视图矩阵，让移动位置固定
             matrix.setTrans(trans);
             this->setViewMatrix(matrix);
         }//if
         osg::Camera::traverse(nv);
     }
 protected:
     virtual ~HUDAxis(){};
     osg::observer_ptr<Camera> _mainCamera;
 };
 ​
 #endif // OSGWIDGET_H

OSGWidget.cpp

#include "OSGWidget.h"
 #include <QGridLayout>
 #include <QDebug>
 //OSGWidget窗口
 OSGWidget::OSGWidget(QWidget* parent, Qt::WindowFlags f, osgViewer::ViewerBase::ThreadingModel threadingModel)
 {
     setThreadingModel(threadingModel);
 ​
     // disable the default setting of viewer.done() by pressing Escape.
     setKeyEventSetsDone(0);
     QWidget* popupWidget = addViewWidget(createGraphicsWindow(900, 100, 800, 600, "Popup window", true));
     QGridLayout* grid = new QGridLayout;
     grid->addWidget(popupWidget, 0, 0);
     setLayout(grid);
 ​
     connect(&_timer, SIGNAL(timeout()), this, SLOT(update()));
     _timer.start(10);
 }
 ​
 QWidget* OSGWidget::addViewWidget(osgQt::GraphicsWindowQt* gw)
 {
     view = new osgViewer::Viewer;
     addView(view);
 ​
     osg::Camera* camera = view->getCamera();
     camera->setGraphicsContext(gw);
 ​
     const osg::GraphicsContext::Traits* traits = gw->getTraits();
 ​
     camera->setClearColor(osg::Vec4(0.2, 0.2, 0.4, 1.0));
     camera->setViewport(new osg::Viewport(0, 0, traits->width, traits->height));
     camera->setProjectionMatrixAsPerspective(30.0f, static_cast<double>(traits->width) / static_cast<double>(traits->height), 1.0f, 10000.0f);
     view->addEventHandler(new osgViewer::StatsHandler);
     //view->addEventHandler(new AddLinePointHandler);//添加鼠标事件需要在viewer的run（）和rellize（）之前
     //view->setCameraManipulator(new ViewSelect());
     gw->setTouchEventsEnabled(true);
 ​
     return gw->getGLWidget();
 }
 ​
 osgQt::GraphicsWindowQt* OSGWidget::createGraphicsWindow(int x, int y, int w, int h, const std::string& name, bool windowDecoration)
 {
     osg::DisplaySettings* ds = osg::DisplaySettings::instance().get();
     osg::ref_ptr<osg::GraphicsContext::Traits> traits = new osg::GraphicsContext::Traits;
     traits->windowName = name;
     traits->windowDecoration = windowDecoration;
     traits->x = x;
     traits->y = y;
     traits->width = w;
     traits->height = h;
     traits->doubleBuffer = true;
     traits->alpha = ds->getMinimumNumAlphaBits();
     traits->stencil = ds->getMinimumNumStencilBits();
     traits->sampleBuffers = ds->getMultiSamples();
     traits->samples = ds->getNumMultiSamples();
 ​
     return new osgQt::GraphicsWindowQt(traits.get());
 }
 ​
 void OSGWidget::paintEvent(QPaintEvent* event)
 {
     frame();
 }
 //创建三个坐标轴
 osg::ref_ptr<osg::Geode> OSGWidget::makeCoordinate()
 {
     osg::ref_ptr<osg::Sphere> pSphereShape = new osg::Sphere(osg::Vec3(0, 0, 0), 0.1f);
     osg::ref_ptr<osg::ShapeDrawable> pShapeDrawable = new osg::ShapeDrawable(pSphereShape.get());
     pShapeDrawable->setColor(osg::Vec4(0.0, 0.0, 0.0, 1.0));
 ​
     //创建保存几何信息的对象
     osg::ref_ptr<osg::Geometry> geom = new osg::Geometry();
 ​
     //创建四个顶点
     osg::ref_ptr<osg::Vec3Array> v = new osg::Vec3Array();
     v->push_back(osg::Vec3(0.0f, 0.0f, 0.0f));
     v->push_back(osg::Vec3(1.0f, 0.0f, 0.0f));
     v->push_back(osg::Vec3(0.0f, 0.0f, 0.0f));
     v->push_back(osg::Vec3(0.0f, 1.0f, 0.0f));
     v->push_back(osg::Vec3(0.0f, 0.0f, 0.0f));
     v->push_back(osg::Vec3(0.0f, 0.0f, 1.0f));
     geom->setVertexArray(v.get());
 ​
 ​
     //为每个顶点指定一种颜色
     osg::ref_ptr<osg::Vec4Array> c = new osg::Vec4Array();
     c->push_back(osg::Vec4(1.0f, 0.0f, 0.0f, 1.0f)); //坐标原点为红色
     c->push_back(osg::Vec4(1.0f, 0.0f, 0.0f, 1.0f)); //x red
     c->push_back(osg::Vec4(0.0f, 1.0f, 0.0f, 1.0f)); //坐标原点为绿色
     c->push_back(osg::Vec4(0.0f, 1.0f, 0.0f, 1.0f)); //y green
     c->push_back(osg::Vec4(0.0f, 0.0f, 1.0f, 1.0f)); //坐标原点为蓝色
     c->push_back(osg::Vec4(0.0f, 0.0f, 1.0f, 1.0f)); //z blue
     //如果没指定颜色则会变为黑色
     geom->setColorArray(c.get());
     geom->setColorBinding(osg::Geometry::BIND_PER_VERTEX);
 ​
     //三个轴
     geom->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINES, 0, 2)); //X
     geom->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINES, 2, 2)); //Y
     geom->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINES, 4, 2)); //Z
 ​
     osg::ref_ptr<osg::Geode> geode = new osg::Geode();
     geode->getOrCreateStateSet()->setAttribute(new osg::LineWidth(3.0), osg::StateAttribute::ON);
 ​
     geode->addDrawable(pShapeDrawable.get());
     geode->addDrawable(geom.get());
 ​
     return geode.release();
 }

4）主类-MainWindow类

MainWindow.h

#ifndef MAINWINDOW_H
 #define MAINWINDOW_H
 ​
 #include <QMainWindow>
 #include <QTimer>
 ​
 #include <osgViewer/CompositeViewer>
 #include <osgQt/GraphicsWindowQt>
 #include <osgViewer/ViewerEventHandlers>
 #include <osgGA/TrackballManipulator>
 #include <osg/LineWidth>
 #include <osg/MatrixTransform>
 ​
 #include "osgwidget.h"
 QT_BEGIN_NAMESPACE
 namespace Ui { class MainWindow; }
 QT_END_NAMESPACE
 ​
 static  OSGWidget* osgWidget;//osg显示窗口
 ​
 class MainWindow : public QMainWindow
 {
     Q_OBJECT
 ​
 public:
     MainWindow(QWidget *parent = nullptr);
     ~MainWindow();
 ​
     void init();
     void creatHud();
     void creatDrawPlane();
     osg::ref_ptr<osg::Node> createLightSource(unsigned int num, const osg::Vec3d& trans,
                                               const osg::Vec3d& vecDir);
     osg::ref_ptr<osg::Geometry> createCubeEdgeWireframe();
     osg::ref_ptr<osg::Geometry> createGradientPlane(int gridSize, std::vector<float>& attributeValues, osg::ref_ptr<osg::Vec4Array> colors);
 ​
 private slots:
     void on_tabWidget_tabCloseRequested(int index);
 ​
     void on_pushButton_clicked();
     void on_pushButton_2_clicked();
 private:
     Ui::MainWindow *ui;
 };
 #endif // MAINWINDOW_H

MainWindow.cpp

#include "mainwindow.h"
 #include "ui_mainwindow.h"
 ​
 #include <QDebug>
 ​
 ​
 MainWindow::MainWindow(QWidget *parent)
     : QMainWindow(parent)
     , ui(new Ui::MainWindow)
 {
     ui->setupUi(this);
     ui->tabWidget->clear();
     init();
 ​
 }
 ​
 MainWindow::~MainWindow()
 {
     delete ui;
 }
 ​
 void MainWindow::init()
 {
     //初始化日志窗口和osg显示窗口
     logRestore = new QTextEdit();
     osgWidget = new OSGWidget(0, Qt::Widget, osgViewer::ViewerBase::SingleThreaded);
 ​
     //osg显示窗口添加绘制平面
     creatDrawPlane();
 ​
     //osg显示窗口右下角添加hud
     creatHud();
 ​
 //    root->addChild(points_ctrl);//子节点3
 //    root->addChild(lines_ctrl);//子节点4
 ​
     ui->tabWidget->setTabsClosable(true);
 ​
     //日志窗口填充文字编辑
     logRestore->setReadOnly(true);
     ui->bottomDockWidget->setWidget(logRestore);
     ​osgWidget->view->setCameraManipulator(new ViewSelect());
     osgWidget->view->setSceneData(root);
 }
 ​
 void MainWindow::creatHud()
 {
     osg::ref_ptr<HUDAxis> hudAxes = new HUDAxis;
     hudAxes->addChild(osgWidget->makeCoordinate());
     hudAxes->setMainCamera(osgWidget->view->getCamera());
     hudAxes->setRenderOrder(osg::Camera::POST_RENDER);
     hudAxes->setClearMask(GL_DEPTH_BUFFER_BIT);
     hudAxes->setAllowEventFocus(false);
     hudAxes->setReferenceFrame(osg::Transform::ABSOLUTE_RF);
     hudAxes->setName("hudAxes");
     root->addChild(hudAxes);//子节点2
 }
 ​
 void MainWindow::creatDrawPlane()
 {
     osg::ref_ptr<osg::Vec3Array> planeVertices = new osg::Vec3Array();
     planeVertices->push_back(osg::Vec3f(7.5f, 7.5f, 0.0f));//0
     planeVertices->push_back(osg::Vec3f(7.5f, -7.5f, 0.0f));//1
     planeVertices->push_back(osg::Vec3f(-7.5f, -7.5f, 0.0f));//2
     planeVertices->push_back(osg::Vec3f(-7.5f, 7.5f, 0.0f));//3
     planeVertices->push_back(osg::Vec3f(0.0f, 7.5f, 7.5f));//4
     planeVertices->push_back(osg::Vec3f(0.0f, 7.5f, -7.5f));//5
     planeVertices->push_back(osg::Vec3f(0.0f, -7.5f, -7.5f));//6
     planeVertices->push_back(osg::Vec3f(0.0f, -7.5f, 7.5f));//7
     planeVertices->push_back(osg::Vec3f(7.5f, 0.0f, 7.5f));//8
     planeVertices->push_back(osg::Vec3f(7.5f, 0.0f, -7.5f));//9
     planeVertices->push_back(osg::Vec3f(-7.5f, 0.0f, -7.5f));//10
     planeVertices->push_back(osg::Vec3f(-7.5f, 0.0f, 7.5f));//11
 ​
     planeVertices->push_back(osg::Vec3f(7.5f, 0.0f, 0.0f));//12
     planeVertices->push_back(osg::Vec3f(-7.5f, 0.0f, 0.0f));//13
     planeVertices->push_back(osg::Vec3f(0.0f, 0.0f, 7.5f));//14
     planeVertices->push_back(osg::Vec3f(0.0f, 0.0f, -7.5f));//15
     planeVertices->push_back(osg::Vec3f(0.0f, 7.5f, 0.0f));//16
     planeVertices->push_back(osg::Vec3f(0.0f, -7.5f, 0.0f));//17
 ​
     planeVertices->push_back(osg::Vec3f(0.0f, 0.0f, 0.0f));//18
 ​
 ​
 ​
     osg::ref_ptr<osg::DrawElementsUInt> planeIndices = new osg::DrawElementsUInt(GL_QUADS, 48);
     //xoy
     (*planeIndices)[0] = 18; (*planeIndices)[1] = 12; (*planeIndices)[2] = 0; (*planeIndices)[3] = 16;
     (*planeIndices)[4] = 18; (*planeIndices)[5] = 12; (*planeIndices)[6] = 1; (*planeIndices)[7] = 17;
     (*planeIndices)[8] = 18; (*planeIndices)[9] = 13; (*planeIndices)[10] = 2; (*planeIndices)[11] = 17;
     (*planeIndices)[12] = 18; (*planeIndices)[13] = 13; (*planeIndices)[14] = 3; (*planeIndices)[15] = 16;
 ​
     //xoz
     (*planeIndices)[16] = 18; (*planeIndices)[17] = 14; (*planeIndices)[18] = 8; (*planeIndices)[19] = 12;
     (*planeIndices)[20] = 18; (*planeIndices)[21] = 14; (*planeIndices)[22] = 11; (*planeIndices)[23] = 13;
     (*planeIndices)[24] = 18; (*planeIndices)[25] = 15; (*planeIndices)[26] = 9; (*planeIndices)[27] = 12;
     (*planeIndices)[28] = 18; (*planeIndices)[29] = 15; (*planeIndices)[30] = 10; (*planeIndices)[31] = 13;
 ​
     //yoz
     (*planeIndices)[32] = 18; (*planeIndices)[33] = 16; (*planeIndices)[34] = 4; (*planeIndices)[35] = 14;
     (*planeIndices)[36] = 18; (*planeIndices)[37] = 16; (*planeIndices)[38] = 5; (*planeIndices)[39] = 15;
     (*planeIndices)[40] = 18; (*planeIndices)[41] = 17; (*planeIndices)[42] = 6; (*planeIndices)[43] = 15;
     (*planeIndices)[44] = 18; (*planeIndices)[45] = 17; (*planeIndices)[46] = 7; (*planeIndices)[47] = 14;
 ​
     osg::ref_ptr<osg::Vec4Array> quadsColors = new osg::Vec4Array;
     quadsColors->push_back(osg::Vec4(0.2, 0.2, 0.2, 1));
     osg::ref_ptr<osg::Geometry> geom_QUADS = new osg::Geometry;
     geom_QUADS->setVertexArray(planeVertices.get());
     geom_QUADS->addPrimitiveSet(planeIndices.get());
     geom_QUADS->setColorArray(quadsColors);
     geom_QUADS->setColorBinding(osg::Geometry::BIND_OVERALL);
 ​
     osg::ref_ptr<osg::DrawElementsUInt> linesIndices = new osg::DrawElementsUInt(GL_LINES, 96);
     //xoy
     (*linesIndices)[0] = 18; (*linesIndices)[1] = 14;
     (*linesIndices)[2] = 14; (*linesIndices)[3] = 8;
     (*linesIndices)[4] = 8; (*linesIndices)[5] = 12;
     (*linesIndices)[6] = 12; (*linesIndices)[7] = 18;
 ​
     (*linesIndices)[8] = 18; (*linesIndices)[9] = 14;
     (*linesIndices)[10] = 14; (*linesIndices)[11] = 11;
     (*linesIndices)[12] = 11; (*linesIndices)[13] = 13;
     (*linesIndices)[14] = 13; (*linesIndices)[15] = 18;
 ​
     (*linesIndices)[16] = 18; (*linesIndices)[17] = 13;
     (*linesIndices)[18] = 13; (*linesIndices)[19] = 2;
     (*linesIndices)[20] = 2; (*linesIndices)[21] = 17;
     (*linesIndices)[22] = 17; (*linesIndices)[23] = 18;
 ​
     (*linesIndices)[24] = 18; (*linesIndices)[25] = 13;
     (*linesIndices)[26] = 13; (*linesIndices)[27] = 3;
     (*linesIndices)[28] = 3; (*linesIndices)[29] = 16;
     (*linesIndices)[30] = 16; (*linesIndices)[31] = 18;
 ​
     //xoz
     (*linesIndices)[32] = 18; (*linesIndices)[33] = 12;
     (*linesIndices)[34] = 12; (*linesIndices)[35] = 0;
     (*linesIndices)[36] = 0; (*linesIndices)[37] = 16;
     (*linesIndices)[38] = 16; (*linesIndices)[39] = 18;
 ​
     (*linesIndices)[40] = 18; (*linesIndices)[41] = 12;
     (*linesIndices)[42] = 12; (*linesIndices)[43] = 1;
     (*linesIndices)[44] = 1; (*linesIndices)[45] = 17;
     (*linesIndices)[46] = 17; (*linesIndices)[47] = 18;
 ​
     (*linesIndices)[48] = 18; (*linesIndices)[49] = 15;
     (*linesIndices)[50] = 15; (*linesIndices)[51] = 9;
     (*linesIndices)[52] = 9; (*linesIndices)[53] = 12;
     (*linesIndices)[54] = 12; (*linesIndices)[55] = 18;
 ​
     (*linesIndices)[56] = 18; (*linesIndices)[57] = 15;
     (*linesIndices)[58] = 15; (*linesIndices)[59] = 10;
     (*linesIndices)[60] = 10; (*linesIndices)[61] = 13;
     (*linesIndices)[62] = 13; (*linesIndices)[63] = 18;
 ​
     //yoz
     (*linesIndices)[64] = 18; (*linesIndices)[65] = 16;
     (*linesIndices)[66] = 16; (*linesIndices)[67] = 4;
     (*linesIndices)[68] = 4; (*linesIndices)[69] = 14;
     (*linesIndices)[70] = 14; (*linesIndices)[71] = 18;
 ​
     (*linesIndices)[72] = 18; (*linesIndices)[73] = 16;
     (*linesIndices)[74] = 16; (*linesIndices)[75] = 5;
     (*linesIndices)[76] = 5; (*linesIndices)[77] = 15;
     (*linesIndices)[78] = 15; (*linesIndices)[79] = 18;
 ​
     (*linesIndices)[80] = 18; (*linesIndices)[81] = 17;
     (*linesIndices)[82] = 17; (*linesIndices)[83] = 6;
     (*linesIndices)[84] = 6; (*linesIndices)[85] = 15;
     (*linesIndices)[86] = 15; (*linesIndices)[87] = 18;
 ​
     (*linesIndices)[88] = 18; (*linesIndices)[89] = 17;
     (*linesIndices)[90] = 17; (*linesIndices)[91] = 7;
     (*linesIndices)[92] = 7; (*linesIndices)[93] = 14;
     (*linesIndices)[94] = 14; (*linesIndices)[95] = 18;
 ​
     osg::ref_ptr<osg::Geometry> geom_lINES = new osg::Geometry;
     geom_lINES->setVertexArray(planeVertices.get());
     geom_lINES->addPrimitiveSet(linesIndices.get());
     osg::ref_ptr<osg::Vec4Array> lineColors = new osg::Vec4Array;
     lineColors->push_back(osg::Vec4(0., 0., 0., 1.));
     geom_lINES->setColorArray(lineColors);
     geom_lINES->setColorBinding(osg::Geometry::BIND_OVERALL);
 ​
 ​
     /****************************设置上下左右近远六个光源，但是没写阴影*********************************/
     osg::ref_ptr<osg::StateSet> stateset = root->getOrCreateStateSet();
     stateset->setMode(GL_LIGHTING, osg::StateAttribute::ON);
     stateset->setMode(GL_LIGHT6, osg::StateAttribute::ON);  // GL_LIGHT0是默认光源
     // 设置6个光源 解决光照问题
     osg::Vec3d ptLight;
     osg::Vec3d ptCenter = osg::Vec3d(0, 0, 0);
     double dDis = 200000.0;
     ptLight = ptCenter + osg::Z_AXIS * dDis;
     osg::ref_ptr<osg::Node> pNodeLight = createLightSource(6, ptLight, -osg::Z_AXIS);
     pNodeLight->setName("light0");
     root->addChild(pNodeLight);
 ​
     osg::ref_ptr<osg::Group> group = new osg::Group();
     osg::ref_ptr<osg::Geode> geode_QUADS = new osg::Geode();
     geode_QUADS->addDrawable(geom_QUADS.get());
     osg::ref_ptr<osg::Geode> geode_LINES = new osg::Geode();
     geode_LINES->addDrawable(geom_lINES.get());
     group->addChild(geode_QUADS);
     group->addChild(geom_lINES);
     group->setName("DrawPlane");
     root->addChild(group);//子节点1
 }
 ​
 osg::ref_ptr<osg::Node> MainWindow::createLightSource(unsigned int num, const osg::Vec3d &trans, const osg::Vec3d &vecDir)
 {
     osg::ref_ptr<osg::Light> light = new osg::Light;
     light->setLightNum(num);
     light->setDirection(vecDir);
     osg::ref_ptr<osg::LightSource> lightSource = new osg::LightSource;
     lightSource->setLight(light);
     osg::ref_ptr<osg::MatrixTransform> sourceTrans = new osg::MatrixTransform;
     sourceTrans->setMatrix(osg::Matrix::translate(trans));
     sourceTrans->addChild(lightSource.get());
     return sourceTrans.release();
 }
 ​
 ​
 void MainWindow::on_tabWidget_tabCloseRequested(int index)
 {
     qDebug()<<index;
     ui->tabWidget->removeTab(index);
 }
 ​
 ​
 void MainWindow::on_pushButton_clicked()
 {
     UpdateLog("生成显示窗口\n");
     ui->tabWidget->addTab(osgWidget,"SemismicViewer");
 }
 // 创建边框的几何体
 osg::ref_ptr<osg::Geometry> MainWindow::createCubeEdgeWireframe()
 {
     osg::ref_ptr<osg::Geometry> geometry = new osg::Geometry;
     osg::ref_ptr<osg::Vec3Array> vertices = new osg::Vec3Array;
 ​
     float size = 7.5f;
 ​
     // 正方体的 8 个顶点
     vertices->push_back(osg::Vec3(-size, -size, -size));
     vertices->push_back(osg::Vec3(size, -size, -size));
     vertices->push_back(osg::Vec3(size, size, -size));
     vertices->push_back(osg::Vec3(-size, size, -size));
     vertices->push_back(osg::Vec3(-size, -size, size));
     vertices->push_back(osg::Vec3(size, -size, size));
     vertices->push_back(osg::Vec3(size, size, size));
     vertices->push_back(osg::Vec3(-size, size, size));
 ​
     osg::ref_ptr<osg::DrawElementsUInt> edges = new osg::DrawElementsUInt(GL_LINES);
 ​
     // 正方体边框的 12 条边
     edges->push_back(0); edges->push_back(1);
     edges->push_back(1); edges->push_back(2);
     edges->push_back(2); edges->push_back(3);
     edges->push_back(3); edges->push_back(0);
 ​
     edges->push_back(4); edges->push_back(5);
     edges->push_back(5); edges->push_back(6);
     edges->push_back(6); edges->push_back(7);
     edges->push_back(7); edges->push_back(4);
 ​
     edges->push_back(0); edges->push_back(4);
     edges->push_back(1); edges->push_back(5);
     edges->push_back(2); edges->push_back(6);
     edges->push_back(3); edges->push_back(7);
 ​
     geometry->setVertexArray(vertices);
     geometry->addPrimitiveSet(edges);
 ​
     // 设置边框颜色为白色
     osg::ref_ptr<osg::Vec4Array> edgeColors = new osg::Vec4Array;
     edgeColors->push_back(osg::Vec4(1.0f, 1.0f, 1.0f, 1.0f));
     geometry->setColorArray(edgeColors, osg::Array::BIND_OVERALL);
 ​
     // 设置线宽
     osg::ref_ptr<osg::LineWidth> lineWidth = new osg::LineWidth(1.6f); // 线宽
     geometry->getOrCreateStateSet()->setAttributeAndModes(lineWidth, osg::StateAttribute::ON);
 ​
     return geometry.release();
 }
 //颜色映射函数
 // 随机生成的属性值范围
 const float ATTRIBUTE_MIN = 0.0f;
 const float ATTRIBUTE_MAX = 500.0f;
 osg::Vec4 mapValueToColor(float value)
 {
     float normalized = (value - ATTRIBUTE_MIN) / (ATTRIBUTE_MAX - ATTRIBUTE_MIN);  // 将值归一化到 [0, 1]
 ​
     if (normalized <= 0.2f)  // 红到黄
         return osg::Vec4(1.0f, normalized / 0.2f, 0.0f, 1.0f);
     else if (normalized <= 0.4f)  // 黄到绿
         return osg::Vec4(1.0f - (normalized - 0.2f) / 0.2f, 1.0f, 0.0f, 1.0f);
     else if (normalized <= 0.6f)  // 绿到青
         return osg::Vec4(0.0f, 1.0f, (normalized - 0.4f) / 0.2f, 1.0f);
     else if (normalized <= 0.8f)  // 青到蓝
         return osg::Vec4(0.0f, 1.0f - (normalized - 0.6f) / 0.2f, 1.0f, 1.0f);
     else  // 蓝色
         return osg::Vec4(0.0f, 0.0f, 1.0f - (normalized - 0.8f) / 0.2f, 1.0f);
 }
 osg::ref_ptr<osg::Geometry> MainWindow::createGradientPlane(int gridSize, std::vector<float>& attributeValues, osg::ref_ptr<osg::Vec4Array> colors)
 {
     osg::ref_ptr<osg::Geometry> geometry = new osg::Geometry;
     osg::ref_ptr<osg::Vec3Array> vertices = new osg::Vec3Array;
 ​
     geometry->setUseDisplayList(false);            // 禁用 Display List
     geometry->setUseVertexBufferObjects(true);     // 启用 VBO
 ​
     float size = 15.0f;
     float step = size / gridSize;
 ​
     // 创建平面上的点和颜色
     for (int i = 0; i <= gridSize; ++i)
     {
         for (int j = 0; j <= gridSize; ++j)
         {
             float x = -size / 2 + i * step;
             float y = -size / 2 + j * step;
             float z = 0.0f;
 ​
             vertices->push_back(osg::Vec3(x, y, z));
 ​
             // 为每个点生成一个随机属性值
             float attributeValue = ATTRIBUTE_MIN + static_cast<float>(rand()) / RAND_MAX * (ATTRIBUTE_MAX - ATTRIBUTE_MIN);
             attributeValues.push_back(attributeValue);  // 存储属性值
             colors->push_back(mapValueToColor(attributeValue));  // 将属性值映射到颜色
         }
     }
 ​
     // 创建平面上的矩形图元
     for (int i = 0; i < gridSize; ++i)
     {
         for (int j = 0; j < gridSize; ++j)
         {
             int idx0 = i * (gridSize + 1) + j;
             int idx1 = idx0 + 1;
             int idx2 = idx0 + (gridSize + 1);
             int idx3 = idx2 + 1;
 ​
             osg::ref_ptr<osg::DrawElementsUInt> quad = new osg::DrawElementsUInt(GL_QUADS);
             quad->push_back(idx0);
             quad->push_back(idx1);
             quad->push_back(idx3);
             quad->push_back(idx2);
 ​
             geometry->addPrimitiveSet(quad);
         }
     }
 ​
     geometry->setVertexArray(vertices);
     geometry->setColorArray(colors, osg::Array::BIND_PER_VERTEX);  // 每个顶点有单独的颜色
     return geometry.release();
 }
 ​
 void MainWindow::on_pushButton_2_clicked()
 {
     root->removeChild(0, root->getNumChildren());
     osg::ref_ptr<osg::Geometry> cubeEdgesframe = createCubeEdgeWireframe();
     osg::ref_ptr<osg::Geode> wireframeGeode = new osg::Geode;
     wireframeGeode->addDrawable(cubeEdgesframe);
 ​
     int gridSize = 6;  // 6x6 网格，总共 36 个矩形
     std::vector<float> attributeValues;  // 存储每个点的属性值
     osg::ref_ptr<osg::Vec4Array> colors = new osg::Vec4Array;  // 存储每个点的颜色
     osg::ref_ptr<osg::Geometry> plane = createGradientPlane(gridSize, attributeValues, colors);
 ​
     osg::ref_ptr<osg::Geode> planeGeode = new osg::Geode;
     planeGeode->addDrawable(plane);
 ​
     /****************************设置上下左右近远六个光源，但是没写阴影*********************************/
     osg::ref_ptr<osg::StateSet> stateset = root->getOrCreateStateSet();
     stateset->setMode(GL_LIGHTING, osg::StateAttribute::ON);
     stateset->setMode(GL_LIGHT6, osg::StateAttribute::ON);  // GL_LIGHT0是默认光源
     // 设置6个光源 解决光照问题
     osg::Vec3d ptLight;
     osg::Vec3d ptCenter = osg::Vec3d(0, 0, 0);
     double dDis = 200000.0;
     ptLight = ptCenter + osg::Z_AXIS * dDis;
     osg::ref_ptr<osg::Node> pNodeLight = createLightSource(6, ptLight, -osg::Z_AXIS);
     pNodeLight->setName("light0");
     root->addChild(pNodeLight);
 ​
     creatHud();
     root->addChild(wireframeGeode);
     root->addChild(planeGeode);
 }

3 效果图

初始运行图：

“SeismicViewer"按钮显示效果

"绘制面"

4 最后

如果需要添加自己的可视化对象，可以在"绘制面"方法中写自己的方法就行。
