【动手实现操作系统】二：文件系统

我们需要用文件系统来管理文件。

block

每⼀个⽂件由若⼲个块(block)组成, 这些块不需要顺序存放, 只要按照某种⽅法组织起来. 这样, 即使⼩⽂件被删除, 他们所占⽤的块也可以得到有效的利⽤。块⼤⼩不同对⽂件系统⼀些参数的有影响。这里取一个块占2个扇区即1kb.

INode

创建结构INode来对这些块进行索引。

union Inode { // Inode Table的表项
 uint8_t byte[INODE_SIZE];//1024
 struct {
 int16_t type; // 该⽂件的类型、访存控制等
 int16_t linkCount; // 该⽂件的链接数
 int32_t blockCount; // 该⽂件的data block总数
 int32_t size; // 该⽂件所含字节数
 int32_t pointer[POINTER_NUM]; // data block偏移量，扇区为单位
 int32_t singlyPointer; // ⼀级data block偏移量索引，扇区为单位
 };
};

目录

分类是管理的⼀种有效⼿段, 随着⽂件数量的增加, 我们⾃然希望有⼀种能够对⽂件进⾏分类的⽅法, ⽬录的出现正是为了⽅便⽂件的管理.实际上, ⽬录只是⼀种特殊的⽂件. 它是⼀张记录了当前⽬录⽂件信息的表, 每⼀个表项记录了该⽬录中⼀个⽂件的⽂件名或⽬录的名称和iNode索引。

union DirEntry { // ⽬录⽂件的表项
 uint8_t byte[DIRENTRY_SIZE];//128
 struct {
 int32_t inode; // 该⽬录项对应的inode，编号从1开始，0表示空
 char name[NAME_LENGTH]; // 该⽬录项对应的⽂件名
 };
};

Inode Bitmap

对Inode使用情况进行记录，一个位（bit）表示一个Inode的使用情况。

struct InodeBitmap {
    uint8_t byte[INODE_BITMAP_SIZE];
};
typedef struct InodeBitmap InodeBitmap;

Block Bitmap

对Block使用情况进行记录。一个位（bit）表示一个block的使用情况。

struct BlockBitmap {
    uint8_t byte[BLOCK_BITMAP_SIZE];
};
typedef struct BlockBitmap BlockBitmap;

super block

⽂件系统的开头⼀般会有超级块, 超级块会记录⽂件系统的参数, 如iNode总数, 磁盘块总数, 每个区域的
偏移量, 块⼤⼩等, ⽂件系统初始化的时候将会读取超级块中的内容.

//union用于填充满整个扇区，提高磁盘存区效率
union SuperBlock {
 uint8_t byte[SUPER_BLOCK_SIZE];
 struct {
 int32_t sectorNum; // ⽂件系统中扇区总数
 int32_t inodeNum; // ⽂件系统中inode总数
 int32_t blockNum; // ⽂件系统中data block总数
 int32_t availInodeNum; // ⽂件系统中可⽤inode总数
 int32_t availBlockNum; // ⽂件系统中可⽤data block总数
 int32_t blockSize; // 每个block所含字节数
 int32_t inodeBitmap; // inode bitmap在⽂件系统的偏移，扇区为单位
 int32_t blockBitmap; // block bitmap在⽂件系统的偏移，扇区为单位
 int32_t inodeTable; // inode table在⽂件系统的偏移，扇区为单位
 int32_t blocks; // data block在⽂件系统的偏移，扇区为单位
 };
};

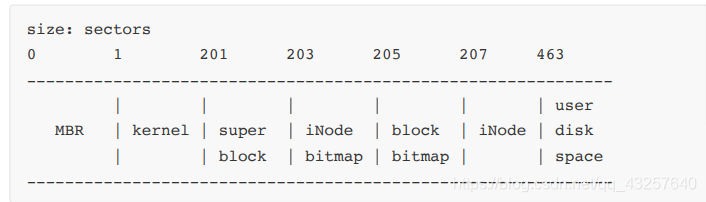

磁盘区域划分

磁盘区域图如下。

下面是实现文件系统的一些重要的函数

初始化superblock

/*
 *  When sectorNum < 64, FS is too small, return -1.
 *  Initialize superblock and write back to first block in FS.
 *  All offset is sector as unit, index of sector.
 */
 //输入：磁盘文件，扇区总数，每个block所占扇区数（2），以及未初始化的superblock
int initSuperBlock (FILE *file, int sectorNum, int sectorsPerBlock, SuperBlock *superBlock) {
    if (sectorNum < 64)
        return -1;
    int inodeBitmapOffset = sizeof(SuperBlock) / SECTOR_SIZE;
    //扇区为单位，紧跟superblock后
    int blockBitmapOffset = inodeBitmapOffset + INODE_BITMAP_SIZE / SECTOR_SIZE;
    //紧跟inodeBitmap后
    int inodeTableOffset = blockBitmapOffset + BLOCK_BITMAP_SIZE / SECTOR_SIZE;
    //紧跟blockBitmap后
    int blocksOffset = inodeTableOffset + INODE_BLOCKS * sectorsPerBlock;
    //紧跟inodeTable后
    int inodeNum = INODE_BLOCKS * SECTOR_SIZE * sectorsPerBlock / sizeof(Inode);
    int blockNum = sectorNum / sectorsPerBlock - 3 - INODE_BLOCKS;
    //3表示superblock,inodeBitmap,blockBitmap三个
    superBlock->sectorNum = sectorNum;
    superBlock->inodeNum = (inodeNum / 8) * 8;
    superBlock->blockNum = (blockNum / 8) * 8;
    superBlock->availInodeNum = (inodeNum / 8) * 8;
    //一开始未创建任何inode和block，所以都是可用的
    superBlock->availBlockNum = (blockNum / 8) * 8;
    superBlock->blockSize = SECTOR_SIZE * sectorsPerBlock;
    superBlock->inodeBitmap = inodeBitmapOffset;
    superBlock->blockBitmap = blockBitmapOffset;
    superBlock->inodeTable = inodeTableOffset;
    superBlock->blocks = blocksOffset;
    fseek(file, 0, SEEK_SET);
    //写superBlock,file的第0处开始。这个file之后还要和bootloader和操作系统内核态代码拼接起来。
    fwrite((void *)superBlock, sizeof(SuperBlock), 1, file);
    return 0;
}

初始化根目录

文件系统要有一个根目录（root dir），之后所有的文件和目录都在此根目录之下。

/*
 *  Root dir contain 2 dirEntry (. and ..).
 *  1 Inode and 1 block used.
 */
int initRootDir (FILE *file, SuperBlock *superBlock) {
    int inodeBitmapOffset = 0;
    int inodeTableOffset = 0;
    int inodeOffset = 0;    // XXX byte as unit
    //用
    int blockOffset = 0;    // XXX sector as unit
    DirEntry *dirEntry = NULL;
    uint8_t buffer[superBlock->blockSize];
    //buffer相当于中间变量，用于暂时存储一些数据
    InodeBitmap inodeBitmap;
    Inode inode;

    if (superBlock->availInodeNum == 0)
        return -1;
     //无可用block，则返回
    superBlock->availInodeNum --;
    //一个目录要占一个block
    inodeBitmapOffset = superBlock->inodeBitmap;    // XXX sector as unit
    inodeTableOffset = superBlock->inodeTable;      // XXX sector as unit
    inodeBitmap.byte[0] = 0x80;
    //使用第一个inode指向根目录
    inodeOffset = inodeTableOffset * SECTOR_SIZE;

    inode.type = DIRECTORY_TYPE;
    getAvailBlock(file, superBlock, &blockOffset);
    //返回可用的(或者说空闲的)block下标，用blockOffset记录
    inode.pointer[0] = blockOffset;
    inode.blockCount = 1;
    setBuffer(buffer, superBlock->blockSize, 0);
    //清空buffer
    dirEntry = (DirEntry *)buffer;
    //一个block可以容纳8个DirEntry
    dirEntry[0].inode = 1;
    dirEntry[0].name[0] = '.';
    dirEntry[0].name[1] = '\0';
    //指向本身
    dirEntry[1].inode = 1;
    dirEntry[1].name[0] = '.';
    dirEntry[1].name[1] = '.';
    dirEntry[1].name[2] = '\0';
    //指向父目录，但根目录的父目录还是本身
    inode.linkCount = 2;
    inode.size = superBlock->blockSize;

    fseek(file, blockOffset * SECTOR_SIZE, SEEK_SET);
    fwrite((void *)buffer, sizeof(uint8_t), superBlock->blockSize, file);
    //写入block
    fseek(file, inodeBitmapOffset * SECTOR_SIZE, SEEK_SET);
    fwrite((void *)&inodeBitmap, sizeof(uint8_t), 1, file);
    //写入inodeBitmap
    fseek(file, inodeOffset, SEEK_SET);
    fwrite((void *)&inode, sizeof(Inode), 1, file);
    //写入inode
    fseek(file, 0, SEEK_SET);
    fwrite((void *)superBlock, sizeof(SuperBlock), 1, file);
    //写入superBlock
    return 0;
}

可以看到，用第一个Inode来指向根目录文件。
同时也可以发现，创建一个新的目录需要本目录和父目录的Inode，因为即使是一个“空”目录也会有 ./ 和 …/ 这两项。一个目录文件占1/8个block.创建后superblock等信息会改动，不要忘了更新（即读入内存->更改->写回）。

readInode

给定一个路径，readInode()函数返回这个路径对应的Inode
思路：像链表一样从根目录开始一步步读取下去。

/*
 *  Find the Inode of destFilePath, '/' to first inode, '/bin' to inode in 'bin'
 *  Input: file (disk), superBlock
 *  OutPut: destInode, inodeOffset (byte as unit)
 *  Return -1 when failed.
 */
int readInode (FILE *file, SuperBlock *superBlock, Inode *destInode,
int *inodeOffset, const char *destFilePath) {
    int i = 0;
    int j = 0;
    int ret = 0;
    int cond = 0; //表示当前处理的路径是否还有'/'
    *inodeOffset = 0;
    uint8_t buffer[superBlock->blockSize];
    DirEntry *dirEntry = NULL;
    int count = 0;
    int size = 0;
    int blockCount = 0;

    // no content in destFilePath
    if (destFilePath == NULL || destFilePath[count] == 0)
        return -1;


    //返回desFilePath中第一个'/'出现的位置
    ret = stringChr(destFilePath, '/', &size);
     // destFilePath is not started with '/'
    if (ret == -1 || size != 0)
        return -1;

    // load the first Inode
    //先读取根目录对应的Inode
    *inodeOffset = superBlock->inodeTable * SECTOR_SIZE;
    fseek(file, *inodeOffset, SEEK_SET);
    fread((void *)destInode, sizeof(Inode), 1, file);

    count += 1;
    while(destFilePath[count] != 0) {
        ret = stringChr(destFilePath + count, '/', &size);
        // pattern '//' occured
        if (ret == 0 && size == 0)
            return -1;
        // no more '/'
        if (ret == -1)
            cond = 1;
        // with more '/' but regular file
        //非目录的路径，返回-1
        else if (destInode->type == REGULAR_TYPE)
            return -1;

        // go deeper dir
        blockCount = destInode->blockCount;
        for (i = 0; i < blockCount; i++) {
        //读取destInode指向的block,这些block装的是DirEntry
            ret = readBlock(file, superBlock, destInode, i, buffer);
            if (ret == -1)
                return -1;
            // try find matched DirEntry and Inode
            dirEntry = (DirEntry *)buffer;
            for (j = 0; j < superBlock->blockSize / sizeof(DirEntry); j++) {
            //dirEntry[j].inode == 0 表示未使用？
                if (dirEntry[j].inode == 0)
                    continue;
                else if (stringCmp(dirEntry[j].name, destFilePath + count, size) == 0) {
                    *inodeOffset = superBlock->inodeTable * SECTOR_SIZE + (dirEntry[j].inode - 1) * sizeof(Inode);
                    fseek(file, *inodeOffset, SEEK_SET);
                    fread((void *)destInode, sizeof(Inode), 1, file);
                    break;
                }
            }
            if (j < superBlock->blockSize / sizeof(DirEntry))
                break;
        }
        if (i < blockCount) {
            if (cond == 0)
               //还有'/'，应该继续读取下去
                count += (size + 1);
            else
                return 0;
        }
        else
            return -1;
    }
    return 0;
}

format 指令

format指令用于格式化一个磁盘。
主要操作为：清空磁盘、初始化superblock、初始化根目录

/*
 *  Create a file as FS, initialize SuperBlock and Root dir.
 */
int format (const char *driver, int sectorNum, int sectorsPerBlock) {
    int i = 0;
    int ret = 0;
    FILE *file = NULL;
    uint8_t byte[SECTOR_SIZE];
    SuperBlock superBlock;
    if (driver == NULL) {
        printf("driver == NULL\n");
        return -1;
    }
    file = fopen(driver, "w+");
    if (file == NULL) {
        printf("Failed to open driver.\n");
        return -1;
    }
    for (i = 0; i < SECTOR_SIZE; i++) {
        byte[i] = 0;
    }
    for (i = 0; i < sectorNum; i++) {
        fwrite((void*)byte, sizeof(uint8_t), SECTOR_SIZE, file);
    }//用0填充磁盘
    ret = initSuperBlock(file, sectorNum, sectorsPerBlock, &superBlock);//初始化superblock
    if (ret == -1) {
        printf("Failed to format: No enough sectors.\n");
        fclose(file);
        return -1;
    }
    ret = initRootDir(file, &superBlock);
    //初始化根目录
    if (ret == -1) {
        printf("Failed to fromat: No enough inodes or data blocks.\n");
        fclose(file);
        return -1;
    }
    printf("format %s -s %d -b %d\n", driver, sectorNum, sectorsPerBlock);
    printf("FORMAT success.\n%d inodes and %d data blocks available.\n", superBlock.availInodeNum, superBlock.availBlockNum);
    fclose(file);
    return 0;
}

ls指令

ls指令：给定一个文件路径，展示该路径的文件信息
思路：根据路径读取Inode，若Inode对应的是普通文件，则输出其信息；若Inode对应的是目录文件，则输出该目录下的文件信息。

int ls (const char *driver, const char *destFilePath) {
    // definition
    FILE *file = NULL;
    int ret = 0;
    SuperBlock superBlock;
    Inode inode;
    int inodeOffset = 0;
    DirEntry dirEntry;
    int dirIndex = 0;
    Inode childInode;
    int inodeIndex = 0;

    if (driver == NULL) {
        printf("driver == NULL.\n");
        return -1;
    }
    if (destFilePath == NULL) {
        printf("destFilePath == NULL.\n");
        fclose(file);
        return -1;
    }
    file = fopen(driver , "r");
    if (file == NULL) {
        printf("Failed to open driver.\n");
        return -1;
    }
    ret = readSuperBlock(file, &superBlock);
    if (ret == -1) {
        printf("Failed to load superBlock.\n");
        fclose(file);
        return -1;
    }
    //读取Inode
    ret = readInode(file, &superBlock, &inode, &inodeOffset, destFilePath);
    if (ret == -1) {
        printf("Failed to read inode.\n");
        fclose(file);
        return -1;
    }
    //如果Inode指向常规文件
    if (inode.type == REGULAR_TYPE) {
        printf("ls %s\n", destFilePath);
        inodeIndex = (inodeOffset - superBlock.inodeTable) / sizeof(Inode) + 1;
        printf("Inode: %d, Type: %d, LinkCount: %d, BlockCount: %d, Size: %d.\n",
            inodeIndex, inode.type, inode.linkCount, inode.blockCount, inode.size);
        fclose(file);
        return 0;
    }
    printf("ls %s\n", destFilePath);
    //如果Inode指向的是目录文件
    while (getDirEntry(file, &superBlock, &inode, dirIndex, &dirEntry) == 0) {
        //将目录下的所有文件对应的Inode信息输出
        dirIndex ++;
        fseek(file, superBlock.inodeTable * SECTOR_SIZE + (dirEntry.inode - 1) * sizeof(Inode), SEEK_SET);
        fread((void*)&childInode, sizeof(Inode), 1, file);
        printf("Name: %s, Inode: %d, Type: %d, LinkCount: %d, BlockCount: %d, Size: %d.\n",
            dirEntry.name, dirEntry.inode, childInode.type, childInode.linkCount, childInode.blockCount, childInode.size);
    }
    printf("LS success.\n%d inodes and %d data blocks available.\n", superBlock.availInodeNum, superBlock.availBlockNum);
    fclose(file);
    return 0;
}

mkdir指令

mkdir指令作用是新建一个目录文件。
思路：找到父目录对应的Inode；创建连接父目录Inode和子目录Inode的Dir; 创建子目录的Dir.

int mkdir (const char *driver, const char *destDirPath){
    FILE *file = NULL;
    char tmp = 0;
    int length = 0;
    int cond = 0;
    int ret = 0;
    int size = 0;
    SuperBlock superBlock;
    int fatherInodeOffset = 0;
    int destInodeOffset = 0;
    Inode fatherInode;
    Inode destInode;
    if (driver == NULL) {
        printf("driver == NULL.\n");
        return -1;
    }
    file = fopen(driver, "r+");
    if (file == NULL) {
        printf("Failed to open driver.\n");
        return -1;
    }
    ret = readSuperBlock(file, &superBlock);
    if (ret == -1) {
        printf("Failed to load SuperBlock.\n");
        fclose(file);
        return -1;
    }
    if (destDirPath == NULL) {
        printf("destDirPath == NULL");
        fclose(file);
        return -1;
    }
    //获取路径字符串长度
    length = stringLen(destDirPath);
    if (destDirPath[length - 1] == '/') {
        cond = 1;
        *((char*)destDirPath + length - 1) = 0;
    }
    //获取第一个'/'出现的位置
    ret = stringChrR(destDirPath, '/', &size);
    if (ret == -1) {
        printf("Incorrect destination file path.\n");
        fclose(file);
        return -1;
    }
    //在第一个'/'后面的字符设0，截断路径
    tmp = *((char*)destDirPath + size + 1);
    *((char*)destDirPath + size + 1) = 0;
    ret = readInode(file, &superBlock, &fatherInode, &fatherInodeOffset, destDirPath);
    *((char*)destDirPath + size + 1) = tmp;
    if (ret == -1) {
        printf("Failed to read father inode.\n");
        if (cond == 1)
            *((char*)destDirPath + length - 1) = '/';
        fclose(file);
        return -1;
    }
    /*allocInode()
   建立一个fatherInode和destInode之间的一个Dir。Dir指向destlnode
    */
    ret = allocInode(file, &superBlock, &fatherInode, fatherInodeOffset,
        &destInode, &destInodeOffset, destDirPath + size + 1, DIRECTORY_TYPE);
    if (ret == -1) {
        printf("Failed to allocate inode.\n");
        if (cond == 1)
            *((char*)destDirPath + length - 1) = '/';
        fclose(file);
        return -1;
    }
    /*
    initDir()
    建立destInode指向的两个dirEntry，一个dirEntry指向destInode本身，一个指向destInode的父目录。
    */
    ret = initDir(file, &superBlock, &fatherInode, fatherInodeOffset,
        &destInode, destInodeOffset);
    if (ret == -1) {
        printf("Failed to initialize dir.\n");
        if (cond == 1)
            *((char*)destDirPath + length - 1) = '/';
        fclose(file);
        return -1;
    }
    if (cond == 1)
        *((char*)destDirPath + length - 1) = '/';

    printf("mkdir %s\n", destDirPath);
    printf("MKDIR success.\n%d inodes and %d data blocks available.\n", superBlock.availInodeNum, superBlock.availBlockNum);
    fclose(file);
    return 0;
}
