先尝试以下代码，如果成功就可以继续吧

import numpy as np #数组
import matplotlib.pyplot as plt #生成动画
import matplotlib.animation as animation #更新模拟

x = np.array([[0,0,255],[255,255,0],[0,255,0]])#三维数组
plt.imshow(x, interpolation='nearest')#nearest输出尖锐边缘
plt.show()#将矩形输出为图像

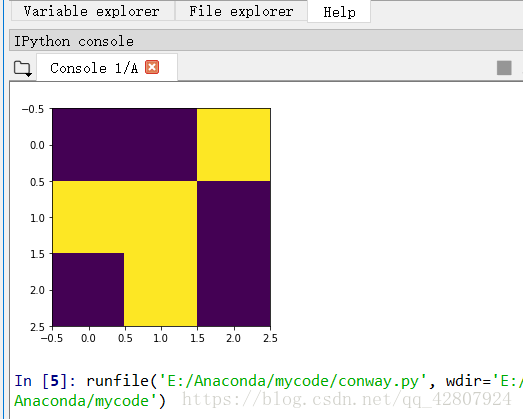

输出结果

最后代码：源码：https://github.com/electronut/pp

"""
conway.py
A simple Python/matplotlib implementation of Conway's Game of Life.
Author: Mahesh Venkitachalam
"""

import sys, argparse
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation

ON = 255
OFF = 0
vals = [ON, OFF]

def randomGrid(N):
    """returns a grid of NxN random values"""
    return np.random.choice(vals, N*N, p=[0.2, 0.8]).reshape(N, N)

def addGlider(i, j, grid):
    """adds a glider with top left cell at (i, j)"""
    glider = np.array([[0,    0, 255],
                       [255,  0, 255],
                       [0,  255, 255]])
    grid[i:i+3, j:j+3] = glider

def addGosperGliderGun(i, j, grid):
    """adds a Gosper Glider Gun with top left cell at (i, j)"""
    gun = np.zeros(11<
