FreeRTOS（一）消息队列

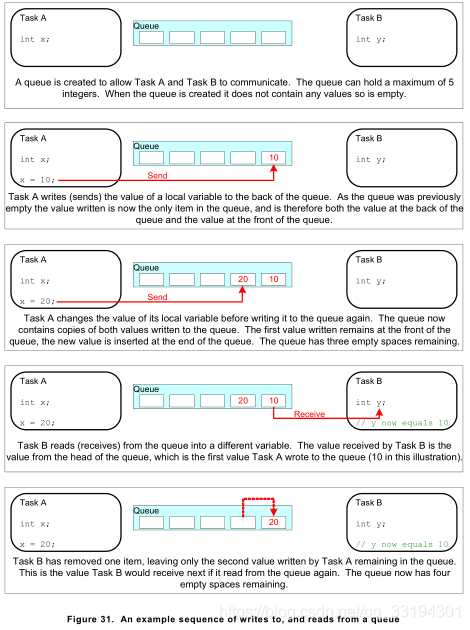

一、队列基本用法

FreeRTOS参考文档

（一）、创建队列

QueueHandle_t xQueueCreate( UBaseType_t uxQueueLength, UBaseType_t uxItemSize );

（二）、发送数据

BaseType_t xQueueSendToFront( QueueHandle_t xQueue,
const void * pvItemToQueue,
TickType_t xTicksToWait );

BaseType_t xQueueSendToBack( QueueHandle_t xQueue,
const void * pvItemToQueue,
TickType_t xTicksToWait );

宏定义pdMS_TO_TICKS()可以将ms转换成节拍

static void vSenderTask( void *pvParameters )
{

    int32_t lValueToSend;
    BaseType_t xStatus;
    /* Two instances of this task are created so the value that is sent to the
    queue is passed in via the task parameter - this way each instance can use
    a different value. The queue was created to hold values of type int32_t,
    so cast the parameter to the required type. */
    lValueToSend = ( int32_t ) pvParameters;
    /* As per most tasks, this task is implemented within an infinite loop. */
    for( ;; )
    {

        /* Send the value to the queue.
        The first parameter is the queue to which data is being sent. The
        queue was created before the scheduler was started, so before this task
        started to execute.
        The second parameter is the address of the data to be sent, in this case
        the address of lValueToSend.
        The third parameter is the Block time – the time the task should be kept
        in the Blocked state to wait for space to become available on the queue
        should the queue already be full. In this case a block time is not
        specified because the queue should never contain more than one item, and
        therefore never be full. */
        xStatus = xQueueSendToBack( xQueue, &lValueToSend, 0 );
        if( xStatus != pdPASS )
        {

            /* The send operation could not complete because the queue was full -
            this must be an error as the queue should never contain more than
            one item! */
            vPrintString( "Could not send to the queue.\r\n" );
        }
    }
}

（三）、接收数据

BaseType_t xQueueReceive( QueueHandle_t xQueue,
void * const pvBuffer,
TickType_t xTicksToWait );

static void vReceiverTask( void *pvParameters )
{

    /* Declare the variable that will hold the values received from the queue. */
    int32_t lReceivedValue;
    BaseType_t xStatus;
    const TickType_t xTicksToWait = pdMS_TO_TICKS( 100 );
    /* This task is also defined within an infinite loop. */
    for( ;; )
    {

        /* This call should always find the queue empty because this task will
        immediately remove any data that is written to the queue. */
        if( uxQueueMessagesWaiting( xQueue ) != 0 )
        {

        vPrintString( "Queue should have been empty!\r\n" );
        }
        /* Receive data from the queue.
        The first parameter is the queue from which data is to be received. The
        queue is created before the scheduler is started, and therefore before this
        task runs for the first time.
        The second parameter is the buffer into which the received data will be
        placed. In this case the buffer is simply the address of a variable that
        has the required size to hold the received data.
        The last parameter is the block time – the maximum amount of time that the
        task will remain in the Blocked state to wait for data to be available
        should the queue already be empty. */
        xStatus = xQueueReceive( xQueue, &lReceivedValue, xTicksToWait );
        if( xStatus == pdPASS )
        {

            /* Data was successfully received from the queue, print out the received
            value. */
            vPrintStringAndNumber( "Received = ", lReceivedValue );
        }
        else
        {

            /* Data was not received from the queue even after waiting for 100ms.
            This must be an error as the sending tasks are free running and will be
            continuously writing to the queue. */
            vPrintString( "Could not receive from the queue.\r\n" );
        }
    }
}

（四）、获取队列数据数量

UBaseType_t uxQueueMessagesWaiting( QueueHandle_t xQueue );

在中断中不能使用该函数，应使用uxQueueMessagesWaitingFromISR

（五）、示例

/* Declare a variable of type QueueHandle_t. This is used to store the handle
to the queue that is accessed by all three tasks. */
QueueHandle_t xQueue;
int main( void )
{

    /* The queue is created to hold a maximum of 5 values, each of which is
    large enough to hold a variable of type int32_t. */
    xQueue = xQueueCreate( 5, sizeof( int32_t ) );
    if( xQueue != NULL )
    {

        /* Create two instances of the task that will send to the queue. The task
        parameter is used to pass the value that the task will write to the queue,
        so one task will continuously write 100 to the queue while the other task
        will continuously write 200 to the queue. Both tasks are created at
        priority 1. */
        xTaskCreate( vSenderTask, "Sender1", 1000, ( void * ) 100, 1, NULL );
        xTaskCreate( vSenderTask, "Sender2", 1000, ( void * ) 200, 1, NULL );
        /* Create the task that will read from the queue. The task is created with
        priority 2, so above the priority of the sender tasks. */
        xTaskCreate( vReceiverTask, "Receiver", 1000, NULL, 2, NULL );
        /* Start the scheduler so the created tasks start executing. */
        vTaskStartScheduler();
    }
    else
    {

        /* The queue could not be created. */
    }
    /* If all is well then main() will never reach here as the scheduler will
    now be running the tasks. If main() does reach here then it is likely that
    there was insufficient FreeRTOS heap memory available for the idle task to be
    created. Chapter 2 provides more information on heap memory management. */
    for( ;; );
}

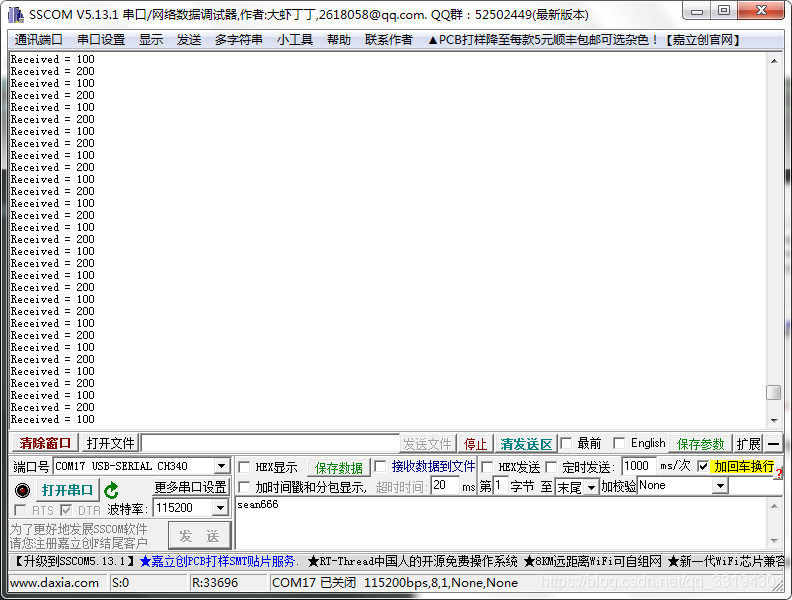

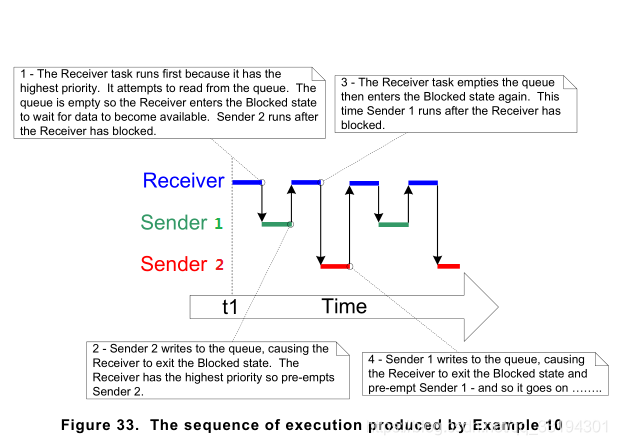

刚才的示例时序如下（sender），我们来分析这过程。

1. 由于接收任务的优先级最高，所以它先运行，但是由于队列为空，所以他进入阻塞。
2. 接着sender1在就绪任务中是最高优先级（比sender2创建先），它根据传入的参数100，发送100到队列。
3. 此时receive发现队列中有数据，然后就自然地接收数据。
4. 接着sender2在就绪任务中是最高优先级（比sender2创建先），它根据传入的参数200，发送200到队列。
5. 接着执行第三步。
6. 程序循环执行2~5步

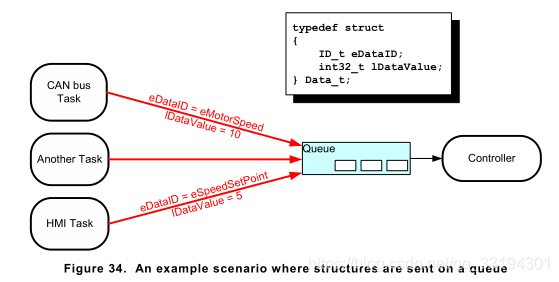

二、队列——从多个数据源接收数据

/* Define an enumerated type used to identify the source of the data. */
typedef enum
{

    eSender1,
    eSender2
} DataSource_t;
/* Define the structure type that will be passed on the queue. */
typedef struct
{

    uint8_t ucValue;
    DataSource_t eDataSource;
} Data_t;
/* Declare two variables of type Data_t that will be passed on the queue. */
static const Data_t xStructsToSend[ 2 ] =
{

    {
    100, eSender1 }, /* Used by Sender1. */
    {
    200, eSender2 } /* Used by Sender2. */
};

static void vSenderTask( void *pvParameters )
{

    BaseType_t xStatus;
    const TickType_t xTicksToWait = pdMS_TO_TICKS( 100 );
    /* As per most tasks, this task is implemented within an infinite loop. */
