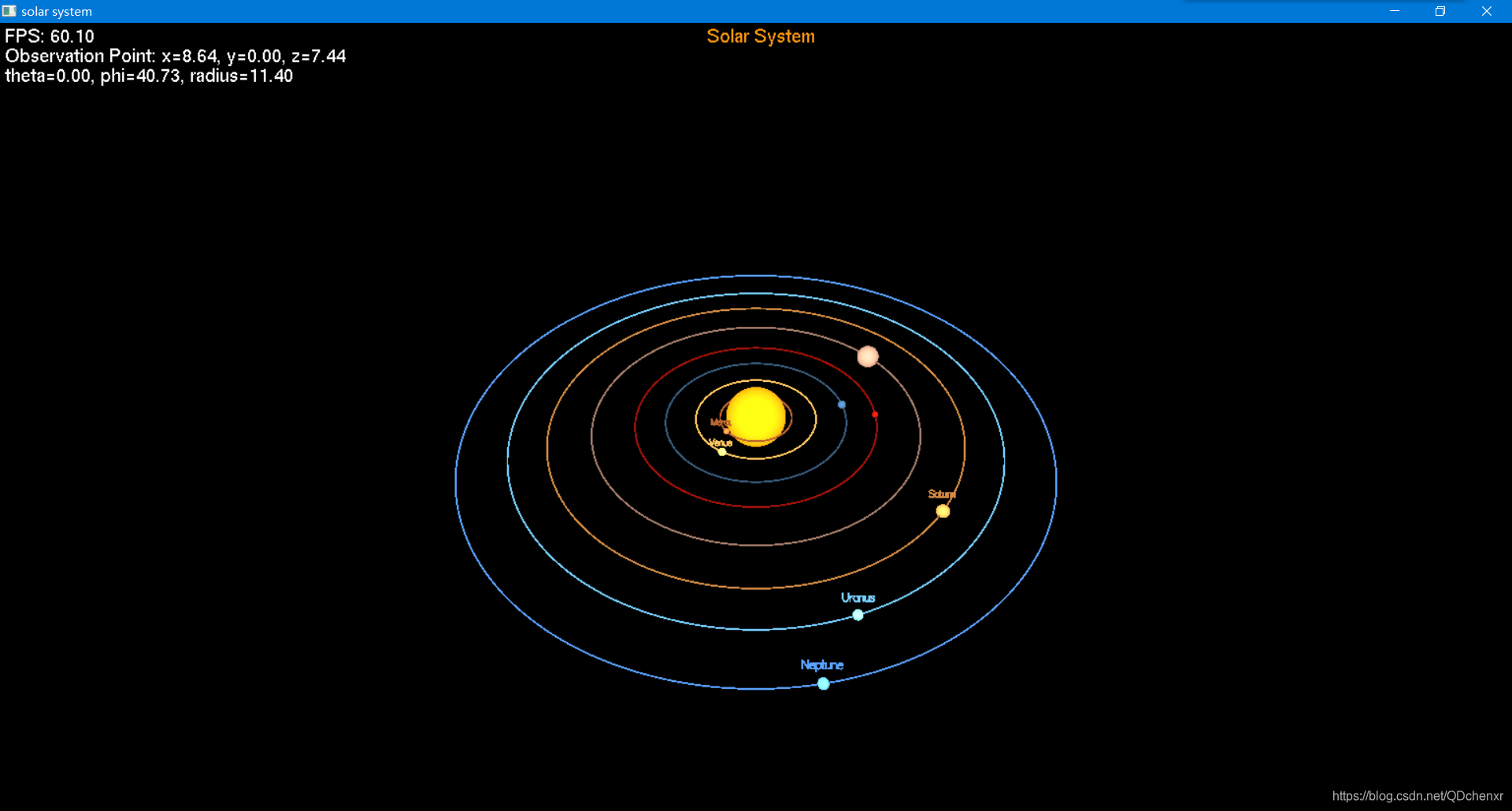

该代码展示了如何使用OpenGL创建一个太阳系的3D模拟，包括太阳和多个行星的运动轨迹。通过调整观察点的位置和角度，可以观察到太阳系中行星的环绕运动。代码中定义了每个行星的轨道半径和自转速度，并使用光源和材质设置了光照效果。
分享一个OpenGL画太阳系的代码。
#include <GL/glut.h>
#include <GL/SOIL.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h>
#pragma pack(1)
#define DISCRETE_GRAPHICS 1
#if DISCRETE_GRAPHICS
__declspec(dllexport) int NvOptimusEnablement = 0x00000001; //使用独显
#endif
#define Pi 3.1415926
#define RADIUS 10.0 //观察点位置所在球面半径
#define ROTATE_SPEED 0.01 //观察点移动速度
#define MERCURY_ORBIT_RADIUS 0.6
#define VENUS_ORBIT_RADIUS 1.0
#define EARTH_ORBIT_RADIUS 1.5
#define MARS_ORBIT_RADIUS 2.0
#define JUPITER_ORBIT_RADIUS 2.7
#define SATURN_ORBIT_RADIUS 3.4
#define URANUS_ORBIT_RADIUS 4.0
#define NEPTUNE_ORBIT_RADIUS 4.76
#define SUN_RADIUS 0.5
#define MERCURY_RADIUS 0.05
static void Resize(int w, int h);
static void Display(void); //显示回调函数
static void Idle(void); //空闲回调函数
static void ProcessNormalKeys(unsigned char key, int x, int y); //ASCII按键响应函数
static void ProcessSpecialKeys(int skey, int x, int y); //非ASCII按键响应函数
static void MouseMove(int x, int y); //鼠标移动回调函数
static void MouseButton(int button, int state, int x, int y); //鼠标按键回调函数
static void ChangeViewPosition(GLdouble theta, GLdouble phi);
static void CreateGLUTMenus(void);
//display text function
static void SetOrthographicProjection(void);
static void RestorePerspectiveProjection(void);
static void RenderBitmapFontString(GLfloat x, GLfloat y, GLfloat z, void *font, char *string); //show bitmap font
static void RenderStrokeFontString(GLfloat x, GLfloat y, GLfloat z, void *font, char *string); //show stroke font
//texture
void LoadPicture(char *file_name, GLuint *texture);
static int window_width, window_height;
static int main_menu;
static int mouse_x = -1, mouse_y = -1;
//observer's parameters
static GLdouble radius = RADIUS; //The radius of the sphere where the observer is located
static GLdouble theta_angle = 0.0, phi_angle = Pi / 2.0;
static GLdouble delta_theta = 0.0, delta_phi = 0.0;
static GLdouble x = RADIUS, y = 0.0, z = 0.0; //position of the viewer
static GLdouble cx = 0.0, cy = 0.0, cz = 0.0; //viewer's direction
static GLdouble hx = 0.0, hy = 0.0, hz = 1.0; //viewer's head direction
//light
const GLfloat light0_ambient[] = {1.0f, 1.0f, 1.0f, 1.0f}; //光源中环境光的颜色，黑色。红，绿，蓝，第四个分量1.0表示不透明。
const GLfloat light0_diffuse[] = {1.0f, 1.0f, 1.0f, 1.0f}; //光源中漫射光的颜色，白色
const GLfloat light0_position[] = {0.0f, 0.0f, 0.0f, 1.0f}; //定向光源，指定了光源的方向
//materials
const GLfloat mat_ambient[] = {1.0f, 1.0f, 1.0f, 1.0f}; //材质的环境颜色
const GLfloat mat_diffuse[] = {1.0f, 1.0f, 1.0f, 1.0f}; //材质的漫射光颜色
const GLfloat high_shininess[] = {10.0f}; //材质的镜面反射指数
int main(int argc, char *argv[])
{
// init GLUT and create window
glutInit(&argc, argv);
// GLuint texture;
// LoadPicture("img_test.bmp", &texture);
glutInitWindowSize(1000, 1000); //set window size
glutInitWindowPosition(1000, -1); //set window position
glutInitDisplayMode(GLUT_RGBA | GLUT_DOUBLE | GLUT_DEPTH);
glutCreateWindow("solar system"); //根据前面设置的创建窗口，参数被作为窗口的标题。
glShadeModel(GL_SMOOTH);
//light
glLightfv(GL_LIGHT0, GL_AMBIENT, light0_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light0_diffuse);
glLightfv(GL_LIGHT0, GL_POSITION, light0_position);
//materials
glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT, mat_ambient);
glMaterialfv(GL_FRONT_AND_BACK, GL_DIFFUSE, mat_diffuse);
glMaterialfv(GL_FRONT_AND_BACK, GL_SHININESS, high_shininess);
glEnable(GL_LIGHT0);//启用0号光源
glEnable(GL_NORMALIZE);// 启用自动单位化法向量
glEnable(GL_COLOR_MATERIAL);//启用材质颜色
glEnable(GL_LIGHTING);//启用光照
// register callbacks
glutReshapeFunc(Resize); //注册当前窗口的再整形回调函数
glutDisplayFunc(Display); //注册当前窗口的显示回调函数
glutIdleFunc(Idle); //注册空闲回调函数
glutKeyboardFunc(ProcessNormalKeys); //注册ASCII按键响应函数
glutSpecialFunc(ProcessSpecialKeys); //注册非ASCII按键响应函数
glutMouseFunc(MouseButton);
glutMotionFunc(MouseMove);
glClearColor(0,0,0,0);
glEnable(GL_CULL_FACE);
glEnable(GL_DEPTH_TEST);
glDepthFunc(GL_LESS);
//启用反走样
glEnable(GL_LINE_SMOOTH);
glHint(GL_LINE_SMOOTH_HINT, GL_FASTEST); // Antialias the lines
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST);
ChangeViewPosition(theta_angle, phi_angle);
CreateGLUTMenus();
glutMainLoop();//主循环处理
return EXIT_SUCCESS;
}
void Idle(void)
{
glutPostRedisplay();
}
static void Resize(int width, int height)
{
GLdouble ratio;
height = (!height) ? 0.1 : height;
window_width = width;
window_height = height;
ratio = 1.0 * width / height;
// Reset the coordinate system before modifying
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
//设置视口为整个窗口大小
glViewport(0, 0, width, height);
//设置可视空间
gluPerspective(60,ratio,0.1,1000);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity();
gluLookAt(x + cx, y + cy, z + cz,
cx, cy, cz,
hx, hy, hz);
}
void DrawCircle(GLdouble R)
{
glBegin(GL_LINE_LOOP);
for (int i = 0; i < 7200; i++)
{
glVertex2f(R * cos(2 * Pi * i / 7200), R * sin(2 * Pi * i / 7200));
}
glEnd();
}
inline double GetDistance(double x1, double y1, double z1, double x2, double y2, double z2)
{
return sqrt((x1 - x2) * (x1 - x2) + (y1 - y2) * (y1 - y2) + (z1 - z2) * (z1 - z2));
}
void AutoChangeTextAngle(void)
{
glRotated(90, 0, 0, 1);
glRotated(90, 1, 0, 0);
glRotated((theta_angle + delta_theta) * 180.0l / Pi, 0, 1, 0);
glRotated((phi_angle + delta_phi) * 180.0l / Pi, -1, 0, 0);
}
//display
static void Display(void)//显示回调函数 图片绘制在XOY平面上
{
static double angle=0;
const int slices =60;
const int stacks =60;
GLdouble star_x, star_y, star_z;
#if DISCRETE_GRAPHICS
angle += 0.005;
#else
angle += 0.001;
#endif
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);//清除颜色缓冲区和深度缓冲区
//Sun
glColor3d(1, 0.5, 0.04);
glPushMatrix();
glutSolidSphere(SUN_RADIUS, slices, stacks);
AutoChangeTextAngle();
glPopMatrix();
//Mercury
star_x = MERCURY_ORBIT_RADIUS * cos(1 / 0.24 * angle);
star_y = MERCURY_ORBIT_RADIUS * sin(1 / 0.24 * angle);
star_z = 0.0;
glColor3f(0.61f, 0.33f, 0.16f);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(MERCURY_RADIUS, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.25f, 0.1f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Mercury");
}
glPopMatrix();
DrawCircle(MERCURY_ORBIT_RADIUS);
//Venus
star_x = VENUS_ORBIT_RADIUS * cos(1 / 0.62 * angle);
star_y = VENUS_ORBIT_RADIUS * sin(1 / 0.62 * angle);
star_z = 0.0;
glColor3f(1.0f, 0.65f, 0.31f);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.065, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.2f, 0.1f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Venus");
}
glPopMatrix();
DrawCircle(VENUS_ORBIT_RADIUS);
//Earth
star_x = EARTH_ORBIT_RADIUS * cos(1.0 * angle);
star_y = EARTH_ORBIT_RADIUS * sin(1.0 * angle);
star_z = 0.0;
glColor3f(0.18f, 0.3f, 0.41f);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.07, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.15f, 0.1f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Earth");
}
glPopMatrix();
DrawCircle(EARTH_ORBIT_RADIUS);
//Mars
star_x = MARS_ORBIT_RADIUS * cos(1 / 1.9 * angle);
star_y = MARS_ORBIT_RADIUS * sin(1 / 1.9 * angle);
star_z = 0.0;
glColor3f(0.54, 0.058, 0.027);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.053, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.15f, 0.1f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Mars");
}
glPopMatrix();
DrawCircle(MARS_ORBIT_RADIUS);
//Jupiter
star_x = JUPITER_ORBIT_RADIUS * cos(1 / 11.9 * angle);
star_y = JUPITER_ORBIT_RADIUS * sin(1 / 11.9 * angle);
star_z = 0.0;
glColor3f(0.55, 0.42, 0.35);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.2, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.2f, 0.3f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Jupiter");
}
glPopMatrix();
DrawCircle(JUPITER_ORBIT_RADIUS);
//Saturn
star_x = SATURN_ORBIT_RADIUS * cos(1 / 29.5 * angle);
star_y = SATURN_ORBIT_RADIUS * sin(1 / 29.5 * angle);
star_z = 0.0;
glColor3f(0.7, 0.46, 0.22);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.1, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.2f, 0.2f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Saturn");
}
glPopMatrix();
DrawCircle(SATURN_ORBIT_RADIUS);
//Uranus
star_x = URANUS_ORBIT_RADIUS * cos(1 / 83.0 * angle);
star_y = URANUS_ORBIT_RADIUS * sin(1 / 83.0 * angle);
star_z = 0.0;
glColor3f(0.39, 0.68, 0.87);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.07, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.2f, 0.17f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Uranus");
}
glPopMatrix();
DrawCircle(URANUS_ORBIT_RADIUS);
//Neptune
star_x = NEPTUNE_ORBIT_RADIUS * cos(1 / 164.8 * angle);
star_y = NEPTUNE_ORBIT_RADIUS * sin(1 / 164.8 * angle);
star_z = 0.0;
glColor3f(0.29, 0.53, 0.9);
glPushMatrix();
glTranslated(star_x, star_y, star_z);
glutSolidSphere(0.07, slices, stacks);
if(GetDistance(star_x, star_y, star_z, x, y, z) < GetDistance(0, 0, 0, x, y, z))
{
AutoChangeTextAngle();
RenderStrokeFontString(-0.25f, 0.17f, 0.0f, GLUT_STROKE_ROMAN, (char*)"Neptune");
}
glPopMatrix();
DrawCircle(NEPTUNE_ORBIT_RADIUS);
//compute frames per second
static int time = 0, frame = 0, last_time = 0;
static double fps = 0.0l;
frame++;
time = glutGet(GLUT_ELAPSED_TIME);
if(time-last_time >= 1000)
{
fps = frame * 1000.0l / (time - last_time);
last_time = time;
frame = 0;
}
//display a string with bitmap fonts
SetOrthographicProjection();
glPushMatrix();
glLoadIdentity();
glColor3d(1, 0.5, 0.04);
char str[64];
int wwidth = glutGet(GLUT_WINDOW_WIDTH);
RenderBitmapFontString(wwidth / 2 - 50, 20, 0, GLUT_BITMAP_HELVETICA_18, (char *)"Solar System");
glColor3f(1.0f, 1.0f, 1.0f);
sprintf(str, "FPS: %.2lf", fps);
RenderBitmapFontString(5, 20, 0, GLUT_BITMAP_HELVETICA_18, str);
sprintf(str, "Observation Point: x=%.2lf, y=%.2lf, z=%.2lf", x + cx, y + cy, z + cz);
RenderBitmapFontString(5, 40, 0, GLUT_BITMAP_HELVETICA_18, str);
sprintf(str, "theta=%.2lf, phi=%.2lf, radius=%.2lf", (theta_angle + delta_theta) * 180.0 / Pi, (phi_angle + delta_phi) * 180.0 / Pi, radius);
RenderBitmapFontString(5, 60, 0, GLUT_BITMAP_HELVETICA_18, str);
glPopMatrix();
RestorePerspectiveProjection();
//交换缓冲区
glutSwapBuffers();
}
//view
void ChangeViewDistance(unsigned char option)
{
switch (option)
{
case '+' :
radius -= 0.1;
radius = (radius < 0.1) ? 0.1 : radius;
ChangeViewPosition(theta_angle, phi_angle);
break;
case '-' :
radius += 0.1;
radius = (radius > 15) ? 15 : radius;
ChangeViewPosition(theta_angle, phi_angle);
break;
default:
break;
}
}
void ChangeViewPosition(GLdouble theta, GLdouble phi)
{
x = radius * cos(phi) * cos(theta);
y = radius * cos(phi) * sin(theta);
z = radius * sin(phi);
glLoadIdentity();
gluLookAt(x + cx, y + cy, z + cz,
cx, cy, cz,
hx, hy, hz);
}
//key
static void ProcessSpecialKeys(int skey, int x, int y)//非ASCII按键响应函数
{
switch(skey){
case GLUT_KEY_LEFT :
theta_angle -= ROTATE_SPEED;
theta_angle = (theta_angle < -Pi) ? -Pi : theta_angle;
ChangeViewPosition(theta_angle, phi_angle);
break;
case GLUT_KEY_RIGHT:
theta_angle += ROTATE_SPEED;
theta_angle = (theta_angle > Pi) ? Pi : theta_angle;
ChangeViewPosition(theta_angle, phi_angle);
break;
case GLUT_KEY_UP:
phi_angle += ROTATE_SPEED;
phi_angle = (phi_angle > Pi / 2.0l) ? Pi / 2.0l : phi_angle;
ChangeViewPosition(theta_angle, phi_angle);
break;
case GLUT_KEY_DOWN :
phi_angle -= ROTATE_SPEED;
phi_angle = (phi_angle < 0.0l) ? 0.0l : phi_angle;
ChangeViewPosition(theta_angle, phi_angle);
break;
case GLUT_KEY_HOME:
theta_angle = 0.0l;
phi_angle = Pi / 2.0l;
ChangeViewPosition(theta_angle, phi_angle);
break;
default:
break;
}
}
static void ProcessNormalKeys(unsigned char key, int x, int y)//ASCII按键响应函数
{
switch (key)
{
case ' ' :
case 'q' :
glutDestroyMenu(main_menu);
exit(0);
break;
case '+' :
ChangeViewDistance('+');
break;
case '-' :
ChangeViewDistance('-');
break;
default:
break;
}
}
//mouse
void MouseMove(int x, int y)
{
// this will only be true when the left button is down
if (mouse_x >= 0 && abs(mouse_x - x) >= 5)
{
delta_theta = (double)(mouse_x - x) * ROTATE_SPEED;
if(theta_angle+delta_theta > Pi)
delta_theta = Pi - theta_angle;
else if(theta_angle+delta_theta < -Pi)
delta_theta = -Pi - theta_angle;
}
if(mouse_y >= 0 && abs(y - mouse_y) >= 10)
{
delta_phi = (double)(y - mouse_y) * ROTATE_SPEED;
if(phi_angle+delta_phi > Pi/2.0l)
delta_phi = Pi / 2.0l - phi_angle;
else if(phi_angle+delta_phi < 0.0l)
delta_phi = -phi_angle;
}
ChangeViewPosition(theta_angle + delta_theta, phi_angle + delta_phi);
}
void MouseButton(int button, int state, int x, int y)
{
switch(button)
{
case GLUT_LEFT_BUTTON:
// only start motion if the left button is pressed
if(state == GLUT_UP)
{
theta_angle += delta_theta;
phi_angle += delta_phi;
delta_theta = 0;
delta_phi = 0;
mouse_x = -1;
mouse_y = -1;
}
else
{
mouse_x = x;
mouse_y = y;
}
break;
case 3:
if(state == GLUT_UP)
{
radius += ROTATE_SPEED;
}
default:
break;
}
}
//menu
void ProcessMenuEvents(int option)
{
switch(option)
{
case 1:
ProcessSpecialKeys(GLUT_KEY_HOME, 0, 0);
break;
case 2:
ChangeViewDistance('+');
break;
case 3:
ChangeViewDistance('-');
break;
case 4:
ProcessNormalKeys('q', 0, 0);
break;
default:
break;
}
}
void CreateGLUTMenus(void)
{
main_menu = glutCreateMenu(ProcessMenuEvents);
glutAddMenuEntry("Reset 'home'", 1);
glutAddMenuEntry("Zoom In '+'", 2);
glutAddMenuEntry("Zoom Out '-'", 3);
glutAddMenuEntry("Exit 'q'", 4);
glutAttachMenu(GLUT_RIGHT_BUTTON);
}
//font
void SetOrthographicProjection(void)
{
glMatrixMode(GL_PROJECTION); // switch to projection mode
glPushMatrix(); // save previous matrix which contains the settings for the perspective projection
glLoadIdentity(); // reset matrix
gluOrtho2D(0, window_width, window_height, 0); // set a 2D orthographic projection
glMatrixMode(GL_MODELVIEW); // switch back to modelview mode
}
void RestorePerspectiveProjection(void)
{
glMatrixMode(GL_PROJECTION);
glPopMatrix(); // restore previous projection matrix
glMatrixMode(GL_MODELVIEW); // get back to modelview mode
}
void RenderBitmapFontString(GLfloat x, GLfloat y, GLfloat z, void *font, char *string)
{
glRasterPos3f(x, y, z);
while(*string != '\0')
{
glutBitmapCharacter(font, *string);
string++;
}
}
void RenderStrokeFontString(GLfloat x, GLfloat y, GLfloat z, void *font, char *string)
{
glPushMatrix();
glTranslatef(x, y, z);
glScalef(0.001f, 0.001f, 0.001f);
while(*string != '\0')
{
glutStrokeCharacter(font, *string);
string++;
}
glPopMatrix();
}
//texture
GLuint texture_name;
struct BITMAPFILEHEADER{
unsigned short bfType;
unsigned int bfSize;
unsigned short bfReserved1;
unsigned short bfReserved2;
unsigned int bfOffBits;
};
struct BITMAPINFOHEADER{
unsigned int biSize;
long biWidth;
long biHeight;
unsigned short biPlanes;
unsigned short biBitcount;
unsigned int biCompression;
unsigned int biSizeImage;
long biXPelsPerMeter;
long biYPelsPerMeter;
unsigned int biClrUsed;
unsigned int biClrImportant;
};
void LoadPicture(char *file_name, GLuint *texture)
{
FILE *bmp = NULL;
struct BITMAPFILEHEADER bmfh;
struct BITMAPINFOHEADER bmih;
bmp = fopen(file_name, "rb"); //装入位图
if (bmp == NULL)
printf("load picture error!\r\n");
fseek(bmp, 0, SEEK_END);
int bmp_size = ftell(bmp);
fseek(bmp, 0, SEEK_SET);
unsigned char *p_image = malloc(bmp_size * sizeof(char));
fread(p_image, bmp_size, 1, bmp);
fseek(bmp, 0, SEEK_SET);
fread(&bmfh,sizeof(struct BITMAPFILEHEADER),1,bmp);
fread(&bmih,sizeof(struct BITMAPINFOHEADER),1,bmp);
glGenTextures(1, texture); //生成贴图
glBindTexture(GL_TEXTURE_2D, *texture); //贴图生效
gluBuild2DMipmaps(GL_TEXTURE_2D, 4, bmih.biWidth, bmih.biHeight,
GL_RGB, GL_UNSIGNED_BYTE, p_image); //贴图数据
printf("%ld %ld\n", bmih.biWidth, bmih.biHeight);
printf("%d", bmp_size);
fclose(bmp);
}
运行结果：
扫一扫
2488
到【灌水乐园】发言
