工具在内核源代码的tools/power/pm-graph目录下,在github上有pm-graph 的项目。
目录
1.安装
其实不用安装也可以直接用
$> git clone http://github.com/intel/pm-graph.git
$> cd pm-graph
$> sudo make install
2. 应用
自带了config配置文件,设定各种参数。此处不采用配置文件,直接用参数。
需要内核配置项目
CONFIG_DEVMEM=y
CONFIG_PM_DEBUG=y
CONFIG_PM_SLEEP_DEBUG=y
CONFIG_FTRACE=y
CONFIG_FUNCTION_TRACER=y
CONFIG_FUNCTION_GRAPH_TRACER=y
CONFIG_KPROBES=y
CONFIG_KPROBES_ON_FTRACE=y
抓取休眠唤醒时的函数调用过程
运行 sleepgraph -m mem(或者disk ,mem表示测试suspend to mem过程;disk表示suspend to disk 过程) -f (表示抓取函数调用过程)

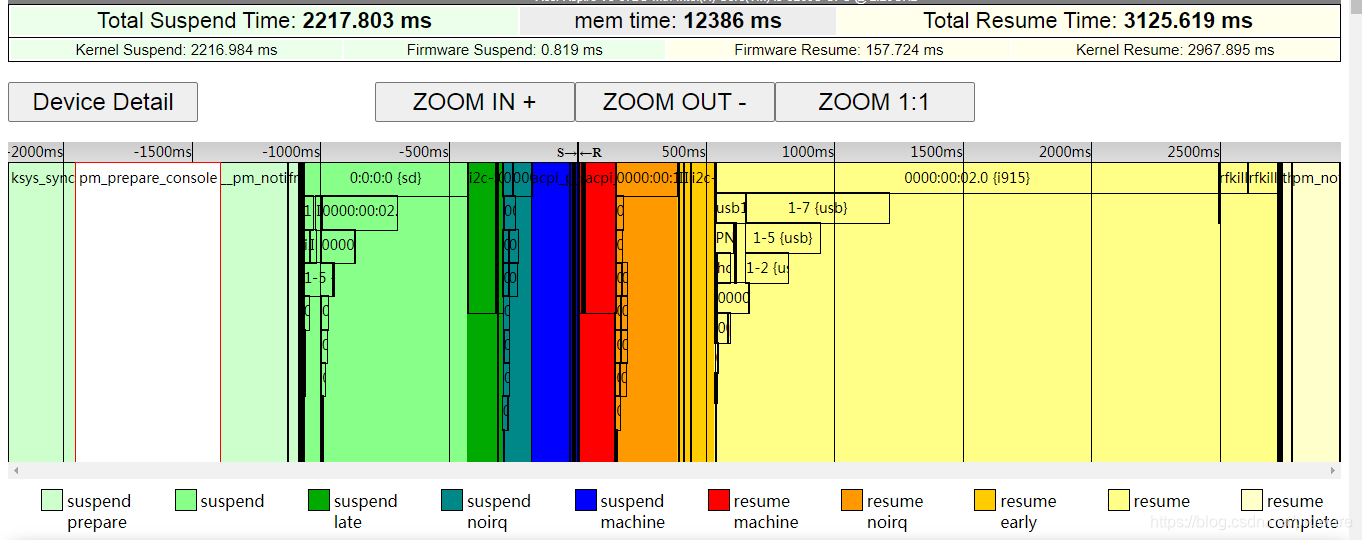

抓取的效果为:

可以很清楚的看出休眠唤醒的几个阶段,对于sleep to disk阶段,由于在suspend前,进程已经被freeze,因而实际不能抓取thaw阶段的内容。如果真的在suspend前被freeze,那么这个软件抓取的事件的进程是如何保证运行的呢?
提出上面这个问题本身,说明你对内核的ftrace不清楚,在配置了trace后,内核会将需要trace的信息写入到某个buf中,不是说启用哪个用户进程、线程进行处理。
以intel i915为例子,在各个阶段的功能

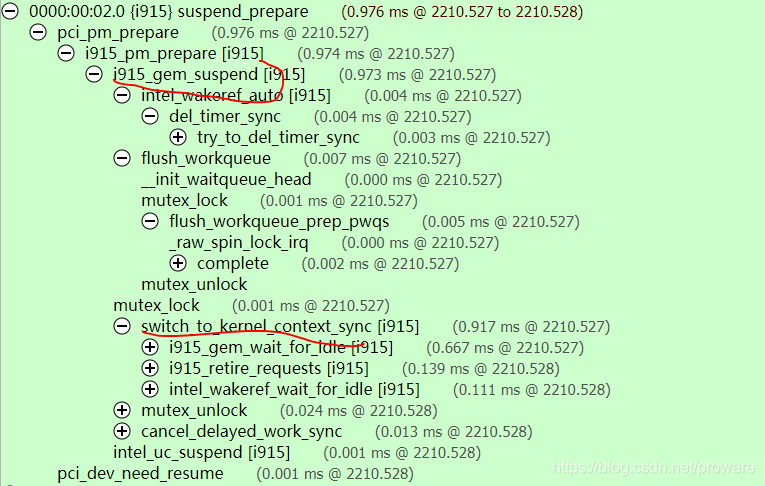

pre阶段更多是驱动软件层面清理。官方文档描述如下:
The ``prepare`` phase is meant to prevent races by preventing new
devices from being registered; the PM core would never know that all the
children of a device had been suspended if new children could be
registered at will. [By contrast, from the PM core's perspective,
devices may be unregistered at any time.] Unlike the other
suspend-related phases, during the ``prepare`` phase the device
hierarchy is traversed top-down. 主要阻止新的设备被添加到系统中,以免后续suspend开始时,还有设备添加,导致新添加的设备不能被处理。

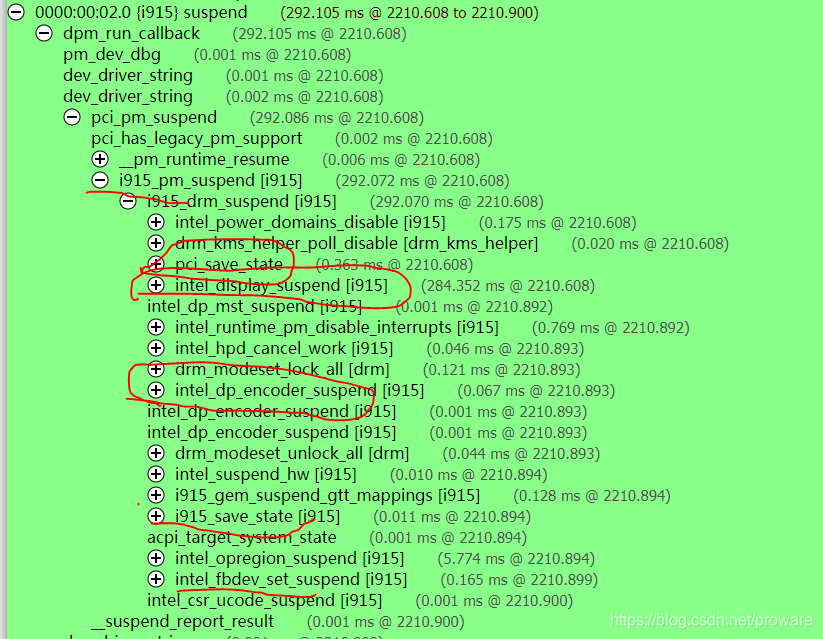

在suspend阶段,可以看到保存设备的pci的状态及设备本身的状态,display的关闭等。
The ``->suspend`` methods should quiesce the device to stop it from
performing I/O. They also may save the device registers and put it into
the appropriate low-power state, depending on the bus type the device is
on, and they may enable wakeup events. 在此处i915阶段仅仅是保持了寄存器的信息,并没有操作设备电源状态。

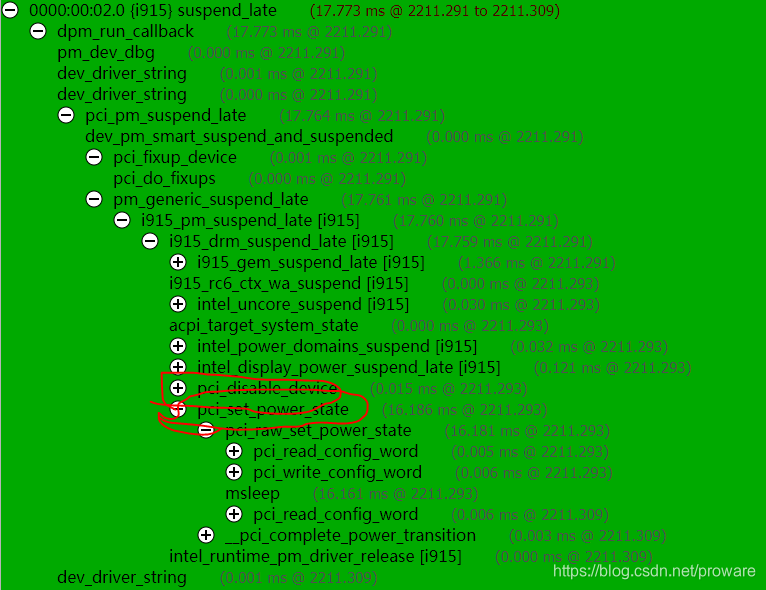

在suspend late阶段 就将设备电源状态设置为低功耗,不能直接关闭设备吧?
3. For a number of devices it is convenient to split suspend into the
"quiesce device" and "save device state" phases, in which cases
``suspend_late`` is meant to do the latter. It is always executed after
runtime power management has been disabled for the device in question.
4. The ``suspend_noirq`` phase occurs after IRQ handlers have been disabled,
which means that the driver's interrupt handler will not be called while
the callback method is running. The ``->suspend_noirq`` methods should
save the values of the device's registers that weren't saved previously
and finally put the device into the appropriate low-power state.
从描述和实际trace看,各个驱动 在实现上存在差异。
压力测试
https://01.org/pm-graph/endurance-testing
multi参数 50次,每次间隔多少秒
sudo ./sleepgraph.py -m mem -rtcwake 10 -dev -gzip -multi 50 0 -skiphtml

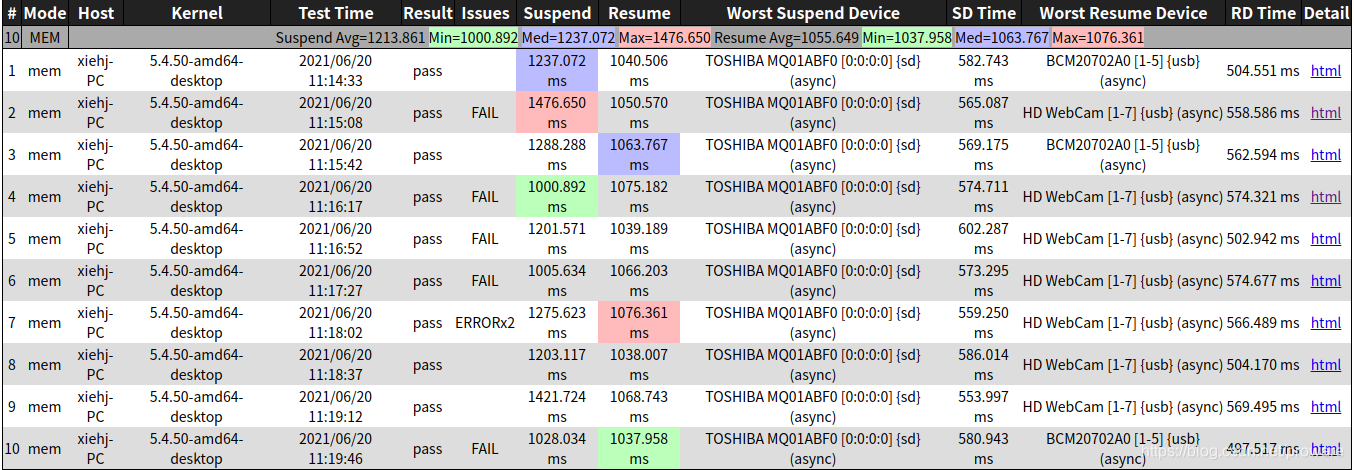

suspend-210620-111433-x10$ ../sleepgraph.py -summary . -genhtml -dev
进入生成的目录suspend-210620-111433-x10,运行命令,生成summary报告

pm-graph这个项目的主要意义在于,启发了针对内核某个特定模块进行全过程跟踪的应用程序开发。
本文介绍了如何使用pm-graph工具在内核中抓取休眠唤醒时的函数调用过程,包括安装步骤、内核配置需求以及压力测试的应用。通过示例展示了如何分析和理解设备在不同阶段的电源管理行为。
