Dijkstra算法，基于结构体数组的C++版本

最近想用结构体来重新写一遍Dijkstra算法，结构体定义的变量使得对算法一些理解变得不那么抽象，在这里写下推导过程和代码。

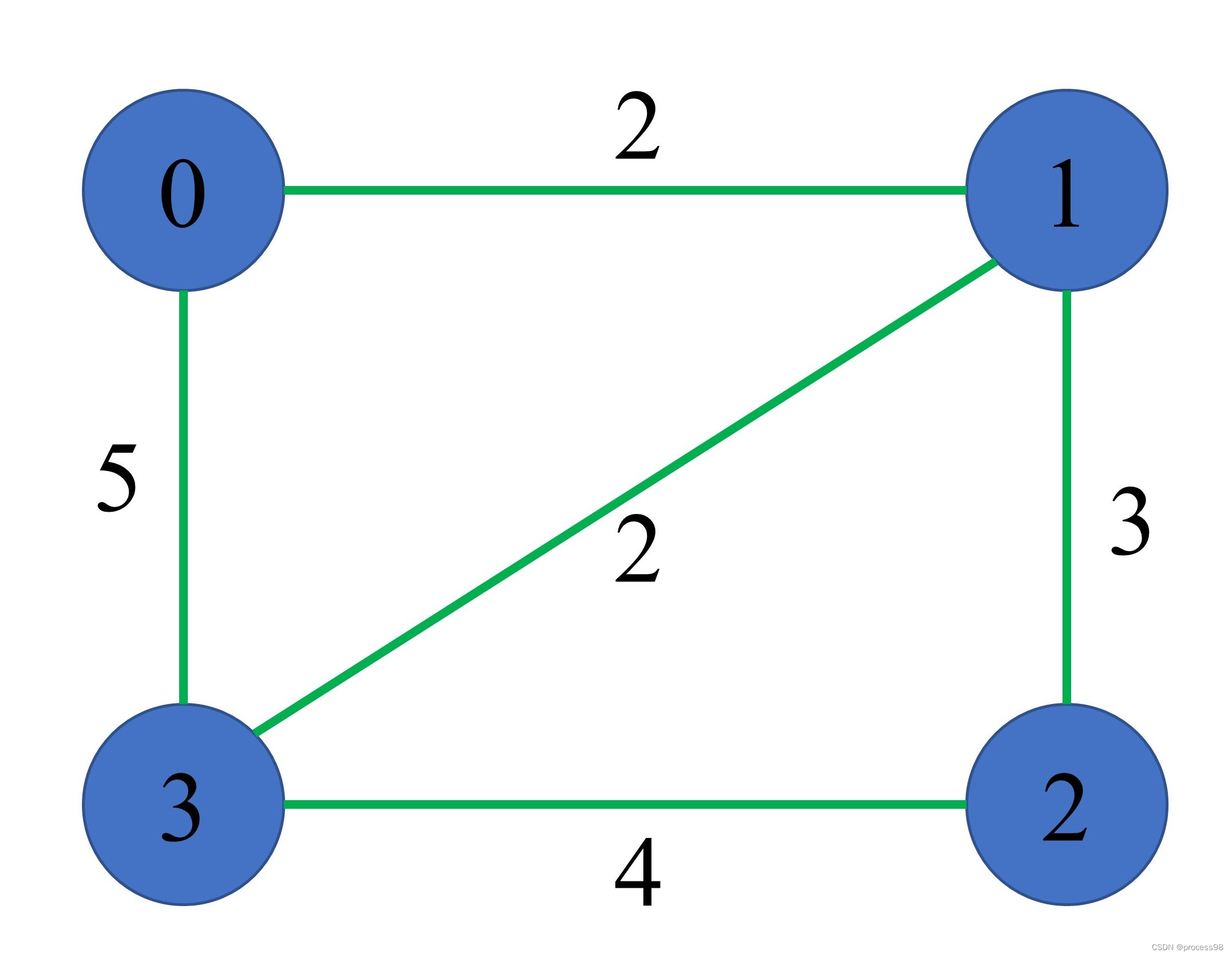

举例:蓝色圆圈代表节点，有四个节点:0、1、2、3。绿色边上的值代表经过这条边的代价系数。

目的：求出给定起始点和目标点的最小代价系数。

 准备工作，定义一些需要的变量，分别为：无穷大、邻接矩阵（这里采用vector定义为动态数组，具体的大小根据输入而计算）、n和m代表顶点个数和边的个数、起始点和目标点、最后是一个结构体---DijkstraYGY_DiscretePoint,里面包括到起始点的距离（整数变量）和是否为最短距离（布尔值）。

#include <iostream>
#include <math.h>
#include <vector>
#include <limits>

const int inf_int = std::numeric_limits<int>::max();
std::vector<std::vector<int>> graph;

int n, m;
int start_point, destination_point;

struct DijkstraYGY_DiscretePoint
{
    int Distance_from_start_point;
    bool Whether_shortest_distance;
};

子函数一:生成邻接矩阵，函数输入：顶点个数和边个数

/*Subfunction, generate adjacency matrix*/
void generate_adjacency_matrix(int vertex_number, int edge_number)
{
    graph.resize(vertex_number, std::vector<int>(vertex_number, inf_int));
    int u, v, w;
    for (int i = 0; i < vertex_number; i++)
    {
        graph[i][i] = 0;
    }
    for (int i = 0; i < edge_number; i++)
    {
        std::cout << "Please input the parameters required for the adjacency matrix" << std::endl;
        std::cin >> u >> v >> w;
        graph[u][v] = graph[v][u] = w;
    }
    std::cout << "Adjacency matrix generation completed." << std::endl;
    std::cout << "The adjacency matrix is:" << std::endl;
    for (int i = 0; i < vertex_number; i++)
    {
        for (int j = 0; j < vertex_number; j++)
        {
            std::cout << graph[i][j] << " ";
        }
        std::cout << std::endl;
    }
}

子函数二：Dijkstra主体算法，这里最难理解的可能是第二个for循环的意义，当时也纠结好久。该循环的意义就在于寻找所有可能的中转点，试想如果没有该循环，函数计算一次最短距离就停止。也就是找到一个距离最短的中转点之后就再也不遍历，这样一来如果其他中转点如果由最优解就会被丢失。

void DijkstraYGY(int start, int destination, int vertex_number)
{
    DijkstraYGY_DiscretePoint_Vector.resize(vertex_number);
    for (int i = 0; i < vertex_number; i++)
    {
        DijkstraYGY_DiscretePoint_Vector[i].Distance_from_start_point = graph[start][i];
        DijkstraYGY_DiscretePoint_Vector[i].Whether_shortest_distance = false;
    }

    DijkstraYGY_DiscretePoint_Vector[start].Whether_shortest_distance = true; /*Starting point joining a known set*/

    int Minimum_distance, Minimum_distance_point;
    Minimum_distance = inf_int;
    for (int i = 0; i < vertex_number; i++)/*The significance of variable i lies in finding all the transition points*/
    {
        for (int j = 0; j < vertex_number; j++)
        {
            if (DijkstraYGY_DiscretePoint_Vector[j].Whether_shortest_distance == false && DijkstraYGY_DiscretePoint_Vector[j].Distance_from_start_point < Minimum_distance)
            {
                Minimum_distance = DijkstraYGY_DiscretePoint_Vector[j].Distance_from_start_point;
                Minimum_distance_point = j;
            }
        }
        DijkstraYGY_DiscretePoint_Vector[Minimum_distance_point].Whether_shortest_distance = true; /*Transition point joining a known set*/
        for (int j = 0; j < vertex_number; j++)
        {
            if (DijkstraYGY_DiscretePoint_Vector[j].Whether_shortest_distance == false && DijkstraYGY_DiscretePoint_Vector[j].Distance_from_start_point > DijkstraYGY_DiscretePoint_Vector[Minimum_distance_point].Distance_from_start_point + graph[Minimum_distance_point][j])
            {
                DijkstraYGY_DiscretePoint_Vector[j].Distance_from_start_point = DijkstraYGY_DiscretePoint_Vector[Minimum_distance_point].Distance_from_start_point + graph[Minimum_distance_point][j];
            }
        }
    }
    std::cout << "The shortest distance from the starting point to the destination point is:" << DijkstraYGY_DiscretePoint_Vector[destination].Distance_from_start_point << std::endl;
}

函数主体

/*Main Function*/
int main()
{
    std::cout << "Please input the number of vertex and edge:" << std::endl;
    while (std::cin >> n >> m)
    {
        generate_adjacency_matrix(n, m);
        std::cout << "The adjacency matrix is:" << std::endl;
        for (int i = 0; i < n; i++)
        {
            for (int j = 0; j < n; j++)
            {
                std::cout << graph[i][j] << " ";
            }
            std::cout << std::endl;
        }

        std::cout << "Please the start and destination points:" << std::endl;
        std::cin >> start_point >> destination_point;
        DijkstraYGY(start_point, destination_point, n);
    }
    return 0;
}

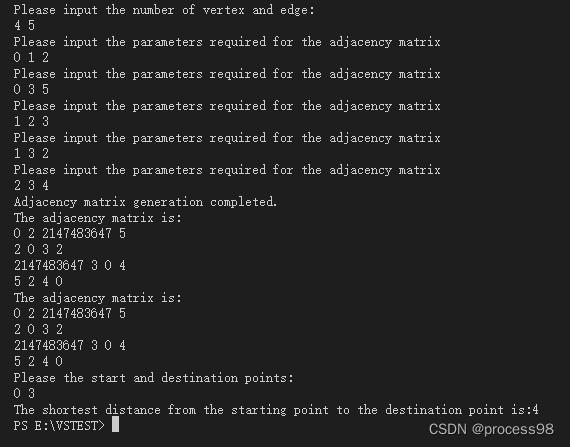

运行测试:
