在安卓手机上运行本地DeepSeek-R1模型

参考
https://llm.mlc.ai/docs/deploy/android.html#android-sdk

环境准备

1. 安装rust

参考 https://forge.rust-lang.org/infra/other-installation-methods.html#which

使用了国内的镜像，下面的选项选择1

export RUSTUP_DIST_SERVER=https://mirrors.ustc.edu.cn/rust-static
export RUSTUP_UPDATE_ROOT=https://mirrors.ustc.edu.cn/rust-static/rustup
curl --proto '=https' --tlsv1.2 -sSf https://mirrors.ustc.edu.cn/misc/rustup-install.sh  | sh

2. 安装Android Studio

参考 https://developer.android.com/studio

mkdir -p /root/android && cd /root/android
wget https://redirector.gvt1.com/edgedl/android/studio/ide-zips/2024.1.1.12/android-studio-2024.1.1.12-linux.tar.gz
tar -xvzf android-studio-2024.1.1.12-linux.tar.gz
cd android-studio
wget https://dl.google.com/android/repository/commandlinetools-linux-11076708_latest.zip?hl=zh-cn
unzip commandlinetools-linux-11076708_latest.zip\?hl\=zh-cn
export JAVA_HOME=/root/Downloads/android-studio/jbr
cmdline-tools/bin/sdkmanager "ndk;27.0.12077973" "cmake;3.22.1"  "platforms;android-34" "build-tools;33.0.1" --sdk_root='sdk'

3. 设置环境变量

. "$HOME/.cargo/env"
export ANDROID_NDK=/root/android/android-studio/sdk/ndk/27.0.12077973
export TVM_NDK_CC=$ANDROID_NDK/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android24-clang
export JAVA_HOME=/root/android//android-studio/jbr
export ANDROID_HOME=/root/android/android-studio/sdk
export PATH=/usr/local/cuda-12/bin:$PATH
export PATH=/root/android/android-studio/sdk/cmake/3.22.1/bin:$PATH

打包运行

1. 修改配置文件

修改mlc-package-config.json
参考如下

{
    "device": "android",
    "model_list": [
        {
            "model": "HF://mlc-ai/DeepSeek-R1-Distill-Qwen-7B-q4f16_1-MLC",
            "estimated_vram_bytes": 8250586449,
            "model_id": "DeepSeek-R1-Distill-Qwen-7B-q4f16_1-MLC"
        },
         {
            "model": "HF://mlc-ai/gemma-2-2b-it-q4f16_1-MLC",
            "model_id": "gemma-2-2b-it-q4f16_1-MLC",
            "estimated_vram_bytes": 3000000000
        }
    ]
}

2. 运行打包命令

 mlc_llm package

3.创建签名

cd /root/android/mlc-llm/android/MLCChat
/root/android/android-studio/jbr/bin/keytool -genkey -v -keystore my-release-key.jks -keyalg RSA -keysize 2048 -validity 10000
Enter keystore password:
Re-enter new password:
What is your first and last name?
  [Unknown]:  Any
What is the name of your organizational unit?
  [Unknown]:  Any
What is the name of your organization?
  [Unknown]:  Any
What is the name of your City or Locality?
  [Unknown]:  Any
What is the name of your State or Province?
  [Unknown]:  Any
What is the two-letter country code for this unit?
  [Unknown]:  CN
Is CN=Any, OU=Any, O=Any, L=Any, ST=Any, C=CN correct?
  [no]:  yes

Generating 2,048 bit RSA key pair and self-signed certificate (SHA256withRSA) with a validity of 10,000 days
        for: CN=Any, OU=Any, O=Any, L=Any, ST=Any, C=CN
[Storing my-release-key.jks]

4.修改gradle配置

如果是本地可以WIFI或USB调试不用签名，在服务器构建需要签名
修改app/build.gradle为如下内容，主要是增加了签名部分，注意确认签名文件的位置

plugins {
    id 'com.android.application'
    id 'org.jetbrains.kotlin.android'
}

android {
    namespace 'ai.mlc.mlcchat'
    compileSdk 34

    defaultConfig {
        applicationId "ai.mlc.mlcchat"
        minSdk 26
        targetSdk 33
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
        vectorDrawables {
            useSupportLibrary true
        }
    }


    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
    kotlinOptions {
        jvmTarget = '1.8'
    }
    buildFeatures {
        compose true
    }
    composeOptions {
        kotlinCompilerExtensionVersion '1.4.3'
    }
    packagingOptions {
        resources {
            excludes += '/META-INF/{AL2.0,LGPL2.1}'
        }
    }

    signingConfigs {
        release {
            storeFile file("/root/android/mlc-llm/android/MLCChat/my-release-key.jks")
            storePassword "123456"
            keyAlias "mykey"
            keyPassword "123456"
        }
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
            signingConfig signingConfigs.release
        }
    }
}

dependencies {
    implementation project(":mlc4j")
    implementation 'androidx.core:core-ktx:1.10.1'
    implementation 'androidx.lifecycle:lifecycle-runtime-ktx:2.6.1'
    implementation 'androidx.activity:activity-compose:1.7.1'
    implementation platform('androidx.compose:compose-bom:2022.10.00')
    implementation 'androidx.lifecycle:lifecycle-viewmodel-compose:2.6.1'
    implementation 'androidx.compose.ui:ui'
    implementation 'androidx.compose.ui:ui-graphics'
    implementation 'androidx.compose.ui:ui-tooling-preview'
    implementation 'androidx.compose.material3:material3:1.1.0'
    implementation 'androidx.compose.material:material-icons-extended'
    implementation 'androidx.appcompat:appcompat:1.6.1'
    implementation 'androidx.navigation:navigation-compose:2.5.3'
    implementation 'com.google.code.gson:gson:2.10.1'
    implementation fileTree(dir: 'src/main/libs', include: ['*.aar', '*.jar'], exclude: [])
    testImplementation 'junit:junit:4.13.2'
    androidTestImplementation 'androidx.test.ext:junit:1.1.5'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.5.1'
    androidTestImplementation platform('androidx.compose:compose-bom:2022.10.00')
    androidTestImplementation 'androidx.compose.ui:ui-test-junit4'
    debugImplementation 'androidx.compose.ui:ui-tooling'
    debugImplementation 'androidx.compose.ui:ui-test-manifest'

}

5.命令行编译

运行编译命令，完成后在app/build/outputs/apk/release生成app-release.apk安装包，下载到手机上运行
运行App需要能访问huggingface下载模型(参考文档中的bundle方法需要ADB刷入模型数据)

./gradlew assembleRelease

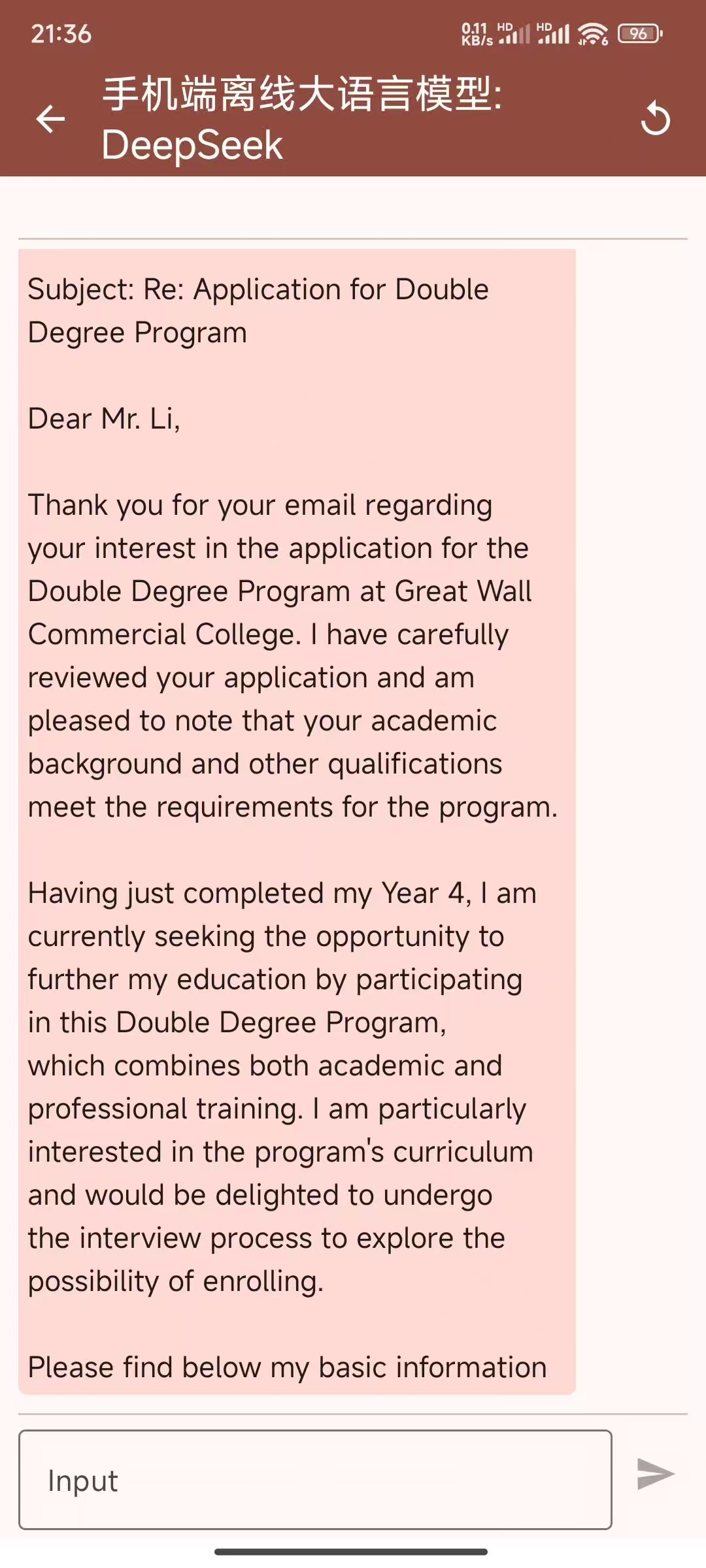

6. 运行体验

运行App需要能访问huggingface下载模型
