局部加权线性回归

1 目的

在线性回归中会出现欠拟合的情况，解决办法之一就是局部加权线性回归,
此时的线性回归系数可以表示为：
$$\hat{W}=(x^{T}MX{)}^{-1}{X}^{T}MY$$
M为每个点的权重。使用核函数对附近的点赋予跟高的权重，常用的为高斯核。
$$M(i,i)=exp(\frac{||X^i-X|{|}^2}{-2k^2})$$

2 算法

def lwlr_function(feature, label, k):
    '''局部加权线性回归
    input:  feature(mat):特征
            label(mat):标签
            k(int):核函数的系数
    output: predict(mat):最终的结果
    '''
    m = np.shape(feature)[0]
    predict = np.zeros(m)
    weights = np.mat(np.eye(m))
    for i in range(m):
        for j in range(m):
            diff = feature[i] - feature[j]
            weights[j,j] = np.exp(diff * diff.T / (-2.0 * k ** 2))
        xTx = feature.T * (weights * feature)
        ws = xTx.I * (feature.T * (weights * label))
        predict[i] = feature[i] * ws
    return predict

3 生成数据集

    feature = np.random.normal(0, 3, 100)
    feature = np.array(feature).reshape(100,1)

    label = 2 * np.sin(feature) + np.random.normal(0, 0.07, 100).reshape(100,1)
    predict = lwlr_1(feature, label, 1)
    m = np.shape(predict)[0]

4 完整代码

# coding:UTF-8

import numpy as np
import matplotlib.pyplot as plt

def lwlr_function(feature, label, k):
    '''局部加权线性回归
    input:  feature(mat):特征
            label(mat):标签
            k(int):核函数的系数
    output: predict(mat):最终的结果
    '''
    m = np.shape(feature)[0]
    predict = np.zeros(m)
    weights = np.mat(np.eye(m))
    for i in range(m):
        for j in range(m):
            diff = feature[i] - feature[j]
            weights[j,j] = np.exp(diff * diff.T / (-2.0 * k ** 2))
        xTx = feature.T * (weights * feature)
        ws = xTx.I * (feature.T * (weights * label))
        predict[i] = feature[i] * ws
    return predict
if __name__ == "__main__":
    x = np.linspace(0,20,100).reshape(100,1)
    t = np.sin(x)+ 0.2*x
    y = t + np.random.normal(0, 0.3, 100).reshape(100,1)
    z = lwlr_function(x, y, 0.6)
    plt.plot(x,t,'g')
    plt.plot(x,y,'b.')
    plt.plot(x,z,'r-')
    plt.show()

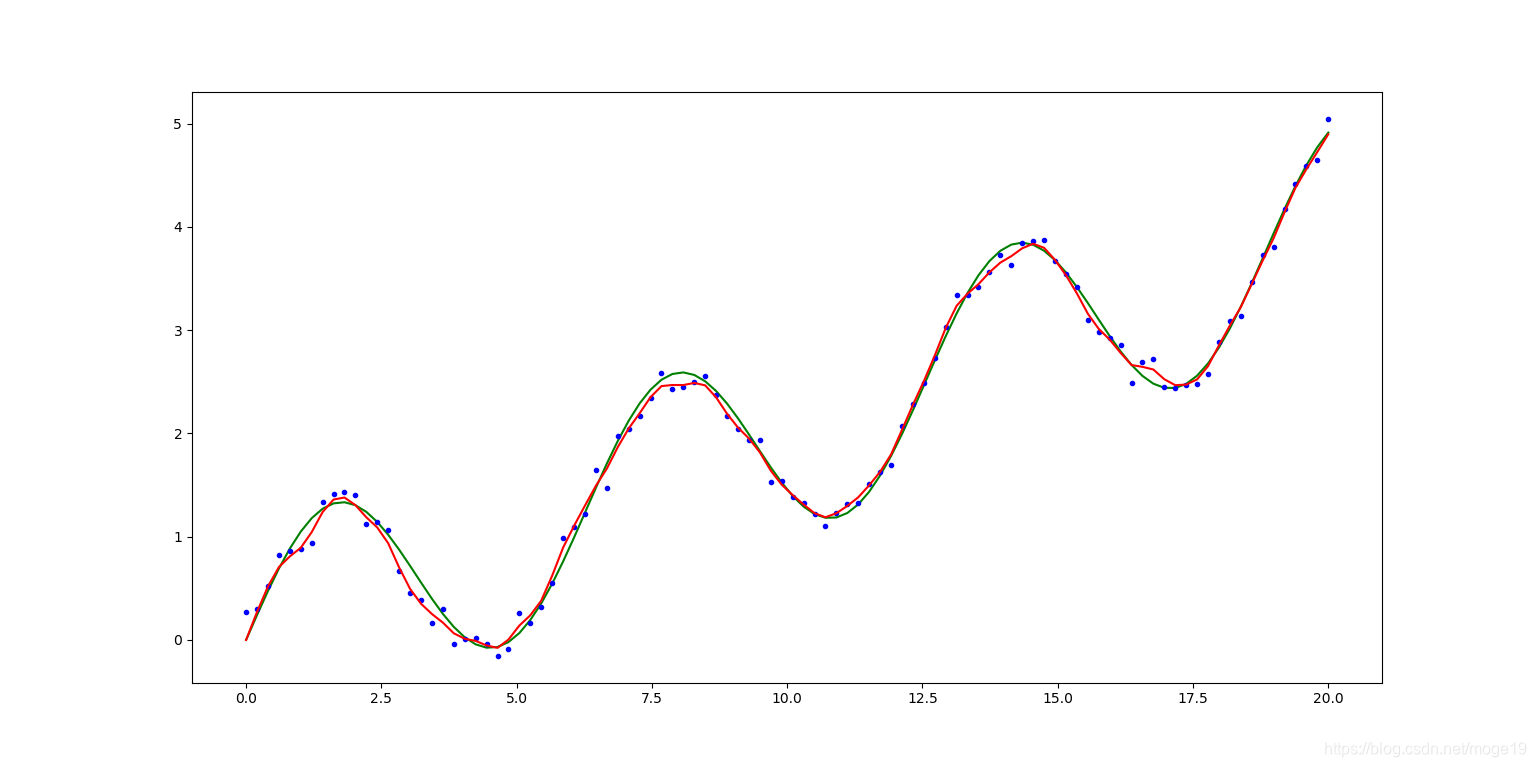

5 运行结果

蓝色的是加了噪声的数据，绿色为原数据点，红色为拟合后的数据点
