⛄ 内容介绍

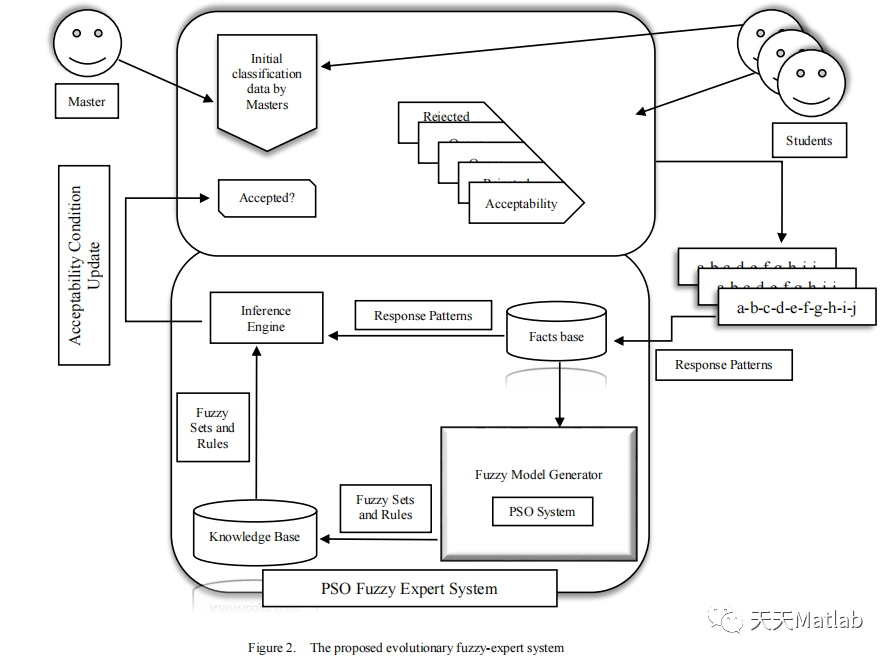

The intelligent decision making systems are useful tools for the assistance of human expert, and or as a perfect alternative for expert in a variety of auto-decision making fields. The use of such systems in education, agriculture, industry, fishery, animal husbandry etc., can decrease manpower errors or need of it; In the other hand, it can increase the quality and the pace of service giving. The interview at the PH.D level or even Master's degree, due to the high sensitivity in scoring to the candidates, is of high importance. Therefore, creating a system for storing these scores, and inferring the results can be beneficial when there is a large number of candidates. In this paper, the expert system has an educational use, and classifies the probability of acceptance or unacceptance of PH.D candidates in the exam and interview, based on the (National Organization of Educational Testing) NOET measures, also estimates scientific level of candidates. The proposed fuzzy-expert system takes advantage of the particle swarm optimization (PSO) evolutionary algorithm to specifying the score of each variable, and eventually the final condition of the candidate. The acquired results of evaluating the fuzzy-expert system proves its functionality. This system is also able to function well in scoring similar educational cases to specify acceptance.

⛄ 部分代码

clear

clc

close all

load DB

%%%%%%%%%%%%%%%%%%%%Optimization with PSO%%%%%%%%%%%%%%%%

disp('**********************************');

PSO_EasyLevel

EasyLevelRanges=gbest(end,:);

disp('**********************************');

disp(['**Rejected Level Ranges:   ' , num2str(EasyLevelRanges)]);

disp(['  fittness:   ',num2str(gbestcost(end))]);

figure

disp('**********************************');

PSO_ModerateLevel

ModerateLevelRanges=gbest(end,:);

disp('**********************************');

disp(['**Most Likely Level Ranges:   ' , num2str(ModerateLevelRanges)]);

disp(['  fittness:   ',num2str(gbestcost(end))]);

figure

disp('**********************************');

PSO_HardLevel

HardLevelRanges=gbest(end,:);

disp('**********************************');

disp(['**Accepted Level Ranges:   ' , num2str(HardLevelRanges)]);

disp(['  fittness:   ',num2str(gbestcost(end))]);

disp('**********************************');

%%%%%%%%%%%%%%%%%%%Fuzzy Step%%%%%%%%%%%%%%%%%%

easy =[easy(:,1)*(EasyLevelRanges(2)-EasyLevelRanges(1))/(max(easy(:,1))-min(easy(:,1)))...

       easy(:,2)*(EasyLevelRanges(4)-EasyLevelRanges(3))/(max(easy(:,2))-min(easy(:,2)))...

       easy(:,3)*(EasyLevelRanges(6)-EasyLevelRanges(5))/(max(easy(:,3))-min(easy(:,3)))...

       easy(:,4)*(EasyLevelRanges(8)-EasyLevelRanges(7))/(max(easy(:,4))-min(easy(:,4)))...

       easy(:,5)*(EasyLevelRanges(10)-EasyLevelRanges(9))/(max(easy(:,5))-min(easy(:,5)))...

       easy(:,6)*(EasyLevelRanges(12)-EasyLevelRanges(11))/(max(easy(:,6))-min(easy(:,6)))...

       easy(:,7)*(EasyLevelRanges(14)-EasyLevelRanges(13))/(max(easy(:,7))-min(easy(:,7)))...

       easy(:,8)*(EasyLevelRanges(16)-EasyLevelRanges(15))/(max(easy(:,8))-min(easy(:,8)))...

       easy(:,9)*(EasyLevelRanges(18)-EasyLevelRanges(17))/(max(easy(:,9))-min(easy(:,9)))...

       easy(:,10)*(EasyLevelRanges(20)-EasyLevelRanges(19))/(max(easy(:,10))-min(easy(:,10)))];

moderate =[moderate(:,1)*(ModerateLevelRanges(2)-ModerateLevelRanges(1))/(max(moderate(:,1))-min(moderate(:,1)))...

           moderate(:,2)*(ModerateLevelRanges(4)-ModerateLevelRanges(3))/(max(moderate(:,2))-min(moderate(:,2)))...

           moderate(:,3)*(ModerateLevelRanges(6)-ModerateLevelRanges(5))/(max(moderate(:,3))-min(moderate(:,3)))...

           moderate(:,4)*(ModerateLevelRanges(8)-ModerateLevelRanges(7))/(max(moderate(:,4))-min(moderate(:,4)))...

           moderate(:,5)*(ModerateLevelRanges(10)-ModerateLevelRanges(9))/(max(moderate(:,5))-min(moderate(:,5)))...

           moderate(:,6)*(ModerateLevelRanges(12)-ModerateLevelRanges(11))/(max(moderate(:,6))-min(moderate(:,6)))...

           moderate(:,7)*(ModerateLevelRanges(14)-ModerateLevelRanges(13))/(max(moderate(:,7))-min(moderate(:,7)))...

           moderate(:,8)*(ModerateLevelRanges(16)-ModerateLevelRanges(15))/(max(moderate(:,8))-min(moderate(:,8)))...

           moderate(:,9)*(ModerateLevelRanges(18)-ModerateLevelRanges(17))/(max(moderate(:,9))-min(moderate(:,9)))...

           moderate(:,10)*(ModerateLevelRanges(20)-ModerateLevelRanges(19))/(max(moderate(:,10))-min(moderate(:,10)))];



hard =[hard(:,1)*(HardLevelRanges(2)-HardLevelRanges(1))/(max(hard(:,1))-min(hard(:,1)))...

       hard(:,2)*(HardLevelRanges(4)-HardLevelRanges(3))/(max(hard(:,2))-min(hard(:,2)))...

       hard(:,3)*(HardLevelRanges(6)-HardLevelRanges(5))/(max(hard(:,3))-min(hard(:,3)))...

       hard(:,4)*(HardLevelRanges(8)-HardLevelRanges(7))/(max(hard(:,4))-min(hard(:,4)))...

       hard(:,5)*(HardLevelRanges(10)-HardLevelRanges(9))/(max(hard(:,5))-min(hard(:,5)))...

       hard(:,6)*(HardLevelRanges(12)-HardLevelRanges(11))/(max(hard(:,6))-min(hard(:,6)))...

       hard(:,7)*(HardLevelRanges(14)-HardLevelRanges(13))/(max(hard(:,7))-min(hard(:,7)))...

       hard(:,8)*(HardLevelRanges(16)-HardLevelRanges(15))/(max(hard(:,8))-min(hard(:,8)))...

       hard(:,9)*(HardLevelRanges(18)-HardLevelRanges(17))/(max(hard(:,9))-min(hard(:,9)))...

       hard(:,10)*(HardLevelRanges(20)-HardLevelRanges(19))/(max(hard(:,10))-min(hard(:,10)))];



Xin  = [easy;moderate;hard];

Xout = [ones(size(easy,1),1);2*ones(size(moderate,1),1);3*ones(size(hard,1),1)];

fismat = genfis3(Xin,Xout,'mamdani',10);

fismat = setfis(fismat, 'name', 'Sanjesh Expert System');

fismat = setfis(fismat,'output',1, 'name', 'Condition');

fismat = setfis(fismat,'input',1, 'name', 'Ex-uni Length');

fismat = setfis(fismat,'input',2, 'name', 'Ex-uni Average');

fismat = setfis(fismat,'input',3, 'name', 'Olympiad Chosen');

fismat = setfis(fismat,'input',4, 'name', 'Ex-Uni Quality');

fismat = setfis(fismat,'input',5, 'name', 'IELTS');

fismat = setfis(fismat,'input',6, 'name', 'Papers');

fismat = setfis(fismat,'input',7, 'name', 'Festival Chosen');

fismat = setfis(fismat,'input',8, 'name', 'Compilation,Translation,Invention');

fismat = setfis(fismat,'input',9, 'name', 'Msc Thesis Quality');

fismat = setfis(fismat,'input',10, 'name', 'Interviews Test');

fismat = setfis(fismat,'output',1,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'output',1,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'output',1,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',1,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',1,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',1,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',2,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',2,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',2,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',3,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',3,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',3,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',4,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',4,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',4,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',5,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',5,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',5,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',6,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',6,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',6,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',7,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',7,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',7,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',8,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',8,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',8,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',9,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',9,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',9,'mf', 3, 'name', 'H');

fismat = setfis(fismat,'input',10,'mf', 1, 'name', 'L');

fismat = setfis(fismat,'input',10,'mf', 2, 'name', 'M');

fismat = setfis(fismat,'input',10,'mf', 3, 'name', 'H');

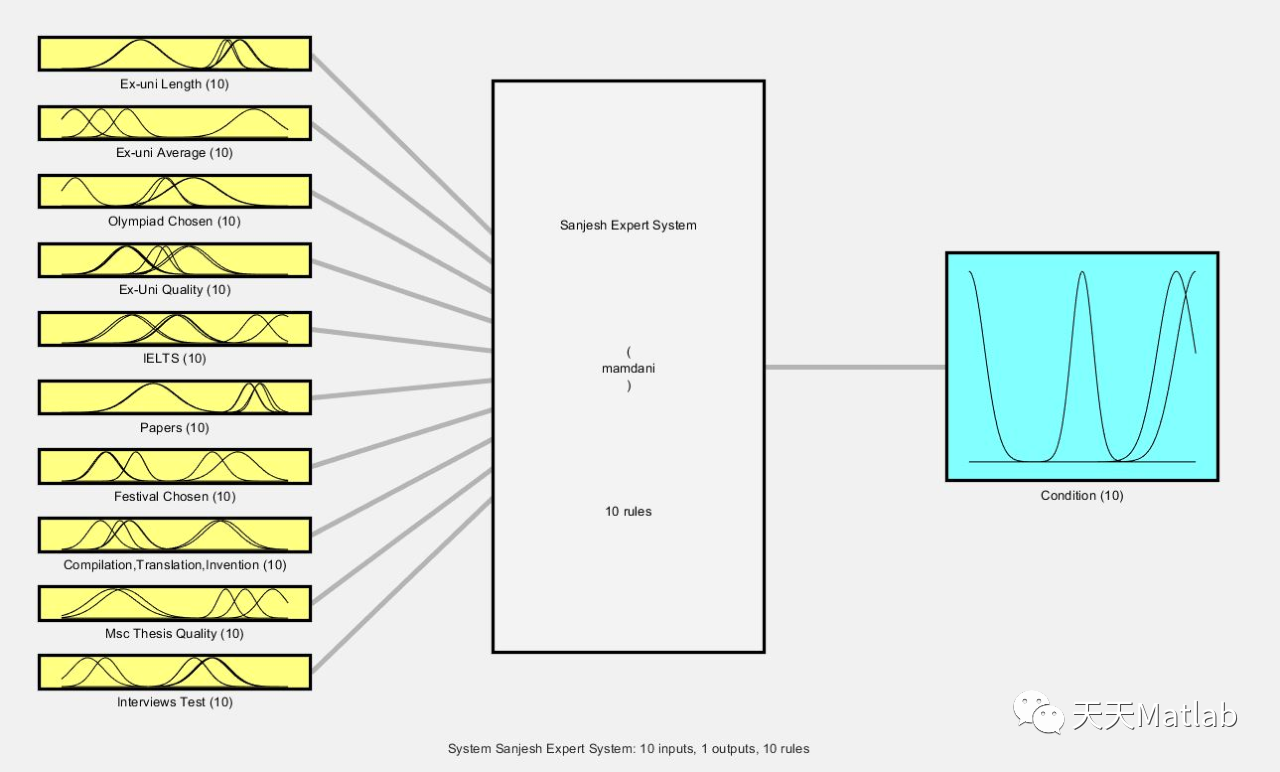

figure

plotfis(fismat);

figure

[x,mf] = plotmf(fismat,'input',1);

subplot(5,1,1), plot(x,mf);

xlabel('Membership Functions for Ex-uni Length');

[x,mf] = plotmf(fismat,'input',2);

subplot(5,1,2), plot(x,mf);

xlabel('Membership Functions for Ex-uni Average');

[x,mf] = plotmf(fismat,'input',3);

subplot(5,1,3), plot(x,mf);

xlabel('Membership Functions for Olympiad Chosen');

[x,mf] = plotmf(fismat,'input',4);

subplot(5,1,4), plot(x,mf);

xlabel('Membership Functions for Ex-Uni Quality');

[x,mf] = plotmf(fismat,'input',5);

subplot(5,1,5), plot(x,mf);

xlabel('Membership Functions for IELTS');

figure

[x,mf] = plotmf(fismat,'input',6);

subplot(5,1,1), plot(x,mf);

xlabel('Membership Functions for Papers');

[x,mf] = plotmf(fismat,'input',7);

subplot(5,1,2), plot(x,mf);

xlabel('Membership Functions for Festival Chosen');

[x,mf] = plotmf(fismat,'input',8);

subplot(5,1,3), plot(x,mf);

xlabel('Membership Functions for Compilation,Translation,Invention');

[x,mf] = plotmf(fismat,'input',9);

subplot(5,1,4), plot(x,mf);

xlabel('Membership Functions for Msc Thesis Quality');

[x,mf] = plotmf(fismat,'input',10);

subplot(5,1,5), plot(x,mf);

xlabel('Membership Functions for Interviews Test');

figure

[x,mf] = plotmf(fismat,'output',1);

subplot(5,1,1), plot(x,mf);

xlabel('Membership Functions for Condition(output)');

fismat.defuzzMethod='centroid'; %or 'mom'

writefis(fismat,'expert system.fis');

ruleview('expert system')

showfis(fismat)

fuzzy(fismat)

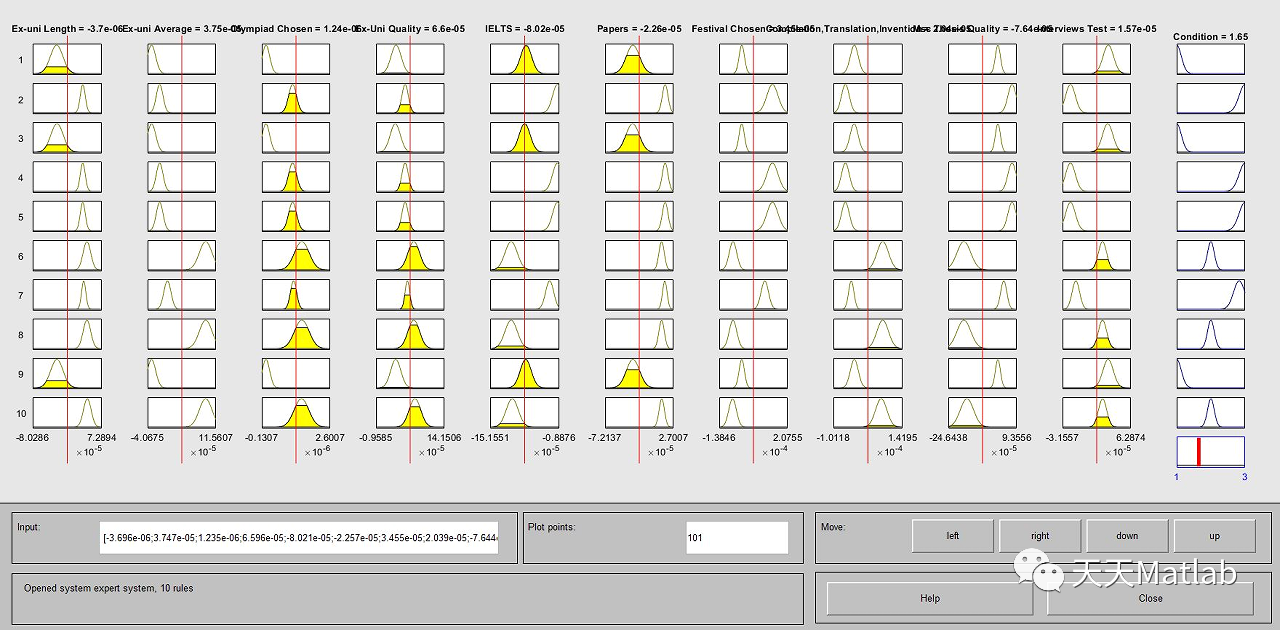

⛄ 运行结果

⛄ 参考文献

Mousavi, Seyed Muhammad Hossein, et al. "A PSO fuzzy-expert system: As an assistant for specifying the acceptance by NOET measures, at PH. D level." 2017 Artificial Intelligence and Signal Processing Conference (AISP). IEEE, 2017.
