【图像融合】基于方向离散余弦变换和主成分分析的图像融合附matlab代码

 1 简介

摘要：

The purpose of image fusion is to merge relevant information from multiple images right into a single image. In this paper, by conducting the review it has been discovered that the majority of the existing techniques are based upon transform domain therefore it could results in some artifacts which might decrease the execution of the transform based vision fusion techniques. Moreover it is already been discovered that the issue of the uneven illuminate has already been neglected in the absolute most of existing focus on fusion. Therefore to overcome these issues, a fresh method which integrates the larger valued Alternating Current (AC) coefficients calculated in iterative block level principal component averaging (IBLPCA) domain base fusion with illuminate normalization and fuzzy enhancement has been proposed in this paper. The experimental results show the efficiency of proposed algorithm over existing work.

​2 部分代码

%function[] = DDCTIFdemo()% DDCT (Directional Discrete Cosine Transform) based image fusion - demo% VPS Naidu, MSDF Lab, CSIR-NAL, March 2014% Reference: "? %       Journal of Optics, Vol. 43, No.1, pp.48-61, March 2014.​%%close all;clear all;home;​%%dflg = 1; % 0: no display OR 1: displayaflag = 1; % 1: Average, 2: max rule OR 3: energy rulebs = 4; %[4 8 16 32 64 128 256];  block size​%%% insert imagesimt = im2double(imread('saras9t.jpg'));im1 = im2double(imread('saras91.jpg'));im2 = im2double(imread('saras92.jpg'));​if dflg == 1    figure(1);    subplot(121);imshow(im1);title('image to be fused - im1');    subplot(122);imshow(im2);title('image to be fused - im2');    pause(1);end​%%mode = [0 1 3 4 5 6 7 8]; % directional modelmode = length(mode);​%% if aflag == 1 % fusion by DDCT average rule    h1 = waitbar(0,'Please wait...');    for j=1:lmode        imf1{j} = DDCTIFav(im1,im2,bs,mode(j));        waitbar(j/lmode,h1);    end    close(h1);end​%%if aflag == 2 % fusion by DDCT max rule    h1 = waitbar(0,'Please wait...');    for j=1:lmode        imf1{j} = DDCTIFmax(im1,im2,bs,mode(j));        waitbar(j/lmode,h1);    end    close(h1);end​%%if aflag == 3 % fusion by DDCT energy rule    h1 = waitbar(0,'Please wait...');    for j=1:lmode        imf1{j} = DDCTIFek(im1,im2,bs,mode(j));        waitbar(j/lmode,h1);    end    close(h1);end%%% fusion by PCAimf = fuse_pca(imf1{1},imf1{2},imf1{3},imf1{4},imf1{5},imf1{6},imf1{7},imf1{8});​%%% Performance evaluation metrics[RMSE,SF] = im_fuse_per_eval(imt,imf);​%%% display resultsif dflg == 1    figure(2);    subplot(121); imshow(imf); title('fused image');        imd = imt-imf;    subplot(122); imshow(imd); title('error image');endfprintf('\nRMSE :  %3f2', RMSE);fprintf('\nSF   :  %3f2', SF);fprintf('\n\n');%%

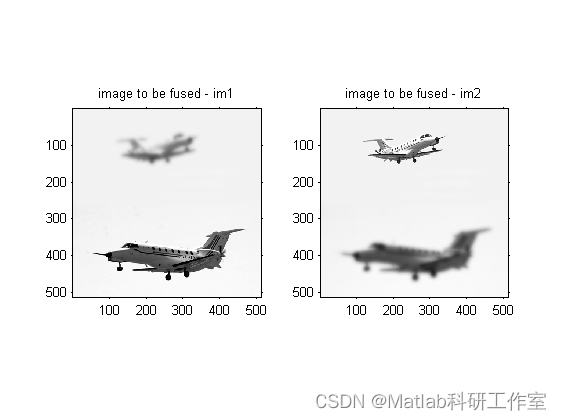

3 仿真结果

4 参考文献

[1]赵晓雷. 基于IHS变换和主成分分析变换的图像融合[J]. 科学技术与工程, 2010(20):4.

[2] Kaur P . Hybrid PCA-DCT Based Image Fusion For Medical Images.
