HarmonyOS Next开发学习手册——UI开发框架 (HML语法)

HML语法参考

HML是一套类HTML的标记语言,通过组件,事件构建出页面的内容。页面具备数据绑定、事件绑定、列表渲染、条件渲染和逻辑控制等高级能力。

页面结构

<!-- xxx.hml -->
<div class="item-container">
  <text class="item-title">Image Show</text>
  <div class="item-content">
    <image src="/common/xxx.png" class="image"></image>
  </div>
</div>

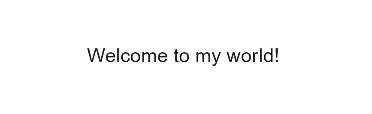

数据绑定

<!-- xxx.hml -->
<div class="container" onclick="changeText">
  <text> {

  {content[1]}} </text>
</div>

/*xxx.css*/
.container{
    margin: 200px;
}

// xxx.js
export default {
  data: {
    content: ['Hello World!', 'Welcome to my world!']
  },
  changeText: function() {
    this.content.splice(1, 1, this.content[0]);
  }
}

说明

  • 针对数组内的数据修改,请使用splice方法生效数据绑定变更。
  • hml文件中的js表达式不支持ES6语法。

普通事件绑定

事件通过’on’或者’@'绑定在组件上,当组件触发事件时会执行JS文件中对应的事件处理函数。

事件支持的写法有:

  • “funcName”:funcName为事件回调函数名(在JS文件中定义相应的函数实现)。
  • “funcName(a,b)”:函数参数例如a,b可以是常量,或者是在JS文件中的data中定义的变量(前面不用写this.)。
  • 示例
<!-- xxx.hml -->
<div class="container">
    <text class="title">{

  {count}}</text>
    <div class="box">
        <input type="button" class="btn" value="increase" onclick="increase" />
        <input type="button" class="btn" value="decrease" @click="decrease" />
        <!-- 传递额外参数 -->
        <input type="button" class="btn" value="double" @click="multiply(2)" />
        <input type="button" class="btn" value="decuple" @click="multiply(10)" />
        <input type="button" class="btn" value="square" @click="multiply(count)" />
    </div>
</div>

// xxx.js
export default {
  data: {
    count: 0
  },
  increase() {
    this.count++;
  },
  decrease() {
    this.count--;
  },
  multiply(multiplier) {
    this.count = multiplier * this.count;
  }
};

/* xxx.css */
.container {
    display: flex;
    flex-direction: column;
    justify-content: center;
    align-items: center;
    left: 0px;
    top: 0px;
    width: 454px;
    height: 454px;
}
.title {
    font-size: 30px;
    text-align: center;
    width: 200px;
    height: 100px;
}
.box {
    width: 454px;
    height: 200px;
    justify-content: center;
    align-items: center;
    flex-wrap: wrap;
}
.btn {
    width: 200px;
    border-radius: 0;
    margin-top: 10px;
    margin-left: 10px;
}
