[xilinx.com:ip:smartconnect:1.0-1] 告警解决

[xilinx.com:ip:smartconnect:1.0-1] design_1_smartconnect_0_0: The device(s) attached to /M05_AXI do not share a common clock frequency with this smartconnect instance. Modify the clock frequency values of the attached device(s) or re-customize this AXI SmartConnect instance to add a new clock pin and connect it to the same clock source of the IP attached to /M05_AXI to prevent further clock DRC violations.

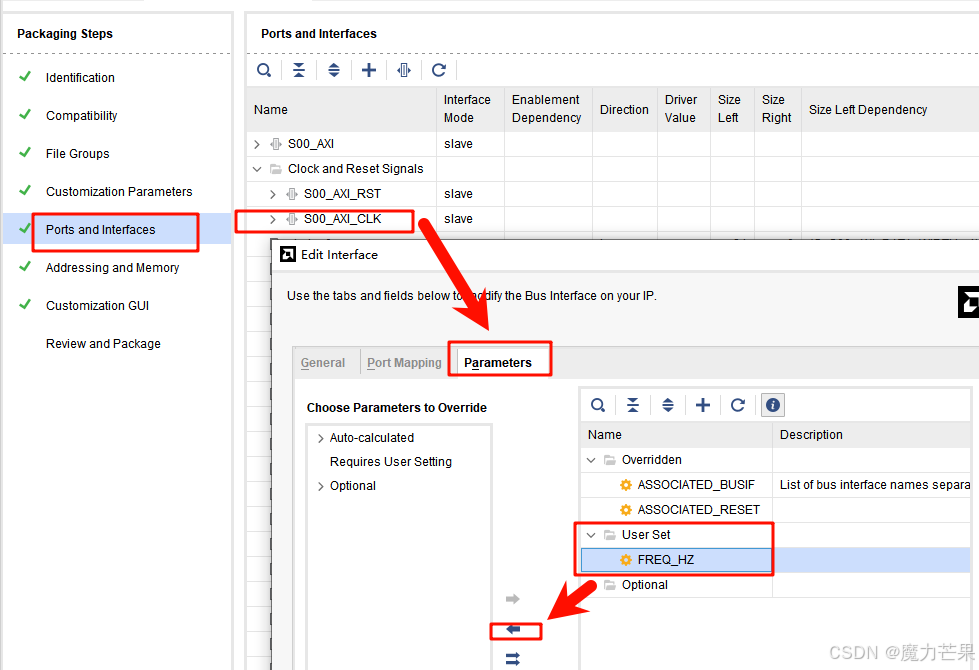

自定义IP的时钟线连对后,时钟端口属性与SmartConnect不匹配 ;去掉后虽然IP封装会报警告但是正式工程中没有Critical Warning了

更新到正式工程中后,需要Generate IP ;或者reset_project之后重新综合

2025-03-21 11:42:09.766 1885-5459 ActivityTaskManager system_server I START u0 {act=com.google.android.gms.auth.NO_IMPL hwFlg=0x10 pkg=smartconnection.com.smartconnect cmp=smartconnection.com.smartconnect/com.google.android.gms.auth.api.signin.internal.SignInHubActivity (has extras)} from uid 10306 2025-03-21 11:42:09.766 1885-5459 ActivityTaskManager system_server I ActivityRecord info: ActivityInfo{80b4cc2 com.google.android.gms.auth.api.signin.internal.SignInHubActivity} 2025-03-21 11:42:09.767 1885-5459 ActivityTaskManager system_server D TaskLaunchParamsModifier:task=null activity=ActivityRecord{36f4610 u0 smartconnection.com.smartconnect/com.google.android.gms.auth.api.signin.internal.SignInHubActivity} mVisible=false mOccludesParent=false display-area-from-source=DefaultTaskDisplayArea@22530010 display-id=0 display-windowing-mode=1 suggested-display-area=DefaultTaskDisplayArea@22530010 2025-03-21 11:42:09.767 1885-5459 ActivityTaskManager system_server D TaskLaunchParamsModifier:task=Task{9cd2537 #704 type=standard A=10306:smartconnection.com.smartconnect U=0 visible=true visibleRequested=true mode=fullscreen bound=Rect(0, 0 - 1080, 2388) translucent=false sz=2 embedded=false} activity=ActivityRecord{36f4610 u0 smartconnection.com.smartconnect/com.google.android.gms.auth.api.signin.internal.SignInHubActivity} mVisible=false mOccludesParent=false t-1 mode=undefined boundsRect(0, 0 - 0, 0)} display-area-from-source=DefaultTaskDisplayArea@22530010 display-id=0 display-windowing-mode=1 suggested-display-area=DefaultTaskDisplayArea@22530010 inherit-from-source=fullscreen activity-options-fullscreen=Rect(0, 0 - 0, 0) non-freeform-display display-area=DefaultTaskDisplayArea@22530010 2025-03-21 11:42:09.768 1885-5459 WindowManager system_server I addWindowToken: displayid:0 binder:Token{e19e509 ActivityRecord{36f4
