使用的是这个作者的代码：
GitHub - mjpramirez/Volvo-DataX
注意，他没有提供训练代码，只能跑出一个demo，因为我是只要一个可视化的效果，找了很多最终只有这个跑成功了。

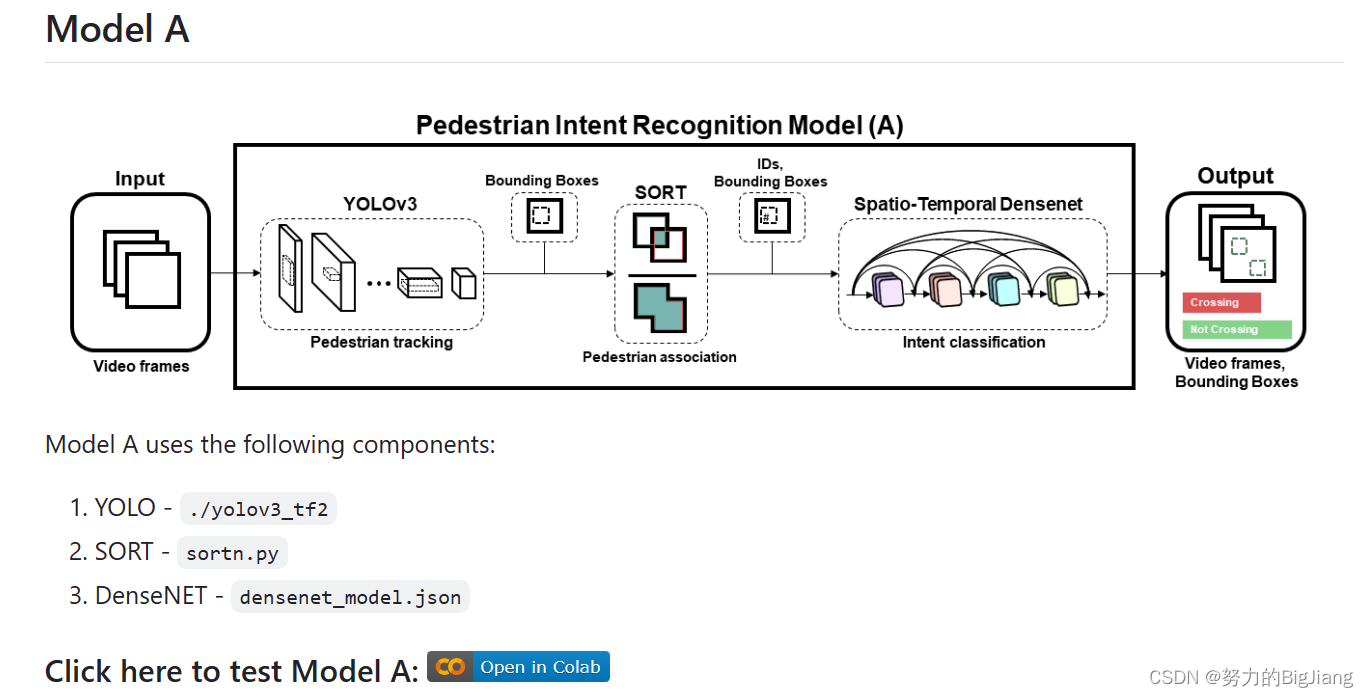

官方提供了四个模型，思路大差不差，我跑了一个modelA
它是在colab上跑的，这玩意儿对我来说不好使，于是我把他的代码扒下来，作了一点小改动在我的Ubuntu系统用pycharm跑的。附上代码：
import sys
from absl import app, logging, flags
from absl.flags import FLAGS
import time
import cv2
import numpy as np
import tensorflow as tf
from yolov3_tf2.models import (
YoloV3, YoloV3Tiny
)
from yolov3_tf2.dataset import transform_images, load_tfrecord_dataset
from yolov3_tf2.utils import draw_outputs
from sortn import *
def pred_func(X_test):
predictions = model_j.predict(X_test[0:1], verbose=0)
Y = np.argmax(predictions[0], axis=0)
return Y
def run_model():
print('Processing started.......')
frame = 0
try:
vid = cv2.VideoCapture(int(FLAGS.video))
except:
vid = cv2.VideoCapture(FLAGS.video)
out = None
if FLAGS.output:
# by default VideoCapture returns float instead of int
width = int(vid.get(cv2.CAP_PROP_FRAME_WIDTH))
height = int(vid.get(cv2.CAP_PROP_FRAME_HEIGHT))
fps = int(vid.get(cv2.CAP_PROP_FPS))
codec = cv2.VideoWriter_fourcc(*FLAGS.output_format)
out = cv2.VideoWriter(FLAGS.output, codec, fps, (width, height))
# create instance of SORT
mot_tracker = Sort()
rolling_data = {}
while True:
_, img = vid.read()
if img is None:
break
frame += 1
img_in = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
img_orig = np.copy(img)
img_in = tf.expand_dims(img_in, 0)
img_in = transform_images(img_in, FLAGS.size)
boxes, scores, classes, nums = yolo.predict(img_in) # yolo prediction
dets = boxes[:, :nums[0], :].reshape(nums[0], 4) # filter pedestrians
trackers = mot_tracker.update(dets[classes[0][:nums[0]] == 0]) # track the pedestrians
for d in trackers:
wh = np.flip(img.shape[0:2])
x1y1 = tuple((np.array(d[0:2]) * wh).astype(np.int32))
x2y2 = tuple((np.array(d[2:4]) * wh).astype(np.int32))
y = 0
if int(d[4]) in list(rolling_data.keys()):
if len(rolling_data[int(d[4])]) == 16:
seq = np.stack(np.array(rolling_data[int(d[4])]), axis=2) # (100*100*16*3)
seq = np.expand_dims(seq, axis=0)
y = pred_func(seq) # classification output
else:
seq = np.stack(np.array([rolling_data[int(d[4])][-1]] * 16), axis=2)
seq = np.expand_dims(seq, axis=0)
y = pred_func(seq) # classification output
# risky pedestrian identification thru box color
if y == 1:
color = (0, 0, 255)
else:
color = (0, 255, 0)
image = cv2.rectangle(img, x1y1, x2y2, color, thickness)
image = cv2.putText(image, str(int(d[4])), org=(x1y1[0], x1y1[1] - 5), fontFace=cv2.FONT_HERSHEY_SIMPLEX,
fontScale=1, color=color, thickness=thickness)
image = cv2.putText(image, "Frame No: {}".format(frame), (0, 30), cv2.FONT_HERSHEY_COMPLEX_SMALL, 1,
(255, 0, 0), 2)
# storing the data for last 16 frames
try:
if int(d[4]) in list(rolling_data.keys()): # ID exists in dict
if len(rolling_data[int(d[4])]) < 16: # bboxes values for 16 frames
cropped_seq = []
cropped_img = cv2.resize(img_orig[x1y1[1]:x2y2[1], x1y1[0]:x2y2[0]], (100, 100))
rolling_data[int(d[4])].append(np.asarray(cropped_img)) # append the image
else:
del rolling_data[int(d[4])][0] # delete oldest frame bbox and append latest frame bbox
cropped_seq = []
cropped_img = cv2.resize(img_orig[x1y1[1]:x2y2[1], x1y1[0]:x2y2[0]], (100, 100))
rolling_data[int(d[4])].append(np.asarray(cropped_img))
else:
cropped_seq = []
cropped_img = cv2.resize(img_orig[x1y1[1]:x2y2[1], x1y1[0]:x2y2[0]], (100, 100))
rolling_data[int(d[4])] = [np.asarray(cropped_img)]
except:
pass
if FLAGS.output:
out.write(img)
cv2.imshow('output', img)
if cv2.waitKey(1) == ord('q'):
break
cv2.destroyAllWindows()
print('\nProcessing completed.......!!!')
print('Check video file in Volvo-DataX folder!')
return
if __name__ == "__main__":
flags.DEFINE_string('classes', 'data/coco.names', 'path to classes file')
flags.DEFINE_string('weights', 'Volvo-DataX-master/datax_volvo_additional_files/yolov3_train_5.tf',
'path to weights file') #改为自己的权重文件路径
flags.DEFINE_boolean('tiny', False, 'yolov3 or yolov3-tiny')
flags.DEFINE_integer('size', 416, 'resize images to')
flags.DEFINE_string('tfrecord', None, 'tfrecord instead of image')
flags.DEFINE_integer('num_classes', 1, 'number of classes in the model')
flags.DEFINE_string('video', 'data/2-3.mp4', 'path to video file or number for webcam)')#改为自己的测试视频路径
flags.DEFINE_string('output', 'Result_model_A1.mp4', 'path to output video')#保存路径
flags.DEFINE_string('output_format', 'mp4v', 'codec used in VideoWriter when saving video to file')
app._run_init(['yolov3'], app.parse_flags_with_usage)
#physical_devices = tf.config.experimental.list_physical_devices('GPU')
#tf.config.experimental.set_memory_growth(physical_devices[0], True)
# Reading the model from JSON file
with open('densenet_model.json', 'r') as json_file:
json_savedModel = json_file.read()
model_j = tf.keras.models.model_from_json(json_savedModel)
model_j.load_weights('densenet_1.hdf5')
# print('Model loaded')
# Run this
FLAGS.yolo_iou_threshold = 0.5
FLAGS.yolo_score_threshold = 0.5
color = (255, 0, 0)
thickness = 2
yolo = YoloV3(classes=FLAGS.num_classes)
yolo.load_weights(FLAGS.weights).expect_partial()
logging.info('weights loaded')
class_names = [c.strip() for c in open(FLAGS.classes).readlines()]
logging.info('classes loaded')
run_model()
里面的权重文件yolov3_train_5.tf需要到作者的谷歌云盘里下载，这里我直接放上链接：
链接：https://pan.baidu.com/s/10i2nk1ugTNCmbwNu_G1syQ?pwd=5e99
提取码：5e99
--来自百度网盘超级会员V3的分享
很简单，只需要把相应的库配置好，就可以跑出结果了！
结果视频不好放，还是放链接吧：
链接：https://pan.baidu.com/s/1mH20VVR43dOSx7pNMWBVsg?pwd=slzo
提取码：slzo
--来自百度网盘超级会员V3的分享

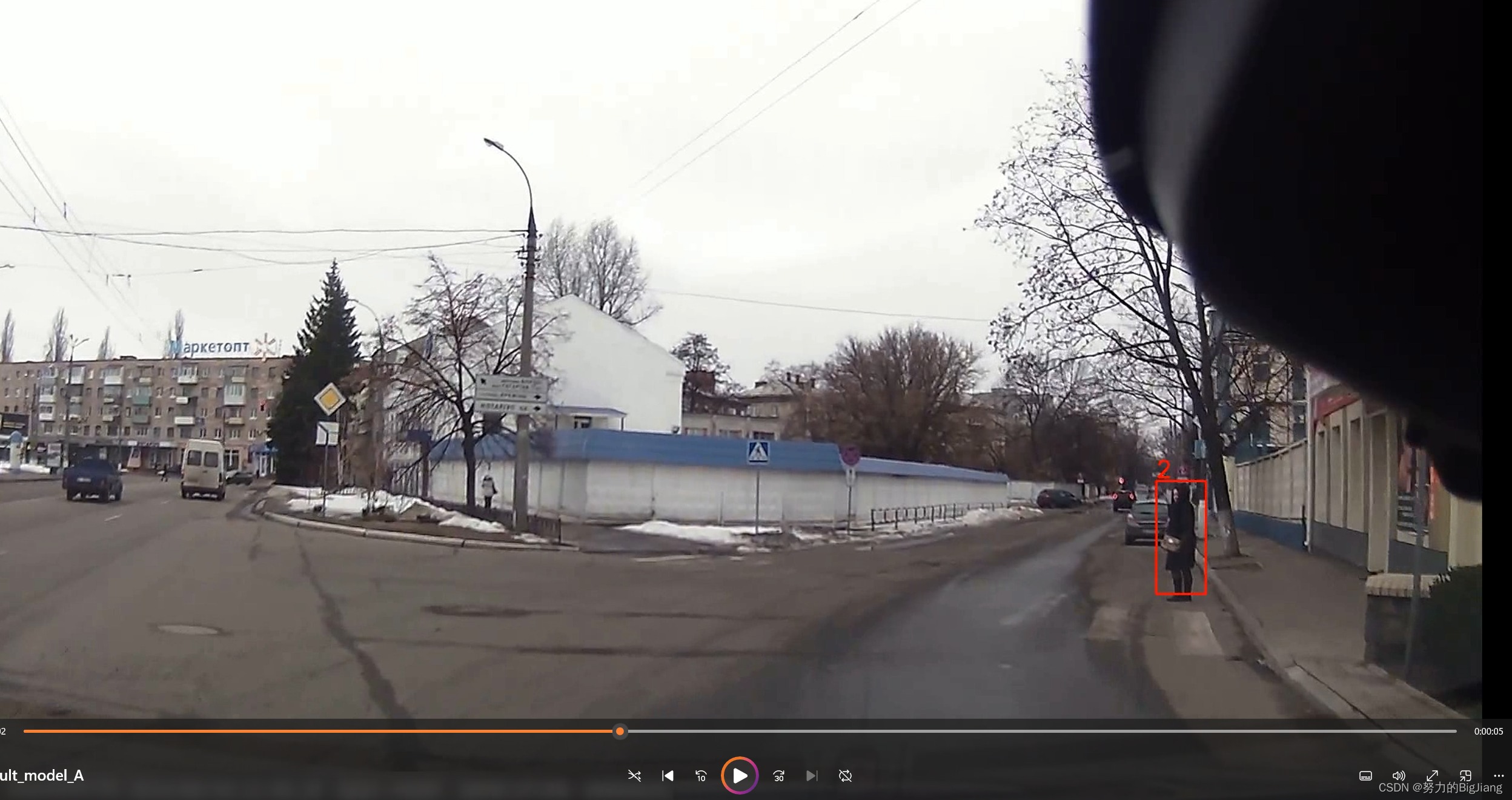

放张视频截图，当行人要穿越时，检测框会变成红色。
更新：之前链接不知道有没有过期，再贴一个视频吧，传不上来，放网盘。
通过百度网盘分享的文件：媒体1.mp4
链接：https://pan.baidu.com/s/1LlJ3Wnnl7LQwY82yZmY-YQ?pwd=enjb
提取码：enjb更新：完整的代码，感谢原作者
通过网盘分享的文件：Volvo-DataX-master.zip
链接: https://pan.baidu.com/s/1cs3U0fdE-cwVvfE_S1fjzQ?pwd=3qy8 提取码: 3qy8希望有空写一下配置显卡驱动,CUDA 这些问题。
