第十二届蓝桥杯嵌入式省赛第二场——程序设计题

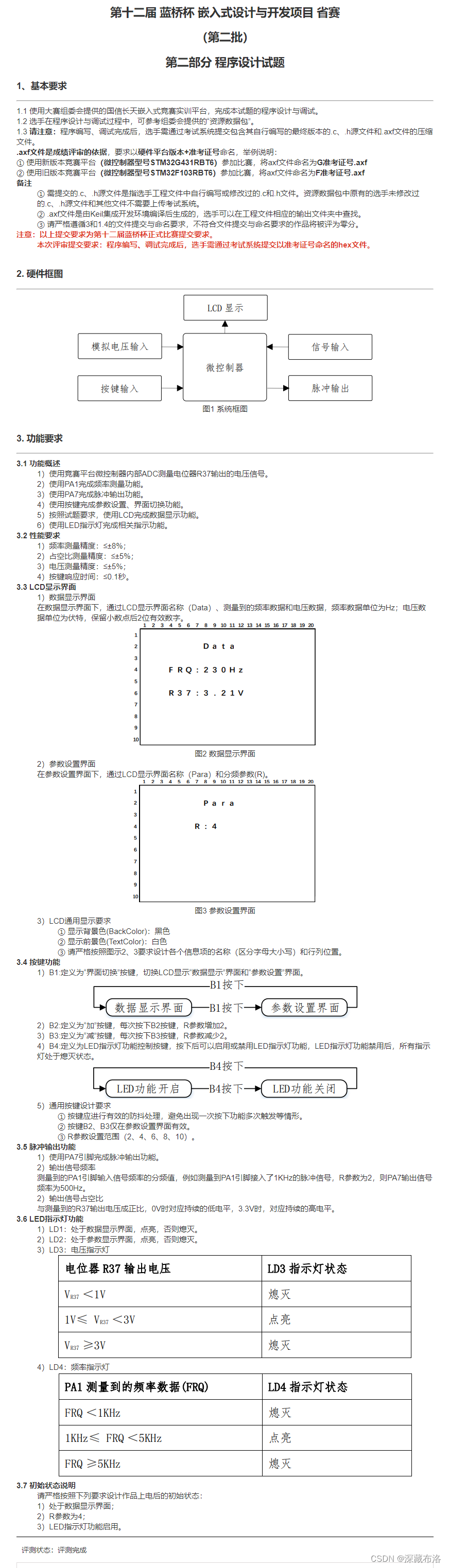

一、题目

二、CubeMX配置

1.RCC配置

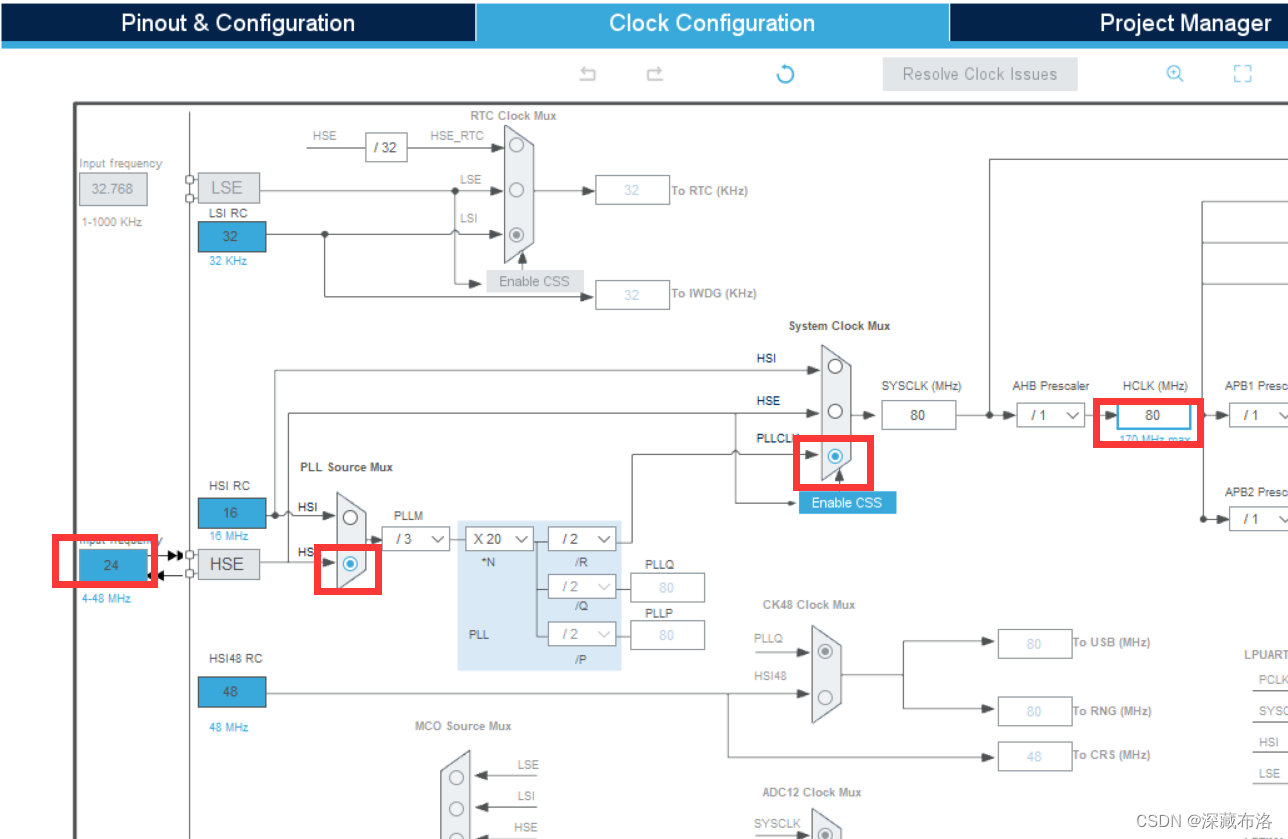

2.时钟树配置
！！！注意！！！在HCLK输入80后，需要按回车！！

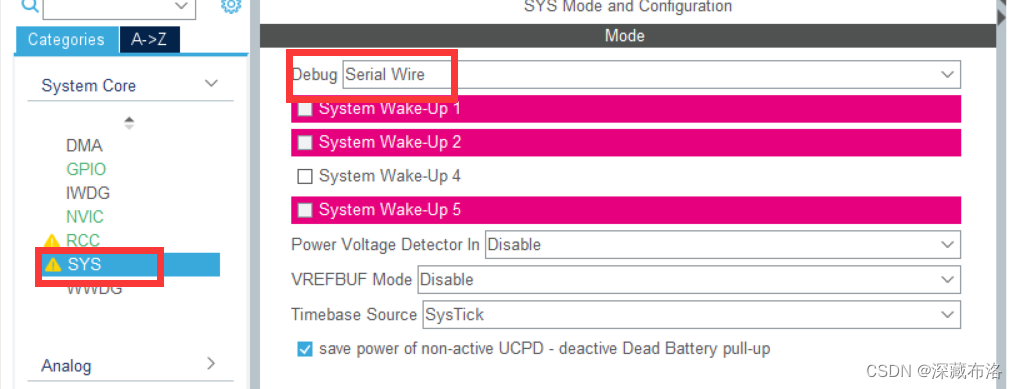

3.SYS配置

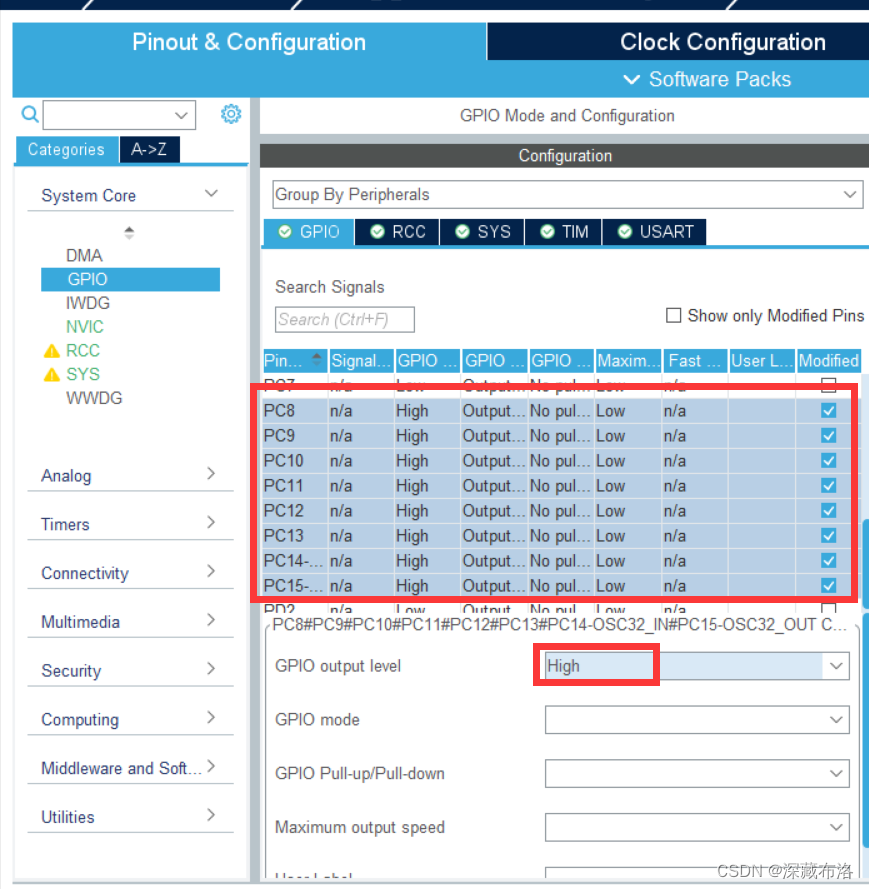

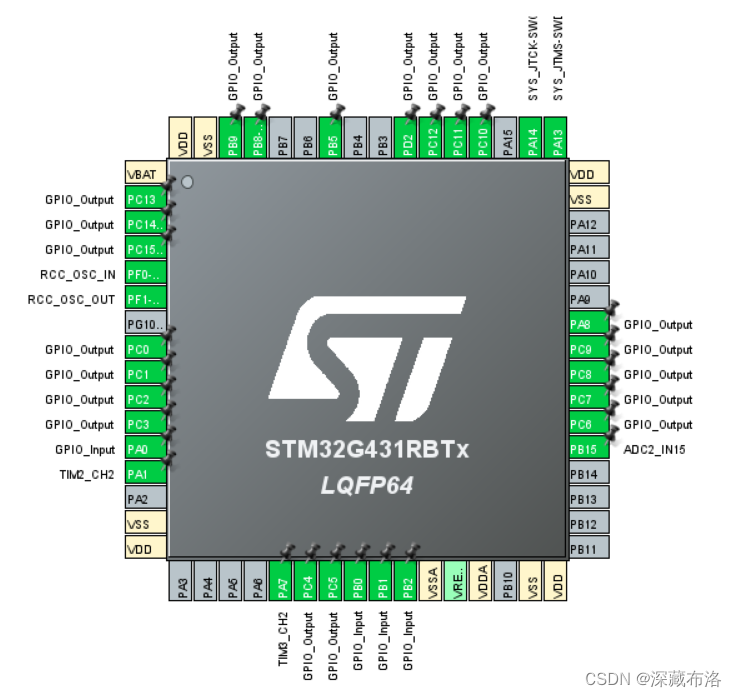

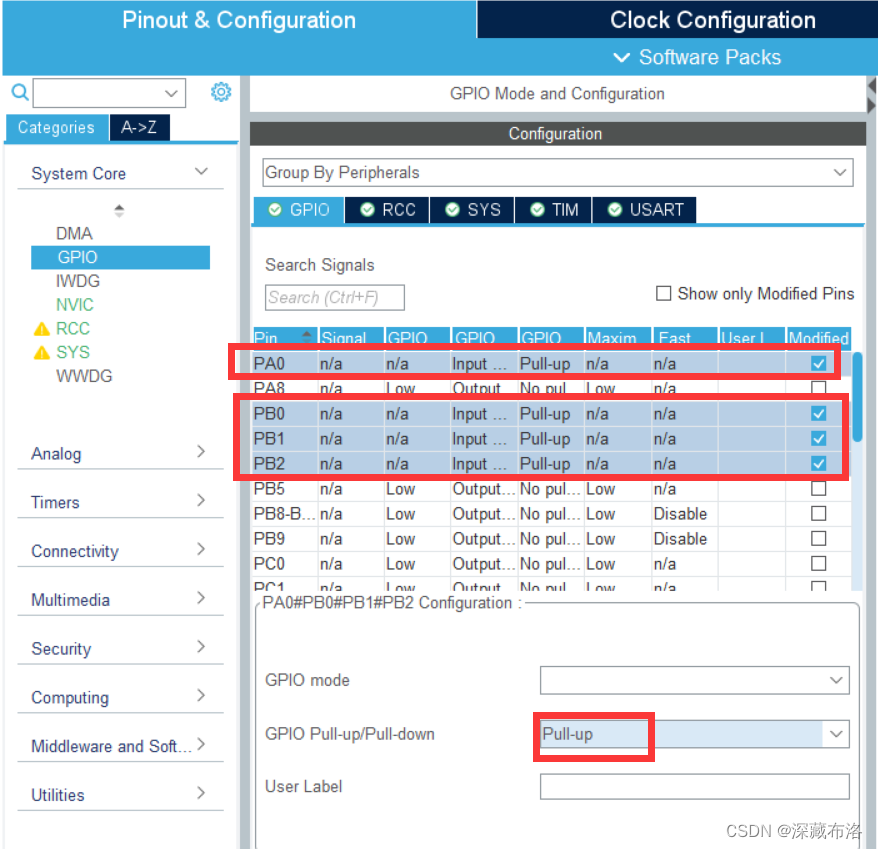

4.GPIO配置

5.时钟配置、输入捕获、PWM输出配置

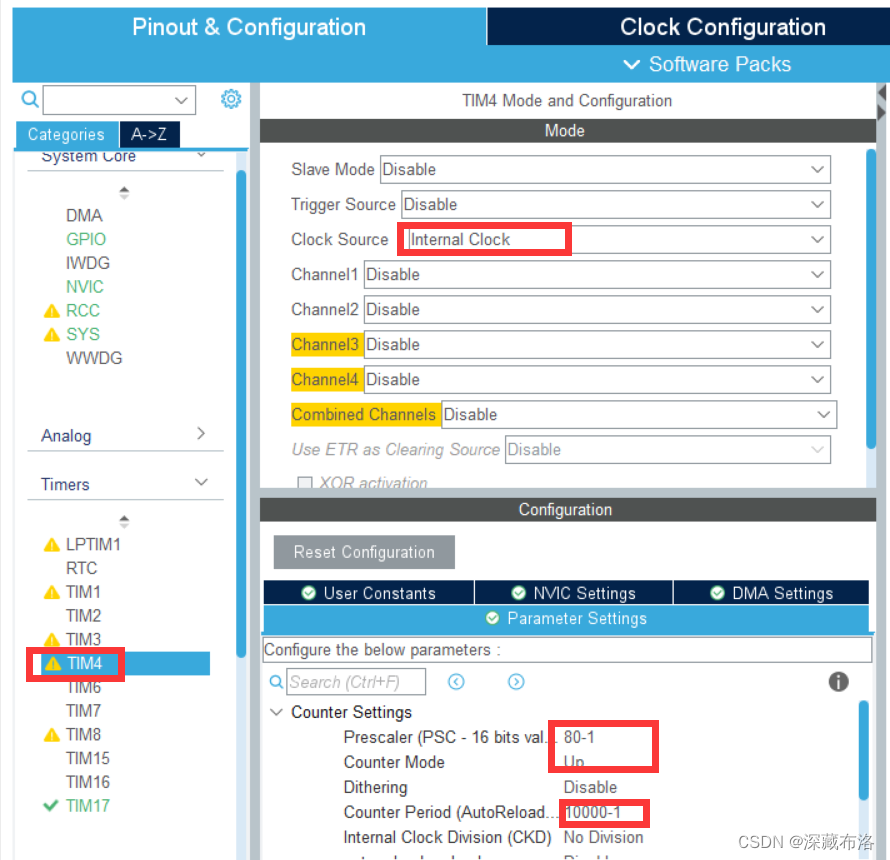

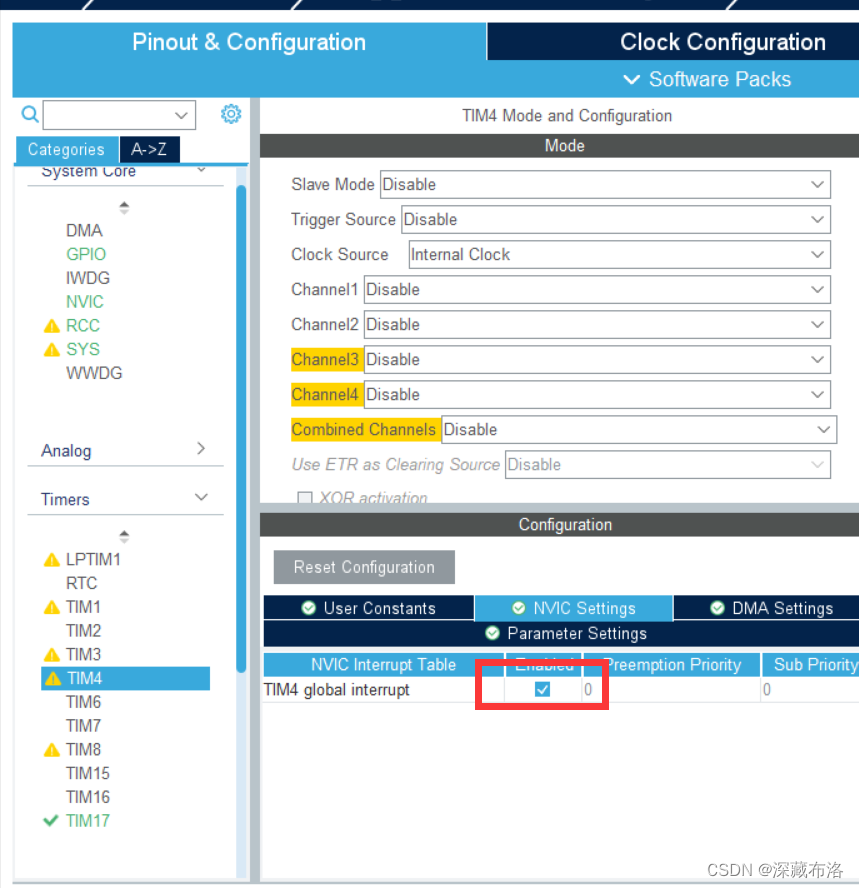

（1）配置定时器4

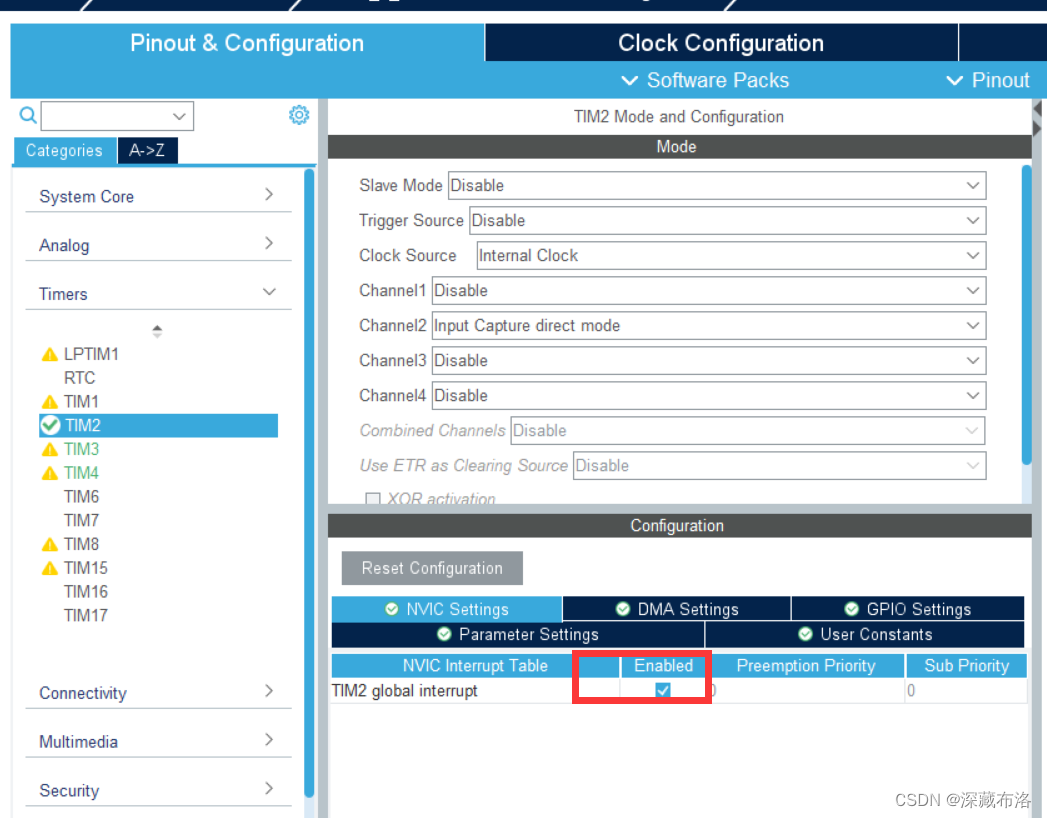

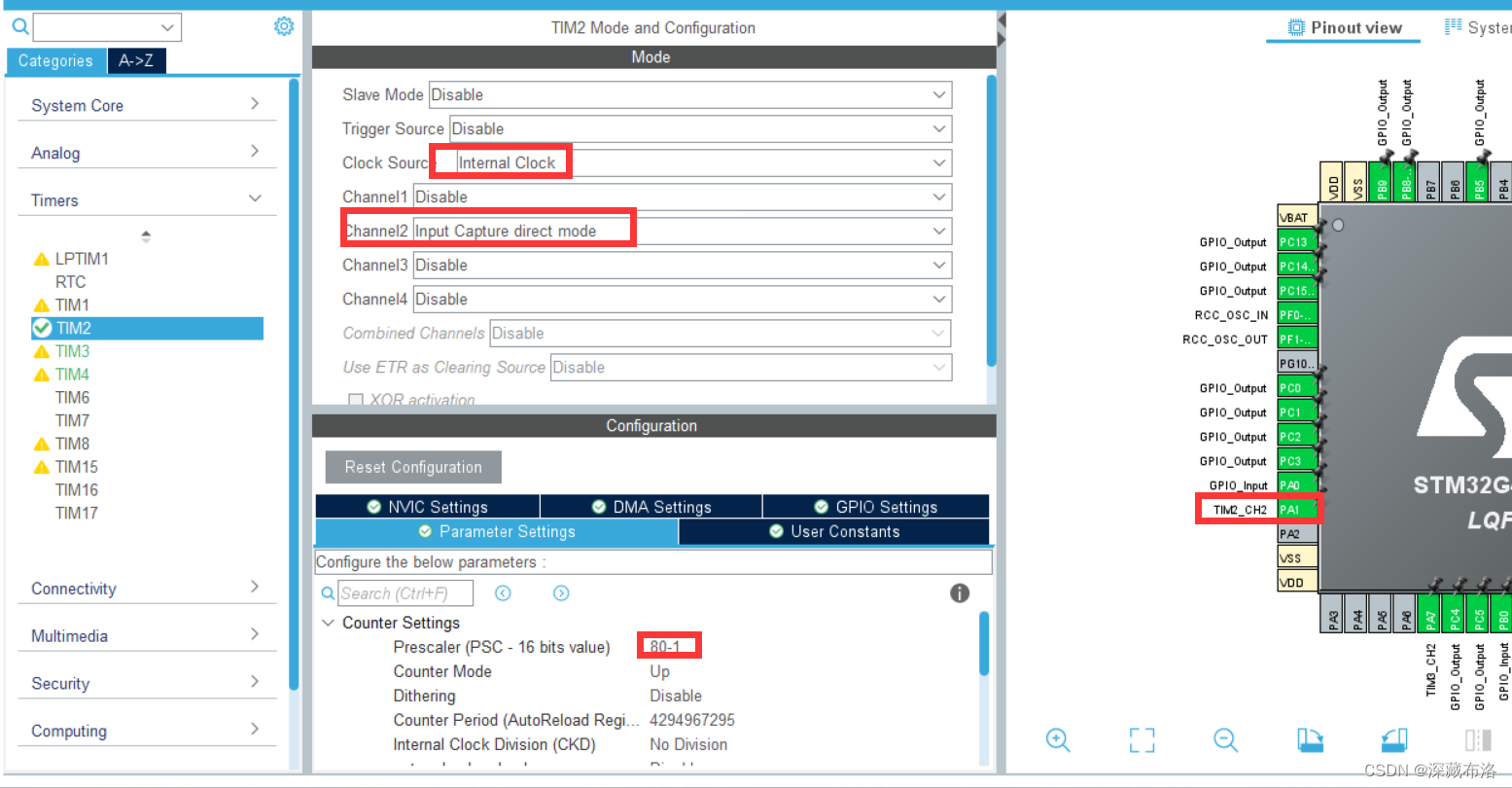

（2）配置输入捕获，配置定时器2来进行捕获输入信号，使得PA1完成频率测量

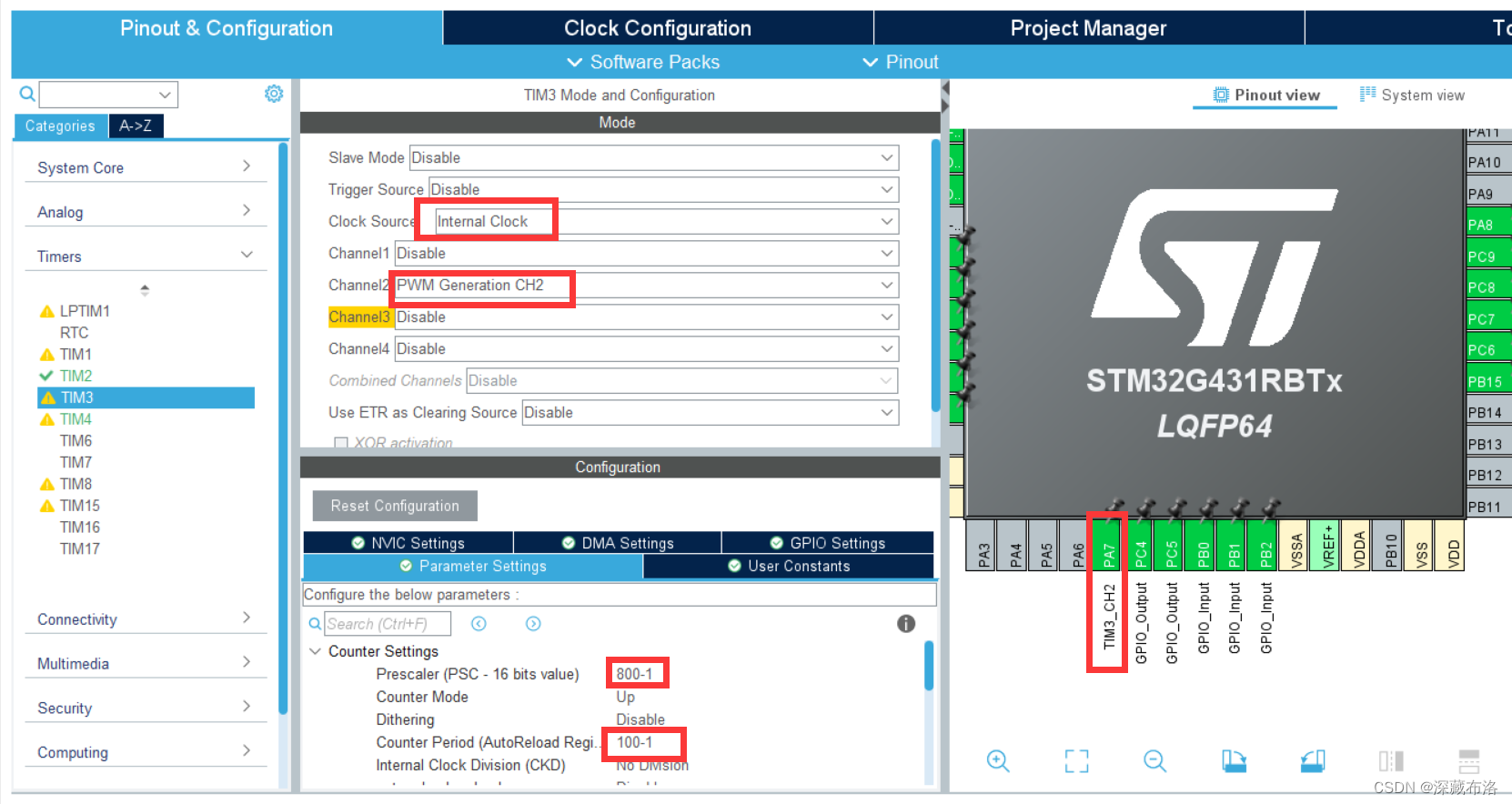

（3）配置PWM输出，配置定时器3来完成PWM脉冲输出

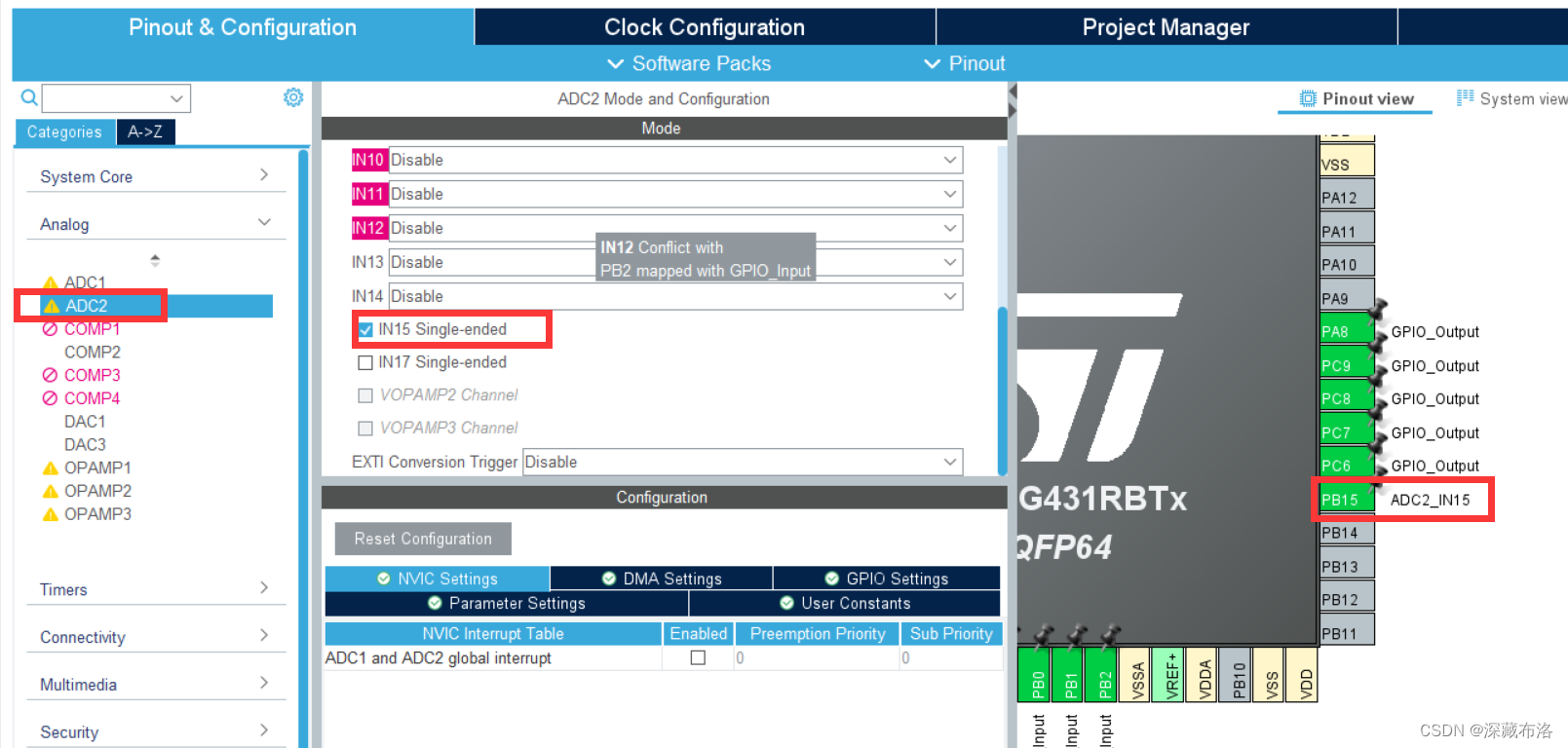

6.ADC配置

三、题目解析

在这届试题中，需要修改PWM的频率和占空比。
（1）修改占空比可用__HAL_TIM_SetCompare函数。该函数一共有三个参数，第一个参数是所用到的定时器，第二个参数是所选择的通道，第三个参数是比较值。在该试题中，占空比与电压成正比，即占空比duty=(100/3.3)*R37_v;R37_v:代表R37的输出电压
*占空比=比较值/（重装载值+1）100

__HAL_TIM_SetCompare(&htim3,TIM_CHANNEL_2,duty);

（2）修改频率可用__HAL_TIM_SET_PRESCALER函数。该函数一共有两个参数，第一个参数是所用到的定时器，第二个参数是预分频系数。
在该试题中，PWM的输出频率是输入捕获频率的分频值，即
频率=80MHZ/（重装载值+1）/（输入捕获频率/分频参数）-1；
频率=80MHZ/（预分频系数+1）/（重装载值+1）

	frq=80000000/100/(pa1_frq/R)-1;
    //预分频系数=（80000000/100/频率）-1
    __HAL_TIM_SET_PRESCALER(&htim3,frq);

四、代码实现

源码地址：

gitee:第十二届蓝桥杯嵌入式省赛第二场——gitee
github:第十二届蓝桥杯嵌入式省赛第二场——github

1.main.c

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "adc.h"
#include "tim.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

#include "stdio.h"
#include "string.h"

#include "led.h"
#include "lcd.h"
#include "myadc.h"
#include "timer.h"

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

unsigned char ucled=0x00;
unsigned char lcd_text[30];
unsigned char view=0;

__IO uint32_t uwTick_Led;
__IO uint32_t uwTick_Lcd;

double R37_V;
unsigned int R=4;

unsigned char LED_Flag=0;

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

void lcd_proc(void);
void key_proc(void);
void led_proc(void);
void PA7_change(void);


/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_ADC2_Init();
  MX_TIM2_Init();
  MX_TIM3_Init();
  MX_TIM4_Init();
  /* USER CODE BEGIN 2 */

    led_disp(ucled);

    LCD_Init();
    LCD_Clear(Black);
    LCD_SetBackColor(Black);
    LCD_SetTextColor(White);

    HAL_TIM_Base_Start_IT(&htim4);

    HAL_TIM_PWM_Start(&htim3,TIM_CHANNEL_2);

    HAL_TIM_IC_Start_IT(&htim2,TIM_CHANNEL_2);

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
      key_proc();
      lcd_proc();
      PA7_change();
      led_proc();
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  HAL_PWREx_ControlVoltageScaling(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV3;
  RCC_OscInitStruct.PLL.PLLN = 20;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = RCC_PLLQ_DIV2;
  RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV2;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

void lcd_proc(void)
{
    if((uwTick-uwTick_Lcd)<100)return;
    uwTick_Lcd=uwTick;

    switch(view)
    {
        case 0://数据显示界面
            memset(lcd_text,0,sizeof(lcd_text));
            sprintf((char *)lcd_text,"       Data          ");
            LCD_DisplayStringLine(Line1,lcd_text);

            memset(lcd_text,0,sizeof(lcd_text));
            sprintf((char *)lcd_text,"   FRQ:%dHz          ",pa1_frq);
            LCD_DisplayStringLine(Line3,lcd_text);

            memset(lcd_text,0,sizeof(lcd_text));
            sprintf((char *)lcd_text,"   R37:%0.2fV            ",R37_V);
            LCD_DisplayStringLine(Line5,lcd_text);

            break;
        case 1://参数设置界面
            memset(lcd_text,0,sizeof(lcd_text));
            sprintf((char *)lcd_text,"       Para          ");
            LCD_DisplayStringLine(Line1,lcd_text);

            memset(lcd_text,0,sizeof(lcd_text));
            sprintf((char *)lcd_text,"      R:%d          ",R);
            LCD_DisplayStringLine(Line3,lcd_text);

            break;
    }

}

void key_proc(void)
{
    if(1==key[0].single_flag)//界面切换
    {
        key[0].single_flag=0;
        view=!view;
        LCD_Clear(Black);
    }
    else if(1==key[1].single_flag)//R增加2
    {
        key[1].single_flag=0;
        R+=2;
        if(R==12)R=2;
    }
    else if(1==key[2].single_flag)//R减少2
    {
        key[2].single_flag=0;
        R-=2;
        if(R==0)R=10;
    }
    else if(1==key[3].single_flag)//启用或禁用LED灯
    {
        key[3].single_flag=0;
        LED_Flag=!LED_Flag;
    }
}

void PA7_change(void)
{
    R37_V=Get_Adc(&hadc2);

    //频率=（80MHZ）/（重装载值+1）/（预分频系数+1）
    unsigned int frq;
    frq=80000000/100/(pa1_frq/R)-1;
    //预分频系数=（80000000/100/频率）-1

    __HAL_TIM_SET_PRESCALER(&htim3,frq);

    //占空比=（（比较值）/重装载值）*100
    double duty;
    duty=(100/3.3)*R37_V;
    __HAL_TIM_SetCompare(&htim3,TIM_CHANNEL_2,duty);
}

void led_proc(void)
{
    if((uwTick-uwTick_Led)<50)return;
    uwTick_Led=uwTick;
    //LED指示灯功能启用
    if(0==LED_Flag)
    {
        if(0==view)
        {
            ucled|=0x01;
            ucled&=0xfd;
        }
        else if(1==view)
        {
            ucled|=0x02;
            ucled&=0xfe;
        }

        if((R37_V<1.0)||(R37_V>=3.0))
        {
            ucled&=0xfb;
        }
        else
        {
            ucled|=0x04;
        }

        if((pa1_frq<1000)||(pa1_frq>5000))
        {
            ucled&=0xf7;
        }
        else
        {
            ucled|=0x08;
        }

        led_disp(ucled);

    }
    //禁用LED指示灯功能
    else
    {
        led_disp(0x00);
    }
}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

2.led.c

#include "led.h"

void led_disp(unsigned char ucled)
{
    HAL_GPIO_WritePin(GPIOC,GPIO_PIN_8|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_11|GPIO_PIN_12|
                      GPIO_PIN_13|GPIO_PIN_14|GPIO_PIN_15,GPIO_PIN_SET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_SET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_RESET);

    HAL_GPIO_WritePin(GPIOC,ucled<<8,GPIO_PIN_RESET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_SET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_RESET);

}

3.led.h

#ifndef __LED_H__
#define __LED_H__

#include "main.h"

void led_disp(unsigned char ucled);


#endif

4.timer.c

#include "timer.h"

struct keys key[4]={0,0,0,0};

void keyscan(void)
{
    for(int i=0;i<4;i++)
    {
        switch(key[i].judge_sta)
        {
            case 0:
                if(0==key[i].key_sta)
                {
                    key[i].judge_sta=1;
                }
                break;
            case 1:
                if(0==key[i].key_sta)
                {
                    key[i].judge_sta=2;
                    key[i].single_flag=1;
                }
                else
                {
                    key[i].judge_sta=0;
                }
                break;
            case 2:
                if(1==key[i].key_sta)
                {
                    key[i].judge_sta=0;
                }
                break;
        }
    }
}

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
    if(htim->Instance==TIM4)
    {
        key[0].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_0);
        key[1].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_1);
        key[2].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_2);
        key[3].key_sta=HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_0);
        keyscan();
    }
}

unsigned int pa1_frq=0;
double value=0;

void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim)
{
    if(htim->Instance==TIM2)
    {
      if(htim->Channel==HAL_TIM_ACTIVE_CHANNEL_2)
      {
        value=HAL_TIM_ReadCapturedValue(htim,TIM_CHANNEL_2);

        __HAL_TIM_SetCounter(htim,0);

        HAL_TIM_IC_Start(htim,TIM_CHANNEL_2);

        pa1_frq=(80000000/80)/value;
      }
    }
}

5.timer.h

#ifndef __TIMER_H__
#define __TIMER_H__

#include "main.h"
#include "stdbool.h"

struct keys
{
    bool key_sta;
    unsigned char judge_sta;
    bool single_flag;
};

extern struct keys key[4];
extern unsigned int pa1_frq;

void keyscan(void);

#endif

6.myadc.c

#include "myadc.h"

double Get_Adc(ADC_HandleTypeDef *pin)
{
    int value;

    HAL_ADC_Start(pin);

    value=HAL_ADC_GetValue(pin);

    return value*3.3/4096.0;

}

7.myadc.h

#ifndef __MYADC_H__
#define __MYADC_H__

#include "main.h"

double Get_Adc(ADC_HandleTypeDef *pin);


#endif
