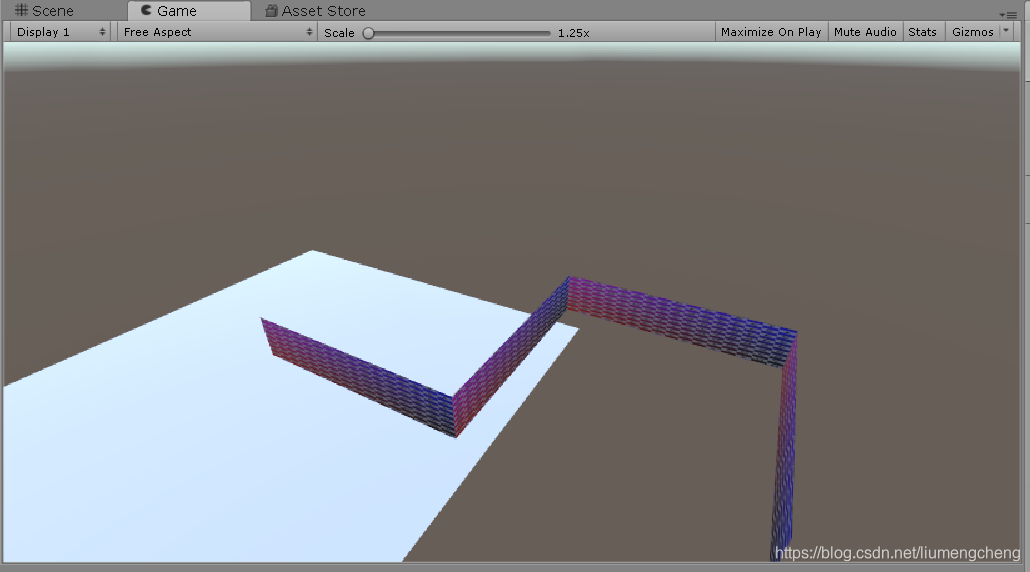

最近研究了一下GameObject的mesh和纹理，特地写了一个demo来实现根据线生成墙

代码如下：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class wasd : MonoBehaviour
{
    public Material mater;
    private GameObject gameObject;
    private GameObject simpleMesh;
    private float speed = 20f;



    private float mousespeed = 200f;

    Vector3 oldMousePosition;
    Vector3 newMousePosition;

    class GISPoint
    {
        public float x;
        public float y;
        public GISPoint(float x1,float y1)
        {
            x = x1;
            y = y1;
        }

    }

    void createWallByPoints(List<GISPoint> points,float wall_height, Mesh mesh)
    {
        float wall_height2 = 1.0f;
        float wall_length2 = 1.0f;
        int pntCount = points.Count;
        int rectCount = pntCount - 1;
        int vertCount = rectCount * 4;

        Vector3[] verts= new Vector3[vertCount];

        for (int i = 0; i < rectCount; i++)
        {
            verts[i*4] = new Vector3(points[i].x, 0, points[i].y);
            verts[i*4+1]= new Vector3(points[i].x, wall_height, points[i].y);
            verts[i*4+2] = new Vector3(points[i+1].x, wall_height, points[i+1].y);
            verts[i*4+3] = new Vector3(points[i+1].x, 0, points[i+1].y);
        }
        mesh.vertices = verts;

        int[] triangles = new int[rectCount * 2*3];

        //n=ponitIndex;   n(2n,2n+1)
        //p (3P,3P+1,3p+2)
